Transfer behavior and transaction ordering

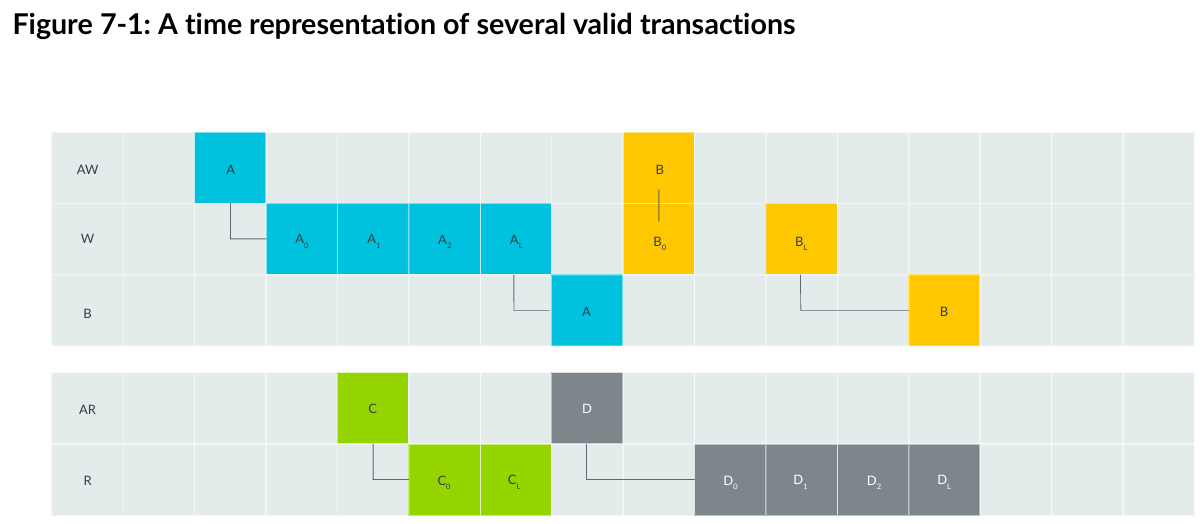

The different transactions in this example are as follows:

1. Transaction A, which is a write transaction that contains four transfers. The manager first puts
   the address A on the AW channel, then soon puts the sequence of four data transfers on the
   W channel, ending with AL where L stands for last. Once all four data transfers complete, the
   subordinate responds on the channel.
2. While transaction A was occurring, the manager also used the read channels to perform a read
   transaction, C, which contains two transfers. Because this is a read transaction, there is no
   response from the subordinate on a different channel when the transaction completes. Instead,
   the response from the subordinate is included in the R channel at the same time as the data.
3. Once transaction C completes, the manager uses the Read Address channel AR to send a
   new read address, D, to the subordinate. In this case, the response from the subordinate
   is not immediate. This is indicated by the empty time slot between D and D0. Delays like
   this can happen. The subordinate is not obliged to answer immediately. For example, the
   subordinate could be busy performing another operation, or it could take time to retrieve the
   data. Eventually, the subordinate responds with four sequential transfers, D0 through DL, on
   the R channel.
4. Finally, while the read transaction D is ongoing, the manager uses the Write Address channel,
   AW, to send a new address, B, to the subordinate for a write operation. The manager puts
   the data B0 on the W channel at the same time as it puts the corresponding address B on the
   AW channel. There is a delay in this example between data transfers B0 and BL, and another
   delay before the response B. The transaction completes only when the subordinate sends the
   response to the manager. All of these examples are valid transactions.
