初始手工分析helloworld.exe的PE文件

这里我们拥有到一个工具：winhex 15.8的版本,十六进制编辑器

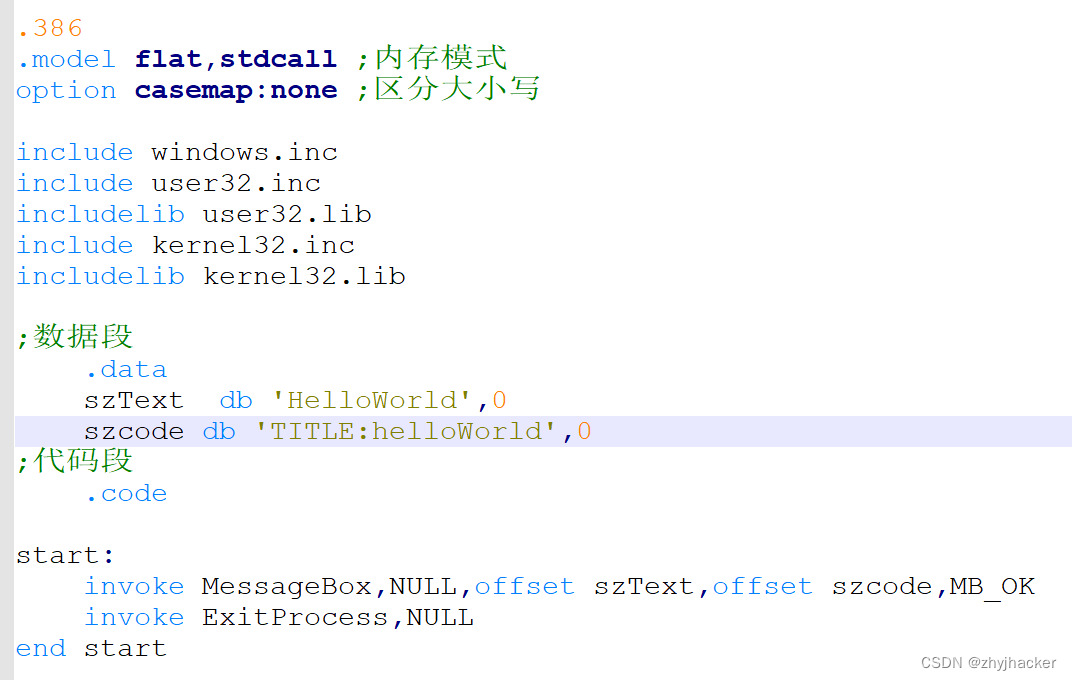

我们看一下源代码 ，源代码中在代码段中只调用了两个函数，1：messagebox(),这里传四个参数，2：ExitProcess()，传一个参数
对源代码进行编辑，得到PE文件（helloworld.exe）

用winhex打开helloworld.exe，如图2，3，4，5 是整个文件（其中填充完全是0的没有截图，关键位置的截图了）
不要急，下面我们一步一步拆分图2，3，4，5部分

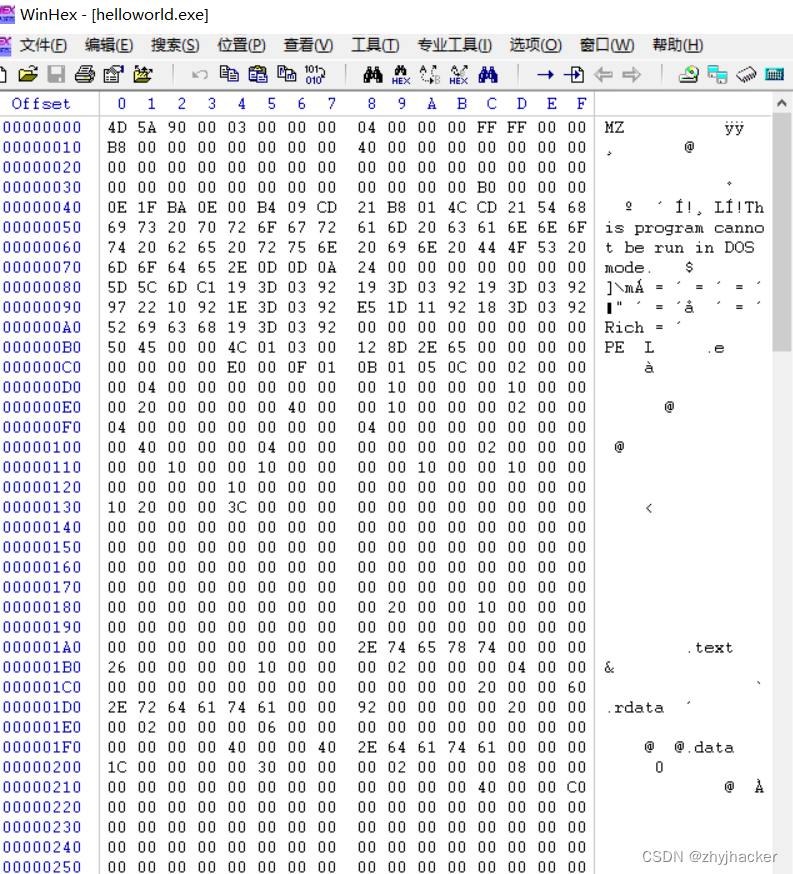

																					图2

图3

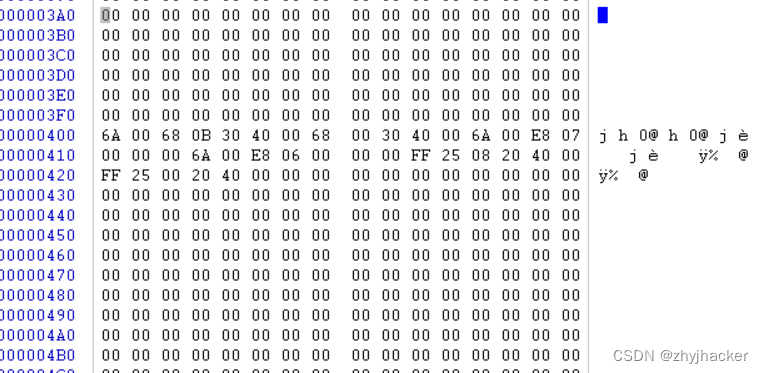

图4

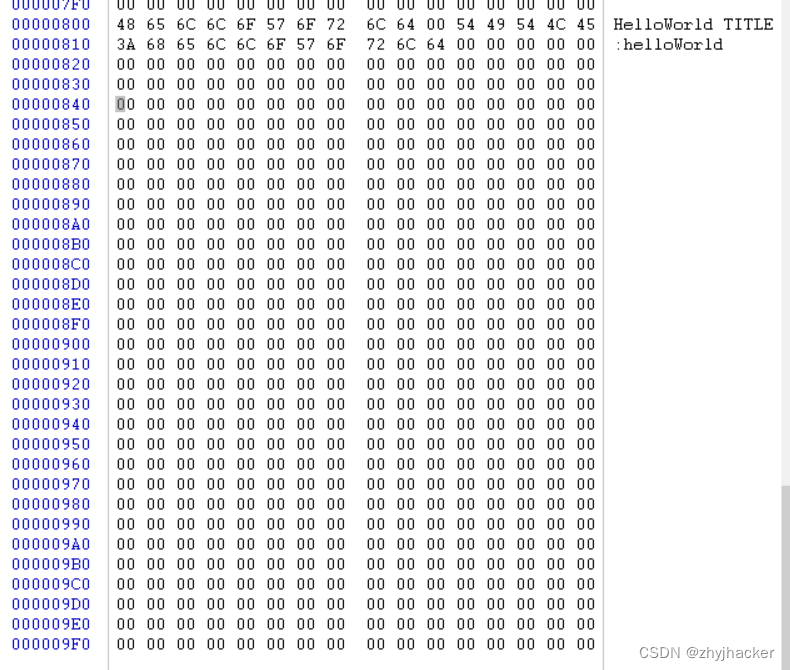

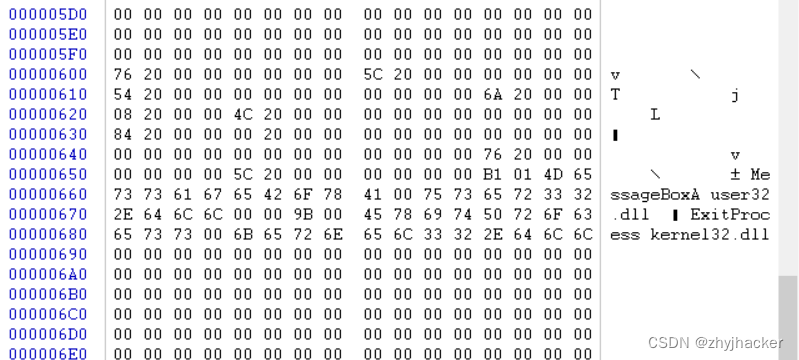

																	图5

在这里先做一个总的说明：

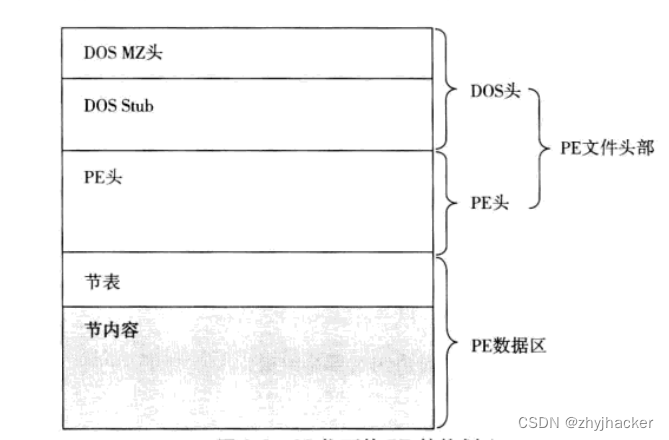

查找PE资料，得到如图PE的结构，所有我们先看PE头部（从下面图2开始）
查结构体IMAGE_DOS_HEADER得到PE头的结构
下面我们从dos头开始

dos头

typedef struct _IMAGE_DOS_HEADER {      // DOS .EXE header
    WORD   e_magic;                     // Magic number
    WORD   e_cblp;                      // Bytes on last page of file
    WORD   e_cp;                        // Pages in file
    WORD   e_crlc;                      // Relocations
    WORD   e_cparhdr;                   // Size of header in paragraphs
    WORD   e_minalloc;                  // Minimum extra paragraphs needed
    WORD   e_maxalloc;                  // Maximum extra paragraphs needed
    WORD   e_ss;                        // Initial (relative) SS value
    WORD   e_sp;                        // Initial SP value
    WORD   e_csum;                      // Checksum
    WORD   e_ip;                        // Initial IP value
    WORD   e_cs;                        // Initial (relative) CS value
    WORD   e_lfarlc;                    // File address of relocation table
    WORD   e_ovno;                      // Overlay number
    WORD   e_res[4];                    // Reserved words
    WORD   e_oemid;                     // OEM identifier (for e_oeminfo)
    WORD   e_oeminfo;                   // OEM information; e_oemid specific
    WORD   e_res2[10];                  // Reserved words
    LONG   e_lfanew;                    // File address of new exe header
  } IMAGE_DOS_HEADER, *PIMAGE_DOS_HEADER;

在PE的头部中只有两个字段是最重要的，其他的可以不用管，这两个分别是e_magic，e_lfanew，前者指明是DOS文件，后者指明PE的首地址，或者说PE标志

PE头

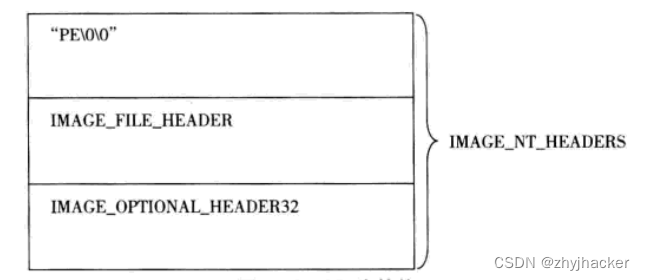

PE有由三个部分组成，又叫NT头

typedef struct _IMAGE_NT_HEADERS {
    DWORD Signature;
    IMAGE_FILE_HEADER FileHeader;
    IMAGE_OPTIONAL_HEADER32 OptionalHeader;
} IMAGE_NT_HEADERS32, *PIMAGE_NT_HEADERS32;



004000B0    50 45 00 00      ASCII "PE"           ; PE signature (PE)


其中 DWORD Signature; 就是PE的头地址

IMAGE_FILE_HEADER FileHeader;为文件头结构体

IMAGE_OPTIONAL_HEADER32 OptionalHeader;为扩展头结构体

文件头结构体

typedef struct _IMAGE_FILE_HEADER {
    WORD    Machine;   2H
    WORD    NumberOfSections;  4H
    DWORD   TimeDateStamp;    8H
    DWORD   PointerToSymbolTable;  12H
    DWORD   NumberOfSymbols;	10H
    WORD    SizeOfOptionalHeader;	12H
    WORD    Characteristics;		14H
} IMAGE_FILE_HEADER, *PIMAGE_FILE_HEADER;
004000B4    4C01        DW 014C              ; Machine = IMAGE_FILE_MACHINE_I386
004000B6    0300        DW 0003              ;  NumberOfSections = 0x3
004000B8    FD002465    DD 652400FD          ;  TimeDateStamp = 0x652400FD
004000BC    00000000    DD 00000000          ;  PointerToSymbolTable = 0x0
004000C0    00000000    DD 00000000          ;  NumberOfSymbols = 0x0
004000C4    E000        DW 00E0              ;  SizeOfOptionalHeader = E0 (224.)
004000C6    0F01        DW 010F              ;  Characteristics = EXECUTABLE_IMAGE|32BIT_MACHINE|RELOCS_STRIPPED|LINE_NUMS_STRIPPED|LOCAL_SYMS_STRIPPED


扩展头结构体
扩展头结构体32位和64位的还不一样这里暂时介绍32位的结构体(64位的多16个字节并且还有点小小的区别)

typedef struct _IMAGE_OPTIONAL_HEADER {
    WORD    Magic;
    BYTE    MajorLinkerVersion;
    BYTE    MinorLinkerVersion;
    DWORD   SizeOfCode;
    DWORD   SizeOfInitializedData;
    DWORD   SizeOfUninitializedData;
    DWORD   AddressOfEntryPoint;  程序执行入口RVA地址 必须
    DWORD   BaseOfCode;　　　
    DWORD   BaseOfData;
    DWORD   ImageBase;	内存中基址
    DWORD   SectionAlignment;　　　
    DWORD   FileAlignment;　　　
    WORD    MajorOperatingSystemVersion;　
    WORD    MinorOperatingSystemVersion;
    WORD    MajorImageVersion;　可运行的操作系统的主版本号  需要
    WORD    MinorImageVersion;
    WORD    MajorSubsystemVersion;
    WORD    MinorSubsystemVersion;
    DWORD   Win32VersionValue;
    DWORD   SizeOfImage;　　　；装入内存中的总大小  需要
    DWORD   SizeOfHeaders;　　　所有头＋区块表的尺寸的大小 需要
    DWORD   CheckSum;
    WORD    Subsystem;    需要
    WORD    DllCharacteristics;
    DWORD   SizeOfStackReserve;
    DWORD   SizeOfStackCommit;
    DWORD   SizeOfHeapReserve;堆
    DWORD   SizeOfHeapCommit;堆
    DWORD   LoaderFlags;
    DWORD   NumberOfRvaAndSizes;   需要 64位必须要16个全要，32位的序号2个也上
    IMAGE_DATA_DIRECTORY DataDirectory[IMAGE_NUMBEROF_DIRECTORY_ENTRIES];
} IMAGE_OPTIONAL_HEADER32, *PIMAGE_OPTIONAL_HEADER32;  60H

004000C8    0B01             DW 010B              ; MagicNumber = PE32　ROM映像文件：（０１０７ｈ）
004000CA    05               DB 05                ;  MajorLinkerVersion = 0x5
004000CB    0C               DB 0C                ;  MinorLinkerVersion = C (12.)
004000CC    00020000         DD 00000200          ;  SizeOfCode = 200 (512.)
004000D0    00040000         DD 00000400          ;  SizeOfInitializedData = 400 (1024.)	12h
004000D4    00000000         DD 00000000          ;  SizeOfUninitializedData = 0x0 	10h
004000D8    00100000         DD 00001000          ;  AddressOfEntryPoint = 0x1000	14
004000DC    00100000         DD 00001000          ;  BaseOfCode = 0x1000
004000E0    00200000         DD 00002000          ;  BaseOfData = 0x2000
004000E4    00004000         DD 00400000          ; ImageBase = 0x400000
004000E8    00100000         DD 00001000          ;  SectionAlignment = 0x1000
004000EC    00020000         DD 00000200          ;  FileAlignment = 0x200
004000F0    0400             DW 0004              ;  MajorOSVersion = 0x4
004000F2    0000             DW 0000              ;  MinorOSVersion = 0x0
004000F4    0000             DW 0000              ;  MajorImageVersion = 0x0
004000F6    0000             DW 0000              ;  MinorImageVersion = 0x0
004000F8    0400             DW 0004              ;  MajorSubsystemVersion = 0x4
004000FA    0000             DW 0000              ;  MinorSubsystemVersion = 0x0
004000FC    00000000         DD 00000000          ;  Reserved
00400100    00400000         DD 00004000          ;  SizeOfImage = 4000 (16384.)
00400104    00040000         DD 00000400          ;  SizeOfHeaders = 400 (1024.)
00400108    00000000         DD 00000000          ;  CheckSum = 0x0
0040010C    0200             DW 0002              ;  Subsystem = IMAGE_SUBSYSTEM_WINDOWS_GUI
0040010E    0000             DW 0000              ;  DLLCharacteristics = 0x0
00400110    00001000         DD 00100000          ;  SizeOfStackReserve = 100000 (1048576.)
00400114    00100000         DD 00001000          ;  SizeOfStackCommit = 1000 (4096.)
00400118    00001000         DD 00100000          ;  SizeOfHeapReserve = 100000 (1048576.)
0040011C    00100000         DD 00001000          ;  SizeOfHeapCommit = 1000 (4096.)
00400120    00000000         DD 00000000          ;  LoaderFlags = 0x0
00400124    10000000         DD 00000010          ;  NumberOfRvaAndSizes = 10 (16.)（数据目录项，这里３２位可可以等于2，但６４位不可以）

以上就是PE节表之前的内容,DOS头+PE头的全部内容

下面看节表的内容

typedef struct _IMAGE_SECTION_HEADER {
    BYTE    Name[IMAGE_SIZEOF_SHORT_NAME];
    union {
            DWORD   PhysicalAddress;
            DWORD   VirtualSize;
    } Misc;
    DWORD   VirtualAddress;
    DWORD   SizeOfRawData;
    DWORD   PointerToRawData;
    DWORD   PointerToRelocations;
    DWORD   PointerToLinenumbers;
    WORD    NumberOfRelocations;
    WORD    NumberOfLinenumbers;
    DWORD   Characteristics;
} IMAGE_SECTION_HEADER, *PIMAGE_SECTION_HEADER;

004001A8    2E 74 65 78 74 0>ASCII ".text"        ; SECTION    （可以改的）
004001B0    24000000         DD 00000024          ;  VirtualSize = 24 (36.)；内存中大小(内存对齐前的长度）可以改的
004001B4    00100000         DD 00001000          ;  VirtualAddress = 0x1000；内存中偏移（必须要）
004001B8    00020000         DD 00000200          ;  SizeOfRawData = 200 (512.)文件中大小(文件对齐后的长度)这个不能改为0即可以
004001BC    00040000         DD 00000400          ;  PointerToRawData = 0x400；文件中大小(文件对齐后的长度)必须要
004001C0    00000000         DD 00000000          ;  PointerToRelocations = 0x0
004001C4    00000000         DD 00000000          ;  PointerToLineNumbers = 0x0
004001C8    0000             DW 0000              ;  NumberOfRelocations = 0x0
004001CA    0000             DW 0000              ;  NumberOfLineNumbers = 0x0
004001CC    20000060         DD 60000020          ;  Characteristics = CODE|EXECUTE|READ
004001D0    2E 72 64 61 74 6>ASCII ".rdata"       ; SECTION
004001D8    92000000         DD 00000092          ;  VirtualSize = 92 (146.)
004001DC    00200000         DD 00002000          ;  VirtualAddress = 0x2000
004001E0    00020000         DD 00000200          ;  SizeOfRawData = 200 (512.)
004001E4    00060000         DD 00000600          ;  PointerToRawData = 0x600
004001E8    00000000         DD 00000000          ;  PointerToRelocations = 0x0
004001EC    00000000         DD 00000000          ;  PointerToLineNumbers = 0x0
004001F0    0000             DW 0000              ;  NumberOfRelocations = 0x0
004001F2    0000             DW 0000              ;  NumberOfLineNumbers = 0x0
004001F4    40000040         DD 40000040          ;  Characteristics = INITIALIZED_DATA|READ
004001F8    2E 64 61 74 61 0>ASCII ".data"        ; SECTION
00400200    0B000000         DD 0000000B          ;  VirtualSize = B (11.)
00400204    00300000         DD 00003000          ;  VirtualAddress = 0x3000
00400208    00020000         DD 00000200          ;  SizeOfRawData = 200 (512.)
0040020C    00080000         DD 00000800          ;  PointerToRawData = 0x800
00400210    00000000         DD 00000000          ;  PointerToRelocations = 0x0
00400214    00000000         DD 00000000          ;  PointerToLineNumbers = 0x0
00400218    0000             DW 0000              ;  NumberOfRelocations = 0x0
0040021A    0000             DW 0000              ;  NumberOfLineNumbers = 0x0
0040021C    400000C0         DD C0000040          ;  Characteristics = INITIALIZED_DATA|READ|WRITE

暂时只介绍到这里不过现在只是粗略的介绍了一下还没仔细分析这里面的逻辑
