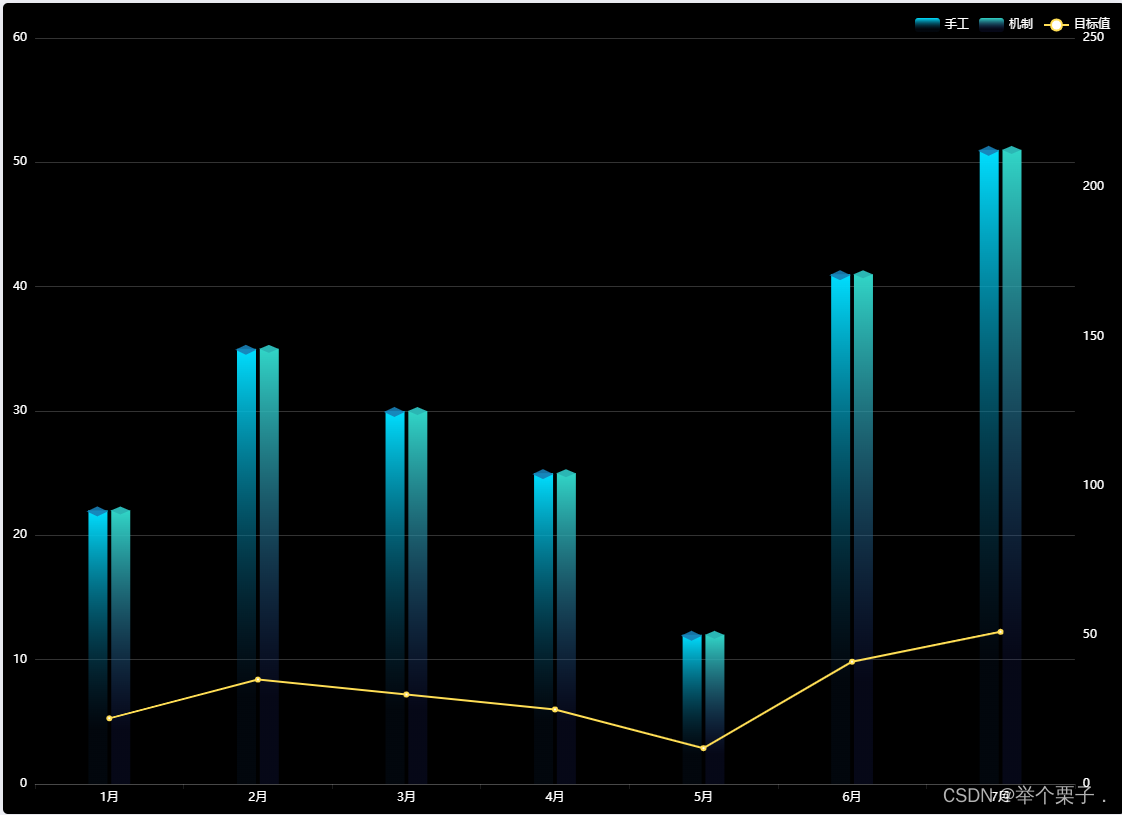

echars的3D柱状图+折线 复制到echarts运行即用

const color1 = {
  type: 'linear',
  x: 1,
  y: 0,
  x2: 1,
  y2: 1,
  colorStops: [
    {
      offset: 0,
      color: '#00DEFF'
    },
    {
      offset: 0.8,
      color: 'rgba(9, 33, 63, 0.2)'
    }
  ]
};

const color2 = {
  type: 'linear',
  x: 1,
  y: 0,
  x2: 1,
  y2: 1,
  colorStops: [
    {
      offset: 0,
      color: '#31D5C7'
    },
    {
      offset: 0.8,
      color: 'rgba(29, 39, 115,0.2)'
    }
  ]
};

const industryData = [22, 35, 30, 25, 12, 41, 51];
var option = {
  backgroundColor: '#000',
  legend: {
    data: ['手工', '机制', '目标值'],
    x: 'right',
    textStyle: {
      // 图例文字大小颜色
      fontSize: 12,
      color: '#ffffff'
    }
  },
  tooltip: {
    trigger: 'axis',
    axisPointer: {
      type: 'shadow' // 'shadow' as default; can also be 'line' or 'shadow'
    }
  },
  grid: {
    left: '0%',
    right: '1%',
    bottom: '0%',
    top: '25px',
    containLabel: true
  },
  xAxis: {
    type: 'category',
    data: ['1月', '2月', '3月', '4月', '5月', '6月', '7月'],
    axisLabel: {
      color: '#fff'
    },
    axisLine: {
      show: true,
      lineStyle: {
        color: 'rgba(255, 255, 2555, 0.1)'
      }
    }
  },
  yAxis: [
    {
      type: 'value',
      axisLabel: {
        color: '#fff'
      },
      splitLine: {
        show: true,
        lineStyle: {
          color: 'rgba(255,255,255,0.2)'
        }
      }
    },
    {
      type: 'value',
      min: 0,
      max: 250,
      interval: 50,
      axisLabel: {
        color: '#fff'
      },
      splitLine: {
        show: false,
        lineStyle: {
          color: 'rgba(255,255,255,0.2)'
        }
      }
    }
  ],
  series: [
    {
      itemStyle: {
        normal: {
          // 这里是用一个柱子，从左到右的渐变。也可以用两个柱子做从上往下的渐变，和上面的透明渐变一样用法
          color:color1
        }
      },
      data: industryData,
      type: 'bar',
      barWidth: 19,
      z: 2,
      name: '手工'
    },
    {
      z: 3,
      name: '手工',
      type: 'pictorialBar',
      // 柱子顶部
      symbolPosition: 'end',
      data: industryData,
      symbol: 'diamond',
      symbolOffset: ['-12', -11],
      symbolRotate: 90,
      symbolSize: [10, 21],
      itemStyle: {
        normal: {
          borderWidth: 2,
          color: 'rgba(24, 126, 181,0.9)'
        }
      },
      tooltip: {
        show: false
      }
    },

    {
      itemStyle: {
        normal: {
          // 这里是用一个柱子，从左到右的渐变。也可以用两个柱子做从上往下的渐变，和上面的透明渐变一样用法
          color:color2
        }
      },
      data: industryData,
      type: 'bar',
      barWidth: 19,
      z: 2,
      name: '机制'
    },
    {
      z: 3,
      name: '机制',
      type: 'pictorialBar',
      // 柱子顶部
      symbolPosition: 'end',
      data: industryData,
      symbol: 'diamond',
      symbolOffset: [11, -11],
      symbolRotate: 90,
      symbolSize: [8, 19],
      itemStyle: {
        normal: {
          borderWidth: 2,
          color: '#2BB6B4'
        }
      },
      tooltip: {
        show: false
      }
    },

    {
      name: '目标值',
      type: 'line',
      yAxisIndex: 1,
      data: industryData,
      itemStyle: {
        normal: {
          color: '#FFDE55', //圈圈的颜色
          lineStyle: {
            color: '#FFDE55' //线的颜色
          }
        }
      }
    }
  ]
};
