rabbitmq--DirectExchange(直连交换机)

路由模式

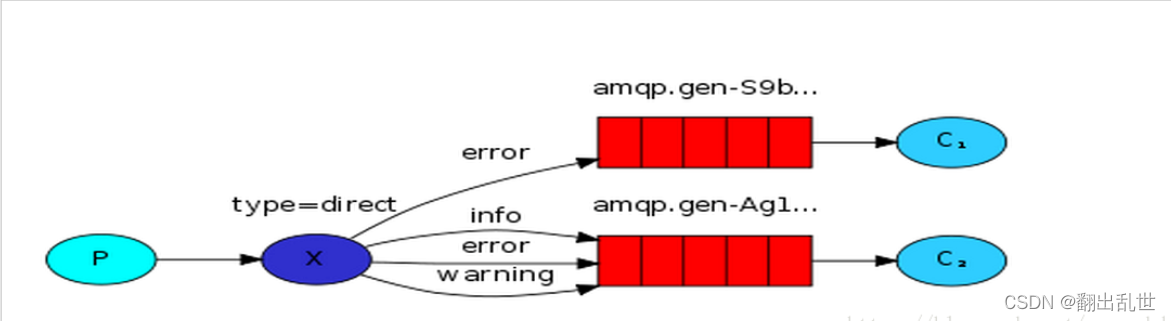

Direct Exchange

将消息队列queue绑定到 DirectExchange 交换机上，给定一个路由key ,生产者发送消息到交换机，消费者通过监听获取消息，开发中注意key一直，否则出现不匹配异常

rabbitmq 实现了ampq
pom 用到的依赖

<!--rabbitmq-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>

application.yml

spring:
  rabbitmq:
    host: 172.01.01.68
    port: 5672
    username: test
    password:test

配置文件

@Configuration
public class AmqpConfig {

	public static final String QUEUE = "QUEUE";
	public static final String EXCHANGE = "EXCHANGE";
	public static final String ROUNTING = "ROUNTING";

	//注入队列
	@Bean
	public Queue testDirectQueue() {
		//注意队列的3个参数
		//durable 是否持久化 一般为开启状态
		//exclusive: 是否开启当前创建连接
		//autodelete: 是否自动删除
		return new Queue(QUEUE, true);
	}

	//注入交换机
	@Bean
	DirectExchange TestDirectExchage() {

		return new DirectExchange(EXCHANGE, true, false);
	}

	//队列绑定交换机 ，
	Binding bindingDirect() {
		return BindingBuilder.bind(testDirectQueue()).to(TestDirectExchage()).with(ROUNTING);
	}

Controller 写消息 provider

	@Autowirte
	RabbitTemplate rabbitTemplate;

	@GetMapping("/Test")
	public String TestMessageAck() {
		rabbitTemplate.convertAndSend("non-existent-exchange", "TestDirectRouting", "数据数据");
		return "ok";

	}

消息消费者 consumer

@Controller
public class DirectConsumer{

@RabbitHandler
@RabbitListener(queues =ROUNTING)
public void test(String  test){
	System.out.println(test);
	}
}
