spingcloud gateway 请求流程 源码分析

一，源起

@SpringBootApplication
public class DemoApplication {
    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }
}

进入了SpringApplication.run（）

二,SpringApplication

	public static ConfigurableApplicationContext run(Class<?> primarySource, String... args) {
		return run(new Class<?>[] { primarySource }, args);
	}
	public static ConfigurableApplicationContext run(Class<?>[] primarySources, String[] args) {
		return new SpringApplication(primarySources).run(args);
	}
	//进入到run 方法里，下节再重点说这个方法，本次先中带你看context相关
public ConfigurableApplicationContext run(String... args) {
		StopWatch stopWatch = new StopWatch();
		stopWatch.start();
		ConfigurableApplicationContext context = null;
		Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
		configureHeadlessProperty();
		SpringApplicationRunListeners listeners = getRunListeners(args);
		listeners.starting();
		try {
			ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
			ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
			configureIgnoreBeanInfo(environment);
			Banner printedBanner = printBanner(environment);
			//生成context
			context = createApplicationContext();
			exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
					new Class[] { ConfigurableApplicationContext.class }, context);
			prepareContext(context, environment, listeners, applicationArguments, printedBanner);
			refreshContext(context);
			afterRefresh(context, applicationArguments);
			stopWatch.stop();
			if (this.logStartupInfo) {
				new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
			}
			listeners.started(context);
			callRunners(context, applicationArguments);
		}
		catch (Throwable ex) {
			handleRunFailure(context, ex, exceptionReporters, listeners);
			throw new IllegalStateException(ex);
		}

		try {
			listeners.running(context);
		}
		catch (Throwable ex) {
			handleRunFailure(context, ex, exceptionReporters, null);
			throw new IllegalStateException(ex);
		}
		return context;
	}
	//生成context
	protected ConfigurableApplicationContext createApplicationContext() {
		Class<?> contextClass = this.applicationContextClass;
		if (contextClass == null) {
			try {
				switch (this.webApplicationType) {
				case SERVLET:
					contextClass = Class.forName(DEFAULT_SERVLET_WEB_CONTEXT_CLASS);
					break;
				case REACTIVE:
					contextClass = Class.forName(DEFAULT_REACTIVE_WEB_CONTEXT_CLASS);
					break;
				default:
					contextClass = Class.forName(DEFAULT_CONTEXT_CLASS);
				}
			}
			catch (ClassNotFoundException ex) {
				throw new IllegalStateException(
						"Unable create a default ApplicationContext, please specify an ApplicationContextClass", ex);
			}
		}
		return (ConfigurableApplicationContext) BeanUtils.instantiateClass(contextClass);
	}
	//reactive 模式下的的context类型
	public static final String DEFAULT_REACTIVE_WEB_CONTEXT_CLASS = "org.springframework."
			+ "boot.web.reactive.context.AnnotationConfigReactiveWebServerApplicationContext";

可以看到，使用的是AnnotationConfigReactiveWebServerApplicationContext这个类

三，AnnotationConfigReactiveWebServerApplicationContext

public class AnnotationConfigReactiveWebServerApplicationContext extends ReactiveWebServerApplicationContext
		implements AnnotationConfigRegistry {
		//重写了一些方法
		@Override
	public final void scan(String... basePackages) {
		Assert.notEmpty(basePackages, "At least one base package must be specified");
		this.basePackages = basePackages;
	}

	@Override
	protected void prepareRefresh() {
		this.scanner.clearCache();
		super.prepareRefresh();
	}

该类重写了一些父类的方法，不是重点，我们看他的父类ReactiveWebServerApplicationContext

public class ReactiveWebServerApplicationContext extends GenericReactiveWebApplicationContext
		implements ConfigurableWebServerApplicationContext {
	//server管理器
	private volatile WebServerManager serverManager;
	//实现onRefresh方法，创建server,在SpringAppliction里run()时被调用
@Override
	protected void onRefresh() {
		super.onRefresh();
		try {
			createWebServer();
		}
		catch (Throwable ex) {
			throw new ApplicationContextException("Unable to start reactive web server", ex);
		}
	}
	//创建webServer
	private void createWebServer() {
		WebServerManager serverManager = this.serverManager;
		if (serverManager == null) {
			String webServerFactoryBeanName = getWebServerFactoryBeanName();
			//获取webServerFactory
			ReactiveWebServerFactory webServerFactory = getWebServerFactory(webServerFactoryBeanName);
			boolean lazyInit = getBeanFactory().getBeanDefinition(webServerFactoryBeanName).isLazyInit();
			//生成webServer ,并注入webServerFactory，httpHandler
			this.serverManager = new WebServerManager(this, webServerFactory, this::getHttpHandler, lazyInit);
			getBeanFactory().registerSingleton("webServerGracefulShutdown",
					new WebServerGracefulShutdownLifecycle(this.serverManager));
			getBeanFactory().registerSingleton("webServerStartStop",
					new WebServerStartStopLifecycle(this.serverManager));
		}
		initPropertySources();
	}
	//生成HttpHandler供WebServer使用
protected HttpHandler getHttpHandler() {
		// Use bean names so that we don't consider the hierarchy
		//获取所有HttpHandler实例的名称
		String[] beanNames = getBeanFactory().getBeanNamesForType(HttpHandler.class);
		if (beanNames.length == 0) {
			throw new ApplicationContextException(
					"Unable to start ReactiveWebApplicationContext due to missing HttpHandler bean.");
		}
		if (beanNames.length > 1) {
			throw new ApplicationContextException(
					"Unable to start ReactiveWebApplicationContext due to multiple HttpHandler beans : "
							+ StringUtils.arrayToCommaDelimitedString(beanNames));
		}
		//默认选取BeanFactory中的第一个HttpHandler
		return getBeanFactory().getBean(beanNames[0], HttpHandler.class);
	}
	//获取ServerFactory
	protected ReactiveWebServerFactory getWebServerFactory(String factoryBeanName) {
		return getBeanFactory().getBean(factoryBeanName, ReactiveWebServerFactory.class);
	}

那么ReactiveWebServerFactory又是什么呢？

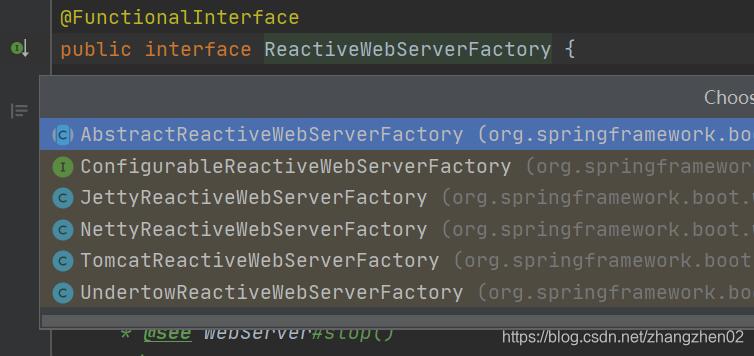

可以看到默认有几种ServerFactory可以选择，这些ServerFactory都提供类似的创建服务的功能。那么究竟用的哪个Factory呢，我们看下自动配置类

四，ReactiveWebServerFactoryAutoConfiguration

@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@Configuration
@ConditionalOnClass(ReactiveHttpInputMessage.class)
//Reactive模式下，将启用本配置类
@ConditionalOnWebApplication(type = ConditionalOnWebApplication.Type.REACTIVE)
@EnableConfigurationProperties(ServerProperties.class)
//引入了以下几个内置服务器类
@Import({ ReactiveWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar.class,
		ReactiveWebServerFactoryConfiguration.EmbeddedTomcat.class,
		ReactiveWebServerFactoryConfiguration.EmbeddedJetty.class,
		ReactiveWebServerFactoryConfiguration.EmbeddedUndertow.class,
		ReactiveWebServerFactoryConfiguration.EmbeddedNetty.class })
public class ReactiveWebServerFactoryAutoConfiguration {

	@Bean
	public ReactiveWebServerFactoryCustomizer reactiveWebServerFactoryCustomizer(
			ServerProperties serverProperties) {
		return new ReactiveWebServerFactoryCustomizer(serverProperties);
	}

我们看到，在server type 为reactive 的情况下，会引入ReactiveWebServerFactoryConfiguration类中几个内置server.
具体是哪个，需要看ReactiveWebServerFactoryConfiguration

五，ReactiveWebServerFactoryConfiguration

abstract class ReactiveWebServerFactoryConfiguration {

	@Configuration
	@ConditionalOnMissingBean(ReactiveWebServerFactory.class)
	@ConditionalOnClass({ HttpServer.class })
	static class EmbeddedNetty {

		@Bean
		public NettyReactiveWebServerFactory nettyReactiveWebServerFactory() {
			return new NettyReactiveWebServerFactory();
		}

	}

	@Configuration
	@ConditionalOnMissingBean(ReactiveWebServerFactory.class)
	@ConditionalOnClass({ org.apache.catalina.startup.Tomcat.class })
	static class EmbeddedTomcat {

		@Bean
		public TomcatReactiveWebServerFactory tomcatReactiveWebServerFactory() {
			return new TomcatReactiveWebServerFactory();
		}

	}

	@Configuration
	@ConditionalOnMissingBean(ReactiveWebServerFactory.class)
	@ConditionalOnClass({ org.eclipse.jetty.server.Server.class })
	static class EmbeddedJetty {

		@Bean
		public JettyReactiveWebServerFactory jettyReactiveWebServerFactory() {
			return new JettyReactiveWebServerFactory();
		}

	}

	@ConditionalOnMissingBean(ReactiveWebServerFactory.class)
	@ConditionalOnClass({ Undertow.class })
	static class EmbeddedUndertow {

		@Bean
		public UndertowReactiveWebServerFactory undertowReactiveWebServerFactory() {
			return new UndertowReactiveWebServerFactory();
		}

	}

}

这一看就很清晰了，当满足不同的类存在时，会激活不同的ServerFactory bean。
其中ReactiveWebServerFactory类是在Springboot框架中存在的类，HttpServer是reactor.ipc.netty.http.server包中的类，在spring-cloud-start-gateway中引入的。故NettyReactiveWebServerFactory为gateway的默认容器。

所以到目前为止，究竟哪个使用的哪个server,我们已经搞清楚了。server 启动后，请求会被HttpHandler处理，那么这个HttpHandler又用的是哪个呢？

那要看这个配置文件了HttpHandlerAutoConfiguration

六，HttpHandlerAutoConfiguration

@Configuration
@ConditionalOnClass({ DispatcherHandler.class, HttpHandler.class })
//reactive模式下启用
@ConditionalOnWebApplication(type = ConditionalOnWebApplication.Type.REACTIVE)
@ConditionalOnMissingBean(HttpHandler.class)
@AutoConfigureAfter({ WebFluxAutoConfiguration.class })
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)
public class HttpHandlerAutoConfiguration {

	@Configuration
	public static class AnnotationConfig {

		private ApplicationContext applicationContext;

		public AnnotationConfig(ApplicationContext applicationContext) {
			this.applicationContext = applicationContext;
		}

		@Bean
		public HttpHandler httpHandler() {
		//使用WebHttpHandlerBuilder建造者模式
			return WebHttpHandlerBuilder.applicationContext(this.applicationContext)
					.build();
		}

	}

}

该自动配置文件，在reactive模式下启用，并使用WebHttpHandlerBuilder生成一个HttpHandler 。
我们进去看

七，WebHttpHandlerBuilder

public class WebHttpHandlerBuilder {
。。。
public HttpHandler build() {

		WebHandler decorated;
//装饰着模式，最内部是一个DispatcherHandler，被FilteringWebHandler装饰，并注入了本上下文中相关的Webfilter
		decorated = new FilteringWebHandler(this.webHandler, this.filters);
//外面包一个异常处理器ExceptionHandlingWebHandler
		decorated = new ExceptionHandlingWebHandler(decorated,  this.exceptionHandlers);
//最外层使用一个适配器HttpWebHandlerAdapter
		HttpWebHandlerAdapter adapted = new HttpWebHandlerAdapter(decorated);
		if (this.sessionManager != null) {
			adapted.setSessionManager(this.sessionManager);
		}
		if (this.codecConfigurer != null) {
			adapted.setCodecConfigurer(this.codecConfigurer);
		}
		if (this.localeContextResolver != null) {
			adapted.setLocaleContextResolver(this.localeContextResolver);
		}
		if (this.applicationContext != null) {
			adapted.setApplicationContext(this.applicationContext);
		}
//将适配器返回
		return adapted;
	}

ok,那么我们看到HttpWebHandlerAdapter就是最终的HttpHandler

八，HttpWebHandlerAdapter

public class HttpWebHandlerAdapter extends WebHandlerDecorator implements HttpHandler {
。。。
    @Override
	public Mono<Void> handle(ServerHttpRequest request, ServerHttpResponse response) {
		ServerWebExchange exchange = createExchange(request, response);
		//使用层层代理，即上文说的装饰者，最终找到DispatcherHandler
		return getDelegate().handle(exchange)
				.onErrorResume(ex -> handleFailure(request, response, ex))
				.then(Mono.defer(response::setComplete));
	}

	protected ServerWebExchange createExchange(ServerHttpRequest request, ServerHttpResponse response) {
		return new DefaultServerWebExchange(request, response, this.sessionManager,
				getCodecConfigurer(), getLocaleContextResolver(), this.applicationContext);
	}

九，DispatcherHandler

public class DispatcherHandler implements WebHandler, ApplicationContextAware {

	@SuppressWarnings("ThrowableInstanceNeverThrown")
	private static final Exception HANDLER_NOT_FOUND_EXCEPTION =
			new ResponseStatusException(HttpStatus.NOT_FOUND, "No matching handler");


	private static final Log logger = LogFactory.getLog(DispatcherHandler.class);

	@Nullable
	private List<HandlerMapping> handlerMappings;

	@Nullable
	private List<HandlerAdapter> handlerAdapters;

	@Nullable
	private List<HandlerResultHandler> resultHandlers;

    @Override
	public Mono<Void> handle(ServerWebExchange exchange) {
		if (logger.isDebugEnabled()) {
			ServerHttpRequest request = exchange.getRequest();
			logger.debug("Processing " + request.getMethodValue() + " request for [" + request.getURI() + "]");
		}
		if (this.handlerMappings == null) {
			return Mono.error(HANDLER_NOT_FOUND_EXCEPTION);
		}
		//获取所有的handlerMapping，其中包含RoutePredicateHandlerMapping，即我们常用的路由Predicate匹配
		return Flux.fromIterable(this.handlerMappings)
		//使用handlermapping对请求进行过滤，即匹配路由，调用的是getHandler方法
				.concatMap(mapping -> mapping.getHandler(exchange))
				.next()
				//没有陪匹配到路由，则报错
				.switchIfEmpty(Mono.error(HANDLER_NOT_FOUND_EXCEPTION))
				//匹配到路由后，进行调用即可
				.flatMap(handler -> invokeHandler(exchange, handler))
				.flatMap(result -> handleResult(exchange, result));
	}


剩余的主要逻辑就在RoutePredicateHandlerMapping，包含如何路由匹配，如何增加filter.

十，RoutePredicateHandlerMapping

public class RoutePredicateHandlerMapping extends AbstractHandlerMapping {
//实现父类的抽象方法，以供父类调用
    @Override
	protected Mono<?> getHandlerInternal(ServerWebExchange exchange) {
		exchange.getAttributes().put(GATEWAY_HANDLER_MAPPER_ATTR, getClass().getSimpleName());
//查找路由
		return lookupRoute(exchange)
				// .log("route-predicate-handler-mapping", Level.FINER) //name this
				.flatMap((Function<Route, Mono<?>>) r -> {
					exchange.getAttributes().remove(GATEWAY_PREDICATE_ROUTE_ATTR);
					if (logger.isDebugEnabled()) {
						logger.debug("Mapping [" + getExchangeDesc(exchange) + "] to " + r);
					}

					exchange.getAttributes().put(GATEWAY_ROUTE_ATTR, r);
					//交给FilteringWebHandler处理
					return Mono.just(webHandler);
				}).switchIfEmpty(Mono.empty().then(Mono.fromRunnable(() -> {
					exchange.getAttributes().remove(GATEWAY_PREDICATE_ROUTE_ATTR);
					if (logger.isTraceEnabled()) {
						logger.trace("No RouteDefinition found for [" + getExchangeDesc(exchange) + "]");
					}
				})));
	}
//查找路由
protected Mono<Route> lookupRoute(ServerWebExchange exchange) {
//这个routeLocator默认是一个组合模式的，可以供我们自己扩展如动态路由方面的功能
		return this.routeLocator.getRoutes()
				.filter(route -> {
					// add the current route we are testing
					exchange.getAttributes().put(GATEWAY_PREDICATE_ROUTE_ATTR, route.getId());
					return route.getPredicate().test(exchange);
				})
				// .defaultIfEmpty() put a static Route not found
				// or .switchIfEmpty()
				// .switchIfEmpty(Mono.<Route>empty().log("noroute"))
				.next()
				//TODO: error handling
				.map(route -> {
					if (logger.isDebugEnabled()) {
						logger.debug("Route matched: " + route.getId());
					}
					validateRoute(route, exchange);
					return route;
				});

		/* TODO: trace logging
			if (logger.isTraceEnabled()) {
				logger.trace("RouteDefinition did not match: " + routeDefinition.getId());
			}*/
	}

在RoutePredicateHandlerMapping类中并没有getHandler方法，那么必然是继承自父类AbstractHandlerMapping

public abstract class AbstractHandlerMapping extends ApplicationObjectSupport implements HandlerMapping, Ordered {
。。。
@Override
	public Mono<Object> getHandler(ServerWebExchange exchange) {
	//先调用子类方法getHandlerInternal，再进行Cors相关处理，很显然这是一个模板方法设计模式
		return getHandlerInternal(exchange).map(handler -> {
			if (CorsUtils.isCorsRequest(exchange.getRequest())) {
				CorsConfiguration configA = this.globalCorsConfigSource.getCorsConfiguration(exchange);
				CorsConfiguration configB = getCorsConfiguration(handler, exchange);
				CorsConfiguration config = (configA != null ? configA.combine(configB) : configB);
				if (!getCorsProcessor().process(config, exchange) ||
						CorsUtils.isPreFlightRequest(exchange.getRequest())) {
					return REQUEST_HANDLED_HANDLER;
				}
			}
			return handler;
		});
	}

十一，FilteringWebHandler

public class FilteringWebHandler implements WebHandler {
	protected static final Log logger = LogFactory.getLog(FilteringWebHandler.class);

	private final List<GatewayFilter> globalFilters;

	public FilteringWebHandler(List<GlobalFilter> globalFilters) {
		this.globalFilters = loadFilters(globalFilters);
	}
//使用适配器模式，将所有GlobalFilter转化为GatewayFilter，供链式处理
	private static List<GatewayFilter> loadFilters(List<GlobalFilter> filters) {
		return filters.stream()
				.map(filter -> {
					GatewayFilterAdapter gatewayFilter = new GatewayFilterAdapter(filter);
					if (filter instanceof Ordered) {
						int order = ((Ordered) filter).getOrder();
						return new OrderedGatewayFilter(gatewayFilter, order);
					}
					return gatewayFilter;
				}).collect(Collectors.toList());
	}

    /* TODO: relocate @EventListener(RefreshRoutesEvent.class)
    void handleRefresh() {
        this.combinedFiltersForRoute.clear();
    }*/

	@Override
	public Mono<Void> handle(ServerWebExchange exchange) {
		Route route = exchange.getRequiredAttribute(GATEWAY_ROUTE_ATTR);
		//获取所有的GatewayFilter
		List<GatewayFilter> gatewayFilters = route.getFilters();

		List<GatewayFilter> combined = new ArrayList<>(this.globalFilters);
		//将globalFilter加入进来，包含LoadBalancerClientFilter，即负载均衡功能
		combined.addAll(gatewayFilters);
		//TODO: needed or cached?
		AnnotationAwareOrderComparator.sort(combined);

		logger.debug("Sorted gatewayFilterFactories: "+ combined);
		//组成一个过滤链，逐个处理
		return new DefaultGatewayFilterChain(combined).filter(exchange);
	}

	private static class DefaultGatewayFilterChain implements GatewayFilterChain {

		private int index;
		private final List<GatewayFilter> filters;

		public DefaultGatewayFilterChain(List<GatewayFilter> filters) {
			this.filters = filters;
		}

		@Override
		public Mono<Void> filter(ServerWebExchange exchange) {
			if (this.index < filters.size()) {
				GatewayFilter filter = filters.get(this.index++);
				return filter.filter(exchange, this);
			}
			else {
				return Mono.empty(); // complete
			}
		}
	}

	private static class GatewayFilterAdapter implements GatewayFilter {

		private final GlobalFilter delegate;

		public GatewayFilterAdapter(GlobalFilter delegate) {
			this.delegate = delegate;
		}

		@Override
		public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
			return this.delegate.filter(exchange, chain);
		}

		@Override
		public String toString() {
			final StringBuilder sb = new StringBuilder("GatewayFilterAdapter{");
			sb.append("delegate=").append(delegate);
			sb.append('}');
			return sb.toString();
		}
	}

}

这样，FIlter处理就完成了。

十二，总结

所以，总体流程是，SpringApplication启动了一个NettyReactiveWebServerFactory产生WebServer,并注入HttpWebHandlerAdapter用于处理请求，HttpWebHandlerAdapter委托给父类DispatcherHandler进行处理，DispatcherHandler使用RoutePredicateHandlerMapping等进行路由查找并组合FIlter进行过滤请求，完成后交由DispatcherHandler调用真正的handler，完成请求处理。

以上。
