打造全方位接口自动化测试平台：接口调用工具实现

已于 2025-02-19 10:03:09 修改
阅读量369 收藏 4
点赞数 10
分类专栏： 打造全方位接口自动化测试平台 文章标签： 自动化测试
于 2025-02-19 09:09:38 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/zhangkexin_z/article/details/145523451
版权

打造全方位接口自动化测试平台：用户角色功能实现

介绍

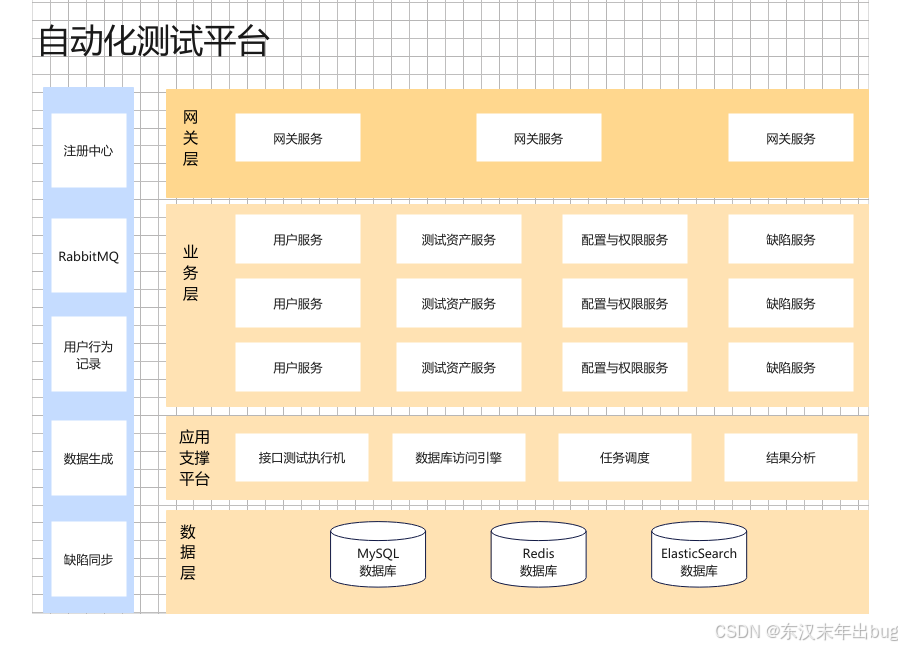

目前正在着手开发一款功能全面的接口自动化测试平台，该平台将涵盖登录、用户管理、权限控制、项目管理、用例管理、测试数据管理、测试报告生成、任务调度、缺陷跟踪以及系统配置等多个核心模块。为了方便调用被测接口，我们要封装一个公共的接口调用工具

在这里插入图片描述

接口调用工具详解

技术选型

  • 后端：采用Java作为主要开发语言。

  • 前端：使用VUE框架进行界面展示。

  • 行为记录：Java服务负责记录用户行为，而VUE则用于展示这些行为记录。

工具设计

调用接口前，需要判断该接口是否需要登录，如果需要登录，先登录后将登录验签添加到接口请求的headers中。为了防止重复的请求登录接口，可以把验签放到redis缓存中，需要的时候从redis中查询，如果过期，再次进行登录保存，代码如下：

@Slf4j
public class ApiTool {


    public ResponseEntity<Map<String, Object>> apiTest(ApiDTO apiDTO, ProjectVO projectVo) throws IOException {
        String response;
        Map<String, Object> headerMap = new HashMap<>();
        if (projectVo.getIs_login() == 1) {
            if (projectVo.getLogin_type().equals("json")) {
                OkHttpClient okHttpClient = new OkHttpClient();
                MediaType mediaType = MediaType.parse("application/json;charset=utf-8");
                RequestBody requestBody = RequestBody.create(mediaType, ByteString.encodeUtf8(projectVo.getLogin_data()));
                Request request = new Request.Builder().url(projectVo.getLogin_api()).method("POST",requestBody).addHeader("Content-Type", "application/json").build();
                Response respBean = null;
                String res = "";
                try {
                    respBean = okHttpClient.newCall(request).execute();
                    res = StringEscapeUtils.unicodeToStr(respBean.toString());
                }catch (Exception e) {
                    return RespBean.ok("执行成功",e.getMessage());
                }

                log.info("登录接口返回: {}",res);
                if (projectVo.getHeader_type() == 0) {
                    List<Cookie> cookies = Cookie.parseAll(request.url(),respBean.headers());
                    for (Cookie cookie : cookies) {
                        // 获取Cookie信息
                        if (!cookie.name().contains("rememberMe")) {
                            headerMap.put(projectVo.getHeader_key(),cookie.name() +"="+cookie.value());
                            log.info("登录cookie：{}",cookie.name() +"="+cookie.value());
                        }
                    }
                }else {
                    String token = findKey(JSON.parseObject(respBean.body().string()),projectVo.getResult_value());
                    headerMap.put(projectVo.getHeader_key(),"Bearer "+token);
                }

            }
        }
        if (null != apiDTO.getData_type()) {
            switch (apiDTO.getData_type()) {
                case "params":
                    response = params(apiDTO,headerMap);
                    break;
                case "json":
                    response = json(apiDTO,headerMap);
                    break;
                case "form-data":
                    response = formData(apiDTO,headerMap);
                    break;
                case "form-urlencoded":
                    response = urlencoded(apiDTO,headerMap);
                    break;
                default:
                    return RespBean.error("不支持的数据类型");
            }
        }else {
            response = params(apiDTO,headerMap);
        }

        return RespBean.ok("执行成功",response);
    }

    private String urlencoded(ApiDTO apiDTO,Map<String, Object> headerMap) {
        String response;
        Request.Builder builder = new Request.Builder().url(apiDTO.getUrl());
        OkHttpClient okHttpClient = new OkHttpClient().newBuilder().connectTimeout(60, TimeUnit.SECONDS).build();
        MediaType mediaType = MediaType.parse("application/x-www-form-urlencoded");
        MultipartBody.Builder body = new MultipartBody.Builder().setType(MultipartBody.FORM);
        Object headerObj = JSON.parse(apiDTO.getHeaders());
        Object dataObj = JSON.parse(apiDTO.getData());
        AtomicReference<String> s = new AtomicReference<>("");
        if (!apiDTO.getData().isEmpty()) {
            Map<String, Object> map = (Map<String, Object>) dataObj;
            map.forEach((k,v) -> {
                s.set(s + k + "=" + v.toString() + "&");
            });
        }
        if (!apiDTO.getHeaders().isEmpty()) {
            Map<String, Object> map = (Map<String, Object>) headerObj;
            map.forEach((k,v) -> {
                builder.method(apiDTO.getMethod(),body.build()).addHeader(k,v.toString());
            });
        }
        headerMap.forEach((hk,hv) -> {
            builder.method(apiDTO.getMethod(),body.build()).addHeader(hk,hv.toString());
        });
        try {
            response = okHttpClient.newCall(builder.addHeader("Content-Type", "application/x-www-form-urlencoded").build()).execute().toString();
        }catch (Exception e){
            response = e.getMessage();
        }
        response = StringEscapeUtils.unicodeToStr(response);
        log.info("response:{}",response);
        return response;

    }

    private String formData(ApiDTO apiDTO,Map<String, Object> headerMap) {
        String response;
        Request.Builder builder = new Request.Builder().url(apiDTO.getUrl());
        OkHttpClient okHttpClient = new OkHttpClient().newBuilder().connectTimeout(600, TimeUnit.SECONDS).readTimeout(600, TimeUnit.SECONDS).writeTimeout(600, TimeUnit.SECONDS).build();
        MultipartBody.Builder body = new MultipartBody.Builder().setType(MultipartBody.FORM);
        @SuppressWarnings("unchecked")
        Map<String, Object> headerObj = (Map<String, Object>) JSON.parse(apiDTO.getHeaders());
        Map<String, Object> dataObj = (Map<String, Object>) JSON.parse(apiDTO.getData());
        Map<String, Object> fileObj = (Map<String, Object>) JSON.parse(apiDTO.getFile());

        if (!fileObj.isEmpty()) {
            fileObj.forEach((k,v) -> {
                String fileName = v.toString().substring(v.toString().lastIndexOf("/") + 1);
                body.addFormDataPart(k,fileName, RequestBody.create(MediaType.parse("application/octet-stream"), new File(v.toString())));
            });
        }

        if (!dataObj.isEmpty()) {
            dataObj.forEach((k,v) -> {
                body.addFormDataPart(k,v.toString());
            });
        }

        if (!headerMap.isEmpty()) {
            headerMap.forEach((k,v) -> {
                builder.addHeader(k,v.toString());
            });
        }
        headerMap.forEach((hk,hv) -> {
            builder.addHeader(hk,hv.toString());
        });
        try {
//            Response response1 = okHttpClient.newCall(builder.method(apiTestDto.getMethod(),body.build()).build()).execute().body().string();
            response = okHttpClient.newCall(builder.method(apiDTO.getMethod(),body.build()).build()).execute().body().string();
        }catch (Exception e){
            response = e.getMessage();
        }

        response = StringEscapeUtils.unicodeToStr(response);
        log.info("response:{}",response);
        return response;
    }

    private String json(ApiDTO apiDTO,Map<String, Object> headerMap) {
        String response;
        Request.Builder build = new Request.Builder().url(apiDTO.getUrl());
        Request request;
        OkHttpClient okHttpClient = new OkHttpClient().newBuilder().connectTimeout(60, TimeUnit.SECONDS).build();
        MediaType mediaType = MediaType.parse("application/json");
        RequestBody body = RequestBody.create(mediaType,apiDTO.getData());
        if (!apiDTO.getHeaders().isEmpty()) {
            Object obj = JSON.parse(apiDTO.getHeaders());
            Map<String, Object> map = (Map<String, Object>) obj;
            for (Object o : map.entrySet()) {
                Map.Entry entry = (Map.Entry) o;
                build.addHeader(entry.getKey().toString(), entry.getValue().toString());
            }
        }
        headerMap.forEach((hk,hv) -> {
            build.addHeader(hk, hv.toString());
        });

        if (apiDTO.getMethod().equals("GET")) {
            request = build
                    .get()
                    .build();
        }else {
            request = build
                    .method(apiDTO.getMethod(), body)
                    .build();
        }


        try {
            response = Objects.requireNonNull(okHttpClient.newCall(request).execute().body()).string();
        }catch (Exception e){
            response = e.getMessage();
        }

        response = StringEscapeUtils.unicodeToStr(response);
        log.info("response:{}",response);
        return response;
    }

    private String params(ApiDTO apiDTO, Map<String, Object> headerMap) {
        String response;
        Request request = null;
        if (!apiDTO.getData().isEmpty()) {
            String params = "/?";
            Object obj = JSON.parse(apiDTO.getData());
            Map<String, Object> map = (Map<String, Object>) obj;

            for (Object o : map.entrySet()) {
                Map.Entry entry = (Map.Entry) o;
                params = params + entry.getKey() + "=" + entry.getValue() + "&";
            }

            params = params.substring(0,params.length() - 1);
            Request.Builder builder = new Request.Builder().url(apiDTO.getUrl() + params);
            headerMap.forEach((hk,hv) -> {
                builder.addHeader(hk, hv.toString());
            });
            OkHttpClient okHttpClient = new OkHttpClient().newBuilder().connectTimeout(60, TimeUnit.SECONDS)
                    .build();
            MediaType mediaType = MediaType.parse("text/plain");
            RequestBody body = RequestBody.create(mediaType, "");
            switch (apiDTO.getMethod()) {
                case "POST":
                    request = builder
                            .method("POST", body)
                            .build();
                    break;
                case "GET":
                    request = builder
                            .get()
                            .build();
                    break;
                case "PUT":
                    request = builder
                            .method("PUT", body)
                            .build();
                    break;
                case "DELETE":
                    request = builder
                            .method("DELETE", body)
                            .build();
                    break;
            }

            try {
                response = Objects.requireNonNull(okHttpClient.newCall(request).execute().body()).string();
            }catch (Exception e){
                response = e.getMessage();
            }
            response = StringEscapeUtils.unicodeToStr(response);
            log.info("response:{}",response);
            return response;
        }else {
            return null;
        }

    }


    public static String findKey(JSONObject json, String key) {
        String result = null;
        for (String k : json.keySet()) {
            if (k.equals(key)) {
                return json.get(key).toString();
            } else {
                Object value = json.get(k);
                if (value instanceof JSONObject) {
                    result = findKey((JSONObject) value, key);
                    if (result != null) {
                        return result;
                    }
                } else if (value instanceof JSONArray) {
                    JSONArray array = (JSONArray) value;
                    int length = array.size();
                    for (int i = 0; i < length; i++) {
                        Object obj = array.get(i);
                        if (obj instanceof JSONObject) {
                            result = findKey((JSONObject) obj, key);
                            if (result != null) {
                                return result;
                            }
                        }
                    }
                }
            }
        }
        return result;
    }


}
