freertos移植easylogger

FreeRTOS移植Easylogger

获取EasyLogger代码以及添加至工程

1. 从github上git clone https://github.com/armink/EasyLogger

2. 将EasyLogger中的easylogger目录拷贝到工程中

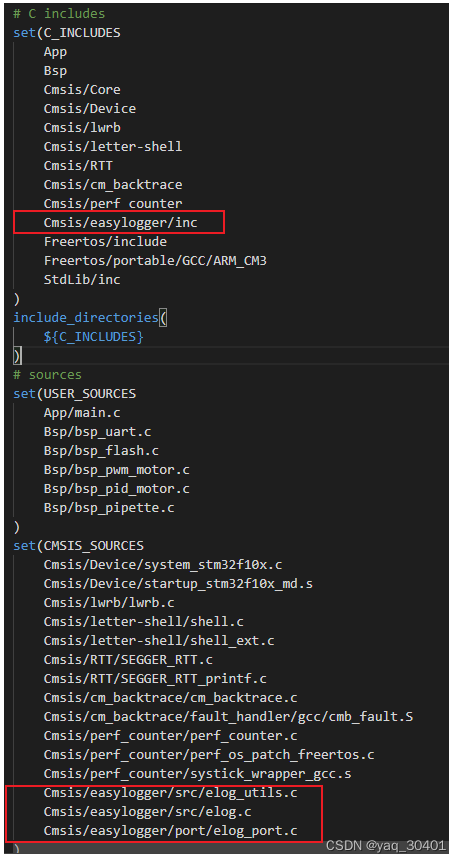

3. 添加头文件和源代码至CMakeLists.txt中

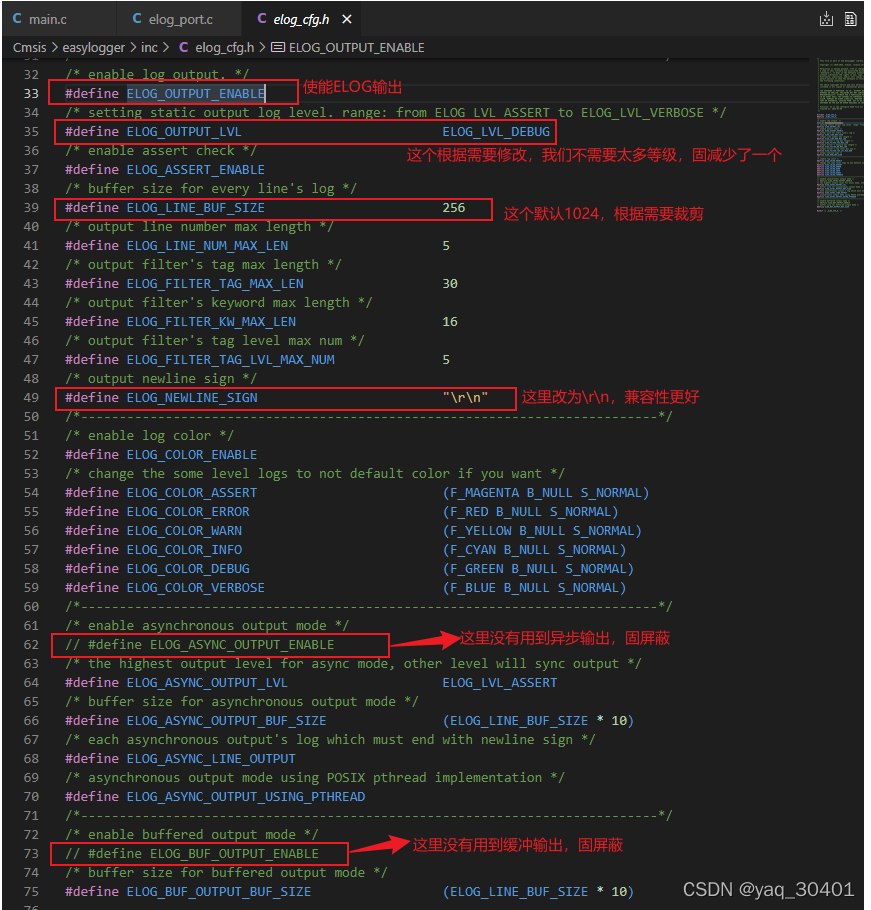

修改elog_cfg.h

修改elog_port.c

/*
 * This file is part of the EasyLogger Library.
 *
 * Copyright (c) 2015, Armink, <armink.ztl@gmail.com>
 *
 * Permission is hereby granted, free of charge, to any person obtaining
 * a copy of this software and associated documentation files (the
 * 'Software'), to deal in the Software without restriction, including
 * without limitation the rights to use, copy, modify, merge, publish,
 * distribute, sublicense, and/or sell copies of the Software, and to
 * permit persons to whom the Software is furnished to do so, subject to
 * the following conditions:
 *
 * The above copyright notice and this permission notice shall be
 * included in all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED 'AS IS', WITHOUT WARRANTY OF ANY KIND,
 * EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
 * MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
 * IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY
 * CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
 * TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE
 * SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
 *
 * Function: Portable interface for each platform.
 * Created on: 2015-04-28
 */

#include <elog.h>
#include <stdio.h>
#include "FreeRTOS.h"
#include "task.h"
#include "semphr.h"

//! 日志互斥信号量句柄
static SemaphoreHandle_t LogMutexSemaphore = NULL;

/**
 * EasyLogger port initialize
 *
 * @return result
 */
ElogErrCode elog_port_init(void) {
    ElogErrCode result = ELOG_NO_ERR;

    /* add your code here */
    //! 创建互斥信号值
    LogMutexSemaphore = xSemaphoreCreateMutex();
    if (LogMutexSemaphore == NULL) {
        printf("elog sem create fail\r\n");
        result =  ELOG_SEM_FAIL;	//!< 注意：ElogErrCode 枚举中没有这个类型，需要添加一个错误类型
    }

    return result;
}

/**
 * EasyLogger port deinitialize
 *
 */
void elog_port_deinit(void) {

    /* add your code here */

}

/**
 * output log port interface
 *
 * @param log output of log
 * @param size log size
 */
void elog_port_output(const char *log, size_t size) {

    /* add your code here */
    //! %s 表示字符串输出，
    //! .<十进制数> 是精度控制格式符，输出字符时表示输出字符的位数，
    //! 在精度控制时，小数点后的十进制数可以使用 * 来占位，
    //! 在后面提供一个变量作为精度控制的具体值
    printf("%.*s", size, log);
}

/**
 * output lock
 */
void elog_port_output_lock(void) {

    /* add your code here */
    if (NULL != LogMutexSemaphore)
    {
        xSemaphoreTake(LogMutexSemaphore, portMAX_DELAY); //!< 等待互斥信号量
    }
}

/**
 * output unlock
 */
void elog_port_output_unlock(void) {

    /* add your code here */
    if (NULL != LogMutexSemaphore)
    {
        xSemaphoreGive(LogMutexSemaphore); //!< 发送互斥信号量
    }
}

/**
 * get current time interface
 *
 * @return current time
 */
const char *elog_port_get_time(void) {

    /* add your code here */
    static char cur_system_time[16] = { 0 };

#if (INCLUDE_xTaskGetSchedulerState  == 1 )
    if (xTaskGetSchedulerState() != taskSCHEDULER_NOT_STARTED)
    {
#endif
        TickType_t tick = xTaskGetTickCount();
        snprintf(cur_system_time, 16, "%d.%.3d", (tick / configTICK_RATE_HZ), tick % configTICK_RATE_HZ);
#if (INCLUDE_xTaskGetSchedulerState  == 1 )
    }
#endif

    return cur_system_time;
}

/**
 * get current process name interface
 *
 * @return current process name
 */
const char *elog_port_get_p_info(void) {

    /* add your code here */
    return "";
}

/**
 * get current thread name interface
 *
 * @return current thread name
 */
const char *elog_port_get_t_info(void) {

    /* add your code here */
#if (INCLUDE_xTaskGetSchedulerState  == 1 )
    if (xTaskGetSchedulerState() != taskSCHEDULER_NOT_STARTED)
    {
#endif
        return pcTaskGetName(xTaskGetCurrentTaskHandle());
#if (INCLUDE_xTaskGetSchedulerState  == 1 )
    }
#endif

    return "";
}

/**
 * init easylogger,这个函数是我们自己添加的，便于用户直接调用，需要在elog.h中添加声明
 */
void easylogger_init(void)
{
    /* init Easylogger */
	elog_init();

	/* set EasyLogger log format */
    elog_set_fmt(ELOG_LVL_ASSERT, ELOG_FMT_ALL);
	elog_set_fmt(ELOG_LVL_ERROR, ELOG_FMT_LVL | ELOG_FMT_TIME | ELOG_FMT_T_INFO);
	elog_set_fmt(ELOG_LVL_WARN, ELOG_FMT_LVL | ELOG_FMT_T_INFO);
	elog_set_fmt(ELOG_LVL_INFO, ELOG_FMT_LVL);
	elog_set_fmt(ELOG_LVL_DEBUG, ELOG_FMT_ALL & ~ELOG_FMT_FUNC);

	/*Eenbale color*/
	elog_set_text_color_enabled(true);

	/* start EasyLogger */
	elog_start();

}

测试

//! 在main中调用
void test(void)
{
    log_a("Hello EasyLogger!");
    log_e("Hello EasyLogger!");
    log_w("Hello EasyLogger!");
    log_i("Hello EasyLogger!");
    log_d("Hello EasyLogger!");
    log_v("Hello EasyLogger!");
}

//! 在线程中调用, 这里使用了letter shell组件；直接在线程中执行效果一样
void shell_cmd_elog(int argc, char *argv[])
{
    log_a("Hello EasyLogger!");
    log_e("Hello EasyLogger!");
    log_w("Hello EasyLogger!");
    log_i("Hello EasyLogger!");
    log_d("Hello EasyLogger!");
    log_v("Hello EasyLogger!");
}
SHELL_EXPORT_CMD(elog, shell_cmd_elog, test easylogger);

结果
