某短视频平台最新sig3字段算法分析(一)

前言

最近看到手里的某短视频APP来了兴致，特意拿来分析记录下，整个系列文章大概分为抓包，java层分析，so定位，so去花，unidbg，算法还原等几个部分，这几篇文章会记录下我的整个调试过程，前面的文章会比较基础，入门级玩家基本可以略过了，因为考虑到文章的连续性我这边还是会记录发表下。

抓包

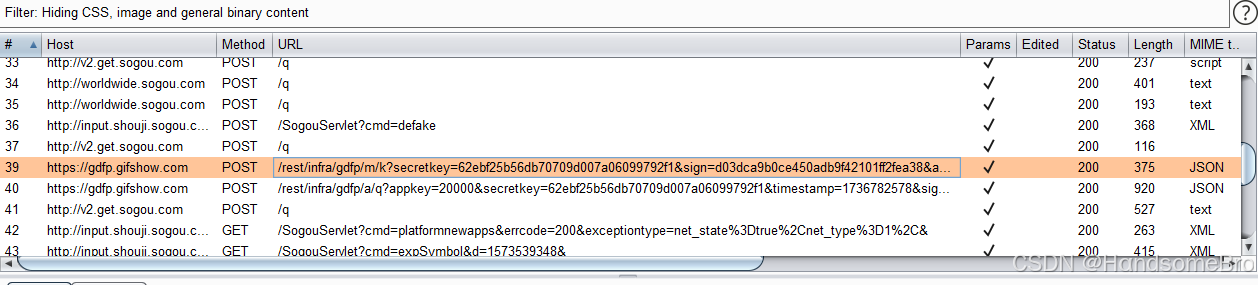

因为需要对关键字段的算法进行分析，所以个人习惯还是要先抓下协议看一下，先不管别的用BurpSuite抓个包出来看下

抓到后总体感觉进包速度跟APP的流量不太匹配，感觉大概率是走了其他协议。既然抓到的包里面有sign字段，就先从sign字段入手看下

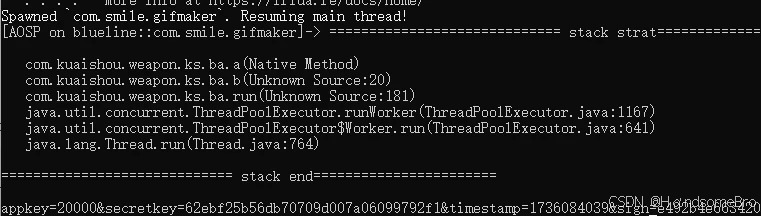

用frida hook看下调用栈

var ins_C82880ba = Java.use("com.kuaishou.weapon.ks.ba");
ins_C82880ba.a.overload('java.lang.String', 'java.lang.String').implementation = function(a, b) {
    var ret = this.a(a, b)
    show_stacks()
    console.log(ret)
    return ret
}

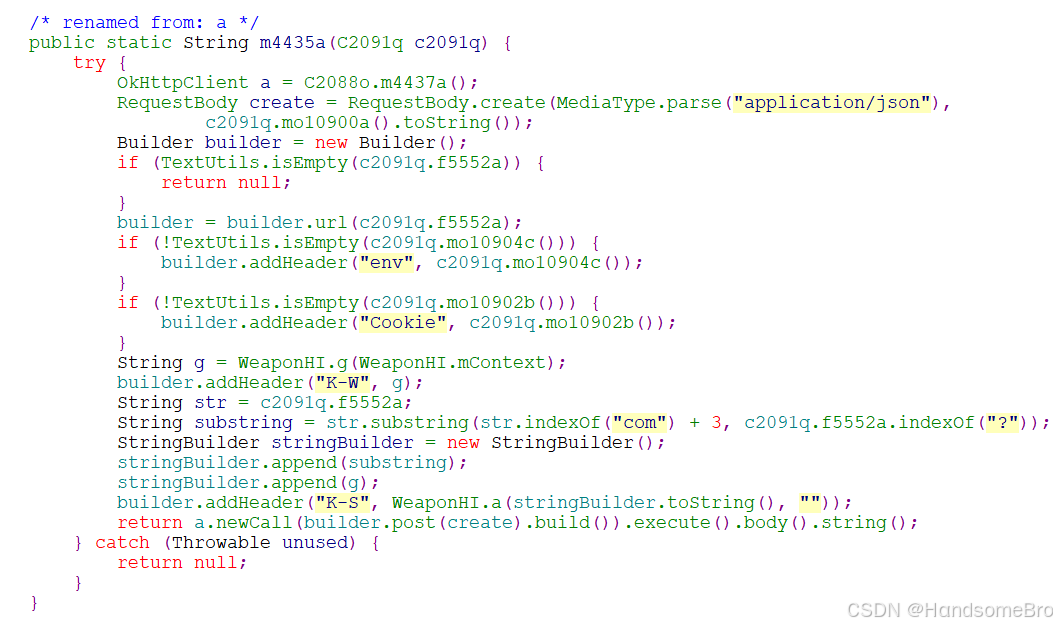

后面根据调用栈顺藤摸瓜分析就好，最后找到了发送函数发现跟okhttp有关

试着将okhttp的接口发送与接收接口打印一下看看

var ins_okhttp = Java.use("okhttp3.OkHttpClient")
ins_okhttp.newCall.overload('okhttp3.Request').implementation = function(a) {
    console.log(a);
    //show_stacks()
    return this.newCall(a);
}

var ins_RealCall = Java.use("okhttp3.RealCall");
ins_RealCall.execute.overload().implementation = function() {
    //show_stacks()
    var ret = this.execute();
    console.log(ret.toString())
    return ret
}

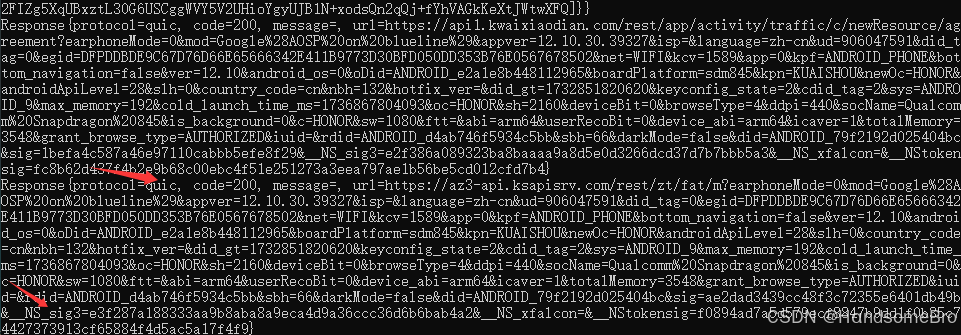

找到了__NS_sig3字段，这个是我们需要分析算法的字段，之前Burp Suite抓不到包的原因也出来了，走的是quic协议。

接口定位

直接在代码搜索__NS_sig3进行定位

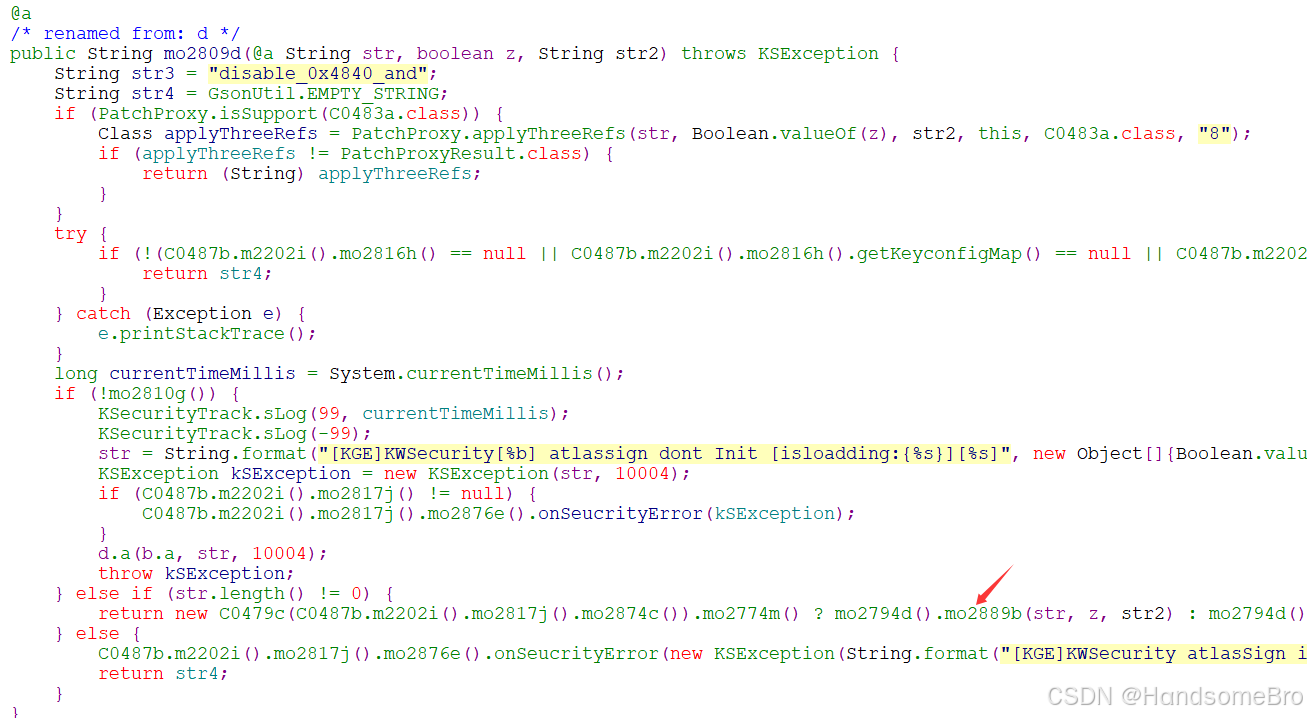

一直往里面进

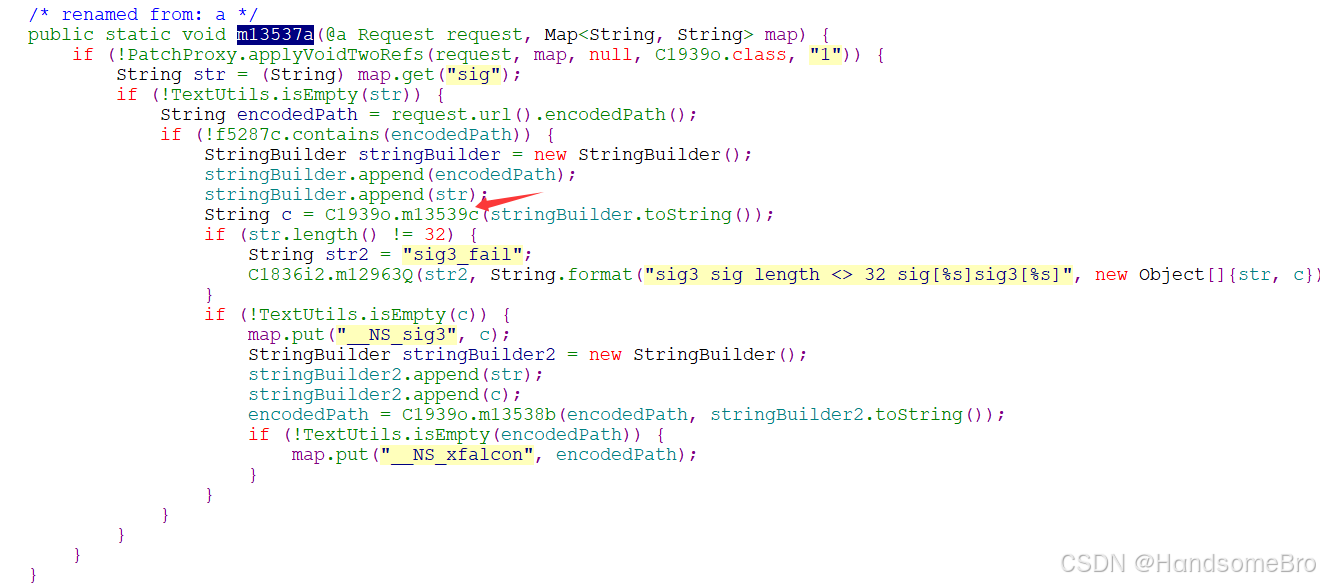

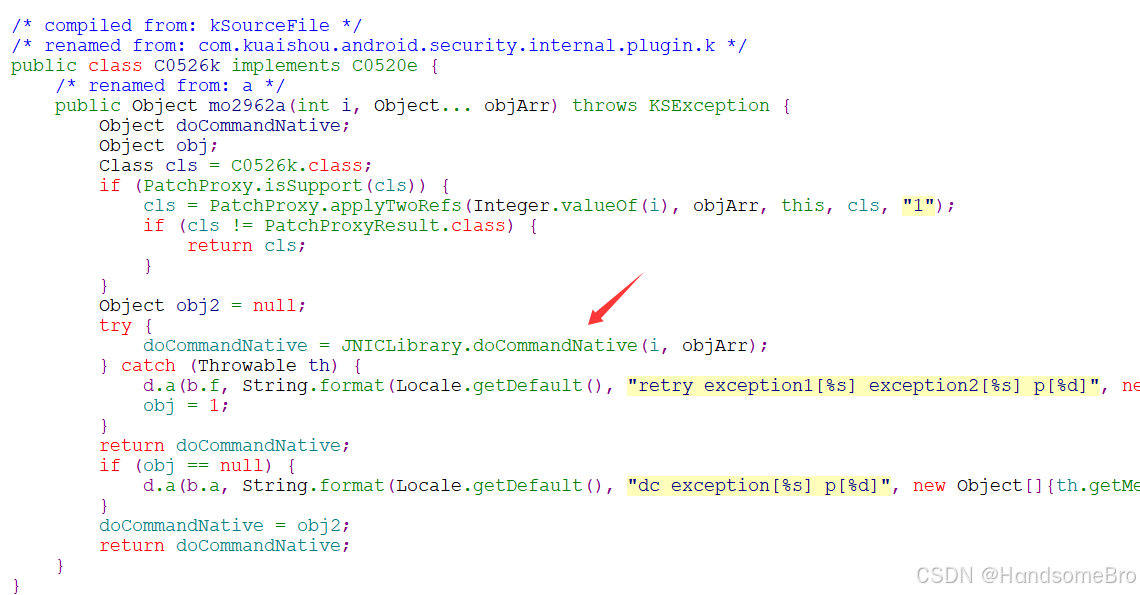

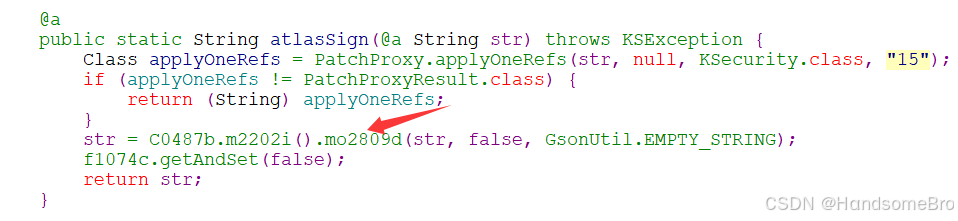

调用接口找到了

SO定位

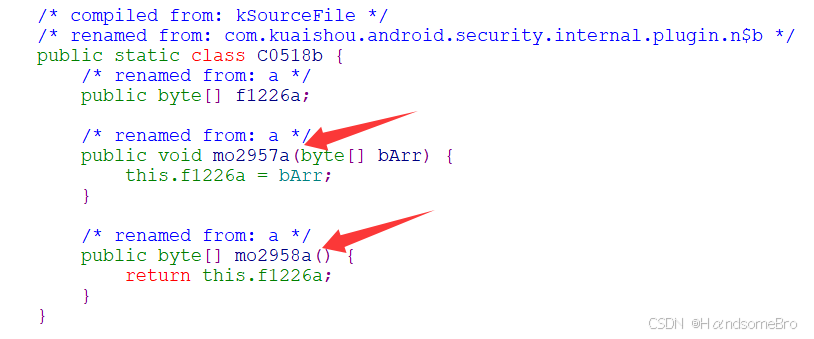

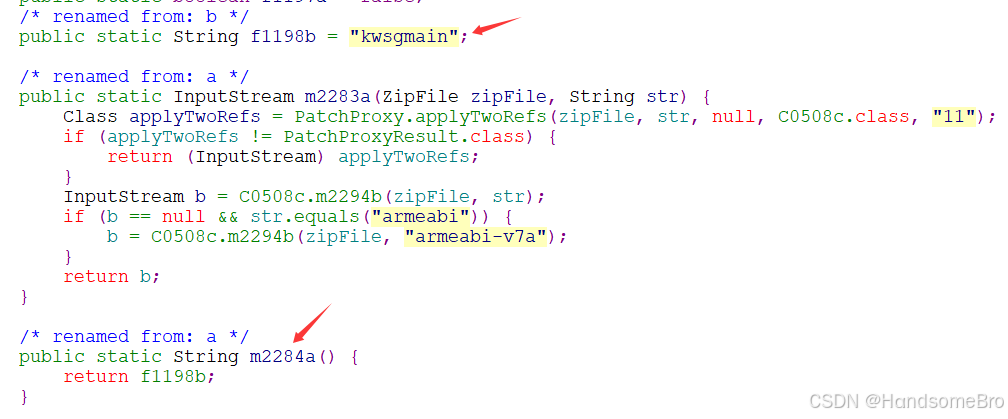

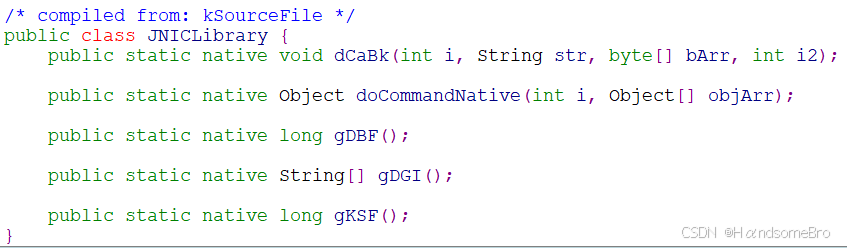

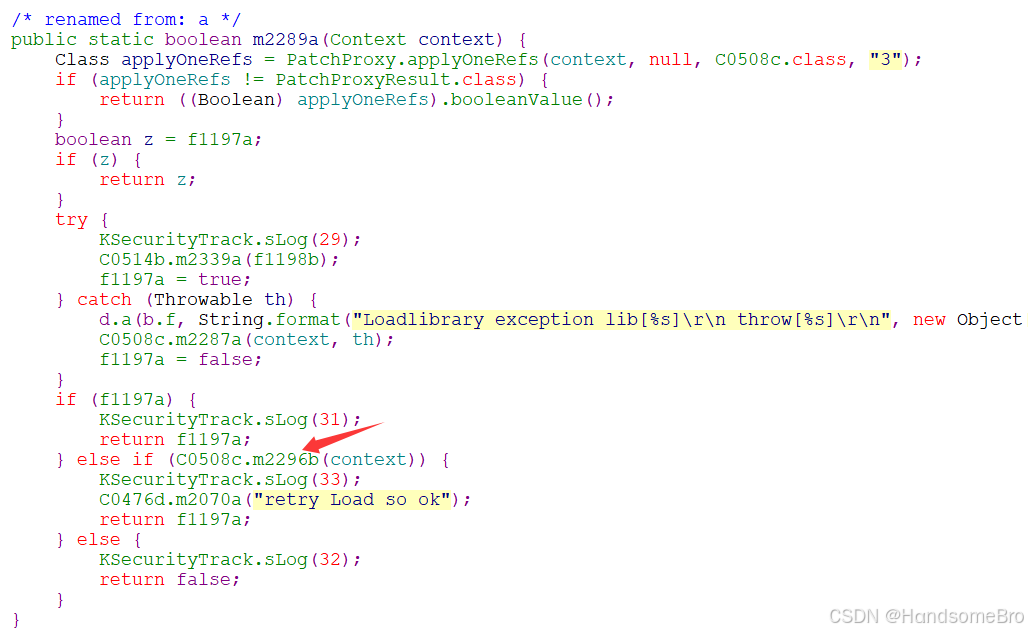

直接搜索C0526k开始

至此，so与调用so的接口都确定下来了。

SO去花

将定位到的lib文件导入IDA，f5之后发现 JNI_OnLoad出现jumpout了

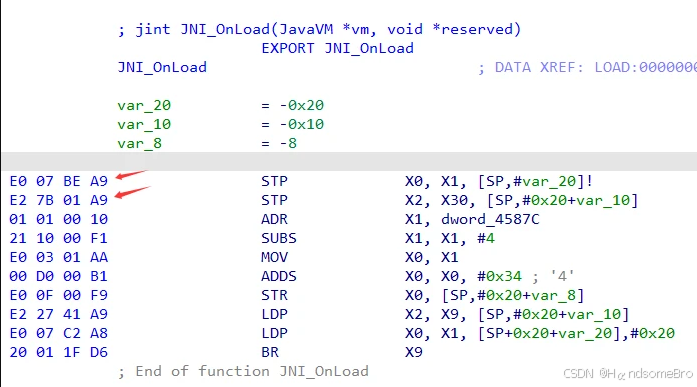

直接汇编先分析一下

.text:0000000000045854 ; jint JNI_OnLoad(JavaVM *vm, void *reserved)
.text:0000000000045854                 EXPORT JNI_OnLoad
.text:0000000000045854 JNI_OnLoad                              ; DATA XREF: LOAD:0000000000003AD0↑o
.text:0000000000045854
.text:0000000000045854 var_20          = -0x20
.text:0000000000045854 var_10          = -0x10
.text:0000000000045854 var_8           = -8
.text:0000000000045854
.text:0000000000045854                 STP        X0, X1, [SP,#-32]! #sp开辟32个字节的空间，x0，x1入栈
.text:0000000000045858                 STP        X2, X30, [SP,#16]  #x2，x30入栈 栈从下往上依次是x0，x1，x2，x30
.text:000000000004585C                 ADR        X1, dword_4587C # x1 = 0x4587c
.text:0000000000045860                 SUBS       X1, X1, #4      # x1 = 0x4587c-4->x1 = 0x45878
.text:0000000000045864                 MOV        X0, X1      # x0' = x1 -> x0' = 0x45877c
.text:0000000000045868                 ADDS       X0, X0, #0x34 ; '4'   # x0' = x0' + 0x34 -> x0' = 0x458ac
.text:000000000004586C                 STR        X0, [SP,#24]        # [SP,#24] = x0' -> 栈从下往上依次是x0，x1，x2，x0'
.text:0000000000045870                 LDP        X2, X9, [SP,#16]   # x2 = [SP,#16]，x9=[SP,#24] -> x2 = x2, x9=x0'
.text:0000000000045874                 LDP        X0, X1, [SP],#0x20 # x0 = [SP]，x1=[SP,#8] -> x0 = x0，x1=x1 sp恢复栈平衡
.text:0000000000045878                 BR         X9              # br  x0' -> br 0x458ac

从注释基本都可以看出来，前期开栈到恢复栈，就弄了一堆花里胡哨的算了下绝对跳转地址，x0与x1未变化，也比较符合花指令的特性。只要把前面的垃圾指令nop掉，绝对跳转改成相对跳转即可。

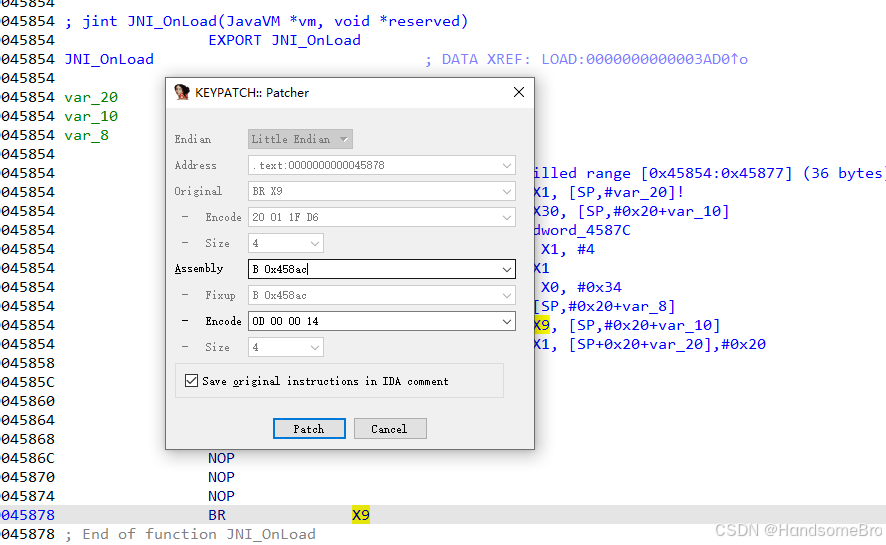

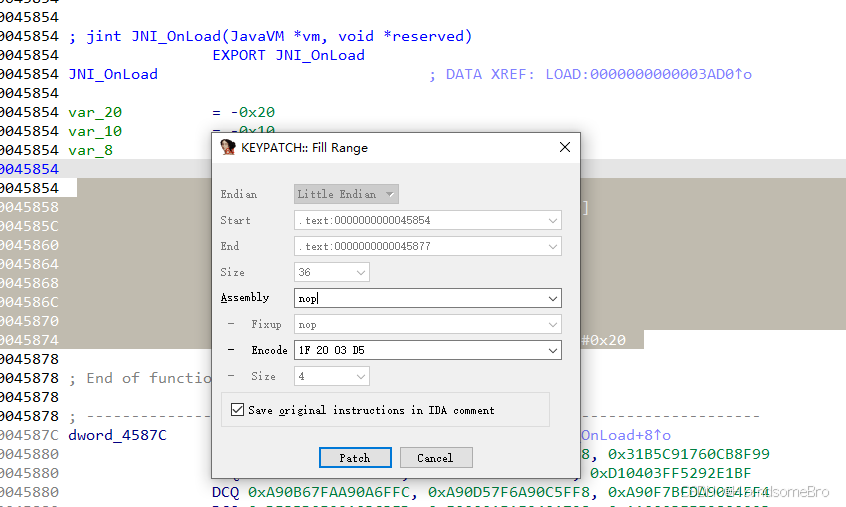

先手动使用IDA插件Keypatch试一下，先nop掉垃圾指令

在修改跳转指令为相对跳转

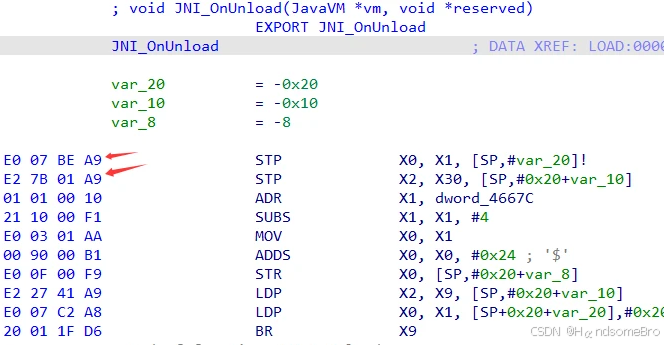

重新用IDA打开按F5即可生效，但是一个个修改比较麻烦，还是需要用脚本根据特征码定位进行修改会比较方便，对比JNI_OnLoad与JNI_UnLoad就会发现特征码比较明显

直接上脚本

import keystone
from keystone import *
import ida_bytes
import idaapi
import idc

def pattern_search(pattern):
    match_list = []
    addr = 0
    while True:
        addr = ida_bytes.bin_search(addr, idc.BADADDR, bytes.fromhex(pattern), None,
                                idaapi.BIN_SEARCH_FORWARD, idaapi.BIN_SEARCH_NOCASE)
        if addr == idc.BADADDR:
            break
        else:
            match_list.append(addr)
            addr = addr + 1
    return match_list

def get_jumpout_addr(addr):
    data1 = idc.get_operand_value(addr + 8, 1)
    data2 = idc.get_operand_value(addr + 12, 2)
    data3 = idc.get_operand_value(addr + 20, 2)
    return data1 - data2 + data3

def generate_asm(code, addr):
    ks = Ks(keystone.KS_ARCH_ARM64, keystone.KS_MODE_LITTLE_ENDIAN)
    encode, count = ks.asm(code, addr)
    return encode

def main():
    match_list = pattern_search("E0 07 BE A9 E2 7B 01 A9")
    print(len(match_list))
    for i in range(len(match_list)):
        encode_b = generate_asm("B " + str(hex(get_jumpout_addr(match_list[i]))), match_list[i])
        encode_nop = generate_asm("nop", 0)
        ida_bytes.patch_bytes(match_list[i], bytes(encode_b))
        ida_bytes.patch_bytes(match_list[i] + 4, bytes(encode_nop) * 9)

if __name__ == "__main__":
    main()

Unidbg

先整个基本框架跑一下JNI_OnLoad函数，没问题后再调用so函数，调用so的参数直接hook java层接口结合java源码就能获取，这里就不多说了

package com.ks.run;

import com.github.unidbg.AndroidEmulator;
import com.github.unidbg.Module;
import com.github.unidbg.arm.backend.Unicorn2Factory;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.*;
import com.github.unidbg.linux.android.dvm.array.ArrayObject;
import com.github.unidbg.linux.android.dvm.wrapper.DvmBoolean;
import com.github.unidbg.linux.android.dvm.wrapper.DvmInteger;
import com.github.unidbg.memory.Memory;
import com.github.unidbg.virtualmodule.android.AndroidModule;

import java.io.File;
import java.util.ArrayList;
import java.util.List;

public class KSEmulator extends AbstractJni {
    private final AndroidEmulator emulator;
    private final Module module;
    private final VM vm;
    public KSEmulator() {
        emulator = AndroidEmulatorBuilder
                .for64Bit()
                .addBackendFactory(new Unicorn2Factory(true))
                .setProcessName("com.smile.gifmaker")
                .build();
        Memory memory = emulator.getMemory();
        memory.setLibraryResolver(new AndroidResolver(23));
        vm = emulator.createDalvikVM(new File("unidbg-android/src/test/resources/kuaishou/ks_12.10.30.39327.apk"));
        vm.setJni(this);
        vm.setVerbose(true);
        new AndroidModule(emulator, vm).register(memory);
        DalvikModule dm = vm.loadLibrary("kwsgmain", true);
        module = dm.getModule();
        System.out.print("base :" + module.base + "\n");
        System.out.print("size :" + module.size + "\n");
        dm.callJNI_OnLoad(emulator);
    }

    private void call_doCommandNative_sig3(String text) {
        List<Object> params = new ArrayList<>();
        params.add(vm.getJNIEnv());
        params.add(0);
        params.add(10418);
        StringObject str = new StringObject(vm, text);
        vm.addLocalObject(str);
        ArrayObject strArray = new ArrayObject(str);
        StringObject key1 = new StringObject(vm, "d7b7d042-d4f2-4012-be60-d97ff2429c17");
        vm.addLocalObject(key1);
        DvmInteger dInt = DvmInteger.valueOf(vm, -1);
        vm.addLocalObject(dInt);
        DvmBoolean dBoolean = DvmBoolean.valueOf(vm, false);
        vm.addLocalObject(dBoolean);
        DvmObject<?> dClass = vm.resolveClass("com/yxcorp/gifshow/App").newObject(null);
        vm.addLocalObject(dClass);
        StringObject key2 = new StringObject(vm, "");
        vm.addLocalObject(key2);
        ArrayObject paramArray = new ArrayObject(strArray, key1, dInt, dBoolean, dClass, null, dBoolean, key2);
        params.add(vm.addLocalObject(paramArray));
        Number number = module.callFunction(emulator, 0x40cd4, params.toArray());
        DvmObject<?> object = vm.getObject(number.intValue());
        String result = (String)object.getValue();
        System.out.println("result:"+ result);
    }

    public static void main(String[] args) {
        KSEmulator emulator = new KSEmulator();
        emulator.call_doCommandNative_sig3("HandsomeBro");
    }
}

运行后会出现如下错误

[23:29:06 547]  WARN [com.github.unidbg.AbstractEmulator] (AbstractEmulator:417) - emulate RX@0x40040cd4[libkwsgmain.so]0x40cd4 exception sp=unidbg@0xbffff020, msg=unicorn.UnicornException: Invalid memory read (UC_ERR_READ_UNMAPPED), offset=13ms @ Runnable|Function64 address=0x40040cd4, arguments=[unidbg@0xfffe1640[libandroid.so]0x640, 0, 10418, 846492085]
Exception in thread "main" java.lang.NullPointerException
    at com.ks.run.KSEmulator.call_doCommandNative_sig3(KSEmulator.java:64)
    at com.ks.run.KSEmulator.main(KSEmulator.java:70)

Process finished with exit code 1

第一反应大概率是访问了无效内存导致崩溃了，这种情形一般是调用so接口前没有初始化导致的，先hook找一下初始化的流程

function hook_so()
{
    var base = Module.findBaseAddress("libkwsgmain.so");
    if (base) {
        var addr_doCommandNative = base.add(0x40cd4);
        Interceptor.attach(addr_doCommandNative, {
            onEnter: function (args) {
                console.log("doCommandNative() args[2] = " + args[2])
            }, onLeave: function (retval) {
            }
        })
        var addr_gdbf = base.add(0x408a4);
        Interceptor.attach(addr_gdbf, {
            onEnter: function (args) {
                console.log("gdbf() enter")
            }, onLeave: function (retval) {
            }
        })
        var addr_dcabk = base.add(0x40948);
        Interceptor.attach(addr_dcabk, {
            onEnter: function (args) {
                console.log("dcabk() enter")
            }, onLeave: function (retval) {
            }
        })
        var addr_gdgi = base.add(0x403bc);
        Interceptor.attach(addr_gdgi, {
            onEnter: function (args) {
                console.log("gdgi() enter")
            }, onLeave: function (retval) {
            }
        })
        var addr_gksf = base.add(0x407f0);
        Interceptor.attach(addr_gksf, {
            onEnter: function (args) {
                console.log("gksf() enter")
            }, onLeave: function (retval) {
            }
        })
    }
}

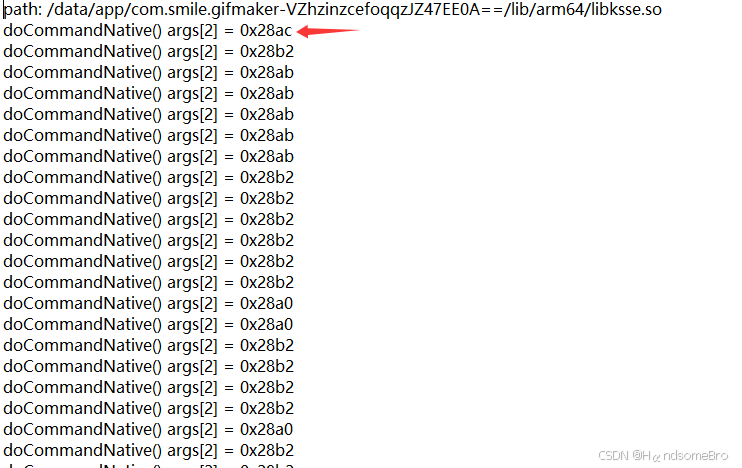

发现JNI接口其他函数并没有调用，但是每次都会调用doCommandNative的0x28ac也就是10412

unidbg文件加上10412的函数

private void call_doCommandNative_init() {
    List<Object> params = new ArrayList<>();
    params.add(vm.getJNIEnv());
    params.add(0);
    params.add(10412);
    StringObject key1 = new StringObject(vm, "d7b7d042-d4f2-4012-be60-d97ff2429c17");
    vm.addLocalObject(key1);
    DvmInteger dInt = DvmInteger.valueOf(vm, 0);
    vm.addLocalObject(dInt);
    DvmObject<?> dClass = vm.resolveClass("com/yxcorp/gifshow/App").newObject(null);
    vm.addLocalObject(dClass);
    ArrayObject paramArray = new ArrayObject(dInt, key1, dInt, dInt, dClass, dInt, dInt);
    params.add(vm.addLocalObject(paramArray));
    Number number = module.callFunction(emulator, 0x40cd4, params.toArray());
    System.out.println("numbers:" + number);
    DvmObject<?> object = vm.getObject(number.intValue());
    String result = (String)object.getValue();
    System.out.println("result:"+ result);
}

运行后发现会报缺少类的错误，挨个解决一下

public boolean callBooleanMethodV(BaseVM vm, DvmObject<?> dvmObject, String signature, VaList vaList) {
    switch (signature) {
        case "java/lang/Boolean->booleanValue()Z":
            return ((DvmBoolean)dvmObject).getValue();
    }
    return super.callBooleanMethodV(vm, dvmObject, signature, vaList);
}

@Override
public void callStaticVoidMethodV(BaseVM vm, DvmClass dvmClass, String signature, VaList vaList) {
    switch (signature) {
        case "com/kuaishou/android/security/internal/common/ExceptionProxy->nativeReport(ILjava/lang/String;)V":
            return;
    }
}

@Override
public DvmObject<?> callStaticObjectMethodV(BaseVM vm, DvmClass dvmClass, String signature, VaList vaList) {
    switch (signature) {
        case "com/kuaishou/android/security/internal/common/ExceptionProxy->getProcessName(Landroid/content/Context;)Ljava/lang/String;":
            return new StringObject(vm, "com.smile.gifmaker");
    }
    return super.callStaticObjectMethodV(vm, dvmClass, signature, vaList);
}

@Override
public DvmObject<?> callObjectMethodV(BaseVM vm, DvmObject<?> dvmObject, String signature, VaList vaList) {
    switch (signature) {
        case "com/yxcorp/gifshow/App->getPackageCodePath()Ljava/lang/String;": {
            return new StringObject(vm, "/data/app/com.smile.gifmaker-VZhzinzcefoqqzJZ47EE0A==/base.apk");
        }
        case "com/yxcorp/gifshow/App->getPackageName()Ljava/lang/String;": {
            return new StringObject(vm, "com.smile.gifmaker");
        }
        case "com/yxcorp/gifshow/App->getAssets()Landroid/content/res/AssetManager;": {
            return new AssetManager(vm, signature);
        }
        case "com/yxcorp/gifshow/App->getPackageManager()Landroid/content/pm/PackageManager;": {
            return vm.resolveClass("android.content.pm.PackageManager").newObject(null);
        }
    }
    return super.callObjectMethodV(vm, dvmObject, signature, vaList);
}

再次运行结果能正常显示，但是每次结果都会不一样，这里就需要找一下随机因子了，一般时间戳会用的比较多一点，也有用系统函数获取随机数的，可以到IDA里面搜下关键字，先搜索下random

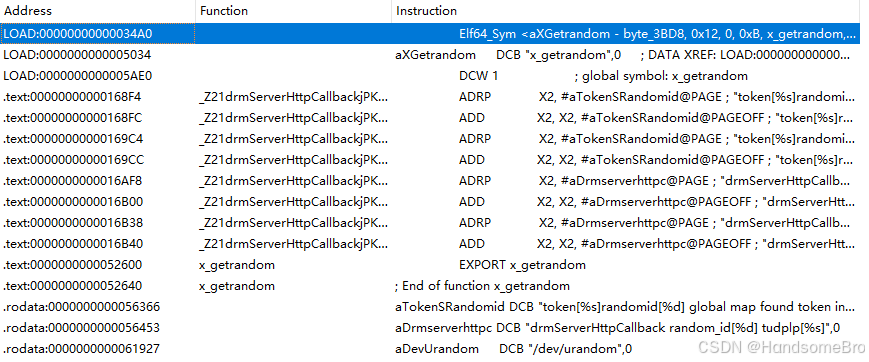

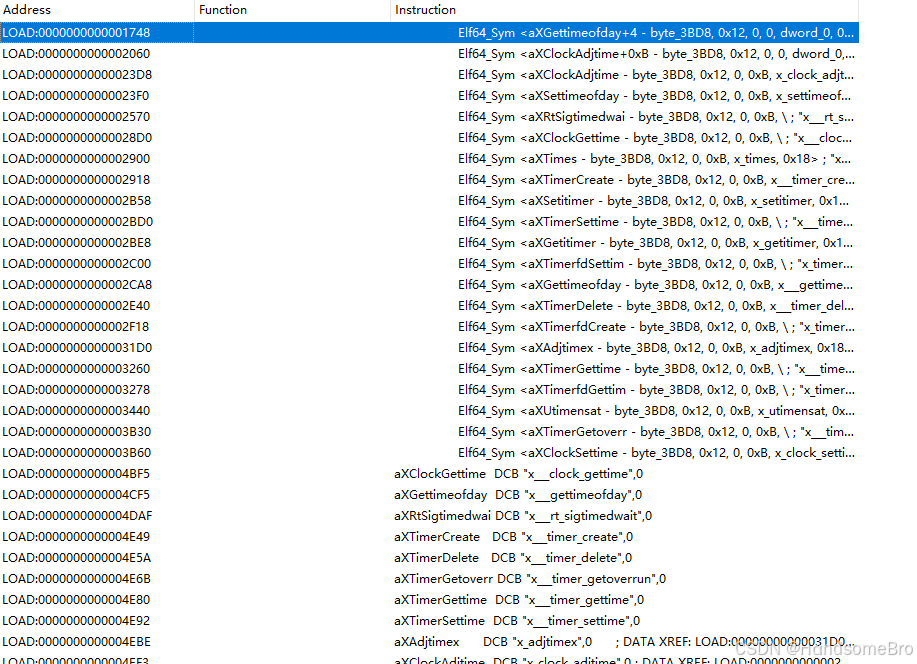

发现很多调用都没有用到，在搜索下time

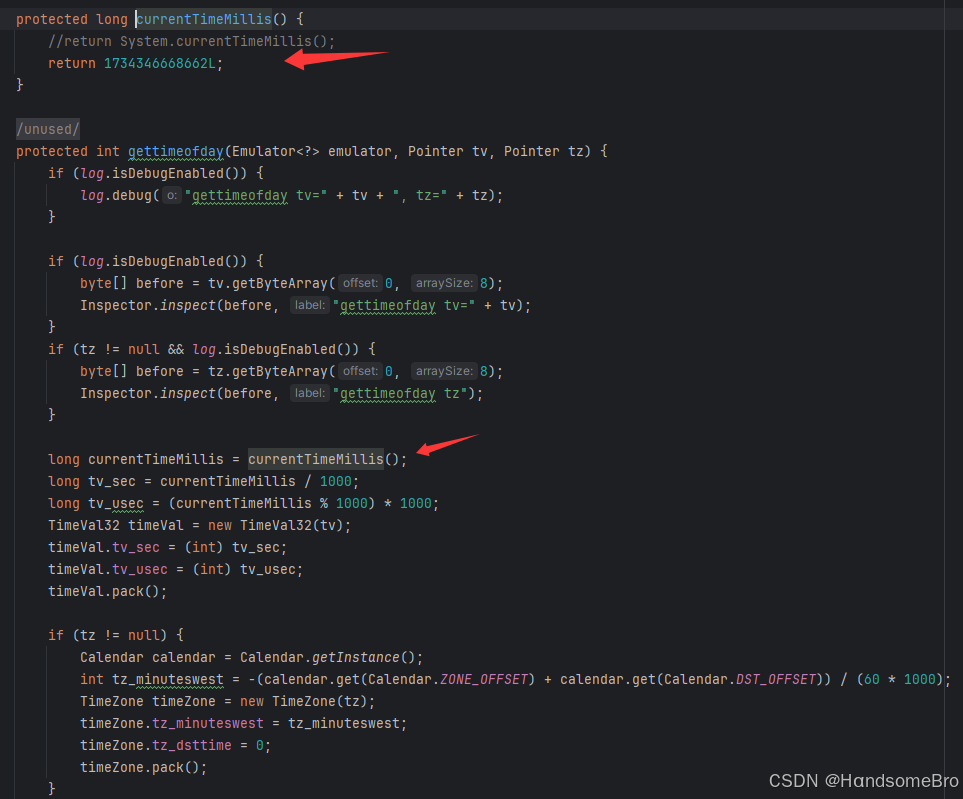

这里IDA里面很多函数都有用到，直接到unidbg工程里面固定下参数

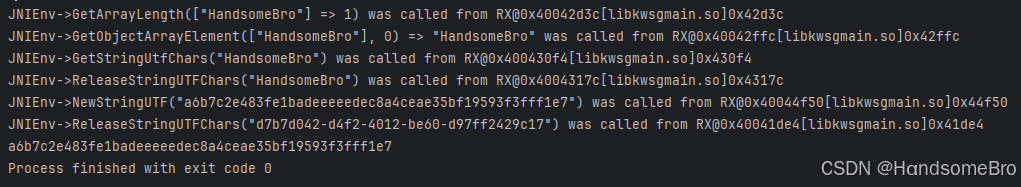

固定后运行发现数据每次都一样了

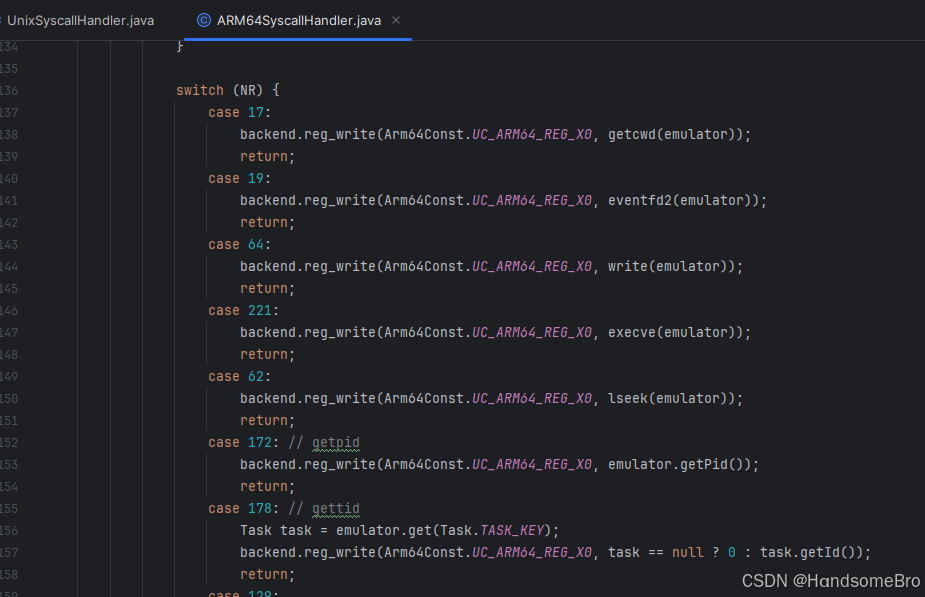

如果不想再ida中搜索或者搜索不到关键字，其实也可以直接在unidbg工程里面加日志或者固定参数进行测试，unidbg工程有实现标准的linux系统调用接口

今天就记录到这里，剩下的算法还原我们留到第二篇在写。

警告：本文章相关代码与分析流程仅用于技术学习与提升，切勿用于非法用途，否则后果自负。
