- unidbg搭架子
package com.tk.run;
import com.github.unidbg.AndroidEmulator;
import com.github.unidbg.Emulator;
import com.github.unidbg.Module;
import com.github.unidbg.arm.backend.Unicorn2Factory;
import com.github.unidbg.file.FileResult;
import com.github.unidbg.file.IOResolver;
import com.github.unidbg.file.linux.AndroidFileIO;
import com.github.unidbg.linux.android.AndroidEmulatorBuilder;
import com.github.unidbg.linux.android.AndroidResolver;
import com.github.unidbg.linux.android.dvm.AbstractJni;
import com.github.unidbg.linux.android.dvm.DalvikModule;
import com.github.unidbg.linux.android.dvm.DvmClass;
import com.github.unidbg.linux.android.dvm.VM;
import com.github.unidbg.linux.android.dvm.array.ByteArray;
import com.github.unidbg.linux.android.dvm.wrapper.DvmInteger;
import com.github.unidbg.linux.file.ByteArrayFileIO;
import com.github.unidbg.linux.file.SimpleFileIO;
import com.github.unidbg.memory.Memory;
import com.github.unidbg.memory.MemoryBlock;
import com.github.unidbg.pointer.UnidbgPointer;
import com.github.unidbg.virtualmodule.android.AndroidModule;
import com.sun.jna.JNIEnv;
import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.PrintStream;
import java.nio.charset.StandardCharsets;
import java.util.ArrayList;
import java.util.List;
public class fucktk extends AbstractJni implements IOResolver {
private final AndroidEmulator emulator;
private final Module module;
private final VM vm;
@Override
public FileResult<?> resolve(Emulator emulator, String pathname, int oflags) {
System.out.println("file open:" + pathname);
return null;
}
public fucktk() {
System.out.print("enter");
emulator = AndroidEmulatorBuilder
.for64Bit()
.addBackendFactory(new Unicorn2Factory(true))
.setProcessName("com.zhiliaoapp.musically")
.build();
Memory memory = emulator.getMemory();
memory.setLibraryResolver(new AndroidResolver(23));
vm = emulator.createDalvikVM(new File("unidbg-android/src/test/resources/app/demo.apk"));
vm.setJni(this);
vm.setVerbose(true);
emulator.getSyscallHandler().addIOResolver(this);
new AndroidModule(emulator, vm).register(memory);
DalvikModule dm = vm.loadLibrary("Encryptor", true);
module = dm.getModule();
System.out.print("base :" + module.base + "\n");
System.out.print("size :" + module.size + "\n");
dm.callJNI_OnLoad(emulator);
trace2file();
}
private void trace2file() {
String traceFile = "unidbg-android/src/test/resources/tk/trace/trace.txt";
PrintStream traceStream = null;
try{
traceStream = new PrintStream(new FileOutputStream(traceFile), true);
} catch (FileNotFoundException e) {
e.printStackTrace();
}
emulator.traceCode(module.base, module.base + module.size).setRedirect(traceStream);
}
public static String bytesToHex(byte[] bytes) {
StringBuilder sb = new StringBuilder();
for (byte b : bytes) {
int unsignedInt = b & 0xff;
String hex = Integer.toHexString(unsignedInt);
if (hex.length() == 1) {
sb.append('0');
}
sb.append(hex);
}
return sb.toString();
}
private void call_jni() {
List<Object> params = new ArrayList<>();
params.add(vm.getJNIEnv());
params.add(0);
byte[] b = {0x12,0x19,(byte)0xB3,0x18,0x1B,0x15,(byte)0xB2,0x1B,0x11,(byte)0xB0,0x12,0x12,0x13,(byte)0xB3,0x13,0x13};
ByteArray by = new ByteArray(vm, b);
params.add(vm.addLocalObject(by));
params.add(16);
Number number = module.callFunction(emulator, 0x7d88, params.toArray());
if (number != null) {
ByteArray resultArr = vm.getObject(number.intValue());
System.out.println("result:"+ bytesToHex(resultArr.getValue()));
}
}
public static void main(String[] args) {
fucktk fk = new fucktk();
fk.call_jni();
}
}
搭完架子后直接拿到trace方便后续分析。
- 入口函数分析

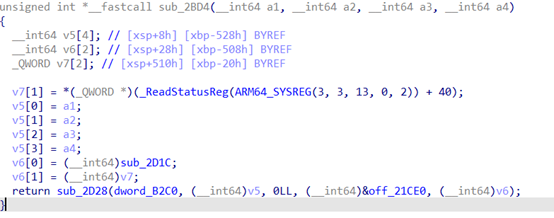

主要调用sub_2BD4，进行加密。
sub_2BD4主要调用sub_2D28，入参dword_B2C0为一组内存数据，v5为sub_2BD4的四个入参，off_21CE0为一个长度为8的字节变量，v6为一个中转函数，继续往下可以看到主加密的函数sub_2D82的cfg如下：

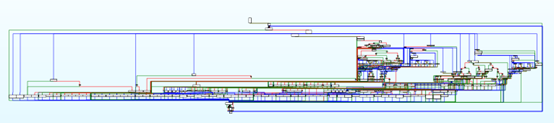

第一眼看上去的感觉像控制流平坦化，因为有序，主分发器，基本块，跟预处理器。但是伪C很明显可以看到switch的case不像随机数，而标准的控制流平坦化都是随机数。一般魔改也不会去修改这个case值。入口处有编码数组，所以猜是虚拟机函数。
- 静态分析

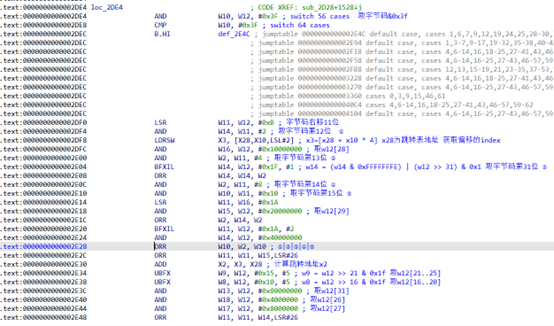

一般虚拟机函数肯定要解析opcode，先看下跳转处的汇编
结合trace搜索可以看到
[09:39:47 245][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0xdfbdfc28 => w10=0x28
[09:39:47 261][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40003044
[09:39:47 279][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x23bf023b => w10=0x3b
[09:39:47 282][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002f70
[09:39:47 316][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x23be003b => w10=0x3b
[09:39:47 319][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002f70
[09:39:47 343][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb70e3b => w10=0x3b
[09:39:47 345][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002f70
[09:39:47 349][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb60c3b => w10=0x3b
[09:39:47 350][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002f70
[09:39:47 353][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb50a3b => w10=0x3b
[09:39:47 354][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002f70
[09:39:47 356][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb4083b => w10=0x3b
[09:39:47 358][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002f70
[09:39:47 380][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb3063b => w10=0x3b
...
[09:39:48 825][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[09:39:48 827][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0xbb1063b => w10=0x3b
[09:39:48 828][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002f70
[09:39:48 829][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0xba50628 => w10=0x28
[09:39:48 829][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40003044
[09:39:48 830][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x8200c62f => w10=0x2f
[09:39:48 831][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[09:39:48 832][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x8320f5af => w10=0x2f
[09:39:48 832][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[09:39:48 833][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x240262f => w10=0x2f
[09:39:48 834][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[09:39:48 835][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0xba50428 => w10=0x28
[09:39:48 836][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40003044
[09:39:48 837][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0xbb4043b => w10=0x3b
[09:39:48 837][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002f70
[09:39:48 838][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x8200c62f => w10=0x2f
[09:39:48 838][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[09:39:48 839][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x8320f5af => w10=0x2f
[09:39:48 840][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[09:39:48 841][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x240262f => w10=0x2f
[09:39:48 841][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[09:39:48 843][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0xba50228 => w10=0x28
[09:39:48 843][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40003044
[09:39:48 844][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0xbb5023b => w10=0x3b
[09:39:48 845][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002f70
[09:39:48 846][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x8200c62f => w10=0x2f
[09:39:48 846][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[09:39:48 847][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x8320f5af => w10=0x2f
[09:39:48 847][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[09:39:48 849][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x240262f => w10=0x2f
[09:39:48 849][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[09:39:48 851][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb00002 => w10=0x2
[09:39:48 851][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002e50
[09:39:48 852][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb10202 => w10=0x2
[09:39:48 852][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002e50
[09:39:48 853][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb20402 => w10=0x2
[09:39:48 854][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002e50
[09:39:48 855][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb30602 => w10=0x2
[09:39:48 855][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002e50
[09:39:48 856][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb40802 => w10=0x2
[09:39:48 857][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002e50
[09:39:48 857][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb50a02 => w10=0x2
[09:39:48 858][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002e50
[09:39:48 859][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb60c02 => w10=0x2
[09:39:48 859][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002e50
[09:39:48 860][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x1fb70e02 => w10=0x2
[09:39:48 861][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002e50
[09:39:48 862][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x23be0002 => w10=0x2
[09:39:48 862][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002e50
[09:39:48 863][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x23bf0202 => w10=0x2
[09:39:48 864][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002e50
[09:39:48 864][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x3e006af => w10=0x2f
[09:39:48 865][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[09:39:48 869][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x23bd0428 => w10=0x28
[09:39:48 869][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40003044
opcode每次取4个字节，统计一下对应的opcode与跳转地址
0x3b x2=0x40002f70
0x28 x2=0x40003044
0x2f x2=0x4000333c
0x2 x2=0x40002e50
0xf x2=0x40002ecc
0x4 x2=0x40002fec
0x3e x2=0x40002fec
0x15 21 x2=0x40003044
0x36 54 x2=0x40002f70
0x2a 42 x2=0x400030a0

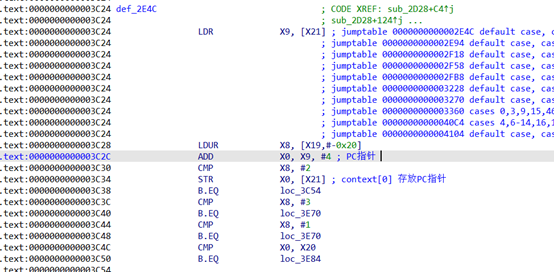

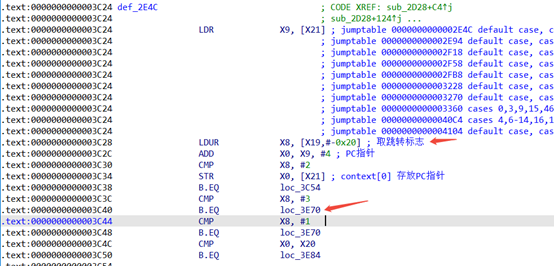

顺着每条opcode解析往下走不难发现PC指针的位置如下：
再看下对应的trace就比较明显了
[15:45:31 882][libEncryptor.so 0x03c24] [a90240f9] 0x40003c24: "ldr x9, [x21]" x21=0xbffff538 => x9=0x4000b2c4 #从x21取pc
[15:45:31 882][libEncryptor.so 0x03c28] [68025ef8] 0x40003c28: "ldur x8, [x19, #-0x20]" x8=0x0 x19=0xbffff670 => x8=0x0
[15:45:31 882][libEncryptor.so 0x03c2c] [20110091] 0x40003c2c: "add x0, x9, #4" x9=0x4000b2c4 => x0=0x4000b2c8 #pc加4
[15:45:31 882][libEncryptor.so 0x03c30] [1f0900f1] 0x40003c30: "cmp x8, #2" => nzcv: N=1, Z=0, C=0, V=0 x8=0x0
[15:45:31 883][libEncryptor.so 0x03c34] [a00200f9] 0x40003c34: "str x0, [x21]" x0=0x4000b2c8 x21=0xbffff538 => x0=0x4000b2c8 #存pc到x21
[15:45:31 883][libEncryptor.so 0x03c38] [e0000054] 0x40003c38: "b.eq #0x40003c54" nzcv: N=1, Z=0, C=0, V=0
[15:45:31 883][libEncryptor.so 0x03c3c] [1f0d00f1] 0x40003c3c: "cmp x8, #3" => nzcv: N=1, Z=0, C=0, V=0 x8=0x0
[15:45:31 883][libEncryptor.so 0x03c40] [80110054] 0x40003c40: "b.eq #0x40003e70" nzcv: N=1, Z=0, C=0, V=0
[15:45:31 883][libEncryptor.so 0x03c44] [1f0500f1] 0x40003c44: "cmp x8, #1" => nzcv: N=1, Z=0, C=0, V=0 x8=0x0
[15:45:31 883][libEncryptor.so 0x03c48] [40110054] 0x40003c48: "b.eq #0x40003e70" nzcv: N=1, Z=0, C=0, V=0
[15:45:31 883][libEncryptor.so 0x03c4c] [1f0014eb] 0x40003c4c: "cmp x0, x20" x20=0x40002d1c => nzcv: N=0, Z=0, C=1, V=0 x0=0x4000b2c8
[15:45:31 883][libEncryptor.so 0x03c50] [a0110054] 0x40003c50: "b.eq #0x40003e84" nzcv: N=0, Z=0, C=1, V=0
[15:45:31 883][libEncryptor.so 0x03c54] [008cffb5] 0x40003c54: "cbnz x0, #0x40002dd4" x0=0x4000b2c8
[15:45:31 883][libEncryptor.so 0x02dd4] [61025ef8] 0x40002dd4: "ldur x1, [x19, #-0x20]" x1=0x0 x19=0xbffff670 => x1=0x0
[15:45:31 883][libEncryptor.so 0x02dd8] [0c0040b9] 0x40002dd8: "ldr w12, [x0]" x0=0x4000b2c8 => w12=0x23be003b #取出下一条encode
[15:45:31 883][libEncryptor.so 0x02ddc] [3f0800f1] 0x40002ddc: "cmp x1, #2" => nzcv: N=1, Z=0, C=0, V=0 x1=0x0
[15:45:31 884][libEncryptor.so 0x02de0] [40a30054] 0x40002de0: "b.eq #0x40004248" nzcv: N=1, Z=0, C=0, V=0
[15:45:31 884][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x23be003b => w10=0x3b #下一条指令的opcode
后面就要开始分析指令了，大概初步扫了一圈，柿子挑软的捏，先找个熟悉的指令开始
opcode：0x28
.text:0000000000002DF0 LSR W11, W12, #0xB ; 字节码右移11位
.text:0000000000002DF4 AND W14, W11, #2 ; 取字节码第12位 ①
.text:0000000000002DF8 LDRSW X3, [X28,X10,LSL#2] ; x3=[x28 + x10 * 4] x28为跳转表地址 获取偏移的index
.text:0000000000002DFC AND W16, W12, #0x10000000 ; 取w12[28]
.text:0000000000002E00 AND W2, W11, #4 ; 取字节码第13位 ②
.text:0000000000002E04 BFXIL W14, W12, #0x1F, #1 ; w14 = (w12 >> 31) & 0x1 取字节码第31位 ③
.text:0000000000002E08 ORR W14, W14, W2
.text:0000000000002E0C AND W2, W11, #8 ; 取字节码第14位 ④
.text:0000000000002E10 AND W10, W11, #0x10 ; 取字节码第15位 ⑤
.text:0000000000002E14 LSR W11, W16, #0x1A
.text:0000000000002E18 AND W15, W12, #0x20000000 ; 取w12[29]
.text:0000000000002E1C ORR W2, W14, W2
.text:0000000000002E20 BFXIL W11, W12, #0x1A, #2
.text:0000000000002E24 AND W14, W12, #0x40000000
.text:0000000000002E28 ORR W10, W2, W10 ; ①|②|③|④|⑤
.text:0000000000002E2C ORR W11, W11, W15,LSR#26
.text:0000000000002E30 ADD X2, X3, X28 ; 计算跳转地址x2
.text:0000000000002E34 UBFX W9, W12, #0x15, #5 ; w9 = w12 >> 21 & 0x1f 取w12[21..25] 源寄存器索引
.text:0000000000002E38 UBFX W8, W12, #0x10, #5 ; w9 = w12 >> 16 & 0x1f 取w12[16..20] 目标寄存器索引
.text:0000000000002E3C AND W13, W12, #0x80000000 ; 取w12[31]
.text:0000000000002E40 AND W18, W12, #0x4000000 ; 取w12[26]
.text:0000000000002E44 AND W17, W12, #0x8000000 ; 取w12[27]
.text:0000000000002E48 ORR W11, W11, W14,LSR#26
.text:0000000000002E4C BR X2 ; switch jump
.text:0000000000003044 AND W0, W12, #0xF000 ; w0 = w12 & 0xf000 取w12[12..15]
.text:0000000000003048 UBFX W10, W12, #6, #6 ; w10 = w12 >> 6 & 0x3f 取w12[6..11]
.text:000000000000304C BFXIL W0, W18, #0x14, #0xC ; w0 = (W0 & 0xFFFFF000) | (w18 >> 0x20 & 0xfff) 取w18[20..31] w18取w12[26]
.text:0000000000003050 ORR W10, W0, W10 ; w10 = w0 | w10
.text:0000000000003054 ORR W10, W10, W17,LSR#20 ; w10 = w10 | w17 >> 20 w17取字节码w12[27]
.text:0000000000003058 ORR W10, W10, W16,LSR#20 ; w10 = w10 | w16 >> 20 w16取字节码w12[28]
.text:000000000000305C ORR W10, W10, W15,LSR#20 ; w10 = w10 | w15 >> 20 w15取字节码w12[29]
.text:0000000000003060 AND W11, W12, #0x3F
.text:0000000000003064 ORR W10, W10, W14,LSR#20 ; w10 = w10 | w14 >> 20 w14取字节码w12[30]
.text:0000000000003068 CMP W11, #0xD
.text:000000000000306C ORR W10, W10, W13,LSR#20 ; w10 = w10 | w13 >> 20 w13取字节码w12[31]
.text:0000000000003070 B.EQ loc_3144
.text:0000000000003074 CMP W11, #0x28 ; '('
.text:0000000000003078 B.EQ loc_3144
.text:0000000000003144 ADD X11, X21, #8;x11 = x21 + 8 x21是context 加8偏移后x11是虚拟寄存器表
.text:0000000000003148 LDR X9, [X11,W9,UXTW#3] ;x9 = [x11 + (w9_uxth << 3)] w9是源寄存器索引
.text:000000000000314C ADD X9, X9, W10,SXTH ;x9 = x9 + w10_sxth w10是立即数
.text:0000000000003150 STR X9, [X11,W8,UXTW#3] ;[x11 + (w8_uxth << 3)] = x9 w8是目标寄存器索引
.text:0000000000003154 B def_2E4C
1.先从虚拟源寄存器w9取出数据，2.加上立即数w10，3.将结果存入虚拟目的寄存器w8 ，其中每个虚拟寄存器占8个字节，x[index] = x21 + 8 + index * 8，实现指令add xd, xn, #imm
opcode：0x15
.text:0000000000003044 AND W0, W12, #0xF000 ; w0 = w12 & 0xf000 取w12[12..15]
.text:0000000000003048 UBFX W10, W12, #6, #6 ; w10 = w12 >> 6 & 0x3f 取w12[6..11]
.text:000000000000304C BFXIL W0, W18, #0x14, #0xC ; w0 = (W0 & 0xFFFFF000) | (w18 >> 0x20 & 0xfff) 取w18[20..31] w18取w12[26]
.text:0000000000003050 ORR W10, W0, W10 ; w10 = w0 | w10
.text:0000000000003054 ORR W10, W10, W17,LSR#20 ; w10 = w10 | w17 >> 20 w17取字节码w12[27]
.text:0000000000003058 ORR W10, W10, W16,LSR#20 ; w10 = w10 | w16 >> 20 w16取字节码w12[28]
.text:000000000000305C ORR W10, W10, W15,LSR#20 ; w10 = w10 | w15 >> 20 w15取字节码w12[29]
.text:0000000000003060 AND W11, W12, #0x3F
.text:0000000000003064 ORR W10, W10, W14,LSR#20 ; w10 = w10 | w14 >> 20 w14取字节码w12[30]
.text:0000000000003068 CMP W11, #0xD
.text:000000000000306C ORR W10, W10, W13,LSR#20 ; w10 = w10 | w13 >> 20 w14取字节码w12[31]
.text:0000000000003070 B.EQ loc_3144
.text:0000000000003074 CMP W11, #0x28 ; '('
.text:0000000000003078 B.EQ loc_3144
.text:000000000000307C CMP W11, #0x15
.text:0000000000003080 B.NE def_2E4C
.text:0000000000003084 ADD X11, X21, #8 ;X11 = X21 + 8
.text:0000000000003088 LSL X9, X9, #3 ;X9 = X9 << 3
.text:000000000000308C LDRSW X9, [X11,X9] ;取虚拟寄存器值x9
.text:0000000000003090 SXTH W10, W10
.text:0000000000003094 ADD X9, X9, W10,SXTW ; x9 = x9 + w10_sxtw
.text:0000000000003098 STR X9, [X11,W8,UXTW#3] ;存结果到虚拟寄存器W8
.text:000000000000309C B def_2E4C
与0x28实现一样的add 指令，只是取虚拟寄存器的顺序不一样即调整了x21加8与加index * 8的先后顺序。
opcode：0x2
.text:0000000000002E50 loc_2E50 ; CODE XREF: sub_2D28+124↑j
.text:0000000000002E50 ; DATA XREF: .rodata:jpt_2E4C↓o ...
.text:0000000000002E50 AND W10, W12, #0x3F ; jumptable 0000000000002E4C cases 0,2,8,18,31,33,34,39,43,48,49,51,55
.text:0000000000002E54 CMP W10, #0x37 ; '7'
.text:0000000000002E58 B.HI def_2E4C ; jumptable 0000000000002E4C default case, cases 1,6,7,9,12,19,24,25,28-30,37,38,46,52,53,57,60,61
.text:0000000000002E58 ; jumptable 0000000000002E94 default case, cases 1,3-7,9-17,19-32,35-38,40-42,44-47,50,52-54
.text:0000000000002E58 ; jumptable 0000000000002F18 default case, cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000002E58 ; jumptable 0000000000002F58 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000002E58 ; jumptable 0000000000002FB8 default case, cases 12,13,15-19,21,23-35,37-53,55-58
.text:0000000000002E58 ; jumptable 0000000000003228 default case, cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000002E58 ; jumptable 0000000000003270 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000002E58 ; jumptable 0000000000003360 cases 0,3,9,15,46,61
.text:0000000000002E58 ; jumptable 00000000000040C4 cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000002E58 ; jumptable 0000000000004104 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000002E5C UBFX W11, W12, #6, #6 ; W11 = (W12 >> 6) & 0x3F w11取w12[6..11]
.text:0000000000002E60 AND W12, W12, #0xF000 ; w12 = w12 & 0xf000 取w12[12..15]
.text:0000000000002E64 BFXIL W12, W18, #0x14, #0xC ; w12 = (W12 & 0xFFFFF000) | (w18 >> 0x20 & 0xfff) 取w18[20..31] w18取w12[26]
.text:0000000000002E68 ORR W11, W12, W11 ; w11 = w12 | w11
.text:0000000000002E6C ADD X9, X21, W9,UXTW#3 ; x9 = x21 + w9_uxtw << 3
.text:0000000000002E70 LDRSW X10, [X22,X10,LSL#2]
.text:0000000000002E74 ORR W11, W11, W17,LSR#20 ; w10 = w10 | w17 >> 20 w17取字节码w12[27]
.text:0000000000002E78 LDR X9, [X9,#8] ;取源寄存器地址X9
.text:0000000000002E7C ORR W11, W11, W16,LSR#20 ; w10 = w10 | w16 >> 20 w16取字节码w12[28]
.text:0000000000002E80 ORR W11, W11, W15,LSR#20 ; w10 = w10 | w15 >> 20 w15取字节码w12[29]
.text:0000000000002E84 ORR W11, W11, W14,LSR#20 ; w10 = w10 | w14 >> 20 w14取字节码w12[30]
.text:0000000000002E88 ORR W11, W11, W13,LSR#20 ; w10 = w10 | w13 >> 20 w13取字节码w12[31]
.text:0000000000002E8C ADD X10, X10, X22
.text:0000000000002E90 ADD X9, X9, W11,SXTH ;x9 = x9 + w11_sxth,w11为立即数
.text:0000000000002E94 BR X10 ; switch jump
.text:00000000000033D8 loc_33D8 ; CODE XREF: sub_2D28+16C↑j
.text:00000000000033D8 ; DATA XREF: .rodata:000000000000AA68↓o
.text:00000000000033D8 LDR X9, [X9] ; jumptable 0000000000002E94 case 2 ;从x9的偏移地址取数据
.text:00000000000033DC B loc_3C1C
.text:0000000000003C1C loc_3C1C ; CODE XREF: sub_2D28+6AC↑j
.text:0000000000003C1C ; sub_2D28+6B4↑j ...
.text:0000000000003C1C ADD X8, X21, W8,UXTW#3
.text:0000000000003C20
.text:0000000000003C20 loc_3C20 ; CODE XREF: sub_2D28+1A0↑j
.text:0000000000003C20 ; sub_2D28+6EC↑j ...
.text:0000000000003C20 STR X9, [X8,#8] ;存储结果到虚拟寄存器w8
1.先从虚拟寄存器w9取出数据 ，2.加上立即数w11， 3.从偏移地址取处数据， 4.存入虚拟寄存器x8，实现指令ldr xd, [xn, #imm]
opcode：0x2f 0x30
.text:000000000000333C AND W13, W12, #0xFFF ; jumptable 0000000000002E4C case 47
.text:0000000000003340 SUB W14, W13, #0x6F ; 'o'
.text:0000000000003344 EXTR W14, W14, W14, #6 ;二级opcode
.text:0000000000003348 CMP W14, #0x3E ; switch 63 cases
.text:000000000000334C B.HI def_3360 ; jumptable 0000000000003360 default case, cases 4,5,7,8,17-20,25,27-30,33,35,37,39,42,43,47,50,53-58
.text:0000000000003350 ADRL X15, jpt_3360
.text:0000000000003358 LDRSW X14, [X15,X14,LSL#2]
.text:000000000000335C ADD X14, X14, X15
.text:0000000000003360 BR X14 ; switch jump ;二级opcode跳转
.text:0000000000003A60 CMP W13, #0xC6E ; jumptable 0000000000003360 cases 10,48
.text:0000000000003A64 B.GT loc_3A94
.text:0000000000003A68 CMP W13, #0x8EE
.text:0000000000003A6C B.GT loc_3D4C
.text:0000000000003A70 CMP W13, #0x2EF
.text:0000000000003A74 B.EQ loc_4288
.text:0000000000003A78 CMP W13, #0x3EF
.text:0000000000003A7C B.EQ loc_429C
.text:0000000000003A80 CMP W13, #0x46F
.text:0000000000003A84 B.NE def_2E4C
.text:0000000000003A88 ADD X9, X21, #8
.text:0000000000003A8C LDR X8, [X9,W8,UXTW#3]
.text:0000000000003A90 B loc_42D4
.text:0000000000003A94 MOV W9, #0x2008EE
.text:0000000000003A9C CMP W13, W9
.text:0000000000003AA0 B.GT loc_3D78
.text:0000000000003AA4 CMP W13, #0xC6F
.text:0000000000003AA8 B.EQ loc_42B0
.text:0000000000003AAC CMP W13, #0xCAF
.text:0000000000003AB0 B.EQ loc_42C4
.text:0000000000003AB4 CMP W13, #0xF2F
.text:0000000000003AB8 B.NE def_2E4C
.text:00000000000042B0 ADD X9, X21, #8
.text:00000000000042B4 LSL X8, X8, #3
.text:00000000000042B8 LDR W8, [X9,X8] ;取虚拟寄存器w8
.text:00000000000042BC LSL W8, W8, W11 ;左移操作
.text:00000000000042C0 B loc_432C
.text:000000000000432C SXTW X8, W8
.text:0000000000004330 STR X8, [X9,W10,UXTW#3] ;存入虚拟寄存器w10
.text:0000000000004334 B def_2E4C
这个有两级opcode，1.取虚拟寄存器w8，2.左移w11，3.结果存入w10的虚拟寄存器，实现指令lsl xd, xn, #imm
opcode：0x2f 0x26
.text:0000000000003364 AND W11, W12, #0xFFF ; jumptable 0000000000003360 cases 6,13,26,32,36,38,40,51
.text:0000000000003368 CMP W11, #0x86E
.text:000000000000336C B.LE loc_3B4C
.text:0000000000003370 CMP W11, #0x9EE
.text:0000000000003374 B.LE loc_37FC
.text:0000000000003378
.text:0000000000003378 loc_3378 ; CODE XREF: sub_2D28+AD0↓j
.text:0000000000003378 CMP W11, #0x9EF
.text:000000000000337C B.EQ loc_380C
.text:000000000000380C ADD X11, X21, #8
.text:0000000000003810 LDR X9, [X11,W9,UXTW#3] ; 获取虚拟寄存器w9的值
.text:0000000000003814 LDR X8, [X11,W8,UXTW#3] ; 获取虚拟寄存器w8的值
.text:0000000000003818 ADD X8, X8, X9 ; x8 = x8 + x9
.text:000000000000381C STR X8, [X11,W10,UXTW#3] ; 结果存入虚拟寄存器w10
.text:0000000000003820 B def_2E4C
非常明显实现指令add xd, xn, xm
opcode 0x2f 0x15
.text:000000000000333C AND W13, W12, #0xFFF ; jumptable 0000000000002E4C case 47
.text:0000000000003340 SUB W14, W13, #0x6F ; 'o'
.text:0000000000003344 EXTR W14, W14, W14, #6
.text:0000000000003348 CMP W14, #0x3E ; switch 63 cases
.text:000000000000334C B.HI def_3360 ; jumptable 0000000000003360 default case, cases 4,5,7,8,17-20,25,27-30,33,35,37,39,42,43,47,50,53-58
.text:0000000000003350 ADRL X15, jpt_3360
.text:0000000000003358 LDRSW X14, [X15,X14,LSL#2]
.text:000000000000335C ADD X14, X14, X15
.text:0000000000003360 BR X14 ; switch jump
.text:0000000000004094 CBNZ X1, def_2E4C ; jumptable 0000000000003360 case 21
.text:0000000000004098 AND W13, W12, #0xFFF
.text:000000000000409C SUB W14, W13, #3 ; switch 61 cases
.text:00000000000040A0 CMP W14, #0x3C
.text:00000000000040A4 MOV W8, WZR
.text:00000000000040A8 B.HI def_40C4
.text:0000000000004470 CMP W13, #0x5AF ; jumptable 00000000000040C4 default case
.text:0000000000004474 B.EQ loc_45F0
.text:00000000000045F0 MOV W8, W10
.text:00000000000045F4
.text:00000000000045F4 loc_45F4 ; CODE XREF: sub_2D28+1754↑j
.text:00000000000045F4 ADD X9, X21, W9,UXTW#3
.text:00000000000045F8 LDR X9, [X9,#8];取虚拟寄存器w9
.text:00000000000045FC MOV W12, WZR
.text:0000000000004600 MOV W10, WZR
.text:0000000000004604
.text:0000000000004604 loc_4604 ; CODE XREF: sub_2D28+1804↑j
.text:0000000000004604 ; sub_2D28+1864↑j
.text:0000000000004604 MOV W11, #1
.text:0000000000004608
.text:0000000000004608 loc_4608 ; CODE XREF: sub_2D28+1884↑j
.text:0000000000004608 CMP W10, #0
.text:000000000000460C CSET W13, NE
.text:0000000000004610 AND W12, W12, W13
.text:0000000000004614 STUR X9, [X19,#-0x18];设置虚拟寄存器x9为跳转地址
.text:0000000000004618 TBNZ W12, #0, loc_4628
.text:000000000000461C CBZ W10, loc_4628
.text:0000000000004620 AND W9, W11, W13
.text:0000000000004624 CBZ W9, loc_3700
.text:0000000000004628
.text:0000000000004628 loc_4628 ; CODE XREF: sub_2D28+18F0↑j
.text:0000000000004628 ; sub_2D28+18F4↑j
.text:0000000000004628 CMP W12, #0
.text:000000000000462C MOV W9, #1
.text:0000000000004630 CINC X9, X9, EQ
.text:0000000000004634 STUR X9, [X19,#-0x20];设置跳转标志位为2
.text:0000000000004638 CMP W8, #1
.text:000000000000463C B.LT def_2E4C
.text:0000000000004640 B loc_3708
.text:0000000000003708 ADD X9, X0, #8
.text:000000000000370C ADD X8, X21, W8,SXTW#3
.text:0000000000003710 STR X9, [X8,#8]
.text:0000000000003714 STUR X9, [X19,#-0x10];pc + 8 LR寄存器
.text:0000000000003718 B def_2E4C
1.取出虚拟寄存器w9，2.将w9的值存入[X19,#-0x18]，3.设置[X19,#-0x20]为2， 4.设置[X19,#-0x10]为当前PC+8，第一感觉就是跟跳转相关，找trace分析一下，在trace中搜索0x02de4|0x40002e4c|0x03344|0x02dd8|\[x19, #-0x18\]|\[x19, #-0x20\]随便抽取一段分析
[15:45:31 956][libEncryptor.so 0x02dd8] [0c0040b9] 0x40002dd8: "ldr w12, [x0]" x0=0x4000b330 => w12=0x2000cf #1.从0x4000b330取encode
[15:45:31 956][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x2000cf => w10=0xf #解析opcode=0xf
[15:45:31 956][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002ecc
[15:45:31 977][libEncryptor.so 0x03648] [68821ef8] 0x40003648: "stur x8, [x19, #-0x18]" x8=0x4000b340 x19=0xbffff670 => x8=0x4000b340 #存0x4000b340到[x19, #-0x18]
[15:45:31 979][libEncryptor.so 0x03668] [68021ef8] 0x40003668: "stur x8, [x19, #-0x20]" x8=0x2 x19=0xbffff670 => x8=0x2 #存0x2到[x19, #-0x20]
[15:45:31 979][libEncryptor.so 0x03c28] [68025ef8] 0x40003c28: "ldur x8, [x19, #-0x20]" x8=0x2 x19=0xbffff670 => x8=0x2
[15:45:31 979][libEncryptor.so 0x02dd4] [61025ef8] 0x40002dd4: "ldur x1, [x19, #-0x20]" x1=0xffffffffffff83dc x19=0xbffff670 => x1=0x2
[15:45:31 979][libEncryptor.so 0x02dd8] [0c0040b9] 0x40002dd8: "ldr w12, [x0]" x0=0x4000b334 => w12=0xc6f #2.从0x4000b334取encode
[15:45:31 980][libEncryptor.so 0x0424c] [7a021ef8] 0x4000424c: "stur x26, [x19, #-0x20]" x26=0x3 x19=0xbffff670 => x26=0x3 #存0x3到[x19, #-0x20]
[15:45:31 981][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0xc6f => w10=0x2f #解析opcode=0x2f
[15:45:31 981][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x4000333c
[15:45:31 981][libEncryptor.so 0x03344] [ce198e13] 0x40003344: "ror w14, w14, #6" w14=0xc00 => w14=0x30
[15:45:31 985][libEncryptor.so 0x03c28] [68025ef8] 0x40003c28: "ldur x8, [x19, #-0x20]" x8=0x0 x19=0xbffff670 => x8=0x3
[15:45:31 986][libEncryptor.so 0x03e70] [60825ef8] 0x40003e70: "ldur x0, [x19, #-0x18]" x0=0x4000b338 x19=0xbffff670 => x0=0x4000b340 #从[x19, #-0x18]取出跳转地址
[15:45:31 986][libEncryptor.so 0x03e74] [7f021ef8] 0x40003e74: "stur xzr, [x19, #-0x20]" x19=0xbffff670
[15:45:31 986][libEncryptor.so 0x02dd4] [61025ef8] 0x40002dd4: "ldur x1, [x19, #-0x20]" x1=0x3 x19=0xbffff670 => x1=0x0
[15:45:31 986][libEncryptor.so 0x02dd8] [0c0040b9] 0x40002dd8: "ldr w12, [x0]" x0=0x4000b340 => w12=0x3ad043b #3.从跳转地址0x4000b340取encode
[15:45:31 987][libEncryptor.so 0x02de4] [8a150012] 0x40002de4: "and w10, w12, #0x3f" w12=0x3ad043b => w10=0x3b #解析opcode=0x3b
[15:45:31 987][libEncryptor.so 0x02e4c] [40001fd6] 0x40002e4c: "br x2" x2=0x40002f70
执行一条opcode前对应的汇编
执行完一条opcode后对应的汇编
第一条opcode处设置[x19, #-0x18]为跳转地址，[x19, #-0x20]跳转标志2，第二条opcode解析前判断[x19, #-0x20]为2则设置[x19, #-0x20]为3，第二条opcode处理完成后，判断[x19, #-0x20]为3，则会取出[x19, #-0x18]的地址覆盖pc，其中如果跳转地址为sub_2d1c（中转函数）则会用到[x19, #-0x10]作为LR地址使用，第三条opcode执行跳转地址，所以实现指令为blr xn
opcode 0x2f 0x17
.text:000000000000333C AND W13, W12, #0xFFF ; jumptable 0000000000002E4C case 47
.text:0000000000003340 SUB W14, W13, #0x6F ; 'o'
.text:0000000000003344 EXTR W14, W14, W14, #6
.text:0000000000003348 CMP W14, #0x3E ; switch 63 cases
.text:000000000000334C B.HI def_3360 ; jumptable 0000000000003360 default case, cases 4,5,7,8,17-20,25,27-30,33,35,37,39,42,43,47,50,53-58
.text:0000000000003350 ADRL X15, jpt_3360
.text:0000000000003358 LDRSW X14, [X15,X14,LSL#2]
.text:000000000000335C ADD X14, X14, X15
.text:0000000000003360 BR X14 ; switch jump
.text:0000000000003AD0 loc_3AD0 ; CODE XREF: sub_2D28+638↑j
.text:0000000000003AD0 ; DATA XREF: .rodata:000000000000B008↓o ...
.text:0000000000003AD0 AND W11, W12, #0xFFF ; jumptable 0000000000003360 cases 12,23,31,60
.text:0000000000003AD4 CMP W11, #0x82E
.text:0000000000003AD8 B.GT loc_3DB8
.text:0000000000003ADC CMP W11, #0x36F
.text:0000000000003AE0 B.EQ loc_4254
.text:0000000000003AE4 CMP W11, #0x62F
.text:0000000000003AE8 B.NE def_2E4C ; jumptable 0000000000002E4C default case, cases 1,6,7,9,12,19,24,25,28-30,37,38,46,52,53,57,60,61
.text:0000000000003AE8 ; jumptable 0000000000002E94 default case, cases 1,3-7,9-17,19-32,35-38,40-42,44-47,50,52-54
.text:0000000000003AE8 ; jumptable 0000000000002F18 default case, cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000003AE8 ; jumptable 0000000000002F58 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000003AE8 ; jumptable 0000000000002FB8 default case, cases 12,13,15-19,21,23-35,37-53,55-58
.text:0000000000003AE8 ; jumptable 0000000000003228 default case, cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000003AE8 ; jumptable 0000000000003270 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000003AE8 ; jumptable 0000000000003360 cases 0,3,9,15,46,61
.text:0000000000003AE8 ; jumptable 00000000000040C4 cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000003AE8 ; jumptable 0000000000004104 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000003AEC ADD X11, X21, #8 ; 虚拟寄存器表
.text:0000000000003AF0 LDR X9, [X11,W9,UXTW#3] ; 取虚拟寄存器值w9
.text:0000000000003AF4 LDR X8, [X11,W8,UXTW#3] ; 取虚拟寄存器值w8
.text:0000000000003AF8 ORR X8, X8, X9 ; x8 = x8 | x9
.text:0000000000003AFC STR X8, [X11,W10,UXTW#3] ; 将结果存入虚拟寄存器w10
也很明显，取出虚拟寄存器w8，w9与后存入w10虚拟寄存器，实现指令orr xd, xn, xt
opcode 0x2f 0x2
.text:000000000000333C AND W13, W12, #0xFFF ; jumptable 0000000000002E4C case 47
.text:0000000000003340 SUB W14, W13, #0x6F ; 'o'
.text:0000000000003344 EXTR W14, W14, W14, #6
.text:0000000000003348 CMP W14, #0x3E ; switch 63 cases
.text:000000000000334C B.HI def_3360 ; jumptable 0000000000003360 default case, cases 4,5,7,8,17-20,25,27-30,33,35,37,39,42,43,47,50,53-58
.text:0000000000003350 ADRL X15, jpt_3360
.text:0000000000003358 LDRSW X14, [X15,X14,LSL#2]
.text:000000000000335C ADD X14, X14, X15
.text:0000000000003360 BR X14 ; switch jump
.text:000000000000402C ADD X11, X21, #8 ; jumptable 0000000000003360 case 2
.text:0000000000004030 LDR X9, [X11,W9,UXTW#3] ;取虚拟寄存器w9
.text:0000000000004034 LDR X8, [X11,W8,UXTW#3] ;取虚拟寄存器w8
.text:0000000000004038 CMP X9, X8 ;比较两个虚拟寄存器
.text:000000000000403C ADD X8, X11, W10,UXTW#3 ;取虚拟寄存器w10偏移
.text:0000000000004040 B.CC loc_422C ;x9 < x8 则跳转 trace x8==x9
.text:0000000000004044
.text:0000000000004044 loc_4044 ; CODE XREF: sub_2D28+1500↓j
.text:0000000000004044 STR XZR, [X8] ; 虚拟寄存器w10清0
.text:0000000000004048 B def_2E4C
.text:000000000000422C MOV W9, #1
.text:0000000000004230 STR X9, [X8] ;虚拟寄存器w10置1
.text:0000000000004234 B def_2E4C
1.取出虚拟寄存器w9与w8，2.比较w9与w8，如果w9 <w8则w10置1，否则w10清0，实现指令cmp xd, xn与cset xd, lt
opcode 0x2f 0x19
.text:000000000000404C CMP W13, #0x92E ; jumptable 0000000000003360 default case, cases 4,5,7,8,17-20,25,27-30,33,35,37,39,42,43,47,50,53-58
.text:0000000000004050 B.LE loc_43B0
.text:00000000000043B0 CMP W13, #0x6AE
.text:00000000000043B4 B.LE loc_43FC
.text:00000000000043B8 CMP W13, #0x76E
.text:00000000000043BC B.GT loc_44C4
.text:00000000000043C0 CMP W13, #0x6AF
.text:00000000000043C4 B.EQ loc_45B0
.text:00000000000045B0 CBNZ X1, def_2E4C
.text:00000000000045B4 ADD X8, X21, W9,UXTW#3
.text:00000000000045B8 LDR X8, [X8,#8] ;取虚拟寄存器w9
.text:00000000000045BC ADD X0, X0, #4
.text:00000000000045C0 MOV W9, #2
.text:00000000000045C4 STP X9, X8, [X19,#-0x20] ;[x19,#-0x18] = 0 [x19,#-0x20] = 2
.text:00000000000045C8 STR X0, [X21]
.text:00000000000045CC CBNZ X0, loc_2DD4
.text:0000000000002DD4 LDUR X1, [X19,#-0x20]
.text:0000000000002DD8
.text:0000000000002DD8 loc_2DD8 ; CODE XREF: sub_2D28+A8↑j
.text:0000000000002DD8 LDR W12, [X0]
.text:0000000000002DDC CMP X1, #2
.text:0000000000002DE0 B.EQ loc_4248
取虚拟寄存器w9设置到跳转地址[x19, #-0x18]，根据trace日志可以定位到w9为0
继续看下loc_3c54

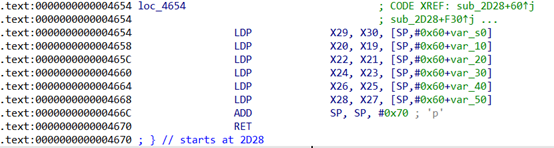

接着看loc_4654
出栈恢复上下文了，所以实现指令为ret
opcode 0x3b
.text:0000000000002F70 AND W10, W12, #0x3F ; jumptable 0000000000002E4C cases 10,11,14,20,22,36,54,59
.text:0000000000002F74 SUB W10, W10, #0xA ; switch 50 cases
.text:0000000000002F78 CMP W10, #0x31
.text:0000000000002F7C B.HI def_2E4C ; jumptable 0000000000002E4C default case, cases 1,6,7,9,12,19,24,25,28-30,37,38,46,52,53,57,60,61
.text:0000000000002F80 UBFX W11, W12, #6, #6 ; W11 = (W12 >> 6) & 0X3F 取W12[6..11]
.text:0000000000002F84 AND W12, W12, #0xF000 ; w12 = w12 & 0xf000 取w12[12..15]
.text:0000000000002F88 BFXIL W12, W18, #0x14, #0xC ; w11 = (w18 >> 20) & 0xfff
.text:0000000000002F8C ORR W11, W12, W11 ; w11 = w12 | w11
.text:0000000000002F90 ADD X9, X21, W9,UXTW#3 ; x9 = x21 + w9 << 3
.text:0000000000002F94 LDRSW X10, [X25,X10,LSL#2] ; x10 = [x25 + x10 << 2]
.text:0000000000002F98 ORR W11, W11, W17,LSR#20 ; w11 = [w11 | w17 >> 20]
.text:0000000000002F9C LDR X9, [X9,#8] ; x9 = [x9 + 8] ;取虚拟寄存器值w9
.text:0000000000002FA0 ORR W11, W11, W16,LSR#20 ; w11 = w11 | w16 >> 20 w16取字节码w12[28]
.text:0000000000002FA4 ORR W11, W11, W15,LSR#20 ; w11 = w11 | w15 >> 20 w15取字节码w12[29]
.text:0000000000002FA8 ORR W11, W11, W14,LSR#20 ; w11 = w11 | w14 >> 20 w14取字节码w12[30]
.text:0000000000002FAC ORR W11, W11, W13,LSR#20 ; w11 = w11 | w13 >> 20 w13取字节码w12[31]
.text:0000000000002FB0 ADD X10, X10, X25 ; x10 = x10 + x25 计算跳转地址
.text:0000000000002FB4 ADD X9, X9, W11,SXTH ; x9 = x9 + w11_sxth ;虚拟寄存器w9加立即数
.text:000000000000356C ADD X8, X21, W8,UXTW#3 ; jumptable 0000000000002FB8 case 59
.text:0000000000003570 LDR X8, [X8,#8] ;取虚拟寄存器值w8
.text:0000000000003574 STR X8, [X9] ;将虚拟寄存器w8的值存入虚拟寄存器w9加立即数的地址中
.text:0000000000003578 B def_2E4C ;
实现指令str xd, [xn, #imm]
opcode 0x36
.text:0000000000002F70 loc_2F70 ; CODE XREF: sub_2D28+124↑j
.text:0000000000002F70 ; DATA XREF: .rodata:000000000000A988↓o ...
.text:0000000000002F70 AND W10, W12, #0x3F ; jumptable 0000000000002E4C cases 10,11,14,20,22,36,54,59
.text:0000000000002F74 SUB W10, W10, #0xA ; switch 50 cases
.text:0000000000002F78 CMP W10, #0x31
.text:0000000000002F7C B.HI def_2E4C ; jumptable 0000000000002E4C default case, cases 1,6,7,9,12,19,24,25,28-30,37,38,46,52,53,57,60,61
.text:0000000000002F7C ; jumptable 0000000000002E94 default case, cases 1,3-7,9-17,19-32,35-38,40-42,44-47,50,52-54
.text:0000000000002F7C ; jumptable 0000000000002F18 default case, cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000002F7C ; jumptable 0000000000002F58 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000002F7C ; jumptable 0000000000002FB8 default case, cases 12,13,15-19,21,23-35,37-53,55-58
.text:0000000000002F7C ; jumptable 0000000000003228 default case, cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000002F7C ; jumptable 0000000000003270 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000002F7C ; jumptable 0000000000003360 cases 0,3,9,15,46,61
.text:0000000000002F7C ; jumptable 00000000000040C4 cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000002F7C ; jumptable 0000000000004104 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000002F80 UBFX W11, W12, #6, #6 ; W11 = (W12 >> 6) & 0X3F 取W12[6..11]
.text:0000000000002F84 AND W12, W12, #0xF000 ; w12 = w12 & 0xf000 取w12[12..15]
.text:0000000000002F88 BFXIL W12, W18, #0x14, #0xC ; w11 = (w18 >> 20) & 0xfff
.text:0000000000002F8C ORR W11, W12, W11 ; w11 = w12 | w11
.text:0000000000002F90 ADD X9, X21, W9,UXTW#3 ; x9 = x21 + w9 << 3
.text:0000000000002F94 LDRSW X10, [X25,X10,LSL#2] ; x10 = [x25 + x10 << 2]
.text:0000000000002F98 ORR W11, W11, W17,LSR#20 ; w11 = [w11 | w17 >> 20]
.text:0000000000002F9C LDR X9, [X9,#8] ; 取虚拟寄存器w9值
.text:0000000000002FA0 ORR W11, W11, W16,LSR#20 ; w11 = w11 | w16 >> 20 w16取字节码w12[28]
.text:0000000000002FA4 ORR W11, W11, W15,LSR#20 ; w11 = w11 | w15 >> 20 w15取字节码w12[29]
.text:0000000000002FA8 ORR W11, W11, W14,LSR#20 ; w11 = w11 | w14 >> 20 w14取字节码w12[30]
.text:0000000000002FAC ORR W11, W11, W13,LSR#20 ; w11 = w11 | w13 >> 20 w13取字节码w12[31]
.text:0000000000002FB0 ADD X10, X10, X25 ; x10 = x10 + x25 计算跳转地址
.text:0000000000002FB4 ADD X9, X9, W11,SXTH ; x9 = x9 + w11_sxth
.text:0000000000002FB8 BR X10 ; switch jump
loc_355C ; CODE XREF: sub_2D28+290↑j
.text:000000000000355C ; DATA XREF: .rodata:000000000000ADD8↓o
.text:000000000000355C ADD X8, X21, W8,UXTW#3 ; jumptable 0000000000002FB8 case 54
.text:0000000000003560 LDR W8, [X8,#8] ;取虚拟寄存器w8的值
.text:0000000000003564 STR W8, [X9] ;存w8到虚拟寄存器w9加偏移的地址
.text:0000000000003568 B def_2E4C
实现指令str wd, [xn, #imm]
opcode 0xf
.text:0000000000002ECC CBNZ X1, def_2E4C ; jumptable 0000000000002E4C cases 3,5,15,26,44,45,58,63
.text:0000000000002ED0 AND W10, W12, #0x3F
.text:0000000000002ED4 SUB W1, W10, #3 ; switch 61 cases
.text:0000000000002ED8 CMP W1, #0x3C
.text:0000000000002EDC B.HI def_2E4C ; jumptable 0000000000002E4C default case, cases 1,6,7,9,12,19,24,25,28-30,37,38,46,52,53,57,60,61
.text:0000000000002EDC ; jumptable 0000000000002E94 default case, cases 1,3-7,9-17,19-32,35-38,40-42,44-47,50,52-54
.text:0000000000002EDC ; jumptable 0000000000002F18 default case, cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000002EDC ; jumptable 0000000000002F58 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000002EDC ; jumptable 0000000000002FB8 default case, cases 12,13,15-19,21,23-35,37-53,55-58
.text:0000000000002EDC ; jumptable 0000000000003228 default case, cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000002EDC ; jumptable 0000000000003270 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000002EDC ; jumptable 0000000000003360 cases 0,3,9,15,46,61
.text:0000000000002EDC ; jumptable 00000000000040C4 cases 4,6-14,16,18-25,27-41,43,46-57,59-62
.text:0000000000002EDC ; jumptable 0000000000004104 default case, cases 4,6-14,16-25,27-43,46-57,59-62
.text:0000000000002EE0 AND W3, W12, #0xF000 ; w3 = w12 & 0xf000 w3取字节码w12[12..15]
.text:0000000000002EE4 UBFX W2, W12, #6, #6 ; w2 = w12 >> 6 & 3f w2取w12[6..11]
.text:0000000000002EE8 BFXIL W3, W18, #0x14, #0xC ; w3 = (W3 & 0xFFFFF000) | (w18 >> 0x20 & 0xfff) 取w18[20..31] w18取w12[26]
.text:0000000000002EEC ORR W18, W3, W2 ; w18 = w3 | w2 w18包含w12[6..11 26]
.text:0000000000002EF0 LDRSW X1, [X27,X1,LSL#2]
.text:0000000000002EF4 ORR W17, W18, W17,LSR#20 ; w17 = w18 | w17 >> 20 w17取w12[27]
.text:0000000000002EF8 ORR W16, W17, W16,LSR#20 ; w16 = w17 | w16 >> 20 w16取w12[28]
.text:0000000000002EFC ORR W15, W16, W15,LSR#20 ; w15 = w16 | w15 >> 20 w15取w12[29]
.text:0000000000002F00 ORR W14, W15, W14,LSR#20 ; w14 = w15 | w14 >> 20 w14取w12[30]
.text:0000000000002F04 ORR W13, W14, W13,LSR#20 ; w13 = w14 | w13 >> 20 w13取w12[31]
.text:0000000000002F08 ADD X14, X1, X27
.text:0000000000002F0C MOV W10, WZR
.text:0000000000002F10 MOV X11, XZR
.text:0000000000002F14 SBFIZ W13, W13, #2, #0x10 ; W13 = (sign_extend_32(W13 & 0xFFFF) << 2) ->0011 1111 0000 0000 ？W13 = (sign_extend_32(W13 >> 2 & 0xFFFF))
.text:0000000000002F18 BR X14 ; switch jump
.text:0000000000002F1C loc_2F1C ; CODE XREF: sub_2D28+1F0↑j
.text:0000000000002F1C ; DATA XREF: .rodata:000000000000AB48↓o ...
.text:0000000000002F1C ADD X8, X21, W8,UXTW#3 ; jumptable 0000000000002F18 cases 5,15,44,58
.text:0000000000002F20 LDR X11, [X8,#8] ;取虚拟寄存器w8值
text:0000000000002F24 ; DATA XREF: .rodata:jpt_2F18↓o ...
.text:0000000000002F24 AND W8, W12, #0x3F ; jumptable 0000000000002F18 cases 3,26,45,63
.text:0000000000002F28 SUB W8, W8, #3 ; switch 61 cases
.text:0000000000002F2C CMP W8, #0x3C
.text:0000000000002F30 B.HI def_2E4C
.text:0000000000002F34 ADRL X10, jpt_2F58
.text:0000000000002F3C MOV X12, X10
.text:0000000000002F40 LDRSW X8, [X12,X8,LSL#2]
.text:0000000000002F44 ADD X9, X21, W9,UXTW#3
.text:0000000000002F48 LDR X9, [X9,#8] ;取虚拟寄存器w9值
.text:0000000000002F4C ADD W10, W13, #4 ;w10 = w13 + 4
.text:0000000000002F50 ADD X12, X8, X12
.text:0000000000002F54 ADD X8, X0, W10,SXTW ;x8 = x0(pc) + w10_sxtw ->pc + #imm
.text:0000000000002F58 BR X12 ; switch jump
.text:00000000000035C8 CMP X9, X11 ; jumptable 0000000000002F58 case 15 ;比较源寄存器与目的寄存器 zf cf sf of
x9 == x11-->
.text:00000000000035CC B.NE loc_3628
.text:00000000000035D0 B loc_2F64
.text:0000000000002F64 MOV W11, WZR
.text:0000000000002F68 MOV W9, WZR
.text:0000000000002F6C B loc_3614
.text:0000000000003614 MOV W10, WZR
.text:0000000000003618 MOV W12, #1
.text:000000000000361C B loc_363C
.text:000000000000363C CMP W9, #0
.text:0000000000003640 CSET W13, NE ; if w9 != 0; w13 = 1 else w13 = 0
.text:0000000000003644 AND W11, W11, W13
.text:0000000000003648 STUR X8, [X19,#-0x18] ;;[x19, #-0x18] = x8
.text:000000000000364C TBNZ W11, #0, loc_365C ;
.text:0000000000003650 CBZ W9, loc_365C ;w9为0
.text:000000000000365C CMP W11, #0
.text:0000000000003660 MOV W8, #1
.text:0000000000003664 CINC X8, X8, EQ ;x8 = 2
.text:0000000000003668 STUR X8, [X19,#-0x20] ;[x19,#-0x20] = 2
.text:000000000000366C CMP W10, #1
.text:0000000000003670 B.LT def_2E4C
x9 != x11-->
.text:00000000000035C8 CMP X9, X11
.text:00000000000035CC B.NE loc_3628
.text:0000000000003628 MOV W9, WZR
.text:000000000000362C MOV W12, WZR
.text:0000000000003630 MOV W10, WZR
.text:0000000000003634 ADD X8, X0, #8 ;x8 = x0(pc) + 8
.text:0000000000003638 MOV W11, #1
.text:000000000000363C loc_363C ; CODE XREF: sub_2D28+890↑j
.text:000000000000363C ; sub_2D28+8F4↑j
.text:000000000000363C CMP W9, #0
.text:0000000000003640 CSET W13, NE
.text:0000000000003644 AND W11, W11, W13
.text:0000000000003648 STUR X8, [X19,#-0x18] ;[x19, #-0x18] = x8
.text:000000000000364C TBNZ W11, #0, loc_365C
.text:0000000000003650 CBZ W9, loc_365C
.text:0000000000003654 AND W8, W12, W13
.text:0000000000003658 CBZ W8, loc_366C
.text:000000000000365C
.text:000000000000365C loc_365C ; CODE XREF: sub_2D28+924↑j
.text:000000000000365C ; sub_2D28+928↑j
.text:000000000000365C CMP W11, #0
.text:0000000000003660 MOV W8, #1
.text:0000000000003664 CINC X8, X8, EQ
.text:0000000000003668 STUR X8, [X19,#-0x20] ;[x19,#-0x20] = 2
.text:000000000000366C
.text:000000000000366C loc_366C ; CODE XREF: sub_2D28+930↑j
.text:000000000000366C ; sub_2D28+1250↓j
.text:000000000000366C CMP W10, #1
.text:0000000000003670 B.LT def_2E4C
1.取虚拟寄存器w9与w8，2.w8与w9值进行比较，当相等时设置[x19,#- 0x18] = pc + #imm [x19,#-0x20] = 2，不相等设置[x19,#- 0x18] = pc + 8 [x19,#-0x20] = 2，实现指令cmp xn, xt 与b.eq label
opcode 0x2a
.text:00000000000030A0 CBNZ X1, def_2E4C ; jumptable 0000000000002E4C cases 17,42
.text:00000000000030A4 AND W11, W12, #0x3FFF000 ; w11=w12&0x3fff000 w11取w12[12..25]
.text:00000000000030A8 UBFX W10, W12, #6, #6 ; w10 = w12 >> 6 & 3f w10取w12[6..11]
.text:00000000000030AC BFXIL W11, W18, #0x14, #0xC ; w11 = (w11 & 0xFFFFF000) | (w18 >> 0x14 & 0xfff) w11取w18[20..31] w18取w12[26]
.text:00000000000030B0 ORR W10, W11, W10
.text:00000000000030B4 ORR W10, W10, W17,LSR#20
.text:00000000000030B8 ORR W10, W10, W16,LSR#20
.text:00000000000030BC ORR W10, W10, W15,LSR#20
.text:00000000000030C0 ORR W10, W10, W14,LSR#20
.text:00000000000030C4 AND W8, W12, #0x3F
.text:00000000000030C8 ORR W10, W10, W13,LSR#20
.text:00000000000030CC CMP W8, #0x11
.text:00000000000030D0 LSL W12, W10, #2 ; w12 = w10 << 2
.text:00000000000030D4 B.EQ loc_36B0
.text:00000000000030D8 CMP W8, #0x2A ; '*'
.text:00000000000030DC B.EQ loc_36B8
.text:00000000000036BC loc_36BC ; CODE XREF: sub_2D28+98C↑j
.text:00000000000036BC LDUR X9, [X19,#-8] ; encode起始地址，函数入口处存储
.text:00000000000036C0 MOV W11, WZR
.text:00000000000036C4 MOV W10, WZR
.text:00000000000036C8 ADD X12, X9, W12,UXTW ;encode起始地址加上立即数
.text:00000000000036CC MOV W9, #1
.text:00000000000036D0
.text:00000000000036D0 loc_36D0 ; CODE XREF: sub_2D28+3F0↑j
.text:00000000000036D0 CMP W10, #0
.text:00000000000036D4 CSET W13, NE
.text:00000000000036D8 AND W11, W11, W13
.text:00000000000036DC STUR X12, [X19,#-0x18] ;[X19,#-0x18] = x12
.text:00000000000036E0 TBNZ W11, #0, loc_36F0
.text:00000000000036E4 CBZ W10, loc_36F0
.text:00000000000036E8 AND W9, W9, W13
.text:00000000000036EC CBZ W9, loc_3700
.text:00000000000036F0
.text:00000000000036F0 loc_36F0 ; CODE XREF: sub_2D28+9B8↑j
.text:00000000000036F0 ; sub_2D28+9BC↑j
.text:00000000000036F0 CMP W11, #0
.text:00000000000036F4 MOV W9, #1
.text:00000000000036F8 CINC X9, X9, EQ
.text:00000000000036FC STUR X9, [X19,#-0x20] ;[X19,#-0x20] = 2
.text:0000000000003700
.text:0000000000003700 loc_3700 ; CODE XREF: sub_2D28+9C4↑j
.text:0000000000003700 ; sub_2D28+18FC↓j
.text:0000000000003700 CMP W8, #1
.text:0000000000003704 B.LT def_2E4C
主要将vmp编码的起始地址加上一个常数存到[x19,#- 0x18], [x19,#- 0x20]设置为2，实现指令 b labe
opcode 0x4
.text:0000000000002FEC AND W0, W12, #0xF000 ; jumptable 0000000000002E4C cases 4,32,56,62
.text:0000000000002FF0 UBFX W10, W12, #6, #6
.text:0000000000002FF4 BFXIL W0, W18, #0x14, #0xC
.text:0000000000002FF8 ORR W10, W0, W10
.text:0000000000002FFC ORR W10, W10, W17,LSR#20
.text:0000000000003000 ORR W10, W10, W16,LSR#20
.text:0000000000003004 ORR W10, W10, W15,LSR#20
.text:0000000000003008 AND W11, W12, #0x3F
.text:000000000000300C ORR W10, W10, W14,LSR#20
.text:0000000000003010 CMP W11, #0x37 ; '7'
.text:0000000000003014 ORR W10, W10, W13,LSR#20
.text:0000000000003018 B.GT loc_311C
.text:000000000000301C CMP W11, #4
.text:0000000000003020 B.EQ loc_357C
.text:000000000000357C LSL W9, W10, #0x10 ;w9 = w10 << 0x10 w10为立即数
.text:0000000000003580 SXTW X9, W9 ;x9 = w9_sxtw
.text:0000000000003584 B loc_3C1C
.text:0000000000003C1C ADD X8, X21, W8,UXTW#3
.text:0000000000003C20
.text:0000000000003C20 loc_3C20 ; CODE XREF: sub_2D28+1A0↑j
.text:0000000000003C20 ; sub_2D28+6EC↑j ...
.text:0000000000003C20 STR X9, [X8,#8] ;存x9到虚拟寄存器w8
实现指令movz wn, #imm, lsl #16 与sxtw xn, wn
opcode 0x3e
.text:0000000000002FEC AND W0, W12, #0xF000 ; jumptable 0000000000002E4C cases 4,32,56,62
.text:0000000000002FF0 UBFX W10, W12, #6, #6
.text:0000000000002FF4 BFXIL W0, W18, #0x14, #0xC
.text:0000000000002FF8 ORR W10, W0, W10
.text:0000000000002FFC ORR W10, W10, W17,LSR#20
.text:0000000000003000 ORR W10, W10, W16,LSR#20
.text:0000000000003004 ORR W10, W10, W15,LSR#20
.text:0000000000003008 AND W11, W12, #0x3F
.text:000000000000300C ORR W10, W10, W14,LSR#20
.text:0000000000003010 CMP W11, #0x37 ; '7'
.text:0000000000003014 ORR W10, W10, W13,LSR#20
.text:0000000000003018 B.GT loc_311C
.text:000000000000311C CMP W11, #0x38 ; '8'
.text:0000000000003120 B.EQ loc_3588
.text:0000000000003124 CMP W11, #0x3E ; '>'
.text:0000000000003128 B.NE def_2E4C
.text:000000000000312C ADD X11, X21, #8
.text:0000000000003130 LDR X9, [X11,W9,UXTW#3] ;取虚拟寄存器值w9
.text:0000000000003134 AND W10, W10, #0xFFFF ;w10 = w10 & 0xffff
.text:0000000000003138 ORR X9, X9, X10 ;x9 = x9 | x10
.text:000000000000313C STR X9, [X11,W8,UXTW#3] ;存到虚拟寄存器w8
.text:0000000000003140 B def_2E4C
实现指令or xd, xn, #imm
- 指令还原
常规的做法是用llvmlite去做，这里介绍一种简单粗暴的处理方法，我们先用python脚本解析还原指令
import struct
g_op1 = -1
g_op2 = -1
g_op_type = -1
g_op_str = ""
g_bl= -1
g_pc=0
def sxtw_extend(value_32):
value_32 = value_32 & 0xFFFFFFFF
if value_32 & 0x80000000:
#extended = value_32 | 0xFFFFFFFF00000000
extended = -1 * (value_32 - 0x100000000)
sign = "-"
else:
extended = value_32 & 0x00000000FFFFFFFF
sign = "+"
return extended,sign
def sxth_extend(value_32):
low_16 = value_32 & 0xFFFF
if low_16 & 0x8000:
extended = -1 * (low_16 - 0x10000)
sign = "-"
else:
extended = low_16
sign = "+"
return extended,sign
def vmp_interpreter(data):
#init data
global g_op1
global g_op2
global g_op_type
global g_op_str
global g_bl
global g_pc
g_op1 = -1;
g_op2 = -1
g_op_type = -1
g_op_str = ""
g_bl = -1
#data handle
g_op1 = data & 0x3f
if g_op1 == 0x2f:
g_op_type = 2
g_op2 = ((data & 0xfff) - 0x6f) >> 6
else:
g_op_type = 1
w9 = (data >> 21) & 0x1f
w8 = (data >> 16) & 0x1f
w13 = data & 0x80000000
w14 = data & 0x40000000
w15 = data & 0x20000000
w16 = data & 0x10000000
w17 = data & 0x8000000
w18 = data & 0x4000000
if g_op1 == 0x28:
w0 = data & 0xf000
w10 = (data >> 6) & 0x3f
w0 = (w0 & 0xFFFFF000) | ((w18 >> 0x14) & 0xfff)
w10 = w0 | w10
w10 = w10 | w17 >> 20
w10 = w10 | w16 >> 20
w10 = w10 | w15 >> 20
w10 = w10 | w14 >> 20
w10 = w10 | w13 >> 20
imm,sign = sxth_extend(w10)
if sign == "-":
#print("add x%d, x%d, #-0x%x" % (w8, w9, imm))
g_op_str = "add x%d, x%d, #-0x%x" % (w8, w9, imm)
else:
#print("add x%d, x%d, #0x%x" % (w8, w9, imm))
g_op_str = "add x%d, x%d, #0x%x" % (w8, w9, imm)
elif g_op1 == 0x15:
w0 = data & 0xf000
w10 = (data >> 6) & 0x3f
w0 = (w0 & 0xFFFFF000) | ((w18 >> 0x14) & 0xfff)
w10 = w0 | w10
w10 = w10 | w17 >> 20
w10 = w10 | w16 >> 20
w10 = w10 | w15 >> 20
w10 = w10 | w14 >> 20
w10 = w10 | w13 >> 20
imm,sign = sxth_extend(w10)
if sign == "-":
g_op_str = "add x%d, x%d, #-0x%x" % (w8, w9, imm)
else:
g_op_str = "add x%d, x%d, #0x%x" % (w8, w9, imm)
elif g_op1 == 0x2:
w11 = (data >> 6) & 0x3F
w12 = data & 0xf000
w12 = (w12 & 0xFFFFF000) | (w18 >> 0x14 & 0xfff)
w11 = w11 | w12
w11 = w11 | (w17 >> 20)
w11 = w11 | (w16 >> 20)
w11 = w11 | (w15 >> 20)
w11 = w11 | (w14 >> 20)
w11 = w11 | (w13 >> 20)
imm,sign = sxth_extend(w11)
if sign == "-":
g_op_str = "ldr x%d, [x%d, #-0x%x]" % (w8, w9, imm)
else:
g_op_str = "ldr x%d, [x%d, #0x%x]" % (w8, w9, imm)
elif g_op1 == 0x3b:
w11 = (data >> 6) & 0x3F
w12 = data & 0xf000
w12 = (w12 & 0xFFFFF000) | (w18 >> 0x14 & 0xfff)
w11 = w11 | w12
w11 = w11 | (w17 >> 20)
w11 = w11 | (w16 >> 20)
w11 = w11 | (w15 >> 20)
w11 = w11 | (w14 >> 20)
w11 = w11 | (w13 >> 20)
imm,sign = sxth_extend(w11)
if sign == "-":
g_op_str = "str x%d, [x%d, #-0x%x]" % (w8, w9, imm)
else:
g_op_str = "str x%d, [x%d, #0x%x]" % (w8, w9, imm)
elif g_op1 == 0x36:
w11 = (data >> 6) & 0x3F
w12 = data & 0xf000
w12 = (w12 & 0xFFFFF000) | (w18 >> 0x14 & 0xfff)
w11 = w11 | w12
w11 = w11 | (w17 >> 20)
w11 = w11 | (w16 >> 20)
w11 = w11 | (w15 >> 20)
w11 = w11 | (w14 >> 20)
w11 = w11 | (w13 >> 20)
imm,sign = sxth_extend(w11)
if sign == "-":
g_op_str = "str w%d, [x%d, #-0x%x]" % (w8, w9, imm)
else:
g_op_str = "str w%d, [x%d, #0x%x]" % (w8, w9, imm)
elif g_op1 == 0x3e:
w0 = data & 0xf000
w10 = (data >> 6) & 0x3F
w0 = (w0 & 0xFFFFF000) | (w18 >> 0x14 & 0xfff)
w10 = w10 | w0
w10 = w10 | (w17 >> 20)
w10 = w10 | (w16 >> 20)
w10 = w10 | (w15 >> 20)
w10 = w10 | (w14 >> 20)
w10 = w10 | (w13 >> 20)
g_op_str = "orr x%d, x%d, #0x%x" % (w8, w9, w10 & 0xffff)
elif g_op1 == 0x4:
w0 = data & 0xf000
w10 = (data >> 6) & 0x3F
w0 = (w0 & 0xFFFFF000) | (w18 >> 0x14 & 0xfff)
w10 = w10 | w0
w10 = w10 | (w17 >> 20)
w10 = w10 | (w16 >> 20)
w10 = w10 | (w15 >> 20)
w10 = w10 | (w14 >> 20)
w10 = w10 | (w13 >> 20)
#w10 = w10 << 0x10
#imm,sign = sxtw_extend(w10)
#if sign == "-":
#g_op_str = "mov x%d, #-0x%x" % (w8, imm)
#else:
#g_op_str = "mov x%d, #0x%x" % (w8, imm)
imm = w10
g_op_str = "movz w%d, #0x%x, lsl #16 --> sxtw x%d, w%d" %(w8, imm, w8, w8)
elif g_op1 == 0xf:
w3 = data & 0xf000
w2 = (data >> 6) & 0x3f
w3 = (w3 & 0xFFFFF000) | ((w18 >> 0x14) & 0xfff)
w18 = w3 | w2
w17 = w18 | w17 >> 20
w16 = w17 | w16 >> 20
w15 = w16 | w15 >> 20
w14 = w15 | w14 >> 20
w13 = w14 | w13 >> 20
imm,sign = sxth_extend((w13 & 0xffff) << 2)
imm = imm + 4
imm,sign = sxtw_extend(imm)
imm = imm + g_pc
g_op_str = "cmp x%d, x%d -> b.eq #0x%x" % (w9, w8, imm)
g_bl = 1
elif g_op1 == 0x2a:
w11 = data & 0x3fff000
w10 = (data >> 6) & 0x3f
w11 = (w11 & 0xFFFFF000) | (w18 >> 0x14 & 0xfff)
w10 = w10 | w11
w10 = w10 | (w17 >> 20)
w10 = w10 | (w16 >> 20)
w10 = w10 | (w15 >> 20)
w10 = w10 | (w14 >> 20)
w10 = w10 | (w13 >> 20)
w12 = w10 << 2
x12,sign = sxtw_extend(w12)
x12 = 0x4000b2c0 + x12
g_op_str = "b #0x%x" % (x12)
g_bl = 1
elif g_op1 == 0x2f and g_op2 == 0x17:
w10 = data & 0x3f
w11 = data >> 0xb
w14 = w11 & 2
w2 = w11 & 4
w14 = (w14 & 0xFFFFFFFE) | (data >> 31) & 0x1
w14 = w14 | w2
w2 = w11 & 8
w10 = w11 & 0x10
w2 = w14 | w2
w10 = w2 | w10
g_op_str = "orr x%d, x%d, x%d" % (w10, w8, w9)
elif g_op1 == 0x2f and g_op2 == 0x2:
g_op_str = "cmp x%d, x%d -> cset x%d, lt" % (w9, w8, w8)
elif g_op1 == 0x2f and g_op2 == 0x30:
w10 = data & 0x3f
w11 = data >> 0xb
w14 = w11 & 2
w2 = w11 & 4
w14 = (w14 & 0xFFFFFFFE) | (data >> 31) & 0x1
w14 = w14 | w2
w2 = w11 & 8
w10 = w11 & 0x10
w2 = w14 | w2
w10 = w2 | w10
imm,sign = sxtw_extend(w10)
if w10 == w8 and imm == 0:
g_op_str = "nop"
else:
g_op_str = "lsl x%d, x%d, #0x%x" %(w10, w8, imm)
elif g_op1 == 0x2f and g_op2 == 0x26:
w10 = data & 0x3f
w11 = data >> 0xb
w14 = w11 & 2
w2 = w11 & 4
w14 = (w14 & 0xFFFFFFFE) | (data >> 31) & 0x1
w14 = w14 | w2
w2 = w11 & 8
w10 = w11 & 0x10
w2 = w14 | w2
w10 = w2 | w10
g_op_str = "add x%d, x%d, x%d" % (w10, w8, w9)
elif g_op1 == 0x2f and g_op2 == 0x15:
g_op_str = "blr x%d" % (w9)
g_bl = 1
elif g_op1 == 0x2f and g_op2 == 0x19:
g_op_str = "ret"
g_bl = 1
def read_binary_with_index(input_path, output_path, offset, length):
global g_op1
global g_op2
global g_op_type
global g_op_str
global g_bl
global g_pc
with open(input_path, 'rb') as src_file, open(output_path, 'w') as dest_file:
content = []
insert = 0
flag = 0
src_file.seek(offset)
off = offset + 0x40000000
#off = 0
chunks = (length + 3) // 4
index_counter = 0
for _ in range(chunks):
data = src_file.read(4)
if not data:
break
little_endian_byte_array = struct.pack('<I', struct.unpack('>I', data)[0])
hex_data = little_endian_byte_array.hex()
vmp_interpreter(int.from_bytes(little_endian_byte_array, 'big'))
if flag == 0:
content.append("index address encode op1 op2 asm\n")
flag = 1
if g_op_type == 1:
if insert == 1:
content.insert(index_counter, f"{index_counter:<3} {hex(off)} {hex_data} {hex(g_op1):<4} {g_op_str}\n")
insert = 0
else:
content.append(f"{index_counter:<3} {hex(off)} {hex_data} {hex(g_op1):<4} {g_op_str}\n")
#dest_file.write(f"{index_counter:<3} {hex(off)} {hex_data} {hex(g_op1):<4} {g_op_str}\n")
else:
if insert == 1:
content.insert(index_counter, f"{index_counter:<3} {hex(off)} {hex_data} {hex(g_op1):<4} {hex(g_op2):<4} {g_op_str}\n")
insert = 0
else:
content.append(f"{index_counter:<3} {hex(off)} {hex_data} {hex(g_op1):<4} {hex(g_op2):<4} {g_op_str}\n")
#dest_file.write(f"{index_counter:<3} {hex(off)} {hex_data} {hex(g_op1):<4} {hex(g_op2):<4} {g_op_str}\n")
off = off + 4
g_pc = off
if g_bl == 1:
insert = 1
index_counter = index_counter + 1
dest_file.writelines(content)
if __name__ == "__main__":
read_binary_with_index(
input_path="libEncryptor.so",
output_path="output.txt",
offset=0xb2c0,
length=0x2f4
)
运行还原之后结果如下
index address encode op1 op2 asm
0 0x4000b2c0 dfbdfc28 0x28 add x29, x29, #-0x210 #开栈并保存上下文
1 0x4000b2c4 23bf023b 0x3b str x31, [x29, #0x208]
2 0x4000b2c8 23be003b 0x3b str x30, [x29, #0x200]
3 0x4000b2cc 1fb70e3b 0x3b str x23, [x29, #0x1f8]
4 0x4000b2d0 1fb60c3b 0x3b str x22, [x29, #0x1f0]
5 0x4000b2d4 1fb50a3b 0x3b str x21, [x29, #0x1e8]
6 0x4000b2d8 1fb4083b 0x3b str x20, [x29, #0x1e0]
7 0x4000b2dc 1fb3063b 0x3b str x19, [x29, #0x1d8]
8 0x4000b2e0 1fb2043b 0x3b str x18, [x29, #0x1d0]
9 0x4000b2e4 1fb1023b 0x3b str x17, [x29, #0x1c8]
10 0x4000b2e8 1fb0003b 0x3b str x16, [x29, #0x1c0]
11 0x4000b2ec 00e0862f 0x2f 0x17 orr x16, x0, x7 #x16 = 0x40002d1c 中转函数地址
12 0x4000b2f0 008b0402 0x2 ldr x11, [x4, #0x10]
13 0x4000b2f4 008c0002 0x2 ldr x12, [x4, #0x0]
14 0x4000b2f8 00c20002 0x2 ldr x2, [x6, #0x0]
15 0x4000b2fc 00c30202 0x2 ldr x3, [x6, #0x8]
16 0x4000b300 00c50402 0x2 ldr x5, [x6, #0x10]
17 0x4000b304 00c70602 0x2 ldr x7, [x6, #0x18]
18 0x4000b308 00c80802 0x2 ldr x8, [x6, #0x20]
19 0x4000b30c 00c90a02 0x2 ldr x9, [x6, #0x28]
20 0x4000b310 008d0602 0x2 ldr x13, [x4, #0x18]
21 0x4000b314 00ca0c02 0x2 ldr x10, [x6, #0x30]
22 0x4000b318 00c60e02 0x2 ldr x6, [x6, #0x38]
23 0x4000b31c 00940202 0x2 ldr x20, [x4, #0x8]
24 0x4000b320 06810da8 0x28 add x1, x20, #0x76
25 0x4000b324 0ba1003b 0x3b str x1, [x29, #0x80]
26 0x4000b328 01a40002 0x2 ldr x4, [x13, #0x0]
27 0x4000b32c 808100ef 0x2f 0x2 cmp x4, x1 -> cset x1, lt
29 0x4000b334 00000c6f 0x2f 0x30 nop
28 0x4000b330 002000cf 0xf cmp x1, x0 -> b.eq #0x4000b340
31 0x4000b33c 01a0003b 0x3b str x0, [x13, #0x0]
30 0x4000b338 08000c6a 0x2a b #0x4000b584
32 0x4000b340 03ad043b 0x3b str x13, [x29, #0x10]
33 0x4000b344 f801f844 0x4 movz w1, #0xffa1, lsl #16 --> sxtw x1, w1
34 0x4000b348 6021083e 0x3e orr x1, x1, #0x620
35 0x4000b34c 00c129ef 0x2f 0x26 add x4, x1, x6
36 0x4000b350 03a40e3b 0x3b str x4, [x29, #0x38]
37 0x4000b354 014129ef 0x2f 0x26 add x4, x1, x10
38 0x4000b358 03a40c3b 0x3b str x4, [x29, #0x30]
39 0x4000b35c 012129ef 0x2f 0x26 add x4, x1, x9
40 0x4000b360 03a40a3b 0x3b str x4, [x29, #0x28]
41 0x4000b364 010129ef 0x2f 0x26 add x4, x1, x8
42 0x4000b368 03a4063b 0x3b str x4, [x29, #0x18]
43 0x4000b36c 00e129ef 0x2f 0x26 add x4, x1, x7
44 0x4000b370 03a4023b 0x3b str x4, [x29, #0x8]
45 0x4000b374 00a1b9ef 0x2f 0x26 add x22, x1, x5
46 0x4000b378 8061b9ef 0x2f 0x26 add x23, x1, x3
47 0x4000b37c 0041f9ef 0x2f 0x26 add x30, x1, x2
48 0x4000b380 00110828 0x28 add x17, x0, #0x20
49 0x4000b384 1bb10c3b 0x3b str x17, [x29, #0x1b0]
50 0x4000b388 1ba50c28 0x28 add x5, x29, #0x1b0
51 0x4000b38c 03c0262f 0x2f 0x17 orr x4, x0, x30 #x30 = 0x40002c50 中转后的实际运行函数地址
52 0x4000b390 8200c62f 0x2f 0x17 orr x25, x0, x16
53 0x4000b394 03ab083b 0x3b str x11, [x29, #0x20]
55 0x4000b39c 03ac003b 0x3b str x12, [x29, #0x0]
54 0x4000b398 8320f5af 0x2f 0x15 blr x25 #sub_2D1C ->sub_2c50 malloc
56 0x4000b3a0 1bb10a3b 0x3b str x17, [x29, #0x1a8]
57 0x4000b3a4 1bb50e02 0x2 ldr x21, [x29, #0x1b8]
58 0x4000b3a8 1bb5083b 0x3b str x21, [x29, #0x1a0]
59 0x4000b3ac 1ba50828 0x28 add x5, x29, #0x1a0
60 0x4000b3b0 8200c62f 0x2f 0x17 orr x25, x0, x16
62 0x4000b3b8 02e0262f 0x2f 0x17 orr x4, x0, x23 #x4 = 0x40002c6c 中转后的实际运行函数地址
61 0x4000b3b4 8320f5af 0x2f 0x15 blr x25 #sub_2D1C ->sub_2c6c random随机因子
63 0x4000b3bc 1ba50428 0x28 add x5, x29, #0x190
64 0x4000b3c0 00170428 0x28 add x23, x0, #0x10
65 0x4000b3c4 1bb7043b 0x3b str x23, [x29, #0x190]
66 0x4000b3c8 8200c62f 0x2f 0x17 orr x25, x0, x16
68 0x4000b3d0 03c0262f 0x2f 0x17 orr x4, x0, x30 #x4=0x40002c50
67 0x4000b3cc 8320f5af 0x2f 0x15 blr x25 #sub_2D1C ->sub_2c50 malloc
69 0x4000b3d4 1ba50028 0x28 add x5, x29, #0x180
70 0x4000b3d8 1bb7003b 0x3b str x23, [x29, #0x180]
71 0x4000b3dc 1bb30602 0x2 ldr x19, [x29, #0x198]
72 0x4000b3e0 8200c62f 0x2f 0x17 orr x25, x0, x16
74 0x4000b3e8 03c0262f 0x2f 0x17 orr x4, x0, x30
73 0x4000b3e4 8320f5af 0x2f 0x15 blr x25 #sub_2D1C ->sub_2c50 malloc
75 0x4000b3ec 17a50428 0x28 add x5, x29, #0x150
76 0x4000b3f0 17b5043b 0x3b str x21, [x29, #0x150]
77 0x4000b3f4 17b1063b 0x3b str x17, [x29, #0x158]
78 0x4000b3f8 17b3083b 0x3b str x19, [x29, #0x160]
79 0x4000b3fc 17b70a3b 0x3b str x23, [x29, #0x168]
80 0x4000b400 17b70e3b 0x3b str x23, [x29, #0x178]
81 0x4000b404 1bb20202 0x2 ldr x18, [x29, #0x188]
82 0x4000b408 17b20c3b 0x3b str x18, [x29, #0x170]
83 0x4000b40c 8200c62f 0x2f 0x17 orr x25, x0, x16
85 0x4000b414 02c0262f 0x2f 0x17 orr x4, x0, x22
84 0x4000b410 8320f5af 0x2f 0x15 blr x25 #sub_2D1C ->sub_2CA4 另外一套VMP，原理一致
86 0x4000b418 06970028 0x28 add x23, x20, #0x40
87 0x4000b41c 17a50028 0x28 add x5, x29, #0x140
88 0x4000b420 17b7003b 0x3b str x23, [x29, #0x140]
89 0x4000b424 8200c62f 0x2f 0x17 orr x25, x0, x16
91 0x4000b42c 03c0262f 0x2f 0x17 orr x4, x0, x30
90 0x4000b428 8320f5af 0x2f 0x15 blr x25 #sub_2D1C->sub_2c50 malloc
92 0x4000b430 07be0028 0x28 add x30, x29, #0x40
93 0x4000b434 17b60202 0x2 ldr x22, [x29, #0x148]
94 0x4000b438 13b40c3b 0x3b str x20, [x29, #0x130]
95 0x4000b43c 03b10002 0x2 ldr x17, [x29, #0x0]
96 0x4000b440 13b10a3b 0x3b str x17, [x29, #0x128]
97 0x4000b444 13be0e3b 0x3b str x30, [x29, #0x138]
98 0x4000b448 03a40202 0x2 ldr x4, [x29, #0x8]
99 0x4000b44c 8200c62f 0x2f 0x17 orr x25, x0, x16
101 0x4000b454 13a50a28 0x28 add x5, x29, #0x128
100 0x4000b450 8320f5af 0x2f 0x15 blr x25 #sub_2D1C->sub_6da8 加密相关 sha相关
102 0x4000b458 13a50428 0x28 add x5, x29, #0x110
103 0x4000b45c 04010028 0x28 add x1, x0, #0x40
104 0x4000b460 13be063b 0x3b str x30, [x29, #0x118]
105 0x4000b464 13b6043b 0x3b str x22, [x29, #0x110]
106 0x4000b468 13a1083b 0x3b str x1, [x29, #0x120]
107 0x4000b46c 03be0602 0x2 ldr x30, [x29, #0x18]
108 0x4000b470 8200c62f 0x2f 0x17 orr x25, x0, x16
110 0x4000b478 03c0262f 0x2f 0x17 orr x4, x0, x30
109 0x4000b474 8320f5af 0x2f 0x15 blr x25 #sub_2D1C->sub_2cc8 memcpy
111 0x4000b47c 0fa50e28 0x28 add x5, x29, #0xf8
112 0x4000b480 06c10028 0x28 add x1, x22, #0x40
113 0x4000b484 13b1003b 0x3b str x17, [x29, #0x100]
114 0x4000b488 8240862f 0x2f 0x17 orr x17, x0, x18
115 0x4000b48c 0fa10e3b 0x3b str x1, [x29, #0xf8]
116 0x4000b490 13b4023b 0x3b str x20, [x29, #0x108]
117 0x4000b494 0260a62f 0x2f 0x17 orr x20, x0, x19
118 0x4000b498 8200c62f 0x2f 0x17 orr x25, x0, x16
120 0x4000b4a0 03c0262f 0x2f 0x17 orr x4, x0, x30
119 0x4000b49c 8320f5af 0x2f 0x15 blr x25 #sub_2D1C->sub_2cc8 memcpy
121 0x4000b4a4 00010815 0x15 add x1, x0, #0x20
122 0x4000b4a8 0fb50a3b 0x3b str x21, [x29, #0xe8]
123 0x4000b4ac 03b30802 0x2 ldr x19, [x29, #0x20]
124 0x4000b4b0 0fb3083b 0x3b str x19, [x29, #0xe0]
125 0x4000b4b4 0fa10c36 0x36 str w1, [x29, #0xf0]
126 0x4000b4b8 03a40a02 0x2 ldr x4, [x29, #0x28]
127 0x4000b4bc 8200c62f 0x2f 0x17 orr x25, x0, x16
129 0x4000b4c4 0fa50828 0x28 add x5, x29, #0xe0
128 0x4000b4c0 8320f5af 0x2f 0x15 blr x25 #sub_2D1C->sub_2cd8 memcpy
130 0x4000b4c8 026109a8 0x28 add x1, x19, #0x26
131 0x4000b4cc 00020415 0x15 add x2, x0, #0x10
132 0x4000b4d0 0ba30028 0x28 add x3, x29, #0x80
133 0x4000b4d4 0bb40a3b 0x3b str x20, [x29, #0xa8]
134 0x4000b4d8 0ba20c36 0x36 str w2, [x29, #0xb0]
135 0x4000b4dc 0bb10e3b 0x3b str x17, [x29, #0xb8]
136 0x4000b4e0 0fb6003b 0x3b str x22, [x29, #0xc0]
137 0x4000b4e4 0fb7023b 0x3b str x23, [x29, #0xc8]
138 0x4000b4e8 0fa1043b 0x3b str x1, [x29, #0xd0]
139 0x4000b4ec 0fa3063b 0x3b str x3, [x29, #0xd8]
140 0x4000b4f0 0ba10002 0x2 ldr x1, [x29, #0x80]
141 0x4000b4f4 fc21f6a8 0x28 add x1, x1, #-0x26
142 0x4000b4f8 0ba1003b 0x3b str x1, [x29, #0x80]
143 0x4000b4fc 03a40c02 0x2 ldr x4, [x29, #0x30]
144 0x4000b500 8200c62f 0x2f 0x17 orr x25, x0, x16
146 0x4000b508 0ba50a28 0x28 add x5, x29, #0xa8
145 0x4000b504 8320f5af 0x2f 0x15 blr x25 #sub_2D1C->sub_2cf8 aes相关
147 0x4000b50c 0ba20002 0x2 ldr x2, [x29, #0x80]
149 0x4000b514 00000c6f 0x2f 0x30 nop
148 0x4000b510 0040014f 0xf cmp x2, x0 -> b.eq #0x4000b528
150 0x4000b518 004109a8 0x28 add x1, x2, #0x26
151 0x4000b51c 03a20402 0x2 ldr x2, [x29, #0x10]
153 0x4000b524 0041003b 0x3b str x1, [x2, #0x0]
152 0x4000b520 0800072a 0x2a b #0x4000b530
154 0x4000b528 03a10402 0x2 ldr x1, [x29, #0x10]
155 0x4000b52c 0020003b 0x3b str x0, [x1, #0x0]
156 0x4000b530 0bb6083b 0x3b str x22, [x29, #0xa0]
157 0x4000b534 0ba50828 0x28 add x5, x29, #0xa0
158 0x4000b538 03b20e02 0x2 ldr x18, [x29, #0x38]
159 0x4000b53c 8200c62f 0x2f 0x17 orr x25, x0, x16
161 0x4000b544 0240262f 0x2f 0x17 orr x4, x0, x18
160 0x4000b540 8320f5af 0x2f 0x15 blr x25 #sub_2D1C->sub_2d14 free
162 0x4000b548 0bb1063b 0x3b str x17, [x29, #0x98]
163 0x4000b54c 0ba50628 0x28 add x5, x29, #0x98
164 0x4000b550 8200c62f 0x2f 0x17 orr x25, x0, x16
166 0x4000b558 0240262f 0x2f 0x17 orr x4, x0, x18
165 0x4000b554 8320f5af 0x2f 0x15 blr x25 #sub_2D1C->sub_2d14 free
167 0x4000b55c 0ba50428 0x28 add x5, x29, #0x90
168 0x4000b560 0bb4043b 0x3b str x20, [x29, #0x90]
169 0x4000b564 8200c62f 0x2f 0x17 orr x25, x0, x16
171 0x4000b56c 0240262f 0x2f 0x17 orr x4, x0, x18
170 0x4000b568 8320f5af 0x2f 0x15 blr x25 #sub_2D1C->sub_2d14 free
172 0x4000b570 0ba50228 0x28 add x5, x29, #0x88
173 0x4000b574 0bb5023b 0x3b str x21, [x29, #0x88]
174 0x4000b578 8200c62f 0x2f 0x17 orr x25, x0, x16
176 0x4000b580 0240262f 0x2f 0x17 orr x4, x0, x18
175 0x4000b57c 8320f5af 0x2f 0x15 blr x25 #sub_2D1C->sub_2d14 free
177 0x4000b584 1fb00002 0x2 ldr x16, [x29, #0x1c0] #恢复栈平衡并恢复上下文
178 0x4000b588 1fb10202 0x2 ldr x17, [x29, #0x1c8]
179 0x4000b58c 1fb20402 0x2 ldr x18, [x29, #0x1d0]
180 0x4000b590 1fb30602 0x2 ldr x19, [x29, #0x1d8]
181 0x4000b594 1fb40802 0x2 ldr x20, [x29, #0x1e0]
182 0x4000b598 1fb50a02 0x2 ldr x21, [x29, #0x1e8]
183 0x4000b59c 1fb60c02 0x2 ldr x22, [x29, #0x1f0]
184 0x4000b5a0 1fb70e02 0x2 ldr x23, [x29, #0x1f8]
185 0x4000b5a4 23be0002 0x2 ldr x30, [x29, #0x200]
186 0x4000b5a8 23bf0202 0x2 ldr x31, [x29, #0x208]
188 0x4000b5b0 23bd0428 0x28 add x29, x29, #0x210
187 0x4000b5ac 03e006af 0x2f 0x19 ret
由于样本这种比较简单的vmp结合trace直接就能分析，但是对于复杂的样本可能就不是这么简单了，所以还是要转成bin，放到IDA里面，下面介绍一种比较简单的做法，我们先写一个测试程序
#include <stdio.h>
int replace() {
int a = 1;
int b = 1;
return a + b;
}
int main(void) {
replace();
return 0;
}
用ndk的工具链编译成汇编代码aarch64-linux-android21-clang main.c -S
.text
.file "main.c"
.globl replace // -- Begin function replace
.p2align 2
.type replace,@function
replace: // @replace
.cfi_startproc
// %bb.0:
sub sp, sp, #16
.cfi_def_cfa_offset 16
mov w8, #1
str w8, [sp, #12]
str w8, [sp, #8]
ldr w8, [sp, #12]
ldr w9, [sp, #8]
add w0, w8, w9
add sp, sp, #16
ret
.Lfunc_end0:
.size replace, .Lfunc_end0-replace
.cfi_endproc
// -- End function
.globl main // -- Begin function main
.p2align 2
.type main,@function
main: // @main
.cfi_startproc
// %bb.0:
sub sp, sp, #32
stp x29, x30, [sp, #16] // 16-byte Folded Spill
add x29, sp, #16
.cfi_def_cfa w29, 16
.cfi_offset w30, -8
.cfi_offset w29, -16
mov w8, wzr
str w8, [sp, #8] // 4-byte Folded Spill
stur wzr, [x29, #-4]
bl replace
ldr w0, [sp, #8] // 4-byte Folded Reload
ldp x29, x30, [sp, #16] // 16-byte Folded Reload
add sp, sp, #32
ret
.Lfunc_end1:
.size main, .Lfunc_end1-main
.cfi_endproc
// -- End function
.ident "Android (9352603, based on r450784d1) clang version 14.0.7 (https://android.googlesource.com/toolchain/llvm-project 4c603efb0cca074e9238af8b4106c30add4418f6)"
.section ".note.GNU-stack","",@progbits
接着把replace函数里面替换成我们的还原的汇编函数稍微适配一下
.text
.file "main.c"
.globl replace // -- Begin function replace
.p2align 2
.type replace,@function
replace: // @replace
.cfi_startproc
// %bb.0:
add x29, x29, #-0x210
str x31, [x29, #0x208]
str x30, [x29, #0x200]
str x23, [x29, #0x1f8]
str x22, [x29, #0x1f0]
str x21, [x29, #0x1e8]
str x20, [x29, #0x1e0]
str x19, [x29, #0x1d8]
str x18, [x29, #0x1d0]
str x17, [x29, #0x1c8]
str x16, [x29, #0x1c0]
orr x16, x0, x7
ldr x11, [x4, #0x10]
ldr x12, [x4, #0x0]
ldr x2, [x6, #0x0]
ldr x3, [x6, #0x8]
ldr x5, [x6, #0x10]
ldr x7, [x6, #0x18]
ldr x8, [x6, #0x20]
ldr x9, [x6, #0x28]
ldr x13, [x4, #0x18]
ldr x10, [x6, #0x30]
ldr x6, [x6, #0x38]
ldr x20, [x4, #0x8]
add x1, x20, #0x76
str x1, [x29, #0x80]
ldr x4, [x13, #0x0]
cmp x4, x1
cset x1, lt
nop
cmp x1, x0
b.eq #0xc
str x0, [x13, #0x0]
b #0x254
str x13, [x29, #0x10]
movz w1, #0xffa1, lsl #16
sxtw x1, w1
mov x23, #0x620
orr x1, x1, x23
add x4, x1, x6
str x4, [x29, #0x38]
add x4, x1, x10
str x4, [x29, #0x30]
add x4, x1, x9
str x4, [x29, #0x28]
add x4, x1, x8
str x4, [x29, #0x18]
add x4, x1, x7
str x4, [x29, #0x8]
add x22, x1, x5
add x23, x1, x3
add x30, x1, x2
add x17, x0, #0x20
str x17, [x29, #0x1b0]
add x5, x29, #0x1b0
orr x4, x0, x30
orr x25, x0, x16
str x11, [x29, #0x20]
str x12, [x29, #0x0]
blr x25
str x17, [x29, #0x1a8]
ldr x21, [x29, #0x1b8]
str x21, [x29, #0x1a0]
add x5, x29, #0x1a0
orr x25, x0, x16
orr x4, x0, x23
blr x25
add x5, x29, #0x190
add x23, x0, #0x10
str x23, [x29, #0x190]
orr x25, x0, x16
orr x4, x0, x30
blr x25
add x5, x29, #0x180
str x23, [x29, #0x180]
ldr x19, [x29, #0x198]
orr x25, x0, x16
orr x4, x0, x30
blr x25
add x5, x29, #0x150
str x21, [x29, #0x150]
str x17, [x29, #0x158]
str x19, [x29, #0x160]
str x23, [x29, #0x168]
str x23, [x29, #0x178]
ldr x18, [x29, #0x188]
str x18, [x29, #0x170]
orr x25, x0, x16
orr x4, x0, x22
blr x25
add x23, x20, #0x40
add x5, x29, #0x140
str x23, [x29, #0x140]
orr x25, x0, x16
orr x4, x0, x30
blr x25
add x30, x29, #0x40
ldr x22, [x29, #0x148]
str x20, [x29, #0x130]
ldr x17, [x29, #0x0]
str x17, [x29, #0x128]
str x30, [x29, #0x138]
ldr x4, [x29, #0x8]
orr x25, x0, x16
add x5, x29, #0x128
blr x25
add x5, x29, #0x110
add x1, x0, #0x40
str x30, [x29, #0x118]
str x22, [x29, #0x110]
str x1, [x29, #0x120]
ldr x30, [x29, #0x18]
orr x25, x0, x16
orr x4, x0, x30
blr x25
add x5, x29, #0xf8
add x1, x22, #0x40
str x17, [x29, #0x100]
orr x17, x0, x18
str x1, [x29, #0xf8]
str x20, [x29, #0x108]
orr x20, x0, x19
orr x25, x0, x16
orr x4, x0, x30
blr x25
add x1, x0, #0x20
str x21, [x29, #0xe8]
ldr x19, [x29, #0x20]
str x19, [x29, #0xe0]
str w1, [x29, #0xf0]
ldr x4, [x29, #0x28]
orr x25, x0, x16
add x5, x29, #0xe0
blr x25
add x1, x19, #0x26
add x2, x0, #0x10
add x3, x29, #0x80
str x20, [x29, #0xa8]
str w2, [x29, #0xb0]
str x17, [x29, #0xb8]
str x22, [x29, #0xc0]
str x23, [x29, #0xc8]
str x1, [x29, #0xd0]
str x3, [x29, #0xd8]
ldr x1, [x29, #0x80]
add x1, x1, #-0x26
str x1, [x29, #0x80]
ldr x4, [x29, #0x30]
orr x25, x0, x16
add x5, x29, #0xa8
blr x25
ldr x2, [x29, #0x80]
nop
cmp x2, x0
b.eq #0x14
add x1, x2, #0x26
ldr x2, [x29, #0x10]
str x1, [x2, #0x0]
b #0xc
ldr x1, [x29, #0x10]
str x0, [x1, #0x0]
str x22, [x29, #0xa0]
add x5, x29, #0xa0
ldr x18, [x29, #0x38]
orr x25, x0, x16
orr x4, x0, x18
blr x25
str x17, [x29, #0x98]
add x5, x29, #0x98
orr x25, x0, x16
orr x4, x0, x18
blr x25
add x5, x29, #0x90
str x20, [x29, #0x90]
orr x25, x0, x16
orr x4, x0, x18
blr x25
add x5, x29, #0x88
str x21, [x29, #0x88]
orr x25, x0, x16
orr x4, x0, x18
blr x25
ldr x16, [x29, #0x1c0]
ldr x17, [x29, #0x1c8]
ldr x18, [x29, #0x1d0]
ldr x19, [x29, #0x1d8]
ldr x20, [x29, #0x1e0]
ldr x21, [x29, #0x1e8]
ldr x22, [x29, #0x1f0]
ldr x23, [x29, #0x1f8]
ldr x30, [x29, #0x200]
ldr x31, [x29, #0x208]
add x29, x29, #0x210
ret
.Lfunc_end0:
.size replace, .Lfunc_end0-replace
.cfi_endproc
// -- End function
.globl main // -- Begin function main
.p2align 2
.type main,@function
main: // @main
.cfi_startproc
// %bb.0:
sub sp, sp, #32
stp x29, x30, [sp, #16] // 16-byte Folded Spill
add x29, sp, #16
.cfi_def_cfa w29, 16
.cfi_offset w30, -8
.cfi_offset w29, -16
mov w8, wzr
str w8, [sp, #8] // 4-byte Folded Spill
stur wzr, [x29, #-4]
bl replace
ldr w0, [sp, #8] // 4-byte Folded Reload
ldp x29, x30, [sp, #16] // 16-byte Folded Reload
add sp, sp, #32
ret
.Lfunc_end1:
.size main, .Lfunc_end1-main
.cfi_endproc
// -- End function
.ident "Android (9352603, based on r450784d1) clang version 14.0.7 (https://android.googlesource.com/toolchain/llvm-project 4c603efb0cca074e9238af8b4106c30add4418f6)"
.section ".note.GNU-stack","",@progbits
接续编译一下aarch64-linux-android21-clang main.s 会生成a.out的二进制文件，就可以导入到IDA了，F5可以看到伪C代码
__int64 __fastcall replace(__int64 result, __int64 a2, __int64 a3, __int64 a4, __int64 *a5, __int64 a6, _QWORD *a7, __int64 a8)
{
__int64 v8; // x16
__int64 v9; // x17
__int64 v10; // x18
__int64 v11; // x19
__int64 v12; // x20
__int64 v13; // x21
__int64 v14; // x22
__int64 v15; // x23
__int64 v16; // x29
__int64 v17; // x30
__int64 v18; // x29
__int64 v19; // x16
__int64 v20; // x11
__int64 v21; // x12
__int64 v22; // x7
__int64 v23; // x8
__int64 v24; // x9
__int64 *v25; // x13
__int64 v26; // x10
__int64 v27; // x6
__int64 v28; // x20
__int64 v29; // x0
__int64 v30; // x17
__int64 v31; // x21
__int64 v32; // x16
__int64 v33; // x0
__int64 v34; // x23
__int64 v35; // x16
__int64 v36; // x0
__int64 v37; // x19
__int64 v38; // x16
__int64 v39; // x0
__int64 v40; // x17
__int64 v41; // x16
__int64 v42; // x0
__int64 v43; // x23
__int64 v44; // x16
__int64 v45; // x0
__int64 v46; // x22
__int64 v47; // x16
__int64 v48; // x0
__int64 v49; // x16
__int64 v50; // x0
__int64 v51; // x17
__int64 v52; // x20
__int64 v53; // x16
__int64 v54; // x0
__int64 v55; // x19
__int64 v56; // x16
__int64 v57; // x0
__int64 v58; // x17
__int64 v59; // x16
__int64 v60; // x0
__int64 v61; // x16
__int64 v62; // x2
__int64 v63; // x0
__int64 v64; // x17
__int64 v65; // x16
__int64 v66; // x0
__int64 v67; // x16
__int64 v68; // x0
__int64 v69; // x16
v18 = v16 - 528;
*(_QWORD *)(v18 + 520) = 0LL;
*(_QWORD *)(v18 + 512) = v17;
*(_QWORD *)(v18 + 504) = v15;
*(_QWORD *)(v18 + 496) = v14;
*(_QWORD *)(v18 + 488) = v13;
*(_QWORD *)(v18 + 480) = v12;
*(_QWORD *)(v18 + 472) = v11;
*(_QWORD *)(v18 + 464) = v10;
*(_QWORD *)(v18 + 456) = v9;
*(_QWORD *)(v18 + 448) = v8;
v19 = result | a8;
v20 = a5[2];
v21 = *a5;
v22 = a7[3];
v23 = a7[4];
v24 = a7[5];
v25 = (__int64 *)a5[3];
v26 = a7[6];
v27 = a7[7];
v28 = a5[1];
*(_QWORD *)(v18 + 128) = v28 + 118;
if ( *v25 < v28 + 118 == result )
{
*(_QWORD *)(v18 + 16) = v25;
*(_QWORD *)(v18 + 56) = v27 - 6224352;
*(_QWORD *)(v18 + 48) = v26 - 6224352;
*(_QWORD *)(v18 + 40) = v24 - 6224352;
*(_QWORD *)(v18 + 24) = v23 - 6224352;
*(_QWORD *)(v18 + 8) = v22 - 6224352;
*(_QWORD *)(v18 + 432) = result + 32;
*(_QWORD *)(v18 + 32) = v20;
*(_QWORD *)v18 = v21;
v29 = ((__int64 (*)(void))(result | v19))();
*(_QWORD *)(v18 + 424) = v30;
v31 = *(_QWORD *)(v18 + 440);
*(_QWORD *)(v18 + 416) = v31;
v33 = ((__int64 (*)(void))(v29 | v32))();
v34 = v33 + 16;
*(_QWORD *)(v18 + 400) = v33 + 16;
v36 = ((__int64 (*)(void))(v33 | v35))();
*(_QWORD *)(v18 + 384) = v34;
v37 = *(_QWORD *)(v18 + 408);
v39 = ((__int64 (*)(void))(v36 | v38))();
*(_QWORD *)(v18 + 336) = v31;
*(_QWORD *)(v18 + 344) = v40;
*(_QWORD *)(v18 + 352) = v37;
*(_QWORD *)(v18 + 360) = v34;
*(_QWORD *)(v18 + 376) = v34;
*(_QWORD *)(v18 + 368) = *(_QWORD *)(v18 + 392);
v42 = ((__int64 (*)(void))(v39 | v41))();
v43 = v28 + 64;
*(_QWORD *)(v18 + 320) = v28 + 64;
v45 = ((__int64 (*)(void))(v42 | v44))();
v46 = *(_QWORD *)(v18 + 328);
*(_QWORD *)(v18 + 304) = v28;
*(_QWORD *)(v18 + 296) = *(_QWORD *)v18;
*(_QWORD *)(v18 + 312) = v18 + 64;
v48 = ((__int64 (*)(void))(v45 | v47))();
*(_QWORD *)(v18 + 280) = v18 + 64;
*(_QWORD *)(v18 + 272) = v46;
*(_QWORD *)(v18 + 288) = v48 + 64;
v50 = ((__int64 (*)(void))(v48 | v49))();
*(_QWORD *)(v18 + 256) = v51;
*(_QWORD *)(v18 + 248) = v46 + 64;
*(_QWORD *)(v18 + 264) = v28;
v52 = v50 | v37;
v54 = ((__int64 (*)(void))(v50 | v53))();
*(_QWORD *)(v18 + 232) = v31;
v55 = *(_QWORD *)(v18 + 32);
*(_QWORD *)(v18 + 224) = v55;
*(_DWORD *)(v18 + 240) = v54 + 32;
v57 = ((__int64 (*)(void))(v54 | v56))();
*(_QWORD *)(v18 + 168) = v52;
*(_DWORD *)(v18 + 176) = v57 + 16;
*(_QWORD *)(v18 + 184) = v58;
*(_QWORD *)(v18 + 192) = v46;
*(_QWORD *)(v18 + 200) = v43;
*(_QWORD *)(v18 + 208) = v55 + 38;
*(_QWORD *)(v18 + 216) = v18 + 128;
*(_QWORD *)(v18 + 128) -= 38LL;
v60 = ((__int64 (*)(void))(v57 | v59))();
v62 = *(_QWORD *)(v18 + 128);
if ( v62 == v60 )
**(_QWORD **)(v18 + 16) = v60;
else
**(_QWORD **)(v18 + 16) = v62 + 38;
*(_QWORD *)(v18 + 160) = v46;
v63 = ((__int64 (*)(void))(v60 | v61))();
*(_QWORD *)(v18 + 152) = v64;
v66 = ((__int64 (*)(void))(v63 | v65))();
*(_QWORD *)(v18 + 144) = v52;
v68 = ((__int64 (*)(void))(v66 | v67))();
*(_QWORD *)(v18 + 136) = v31;
result = ((__int64 (*)(void))(v68 | v69))();
}
else
{
*v25 = result;
}
return result;
}
- 总结
整个样本在vmp中还是算简单的，毕竟虚拟机解释器跟encode编码部分都没有加密，比较适合学习。后面还原出的原始汇编转成bin后，也可以用bin2llvm转成ir进行分析与处理。
- 样本
https://pan.quark.cn/s/2eb36aea6148
扫一扫
1590
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
