可视化冒泡排序

简介

冒泡排序相信大家都听说过（没听说过点这里）， 这个程序可以让冒泡排序可视化。




功能

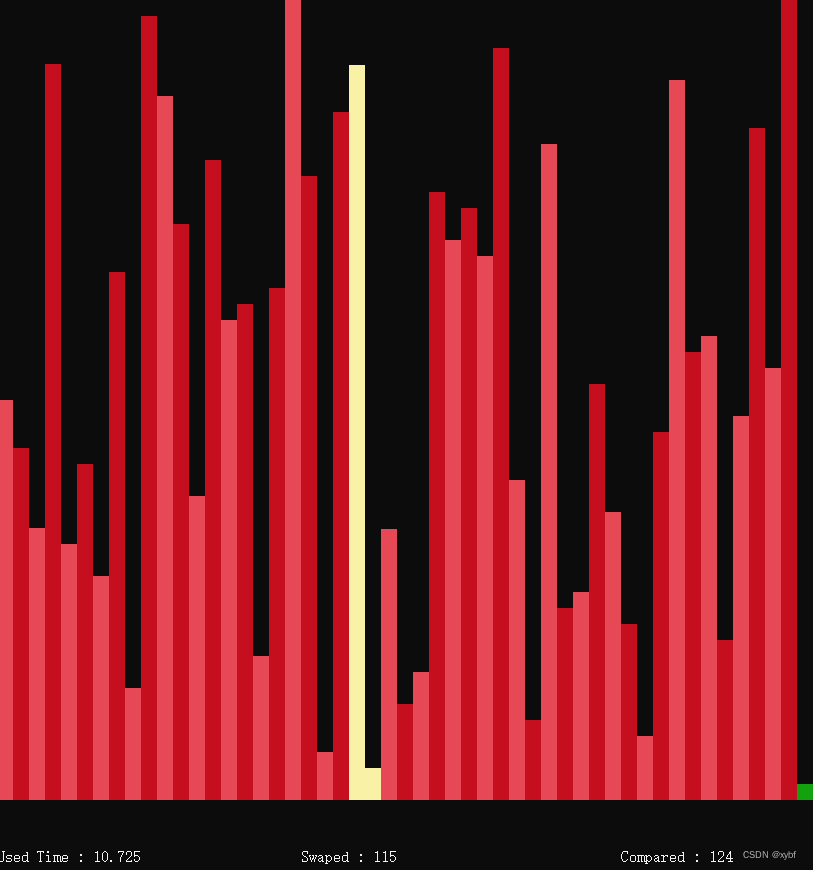

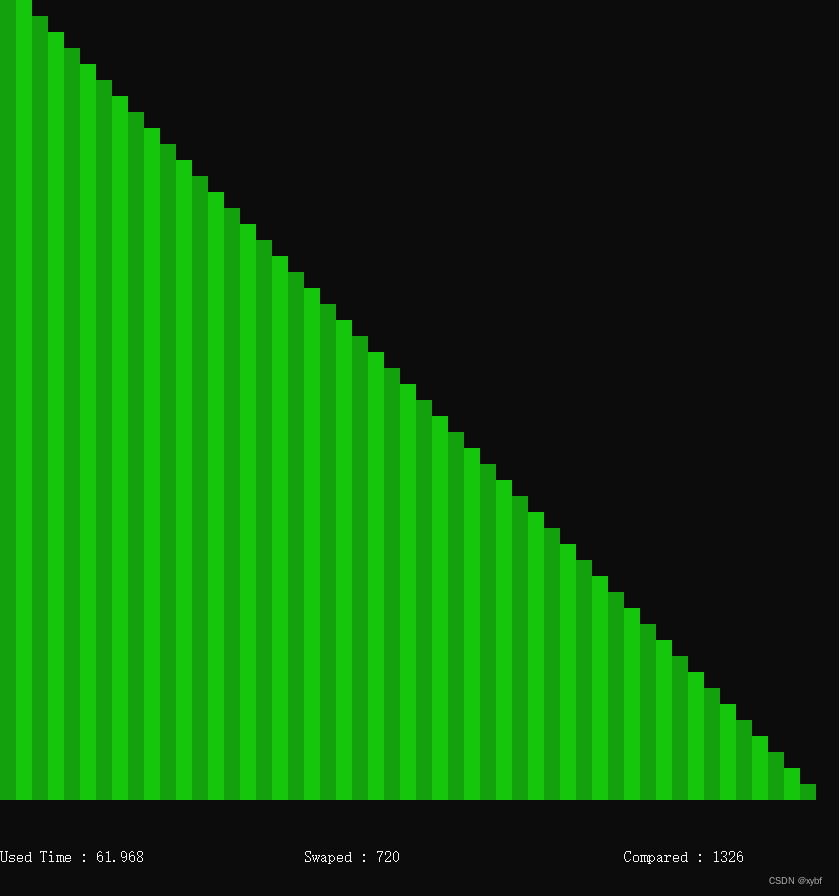

将冒泡排序的过程 生动形象 的表现出来，同时能够统计 时间（Used Time），交换次数（Swaped）、比较次数（Compared）三种重要的信息。

使用方法

当屏幕上出现 Please Input Nums(<50) 时， 输入数字数量，程序会自动生成数据并开始排序。

代码

#include <cstdio>
#include <algorithm>
#include <ctime>
#include <cmath>
#include <windows.h>
using namespace std;

enum concol {
	black = 0,
	dark_blue = 1,
	dark_green = 2,
	dark_aqua = 3, dark_cyan = 3,
	dark_red = 4,
	dark_purple = 5, dark_pink = 5, dark_magenta = 5,
	dark_yellow = 6,
	dark_white = 7,
	gray = 8,
	blue = 9,
	green = 10,
	cyan = 11,
	red = 12,
	purple = 13, pink = 13,
	yellow = 14,
	white = 15
};

struct pixel {
	concol color;
};

CONSOLE_CURSOR_INFO CursorInfo;
COORD _GoToPos;
HANDLE hOut = GetStdHandle(STD_OUTPUT_HANDLE);
int backcol, textcol;
pixel _LastScreen[1000][1000];
pixel _NewScreen[1000][1000];
int _ScreenSideLength;


inline void gt(short x, short y) {
	--x;
	--y;
	_GoToPos = {x * 2, y};
	SetConsoleCursorPosition(hOut, _GoToPos);
}

inline void settextcolor(concol textcolor) {
	textcol = textcolor;
	unsigned short wAttributes = ((unsigned int)backcol << 4) | (unsigned int)textcol;
	SetConsoleTextAttribute(hOut, wAttributes);
}

inline void setbackcolor(concol backcolor) {
	hOut = GetStdHandle(STD_OUTPUT_HANDLE);
	backcol = backcolor;
	unsigned short wAttributes = ((unsigned int)backcol << 4) | (unsigned int)textcol;
	SetConsoleTextAttribute(hOut, wAttributes);
}

inline void init(int x, int fz) {
	GetConsoleCursorInfo(hOut, &CursorInfo);
	CursorInfo.bVisible = false;
	SetConsoleCursorInfo(hOut, &CursorInfo);
	_ScreenSideLength = x;
}

inline void update() {
	for (int i = 1; i <= _ScreenSideLength ; ++i) {
		for (int j = 1; j <= _ScreenSideLength ; ++j) {
			if (_LastScreen[j][i].color != _NewScreen[j][i].color) {
				gt(j, i);
				setbackcolor(_NewScreen[j][i].color);
				putchar(' ');
				putchar(' ');
				_LastScreen[j][i] = _NewScreen[j][i];
			}
		}
	}
}

void fill(concol color) {
	for (int i = 1; i <= _ScreenSideLength; ++i) {
		for (int j = 1; j <= _ScreenSideLength; ++j) {
			if (_NewScreen[j][i].color != color) {
				_NewScreen[j][i].color = color;
			}

		}
	}
}

void rect(int sx, int sy, int ex, int ey, concol color) {
	if (ey < sy) swap(ey, sy);
	if (ex < sx) swap(ex, sx);
	for (int i = sy; i <= ey; ++i) {
		for (int j = sx; j <= ex; ++j) {
			_NewScreen[j][i].color = color;
		}
	}
}

inline void line(int sx, int sy, int ex, int ey, concol color)
{
	int xlen = ex - sx ;
	int ylen = ey - sy ;
	int len = sqrt(pow(xlen, 2) + pow(ylen, 2)) ;
	for(double i=0; i<=len; i += 1)
	{
		int x = xlen * i / len ;
		int y = ylen * i / len ;
		_NewScreen[x + sx][y + sy].color = color ;
	}
}

int n, a[10050], _swap, _compare;
int st = clock();
void valline(int i, concol color)
{
	line(i, a[i], i, 50, color);
}

void Out(int i)
{
	for(int K=1;K<=n;++K)
	{
		if(K + i > n+2)
		{
			valline(K, K&1 ? dark_green : green);
		}
		else
		{
			if(K&1)
			{
				line(K, a[K], K, 50, red);
			}
			else
			{
				line(K, a[K], K, 50, dark_red);
			}
		}
	}
}

void Outdata()
{
	setbackcolor(black);
	settextcolor(white);
	int et = clock();
	gt(1, 54);
	printf("Used Time : %.3lf", (et-st) / 1000.00);
	gt(20, 54);
	printf("Swaped : %d", _swap);
	gt(40, 54);
	printf("Compared : %d", _compare);
}

bool v[10050];

int main()
{
	srand(time(NULL));
	init(100, 16);
	system("mode con cols=202 lines=106");
	printf("Please Input Nums(<50)\n");
	scanf("%d", &n);
	++n;
	system("cls");
	for(int i=1; i<=n; ++i)
	{
		a[i] = rand() % n + 1;
		while(v[a[i]])
		{
			a[i] = rand() % n + 1;
		}
		v[a[i]]=1;
	}
	for(int i=1;i<=n;++i)
	{
		for(int j=1;j+i<=n+1;++j)
		{
			fill(black);
			Out(i);
			line(j, a[j], j, 50, yellow);
			line(j+1, a[j+1], j+1, 50, yellow);
			update();
			Outdata();
			++_compare;
			if(a[j] > a[j+1])
			{
				++_swap;
				rect(j, 0, j+1, 50, black);
				swap(a[j+1], a[j]);
				line(j, a[j], j, 50, yellow);
				line(j+1, a[j+1], j+1, 50, yellow);
				update();
				Outdata();
			}
		}
	}
	Out(n+2);
	update();
	setbackcolor(black);
	getchar();
	getchar();
}
