Winform高级技巧-界面和代码分离的实践案例

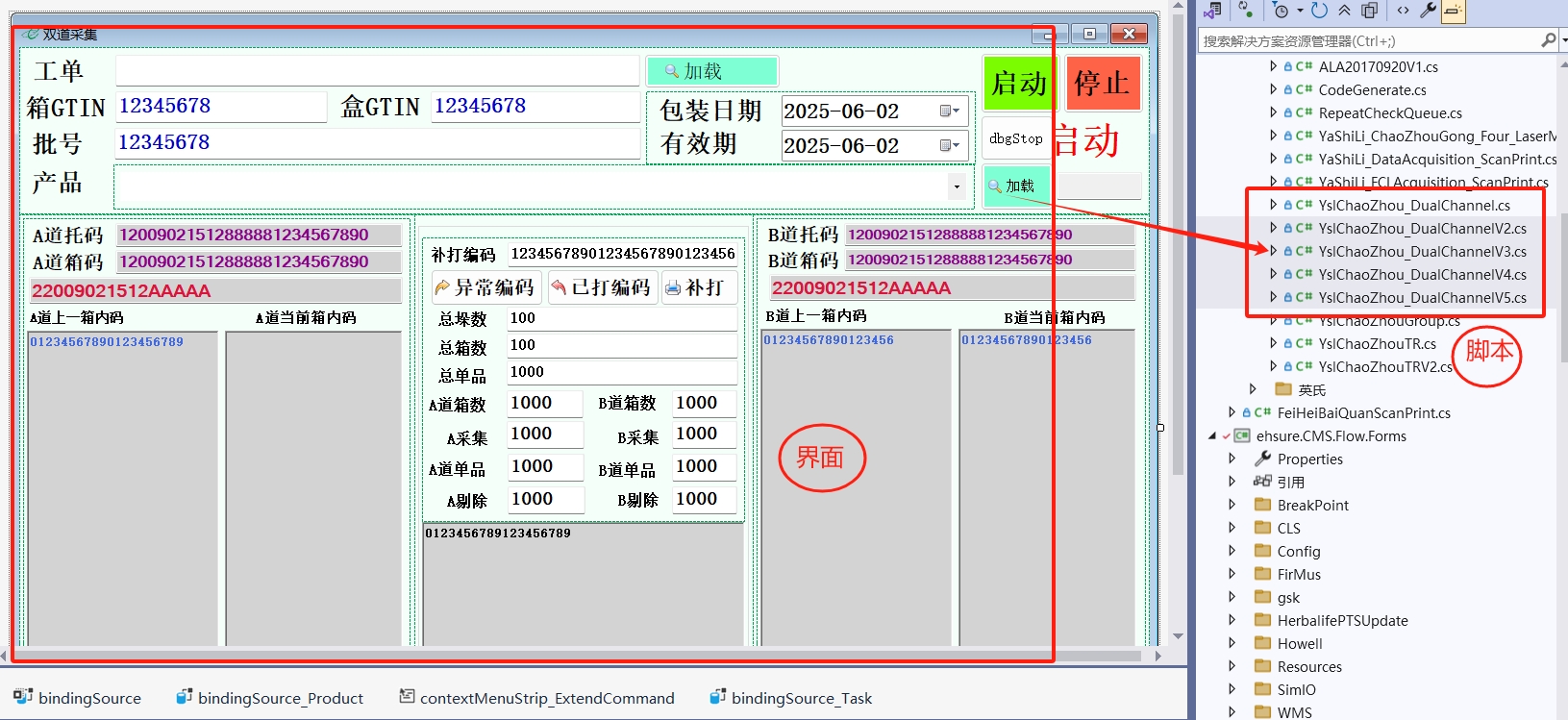

我们看看上图的场景，因为现场的实际方案没有最终确定，所以开发人员写了5个版本的代码来验证5种流程，但界面就1个，因为业务的数据是一样的。像这种情况我们这种解决方式是极好的。写代码的同事只需要初级程序员就可以担任。帮忙验证和测试是由高级程序员来担任。贴一些源码来辅助说明一下是怎么实现的。

1.界面的基类：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437

using System; using System.Collections.Generic; using System.Threading; using System.Windows.Forms; using MES.Core; using EES.Common; using EES.Controls.Win; using EES.Common.Data; using System.ComponentModel; using System.Runtime.InteropServices; using System.Text; using System.Linq; using WinControls; using DataCool_MES.framework; using DataCool_MES.config; using DataCool_MES.utils; using System.Drawing; namespace DataCool_MES {     public delegate void FeedInfoHandler(object sender, Exception ex, string message, MessageTipsLevel level);     /// <summary>     /// 业务窗体基类     /// </summary>     public partial class BaseModuleForm : DockBaseWorkForm     {         #region DllImport         [DllImport("kernel32")]         public static extern long WritePrivateProfileString(string section, string key, string val, string filepath);         [DllImport("kernel32")]         public static extern int GetPrivateProfileString(string section, string key, string def, StringBuilder retval, int size, string filePath);         [DllImport("imm32.dll")]         public static extern IntPtr ImmGetContext(IntPtr hwnd);         [DllImport("imm32.dll")]         public static extern bool ImmGetOpenStatus(IntPtr himc);         [DllImport("imm32.dll")]         public static extern bool ImmSetOpenStatus(IntPtr himc, bool b);         [DllImport("imm32.dll")]         public static extern bool ImmGetConversionStatus(IntPtr himc, ref int lpdw, ref int lpdw2);         [DllImport("imm32.dll")]         #endregion         public static extern int ImmSimulateHotKey(IntPtr hwnd, int lngHotkey);         private const int IME_CMODE_FULLSHAPE = 0x8;         private const int IME_CHOTKEY_SHAPE_TOGGLE = 0x11;         private SynchronizationContext sc;         protected string onceScanData = string.Empty;         private BarCodeHooK hook;         IModuleFlow coreFlowObj;         // 获取屏幕分辨率         private Rectangle primaryScreen;         private float scaleX;  // 基准分辨率宽度         private float scaleY;         [Browsable(false)]         public IModuleFlow CoreFlowObj         {             get { return coreFlowObj; }         }         [Browsable(false)]         /// <summary>         /// 日志记录处理异常信息显示处理对象         /// 此处用于各种日志和状态信息的记录，并进行对应的信息的显示         /// </summary>         internal virtual AlertLog Log         {             get             {                 return null;             }         }                protected event Action CursorBegin;         protected event Action CursorEnd;                         /// <summary>         /// 实例化脚本对象         /// </summary>         /// <returns></returns>         protected virtual IModuleFlow CreateModuleFlow()         {             return null;         }         public BaseModuleForm()         {             DoubleBuffered = true;             ImeMode = ImeMode.Off;             AutoScaleMode = AutoScaleMode.None;             InitializeComponent();             #region Cursor             CursorBegin = () =>             {                 Clear();                 Cursor = Cursors.WaitCursor;             };             CursorEnd = () =>             {                 Cursor = Cursors.Default;             };             #endregion             Load += BaseModuleForm_Load;             hook = new BarCodeHooK();             hook.BarCodeEvent += Hook_BarCodeEvent;             hook.Start();             FormClosed += BaseModuleForm_FormClosed;         }         private void BaseModuleForm_FormClosed(object sender, FormClosedEventArgs e)         {             try             {                 hook.Stop();                 hook.BarCodeEvent -= Hook_BarCodeEvent;                 hook = null;             }             catch (Exception ex)             {                 FrameAppContext.GetInstance().AppLogger.Error(ex);             }         }         private void Hook_BarCodeEvent(BarCodeHooK.BarCodes barCode)         {             if (CoreFlowObj != null && FlowContext.Instance.WorkStatus == WorkStatus.Running && !string.IsNullOrEmpty(barCode.BarCode))             {                 onceScanData = TrimSpecialChar(barCode.BarCode);                 CoreFlowObj.OnExecScanReceiving(onceScanData);             }         }         private void BaseModuleForm_Load(object sender, EventArgs e)         {             sc = SynchronizationContext.Current;             if (!DesignMode)             {                 Input = FlowContext.Instance;                 FlowContext.Instance.FlowCustomEvent += OnRaiseFlowCustomEvent;             }         }         private void OnRaiseFlowCustomEvent(object sender, TEventArgs<EventClass> e)         {             sc.Post(new SendOrPostCallback(delegate (object obj)             {                 OnFlowCustomEvent((EventClass)obj);             }), e.Data);         }         protected virtual void OnFlowCustomEvent(EventClass ec)         {             if (ec.EventType == FlowViewCommand.ClearCurText)             {                 Clear();             }         }         /// <summary>         /// 获取当前窗体绑定的上下文对象         /// </summary>         /// <returns></returns>         public virtual BindingType GetBindingType()         {             Type type;             if (bindingSource.DataSource is Type)             {                 type = (Type)bindingSource.DataSource;             }             else             {                 if (bindingSource.DataSource != null)                 {                     type = bindingSource.DataSource.GetType();                 }                 else                 {                     type = null;                 }             }             if (type == null)             {                 throw new Exception("界面输入的数据源为空");             }             BindingType bindingType = new BindingType();             Type type2;             if (type.GUID == typeof(DataCollection<>).GUID)             {                 type2 = type.GetGenericArguments()[0];                 bindingType.IsArray = true;             }             else             {                 if (type.GUID == typeof(List<>).GUID)                 {                     type2 = type.GetGenericArguments()[0];                     bindingType.IsArray = true;                 }                 else                 {                     type2 = type;                     bindingType.IsArray = false;                 }             }             bindingType.Type = Factory.getRawType(type2);             return bindingType;         }         public virtual void Start()         {             if (coreFlowObj != null && FlowContext.Instance.WorkStatus == WorkStatus.Running)                 return;             IModuleFlow core = null;             try             {                 CursorBegin.Invoke();                 if (CoreFlowObj != null)                     throw new Exception("正在作业，不能启动！");                 core = CreateModuleFlow();                 if (core != null)                 {                     core.FeedInfo += OnFeedInfo;                     core.ExecBeginWork();                     coreFlowObj = core;                     FlowContext.Instance.WorkStatus = WorkStatus.Running;                 }                 ImeMode = ImeMode.NoControl;                 Log.SetLogFocus();             }             catch (Exception ex)             {                 FlowContext.Instance.WorkStatus = WorkStatus.NoAction;                 if (coreFlowObj != null)                 {                     coreFlowObj.FeedInfo -= OnFeedInfo;                     coreFlowObj = null;                 }                 throw ex;             }             finally             {                 if (FlowContext.Instance.WorkStatus == WorkStatus.Running)                 {                     onceScanData = string.Empty;                 }                 CursorEnd.Invoke();             }         }         public virtual void Stop()         {             if (CoreFlowObj != null)             {                 try                 {                     var configObj = SerializerHelper.LoadFromXML<AppContentConfig>(FrameAppContext.GetInstance().RunTimeConfigPath + "\\AppContentConfig.Config");                     if (configObj != null && !string.IsNullOrEmpty(configObj.EntryModuleName) && configObj.EntryModuleName.Equals("成品装箱作业"))                     {                         using (var dlgFrm = new FlowStopCheckForm())                         {                             var dlg = dlgFrm.ShowDialog();                             if (dlg == DialogResult.OK && !FlowContext.Instance.IsEndPacking)                             {                                 CoreFlowObj.ExecEndWork();                                 coreFlowObj = null;                                 FlowContext.Instance.WorkStatus = WorkStatus.Stopped;                             }                             if (dlg == DialogResult.OK && FlowContext.Instance.IsEndPacking)                             {                                 CoreFlowObj.StopWorkCheck();                             }                         }                     }                     else                     {                         CoreFlowObj.ExecEndWork();                         coreFlowObj = null;                         FlowContext.Instance.WorkStatus = WorkStatus.Stopped;                     }                 }                 catch (Exception ex)                 {                     Exception error = new Exception("流程执行异常停止，" + ex.InnerException == null ? ex.Message : ex.InnerException.Message);                     FrameAppContext.GetInstance().AppLogger.Error(error);                 }                 finally                 {                     Clear();                     if (FlowContext.Instance.WorkStatus != WorkStatus.Running)                     {                         Log.Write("作业已经停止！", "", MessageTipsLevel.Warning);                         FrameAppContext.GetInstance().AppLogger.Info("作业已经停止！");                         FlowContext.Instance.ResetContext();                     }                     Utility.GCFullCollect();                 }             }         }<
