Dubbo 服务订阅源码分析

Dubbo 服务引用的时机有两个：

第一个是在 Spring 容器调用 ReferenceBean 的 afterPropertiesSet 方法时引用服务

第二个是在 ReferenceBean 对应的服务被注入到其他类中时引用。

这两个引用服务的时机区别在于，第一个是饿汉式的，第二个是懒汉式的。默认情况下，Dubbo 使用懒汉式引用服务。

如果需要使用饿汉式，可通过配置 <dubbo:reference> 的 init 属性开启。下面我们按照 Dubbo 默认配置进行分析，整个分析过程从 ReferenceBean 的 getObject 方法开始。

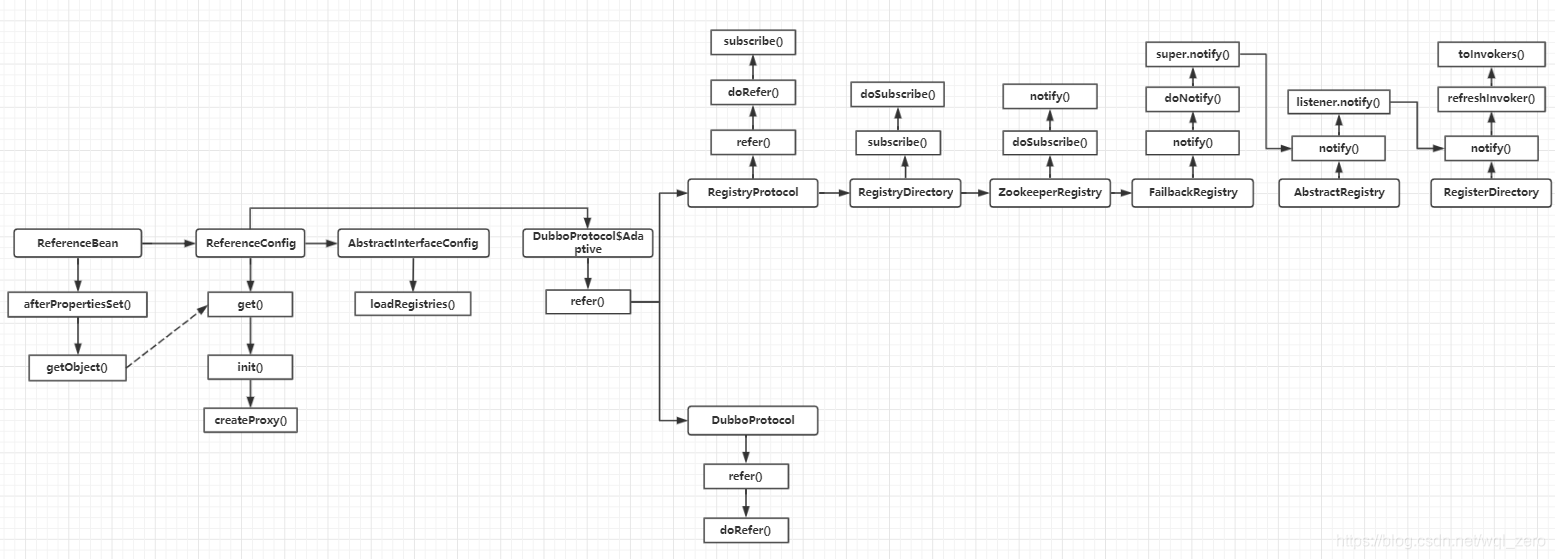

方法调用流程图：

Dubbo消费端入口：

<dubbo:reference id="GpHelloService" interface="com.itheima.dubbo.IGPHello" version="1.0.0"/>

ReferenceBean类(afterPropertiesSet 方法)

Boolean b = isInit();
if (b == null && getConsumer() != null) {
    b = getConsumer().isInit();
}
if (b != null && b.booleanValue()) {
    getObject();
}

getObject()方法

@Override
public Object getObject() throws Exception {
    return get();
}

public synchronized T get() {
    if (destroyed) {
        throw new IllegalStateException("Already destroyed!");
    }
    if (ref == null) {
        //init方法主要用于处理配置，以及调用createProxy生成代理类
        init();
    }
    return ref;
}

ReferenceConfig类中的init方法

private void init() {
    //避免重复初始化
    if (initialized) {
        return;
    }
    initialized = true;
    //检查接口的合法性
    if (interfaceName == null || interfaceName.length() == 0) {
        throw new IllegalStateException("<dubbo:reference interface=\"\" /> interface not allow null!");
    }
    //检测consumer变量是否为空，为空则创建
    checkDefault();
    //this = <dubbo:reference singleton="true" uniqueServiceName="com.itheima.dubbo.IGPHello:1.0.0"
    //interface="com.itheima.dubbo.IGPHello" generic="false" version="1.0.0" init="true" cluster="failover" id="GpHelloService" />
    appendProperties(this);
    if (getGeneric() == null && getConsumer() != null) {
        setGeneric(getConsumer().getGeneric());
    }
    if (ProtocolUtils.isGeneric(getGeneric())) {
        interfaceClass = GenericService.class;
    } else {
        try {
            //interfaceClass=com.itheima.dubbo.IGPHello
            interfaceClass = Class.forName(interfaceName, true, Thread.currentThread()
                    .getContextClassLoader());
        } catch (ClassNotFoundException e) {
            throw new IllegalStateException(e.getMessage(), e);
        }
        checkInterfaceAndMethods(interfaceClass, methods);
    }
     //从系统变量中获取与接口名对应的属性值
    String resolve = System.getProperty(interfaceName);
    String resolveFile = null;
    if (resolve == null || resolve.length() == 0) {
        //从系统属性中获取解析文件路径
        resolveFile = System.getProperty("dubbo.resolve.file");
        if (resolveFile == null || resolveFile.length() == 0) {
            //从指定位置加载配置文件
            File userResolveFile = new File(new File(System.getProperty("user.home")), "dubbo-resolve.properties");
            if (userResolveFile.exists()) {
                //获取文件绝对路径
                resolveFile = userResolveFile.getAbsolutePath();
            }
        }
        if (resolveFile != null && resolveFile.length() > 0) {
            Properties properties = new Properties();
            FileInputStream fis = null;
            try {
                fis = new FileInputStream(new File(resolveFile));
                //从文件中加载配置
                properties.load(fis);
            } catch (IOException e) {
                throw new IllegalStateException("Unload " + resolveFile + ", cause: " + e.getMessage(), e);
            } finally {
                try {
                    if (null != fis) fis.close();
                } catch (IOException e) {
                    logger.warn(e.getMessage(), e);
                }
            }
            //获取与接口名对应的配置
            resolve = properties.getProperty(interfaceName);
        }
    }
    if (resolve != null && resolve.length() > 0) {
        url = resolve;
        if (logger.isWarnEnabled()) {
            if (resolveFile != null) {
                logger.warn("Using default dubbo resolve file " + resolveFile + " replace " + interfaceName + "" + resolve + " to p2p invoke remote service.");
            } else {
                logger.warn("Using -D" + interfaceName + "=" + resolve + " to p2p invoke remote service.");
            }
        }
    }
    if (consumer != null) {
        if (application == null) {
            //从consumer中获取Application 实例，对应配置文件中<dubbo:application>
            application = consumer.getApplication();
        }
        if (module == null) {
            //从consumer中获取Module实例，对应配置文件中<dubbo:module>
            module = consumer.getModule();
        }
        if (registries == null) {
            //从consumer中获取Module实例，对应配置文件中<dubbo:registry>
            registries = consumer.getRegistries();
        }
        if (monitor == null) {
             //从consumer中获取Module实例，对应配置文件中<dubbo:monitor>
            monitor = consumer.getMonitor();
        }
    }
    if (module != null) {
        if (registries == null) {
            registries = module.getRegistries();
        }
        if (monitor == null) {
            monitor = module.getMonitor();
        }
    }
    if (application != null) {
        if (registries == null) {
            registries = application.getRegistries();
        }
        if (monitor == null) {
            monitor = application.getMonitor();
        }
    }
     //检测Application合法性
    checkApplication();
    //
    checkStub(interfaceClass);
    checkMock(interfaceClass);
    //添加side、协议版本信息、时间戳和进程号等信息到map中
    Map<String, String> map = new HashMap<String, String>();
    Map<Object, Object> attributes = new HashMap<Object, Object>();
    map.put(Constants.SIDE_KEY, Constants.CONSUMER_SIDE);
    map.put(Constants.DUBBO_VERSION_KEY, Version.getProtocolVersion());
    map.put(Constants.TIMESTAMP_KEY, String.valueOf(System.currentTimeMillis()));
    if (ConfigUtils.getPid() > 0) {
        map.put(Constants.PID_KEY, String.valueOf(ConfigUtils.getPid()));
    }
    //非泛化服务
    if (!isGeneric()) {
        //获取版本号
        String revision = Version.getVersion(interfaceClass, version);
        if (revision != null && revision.length() > 0) {
            map.put("revision", revision);
        }
        //根据interfaceClass获取methods列表，加入到map中
        String[] methods = Wrapper.getWrapper(interfaceClass).getMethodNames();
        if (methods.length == 0) {
            logger.warn("NO method found in service interface " + interfaceClass.getName());
            map.put("methods", Constants.ANY_VALUE);
        } else {
            map.put("methods", StringUtils.join(new HashSet<String>(Arrays.asList(methods)), ","));
        }
    }
    map.put(Constants.INTERFACE_KEY, interfaceName);
    //将ApplicationConfig、ConsumerConfig、ReferenceConfig等对象的字段信息添加到map中
    appendParameters(map, application);
    appendParameters(map, module);
    appendParameters(map, consumer, Constants.DEFAULT_KEY);
    appendParameters(map, this);
    //从map中获取前缀prefix=com.itheima.dubbo.IGPHello:1.0.0
    String prefix = StringUtils.getServiceKey(map);
    if (methods != null && !methods.isEmpty()) {
        //遍历MethodConfig列表
        for (MethodConfig method : methods) {
            appendParameters(map, method, method.getName());
            //retryKey=methodName.retry
            String retryKey = method.getName() + ".retry";
            if (map.containsKey(retryKey)) {
                String retryValue = map.remove(retryKey);
                if ("false".equals(retryValue)) {
                    //添加重试次数配置methodName.retries
                    map.put(method.getName() + ".retries", "0");
                }
            }
            appendAttributes(attributes, method, prefix + "." + method.getName());
            checkAndConvertImplicitConfig(method, map, attributes);
        }
    }
    //获取服务消费者ip地址
    String hostToRegistry = ConfigUtils.getSystemProperty(Constants.DUBBO_IP_TO_REGISTRY);
    if (hostToRegistry == null || hostToRegistry.length() == 0) {
        //获取本地地址
        hostToRegistry = NetUtils.getLocalHost();
    } else if (isInvalidLocalHost(hostToRegistry)) {
        throw new IllegalArgumentException("Specified invalid registry ip from property:" + Constants.DUBBO_IP_TO_REGISTRY + ", value:" + hostToRegistry);
    }
    map.put(Constants.REGISTER_IP_KEY, hostToRegistry);

    //attributes are stored by system context.
    StaticContext.getSystemContext().putAll(attributes);
    //关键代码(createProxy)
    //创建代理类
    ref = createProxy(map);
    //根据服务名，ReferenceConfig，代理类构建 ConsumerModel，并将 ConsumerModel 存入到 ApplicationModel 中
    ConsumerModel consumerModel = new ConsumerModel(getUniqueServiceName(), this, ref, interfaceClass.getMethods());
    ApplicationModel.initConsumerModel(getUniqueServiceName(), consumerModel);
}

ReferenceConfig类中的createProxy方法

private T createProxy(Map<String, String> map) {
    //根据map中的参数列表组成tmpUrl
    //temp://localhost?application=dubbo-client&cluster=failover&dubbo=2.0.2&init=true&interface=com.itheima.dubbo.IGPHello&
    //methods=sayHello&owner=wql&pid=12412&register.ip=192.168.56.100&revision=1.0-SNAPSHOT&side=consumer&timestamp=1577155533925&version=1.0.0
    URL tmpUrl = new URL("temp", "localhost", 0, map);
    final boolean isJvmRefer;
    if (isInjvm() == null) {
        if (url != null && url.length() > 0) { // if a url is specified, don't do local reference
            isJvmRefer = false;
            //根据 url 的协议、scope 以及 injvm 等参数检测是否需要本地引用
            //比如如果用户显式配置了 scope=local，此时 isInjvmRefer 返回 true
            //如果配置 scope=none，则不会进行服务暴露；如果没有配置scope或者scope=local，则会进行本地暴露。
        } else if (InjvmProtocol.getInjvmProtocol().isInjvmRefer(tmpUrl)) {
            // by default, reference local service if there is
            isJvmRefer = true;
        } else {
            isJvmRefer = false;
        }
    } else {
        //获取 injvm 配置值
        isJvmRefer = isInjvm().booleanValue();
    }
    //isJvmRefer=false
    //本地引用
    if (isJvmRefer) {
        //生成本地引用URL，协议为injvm
        URL url = new URL(Constants.LOCAL_PROTOCOL, NetUtils.LOCALHOST, 0, interfaceClass.getName()).addParameters(map);
        //调用refer方法构建InjvmInvoker实例
        invoker = refprotocol.refer(interfaceClass, url);
        if (logger.isInfoEnabled()) {
            logger.info("Using injvm service " + interfaceClass.getName());
        }
        //远程调用
    } else {
        //用户指定的URL，可以是点对点地址，也可以是注册中心的地址
        if (url != null && url.length() > 0) {
            //当需要配置多个url 时，可用分号进行分割，这里会进行切分
            String[] us = Constants.SEMICOLON_SPLIT_PATTERN.split(url);
            if (us != null && us.length > 0) {
                for (String u : us) {
                    URL url = URL.valueOf(u);
                    if (url.getPath() == null || url.getPath().length() == 0) {
                        url = url.setPath(interfaceName);
                    }
                    //检测url协议是否为registry，若是，表明用户想使用指定的注册中心
                    if (Constants.REGISTRY_PROTOCOL.equals(url.getProtocol())) {
                        //将map转换为查询字符串，并作为refer参数的值添加到url中
                        urls.add(url.addParameterAndEncoded(Constants.REFER_KEY, StringUtils.toQueryString(map)));
                    } else {
                        //合并 url，移除服务提供者的一些配置（这些配置来源于用户配置的 url 属性），
                        //比如线程池相关配置。并保留服务提供者的部分配置，比如版本，group，时间戳等
                        //最后将合并后的配置设置为 url 查询字符串中。
                        urls.add(ClusterUtils.mergeUrl(url, map));
                    }
                }
            }
        } else {
            //从注册中心加载URL
            //us = registry://192.168.56.102:2181/com.alibaba.dubbo.registry.RegistryService?application=dubbo-client&dubbo=2.0.2&owner=wql&pid=12412&registry=zookeeper&timestamp=1577157985630
            List<URL> us = loadRegistries(false);
            if (us != null && !us.isEmpty()) {
                for (URL u : us) {
                    URL monitorUrl = loadMonitor(u);
                    if (monitorUrl != null) {
                        map.put(Constants.MONITOR_KEY, URL.encode(monitorUrl.toFullString()));
                    }
                    //添加refer参数到url中，并将url添加到urls中
                    urls.add(u.addParameterAndEncoded(Constants.REFER_KEY, StringUtils.toQueryString(map)));
                }
            }
            if (urls.isEmpty()) {
                throw new IllegalStateException("No such any registry to reference " + interfaceName + " on the consumer " + NetUtils.getLocalHost() + " use dubbo version " + Version.getVersion() + ", please config <dubbo:registry address=\"...\" /> to your spring config.");
            }
        }
        //单个注册中心或服务提供者
        if (urls.size() == 1) {
            //这个invoker实例是MockClusterInvoker
            //invoker :interface com.itheima.dubbo.IGPHello -> zookeeper://192.168.56.102:218137d3d232
            //调用RegistryProtocol的refer构建Invoker实例
            invoker = refprotocol.refer(interfaceClass, urls.get(0));
        } else {
            //多个注册中心或多个服务提供者，或者两者混合
            List<Invoker<?>> invokers = new ArrayList<Invoker<?>>();
            URL registryURL = null;
            //获取所有的 Invoker
            //通过 refprotocol 调用refer构建 Invoker，refprotocol 会在运行时根据url协议头加载指定的 Protocol 实例，并调用实例的 refer 方法
            for (URL url : urls) {
                invokers.add(refprotocol.refer(interfaceClass, url));
                if (Constants.REGISTRY_PROTOCOL.equals(url.getProtocol())) {
                    registryURL = url; // use last registry url
                }
            }
            if (registryURL != null) { // registry url is available
                // use AvailableCluster only when register's cluster is available
                //如果注册中心链接不为空，则将使用 AvailableCluster
                URL u = registryURL.addParameter(Constants.CLUSTER_KEY, AvailableCluster.NAME);
                invoker = cluster.join(new StaticDirectory(u, invokers));
            } else { // not a registry url
                invoker = cluster.join(new StaticDirectory(invokers));
            }
        }
    }

    Boolean c = check;
    if (c == null && consumer != null) {
        c = consumer.isCheck();
    }
    if (c == null) {
        c = true; // default true
    }
     //invoker可用性检查
    if (c && !invoker.isAvailable()) {
        // make it possible for consumer to retry later if provider is temporarily unavailable
        initialized = false;
        throw new IllegalStateException("Failed to check the status of the service " + interfaceName + ". No provider available for the service " + (group == null ? "" : group + "/") + interfaceName + (version == null ? "" : ":" + version) + " from the url " + invoker.getUrl() + " to the consumer " + NetUtils.getLocalHost() + " use dubbo version " + Version.getVersion());
    }
    if (logger.isInfoEnabled()) {
        logger.info("Refer dubbo service " + interfaceClass.getName() + " from url " + invoker.getUrl());
        //Refer dubbo service com.itheima.dubbo.IGPHello from url zookeeper://192.168.56.102:2181/com.alibaba.dubbo.registry.RegistryService?
        //anyhost=true&application=dubbo-client&check=false&cluster=failover&default.delay=10&delay=10&dubbo=2.0.2&init=true&
        //interface=com.itheima.dubbo.IGPHello&methods=sayHello&owner=wql&pid=12412&register.ip=192.168.56.100&remote.timestamp=15771487932
        //97&revision=1.0-SNAPSHOT&side=consumer&timestamp=1577155533925&version=1.0.0, dubbo version: 2.6.7, current host: 192.168.56.100

    }
    // create service proxy
    return (T) proxyFactory.getProxy(invoker);
}

从注册中心加载URL(AbstractInterfaceConfig类中的loadRegustries方法)

protected List<URL> loadRegistries(boolean provider) {
    checkRegistry();
    List<URL> registryList = new ArrayList<URL>();
    if (registries != null && !registries.isEmpty()) {
        for (RegistryConfig config : registries) {
            String address = config.getAddress();
            if (address == null || address.length() == 0) {
                address = Constants.ANYHOST_VALUE;
            }
            String sysaddress = System.getProperty("dubbo.registry.address");
            if (sysaddress != null && sysaddress.length() > 0) {
                address = sysaddress;
            }
            if (address.length() > 0 && !RegistryConfig.NO_AVAILABLE.equalsIgnoreCase(address)) {
                Map<String, String> map = new HashMap<String, String>();
                appendParameters(map, application);
                appendParameters(map, config);
                map.put("path", RegistryService.class.getName());
                map.put("dubbo", Version.getProtocolVersion());
                map.put(Constants.TIMESTAMP_KEY, String.valueOf(System.currentTimeMillis()));
                if (ConfigUtils.getPid() > 0) {
                    map.put(Constants.PID_KEY, String.valueOf(ConfigUtils.getPid()));
                }
                if (!map.containsKey("protocol")) {
                    if (ExtensionLoader.getExtensionLoader(RegistryFactory.class).hasExtension("remote")) {
                        map.put("protocol", "remote");
                    } else {
                        map.put("protocol", "dubbo");
                    }
                }
                List<URL> urls = UrlUtils.parseURLs(address, map);
                for (URL url : urls) {
                    url = url.addParameter(Constants.REGISTRY_KEY, url.getProtocol());
                    url = url.setProtocol(Constants.REGISTRY_PROTOCOL);
                    if ((provider && url.getParameter(Constants.REGISTER_KEY, true))
                            || (!provider && url.getParameter(Constants.SUBSCRIBE_KEY, true))) {
                        registryList.add(url);
                    }
                }
            }
        }
    }
    return registryList;
}

分析ReferenceConfig类中的代码片段

interfaceClass = com.itheima.dubbo.IGPHello -> zookeeper://192.168.56.102:2181/com.alibaba.dubbo.registry.RegistryService

urls = registry://192.168.56.102:2181/com.alibaba.dubbo.registry.RegistryService51705101

 if (urls.size() == 1) {
      //interfaceClass = com.itheima.dubbo.IGPHello -> zookeeper://192.168.56.102:2181/com.alibaba.dubbo.registry.RegistryService
      //urls = registry://192.168.56.102:2181/com.alibaba.dubbo.registry.RegistryService51705101
        invoker = refprotocol.refer(interfaceClass, urls.get(0));
    } else {
        List<Invoker<?>> invokers = new ArrayList<Invoker<?>>();
        URL registryURL = null;
        for (URL url : urls) {
            invokers.add(refprotocol.refer(interfaceClass, url));
            if (Constants.REGISTRY_PROTOCOL.equals(url.getProtocol())) {
                registryURL = url; // use last registry url
            }
        }
        if (registryURL != null) { // registry url is available
            // use AvailableCluster only when register's cluster is available
            URL u = registryURL.addParameter(Constants.CLUSTER_KEY, AvailableCluster.NAME);
            invoker = cluster.join(new StaticDirectory(u, invokers));
        } else { // not a registry url
            invoker = cluster.join(new StaticDirectory(invokers));
        }
    }

代码中的 refprotocol.refer()表示protocol$Adaptive.refer()，对应protocol$Adaptive类中refer方法

public com.alibaba.dubbo.rpc.Invoker refer(java.lang.Class arg0, com.alibaba.dubbo.common.URL arg1) throws com.alibaba.dubbo.rpc.RpcException {
    if (arg1 == null) throw new IllegalArgumentException("url == null");
    com.alibaba.dubbo.common.URL url = arg1;
    String extName = (url.getProtocol() == null ? "dubbo" : url.getProtocol() );
    if(extName == null) throw new IllegalStateException("Fail to get extension(com.alibaba.dubbo.rpc.Protocol) name from url(" + url.toString() + ") use keys([protocol])");
    com.alibaba.dubbo.rpc.Protocol extension = (com.alibaba.dubbo.rpc.Protocol)ExtensionLoader.getExtensionLoader(com.alibaba.dubbo.rpc.Protocol.class).getExtension(extName);
    return extension.refer(arg0, arg1);
}

com.alibaba.dubbo.rpc.Protocol extension = (com.alibaba.dubbo.rpc.Protocol)ExtensionLoader.getExtensionLoader(com.alibaba.dubbo.rpc.Protocol.class).getExtension(extName);

上面指定名称的protocol在这里指的是RegistryProtocol对应下面代码：

Protocol extension = ExtensionLoader.getExtensionLoader(Protocol.class).getExtension(“registry”);

映射到RegistryProtocol类中的refer方法

public <T> Invoker<T> refer(Class<T> type, URL url) throws RpcException {
    //url= zookeeper://192.168.56.102:2181/com.alibaba.dubbo.registry.RegistryService
    url = url.setProtocol(url.getParameter(Constants.REGISTRY_KEY, Constants.DEFAULT_REGISTRY)).removeParameter(Constants.REGISTRY_KEY);
    //获得一个注册中心,得到一个zookeeperRegistry
    Registry registry = registryFactory.getRegistry(url);
    if (RegistryService.class.equals(type)) {
        return proxyFactory.getInvoker((T) registry, type, url);
    }

    // group="a,b" or group="*"
    Map<String, String> qs = StringUtils.parseQueryString(url.getParameterAndDecoded(Constants.REFER_KEY));
    String group = qs.get(Constants.GROUP_KEY);
    if (group != null && group.length() > 0) {
        if ((Constants.COMMA_SPLIT_PATTERN.split(group)).length > 1
                || "*".equals(group)) {
            return doRefer(getMergeableCluster(), registry, type, url);
        }
    }
    return doRefer(cluster, registry, type, url);
}

RegistryProtocol类中的doRefer方法

Cluster = Cluster$Adaptive(自适应扩展点)

registry = zookeeper://192.168.56.102:2181/com.alibaba.dubbo.registry.RegistryService

type = interface com.itheima.dubbo.IGPHello

url = zookeeper://192.168.56.102:2181/com.alibaba.dubbo.registry.RegistryService

private <T> Invoker<T> doRefer(Cluster cluster, Registry registry, Class<T> type, URL url) {
    RegistryDirectory<T> directory = new RegistryDirectory<T>(type, url);
    directory.setRegistry(registry);
    //protocol = protoco$Adaptive
    directory.setProtocol(protocol);
    // all attributes of REFER_KEY
    Map<String, String> parameters = new HashMap<String, String>(directory.getUrl().getParameters());
    // subscribeUrl  = consumer://192.168.56.100/com.itheima.dubbo.IGPHello?application=dubbo-client&dubbo=2.0.2&interface=com.itheima.dubbo.IGPHello
    URL subscribeUrl = new URL(Constants.CONSUMER_PROTOCOL, parameters.remove(Constants.REGISTER_IP_KEY), 0, type.getName(), parameters);
    //会把customer地址注册到注册中心
    if (!Constants.ANY_VALUE.equals(url.getServiceInterface())
            && url.getParameter(Constants.REGISTER_KEY, true)) {
        URL registeredConsumerUrl = getRegisteredConsumerUrl(subscribeUrl, url);
        registry.register(registeredConsumerUrl);
        directory.setRegisteredConsumerUrl(registeredConsumerUrl);
    }
    //订阅
    directory.subscribe(subscribeUrl.addParameter(Constants.CATEGORY_KEY,
            Constants.PROVIDERS_CATEGORY
                    + "," + Constants.CONFIGURATORS_CATEGORY
                    + "," + Constants.ROUTERS_CATEGORY));
    //下面解析
    Invoker invoker = cluster.join(directory);
    //join方法实现的是MockClusterWrapper类中的join方法
    ProviderConsumerRegTable.registerConsumer(invoker, url, subscribeUrl, directory);
    return invoker;
}

从zookeeper中订阅（RegistryProtocol类）

RegistryDirectory<T> directory = new RegistryDirectory<T>(type, url);
....
directory.subscribe(subscribeUrl.addParameter(Constants.CATEGORY_KEY,
            Constants.PROVIDERS_CATEGORY
                    + "," + Constants.CONFIGURATORS_CATEGORY
                    + "," + Constants.ROUTERS_CATEGORY));

RegistryDirectory类中(subscribe方法)

public void subscribe(URL url) {
    setConsumerUrl(url);
    registry.subscribe(url, this);
}

 FailbackRegistry类中的(subscribe方法)

public void subscribe(URL url, NotifyListener listener) {
    //先调用父类(AbstractRegistry)的中的subscribe
    //url=consumer://192.168.56.100/com.itheima.dubbo.IGPHello?application=dubbo-client&category=providers,configurators,routers&cluster=failover&dubbo=2.0.2&init=true&interface=com.itheima.dubbo.IGPHello&methods=sayHello&owner=wql&pid=8800&revision=1.0-SNAPSHOT&side=consumer&timestamp=1577324210064&version=1.0.0
    super.subscribe(url, listener);
    removeFailedSubscribed(url, listener);
    try {
        //向服务器端发送订阅请求(子类ZookeeperRegistry)
        doSubscribe(url, listener);
    } catch (Exception e) {
        Throwable t = e;

        List<URL> urls = getCacheUrls(url);
        if (urls != null && !urls.isEmpty()) {
            notify(url, listener, urls);
            logger.error("Failed to subscribe " + url + ", Using cached list: " + urls + " from cache file: " + getUrl().getParameter(Constants.FILE_KEY, System.getProperty("user.home") + "/dubbo-registry-" + url.getHost() + ".cache") + ", cause: " + t.getMessage(), t);
        } else {
            // If the startup detection is opened, the Exception is thrown directly.
            boolean check = getUrl().getParameter(Constants.CHECK_KEY, true)
                    && url.getParameter(Constants.CHECK_KEY, true);
            boolean skipFailback = t instanceof SkipFailbackWrapperException;
            if (check || skipFailback) {
                if (skipFailback) {
                    t = t.getCause();
                }
                throw new IllegalStateException("Failed to subscribe " + url + ", cause: " + t.getMessage(), t);
            } else {
                logger.error("Failed to subscribe " + url + ", waiting for retry, cause: " + t.getMessage(), t);
            }
        }

        // Record a failed registration request to a failed list, retry regularly
        addFailedSubscribed(url, listener);
    }
}

private void addFailedSubscribed(URL url, NotifyListener listener) {
    Set<NotifyListener> listeners = failedSubscribed.get(url);
    if (listeners == null) {
        failedSubscribed.putIfAbsent(url, new ConcurrentHashSet<NotifyListener>());
        listeners = failedSubscribed.get(url);
    }
    listeners.add(listener);
}

 ZookeeperRegistry类中doSubscribe方法

protected void doSubscribe(final URL url, final NotifyListener listener) {
    try {
        if (Constants.ANY_VALUE.equals(url.getServiceInterface())) {
            String root = toRootPath();
            ConcurrentMap<NotifyListener, ChildListener> listeners = zkListeners.get(url);
            if (listeners == null) {
                zkListeners.putIfAbsent(url, new ConcurrentHashMap<NotifyListener, ChildListener>());
                listeners = zkListeners.get(url);
            }
            ChildListener zkListener = listeners.get(listener);
            if (zkListener == null) {
                listeners.putIfAbsent(listener, new ChildListener() {
                    @Override
                    public void childChanged(String parentPath, List<String> currentChilds) {
                        for (String child : currentChilds) {
                            child = URL.decode(child);
                            if (!anyServices.contains(child)) {
                                anyServices.add(child);
                                subscribe(url.setPath(child).addParameters(Constants.INTERFACE_KEY, child,
                                        Constants.CHECK_KEY, String.valueOf(false)), listener);
                            }
                        }
                    }
                });
                zkListener = listeners.get(listener);
            }
            zkClient.create(root, false);
            List<String> services = zkClient.addChildListener(root, zkListener);
            if (services != null && !services.isEmpty()) {
                for (String service : services) {
                    service = URL.decode(service);
                    anyServices.add(service);
                    subscribe(url.setPath(service).addParameters(Constants.INTERFACE_KEY, service,
                            Constants.CHECK_KEY, String.valueOf(false)), listener);
                }
            }
        } else {
            List<URL> urls = new ArrayList<URL>();
            //path=/dubbo/com.itheima.dubbo.IGPHello/providers
            //path=/dubbo/com.itheima.dubbo.IGPHello/configurators
            //path=/dubbo/com.itheima.dubbo.IGPHello/routers
            for (String path : toCategoriesPath(url)) {
                ConcurrentMap<NotifyListener, ChildListener> listeners = zkListeners.get(url);
                if (listeners == null) {
                    zkListeners.putIfAbsent(url, new ConcurrentHashMap<NotifyListener, ChildListener>());
                    listeners = zkListeners.get(url);
                }
                ChildListener zkListener = listeners.get(listener);
                if (zkListener == null) {
                    listeners.putIfAbsent(listener, new ChildListener() {
                        @Override
                        public void childChanged(String parentPath, List<String> currentChilds) {
                            ZookeeperRegistry.this.notify(url, listener, toUrlsWithEmpty(url, parentPath, currentChilds));
                        }
                    });
                    zkListener = listeners.get(listener);
                }
                //zookeeper创建监听目录
                //1:/dubbo/com.itheima.dubbo.IGPHello/providers
                //2:/dubbo/com.itheima.dubbo.IGPHello/configurators
                //3:/dubbo/com.itheima.dubbo.IGPHello/routers
                zkClient.create(path, false);
                List<String> children = zkClient.addChildListener(path, zkListener);
                if (children != null) {
                    urls.addAll(toUrlsWithEmpty(url, path, children));
                }
            }
            //通知
            notify(url, listener, urls);
        }
    } catch (Throwable e) {
        throw new RpcException("Failed to subscribe " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);
    }
}

FailbackRegistry类中的notify方法

protected void notify(URL url, NotifyListener listener, List<URL> urls) {
    if (url == null) {
        throw new IllegalArgumentException("notify url == null");
    }
    if (listener == null) {
        throw new IllegalArgumentException("notify listener == null");
    }
    try {
        //具体的通知
        doNotify(url, listener, urls);
    } catch (Exception t) {
        // Record a failed registration request to a failed list, retry regularly
        Map<NotifyListener, List<URL>> listeners = failedNotified.get(url);
        if (listeners == null) {
            failedNotified.putIfAbsent(url, new ConcurrentHashMap<NotifyListener, List<URL>>());
            listeners = failedNotified.get(url);
        }
        listeners.put(listener, urls);
        logger.error("Failed to notify for subscribe " + url + ", waiting for retry, cause: " + t.getMessage(), t);
    }
}

FailbackRegistry类中的doNotify方法

protected void doNotify(URL url, NotifyListener listener, List<URL> urls) {
    super.notify(url, listener, urls);
}

调用父类(AbstractRegistry)中的notify方法

protected void notify(URL url, NotifyListener listener, List<URL> urls) {
    if (url == null) {
        throw new IllegalArgumentException("notify url == null");
    }
    if (listener == null) {
        throw new IllegalArgumentException("notify listener == null");
    }
    if ((urls == null || urls.isEmpty())
            && !Constants.ANY_VALUE.equals(url.getServiceInterface())) {
        logger.warn("Ignore empty notify urls for subscribe url " + url);
        return;
    }
    if (logger.isInfoEnabled()) {
        logger.info("Notify urls for subscribe url " + url + ", urls: " + urls);
    }
    Map<String, List<URL>> result = new HashMap<String, List<URL>>();
    for (URL u : urls) {
        if (UrlUtils.isMatch(url, u)) {
            String category = u.getParameter(Constants.CATEGORY_KEY, Constants.DEFAULT_CATEGORY);
            List<URL> categoryList = result.get(category);
            if (categoryList == null) {
                categoryList = new ArrayList<URL>();
                result.put(category, categoryList);
            }
            categoryList.add(u);
        }
    }
    if (result.size() == 0) {
        return;
    }
    Map<String, List<URL>> categoryNotified = notified.get(url);
    if (categoryNotified == null) {
        notified.putIfAbsent(url, new ConcurrentHashMap<String, List<URL>>());
        categoryNotified = notified.get(url);
    }
    //对provider,configuations,routers,路径下的进行刷新
    for (Map.Entry<String, List<URL>> entry : result.entrySet()) {
        String category = entry.getKey();
        List<URL> categoryList = entry.getValue();
        categoryNotified.put(category, categoryList);
        saveProperties(url);
        listener.notify(categoryList);
    }
}

listener.notify(),调用的是RegisterDirectory类中的notify方法

public synchronized void notify(List<URL> urls) {
    List<URL> invokerUrls = new ArrayList<URL>();
    List<URL> routerUrls = new ArrayList<URL>();
    List<URL> configuratorUrls = new ArrayList<URL>();
    for (URL url : urls) {
        String protocol = url.getProtocol();
        String category = url.getParameter(Constants.CATEGORY_KEY, Constants.DEFAULT_CATEGORY);
        if (Constants.ROUTERS_CATEGORY.equals(category)
                || Constants.ROUTE_PROTOCOL.equals(protocol)) {
            routerUrls.add(url);
        } else if (Constants.CONFIGURATORS_CATEGORY.equals(category)
                || Constants.OVERRIDE_PROTOCOL.equals(protocol)) {
            configuratorUrls.add(url);
        } else if (Constants.PROVIDERS_CATEGORY.equals(category)) {
            invokerUrls.add(url);
        } else {
            logger.warn("Unsupported category " + category + " in notified url: " + url + " from registry " + getUrl().getAddress() + " to consumer " + NetUtils.getLocalHost());
        }
    }
    // configurators
    if (configuratorUrls != null && !configuratorUrls.isEmpty()) {
        this.configurators = toConfigurators(configuratorUrls);
    }
    // routers
    if (routerUrls != null && !routerUrls.isEmpty()) {
        List<Router> routers = toRouters(routerUrls);
        if (routers != null) { // null - do nothing
            setRouters(routers);
        }
    }
    List<Configurator> localConfigurators = this.configurators; // local reference
    // merge override parameters
    this.overrideDirectoryUrl = directoryUrl;
    if (localConfigurators != null && !localConfigurators.isEmpty()) {
        for (Configurator configurator : localConfigurators) {
            this.overrideDirectoryUrl = configurator.configure(overrideDirectoryUrl);
        }
    }
    // providers
    refreshInvoker(invokerUrls);
}

RegisterDirectory类中的refreshInvoker方法

/**
 * Convert the invokerURL list to the Invoker Map. The rules of the conversion are as follows:
 * 1.If URL has been converted to invoker, it is no longer re-referenced and obtained directly from the cache, and notice that any parameter changes in the URL will be re-referenced.
 * 2.If the incoming invoker list is not empty, it means that it is the latest invoker list
 * 3.If the list of incoming invokerUrl is empty, It means that the rule is only a override rule or a route rule, which needs to be re-contrasted to decide whether to re-reference.
 *
 * @param invokerUrls this parameter can't be null
 */
private void refreshInvoker(List<URL> invokerUrls) {
    if (invokerUrls != null && invokerUrls.size() == 1 && invokerUrls.get(0) != null
            && Constants.EMPTY_PROTOCOL.equals(invokerUrls.get(0).getProtocol())) {
        this.forbidden = true; // Forbid to access
        this.methodInvokerMap = null; // Set the method invoker map to null
        destroyAllInvokers(); // Close all invokers
    } else {
        this.forbidden = false; // Allow to access
        Map<String, Invoker<T>> oldUrlInvokerMap = this.urlInvokerMap; // local reference
        if (invokerUrls.isEmpty() && this.cachedInvokerUrls != null) {
            invokerUrls.addAll(this.cachedInvokerUrls);
        } else {
            this.cachedInvokerUrls = new HashSet<URL>();
            this.cachedInvokerUrls.addAll(invokerUrls);//Cached invoker urls, convenient for comparison
        }
        if (invokerUrls.isEmpty()) {
            return;
        }
        //核心部分：将url列表转换为Invoker map
        Map<String, Invoker<T>> newUrlInvokerMap = toInvokers(invokerUrls);// Translate url list to Invoker map
        Map<String, List<Invoker<T>>> newMethodInvokerMap = toMethodInvokers(newUrlInvokerMap); // Change method name to map Invoker Map
        // state change
        // If the calculation is wrong, it is not processed.
        if (newUrlInvokerMap == null || newUrlInvokerMap.size() == 0) {
            logger.error(new IllegalStateException("urls to invokers error .invokerUrls.size :" + invokerUrls.size() + ", invoker.size :0. urls :" + invokerUrls.toString()));
            return;
        }
        this.methodInvokerMap = multiGroup ? toMergeMethodInvokerMap(newMethodInvokerMap) : newMethodInvokerMap;
        this.urlInvokerMap = newUrlInvokerMap;
        try {
            destroyUnusedInvokers(oldUrlInvokerMap, newUrlInvokerMap); // Close the unused Invoker
        } catch (Exception e) {
            logger.warn("destroyUnusedInvokers error. ", e);
        }
    }
}

RegisterDirectory类中的toInvokers方法

//Turn urls into invokers, and if url has been refer, will not re-reference.
//将urls转为invokers，并且如果url被映射，将不会再进行映射
private Map<String, Invoker<T>> toInvokers(List<URL> urls) {
    Map<String, Invoker<T>> newUrlInvokerMap = new HashMap<String, Invoker<T>>();
    if (urls == null || urls.isEmpty()) {
        return newUrlInvokerMap;
    }
    Set<String> keys = new HashSet<String>();
    String queryProtocols = this.queryMap.get(Constants.PROTOCOL_KEY);
    for (URL providerUrl : urls) {
        // If protocol is configured at the reference side, only the matching protocol is selected
        if (queryProtocols != null && queryProtocols.length() > 0) {
            boolean accept = false;
            String[] acceptProtocols = queryProtocols.split(",");
            for (String acceptProtocol : acceptProtocols) {
                if (providerUrl.getProtocol().equals(acceptProtocol)) {
                    accept = true;
                    break;
                }
            }
            if (!accept) {
                continue;
            }
        }
        if (Constants.EMPTY_PROTOCOL.equals(providerUrl.getProtocol())) {
            continue;
        }
        if (!ExtensionLoader.getExtensionLoader(Protocol.class).hasExtension(providerUrl.getProtocol())) {
            logger.error(new IllegalStateException("Unsupported protocol " + providerUrl.getProtocol() + " in notified url: " + providerUrl + " from registry " + getUrl().getAddress() + " to consumer " + NetUtils.getLocalHost()
                    + ", supported protocol: " + ExtensionLoader.getExtensionLoader(Protocol.class).getSupportedExtensions()));
            continue;
        }
        URL url = mergeUrl(providerUrl);

        String key = url.toFullString(); // The parameter urls are sorted
        if (keys.contains(key)) { // Repeated url
            continue;
        }
        keys.add(key);
        // Cache key is url that does not merge with consumer side parameters, regardless of how the consumer combines parameters, if the server url changes, then refer again
        Map<String, Invoker<T>> localUrlInvokerMap = this.urlInvokerMap; // local reference
        Invoker<T> invoker = localUrlInvokerMap == null ? null : localUrlInvokerMap.get(key);
        if (invoker == null) { // Not in the cache, refer again
            try {
                boolean enabled = true;
                if (url.hasParameter(Constants.DISABLED_KEY)) {
                    enabled = !url.getParameter(Constants.DISABLED_KEY, false);
                } else {
                    enabled = url.getParameter(Constants.ENABLED_KEY, true);
                }
                if (enabled) {
                    invoker = new InvokerDelegate<T>(protocol.refer(serviceType, url), url, providerUrl);
                }
            } catch (Throwable t) {
                logger.error("Failed to refer invoker for interface:" + serviceType + ",url:(" + url + ")" + t.getMessage(), t);
            }
            if (invoker != null) { // Put new invoker in cache
                newUrlInvokerMap.put(key, invoker);
            }
        } else {
            newUrlInvokerMap.put(key, invoker);
        }
    }
    keys.clear();
    return newUrlInvokerMap;
}

 Dubbo服务订阅源码分析待续，关注：

QQ：1078956079

QQ群：519844688
