解决方法：

前提是安装了 xilinx ise14.7 和modelsim se 10.1a

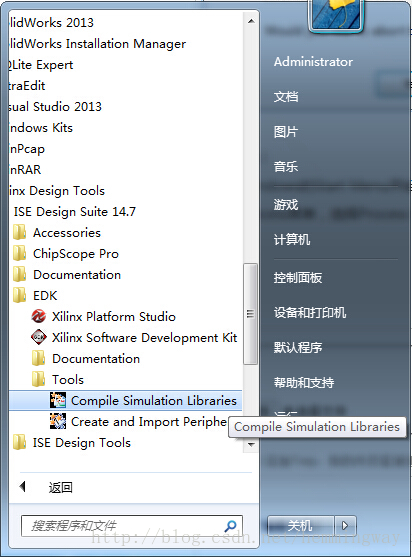

1〉从Windows的Start Menu开始，Xilinx ISE Design Suite 14.7 —〉EDK —〉Tools —〉Compile Simulation Libraries

按照提示编译好library，编译的library输出目录是： D:\Xilinx\14.7\ISE_DS\EDK ，编译需要一定的时间的。

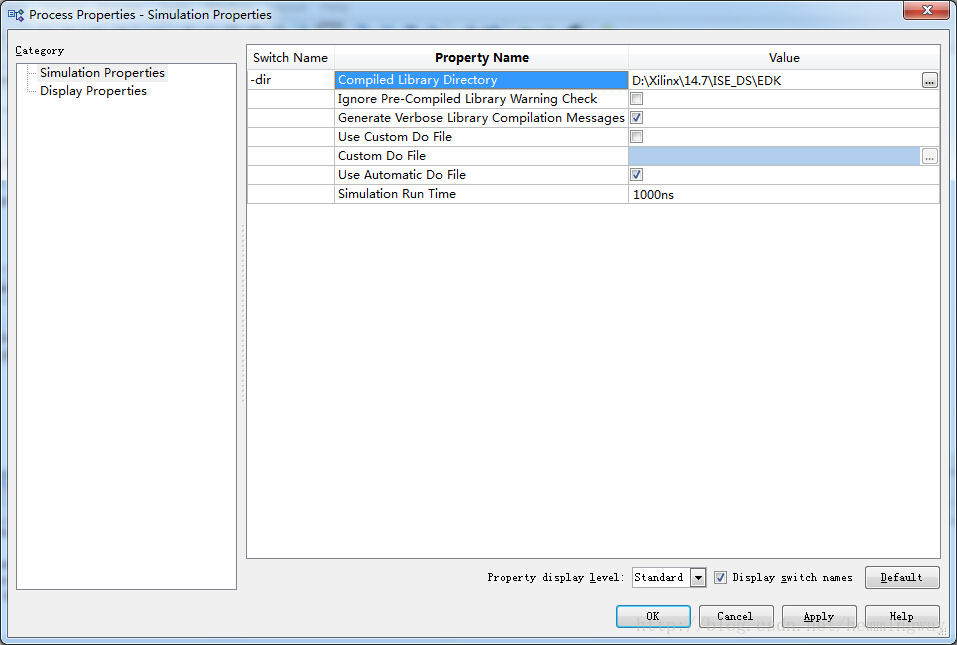

2〉从Process菜单，选择Process Properties...，设置Compiled Libraey Directory

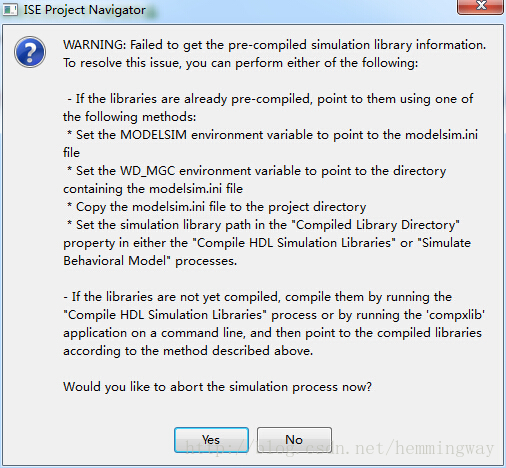

3〉set the Enviroment variables（http://forums.xilinx.com/t5/Installation-and-Licensing/solved-Failed-to-get-the-pre-compiled-simulation-library/td-p/72635） :

[plain] view plaincopyprint?在CODE上查看代码片派生到我的代码片
01.- MODELSIM environment variable to point to the modelsim.ini file
02.- WD_MGC environment variable to point to the directory containing the modelsim.ini file

注意：是指安装modelsim.ini 软件目录下面的modelsim.ini, 比如我的安装目录是 D:\modeltech_10.1a

4〉复制 \Xilinx\14.7\ISE_DS\EDKmodelsim.ini里的[Library]节中的下列行到 \modeltech_10.1a\modelsim.ini 里的 [Library] 节下

[plain] view plaincopyprint?在CODE上查看代码片派生到我的代码片
01.secureip = D:\Xilinx\14.7\ISE_DS\EDK/secureip
02.unisim = D:\Xilinx\14.7\ISE_DS\EDK/unisim
03.unimacro = D:\Xilinx\14.7\ISE_DS\EDK/unimacro
04.unisims_ver = D:\Xilinx\14.7\ISE_DS\EDK/unisims_ver
05.unimacro_ver = D:\Xilinx\14.7\ISE_DS\EDK/unimacro_ver
06.simprim = D:\Xilinx\14.7\ISE_DS\EDK/simprim
07.simprims_ver = D:\Xilinx\14.7\ISE_DS\EDK/simprims_ver
08.xilinxcorelib = D:\Xilinx\14.7\ISE_DS\EDK/xilinxcorelib
09.xilinxcorelib_ver = D:\Xilinx\14.7\ISE_DS\EDK/xilinxcorelib_ver
10.uni9000_ver = D:\Xilinx\14.7\ISE_DS\EDK/uni9000_ver
11.cpld = D:\Xilinx\14.7\ISE_DS\EDK/cpld
12.cpld_ver = D:\Xilinx\14.7\ISE_DS\EDK/cpld_ver
13.edk = D:\Xilinx\14.7\ISE_DS\EDK/edk
