Python Matlab R的Mann-Kendall趋势检验

Python Matlab R的Mann-Kendall趋势检验

水文气象中推荐使用Mann-Kendall趋势检验
这是一种非参数统计检验方法，在中心趋势不稳定时，关注数据的秩。
该方法不需要不需要满足正态分布的假设，因而具有普适性。

根据自己需要（图像、并行计算、线趋势图等等）分享python\matlab\R的方法

Python进行Mann-Kendall趋势检验

代码如下：

# -*- coding: utf-8 -*-

from __future__ import division
import numpy as np
import pandas as pd
from scipy import stats
from scipy.stats import norm

def mk_test(x, alpha=0.05):
    """
    This function is derived from code originally posted by Sat Kumar Tomer
    (satkumartomer@gmail.com)
    See also: http://vsp.pnnl.gov/help/Vsample/Design_Trend_Mann_Kendall.htm
    The purpose of the Mann-Kendall (MK) test (Mann 1945, Kendall 1975, Gilbert
    1987) is to statistically assess if there is a monotonic upward or downward
    trend of the variable of interest over time. A monotonic upward (downward)
    trend means that the variable consistently increases (decreases) through
    time, but the trend may or may not be linear. The MK test can be used in
    place of a parametric linear regression analysis, which can be used to test
    if the slope of the estimated linear regression line is different from
    zero. The regression analysis requires that the residuals from the fitted
    regression line be normally distributed; an assumption not required by the
    MK test, that is, the MK test is a non-parametric (distribution-free) test.
    Hirsch, Slack and Smith (1982, page 107) indicate that the MK test is best
    viewed as an exploratory analysis and is most appropriately used to
    identify stations where changes are significant or of large magnitude and
    to quantify these findings.
    Input:
        x:   a vector of data
        alpha: significance level (0.05 default)
    Output:
        trend: tells the trend (increasing, decreasing or no trend)
        h: True (if trend is present) or False (if trend is absence)
        p: p value of the significance test
        z: normalized test statistics
    Examples
    --------
      >>> x = np.random.rand(100)
      >>> trend,h,p,z = mk_test(x,0.05)
    """
    n = len(x)
    # calculate S
    s = 0
    for k in range(n - 1):
        for j in range(k + 1, n):
            s += np.sign(x[j] - x[k])

    # calculate the unique data
    unique_x, tp = np.unique(x, return_counts=True)
    g = len(unique_x)

    # calculate the var(s)
    if n == g:  # there is no tie
        var_s = (n * (n - 1) * (2 * n + 5)) / 18
    else:  # there are some ties in data
        var_s = (n * (n - 1) * (2 * n + 5) - np.sum(tp * (tp - 1) * (2 * tp + 5))) / 18

    if s > 0:
        z = (s - 1) / np.sqrt(var_s)
    elif s < 0:
        z = (s + 1) / np.sqrt(var_s)
    else:  # s == 0:
        z = 0

    # calculate the p_value
    p = 2 * (1 - norm.cdf(abs(z)))  # two tail test
    h = abs(z) > norm.ppf(1 - alpha / 2)

    if (z < 0) and h:
        trend = 'decreasing'
    elif (z > 0) and h:
        trend = 'increasing'
    else:
        trend = 'no trend'

    return trend, h, p, z


df = pd.read_csv('../GitHub/statistic/Mann-Kendall/data.csv')
trend1, h1, p1, z1 = mk_test(df['data'])

上述代码太麻烦了，推荐使用pymannkendall包，只需要两行：

import pymannkendall as mk
result = mk.original_test(df['data'], alpha=0.05)
result

结果如图：

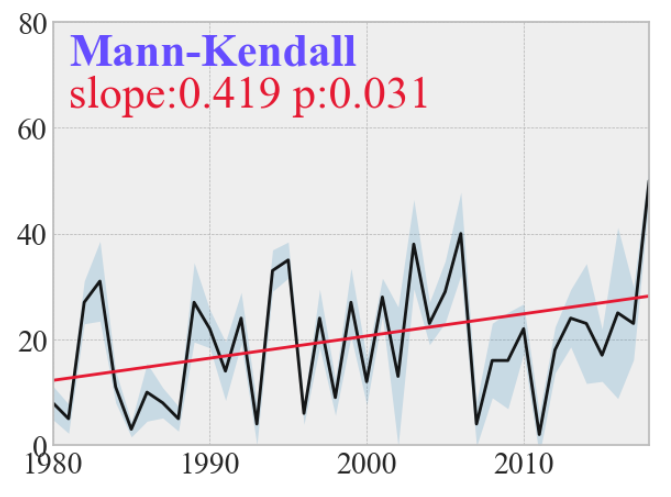

根据结果绘图（还是上述数据）：

import matplotlib.pyplot as plt
import cmaps
import seaborn as sns
palette = cmaps.Cat12_r
plt.style.use('bmh')
plt.figure(figsize=(7, 5))
plt.plot(df['x'], df['data'], marker='', color='black', linewidth=2, alpha=0.9)
a = result[7]; b = result[8]; p = result[2]
y1 = a * (df['x'].values - 1979) + b
plt.plot(df['x'], y1, lw=2, color=palette(0))
plt.fill_between(df['x'], df['data'] - df['std'], df['data'] + df['std'], alpha=.2, linewidth=0)
plt.tick_params(labelsize=20)
sns.set_theme(font='Times New Roman')
plt.text(1981, 80*9/10, 'Mann-Kendall', fontweight='heavy', color=palette(2), fontsize=30)
plt.text(1981, 80*8/10, 'slope:'+str(a)[0:5]+' p:'+str(p)[0:5], color=palette(0), fontsize=30)
plt.xlim(1980, 2018)
plt.ylim(0, 80)

Matlab的Mann-Kendall趋势

求一个序列的趋势，首先把x和y合成n×2的ts矩阵
再应用ktaub代码，可以把ktaub.m放到当前目录，推荐加到环境变量

tb = csvread('data.csv', 1, 0);
[m, n] = size(tb);
ts1 = [1:m]';
ts2 = tb(:,2);
ts = [ts1,ts2];
[taub tau h sig Z S sigma sen] = ktaub(ts, 0.05)

这是求多年图像Mann-Kendall趋势的方法

% 利用Mann-Kendall方法计算NDVI的年际趋势
% load('H:\MODIS_WUE\NH_20171009\gimms3gv1\ndvi_season.mat', 'ndvi_spring')
% load('H:\MODIS_WUE\NH_20171009\boundary\mask_pft.mat', 'mask_pft')
[m,n,z] = size(GPP_modfix);
slope_GPPmodfix = nan(m,n);
p_GPPmodfix = nan(m,n);
for i = 1:m
    for j = 1:n
%         if isnan(mask_pft(i,j))
%             continue
%         end
        ts1 = [1:z]';
        ts2 = permute(GPP_modfix(i,j,:),[3 1 2]);
        k = find(~isnan(ts2));
        ts1 = ts1(k);
        ts2 = ts2(k);
        ts = [ts1,ts2];
        if ~isnan(ts)
            [taub tau h sig Z S sigma sen] = ktaub(ts,0.05);
            slope_GPPmodfix(i,j) = sen;
            p_GPPmodfix(i,j) = sig;
        end
    end
end

完整代码见文末

R的Mann-Kendall趋势

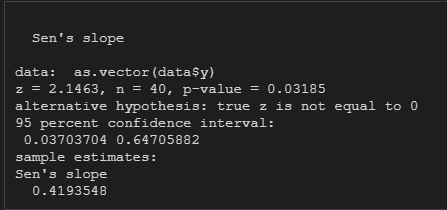

R是利用trend包中的sens.slope方法，同样这个包还提供了检验。

library(tidyverse)
library(trend)
df = read.csv('D:/OneDrive/GitHub/statistic/Mann-Kendall/data.csv')
y <- as.numeric(unlist(df['data']))
sens.slope(as.vector(data$y), conf.level = 0.95)
