1所需jar包

spring-tx.jar
PlatformTransactionManager接口

2 spring中基于XML的声明式事务控制配置步骤

配置事务管理器

<!--配置事务管理器-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    <property name="dataSource" ref="dataSource"/>
</bean>

配置事务通知
需要导入事务的约束

<!--配置事务通知-->
<tx:advice id="txAdvice" transaction-manager="transactionManager">
<tx:advice>

配置AOP中的通用切入点表达式

<aop:config>
    <aop:pointcut id="pt1" expression="execution(* com.lby.service.impl.*.*(..))"/>
</aop:config>

建立事务通知和表达式之间的对应关系

<aop:config>
    <aop:pointcut id="pt1" expression="execution(* com.lby.service.impl.*.*(..))"/>
    <aop:advisor advice-ref="txAdvice" pointcut-ref="pt1"/>
</aop:config>

配置事务的属性
是在事务通知的<tx:advice>内部

<!--配置事务通知-->
<tx:advice id="txAdvice" transaction-manager="transactionManager">
    <tx:attributes>
        <tx:method name="*" propagation="REQUIRED" read-only="false"/>
        <tx:method name="query*" propagation="SUPPORTS" read-only="true"/>
    </tx:attributes>
</tx:advice>

属性：propagation：事务传播行为，默认为REQUIRED，
查询操作可用SUPPORTS，增删改用REQUIRED

整体

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/tx
        https://www.springframework.org/schema/tx/spring-tx.xsd
        http://www.springframework.org/schema/aop
        https://www.springframework.org/schema/aop/spring-aop.xsd">
    <!--<bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
        <property name="dataSource" ref="dataSource"/>
    </bean>-->
    <bean id="bankService" class="com.lby.service.impl.BankServiceImpl">
        <property name="bankCardDao" ref="bankDao"/>
    </bean>
    <bean id="bankDao" class="com.lby.dao.impl.BankCardDaoImpl">
        <!-- <property name="jdbcTemplate" ref="jdbcTemplate"/>-->
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <!-- dataSource-->
    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="driverClassName" value="com.microsoft.sqlserver.jdbc.SQLServerDriver"/>
        <property name="url" value="jdbc:sqlserver://localhost:1433;DatabaseName=userinfo"/>
        <property name="username" value="widen"/>
        <property name="password" value="123456"/>

    </bean>
    <!--配置事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <!--配置事务通知-->
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <tx:attributes>
            <tx:method name="*" propagation="REQUIRED" read-only="false"/>
            <tx:method name="query*" propagation="SUPPORTS" read-only="true"/>
        </tx:attributes>
    </tx:advice>
    <aop:config>
        <aop:pointcut id="pt1" expression="execution(* com.lby.service.impl.*.*(..))"/>
        <aop:advisor advice-ref="txAdvice" pointcut-ref="pt1"/>
    </aop:config>
</beans>

3 案例

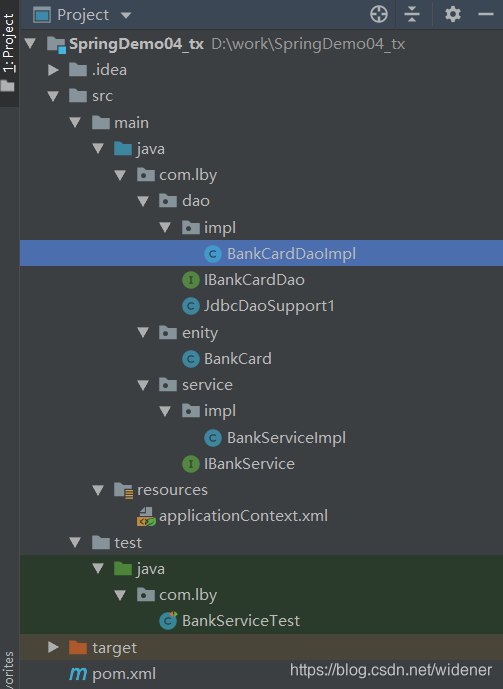

目录结构
在这里插入图片描述

1. 新建表

create database bank;
use bank;
create table bankCard(

 cardId int primary key auto_increment,
name varchar(50),
money int
);
insert into bankCard(cardId,name,money) values('1234','jack','10000');
insert
into bankCard(cardId,name,money) values('5678','rose','10000');

2.eneity层

public class BankCard implements Serializable {

  private String cardId;
  private String name;
  private long money;


  public String getCardId() {
    return cardId;
  }

  public void setCardId(String cardId) {
    this.cardId = cardId;
  }


  public String getName() {
    return name;
  }

  public void setName(String name) {
    this.name = name;
  }


  public long getMoney() {
    return money;
  }

  public void setMoney(long money) {
    this.money = money;
  }

  @Override
  public String toString() {
    return "BankCard{" +
            "cardId='" + cardId + '\'' +
            ", name='" + name + '\'' +
            ", money=" + money +
            '}';
  }
}

3. dao层

a. 创建类JdbcDaoSupport1

/**
 * 用于提取dao的重复性代码
 */
public class JdbcDaoSupport1 {
    private JdbcTemplate jt;

    public void setJt(JdbcTemplate jt) {
        this.jt = jt;
    }

    public JdbcTemplate getJt() {
        return jt;
    }

    public void setDataSource(DataSource dataSource) {
        if (jt == null) {
            jt = createJdbcTemplate(dataSource);
        }

    }

    private JdbcTemplate createJdbcTemplate(DataSource dataSource) {
        return new JdbcTemplate(dataSource);
    }
}

b. 创建接口IBankCardDao

public interface IBankCardDao {
    BankCard queryCardById(String id);
    void updateBankCard(BankCard bankCard);
}

c. 创建类BankCardDaoImpl

public class BankCardDaoImpl extends JdbcDaoSupport implements IBankCardDao {


    public BankCard queryCardById(String id) {
        List<BankCard> bankCards = super.getJdbcTemplate().query("select * from bankCard where cardId=?", new BeanPropertyRowMapper<BankCard>(BankCard.class), id);
        return bankCards.isEmpty() ? null : bankCards.get(0);
    }

    public void updateBankCard(BankCard bankCard) {
        super.getJdbcTemplate().update("update bankCard set name=?,money=? where cardId=?", bankCard.getName(), bankCard.getMoney(), bankCard.getCardId());


    }
}

4.service层

a. 创建接口IBankService

public interface IBankService {
    BankCard queryCardById(String id);

    void transfer(String fromId, String toId, int money);
}

b. 创建类BankServiceImpl

public class BankServiceImpl implements IBankService {
    private IBankCardDao bankCardDao;

    public void setBankCardDao(IBankCardDao bankCardDao) {
        this.bankCardDao = bankCardDao;
    }

    public BankCard queryCardById(String cardId) {
        return bankCardDao.queryCardById(cardId);

    }


    public void transfer(String fromId, String toId, int money) {
        BankCard from = bankCardDao.queryCardById(fromId);
        BankCard to = bankCardDao.queryCardById(toId);
        if (from.getMoney() < money) {
            System.out.println("余额不足!");
        } else {
            Long account = from.getMoney() - money;
            from.setMoney(account);
            account = to.getMoney() + money;
            to.setMoney(account);
            bankCardDao.updateBankCard(from);
            //int i=1/0;
            bankCardDao.updateBankCard(to)；
            System.out.println("转账成功");

        }


    }

}

5. 测试

a.创建测试类BankServiceTest

/**
 * 使用Junit单元测试，测试我们的配置
 */
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = "classpath:applicationContext.xml")
public class BankServiceTest {
    @Autowired
    private IBankService bankService;

    @Test
    public void textTransfer() {
        bankService.transfer("1234", "5678", 100);
    }
}
