vue3PC端项目使用天地图完成地点搜索

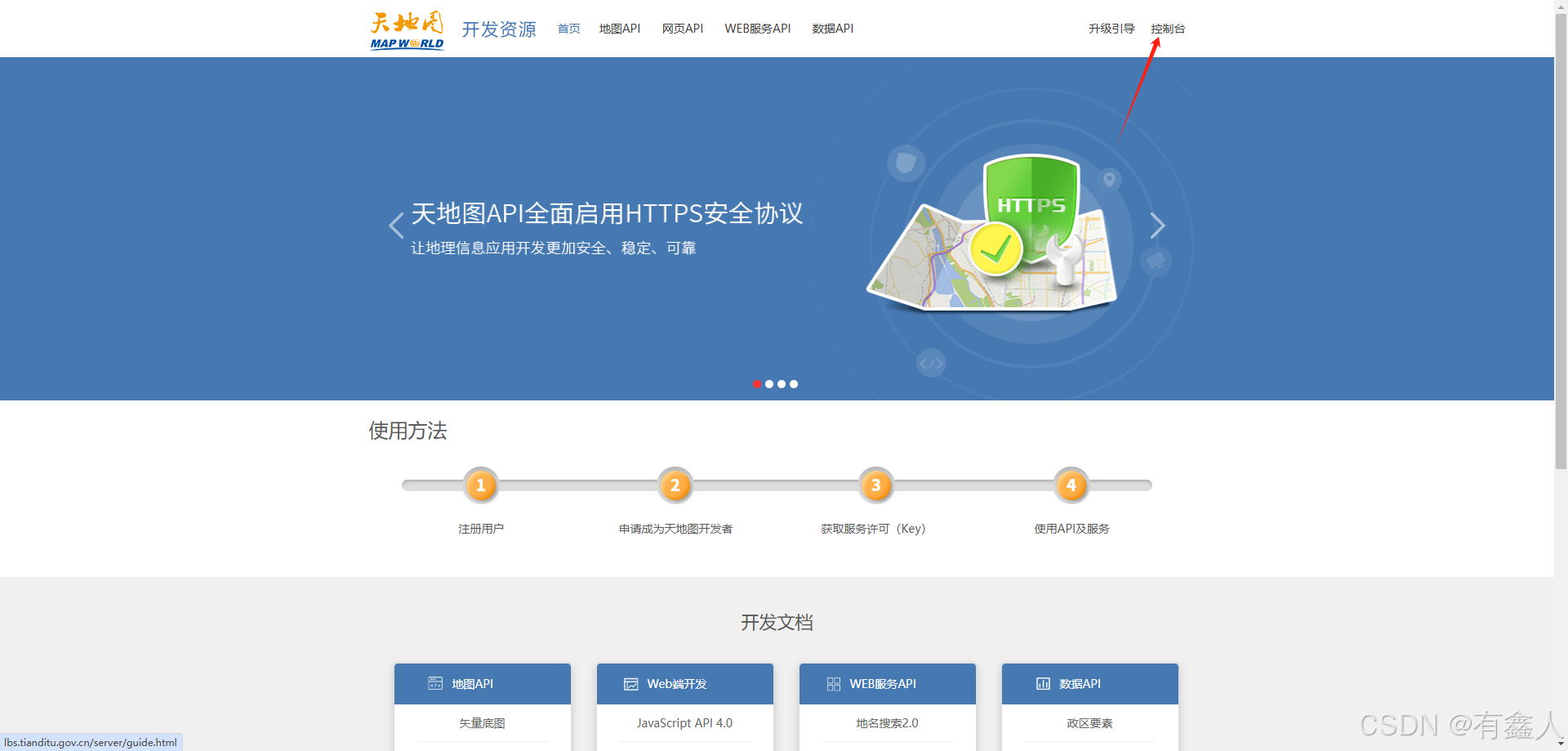

一、打开天地图官网

天地图API

2.在控制台中申请需要的key

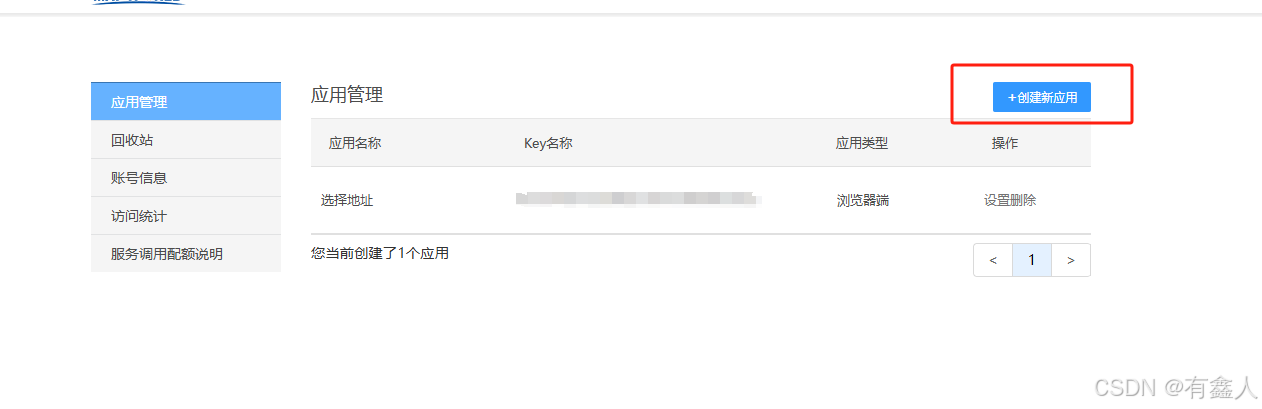

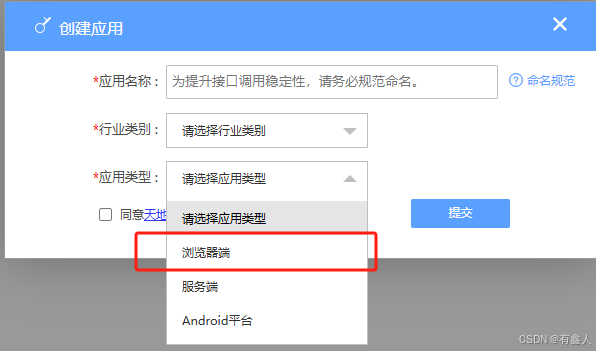

3.申请key步骤-创建新应用-应用类型选择浏览器端

二、代码部分

在index.html主文件中引入

<script src="https://api.tianditu.gov.cn/api?v=4.0&tk=你申请的key"></script>

组件文件map.vue 弹出框采用 ant-design-vue 中 a-modal

//map.vue组件
<template>
  <a-modal v-model:open="open"
           title="选择地址"
           width="800px"
           :footer="null"
           @cancel="closeAddress">
    <el-select v-model="searchText"
               filterable
               remote
               placeholder="请输入关键词"
               :remote-method="remoteMethod"
               @change="changeAddress"
               :clearable="true"
               style="width: 500px">
      <el-option v-for="(item,index) in searchResults"
                 :key="item.index"
                 :label="item.name"
                 :value="item.lonlat"
                 class="one-text">
        <span style="float: left">{{ item.name }}</span>
        <span style="float: right; color: #8492a6; font-size: 13px">{{
                item.address
              }}</span>
      </el-option>
      <template #empty>
        <span class="right-btn">
          <el-button size="small"
                     @click="searchBtn">点击搜索</el-button>
        </span>
      </template>
    </el-select>
    <div class="container w" style="position: relative">
      <div class="blur-background" v-if="!sureSelAddress"></div>
      <div id="map"
           class="map radius-md"
           style="width: 100%; height: 500px;"></div>
    </div>
    <div>
      <el-button @click="closeAddress">取消</el-button>
      <el-button @click="sureAddress">确定</el-button>
    </div>
  </a-modal>
</template>

<script setup>
import { nextTick } from "vue";
import { message } from 'ant-design-vue';

const map = ref(null);
const lng = ref(117.226367);
const lat = ref(39.089812);
const open = ref(false);
const emit = defineEmits(['change'])
const openModel = () => {
  open.value = true;
  // keywords.value = ''
  nextTick(() => {
    initMap();
  });
};
let geocoder = null;
let localsearch = null;
let geocode = null;
const intText = ref("");
const searchResults = ref([]);
const initMap = () => {
  intText.value = ''
  searchText.value = ''
  sureSelAddress.value = null
  const T = window.T;
  //   // 坐标
  map.value = new T.Map("map");
  let point = new T.LngLat(lng.value, lat.value);
  map.value.centerAndZoom(point, 10);
  // 禁止鼠标滚动缩小放大
  // map.value.disableScrollWheelZoom();

  // 添加控件
  //创建缩放平移控件对象
  let control = new T.Control.Zoom();
  // control.setPosition(T_ANCHOR_TOP_RIGHT);
  //添加缩放平移控件
  map.value.addControl(control);

  map.value.clearOverLays();
  let marker = new T.Marker(point);
  map.value.addOverLay(marker);
  // 初始化本地搜索服务
  // 初始化本地搜索服务
  geocoder = new T.Geocoder();
   //创建逆解析解析对象
   geocode = new T.Geocoder();
  var config = {
    pageCapacity: 10, //每页显示的数量
    onSearchComplete: localSearchResult, //接收数据的回调函数
  };
  //创建搜索对象
  localsearch = new T.LocalSearch(map.value, config);
  if(searchText.value) {
    addMarker(searchText.value)
  }
};

const localSearchResult = (result) => {
  //清空地图及搜索列表
  clearAll();

  //解析建议词信息
  suggests(result.getSuggests());
};
//搜索结果
const suggests = (data) => {
  console.log(data,'data')
  if (Array.isArray(data)) {
    searchResults.value = data;
  } else {
    searchResults.value = [];
    searchText.value = ''
  }
};

const clearAll = () => {
  map.value.clearOverLays();
};

const closeAddress = () => {
  open.value = false;
  // closeMap()
};
const searchText = ref("");


const remoteMethod = async (query) => {
  if (query) {
    intText.value = query;
    localsearch.search(query, 4);
  } else {
    searchResults.value = [];
  }
};

const changeAddress = (item) => {
    addMarker(item);
};
// 地图添加标注
const addMarker = (item) => {
  let point = []
  if(typeof item == 'string') {
    point = item.split(",");
  }
  const pointObj = {
      lat: point[1],
      lng: point[0],
    };
  map.value.panTo(pointObj, 16);
  //创建标注对象
  var marker = new T.Marker(pointObj);
  //向地图上添加标注
  map.value.addOverLay(marker);
  nijiexi(point)
};
// 逆解析地址,保持选择地址统一
const nijiexi = (point) => {
  const newData = new T.dq();//创建标注对象
  newData.lat = point[1];
  newData.lng = point[0];
  geocode.getLocation(newData, analysis);
}

const searchBtn = () => {
  map.value.clearOverLays();

  geocoder.getPoint(intText.value, searchResult);

};

const searchResult = (result) => {
  if (result.getStatus() == 0) {
    map.value.panTo(result.getLocationPoint(), 20);
    //创建标注对象
    var marker = new T.Marker(result.getLocationPoint());
    //向地图上添加标注
    map.value.addOverLay(marker);
  geocode.getLocation(result.getLocationPoint(), analysis);

  } else {
    alert(result.getMsg());
  }
};

const sureSelAddress = ref(null)
const analysis = (result) => {
  console.log(result,'result')
  sureSelAddress.value = result

}

const clickItem = (item) => {
  // 向父组件传值
  emit("change", {
    address: item.addressComponent.province + item.addressComponent.county + item.addressComponent.address,
    lat: item.location.lat,
    lng: item.location.lon,
  });
  open.value = false
};

const sureAddress = () => {
  if(!sureSelAddress.value) return message.error('请选择地址')
  clickItem(sureSelAddress.value)
}

defineExpose({
  openModel,
});
</script>

<style scoped lang="scss">
@import "@/assets/styles/userSideGlobal.scss";
.right-btn {
  :deep(.el-button) {
    background: $main-color;
    color: #fff;
    letter-spacing: 1px;
    border: none;
  }
}
.blur-background {
  position: absolute;
  top: 0;
  left: 0;
  width: 100%;
  height: 100%;
  backdrop-filter: blur(10px);
  z-index: 999;
  border-radius: 14px;
}
</style>

在需要用到的地方引入该组件 我的组件地址路径为@/components/map/tdt/map.vue

import Map from '@/components/map/tdt/map.vue'

<template>
<div>
    <el-button @click="$refs.mapRef.openModel()">打开天地图</el-button>
    <Map ref="mapRef"
         @change="sureAddress"></Map>
</div>
</template>
<script setup>
import Map from '@/components/map/tdt/map.vue'
const mapRef = ref(null);
const sureAddress = (item) => {
//item中包含经纬度以及地址信息
  console.log(item)
};
</script>

三、1.案例图片打开之后遮罩层是自己添加的,因为浏览器获取不到当前定位

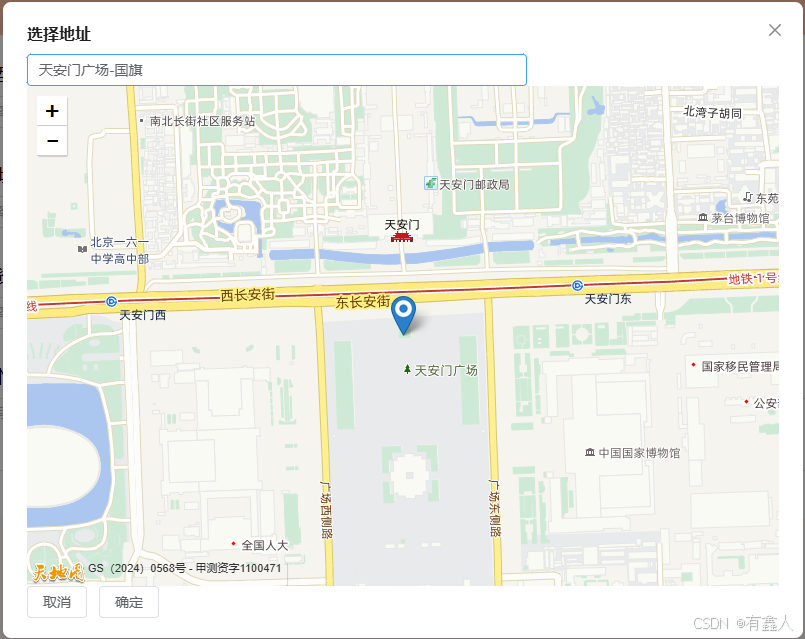

2.搜索
