实验环境

镜像：CentOS-7-x86_64-Minimal-2009.iso

镜像下载地址：https://mirrors.tuna.tsinghua.edu.cn/

Centos7镜像：https://repo.huaweicloud.com/repository/conf/CentOS-7-reg.repo

服务端：server IP：192.168.110.11 网卡模式:NAT 内存：2048MB

客户端：client IP：网卡模式:NAT 内存：2048MB

实验过程：

1.配置yum源

[root@server ~]# mv /etc/yum.repos.d/C* /media/
[root@server ~]# wget -O /etc/yum.repos.d/CentOS-Base.repo https://repo.huaweicloud.com/repository/conf/CentOS-7-reg.repo

2.挂载镜像

[root@server ~]# mkdir /media/cdrom
[root@server ~]# mount /dev/sr0 /media/cdrom
mount: /dev/sr0 写保护，将以只读方式挂载

3.配置DHCP

[root@server ~]# yum install -y dhcp
[root@server ~]# vim /etc/dhcp/dhcpd.conf
#
# DHCP Server Configuration file.
#   see /usr/share/doc/dhcp*/dhcpd.conf.example
#   see dhcpd.conf(5) man page
#
allow booting;
allow bootp;
subnet 192.168.110.0 netmask 255.255.255.0{
 option subnet-mask 255.255.255.0;
 range 192.168.110.100 192.168.110.200;
 default-lease-time 21600;
 max-lease-time 43200;
 next-server 192.168.110.11;
 filename "pxelinux.0"; # 引导文件位置，这边表示TFTP根目录（/var/lib/tftpboot/）下的pxelinux.0文件
}
[root@server ~]# systemctl start dhcpd
[root@server ~]# systemctl enable dhcpd
[root@server ~]# ss -nulp | grep dhcp
UNCONN     0      0            *:67                       *:*                   users:(("dhcpd",pid=1452,fd=7))

4.配置TFTP

[root@server ~]# yum install -y xinetd tftp-server
[root@server ~]# vi /etc/xinetd.d/tftp
# default: off
# description: The tftp server serves files using the trivial file transfer \
#       protocol.  The tftp protocol is often used to boot diskless \
#       workstations, download configuration files to network-aware printers, \
#       and to start the installation process for some operating systems.
service tftp
{
        socket_type             = dgram
        protocol                = udp
        wait                    = yes
        user                    = root
        server                  = /usr/sbin/in.tftpd
        server_args             = -s /var/lib/tftpboot -c
        disable                 = no
        per_source              = 11
        cps                     = 100 2
        flags                   = IPv4
}

[root@server ~]# systemctl restart xinetd
[root@server ~]# systemctl restart tftp
[root@server ~]# ss -nulp | grep 69
UNCONN     0      0            *:69                       *:*                   users:(("xinetd",pid=1468,fd=5))

5.SYSLinux服务程序

[root@server ~]#yum install syslinux -y
[root@server ~]#cd /var/lib/tftpboot/
[root@server tftpboot]# cp /usr/share/syslinux/pxelinux.0 .
[root@server tftpboot]# cp /media/cdrom/images/pxeboot/{vmlinuz,initrd.img} .
[root@server tftpboot]# mkdir pxelinux.cfg
[root@server tftpboot]# cp /media/cdrom/isolinux/isolinux.cfg pxelinux.cfg/default

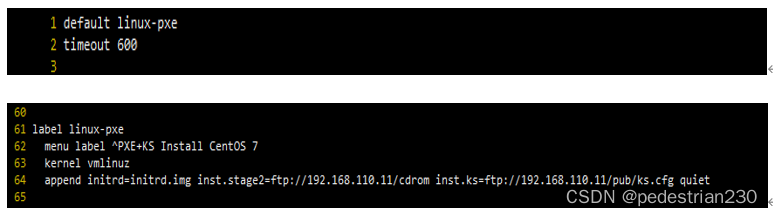

[root@server tftpboot]# vi pxelinux.cfg/default

6.vsftpd服务

[root@server ~]# yum install -y vsftpd
[root@server ~]# systemctl start vsftpd
[root@server ~]# cp -r /media/* /var/ftp/

7.关闭防火墙&&临时禁用selinux

[root@server ~]# systemctl disable firewalld
[root@server ~]# systemctl stop firewalld
[root@server ~]# setenforce 0

8.Kickstart应答文件

这里你可以按需求自己去安装

[root@server ~]# cp ~/anaconda-ks.cfg /var/ftp/pub/ks.cfg
[root@server ~]# chmod 777 /var/ftp/pub/ks.cfg
[root@server ~]# vim /var/ftp/pub/ks.cfg

1 #version=DEVEL
2 # System authorization information
3 auth --enableshadow --passalgo=sha512
4 # Use CDROM installation media
5 #cdrom
6 url --url=ftp://192.168.110.11/cdrom
7 # Use graphical install
8 #graphical
9 text
10 # Run the Setup Agent on first boot
11 firstboot --enable
12 ignoredisk --only-use=sda
13 # Keyboard layouts
14 keyboard --vckeymap=us --xlayouts='us'
15 # System language
16 lang en_US.UTF-8
17
18 # Network information
19 network --bootproto=dhcp --device=ens32 --onboot=yes --ipv6=auto --no-activate
20 network --hostname=server1
21
22 # Root password
23 rootpw --iscrypted $6$zYGvbEuQ7XhWzs7/$KvjfF.5csk53KTxYd4Hh0m/2mI/0XE9MmbXmL7T1IdiSd8lji1bH2oeZRBn0e06L5Mz9MvFGALI3e0TneTOgE0
24 # System services
25 services --enabled="chronyd"
26 # System timezone
27 timezone Asia/Shanghai --isUtc --nontp
28 # System bootloader configuration
29 bootloader --append=" crashkernel=auto" --location=mbr --boot-drive=sda
30 autopart --type=lvm
31 # Partition clearing information
32 clearpart --none --initlabel
33
34 reboot
35 %packages
36 @^minimal
37 @core
38
39
40 %end
41
42 %post
43
44 useradd server1
45 echo 123456 | passwd --sdtin server1
46
47 %end
48
49 %anaconda
50 pwpolicy root --minlen=6 --minquality=1 --notstrict --nochanges --notempty
51 pwpolicy user --minlen=6 --minquality=1 --notstrict --nochanges --emptyok
52 pwpolicy luks --minlen=6 --minquality=1 --notstrict --nochanges --notempty
53 %end
