nn.Upsample函数

---

参考链接

基本用法

torch.nn.Upsample(size=None, scale_factor=None, mode='nearest', align_corners=None, recompute_scale_factor=None)

对给定的多通道 1D（时间）、2D（空间）或 3D（体积）数据进行上采样。

• 参数：
  • size (int or Tuple[int] or Tuple[int, int] or Tuple[int, int, int], optional) - 指定输出空间大小，与scale_factor参数是互斥的，即只能指定其中一个。
  • scale_factor(float or Tuple[float] or Tuple[float, float] or Tuple[float, float, float], optional) - 上采样的倍数
  • mode(str, optional) - 上采样算法，有’nearest’, ‘linear’, ‘bilinear’, ‘bicubic’ 和 ‘trilinear’. 默认: ‘nearest’
  • 其他两个参数不重要

---

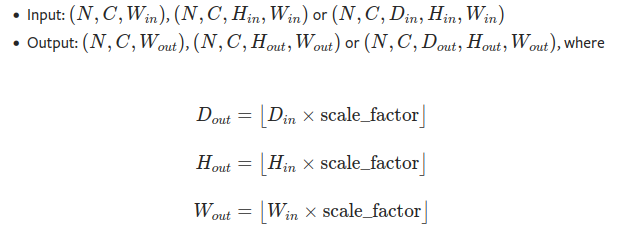

输入与输出的shape

• N：batchsize
• C：通道数
• D,H,W：深度，高度，宽度


---

例子

>>> input = torch.arange(1, 5, dtype=torch.float32).view(1, 1, 2, 2)
>>> input
tensor([[[[1., 2.],
          [3., 4.]]]])

>>> m = nn.Upsample(scale_factor=2, mode='nearest')
>>> m(input)
tensor([[[[1., 1., 2., 2.],
          [1., 1., 2., 2.],
          [3., 3., 4., 4.],
          [3., 3., 4., 4.]]]])

>>> m = nn.Upsample(scale_factor=2, mode='bilinear')  # align_corners=False
>>> m(input)
tensor([[[[1.0000, 1.2500, 1.7500, 2.0000],
          [1.5000, 1.7500, 2.2500, 2.5000],
          [2.5000, 2.7500, 3.2500, 3.5000],
          [3.0000, 3.2500, 3.7500, 4.0000]]]])

>>> m = nn.Upsample(scale_factor=2, mode='bilinear', align_corners=True)
>>> m(input)
tensor([[[[1.0000, 1.3333, 1.6667, 2.0000],
          [1.6667, 2.0000, 2.3333, 2.6667],
          [2.3333, 2.6667, 3.0000, 3.3333],
          [3.0000, 3.3333, 3.6667, 4.0000]]]])

>>> # Try scaling the same data in a larger tensor
>>> input_3x3 = torch.zeros(3, 3).view(1, 1, 3, 3)
>>> input_3x3[:, :, :2, :2].copy_(input)
tensor([[[[1., 2.],
          [3., 4.]]]])
>>> input_3x3
tensor([[[[1., 2., 0.],
          [3., 4., 0.],
          [0., 0., 0.]]]])

>>> m = nn.Upsample(scale_factor=2, mode='bilinear')  # align_corners=False
>>> # Notice that values in top left corner are the same with the small input (except at boundary)
>>> m(input_3x3)
tensor([[[[1.0000, 1.2500, 1.7500, 1.5000, 0.5000, 0.0000],
          [1.5000, 1.7500, 2.2500, 1.8750, 0.6250, 0.0000],
          [2.5000, 2.7500, 3.2500, 2.6250, 0.8750, 0.0000],
          [2.2500, 2.4375, 2.8125, 2.2500, 0.7500, 0.0000],
          [0.7500, 0.8125, 0.9375, 0.7500, 0.2500, 0.0000],
          [0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000]]]])

>>> m = nn.Upsample(scale_factor=2, mode='bilinear', align_corners=True)
>>> # Notice that values in top left corner are now changed
>>> m(input_3x3)
tensor([[[[1.0000, 1.4000, 1.8000, 1.6000, 0.8000, 0.0000],
          [1.8000, 2.2000, 2.6000, 2.2400, 1.1200, 0.0000],
          [2.6000, 3.0000, 3.4000, 2.8800, 1.4400, 0.0000],
          [2.4000, 2.7200, 3.0400, 2.5600, 1.2800, 0.0000],
          [1.2000, 1.3600, 1.5200, 1.2800, 0.6400, 0.0000],
          [0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000]]]])
