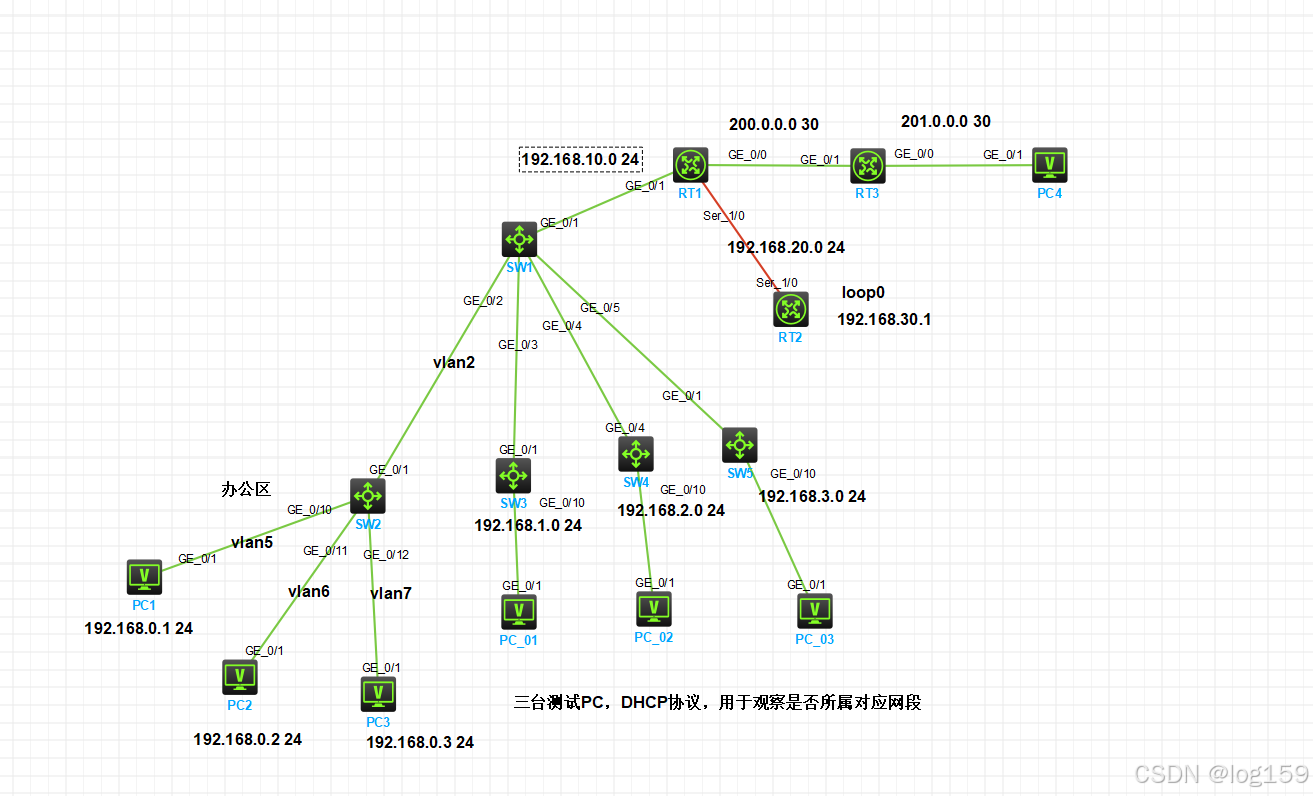

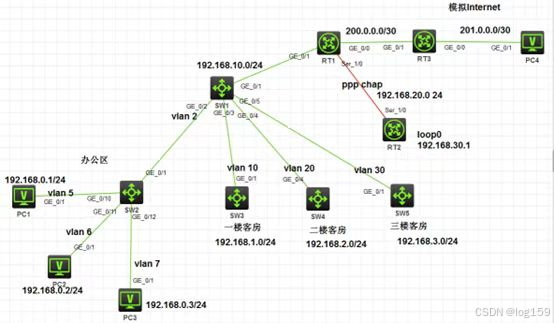

【H3C】酒店网络搭建

全部指令如下

#

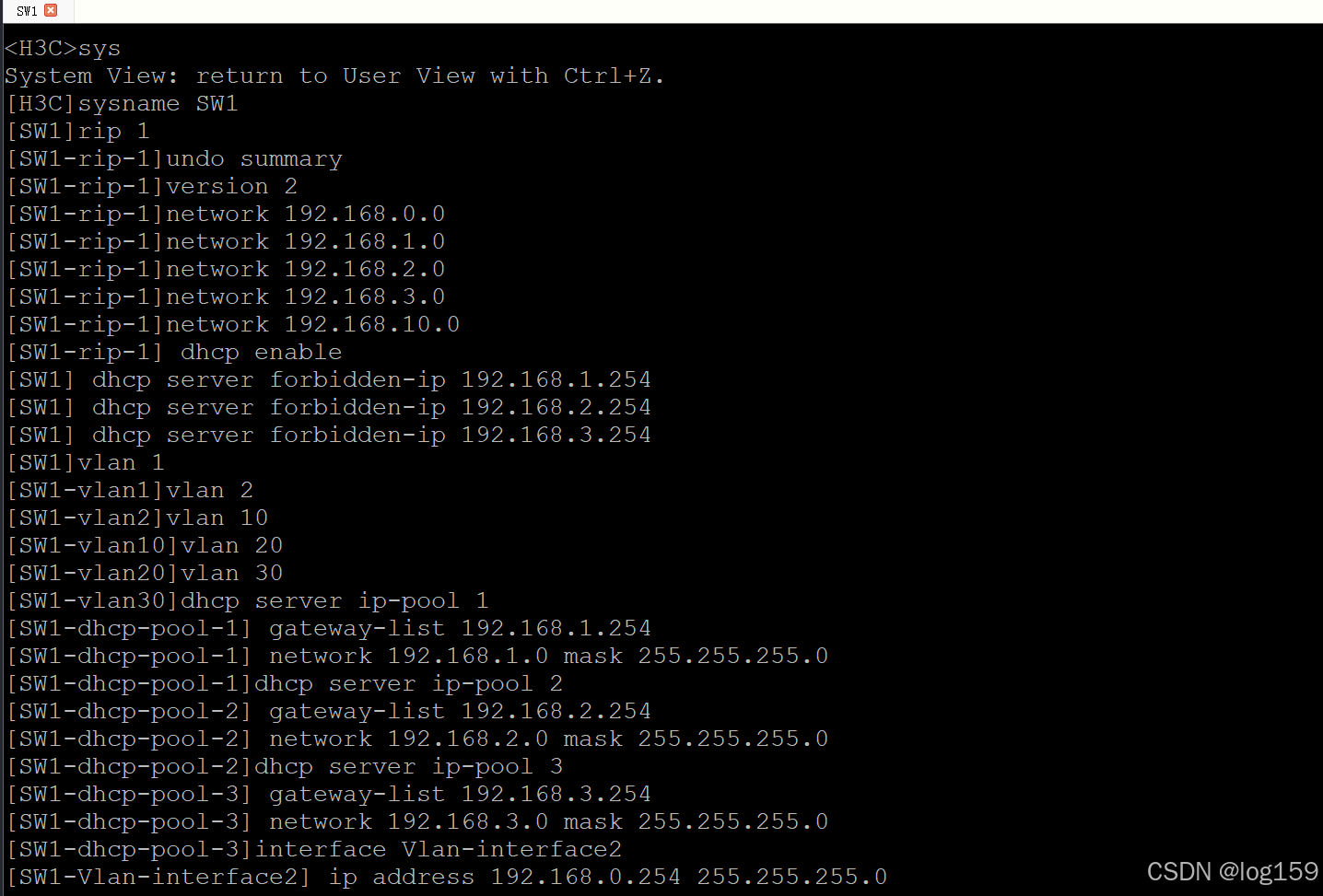

 sysname SW1

rip 1
undo summary
version 2
network 192.168.0.0
network 192.168.1.0
network 192.168.2.0
network 192.168.3.0
network 192.168.10.0
#
 dhcp enable
 dhcp server forbidden-ip 192.168.1.254
 dhcp server forbidden-ip 192.168.2.254
 dhcp server forbidden-ip 192.168.3.254

#
vlan 1
#
vlan 2
#
vlan 10
#
vlan 20
#
vlan 30

#
dhcp server ip-pool 1
 gateway-list 192.168.1.254
 network 192.168.1.0 mask 255.255.255.0
#
dhcp server ip-pool 2
 gateway-list 192.168.2.254
 network 192.168.2.0 mask 255.255.255.0
#
dhcp server ip-pool 3
 gateway-list 192.168.3.254
 network 192.168.3.0 mask 255.255.255.0
#

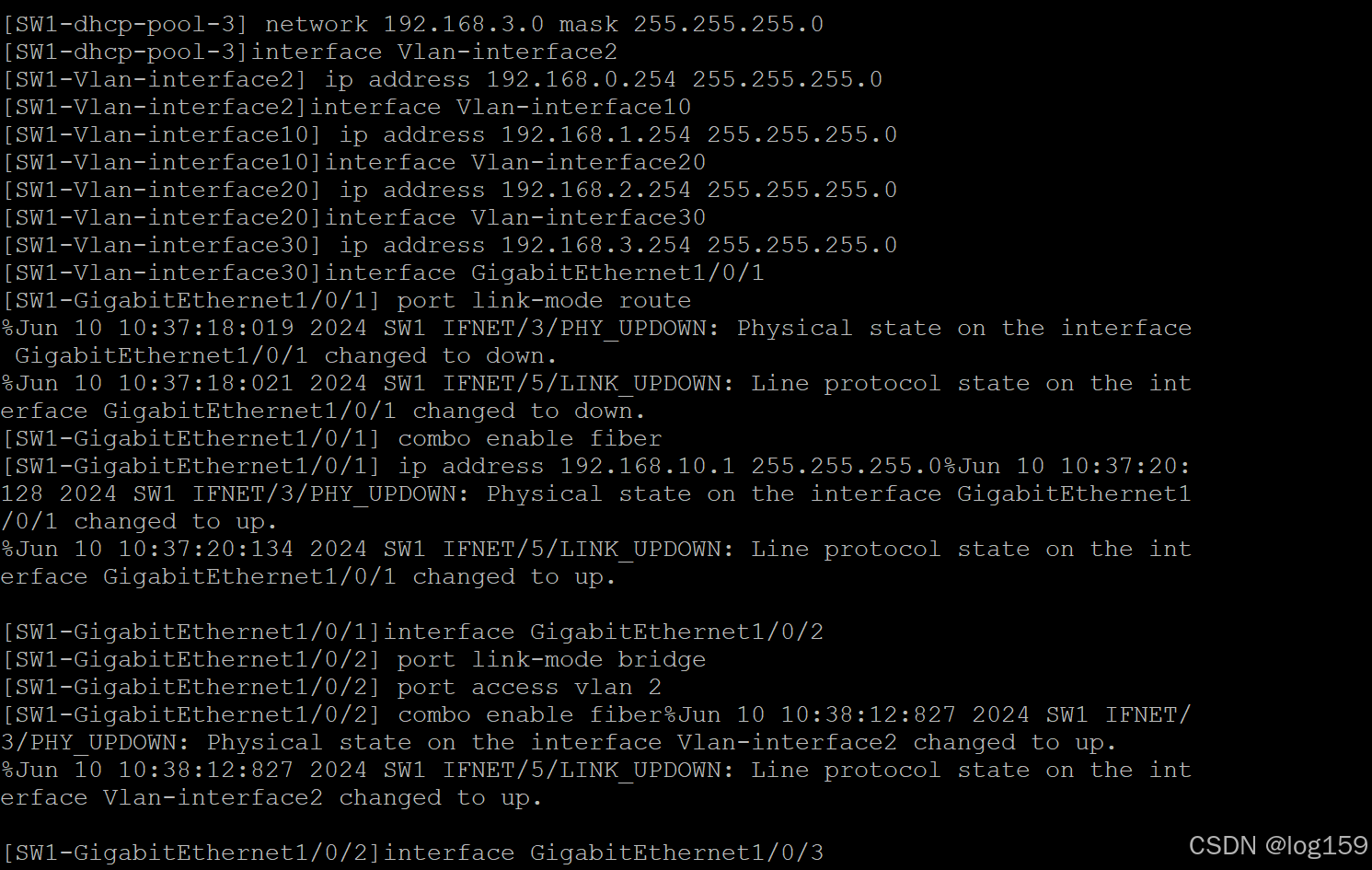

interface Vlan-interface2
 ip address 192.168.0.254 255.255.255.0
#
interface Vlan-interface10
 ip address 192.168.1.254 255.255.255.0
#
interface Vlan-interface20
 ip address 192.168.2.254 255.255.255.0
#
interface Vlan-interface30
 ip address 192.168.3.254 255.255.255.0

interface GigabitEthernet1/0/1
 port link-mode route
 combo enable fiber
 ip address 192.168.10.1 255.255.255.0
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 port access vlan 2
 combo enable fiber
#

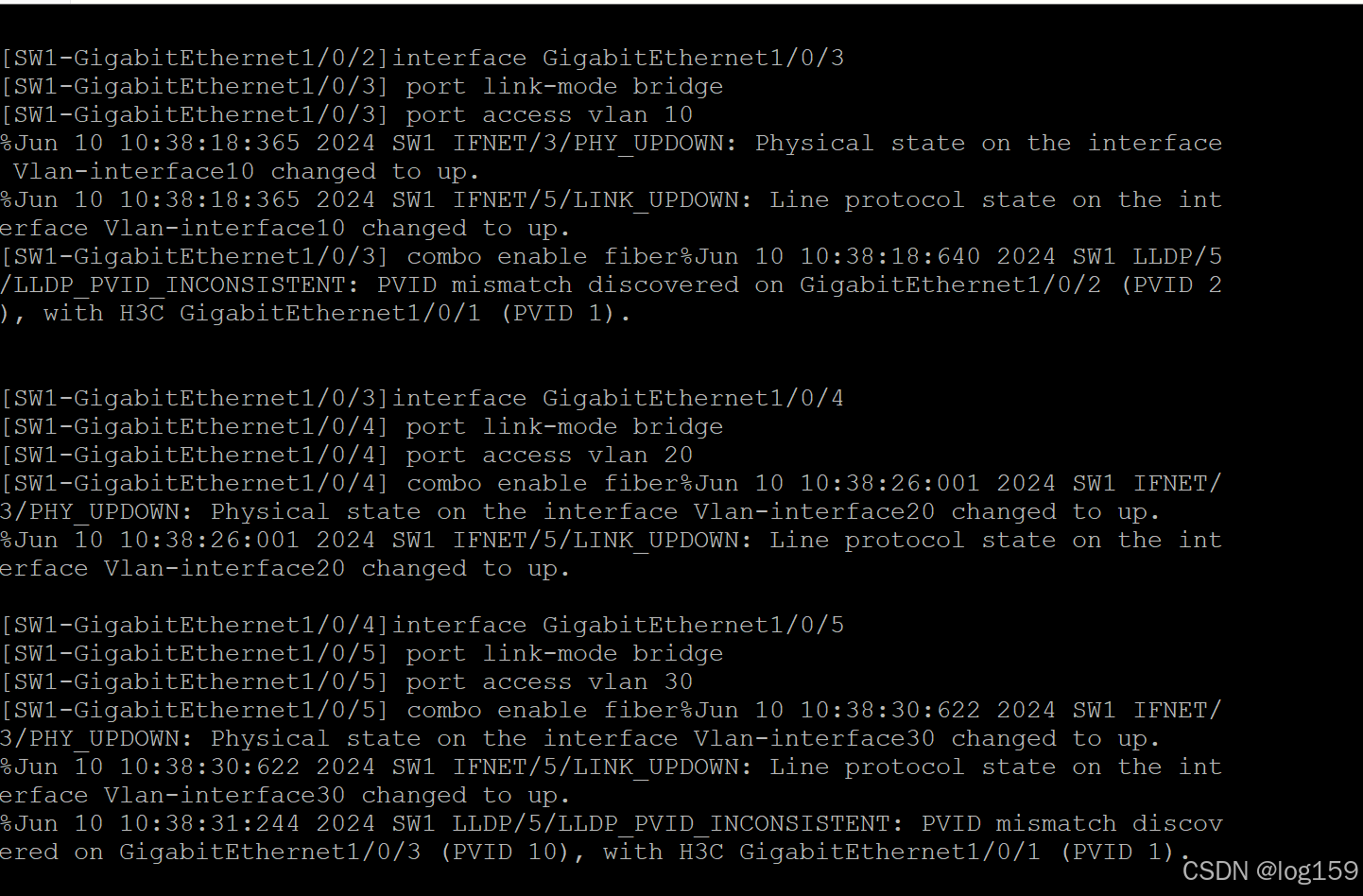

interface GigabitEthernet1/0/3
 port link-mode bridge
 port access vlan 10
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 port access vlan 20
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 port access vlan 30
 combo enable fiber
#

#

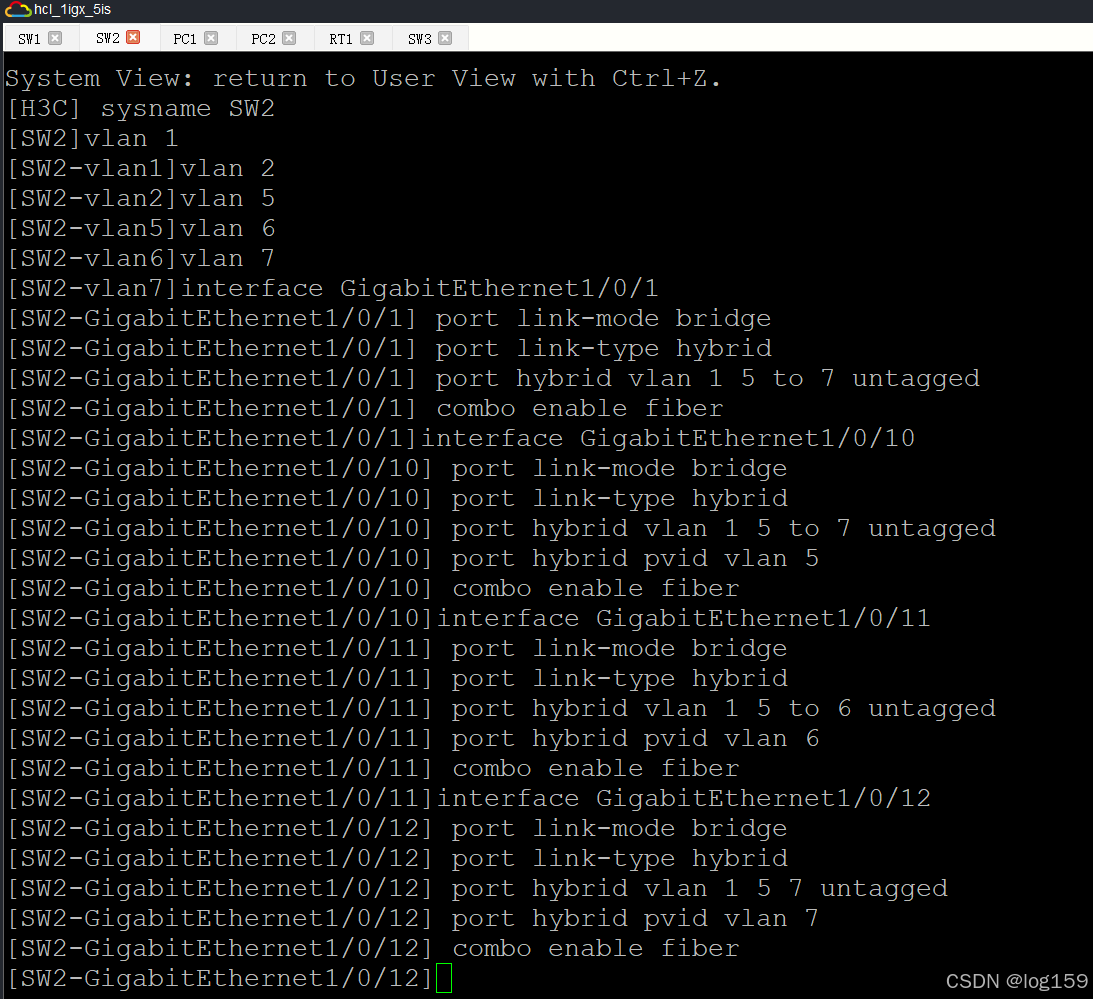

 sysname SW2
#
#
vlan 1
#
vlan 5 to 7


interface GigabitEthernet1/0/1
 port link-mode bridge
 port link-type hybrid
 port hybrid vlan 1 5 to 7 untagged
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 port link-type hybrid
 port hybrid vlan 1 5 to 7 untagged
 port hybrid pvid vlan 5
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 port link-type hybrid
 port hybrid vlan 1 5 to 6 untagged
 port hybrid pvid vlan 6
 combo enable fiber
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 port link-type hybrid
 port hybrid vlan 1 5 7 untagged
 port hybrid pvid vlan 7
 combo enable fiber

#

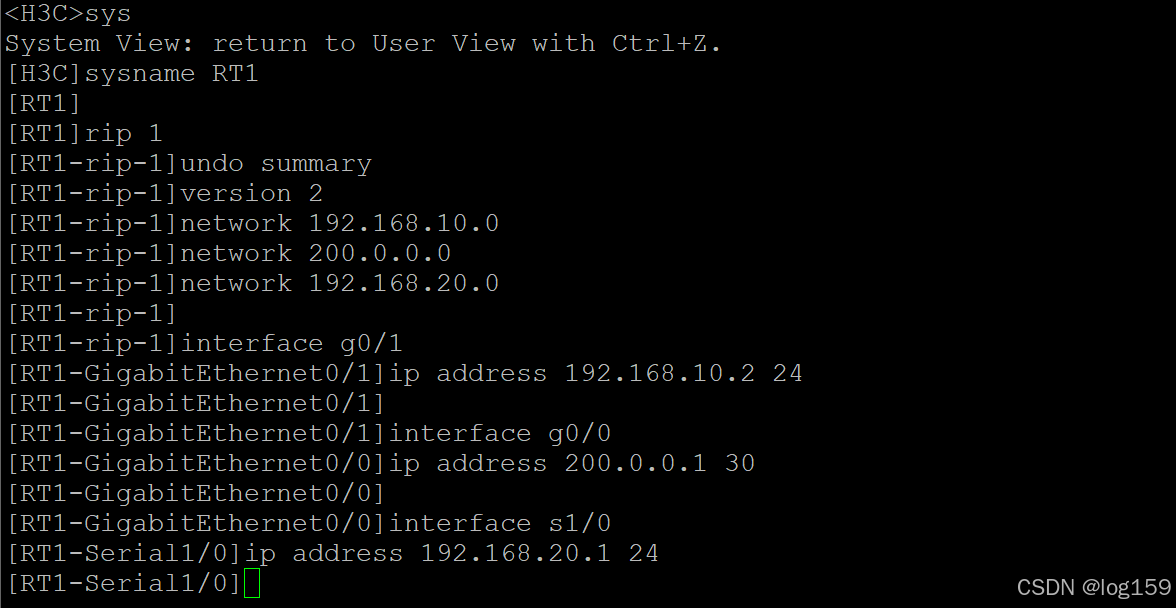

sysname RT1
#
rip 1
undo summary
version 2
network 192.168.10.0
network 200.0.0.0
network 192.168.20.0
#
interface g0/1
ip address 192.168.10.2 24
#
interface g0/0
ip address 200.0.0.1 30
#
interface s1/0
ip address 192.168.20.1 24

#

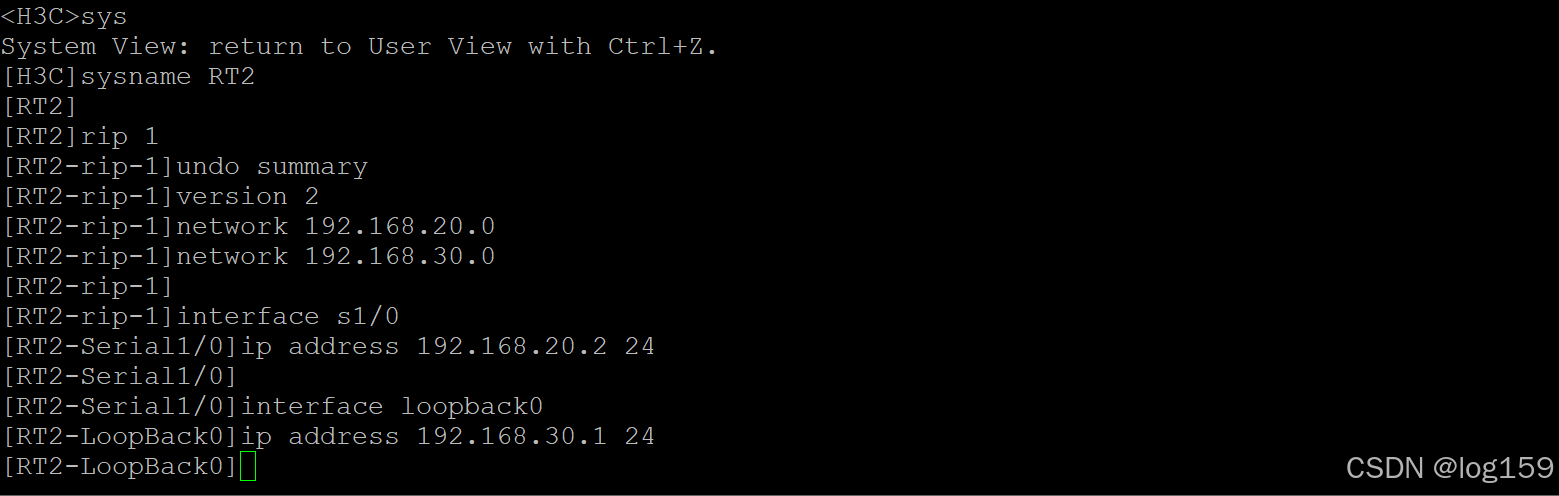

sysname RT2
#
rip 1
undo summary
version 2
network 192.168.20.0
network 192.168.30.0

#
interface s1/0
ip address 192.168.20.2 24

#
interface loopback0
ip address 192.168.30.1 24

#

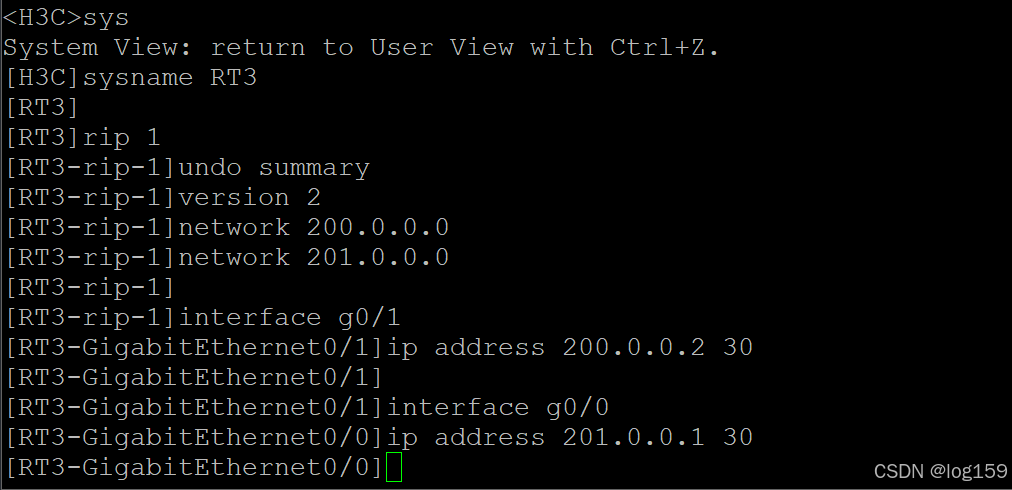

sysname RT3
#

rip 1
undo summary
version 2
network 200.0.0.0
network 201.0.0.0
#
interface g0/1
ip address 200.0.0.2 30

interface g0/0
ip address 201.0.0.1 30
