案例分析Harbor私有仓库高可用部署

1. 规划节点

节点规划，见表1。

表1 节点规划

IP	主机名	节点
192.168.100.3	harbor1	Harbor、Docker、docker-compose、Nginx、Keepalived、NFS
192.168.100.4	harbor2	Harbor、Docker、docker-compose、Nginx、Keepalived、NFS
192.168.100.5	harbor-data	NFS、PostgreSQL、Redis
192.168.100.100	/	负载均衡VIP

2. 基础准备

修改主机名

[root@harbor1 ~]# hostnamectl set-hostname harbor1
[root@harbor1 ~]# bash

[root@harbor2 ~]# hostnamectl set-hostname harbor2
[root@harbor2 ~]# bash

[root@harbor-data ~]# hostnamectl set-hostname harbor-data
[root@harbor-data ~]# bash

配置hosts解析

[root@harbor1 ~]# vi /etc/hosts
192.168.100.3 harbor1
192.168.100.4 harbor2
192.168.100.5 harbor-data
192.168.100.100 harbor.gxl.com

配置免密

[root@harbor1 ~]# ssh-keygen
[root@harbor1 ~]# ssh-copy-id harbor1
[root@harbor1 ~]# ssh-copy-id harbor2
[root@harbor1 ~]# ssh-copy-id harbor-data

设置防火墙和selinux开机不自启

[root@harbor1 ~]# systemctl disable firewalld --now && setenforce 0

永久关闭selinux

[root@harbor1 ~]# sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config

配置阿里云YUM源

[root@harbor1 ~]# rm -rf /etc/yum.repos.d/CentOS-*
[root@harbor1 ~]# curl -o /etc/yum.repos.d/centos.repo https://mirrors.aliyun.com/repo/Centos-7.repo
[root@harbor1 ~]# curl -o /etc/yum.repos.d/epel.repo https://mirrors.aliyun.com/repo/epel-7.repo
[root@harbor1 ~]# curl -o /etc/yum.repos.d/docker-ce.repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

安装工具

[root@harbor1 ~]# yum install -y vim net-tools lrzsz lsof bash-com*

案例实施

1. 部署Docker环境

（1）安装依赖项

[root@harbor1 ~]# yum install -y yum-utils device-mapper-persistent-data lvm2

（2）安装docker-ce

[root@harbor1 ~]# yum install -y docker-ce docker-ce-cli containerd.io docker-compose-plugin

设置Docker开机自启

[root@harbor1 ~]# systemctl enable docker --now

查看Docker的版本信息

[root@harbor1 ~]# docker version
Client: Docker Engine - Community
 Version:           26.1.4
 API version:       1.45
 Go version:        go1.21.11
 Git commit:        5650f9b
 Built:             Wed Jun  5 11:32:04 2024
 OS/Arch:           linux/amd64
 Context:           default

Server: Docker Engine - Community
 Engine:
  Version:          26.1.4
  API version:      1.45 (minimum version 1.24)
  Go version:       go1.21.11
  Git commit:       de5c9cf
  Built:            Wed Jun  5 11:31:02 2024
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:          1.6.33
  GitCommit:        d2d58213f83a351ca8f528a95fbd145f5654e957
 runc:
  Version:          1.1.12
  GitCommit:        v1.1.12-0-g51d5e94
 docker-init:
  Version:          0.19.0
  GitCommit:        de40ad0

配置Docker镜像加速

sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json << 'EOF'
{
  "insecure-registries": ["harbor.gxl.com"],
  "registry-mirrors": [
    "https://docker.aityp.com",
    "https://docker.m.daocloud.io",
    "https://reg-mirror.qiniu.com",
    "https://k8s.m.daocloud.io",
    "https://elastic.m.daocloud.io",
    "https://gcr.m.daocloud.io",
    "https://ghcr.m.daocloud.io",
    "https://k8s-gcr.m.daocloud.io",
    "https://mcr.m.daocloud.io",
    "https://nvcr.m.daocloud.io",
    "https://quay.m.daocloud.io",
    "https://jujucharms.m.daocloud.io",
    "https://rocks-canonical.m.daocloud.io",
    "https://d3p1s1ji.mirror.aliyuncs.com"
  ],
  "exec-opts": [
    "native.cgroupdriver=systemd"
  ],
  "max-concurrent-downloads": 10,
  "max-concurrent-uploads": 5,
  "log-opts": {
    "max-size": "300m",
    "max-file": "2"
  },
  "live-restore": true,
  "log-level": "debug"
}
EOF

sudo systemctl daemon-reload
sudo systemctl restart docker

（3）安装docker-compose

从 Docker 20.10.0 版本开始，Docker Compose 已经被集成到 Docker CLI（命令行界面）中
如果版本过低，请使用以下方式安装 docker-compose，下载地址

[root@harbor1 ~]# wget https://github.com/docker/compose/releases/download/v2.10.2/docker-compose-linux-x86_64
[root@harbor1 ~]# mv docker-compose-v2.10.2 /usr/local/bin/docker-compose
[root@harbor1 ~]# chmod +x /usr/local/bin/docker-compose

查看docker-compose版本

[root@harbor1 ~]# docker-compose version
Docker Compose version v2.10.2

（4）优化系统内核参数

[root@harbor1 ~]# cat > /etc/sysctl.d/harbor.conf << EOF
# 允许桥接设备传递 IPv6 流量，并对它们应用 netfilter 规则。
# 这通常用于需要桥接 IPv6 流量的容器环境，例如 Docker。
net.bridge.bridge-nf-call-ip6tables = 1

# 允许桥接设备传递 IPv4 流量，并对它们应用 netfilter 规则。
# 这使得在桥接网络上可以使用 iptables 进行包过滤。
net.bridge.bridge-nf-call-iptables = 1

# 启用 IP 路由转发功能。
# 这使得系统能够像路由器一样转发网络流量。
net.ipv4.ip_forward = 1
EOF

加载配置文件

[root@harbor1 ~]# sysctl -p /etc/sysctl.d/harbor.conf

加载br_netfilter模块

# 由于开启bridge功能，需要加载br_netfilter模块来允许在bridge设备上的数据包经过iptables防火墙处理。
[root@harbor1 ~]# modprobe br_netfilter && lsmod | grep br_netfilter

2. 部署NFS共享存储

（1）安装nfs服务

[root@harbor-data ~]# yum install -y nfs-utils rpcbind

设置nfs开机自启

[root@harbor-data ~]# systemctl enable nfs-server rpcbind --now

（2）创建共享目录

[root@harbor-data ~]# mkdir -p /data/harbor-data

（3）服务端配置nfs共享条目

# 只在nfs服务端配置即可
[root@harbor-data ~]# vim /etc/exports
/data/harbor-data/ 192.168.100.0/24(rw,sync,no_root_squash,no_all_squash)

重启nfs服务生效配置

[root@harbor-data ~]# systemctl restart nfs-server
[root@harbor-data ~]# exportfs -r

查看共享目录信息

[root@harbor-data ~]# showmount -e
Export list for harbor-data:
/data/harbor-data 192.168.100.0/24

（4）客户端配置nfs共享存储

[root@harbor1 ~]# vim /etc/fstab
#
# /etc/fstab
# Created by anaconda on Fri Aug 23 05:31:14 2024
#
# Accessible filesystems, by reference, are maintained under '/dev/disk'
# See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info
#
/dev/mapper/centos-root /                       xfs     defaults        0 0
UUID=5f416d26-0747-463d-ae8a-a079c130882b /boot                   xfs     defaults        0 0
/dev/mapper/centos-swap swap                    swap    defaults        0 0
192.168.100.5:/data/harbor-data /data/harbor-data nfs defaults 0 0

挂载nfs的文件系统

[root@harbor1 ~]# mount -a

验证是否挂载成功

[root@harbor1 ~]# df -h
Filesystem                       Size  Used Avail Use% Mounted on
devtmpfs                         2.0G     0  2.0G   0% /dev
tmpfs                            2.0G     0  2.0G   0% /dev/shm
tmpfs                            2.0G   12M  2.0G   1% /run
tmpfs                            2.0G     0  2.0G   0% /sys/fs/cgroup
/dev/mapper/centos-root           46G  2.1G   44G   5% /
/dev/sda1                       1014M  138M  877M  14% /boot
tmpfs                            394M     0  394M   0% /run/user/0
192.168.100.5:/data/harbor-data   46G  2.0G   44G   5% /data/harbor-data

（5）验证共享存储

创建文件

[root@harbor1 ~]# touch /data/harbor-data/nfs.txt

MD5验证文件的完整性和一致性

# 客户端查看
[root@harbor1 ~]# md5sum /data/harbor-data/nfs.txt
d41d8cd98f00b204e9800998ecf8427e  /data/harbor-data/nfs.txt

# 服务端查看
[root@harbor-data ~]# md5sum /data/harbor-data/nfs.txt
d41d8cd98f00b204e9800998ecf8427e  /data/harbor-data/nfs.txt

3. 部署Redis缓存服务

在 harbor-data 部署 Redis缓存服务，为 harbor1 和 harbor2 实例提供外部 Redis缓存服务

（1）安装redis服务

[root@harbor-data ~]# yum install -y redis

设置redis开机自启

[root@harbor-data ~]# systemctl enable redis --now

（2）配置redis文件

[root@harbor-data ~]# vim /etc/redis.conf
...
# 修改第61行 允许任何主机连接
bind 127.0.0.1
# 修改为 bind 0.0.0.0 或者 注释掉61行 #bind 127.0.0.1

...
# 修改第128行 使redis可以使用守护进程方式启动
daemonize no
# 修改为 daemonize yes

...
# 修改第480行
# requirepass foobared
# 修改为 requirepass moshang 设置redis连接的auth密码(moshang)

（3）客户端连接Redis

由于客户端可以 redis-cli 命令可以通过两种方式获取

第一种：yum安装redis

[root@harbor1 ~]# yum install -y redis

第二种：scp远程复制

[root@harbor-data ~]# scp /usr/bin/redis-cli 192.168.100.3:/usr/bin/

连接测试通信

[root@harbor1 ~]# redis-cli -h 192.168.100.5 -p 6379 -a moshang
192.168.100.5:6379> exit

4. 部署PostgreSQL外部存储服务

（1）安装PostgreSQL服务

获取阿里云YUM源

[root@harbor-data ~]# rpm -Uvh https://mirrors.aliyun.com/postgresql/repos/yum/reporpms/EL-7-x86_64/pgdg-redhat-repo-latest.noarch.rpm
[root@harbor-data ~]# sed -i "s@https://download.postgresql.org/pub@https://mirrors.aliyun.com/postgresql@g" /etc/yum.repos.d/pgdg-redhat-all.repo

查看YUM源状态

[root@harbor-data ~]# yum repolist all | grep enable

安装postgresql15-server

[root@harbor-data ~]# yum -y install postgresql15-server

初始化数据库

[root@harbor-data ~]# postgresql-15-setup initdb
Initializing database ... OK

设置postgresql开机自启

[root@harbor-data ~]# systemctl enable postgresql-15 --now

（2）设置postgres数据库密码

[root@harbor-data ~]# su - postgres
Last login: Tue Oct 22 17:59:24 CST 2024 on pts/0
-bash-4.2$ psql
psql (15.8)
Type "help" for help.

postgres=# \password
Enter new password for user "postgres":
Enter it again:
postgres=# \q

（3）配置可远程登录PostgreSQL

修改配置文件

[root@harbor-data ~]# vim /var/lib/pgsql/15/data/postgresql.conf
...
# 修改第60行 监听所有地址
#listen_addresses = 'localhost'         # what IP address(es) to listen on;
listen_addresses = '*'          # what IP address(es) to listen on;

# TYPE  DATABASE        USER            ADDRESS                 METHOD

[root@harbor-data ~]# vim /var/lib/pgsql/15/data/pg_hba.conf
# "local" is for Unix domain socket connections only
local   all             all                                     trust
# IPv4 local connections:
host    all             all             0.0.0.0/0            trust
# IPv6 local connections:
host    all             all             ::1/128                 scram-sha-256
# Allow replication connections from localhost, by a user with the
# replication privilege.
local   replication     all                                     peer
host    replication     all             127.0.0.1/32            scram-sha-256
host    replication     all             ::1/128                 scram-sha-256

重新postgresql服务

[root@harbor-data ~]# systemctl restart postgresql-15.service

（4）创建数据库

[root@harbor-data ~]# psql -U postgres -h localhost
Password for user postgres:
psql (15.8)
Type "help" for help.

postgres=# create database registry;
CREATE DATABASE
postgres=# create database harbor_db;
CREATE DATABASE
postgres=# create database notary_signer;
CREATE DATABASE
postgres=# create database notary_servers;
CREATE DATABASE

5. 配置负载均衡服务

（1）安装Nginx服务

在 harbor1 和 harbor2 安装

nginx从1.9.0开始新增了steam模块，用来实现四层协议的转发、代理、负载均衡等。二进制安装的nginx则在./configure时添加–with-stream参数来安装stream模块。

[root@harbor1 ~]# yum install -y nginx keepalived nginx-all-modules

设置nginx开机自启

[root@harbor1 ~]# systemctl enable nginx --now

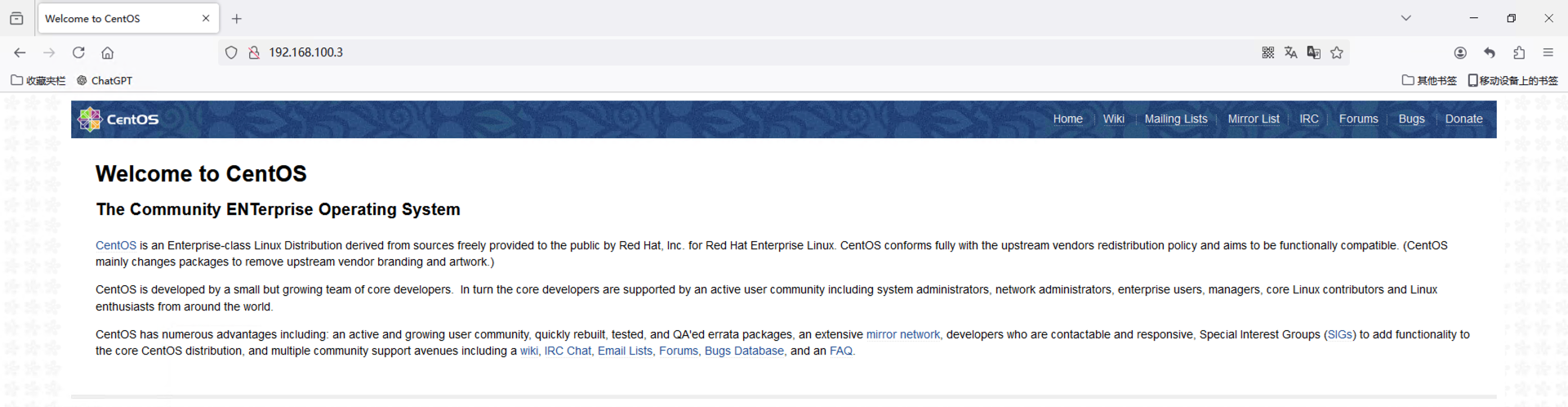

通过浏览器查看Nginx默认界面，如图所示：

图1

（2）配置Nginx文件

[root@harbor1 ~]# vim /etc/nginx/nginx.conf
# 设置运行 Nginx 的用户
user nginx;

# 自动设置工作进程数量，根据 CPU 核心数量
worker_processes auto;  # 工作进程数量会根据服务器的 CPU 核心数自动调整

# 错误日志文件的路径
error_log /var/log/nginx/error.log;

# 存放 Nginx 进程 ID 的文件
pid /run/nginx.pid;

# 包含额外的 Nginx 模块配置
include /usr/share/nginx/modules/*.conf;

# 事件模块配置
events {
    worker_connections 1024;  # 每个工作进程最大连接数
}

# 四层负载均衡配置，用于将请求分发到多个 Harbor 实例
stream {
    # 定义日志格式
    log_format  main  '$remote_addr $upstream_addr - [$time_local] $status $upstream_bytes_sent';

    # 访问日志文件的路径
    access_log  /var/log/nginx/harbor-access.log  main;

    # 定义上游服务器组
    upstream harbor {
        server 192.168.100.3:8080;  # 第一台 Harbor 服务器
        server 192.168.100.4:8080;  # 第二台 Harbor 服务器
    }

    server {
        listen  80;  # Nginx 监听的端口
        proxy_pass harbor;  # 将请求转发到上游服务器组
    }
}

# HTTP 模块配置
http {
    # 定义访问日志的格式
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    # 访问日志文件的路径
    access_log  /var/log/nginx/access.log  main;

    sendfile           on;  # 启用高效文件传输
    tcp_nopush         on;  # 启用 TCP_NOPUSH 以提高性能
    tcp_nodelay        on;  # 启用 TCP_NODELAY 以降低延迟
    keepalive_timeout   65;  # 设置长连接超时时间
    types_hash_max_size 2048;  # MIME 类型哈希表的最大大小

    # 包含 MIME 类型配置
    include            /etc/nginx/mime.types;

    # 默认 MIME 类型
    default_type      application/octet-stream;

    server {
        listen       81 default_server;  # Nginx 默认监听端口 81
        server_name  _;  # 通配符服务器名称，匹配所有请求

        location / {
            # 根目录的请求处理配置（目前为空）
        }
    }
}

通过命令检查配置是否正确并重启

[root@harbor1 ~]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@harbor1 ~]# systemctl restart nginx

（2）安装keepalived服务

[root@harbor1 ~]# yum install -y keepalived

设置keepalived开机自启

[root@harbor1 ~]# systemctl enable keepalived --now

（3）配置keepalived文件

harbor1节点

[root@harbor1 harbor]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {

   # 全局唯一的主机标识
   router_id master

}

vrrp_script check_nginx {
    script "/usr/local/src/check_nginx.sh" # 检测nginx状态脚本
    interval 3 # 每隔3秒运行一次Shell脚本
    weight 10 # 脚本运行成功，权重加10
}

vrrp_instance VI_1 { # vrrp配置标识 VI-1为实例名称

    # 标识是主节点还是备用节点，值为 MASTER 或 BACKUP
    state MASTER
    # 绑定的网卡，通过vrrp协议去通信、广播
    interface ens33
    # 定义虚拟路由组id，保证主备节点是一致的
    virtual_router_id 51
    # 权重，master必须比slave大
    priority 100
    # master和backup同步检查时间，间隔默认1秒
    advert_int 1
    # 认证授权的密码，所有主备需要一样
    authentication {
        # 认证类型
        auth_type PASS
       # 字符串
        auth_pass 1111
    }

    # 当Keepalived检测到主备节点之间的状态发生变化时，它会执行track_script中指定的脚本
    track_script {
        check_nginx
    }

    # 虚拟IP（VIP），又叫漂移IP
    virtual_ipaddress {
        192.168.100.100
    }
}

harbor2节点

[root@harbor2 harbor]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {

   # 全局唯一的主机标识
   router_id slave

}

vrrp_script check_nginx {
    script "/usr/local/src/check_nginx.sh"
    interval 3 # 每隔3秒运行一次Shell脚本
    weight 10 # 脚本运行成功，权重加10
}

vrrp_instance VI_1 {

    # 标识是主节点还是备用节点，值为 MASTER 或 BACKUP
    state BACKUP
    # 绑定的网卡
    interface ens33
    # 虚拟路由id，保证主备节点是一致的
    virtual_router_id 51
    # 权重
    priority 90
    # 同步检查时间，间隔默认1秒
    advert_int 1
    # 认证授权的密码，所有主备需要一样
    authentication {
        auth_type PASS
        auth_pass 1111
    }

    track_script {
        check_nginx
    }

    # 虚拟IP
    virtual_ipaddress {
        192.168.100.100
    }
}

（4）配置健康检查脚本

[root@harbor1 ~]# vim /usr/local/src/check_nginx.sh
#!/bin/bash

# 获取当前时间
d=$(date +%Y%m%d%H:%M:%S)

# 检查nginx进程数量
n=$(ps -C nginx --no-headers | wc -l)

# 如果nginx进程数量为0，则启动nginx并再次检查
if [ $n -eq 0 ]; then
    systemctl start nginx
    sleep 3 # 等待nginx启动

    # 如果nginx进程数量仍然为0，说明无法启动nginx，此时需要关闭keepalived
    if [ $n -eq 0 ]; then
        echo "$d Nginx is down, keepalived will stop." >> /var/log/check_ng.log
        systemctl stop keepalived
    fi
fi

添加执行权限

[root@harbor1 ~]# chmod +x /usr/local/src/check_nginx.sh

（5）测试VIP漂移

先在harbor1确认是否存在虚拟IP地址192.168.100.100

[root@harbor1 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:8a:a4:af brd ff:ff:ff:ff:ff:ff
    inet 192.168.100.3/24 brd 192.168.100.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.100.100/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::f350:5b34:c230:2205/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    link/ether 02:42:0b:90:7d:63 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever

关闭keepalived查看VIP是否会转移到harbor2

[root@harbor1 ~]# systemctl stop keepalived
[root@harbor1 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:8a:a4:af brd ff:ff:ff:ff:ff:ff
    inet 192.168.100.3/24 brd 192.168.100.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::f350:5b34:c230:2205/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    link/ether 02:42:0b:90:7d:63 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever

在harbor2查看是否已经漂移

[root@harbor2 harbor]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:fc:15:b4 brd ff:ff:ff:ff:ff:ff
    inet 192.168.100.4/24 brd 192.168.100.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet 192.168.100.100/32 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::f350:5b34:c230:2205/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever
    inet6 fe80::2ecd:78a2:84f4:423b/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    link/ether 02:42:c1:2c:7e:9a brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever

6.部署Harbor私有仓库

（1）解压harbor安装包

[root@harbor1 ~]# tar xf harbor-offline-installer-v2.5.3.tgz -C /opt/

（2）配置HTTPS证书

官网链接

生成 CA 证书私有密钥

[root@harbor1 ~]# mkdir -p /opt/harbor/certs
[root@harbor1 ~]# cd /opt/harbor/certs/
[root@harbor1 certs]# openssl genrsa -out ca.key 4096

生成 CA 证书颁发机构

[root@harbor1 certs]# openssl req -x509 -new -nodes -sha512 -days 3650 \
-subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=harbor.gxl.com" \
-key ca.key \
-out ca.crt
# 参数说明：
## C，Country：代表国家
## ST，STate：代表省份
## L，Location：代表城市
## O，Organization：代表组织，公司
## OU，Organization Unit：代表部门
## CN，Common Name：代表服务器域名
## emailAddress：代表联系人邮箱地址

生成服务器私钥

[root@harbor1 certs]# openssl genrsa -out harbor.gxl.com.key 4096

生成证书签名请求（CSR）

[root@harbor1 certs]# openssl req -sha512 -new -subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=harbor.gxl.com" -key harbor.gxl.com.key  -out harbor.gxl.com.csr

生成 x509 v3 扩展文件

[root@harbor1 certs]# vim v3.ext
authorityKeyIdentifier=keyid,issuer
basicConstraints=CA:FALSE
keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
extendedKeyUsage = serverAuth
subjectAltName = @alt_names

[alt_names]
DNS.1=harbor.gxl.com
DNS.2=harbor.gxl.net
IP.1=192.168.100.100

使用 v3.ext 文件为 Harbor 服务器生成证书

[root@harbor1 certs]# openssl x509 -req -sha512 -days 3650  -extfile v3.ext  -CA ca.crt -CAkey ca.key -CAcreateserial -in harbor.gxl.com.csr -out harbor.gxl.com.crt

证书转换

# 将 harbor.gxl.com.crt 转换为 harbor.gxl.com.cert，Docker守护进程将 .crt 文件解释为 CA 证书 .cert 将文件解释为客户端证书
[root@harbor1 certs]# openssl x509 -inform PEM -in harbor.gxl.com.crt -out harbor.gxl.com.cert

（3）配置harbor文件

[root@harbor1 ~]# vim /opt/harbor/harbor.yml
# Harbor 服务器的主机名或 IP 地址
hostname: harbor.gxl.com
# HTTP 协议的端口号，80 是默认设置
http:
  port: 8080
# HTTPS 协议的端口号，默认是 443
https:
  port: 443
  # Nginx 使用的 SSL 证书文件路径
  certificate: /opt/harbor/certs/harbor.gxl.com.crt
  # Nginx 使用的 SSL 私钥文件路径
  private_key: /opt/harbor/certs/harbor.gxl.com.key
# Harbor 控制台的管理员密码
harbor_admin_password: Harbor12345
# 数据库连接配置
database:
  # 连接数据库时使用的密码
  password: moshang
  # 数据库最大空闲连接数
  max_idle_conns: 100
  # 数据库最大打开连接数
  max_open_conns: 900
  # 连接最大生命周期，超时后会被关闭
  conn_max_lifetime: 5m
  # 空闲连接的最大存活时间
  conn_max_idle_time: 0
# Harbor 数据存储的卷路径
data_volume: /data/harbor_data/
# Trivy 安全扫描配置
trivy:
  # 是否忽略未修复的漏洞
  ignore_unfixed: false
  # 是否跳过更新
  skip_update: false
  # 是否跳过 Java 数据库更新
  skip_java_db_update: false
  # 是否进行离线扫描
  offline_scan: false
  # 安全检查类型，默认是漏洞检查
  security_check: vuln
  # 是否允许不安全的连接
  insecure: false
  # 扫描超时时间设置
  timeout: 5m0s
# 作业服务配置
jobservice:
  # 最大工作线程数
  max_job_workers: 10
  # 日志记录方式
  job_loggers:
    - STD_OUTPUT
    - FILE
  # 日志清理周期，单位是天
  logger_sweeper_duration: 1
# 通知配置
notification:
  # Webhook 任务最大重试次数
  webhook_job_max_retry: 3
  # Webhook HTTP 客户端超时时间，单位是秒
  webhook_job_http_client_timeout: 3
# 日志配置
log:
  # 日志记录级别
  level: info
  # 本地日志配置
  local:
    # 日志轮转的数量
    rotate_count: 50
    # 单个日志文件的最大大小
    rotate_size: 200M
    # 日志文件存放路径
    location: /var/log/harbor
# Harbor 版本号
_version: 2.5.0
# 外部数据库配置，取消注释以启用
external_database:
   # Harbor 数据库配置
   harbor:
     # PostgreSQL 数据库的 IP 地址
     host: 192.168.100.5
     # PostgreSQL 数据库端口
     port: 5432
     # 要连接的数据库名称
     db_name: registry
     # 连接数据库的用户名
     username: postgres
     # 连接数据库的密码
     password: moshang
     # SSL 模式，禁用 SSL 连接
     ssl_mode: disable
     # 最大空闲连接数
     max_idle_conns: 2
     # 最大打开连接数
     max_open_conns: 0
   # Notary 签名服务数据库配置
   notary_signer:
     host: 192.168.100.5
     port: 5432
     db_name: notary_signer
     username: postgres
     password: moshang
     ssl_mode: disable
     max_idle_conns: 2
     max_open_conns: 0
   # Notary 服务器数据库配置
   notary_server:
     host: 192.168.100.5
     port: 5432
     db_name: notary_server
     username: postgres
     password: moshang
     ssl_mode: disable
     max_idle_conns: 2
     max_open_conns: 0
# 外部 Redis 配置，取消注释以启用
external_redis:
   # Redis 数据库的 IP 地址和端口，格式为 IP:PORT
   host: 192.168.100.5:6379
   # 连接 Redis 数据库时使用的密码
   password: moshang
   # Registry 数据库在 Redis 中的索引，用于存储 Registry 相关数据
   registry_db_index: 1
   # Jobservice 数据库在 Redis 中的索引，用于存储作业服务相关数据
   jobservice_db_index: 2
   # Trivy 数据库在 Redis 中的索引，用于存储 Trivy 扫描结果
   trivy_db_index: 5
   # Redis 连接的空闲超时时间，单位为秒
   idle_timeout_seconds: 30
# 代理配置
proxy:
  # HTTP 代理服务器的地址（可选）
  http_proxy:
  # HTTPS 代理服务器的地址（可选）
  https_proxy:
  # 不通过代理访问的地址列表，多个地址用逗号分隔
  no_proxy:
  # 需要通过代理访问的组件列表
  components:
    # Harbor 的核心组件
    - core
    # 作业服务组件
    - jobservice
    # Trivy 安全扫描组件
    - trivy
# 上传清理配置
upload_purging:
  # 是否启用上传清理功能，默认为 true 表示启用
  enabled: true
  # 清理上传文件的最大存储时间，超过此时间的文件将被删除，单位为小时
  age: 168h
  # 清理任务的运行间隔，单位为小时
  interval: 24h
  # 是否为测试运行，不会实际删除文件
  dryrun: false
# 缓存配置
cache:
  # 是否启用缓存功能，默认为 false 表示禁用
  enabled: false
  # 缓存数据的过期时间，单位为小时
  expire_hours: 24

（4）运行启动Harbor脚本

[root@harbor1 ~]# cd /opt/harbor/
[root@harbor1 ~]# ./install.sh --with-trivy --with-chartmuseum

查看Docker容器状态

[root@harbor1 harbor]# docker-compose ps
NAME                COMMAND                  SERVICE             STATUS              PORTS
harbor-core         "/harbor/entrypoint.…"   core                running (healthy)
harbor-jobservice   "/harbor/entrypoint.…"   jobservice          running (healthy)
harbor-log          "/bin/sh -c /usr/loc…"   log                 running (healthy)   127.0.0.1:1514->10514/tcp
harbor-portal       "nginx -g 'daemon of…"   portal              running (healthy)
nginx               "nginx -g 'daemon of…"   proxy               running (healthy)   0.0.0.0:8080->8080/tcp, :::8080->8080/tcp, 0.0.0.0:443->8443/tcp, :::443->8443/tcp
registry            "/home/harbor/entryp…"   registry            running (healthy)
registryctl         "/home/harbor/start.…"   registryctl         running (healthy)

（5）登录Harbor私有仓库

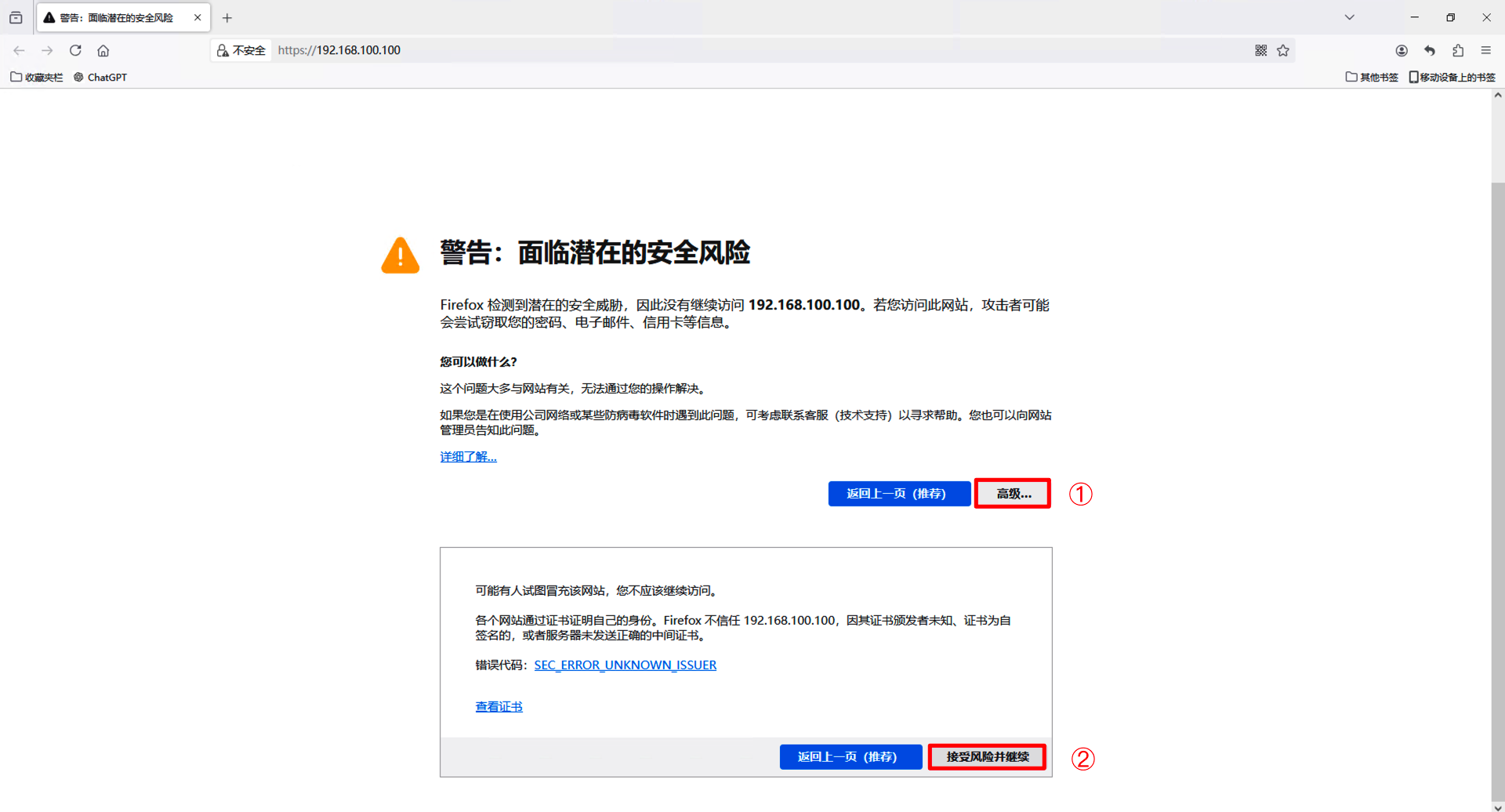

接受风险并继续，如图所示：

图2

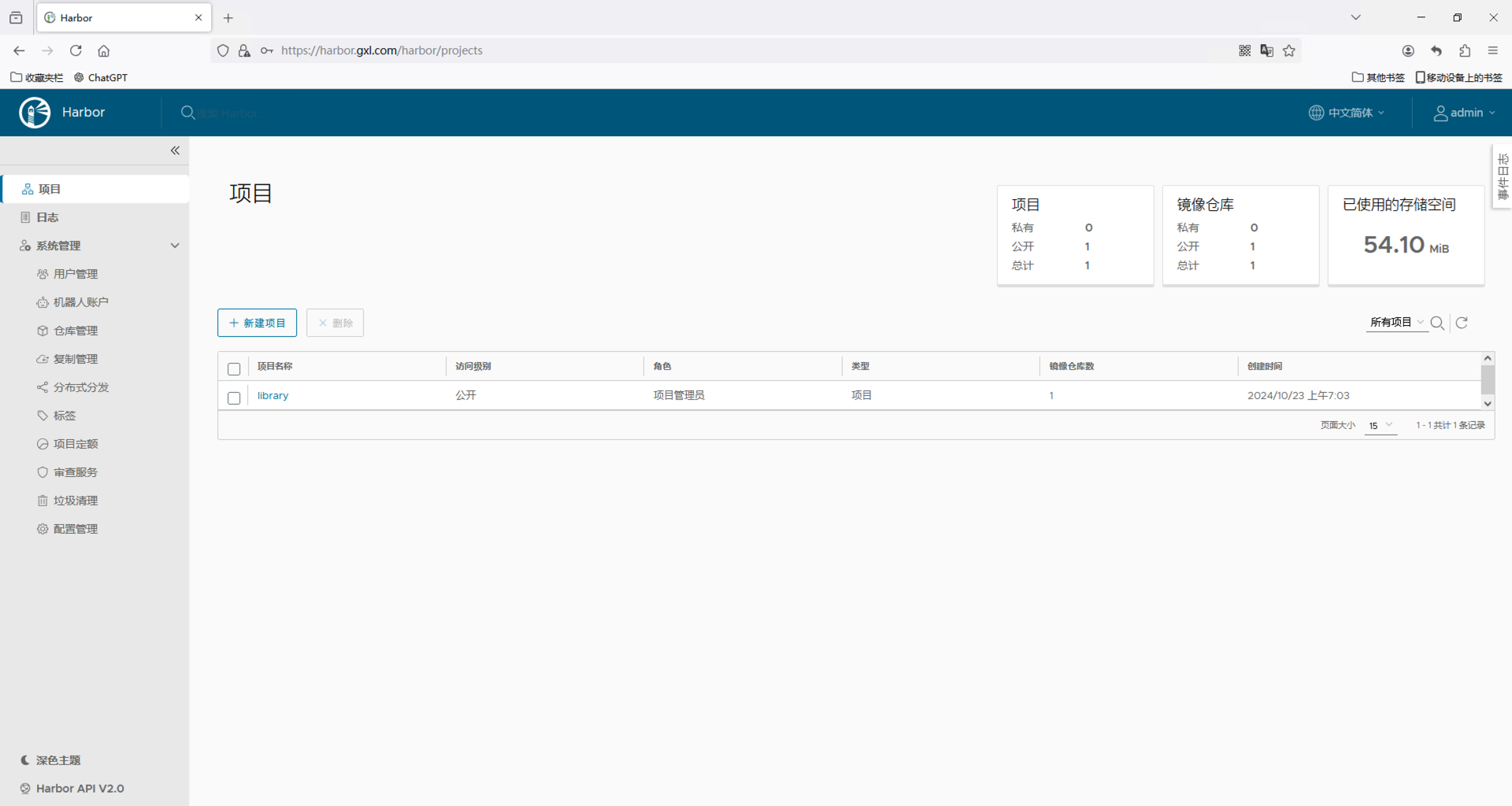

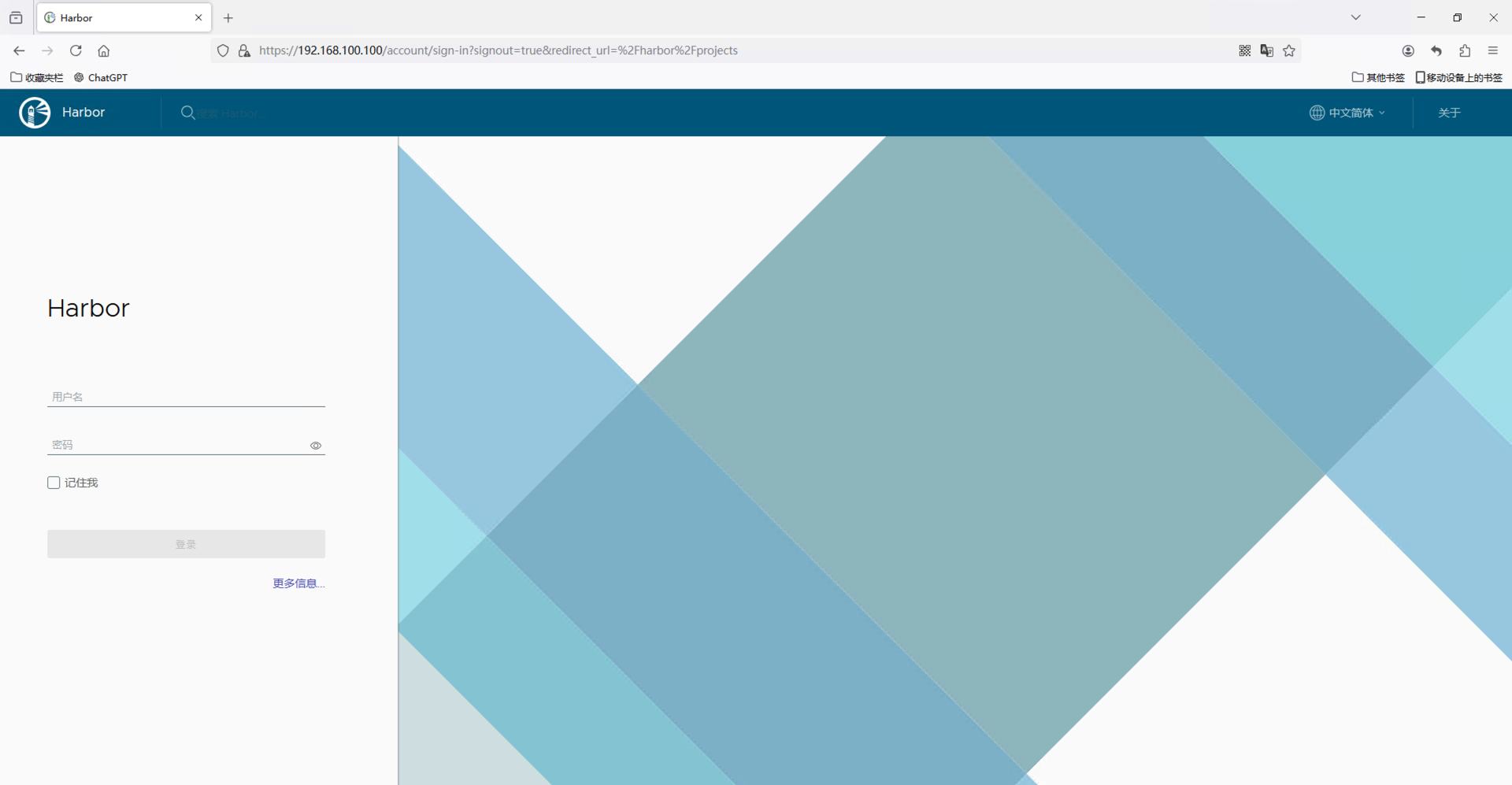

用户名：admin，密码：Harbor12345，如图所示：

图3

（6）托送镜像到Harbor仓库

拉取Nginx镜像

[root@harbor1 ~]# docker pull nginx:1.20.2
1.20.2: Pulling from library/nginx
214ca5fb9032: Pull complete
50836501937f: Pull complete
d838e0361e8e: Pull complete
fcc7a415e354: Pull complete
dc73b4533047: Pull complete
e8750203e985: Pull complete
Digest: sha256:38f8c1d9613f3f42e7969c3b1dd5c3277e635d4576713e6453c6193e66270a6d
Status: Downloaded newer image for nginx:1.20.2
docker.io/library/nginx:1.20.2

给Nginx镜像打标签

[root@harbor1 ~]# docker tag nginx:1.20.2 harbor.gxl.com/library/nginx:latest

登录Harbor仓库

[root@harbor1 certs]# docker login harbor.gxl.com
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded

推送Nginx镜像

[root@harbor1 harbor]# docker push harbor.gxl.com/library/nginx:latest
The push refers to repository [harbor.gxl.com/library/nginx]
07ef16952879: Pushed
881700cb7ab2: Pushed
4f49c6d6dd07: Pushed
a64d597d6b14: Pushed
c2a3d4a53f9a: Pushed
fd95118eade9: Pushed
latest: digest: sha256:a76df3b4f1478766631c794de7ff466aca466f995fd5bb216bb9643a3dd2a6bb size: 1570

在Web页面查看镜像是否存在，如图所示：

图4

（7）配置Windows系统hosts文件

路径如下：C:\Windows\System32\drivers\etc\hosts

添加主机映射保存退出

192.168.100.100 harbor.gxl.com

通过域名的方式访问，如图所示：

图5

（8）配置启动项管理Harbor

[root@harbor1 harbor]# vim  /usr/lib/systemd/system/harbor.service
[Unit]
Description=Harbor
After=docker.service systemd-networkd.service systemd-resolved.service
Requires=docker.service
Documentation=http://github.com/vmware/harbor

[Service]
Type=simple
Restart=on-failure
RestartSec=5
ExecStart=/usr/local/bin/docker-compose -f /opt/harbor/harbor/docker-compose.yml up
ExecStop=/usr/local/bin/docker-compose -f /opt/harbor/harbor/docker-compose.yml down

[Install]
WantedBy=multi-user.target

重新加载服务

[root@harbor1 harbor]# systemctl daemon-reload
[root@harbor1 harbor]# systemctl enable harbor --now

查看服务状态

[root@harbor1 harbor]# systemctl status harbor
● harbor.service - Harbor
   Loaded: loaded (/usr/lib/systemd/system/harbor.service; enabled; vendor preset: disabled)
   Active: active (running) since Thu 2024-11-07 16:51:00 CST; 4s ago
     Docs: http://github.com/vmware/harbor
 Main PID: 3524 (docker-compose)
    Tasks: 7
   Memory: 8.3M
   CGroup: /system.slice/harbor.service
           └─3524 /usr/local/bin/docker-compose -f /opt/harbor/harbor/docker-compose.yml up

Nov 07 16:51:00 master docker-compose[3524]: Container redis  Running
Nov 07 16:51:00 master docker-compose[3524]: Container harbor-core  Running
Nov 07 16:51:00 master docker-compose[3524]: Container nginx  Running
Nov 07 16:51:00 master docker-compose[3524]: Container harbor-jobservice  Running
Nov 07 16:51:00 master docker-compose[3524]: Attaching to harbor-core, harbor-db, harbor-jobservice, harbor-log, harbor-...tryctl
Nov 07 16:51:02 master docker-compose[3524]: harbor-portal      | 172.18.0.8 - - [07/Nov/2024:08:51:02 +0000] "GET / HTT...t/1.1"
Nov 07 16:51:02 master docker-compose[3524]: registryctl        | 172.18.0.8 - - [07/Nov/2024:08:51:02 +0000] "GET /api/... 200 9
Nov 07 16:51:02 master docker-compose[3524]: registry           | 172.18.0.8 - - [07/Nov/2024:08:51:02 +0000] "GET / HTT...t/1.1"
Nov 07 16:51:02 master docker-compose[3524]: harbor-jobservice  | 2024-11-07T08:51:02Z [INFO] [/jobservice/worker/cworke... stats
Nov 07 16:51:02 master docker-compose[3524]: harbor-jobservice  | 2024-11-07T08:51:02Z [INFO] [/jobservice/worker/cworke... stats
Hint: Some lines were ellipsized, use -l to show in full.
