EVE 网络安全nat静态配置

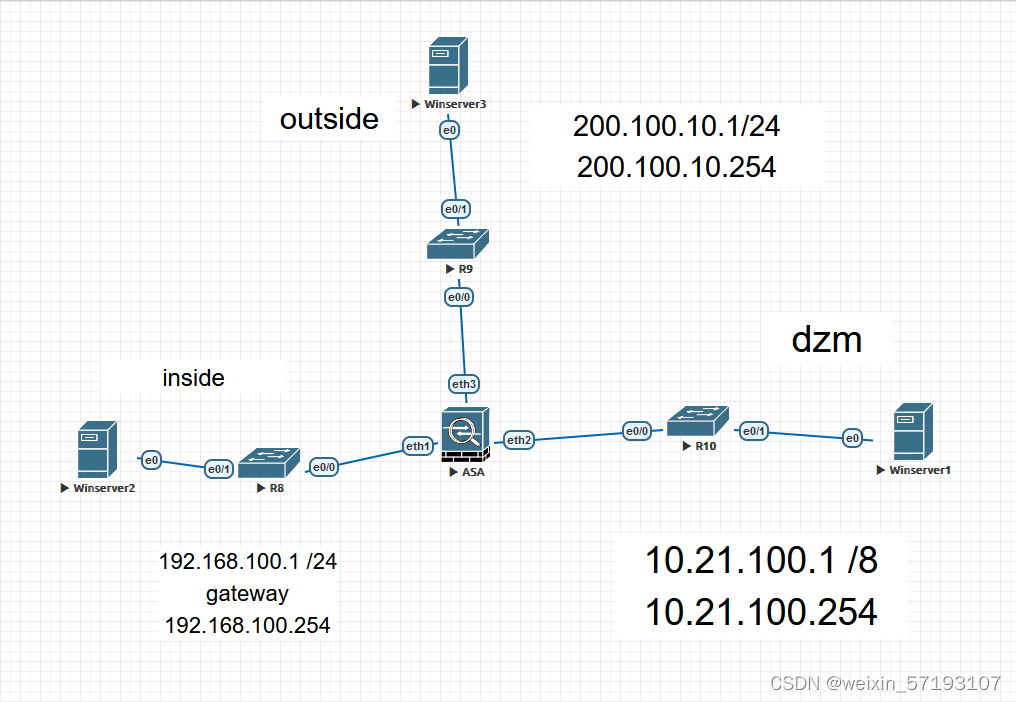

（1）先配置好ip(pc端也要配好)

ciscoasa(config)# interface e0
ciscoasa(config-if)# nameif outside
INFO: Security level for "outside" set to 0 by default.

ciscoasa(config-if)#ip address 200.100.10.254 255.255.255.0

ciscoasa(config)# interface e1
ciscoasa(config-if)# nameif outside
INFO: Security level for "inside" set to 100 by default.

ciscoasa(config-if)#ip address 192.168.100.254 255.255.255.0

ciscoasa(config)# interface e2
ciscoasa(config-if)# nameif dzm
INFO: Security level for "dzm" set to 0 by default.
ciscoasa(config-if)# security-level 100 给他的安全等级提高这样outside就会访问不了idzm了

ciscoasa(config-if)#ip address 10.21.100.254 255.255.255.0

配置外网和内网 object （本实验的方法是用object network object-name 封装好 将他们一对一映射）

首先配置外网的object

ciscoasa(config)# object network outside-pud

ciscoasa(config)# host 200.100.10.2 要跟外网同一个网段即可

第二、配置内网的object

ciscoasa(config)# object network outside-in

ciscoasa(config)# host 192.168.10.1 要跟PC端的ip同一个

第三、将他们一对一映射

ciscoasa(config)# object network outside-in

ciscoasa(config)#nat (inside,outside) static outside-pud

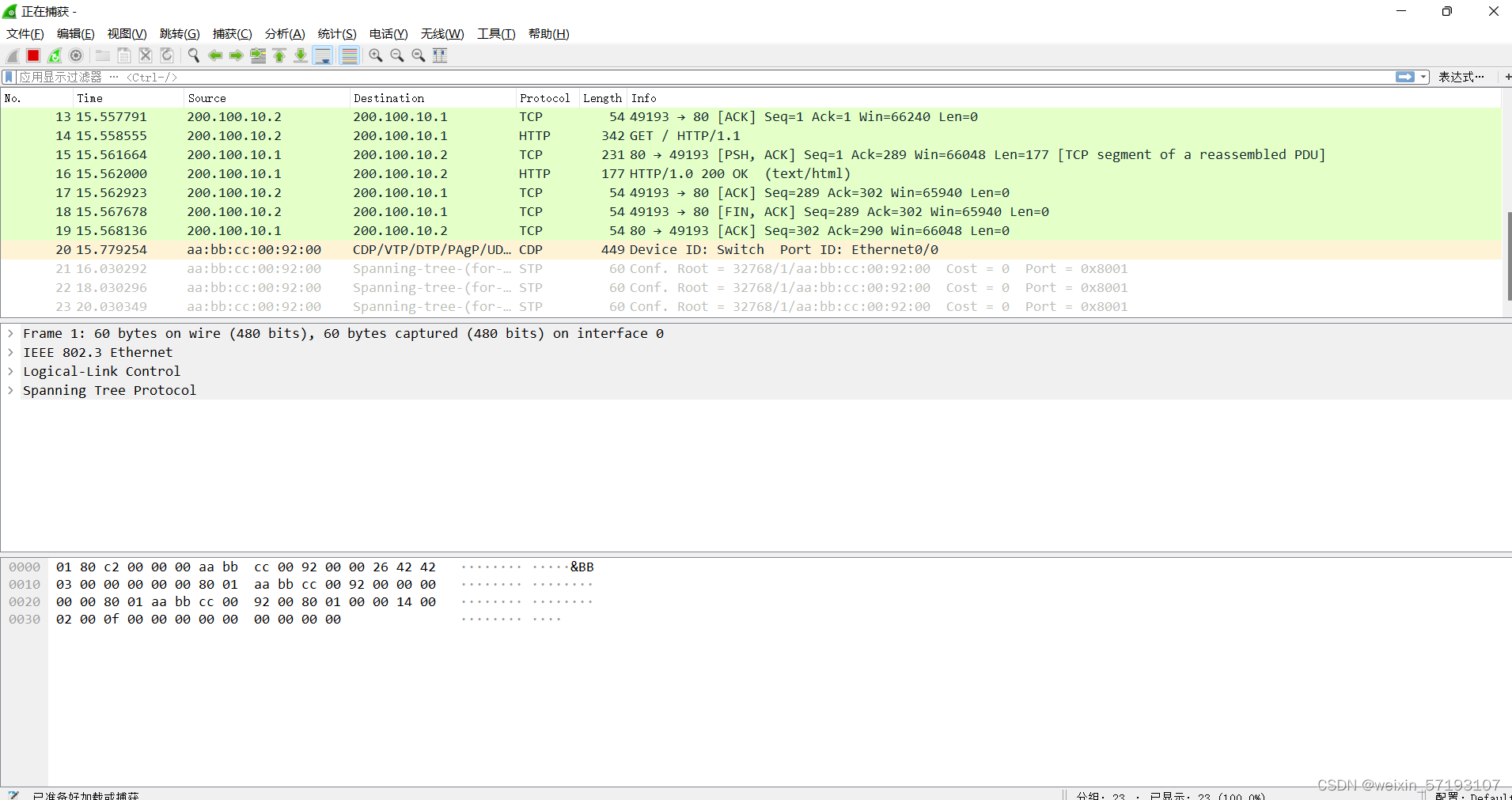

 验证实验（开启web服务访问即可）

 要想outside访问inside需要配置一条access-list

ciscoasa(config)#  access-list outside-to-inside extended permit tcp 200.100.10.0 255.255.255.0 192.168.200.0 255.255.p eq www

ciscoasa(config)# access-group outside-to-inside in interface outside
