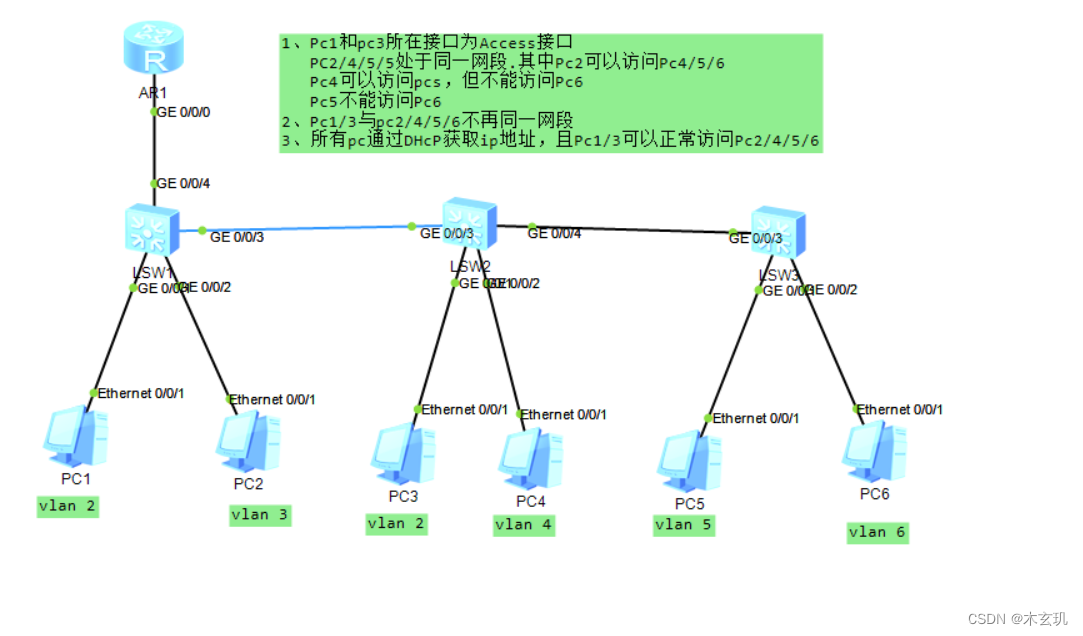

实验拓扑及要求：

配置：

[sw1]vlan batch 2 to 6
[sw1]int g0/0/1
[sw1-GigabitEthernet0/0/1]port link-type access
[sw1-GigabitEthernet0/0/1]port default vlan 2
[sw1-GigabitEthernet0/0/1]int g 0/0/2
[sw1-GigabitEthernet0/0/2]port hybrid pvid vlan 3
[sw1-GigabitEthernet0/0/2]port hybrid untagged vlan 3 4 5 6
[sw1-GigabitEthernet0/0/2]int g0/0/3
[sw1-GigabitEthernet0/0/3]port link-type trunk
[sw1-GigabitEthernet0/0/3]port trunk allow-pass vlan all
[sw1]int g 0/0/4
[sw1-GigabitEthernet0/0/4]port hybrid untagged  vlan 3 4 5 6
[sw1-GigabitEthernet0/0/4]port hybrid tagged vlan 2
[sw1-GigabitEthernet0/0/2]port hybrid tagged vlan 3

[sw2]vlan batch 2 to 6
[sw2]int g 0/0/3
[sw2-GigabitEthernet0/0/3]port link-type trunk
[sw2-GigabitEthernet0/0/3]port trunk allow-pass vlan all
[sw2-GigabitEthernet0/0/3]int g0/0/1
[sw2-GigabitEthernet0/0/1]port link-type access
[sw2-GigabitEthernet0/0/1]port default vlan 2
[sw2-GigabitEthernet0/0/1]int g0/0/2
[sw2-GigabitEthernet0/0/2]port hybrid pvid vlan 4
[sw2-GigabitEthernet0/0/2]port hybrid untagged vlan 3 4 5
[sw2-GigabitEthernet0/0/2]int g0/0/4
[sw2-GigabitEthernet0/0/4]port link-type trunk
[sw2-GigabitEthernet0/0/4]port trunk allow-pass  vlan all

[SW3]int g0/0/3
[SW3-GigabitEthernet0/0/3]port link-type trunk
[SW3-GigabitEthernet0/0/3]port trunk allow-pass  vlan  all
[SW3-GigabitEthernet0/0/3]int g0/0/1
[SW3-GigabitEthernet0/0/1]port hybrid pvid vlan 5
[SW3-GigabitEthernet0/0/1]port hybrid untagged vlan 3 4 5
[SW3-GigabitEthernet0/0/1]int g0/0/2
[SW3-GigabitEthernet0/0/2]port hybrid pvid  vlan 6
[SW3-GigabitEthernet0/0/2]port hybrid untagged vlan 3 6

[r1]int g0/0/0.1
[r1-GigabitEthernet0/0/0.1]ip a 192.168.1.1 24
[r1-GigabitEthernet0/0/0.1]dot1q termination vid 2
[r1-GigabitEthernet0/0/0.1]arp broadcast enable
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip a 192.168.2.1 24
[r1]dhcp enable
[r1]ip pool aa
[r1-ip-pool-aa]network 192.168.1.0 mask 24
[r1-ip-pool-aa]gateway-list 192.168.1.1
[r1-ip-pool-aa]dns-list 114.114.114.114
[r1]ip pool bb
[r1-ip-pool-bb]network 192.168.2.0 mask 24
[r1-ip-pool-bb]gateway-list 192.168.2.1
[r1-ip-pool-bb]dns-list 114.114.114.114
[r1]int g 0/0/0.1
[r1-GigabitEthernet0/0/0.1]dhcp select global
[r1]int g 0/0/0
[r1-GigabitEthernet0/0/0]dhcp select global
