作者，Evil Genius
马上春节了，大家有没有想对自己说的话？
2024或许迷茫、或许低谷，但是都过去了，放上几挂鞭，2025再出发。

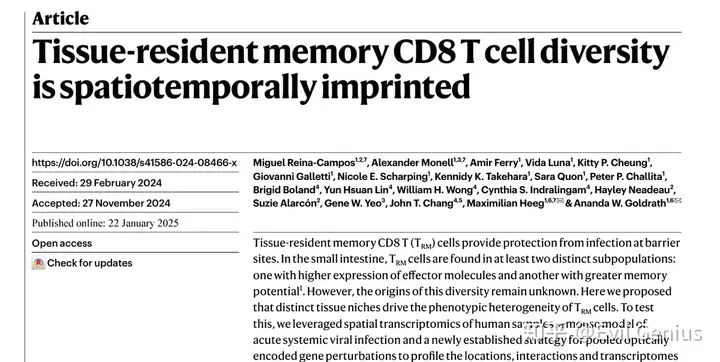

今日分享文献，HD + CellPose，这是第二篇HD的实验类文章，第一篇顶刊类的HD文章。
知识积累
组织驻留记忆CD8 T（TRM）细胞在屏障部位提供感染保护。
在小肠(SI)中，TRM细胞至少存在于两个不同的亚群中：一个具有较高的效应分子表达，另一个具有较大的记忆潜力。然而，这种多样性的起源仍然未知.
不同的组织生态位驱动TRM细胞的表型异质性。
组织微环境如何影响TRM细胞的分化和功能.

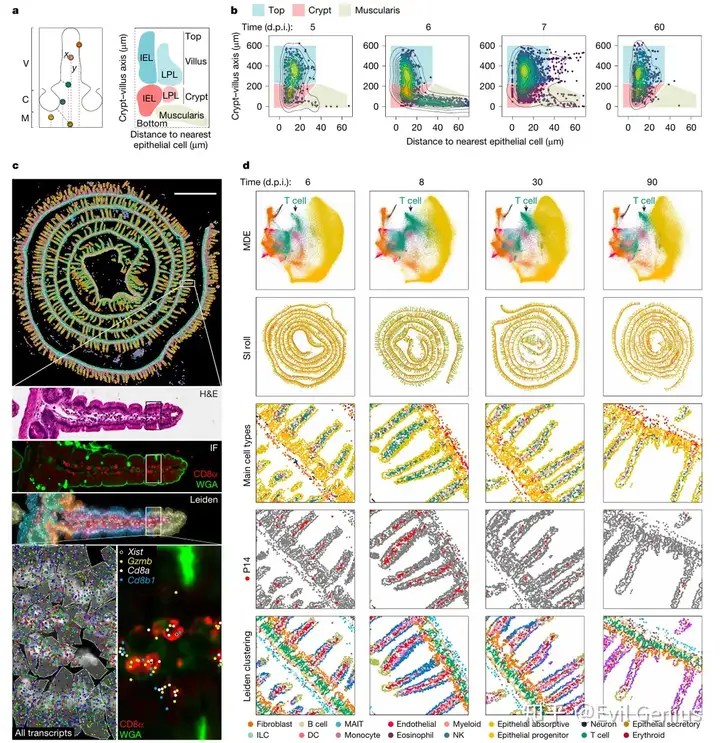

结果1、SI TRM细胞的空间图谱

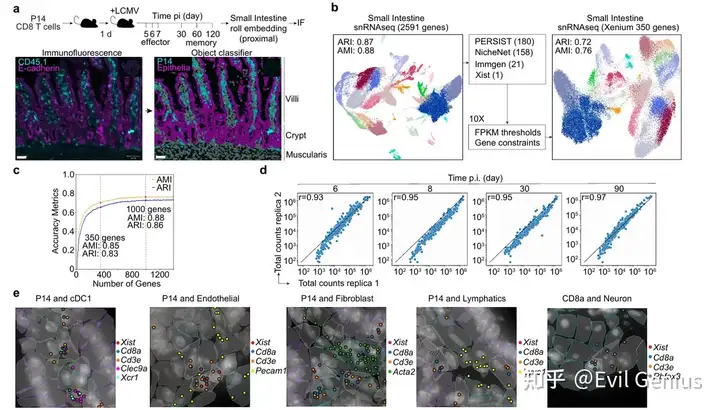

Xenium-based spatial transcriptomics

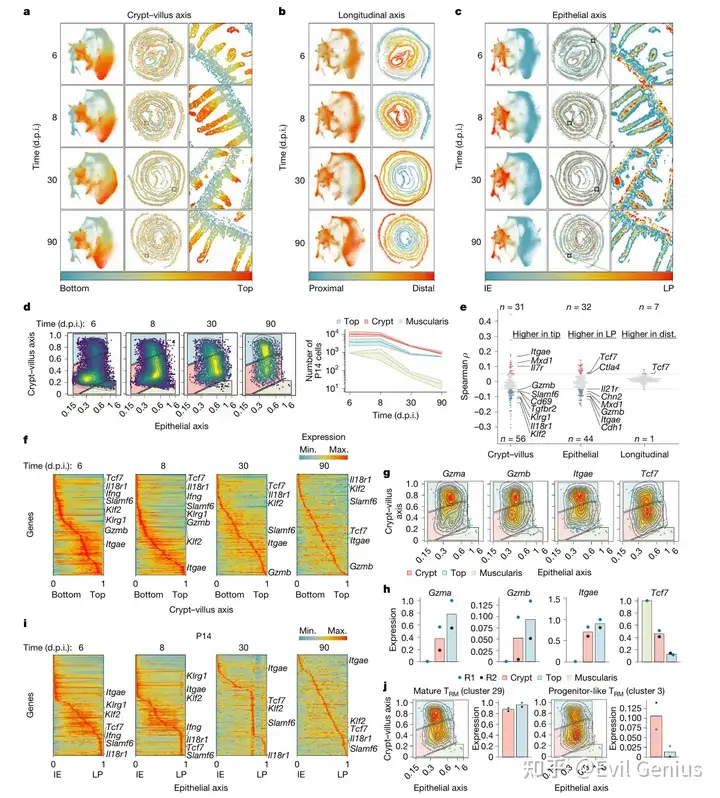

结果2、SI TRM细胞多样性在spatially defined
研究SI TRM细胞的转录程序与其在组织中的独特位置的关系（空间距离分析，基因与细胞类型）。

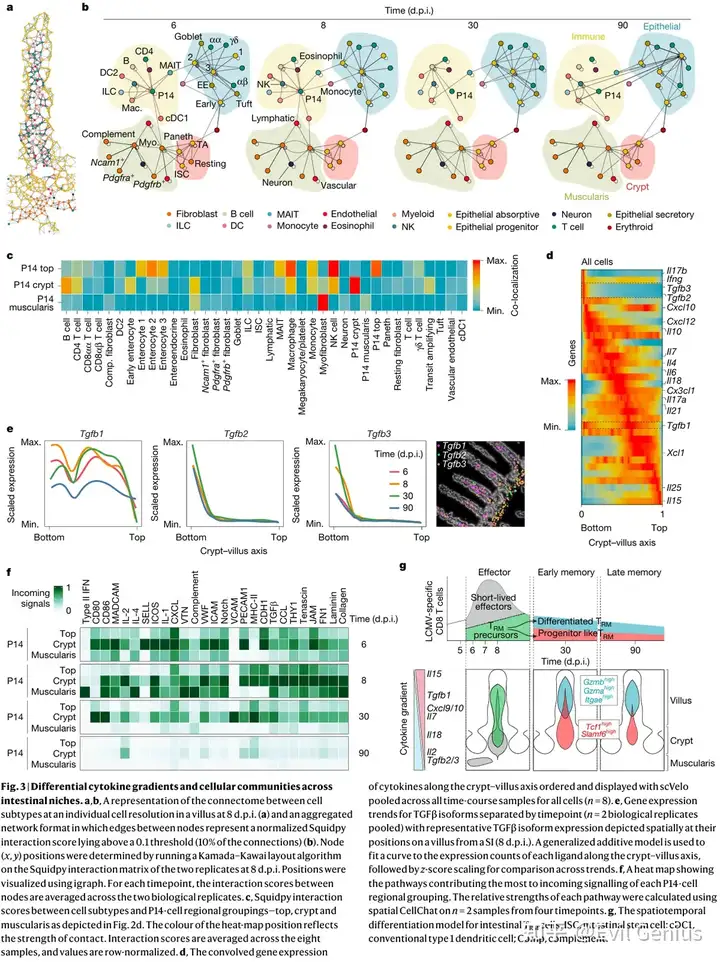

结果3、区域化肠道免疫信号

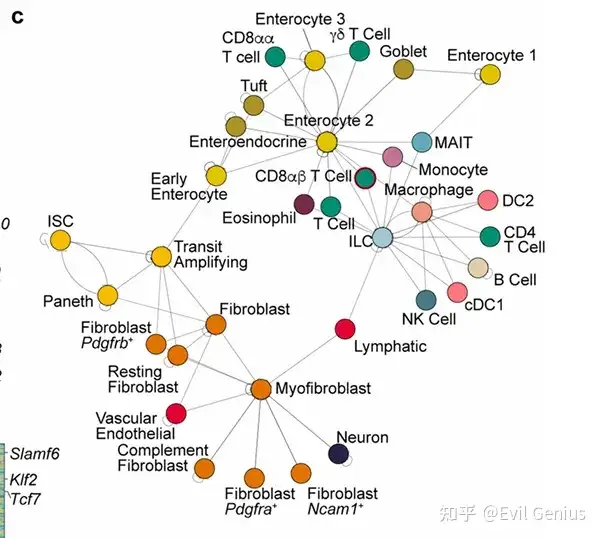

CD8 T细胞周围细胞群落随时间的变化。
四个空间域：免疫（固有层）、上皮、肌层和隐窝区域。

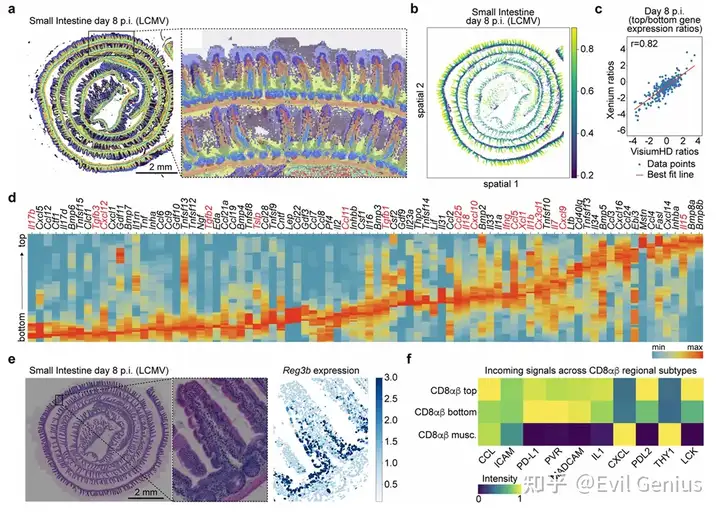

为了更全面地了解细胞因子梯度，并通过正交方法验证发现，使用2µm分辨率的全基因组空间转录组学（Visium HD）对感染LCMV的小鼠SI进行分析。
为了在单细胞分辨率下进行配体-受体分析，将2µm分辨率的捕获区域进行细胞分割（核分割）。
SI结构中的信号准备影响新CD8 T细胞的流入并引导其分化过程。
生态位依赖性信号有助于分化进入的CD8 T细胞，并维持两种极化的TRM细胞状态。
visiumHD

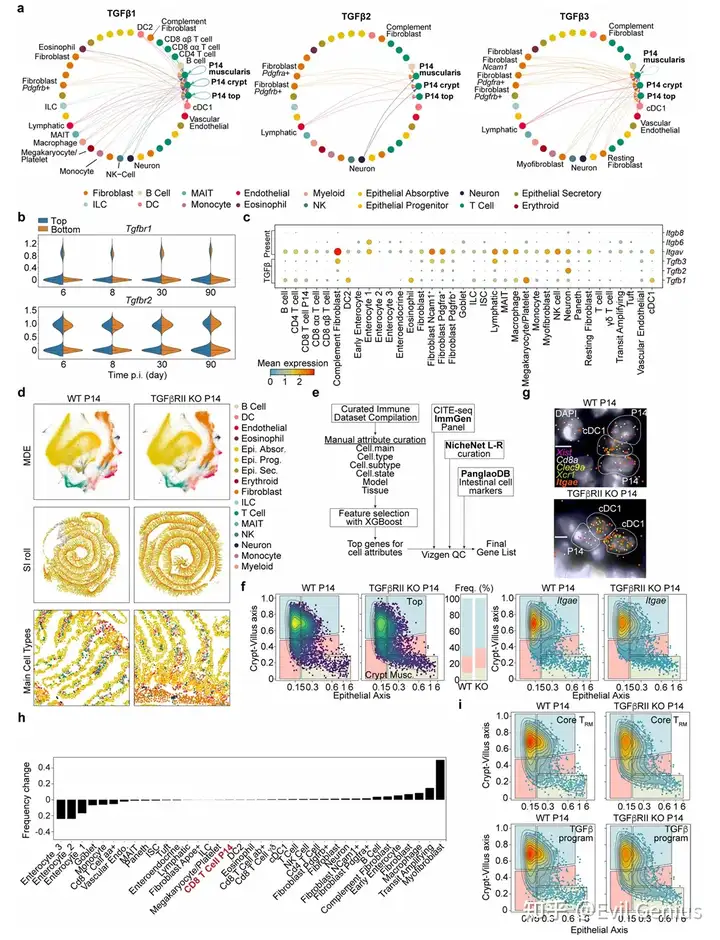

结果4、TGFβ指导SI CD8 T细胞定位
TGFβ是一种免疫调节细胞因子，影响肠道CD8 T细胞归巢和滞留，并引导TRM细胞分化和维持。

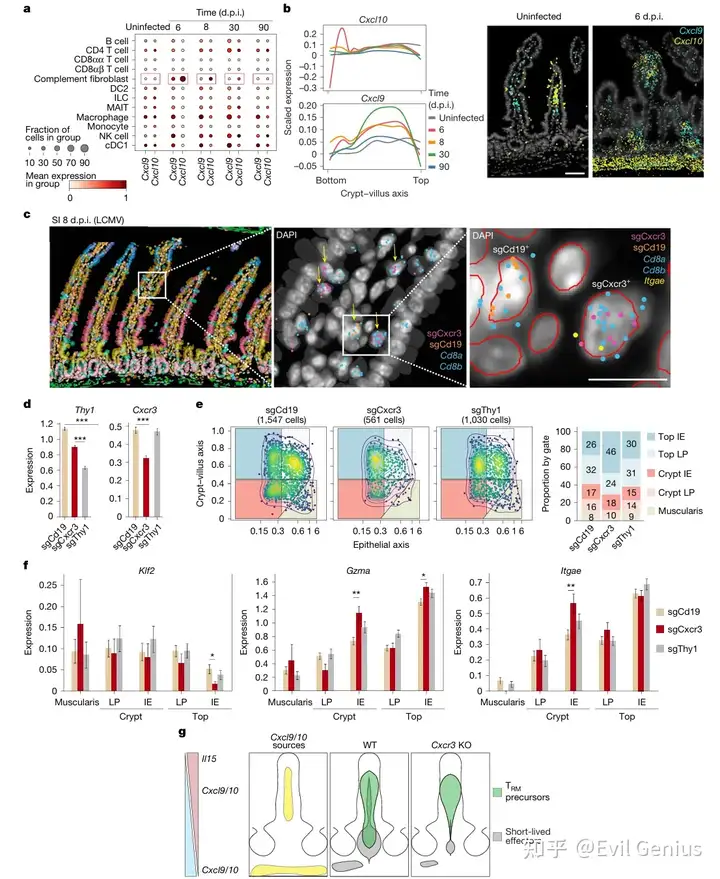

结果5、CXCR3介导的SI CD8 T细胞deployment
CXCR3配体CXCL9和CXCL10是已知的T细胞化学引诱剂，有助于SI中的T细胞定位和成熟。

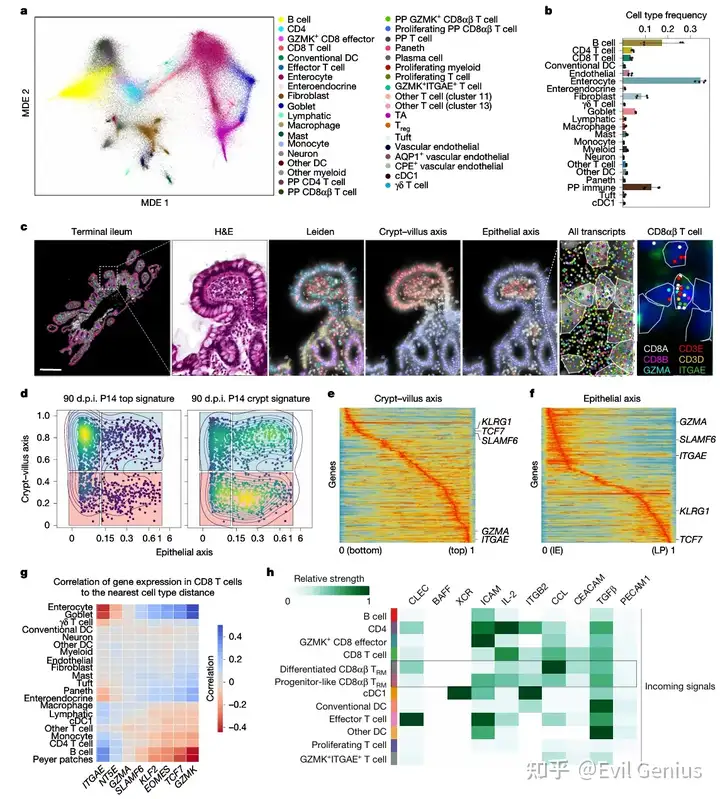

结果6、人类SI中的空间CD8 T细胞程序
在SI中观察到的CD8 T细胞表型和基因表达的异质性受到其组织内位置的影响，特别是沿着隐窝-绒毛轴，通过不同的细胞相互作用和暴露于趋化因子和细胞因子来源，如TGFβ，维持了人类和小鼠中功能不同的CD8αβT细胞群。

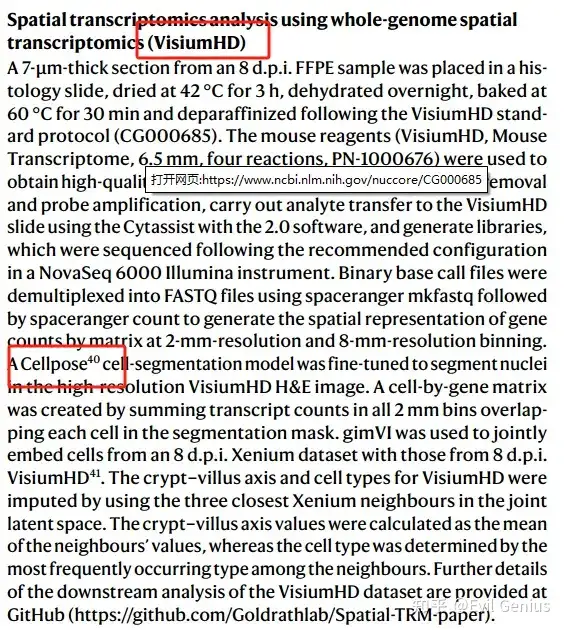

最后来关注一下方法
首先是图片的前处理（可以看出用的10X输出的结果）
import imageio as io
import pandas as pd
import os
import matplotlib.pyplot as plt
import numpy as np
import tifffile
from tqdm.notebook import tqdm
import pathlib
from cellpose import models, core
import json
import cv2
import glob
# experiment paths
visium_path = "VisiumHD_data/LJI_001_visiumhd_SI"
experiment = "SI_d8pi"
output_path = "visium_hd/segmentation"
experiment_spatial_path = os.path.join(
visium_path, "count_outputs", f"visium_hd_count_{experiment}", "outs", "spatial"
)
highres_image = glob.glob(os.path.join(experiment_spatial_path, "*used.tif"))[0]
img_fpath = pathlib.Path(highres_image)
img = io.imread(highres_image)
####Write out chunks of the histology image to train a cellpose model
chunk_size = (500, 500)
for i in range(0, img.shape[1], int(chunk_size[1])):
for j in range(0, img.shape[0], int(chunk_size[0])):
# Define the coordinates for cropping
left = i
upper = j
right = i + chunk_size[1]
lower = j + chunk_size[0]
# Crop the img chunk
chunk = img[upper:lower, left:right]
cv2.imwrite(
os.path.join(output_path, "histology_images", f"chunk_{i}_{j}.png"),
chunk,
)
print(os.path.join(output_path, "histology_images", f"chunk_{i}_{j}.png"))第二步，进行核分割，Nucleus segmentation for the visiumHD data using the DAPI staining and cellpose
import imageio as io
import pandas as pd
import os
import matplotlib.pyplot as plt
import numpy as np
import tifffile
from tqdm.notebook import tqdm
import pathlib
import geopandas as gpd
from cellpose import models, core
import json
from shapely.geometry import Polygon, Point
import scanpy as sc
import glob
experiment = "SI_d90pi"
visium_path = "VisiumHD_data/LJI_001_visiumhd_SI"
# model path
mp = r"visium_hd/segmentation/models/day8_SI_DAPI"
experiment_spatial_path = os.path.join(
visium_path, "count_outputs", f"visium_hd_count_{experiment}", "outs", "spatial"
)
highres_image = glob.glob(os.path.join(experiment_spatial_path, "*used.tif"))[0]
import PIL
PIL.Image.MAX_IMAGE_PIXELS = 2382717010
def read_dapi_image(path: str, downscale_factor: int = 2) -> np.ndarray:
img_fpath = pathlib.Path(path)
img = io.imread(img_fpath)
print(img.shape)
return downscale_image(img, downscale_factor=downscale_factor)
def downscale_image(img: np.ndarray, downscale_factor: int = 2) -> np.ndarray:
# Calculate the amount
#
# of padding needed for each axis
pad_height = (downscale_factor - img.shape[0] % downscale_factor) % downscale_factor
pad_width = (downscale_factor - img.shape[1] % downscale_factor) % downscale_factor
new_shape = (img.shape[0] + pad_height, img.shape[1] + pad_width, img.shape[2])
new_image = np.zeros(new_shape, dtype=img.dtype)
for channel in range(img.shape[2]):
new_image[:, :, channel] = np.pad(
img[:, :, channel], ((0, pad_height), (0, pad_width)), mode="constant"
)
# Pad the array with zeros
return new_image
maxed_visium = read_dapi_image(highres_image, downscale_factor=1)
def run_cellpose(
img: np.ndarray, model_path: str
) -> (np.ndarray, np.ndarray, np.ndarray):
use_GPU = core.use_gpu()
model = models.CellposeModel(gpu=use_GPU, pretrained_model=model_path)
channels = [0, 0]
masks, flows, styles = model.eval(
[img],
channels=channels,
diameter=model.diam_labels,
flow_threshold=1,
cellprob_threshold=0,
batch_size=4,
)
return (masks, flows, styles)
chunk_per_axis = 2
masks_top_left, flows, styles = run_cellpose(
maxed_visium[
: np.shape(maxed_visium)[0] // chunk_per_axis,
: np.shape(maxed_visium)[1] // chunk_per_axis,
:,
],
model_path=mp,
)
masks_top_right, flows, styles = run_cellpose(
maxed_visium[
: np.shape(maxed_visium)[0] // chunk_per_axis,
np.shape(maxed_visium)[1] // chunk_per_axis :,
:,
],
model_path=mp,
)
masks_bottom_left, flows, styles = run_cellpose(
maxed_visium[
np.shape(maxed_visium)[0] // chunk_per_axis :,
: np.shape(maxed_visium)[1] // chunk_per_axis,
:,
],
model_path=mp,
)
masks_bottom_right, flows, styles = run_cellpose(
maxed_visium[
np.shape(maxed_visium)[0] // chunk_per_axis :,
np.shape(maxed_visium)[1] // chunk_per_axis :,
:,
],
model_path=mp,
)
####Plot and save segmentation
constant = 1000000
full_mask = np.zeros_like(maxed_visium[:, :, 0], dtype=np.uint32)
full_mask[
: np.shape(maxed_visium)[0] // chunk_per_axis,
: np.shape(maxed_visium)[1] // chunk_per_axis,
] = masks_top_left[0]
full_mask[
: np.shape(maxed_visium)[0] // chunk_per_axis,
np.shape(maxed_visium)[1] // chunk_per_axis :,
] = masks_top_right[0] + (constant)
full_mask[
np.shape(maxed_visium)[0] // chunk_per_axis :,
: np.shape(maxed_visium)[1] // chunk_per_axis,
] = masks_bottom_left[0] + (constant * 2)
full_mask[
np.shape(maxed_visium)[0] // chunk_per_axis :,
np.shape(maxed_visium)[1] // chunk_per_axis :,
] = masks_bottom_right[0] + (constant * 3)
# when fullmask % constant == 0, set the value to 0
full_mask = np.where(full_mask % constant == 0, 0, full_mask)
# save np array as png
tifffile.imsave(
f"visium_hd/segmentation/segmentation_outputs/{experiment}_segmentation.png",
full_mask,
)
####Assign barcodes to cells
full_mask = tifffile.imread(
f"visium_hd/segmentation/segmentation_outputs/{experiment}_segmentation.png"
)
dir_base = "VisiumHD_data/LJI_001_visiumhd_SI/count_outputs/visium_hd_count_SI_d90pi/outs/binned_outputs/square_002um/"
# Load Visium HD data
raw_h5_file = dir_base + "filtered_feature_bc_matrix.h5"
adata = sc.read_10x_h5(raw_h5_file)
# Load the Spatial Coordinates
tissue_position_file = dir_base + "spatial/tissue_positions.parquet"
df_tissue_positions = pd.read_parquet(tissue_position_file)
# Set the index of the dataframe to the barcodes
df_tissue_positions = df_tissue_positions.set_index("barcode")
# Create an index in the dataframe to check joins
df_tissue_positions["index"] = df_tissue_positions.index
# Adding the tissue positions to the meta data
adata.obs = pd.merge(adata.obs, df_tissue_positions, left_index=True, right_index=True)
# Create a GeoDataFrame from the DataFrame of coordinates
geometry = [
Point(xy)
for xy in zip(
df_tissue_positions["pxl_col_in_fullres"],
df_tissue_positions["pxl_row_in_fullres"],
)
]
gdf_coordinates = gpd.GeoDataFrame(df_tissue_positions, geometry=geometry)
plt.imshow(full_mask)
plt.scatter(
list(adata.obs["pxl_col_in_fullres"].values)[::10],
list(adata.obs["pxl_row_in_fullres"].values)[::10],
s=1,
alpha=0.01,
c="r",
)
plt.show()
####assigning capture regions to individual nuclei
point_mask = (
gdf_coordinates["pxl_row_in_fullres"].values.astype(int) < np.shape(full_mask)[0]
) & (gdf_coordinates["pxl_col_in_fullres"].values.astype(int) < np.shape(full_mask)[1])
cells = full_mask[
gdf_coordinates["pxl_row_in_fullres"].values.astype(int)[point_mask],
gdf_coordinates["pxl_col_in_fullres"].values.astype(int)[point_mask],
]
gdf_coordinates = gdf_coordinates[point_mask]
gdf_coordinates["cells"] = cells
assigned_regions = gdf_coordinates[gdf_coordinates["cells"] > 0]
adata.obs = adata.obs.merge(
assigned_regions[["cells"]], left_index=True, right_index=True, how="left"
)
adata = adata[~pd.isna(adata.obs["cells"])]
adata.obs["cells"] = adata.obs["cells"].astype(int)
####Summing the transcript counts in capture regions assigned to each nucleus
import anndata
from scipy import sparse
# Group the data by unique nucleous IDs
groupby_object = adata.obs.groupby(["cells"], observed=True)
# Extract the gene expression counts from the AnnData object
counts = adata.X
spatial_coords = adata.obs[["pxl_row_in_fullres", "pxl_col_in_fullres"]].values
# Obtain the number of unique nuclei and the number of genes in the expression data
N_groups = groupby_object.ngroups
N_genes = counts.shape[1]
# Initialize a sparse matrix to store the summed gene counts for each nucleus
summed_counts = sparse.lil_matrix((N_groups, N_genes))
# Lists to store the IDs of polygons and the current row index
polygon_id = []
cell_coords = []
row = 0
# Iterate over each unique polygon to calculate the sum of gene counts.
for polygons, idx_ in groupby_object.indices.items():
summed_counts[row] = counts[idx_].sum(0)
cell_coords.append(np.mean(spatial_coords[idx_], axis=0))
row += 1
polygon_id.append(polygons)
cell_coords = np.array(cell_coords)
# Create and AnnData object from the summed count matrix
summed_counts = summed_counts.tocsr()
grouped_adata = anndata.AnnData(
X=summed_counts,
obs=pd.DataFrame(polygon_id, columns=["cells"], index=polygon_id),
var=adata.var,
)
%store grouped_adata
# Calculate quality control metrics for the AnnData object
sc.pp.calculate_qc_metrics(grouped_adata, inplace=True)
grouped_adata.obsm["X_spatial"] = cell_coords
sc.set_figure_params(dpi=300)
sc.pl.embedding(
grouped_adata, basis="X_spatial", color="Acta2", alpha=1, vmax=1, cmap="Blues"
)
####Save out the single cell visiumHD adata
grouped_adata.write(
f"visium_hd/segmentation/segmentation_outputs/{experiment}_single_cell_adata.h5ad"
)
