Esp32 Mircopython Uart0 用于接收

项目场景：

mircopython 开发 Esp32

---

问题描述

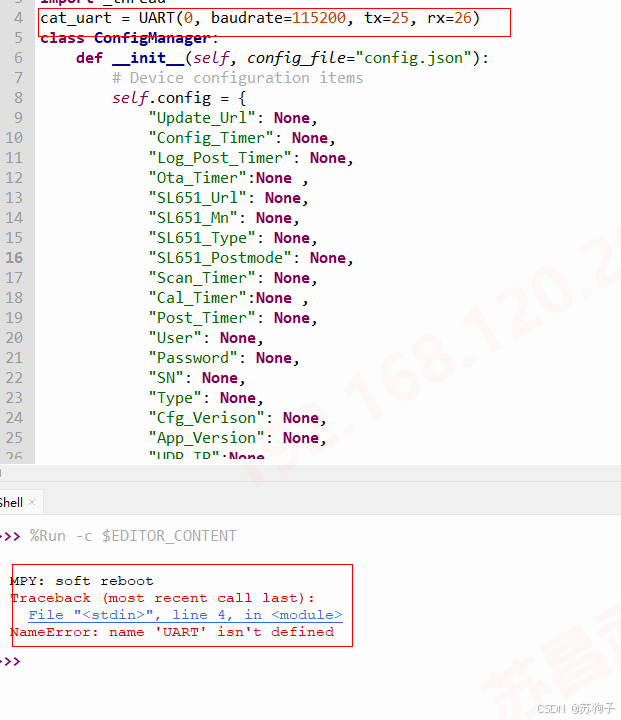

提示：1、在使用Mircopython开发esp32时，想实现用串口0进行收发，比如用sscom发送配置指令给MCU，但是直接分配UART0串口资源，会报错。2、在使用python的Input会阻塞整个线程 3、如何解决input带来的问题？

---

原因分析：

提示：这里填写问题的分析：

1、这是因为串口0被用作log打印和烧录，所以不能直接配置

2、因为input是一个阻塞式的方式，当只有一个主线程的时候，调用此方法必须要输入回车换行才才能退出

3、可以使用多线程解决阻塞问题

---

解决方案：

提示：用python的input方法作为输入方式

import time
import json
import _thread

class ConfigManager:
    def __init__(self, config_file="config.json"):
        # Device configuration items
        self.config = {
            "Update_Url": None,
            "Config_Timer": None,
            "Log_Post_Timer": None,
            "Ota_Timer":None ,
            "SL651_Url": None,
            "SL651_Mn": None,
            "SL651_Type": None,
            "SL651_Postmode": None,
            "Scan_Timer": None,
            "Cal_Timer":None ,
            "Post_Timer": None,
            "User": None,
            "Password": None,
            "SN": None,
            "Type": None,
            "Cfg_Verison": None,
            "App_Version": None,
            "UDP_IP":None ,
            "UDP_PORT":None ,
            "WIFI_NAME":None,
            "WIFI_PASS":None
        }
        self.config_file = config_file
        self.load_config()
        self.in_configuration_mode = False  # Flag to indicate if in configuration mode
    def load_config(self):
        """ Load configuration items from FLASH """
        try:
            with open(self.config_file, 'r') as f:
                self.config = json.load(f)
                for key, value in self.config.items():
                    print(f"{key}: {value}")
        except OSError:
            print("Configuration file does not exist, please configure.")
        except Exception as e:
            print("Error occurred while loading configuration:", str(e))

    def save_config(self):
        """ Save configuration items to FLASH """
        try:
            with open(self.config_file, 'w') as f:
                json.dump(self.config, f)
                print("Configuration saved:")
                for key, value in self.config.items():
                    print(f"{key}: {value}")
        except Exception as e:
            print("Error occurred while saving configuration:", str(e))

    def enter_configuration_mode(self):
        print("Entering configuration mode, please enter relevant configurations...")
        self.in_configuration_mode = True  # Set to configuration mode

        while self.in_configuration_mode:
            config_input = input("Please enter configuration command: ").strip()
            if config_input:
                print("Received configuration command:", config_input)
                if config_input.startswith("AT+"):
                    _, wait_deal_cmd = config_input.split('+', 1)
                    self.handle_command(wait_deal_cmd)
                elif config_input.upper() == "EXIT":
                    print("Exiting configuration mode.")
                    self.in_configuration_mode = False  # Exit configuration mode
                else:
                    print("Invalid command, must start with AT+.")

    def handle_command(self, command):
        try:
            if '=' in command:
                key, value = command.split('=', 1)
                key = key.strip()
                value = value.strip()

                if key in self.config:
                    self.config[key] = value
                    print(f"Successfully set this configuration: {key} = {value}")
                    self.save_config()
                else:
                    print("Unknown command:", key)
            elif command == "RST":
                print("Device rebooting...")
                man
                # Here you can add actual reboot logic
            else:
                print("Invalid command format, please check your input.")
        except Exception as e:
            print("Error occurred while processing command:", str(e))

    def input_thread(self):
        """ Input handling thread function """
        while True:
            user_input = input("Please enter command: ").strip()
            if "AT" in user_input and not self.in_configuration_mode:
                self.enter_configuration_mode()  # Enter configuration mode
            else:
                print("Input command:", user_input)

    def start(self, timeout=6):
        print(f"Please enter AT within {timeout} seconds to enter configuration mode...")
        _thread.start_new_thread(self.input_thread, ())

        start_time = time.time()
        while True:
            if time.time() - start_time > timeout:
                if not self.in_configuration_mode:  # Only exit if not in configuration mode
                    print("Timeout, AT command not entered, exiting program.")
                    break
            time.sleep(1)  # Sleep for one second to avoid CPU usage

# Start the main program
# if __name__ == "__main__":
#     config_manager = ConfigManager()
#     config_manager.start()
#     config=config_manager.config
#     print(config)
