本文介绍了如何在Android中创建一个自定义View，该View继承自TextView并实现文字颜色从左至右或从右至左渐变的效果。通过重写onDraw()方法，结合Canvas的clipRect()来控制颜色变化区域，并使用ObjectAnimator进行动画效果。此外，文章还展示了如何设置和获取自定义属性，以及如何通过枚举类型控制颜色变化的方向。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

自定义View继承自TextView。三部曲：onMeasure()\onDraw()\onTouch()

1.思路分析

1.1.思路：

实现字体变色大前提实现Text，而android已经实现过了---TextView。那么我们在实现自己功能的时候可以采用直接继承TextView的方法。这样textColor等属性就可以不用在自定义，同时onMeasure（)\onTouch()也不用重写，减少代码逻辑。

1.2.变色

             a.一个字体有两种颜色
           b.能够从左到右，从右到左。
           c.整合到ViewPager。
           自定义属性：变化的颜色和不变化的颜色

2.字体颜色

自定义属性：attrs.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <declare-styleable name="TextTrack">
        <attr name="originColor" format="color"/>
        <attr name="changeColor" format="color"/>
    </declare-styleable>
</resources>

使用属性：avtivity_main.xml

 <com.example.textcolor.TextTrack
        android:id="@+id/textTrack"
        android:layout_width="312dp"
        android:layout_height="171dp"
        android:text="Hello World"
        app:changeColor="@color/black"
        app:originColor="@color/design_default_color_primary" />

3.自定义View--初始化、获取画笔、绘制、实现不同朝向

View:TextTrack.java

3.1.初始化、画笔

    public TextTrack(Context context) {
        this(context,null);
    }

    public TextTrack(Context context, @Nullable AttributeSet attrs) {
        this(context, attrs,0);
    }

    public TextTrack(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.TextTrack);
        int originColor = typedArray.getColor(R.styleable.TextTrack_originColor,getTextColors().getDefaultColor());
        int changeColor = typedArray.getColor(R.styleable.TextTrack_changeColor,getTextColors().getDefaultColor());
        typedArray.recycle();
        originPaint = new Paint();
        originPaint.setColor(originColor);//设置颜色
        originPaint.setAntiAlias(true);//抗锯齿
        originPaint.setDither(true);//防抖动
        originPaint.setTextSize(getTextSize());

        changePaint = new Paint();
        changePaint.setColor(changeColor);//设置颜色
        changePaint.setAntiAlias(true);//抗锯齿
        changePaint.setDither(true);//防抖动
        changePaint.setTextSize(getTextSize());
    }

3.2 绘制

    @Override
    protected void onDraw(Canvas canvas) {
        //自己画文字
        //canves有一个裁剪的api,利用该方法，左边用一个颜色，右边有一个颜色，不断的改变中间值：根据进度算中间值
        int middle = (int) (mCurrentProgress * getWidth());
        //绘制不变色的

        if (direction == Direction.LEFT_TO_RIGHT) {
            canvas.save();//保存画布
            Rect rect = new Rect(0, 0, middle, getHeight());
            canvas.clipRect(rect);
            String text = getText().toString();
            Rect bounds = new Rect();
            originPaint.getTextBounds(text, 0, text.length(), bounds);
            int x = getWidth() / 2 - bounds.width() / 2;
            //基线
            Paint.FontMetrics fontMetrics = changePaint.getFontMetrics();
            int dy = (int) ((int) ((fontMetrics.bottom - fontMetrics.top)) / 2 - fontMetrics.bottom);
            int baseLine = getHeight() / 2 + dy;
            canvas.drawText(text, x, baseLine, originPaint);//此时还是一种颜色
            canvas.restore();//释放画布
            canvas.save();
            rect = new Rect(getWidth(), 0, getWidth()-middle, getHeight());
            canvas.clipRect(rect);
            canvas.drawText(text, x, baseLine, changePaint);
            Log.d("TAG", "" + changePaint.getColor());
            canvas.restore();
        }else {
            canvas.save();//保存画布
            Rect rect = new Rect(getWidth()-middle, 0, getWidth(), getHeight());
            canvas.clipRect(rect);
            String text = getText().toString();
            Rect bounds = new Rect();
            originPaint.getTextBounds(text, 0, text.length(), bounds);
            int x = getWidth() / 2 - bounds.width() / 2;
            //基线
            Paint.FontMetrics fontMetrics = changePaint.getFontMetrics();
            int dy = (int) ((int) ((fontMetrics.bottom - fontMetrics.top)) / 2 - fontMetrics.bottom);
            int baseLine = getHeight() / 2 + dy;
            canvas.drawText(text, x, baseLine, originPaint);//此时还是一种颜色
            canvas.restore();//释放画布
            canvas.save();
            rect = new Rect(0, 0, middle, getHeight());
            canvas.clipRect(rect);
            canvas.drawText(text, x, baseLine, changePaint);
            Log.d("TAG", "" + changePaint.getColor());
            canvas.restore();
        }
    }

3.3.不同朝向--LEFT_TO_RIGHT\RIGHT_TO_LEFT

定义一个枚举：方向。默认：从右向左

  private Direction direction = Direction.RIGHT_TO_LEFT;
    //实现不同的朝向，定义一个枚举变量
    public enum Direction{
        LEFT_TO_RIGHT,RIGHT_TO_LEFT;
    }

设置方向

    public void setmCurrentProgress(float mCurrentProgress) {
        this.mCurrentProgress = mCurrentProgress;
    }

    public void setDirection(Direction direction) {
        this.direction = direction;
        invalidate();
    }

4.main函数

package com.example.textcolor;

import androidx.appcompat.app.AppCompatActivity;

import android.animation.ObjectAnimator;
import android.animation.ValueAnimator;
import android.os.Bundle;
import android.view.View;
import android.view.animation.Animation;
import android.widget.Button;

public class MainActivity extends AppCompatActivity {

    private TextTrack textTrack;
    private Button  left,right;
//    private int mCurrentProgress;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        textTrack = findViewById(R.id.textTrack);
        left = findViewById(R.id.left);
        right = findViewById(R.id.right);

        left.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                ValueAnimator objectAnimator = ValueAnimator.ofFloat(0,1);
                objectAnimator.setDuration(10000);
                objectAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator animation) {
                        float mCurrentProgress = (float) objectAnimator.getAnimatedValue();
                        textTrack.setmCurrentProgress(mCurrentProgress);
                        textTrack.setDirection(TextTrack.Direction.LEFT_TO_RIGHT);


                    }
                });
                objectAnimator.start();

            }
        });

        right.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                ValueAnimator objectAnimator = ValueAnimator.ofFloat(0,1);
                objectAnimator.setDuration(10000);
                objectAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator animation) {
                        float mCurrentProgress = (float) objectAnimator.getAnimatedValue();
                        textTrack.setmCurrentProgress(mCurrentProgress);
                        textTrack.setDirection(TextTrack.Direction.RIGHT_TO_LEFT);


                    }
                });
                objectAnimator.start();
            }
        });
    }
}

5.附件

package com.example.textcolor;

import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.Rect;
import android.util.AttributeSet;
import android.util.Log;
import android.widget.TextView;

import androidx.annotation.Nullable;

public class TextTrack extends androidx.appcompat.widget.AppCompatTextView {

    private Paint originPaint,changePaint;
    //实现一个文字两种颜色，当前的进度
    private float mCurrentProgress = 0.5f;
    private Direction direction = Direction.RIGHT_TO_LEFT;
    //实现不同的朝向，定义一个枚举变量
    public enum Direction{
        LEFT_TO_RIGHT,RIGHT_TO_LEFT;
    }

    public TextTrack(Context context) {
        this(context,null);
    }

    public TextTrack(Context context, @Nullable AttributeSet attrs) {
        this(context, attrs,0);
    }

    public TextTrack(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.TextTrack);
        int originColor = typedArray.getColor(R.styleable.TextTrack_originColor,getTextColors().getDefaultColor());
        int changeColor = typedArray.getColor(R.styleable.TextTrack_changeColor,getTextColors().getDefaultColor());
        typedArray.recycle();
        originPaint = new Paint();
        originPaint.setColor(originColor);//设置颜色
        originPaint.setAntiAlias(true);//抗锯齿
        originPaint.setDither(true);//防抖动
        originPaint.setTextSize(getTextSize());

        changePaint = new Paint();
        changePaint.setColor(changeColor);//设置颜色
        changePaint.setAntiAlias(true);//抗锯齿
        changePaint.setDither(true);//防抖动
        changePaint.setTextSize(getTextSize());
    }


    @Override
    protected void onDraw(Canvas canvas) {
        //自己画文字
        //canves有一个裁剪的api,利用该方法，左边用一个颜色，右边有一个颜色，不断的改变中间值：根据进度算中间值
        int middle = (int) (mCurrentProgress * getWidth());
        //绘制不变色的

        if (direction == Direction.LEFT_TO_RIGHT) {
            canvas.save();//保存画布
            Rect rect = new Rect(0, 0, middle, getHeight());
            canvas.clipRect(rect);
            String text = getText().toString();
            Rect bounds = new Rect();
            originPaint.getTextBounds(text, 0, text.length(), bounds);
            int x = getWidth() / 2 - bounds.width() / 2;
            //基线
            Paint.FontMetrics fontMetrics = changePaint.getFontMetrics();
            int dy = (int) ((int) ((fontMetrics.bottom - fontMetrics.top)) / 2 - fontMetrics.bottom);
            int baseLine = getHeight() / 2 + dy;
            canvas.drawText(text, x, baseLine, originPaint);//此时还是一种颜色
            canvas.restore();//释放画布
            canvas.save();
            rect = new Rect(getWidth(), 0, getWidth()-middle, getHeight());
            canvas.clipRect(rect);
            canvas.drawText(text, x, baseLine, changePaint);
            Log.d("TAG", "" + changePaint.getColor());
            canvas.restore();
        }else {
            canvas.save();//保存画布
            Rect rect = new Rect(getWidth()-middle, 0, getWidth(), getHeight());
            canvas.clipRect(rect);
            String text = getText().toString();
            Rect bounds = new Rect();
            originPaint.getTextBounds(text, 0, text.length(), bounds);
            int x = getWidth() / 2 - bounds.width() / 2;
            //基线
            Paint.FontMetrics fontMetrics = changePaint.getFontMetrics();
            int dy = (int) ((int) ((fontMetrics.bottom - fontMetrics.top)) / 2 - fontMetrics.bottom);
            int baseLine = getHeight() / 2 + dy;
            canvas.drawText(text, x, baseLine, originPaint);//此时还是一种颜色
            canvas.restore();//释放画布
            canvas.save();
            rect = new Rect(0, 0, middle, getHeight());
            canvas.clipRect(rect);
            canvas.drawText(text, x, baseLine, changePaint);
            Log.d("TAG", "" + changePaint.getColor());
            canvas.restore();
        }
    }


    public void setmCurrentProgress(float mCurrentProgress) {
        this.mCurrentProgress = mCurrentProgress;
    }

    public void setDirection(Direction direction) {
        this.direction = direction;
        invalidate();
    }
}

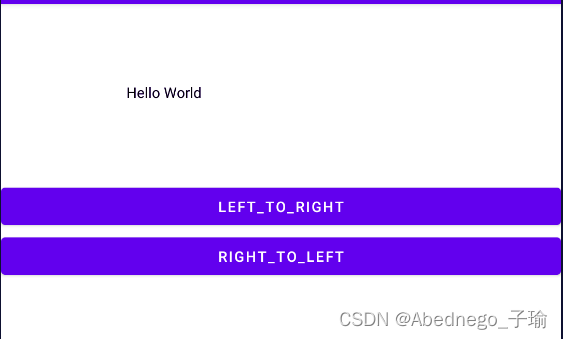

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <com.example.textcolor.TextTrack
        android:id="@+id/textTrack"
        android:layout_width="312dp"
        android:layout_height="171dp"
        android:text="Hello World"
        app:changeColor="@color/black"
        app:originColor="@color/design_default_color_primary" />


    <Button
        android:id="@+id/left"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="left_to_right"/>
    <Button
        android:id="@+id/right"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="right_to_left"/>

</LinearLayout>
