1.基础配置

1.QGraphicsView提升为QChartView

#include <QtCharts>
QT_CHARTS_USE_NAMESPACE
#include "ui_widget.h"

2. QT += charts

2.柱状图

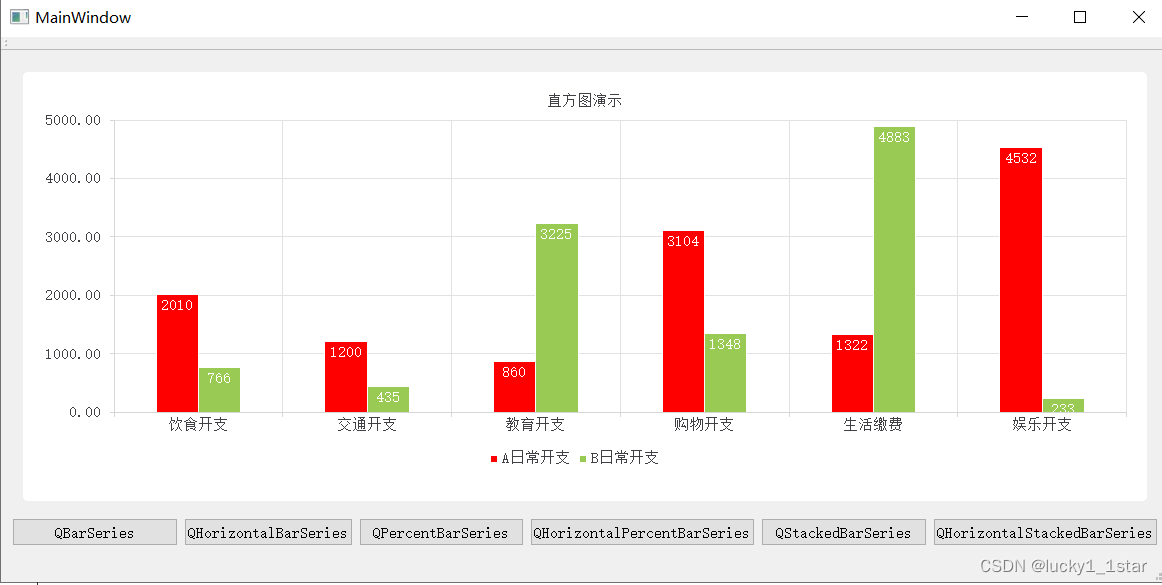

2.1QBarSeries

    //1.创建Qchart对象
    QChart *chart = new QChart();
    chart->setTitle("直方图演示");//设置表格标题

    //2.创建QBarSet对象
    QBarSet *set0 = new QBarSet("A日常开支");//设置直方图类别名称
    QBarSet *set1 = new QBarSet("B日常开支");
    set0->setColor(QColor("red"));//设置颜色

    *set0 << 2010 << 1200 << 860 << 3104 << 1322 << 4532;
    *set1 << 766 << 435 << 3225 << 1348 << 4883 << 233;
    chart->legend()->setVisible(true);//设置直方图类别名称显隐
    chart->legend()->setAlignment(Qt::AlignBottom);//直方图类别名称位置

    //3.创建QBarSeries对象
    QBarSeries  *series = new QBarSeries (chart);
    series->append(set0);
    series->append(set1);

    //4.将QBarSeries添加到QChart
    chart->addSeries(series);

    //5.设置动画效果
    chart->setAnimationOptions(QChart::SeriesAnimations);

    //6.设置横坐标字符串
    QStringList categories;
    categories << "饮食开支" << "交通开支" << "教育开支" << "购物开支" << "生活缴费" << "娱乐开支";  //保存横坐标字符串的列表
    QBarCategoryAxis *axis = new QBarCategoryAxis();
    axis->append(categories);

    chart->createDefaultAxes(); //设置网格
    chart->setAxisX(axis, series);
    chart->axes(Qt::Vertical).first()->setRange(0,5000);//设置y轴数值范围

    // Add space to label to add space between labels and axis在标签和轴之间加空格
    QValueAxis *axisY = qobject_cast<QValueAxis*>(chart->axes(Qt::Vertical).first());
    Q_ASSERT(axisY);
    axisY->setLabelFormat("%.2f  ");//控制y轴数值精度
    axisY->setTickCount(6);  //设置y轴刻度
    series->setLabelsPosition(QAbstractBarSeries::LabelsInsideEnd);  //设置标签显示的位置
    series->setLabelsVisible(true);  //设置数据标签可见

    //设置主题
    // 可选： QChart::ChartThemeLight
    // QChart::ChartThemeBlueCerulean
    // QChart::ChartThemeDark
    // QChart::ChartThemeBrownSand
    // QChart::ChartThemeBlueNcs
    // QChart::ChartThemeHighContrast
    // QChart::ChartThemeBlueIcy
    // QChart::ChartThemeQt
    chart->setTheme(QChart::ChartThemeLight);
    ui->graphicsView->setChart(chart);
    ui->graphicsView->setRenderHint(QPainter::Antialiasing);

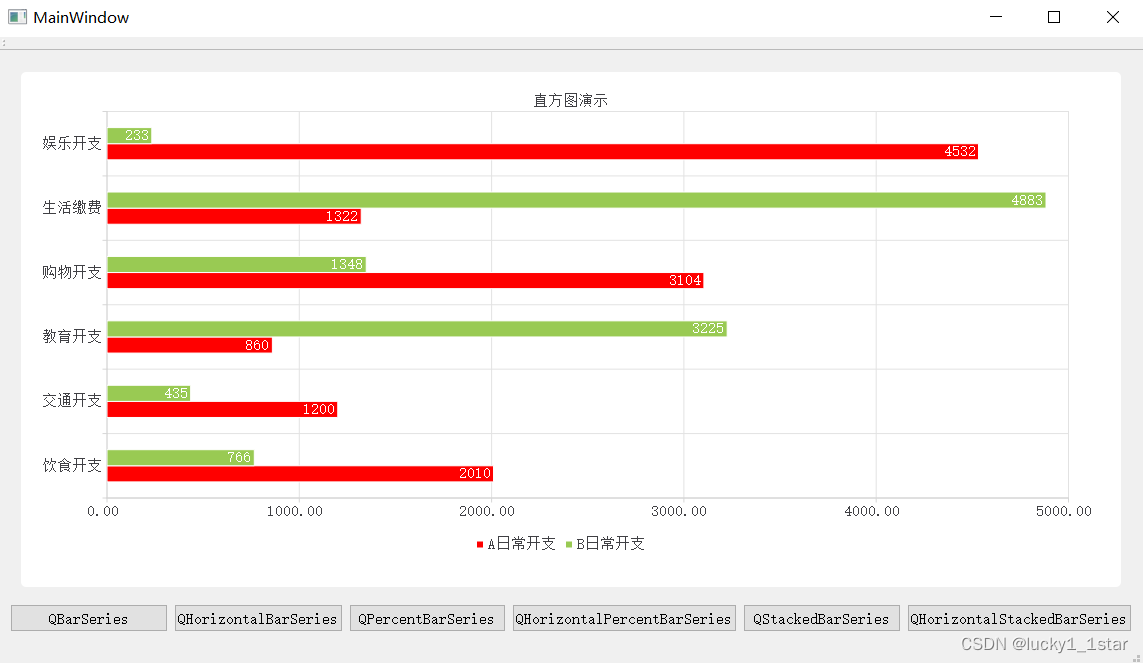

2.2QHorizontalBarSeries

    //1.创建Qchart对象
    QChart *chart = new QChart();
    chart->setTitle("直方图演示");//设置表格标题

    //2.创建QBarSet对象
    QBarSet *set0 = new QBarSet("A日常开支");//设置直方图类别名称
    QBarSet *set1 = new QBarSet("B日常开支");
    set0->setColor(QColor("red"));//设置颜色

    *set0 << 2010 << 1200 << 860 << 3104 << 1322 << 4532;
    *set1 << 766 << 435 << 3225 << 1348 << 4883 << 233;
    chart->legend()->setVisible(true);//设置直方图类别名称显隐
    chart->legend()->setAlignment(Qt::AlignBottom);//直方图类别名称位置

    //3.创建QBarSeries对象
    QHorizontalBarSeries  *series = new QHorizontalBarSeries (chart);
    series->append(set0);
    series->append(set1);

    //4.将QBarSeries添加到QChart
    chart->addSeries(series);

    //5.设置动画效果
    chart->setAnimationOptions(QChart::SeriesAnimations);

    //6.设置横坐标字符串
    QStringList categories;
    categories << "饮食开支" << "交通开支" << "教育开支" << "购物开支" << "生活缴费" << "娱乐开支";  //保存横坐标字符串的列表
    QBarCategoryAxis *axis = new QBarCategoryAxis();
    axis->append(categories);

    chart->createDefaultAxes(); //设置网格
    chart->setAxisY(axis, series);
    chart->axes(Qt::Horizontal).first()->setRange(0,5000);//设置x轴数值范围

    // Add space to label to add space between labels and axis在标签和轴之间加空格
    QValueAxis *axisX = qobject_cast<QValueAxis*>(chart->axes(Qt::Horizontal).first());
    Q_ASSERT(axisX);
    axisX->setLabelFormat("%.2f  ");//控制y轴数值精度
    axisX->setTickCount(6);  //设置y轴刻度
    series->setLabelsPosition(QAbstractBarSeries::LabelsInsideEnd);  //设置标签显示的位置
    series->setLabelsVisible(true);  //设置数据标签可见

    chart->setTheme(QChart::ChartThemeLight);
    ui->graphicsView->setChart(chart);
    ui->graphicsView->setRenderHint(QPainter::Antialiasing);

2.3QPercentBarSeries

    //1.创建Qchart对象
    QChart *chart = new QChart();
    chart->setTitle("直方图演示");//设置表格标题

    //2.创建QBarSet对象
    QBarSet *set0 = new QBarSet("A日常开支");//设置直方图类别名称
    QBarSet *set1 = new QBarSet("B日常开支");
    set0->setColor(QColor("red"));//设置颜色

    *set0 << 1000 << 1000 << 1000 << 1000 << 1000 << 1000;
    *set1 << 1000 << 1000 << 1000 << 1000 << 1000 << 1000;
    chart->legend()->setVisible(true);//设置直方图类别名称显隐
    chart->legend()->setAlignment(Qt::AlignBottom);//直方图类别名称位置

    //3.创建QBarSeries对象
    QPercentBarSeries   *series = new QPercentBarSeries  (chart);
    series->append(set0);
    series->append(set1);

    //4.将QBarSeries添加到QChart
    chart->addSeries(series);

    //5.设置动画效果
    chart->setAnimationOptions(QChart::SeriesAnimations);

    //6.设置横坐标字符串
    QStringList categories;
    categories << "饮食开支" << "交通开支" << "教育开支" << "购物开支" << "生活缴费" << "娱乐开支";  //保存横坐标字符串的列表
    QBarCategoryAxis *axis = new QBarCategoryAxis();
    axis->append(categories);

    chart->createDefaultAxes(); //设置网格
    chart->setAxisX(axis, series);
    //chart->axes(Qt::Vertical).first()->setRange(0,5000);//设置x轴数值范围

    // Add space to label to add space between labels and axis在标签和轴之间加空格
    QValueAxis *axisY = qobject_cast<QValueAxis*>(chart->axes(Qt::Vertical).first());
    Q_ASSERT(axisY);
    axisY->setLabelFormat("%.2f  ");//控制y轴数值精度
    //axisY->setTickCount(6);  //设置y轴刻度
    series->setLabelsPosition(QAbstractBarSeries::LabelsInsideEnd);  //设置标签显示的位置
    series->setLabelsVisible(true);  //设置数据标签可见

    chart->setTheme(QChart::ChartThemeLight);
    ui->graphicsView->setChart(chart);
    ui->graphicsView->setRenderHint(QPainter::Antialiasing);

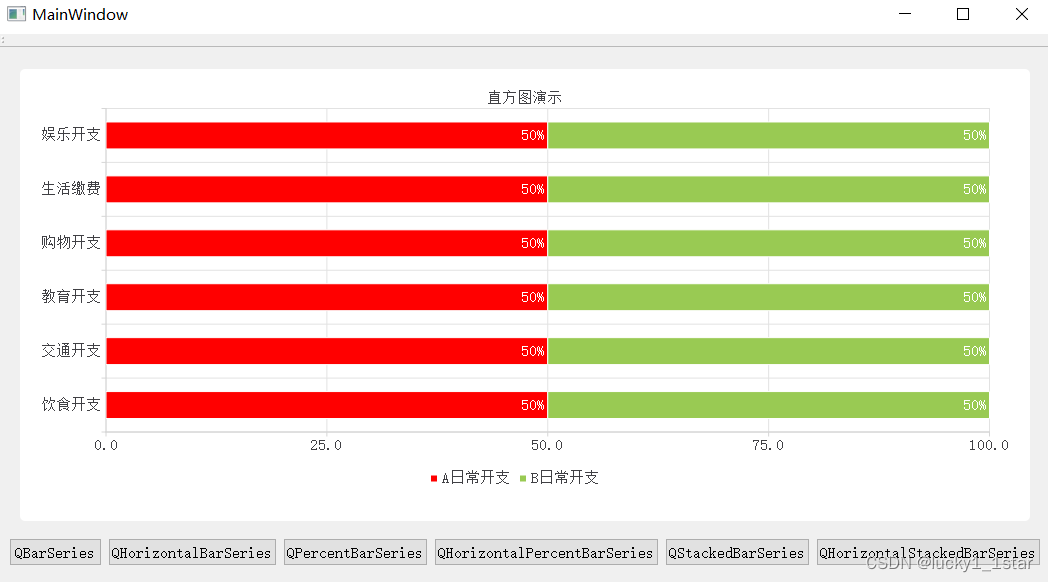

2.4QHorizontalPercentBarSeries

    //1.创建Qchart对象
    QChart *chart = new QChart();
    chart->setTitle("直方图演示");//设置表格标题

    //2.创建QBarSet对象
    QBarSet *set0 = new QBarSet("A日常开支");//设置直方图类别名称
    QBarSet *set1 = new QBarSet("B日常开支");
    set0->setColor(QColor("red"));//设置颜色

    *set0 << 1000 << 1000 << 1000 << 1000 << 1000 << 1000;
    *set1 << 1000 << 1000 << 1000 << 1000 << 1000 << 1000;
    chart->legend()->setVisible(true);//设置直方图类别名称显隐
    chart->legend()->setAlignment(Qt::AlignBottom);//直方图类别名称位置

    //3.创建QBarSeries对象
    QHorizontalPercentBarSeries* series = new QHorizontalPercentBarSeries(chart);
    series->append(set0);
    series->append(set1);

    //4.将QBarSeries添加到QChart
    chart->addSeries(series);

    //5.设置动画效果
    chart->setAnimationOptions(QChart::SeriesAnimations);

    //6.设置横坐标字符串
    QStringList categories;
    categories << "饮食开支" << "交通开支" << "教育开支" << "购物开支" << "生活缴费" << "娱乐开支";  //保存横坐标字符串的列表
    QBarCategoryAxis *axis = new QBarCategoryAxis();
    axis->append(categories);

    chart->createDefaultAxes(); //设置网格
    chart->setAxisY(axis, series);
    //chart->axes(Qt::Vertical).first()->setRange(0,5000);//设置x轴数值范围

    // Add space to label to add space between labels and axis在标签和轴之间加空格
    //QValueAxis *axisY = qobject_cast<QValueAxis*>(chart->axes(Qt::Vertical).first());
    //Q_ASSERT(axisY);
    //axisY->setLabelFormat("%.2f  ");//控制y轴数值精度
    //axisY->setTickCount(6);  //设置y轴刻度
    series->setLabelsPosition(QAbstractBarSeries::LabelsInsideEnd);  //设置标签显示的位置
    series->setLabelsVisible(true);  //设置数据标签可见

    chart->setTheme(QChart::ChartThemeLight);
    ui->graphicsView->setChart(chart);
    ui->graphicsView->setRenderHint(QPainter::Antialiasing);

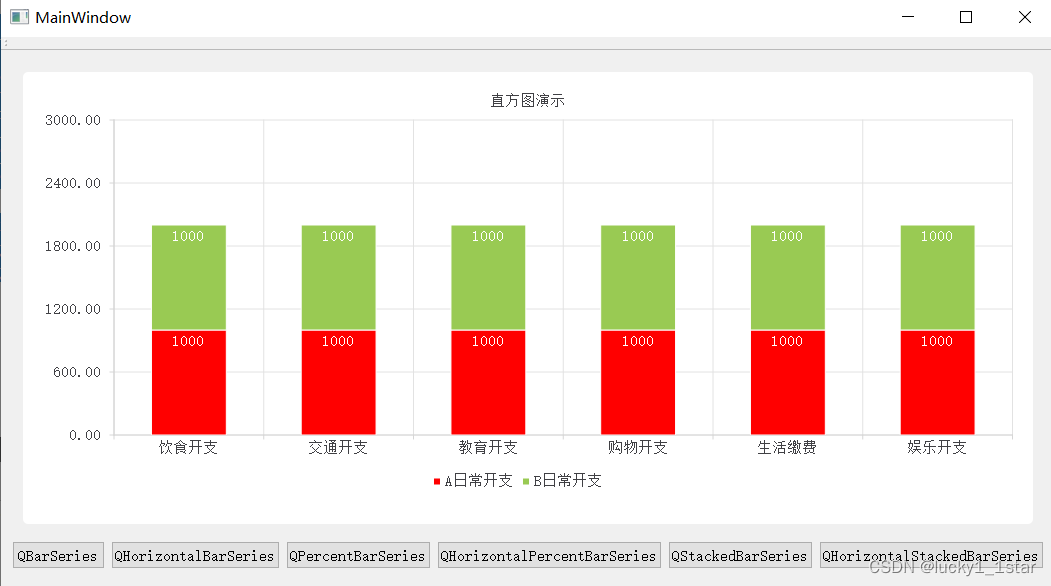

2.5QStackedBarSeries

    //1.创建Qchart对象
    QChart *chart = new QChart();
    chart->setTitle("直方图演示");//设置表格标题

    //2.创建QBarSet对象
    QBarSet *set0 = new QBarSet("A日常开支");//设置直方图类别名称
    QBarSet *set1 = new QBarSet("B日常开支");
    set0->setColor(QColor("red"));//设置颜色

    *set0 << 1000 << 1000 << 1000 << 1000 << 1000 << 1000;
    *set1 << 1000 << 1000 << 1000 << 1000 << 1000 << 1000;
    chart->legend()->setVisible(true);//设置直方图类别名称显隐
    chart->legend()->setAlignment(Qt::AlignBottom);//直方图类别名称位置

    //3.创建QBarSeries对象
    QStackedBarSeries *series = new QStackedBarSeries(chart);
    series->append(set0);
    series->append(set1);

    //4.将QBarSeries添加到QChart
    chart->addSeries(series);

    //5.设置动画效果
    chart->setAnimationOptions(QChart::SeriesAnimations);

    //6.设置横坐标字符串
    QStringList categories;
    categories << "饮食开支" << "交通开支" << "教育开支" << "购物开支" << "生活缴费" << "娱乐开支";  //保存横坐标字符串的列表
    QBarCategoryAxis *axis = new QBarCategoryAxis();
    axis->append(categories);

    chart->createDefaultAxes(); //设置网格
    chart->setAxisX(axis, series);
    chart->axes(Qt::Vertical).first()->setRange(0,3000);//设置x轴数值范围

    // Add space to label to add space between labels and axis在标签和轴之间加空格
    QValueAxis *axisY = qobject_cast<QValueAxis*>(chart->axes(Qt::Vertical).first());
    Q_ASSERT(axisY);
    axisY->setLabelFormat("%.2f  ");//控制y轴数值精度
    axisY->setTickCount(6);  //设置y轴刻度
    series->setLabelsPosition(QAbstractBarSeries::LabelsInsideEnd);  //设置标签显示的位置
    series->setLabelsVisible(true);  //设置数据标签可见

    chart->setTheme(QChart::ChartThemeLight);
    ui->graphicsView->setChart(chart);
    ui->graphicsView->setRenderHint(QPainter::Antialiasing);

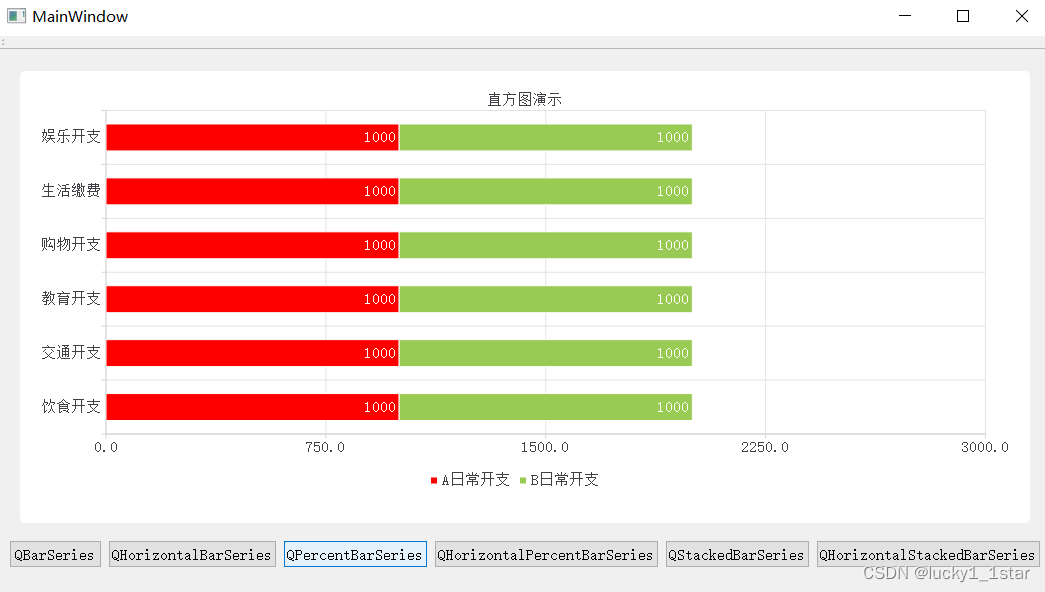

2.6QHorizontalStackedBarSeries

    //1.创建Qchart对象
    QChart *chart = new QChart();
    chart->setTitle("直方图演示");//设置表格标题

    //2.创建QBarSet对象
    QBarSet *set0 = new QBarSet("A日常开支");//设置直方图类别名称
    QBarSet *set1 = new QBarSet("B日常开支");
    set0->setColor(QColor("red"));//设置颜色

    *set0 << 1000 << 1000 << 1000 << 1000 << 1000 << 1000;
    *set1 << 1000 << 1000 << 1000 << 1000 << 1000 << 1000;
    chart->legend()->setVisible(true);//设置直方图类别名称显隐
    chart->legend()->setAlignment(Qt::AlignBottom);//直方图类别名称位置

    //3.创建QBarSeries对象
    QHorizontalStackedBarSeries* series = new QHorizontalStackedBarSeries(chart);
    series->append(set0);
    series->append(set1);

    //4.将QBarSeries添加到QChart
    chart->addSeries(series);

    //5.设置动画效果
    chart->setAnimationOptions(QChart::SeriesAnimations);

    //6.设置横坐标字符串
    QStringList categories;
    categories << "饮食开支" << "交通开支" << "教育开支" << "购物开支" << "生活缴费" << "娱乐开支";  //保存横坐标字符串的列表
    QBarCategoryAxis *axis = new QBarCategoryAxis();
    axis->append(categories);

    chart->createDefaultAxes(); //设置网格
    chart->setAxisY(axis, series);
    chart->axes(Qt::Horizontal).first()->setRange(0,3000);//设置x轴数值范围

    // Add space to label to add space between labels and axis在标签和轴之间加空格
    //QValueAxis *axisY = qobject_cast<QValueAxis*>(chart->axes(Qt::Vertical).first());
    //Q_ASSERT(axisY);
    //axisY->setLabelFormat("%.2f  ");//控制y轴数值精度
    //axisY->setTickCount(6);  //设置y轴刻度
    series->setLabelsPosition(QAbstractBarSeries::LabelsInsideEnd);  //设置标签显示的位置
    series->setLabelsVisible(true);  //设置数据标签可见

    chart->setTheme(QChart::ChartThemeLight);
    ui->graphicsView->setChart(chart);
    ui->graphicsView->setRenderHint(QPainter::Antialiasing);

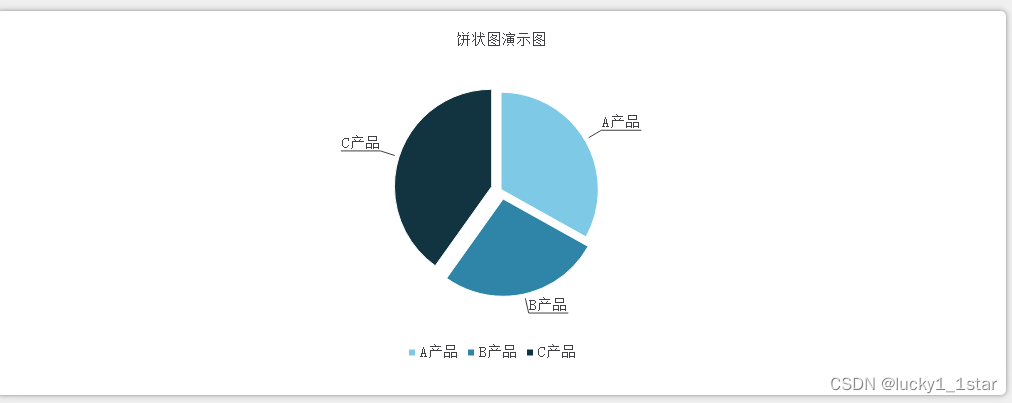

3.饼状图

    QChart *chart = new QChart();
    chart->setTitle("饼状图演示图");

    QPieSeries *series = new QPieSeries(chart);
    series->setName("hello");
    series->append("A产品",3143);
    series->append("B产品",2542);
    series->append("C产品",3812);
    series->setLabelsVisible();
    //饼图的大小
    series->setPieSize(0.7);


    QPieSlice *slice_1 =series->slices().at(0);
    QPieSlice *slice_2 =series->slices().at(1);
    QPieSlice *slice_3 =series->slices().at(2);

    slice_1->setLabelVisible();// 是否显示指标文字
    slice_1->setExploded();//扇面区分
    slice_1->setExplodeDistanceFactor(0);// 扇面分开的距离指数
    slice_2->setLabelVisible();
    slice_2->setExploded();
    slice_2->setExplodeDistanceFactor(0.1);
    slice_3->setLabelVisible();
    slice_3->setExploded();
    slice_3->setExplodeDistanceFactor(0.1);

    chart->setAnimationOptions(QChart::AllAnimations);//设置动画效果
    //chart->legend()->setAlignment(Qt::AlignRight);//竖向图例
    chart->legend()->setAlignment(Qt::AlignBottom);//横向图例
    chart->addSeries(series);
    chart->setTheme(QChart::ChartThemeBlueIcy); //选择主题
    ui->graphicsView->setChart(chart);

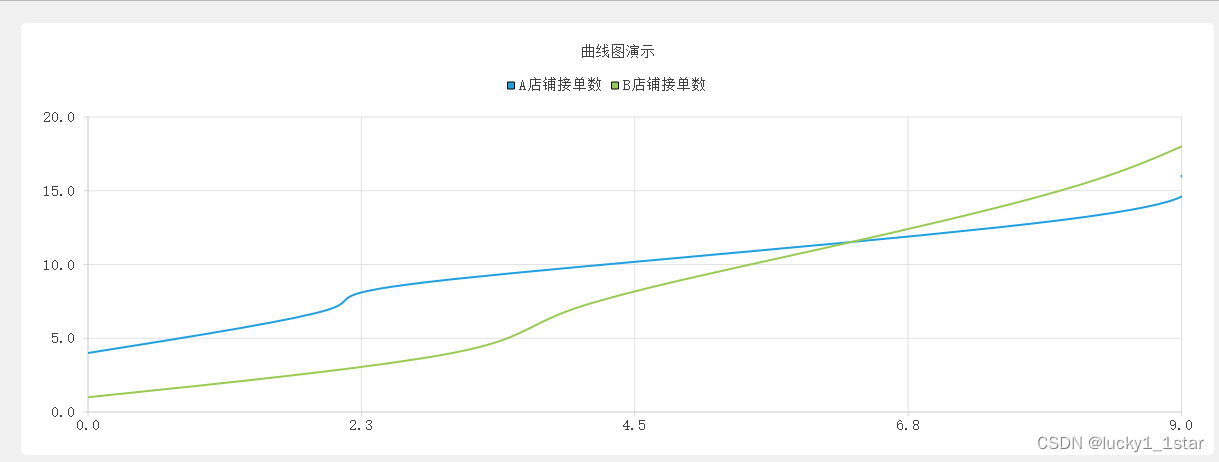

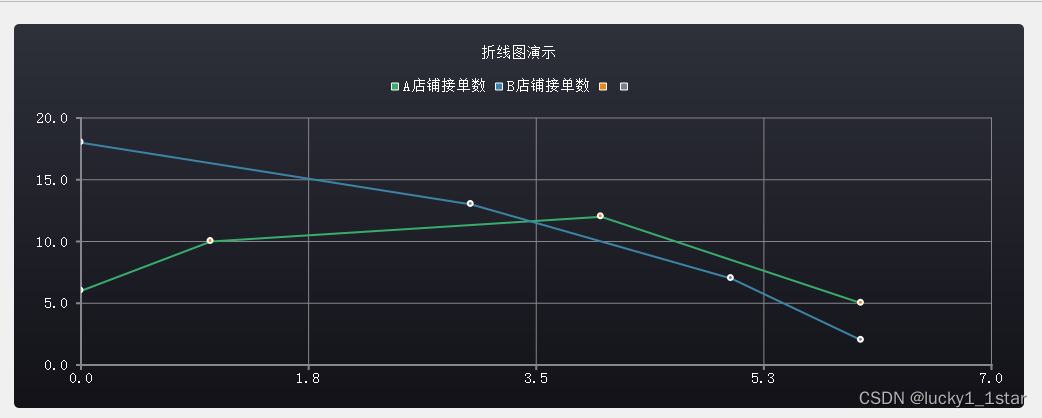

4.折线图

    QChart *chart = new QChart();
    chart->setTitle("折线图演示");


    QLineSeries *series1 = new QLineSeries(chart);
    QLineSeries *series2 = new QLineSeries(chart);

    series1->setName("A店铺接单数");
    series2->setName("B店铺接单数");

    series1->append(0,6);
    series1->append(1,10);
    series1->append(4,12);
    series1->append(6,5);

    series2->append(0,18);
    series2->append(3,13);
    series2->append(5,7);
    series2->append(6,2);

    chart->addSeries(series1);
    chart->addSeries(series2);

    QScatterSeries *scatterSeries1 = new QScatterSeries();
    scatterSeries1->setPointLabelsFormat("@yPoint");
    scatterSeries1->setPointLabelsVisible();
    scatterSeries1->setMarkerSize(5);
    // *scatterSeries1 << QPointF(0,6);也可以
    scatterSeries1->append(0,6);
    scatterSeries1->append(1,10);
    scatterSeries1->append(4,12);
    scatterSeries1->append(6,5);

    QScatterSeries *scatterSeries2 = new QScatterSeries();
    scatterSeries2->setPointLabelsFormat("@yPoint");
    scatterSeries2->setPointLabelsVisible();
    scatterSeries2->setMarkerSize(5);
    scatterSeries2->append(0,18);
    scatterSeries2->append(3,13);
    scatterSeries2->append(5,7);
    scatterSeries2->append(6,2);
    chart->addSeries(scatterSeries1);
    chart->addSeries(scatterSeries2);

    //chart->legend()->hide();//隐藏legend（图例）

    //设置动画效果
    chart->setAnimationOptions(QChart::AllAnimations);

    chart->createDefaultAxes();// 设置网格
    chart->axes(Qt::Horizontal).first()->setRange(0, 7);//设置x轴范围
    chart->axes(Qt::Vertical).first()->setRange(0, 20);//设置y轴范围

    // Add space to label to add space between labels and axis 在标签和轴之间加空格
    QValueAxis *axisY = qobject_cast<QValueAxis*>(chart->axes(Qt::Vertical).first());
    Q_ASSERT(axisY);
    axisY->setLabelFormat("%.1f  ");
    chart->setTheme(QChart::ChartThemeDark);
    ui->graphicsView->setChart(chart);

5.曲线图

    QChart *chart = new QChart();
    chart->setTitle("曲线图演示");

    QSplineSeries *series1 = new QSplineSeries(chart);
    QSplineSeries *series2 = new QSplineSeries(chart);
    series1->setName("A店铺接单数");
    series2->setName("B店铺接单数");
    *series1 << QPointF(0,4) << QPointF(2,7) << QPointF(3,9) << QPointF(8,13) << QPointF(9,16);
    *series2 << QPointF(0,1) << QPointF(3,4) << QPointF(4,7) << QPointF(6,11) << QPointF(8,15)<< QPointF(9,18);

    chart->addSeries(series1);
    chart->addSeries(series2);


    chart->createDefaultAxes();
    chart->axes(Qt::Horizontal).first()->setRange(0, 9);
    chart->axes(Qt::Vertical).first()->setRange(0, 20);

    // Add space to label to add space between labels and axis 在标签和轴之间加空格
    QValueAxis *axisY = qobject_cast<QValueAxis*>(chart->axes(Qt::Vertical).first());
    Q_ASSERT(axisY);
    axisY->setLabelFormat("%.1f  ");
    chart->setTheme(QChart::ChartThemeLight);
    ui->graphicsView->setChart(chart);

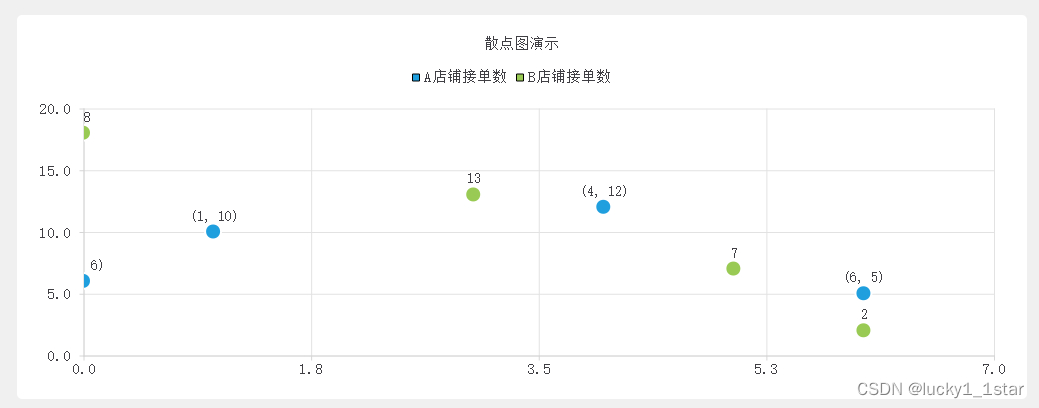

6.散点图

    QChart *chart = new QChart();
    chart->setTitle("散点图演示");

    QScatterSeries *scatterSeries1 = new QScatterSeries(chart);
    QScatterSeries *scatterSeries2 = new QScatterSeries(chart);

    scatterSeries1->setName("A店铺接单数");
    scatterSeries1->setPointLabelsFormat("(@xPoint, @yPoint)");
    scatterSeries1->setPointLabelsVisible();
    scatterSeries1->setMarkerSize(16);

    scatterSeries2->setName("B店铺接单数");
    scatterSeries2->setPointLabelsFormat("@yPoint");
    scatterSeries2->setPointLabelsVisible();
    scatterSeries2->setMarkerSize(16);

    scatterSeries1->append(0,6);
    scatterSeries1->append(1,10);
    scatterSeries1->append(4,12);
    scatterSeries1->append(6,5);
    scatterSeries2->append(0,18);
    scatterSeries2->append(3,13);
    scatterSeries2->append(5,7);
    scatterSeries2->append(6,2);
    chart->addSeries(scatterSeries1);
    chart->addSeries(scatterSeries2);


    chart->createDefaultAxes();
    chart->axes(Qt::Horizontal).first()->setRange(0, 7);// x轴范围
    chart->axes(Qt::Vertical).first()->setRange(0, 20);// y轴范围
    // Add space to label to add space between labels and axis在标签和轴之间加空格
    QValueAxis *axisY = qobject_cast<QValueAxis*>(chart->axes(Qt::Vertical).first());
    Q_ASSERT(axisY);
    axisY->setLabelFormat("%.1f  ");

    chart->setTheme(QChart::ChartThemeLight);
    ui->graphicsView->setChart(chart);

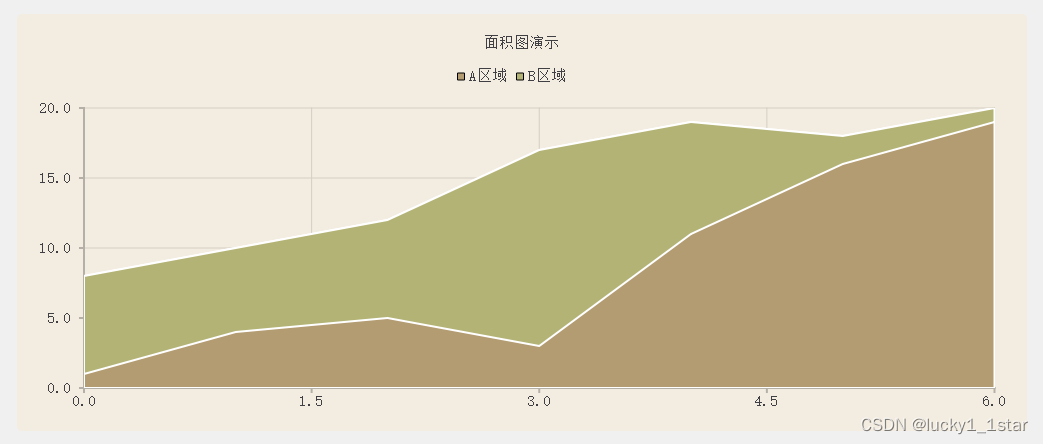

7.面积图

    QChart *chart = new QChart();
    chart->setTitle("面积图演示");

    QLineSeries *series1 = new QLineSeries(chart);
    series1->setName("A店铺接单数");

    series1->append(0,8);
    series1->append(1,10);
    series1->append(2,12);
    series1->append(3,17);
    series1->append(4,19);
    series1->append(5,18);
    series1->append(6,20);

    QLineSeries *series2 = new QLineSeries(chart);
    series2->setName("B店铺接单数");
    series2->append(0,1);
    series2->append(1,4);
    series2->append(2,5);
    series2->append(3,3);
    series2->append(4,11);
    series2->append(5,16);
    series2->append(6,19);

    QAreaSeries *area1 = new QAreaSeries(series1, 0);
    QAreaSeries *area2 = new QAreaSeries(series2, series1);
    area1->setName("A区域");
    area2->setName("B区域");
    chart->addSeries(area1);
    chart->addSeries(area2);
    chart->createDefaultAxes();
    chart->axes(Qt::Horizontal).first()->setRange(0, 6);
    chart->axes(Qt::Vertical).first()->setRange(0, 20);

    // Add space to label to add space between labels and axis在标签和轴之间加空格
    QValueAxis *axisY = qobject_cast<QValueAxis*>(chart->axes(Qt::Vertical).first());
    Q_ASSERT(axisY);
    axisY->setLabelFormat("%.1f  ");
    chart->setTheme(QChart::ChartThemeBrownSand);
    ui->graphicsView->setChart(chart);
