本文是Xilium.CefGlue的入门指南，介绍了如何使用这个基于Chromium Embedded Framework的.NET绑定库。内容涵盖项目简介、参考资料、源代码下载、启动流程、JS与C#互操作以及进程间通讯。Xilium.CefGlue提供了简单易用的API，支持跨平台，允许开发者创建基于Chromium的应用，并提供了与JavaScript交互的能力。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

人虽然渺小，人生虽然短促，但是人能学，人能修身，人能自我完善，人的可贵在人自身。

——杨绛

一、Xilium.CefGlue 简介

Xilium.CefGlue 是一个开源项目，它是基于 Chromium Embedded Framework (CEF) 的一个 .NET 绑定库。CEF 是一个强大的开源项目，它允许开发者在自己的应用程序中嵌入完整的 Chromium 浏览器引擎。

Xilium.CefGlue 提供了一个简单易用的方式，让开发者能够使用 C# 或其他 .NET 语言来创建基于 Chromium 的应用程序。它提供了对 CEF 的封装，使得开发者可以轻松地在自己的应用程序中嵌入一个功能强大的浏览器引擎。

使用 Xilium.CefGlue，开发者可以实现各种功能，例如创建自定义的浏览器窗口、加载网页、处理 JavaScript 和 DOM 事件、执行 JavaScript 代码等等。它还支持与原生代码的交互，可以通过 CEF 的扩展机制来扩展功能。

Xilium.CefGlue 的优点包括：

  1. 跨平台：CEF 支持多个操作系统，包括 Windows、Linux 和 macOS，因此 Xilium.CefGlue 也可以在这些平台上运行。
  2. 强大的功能：由于基于 Chromium，Xilium.CefGlue 提供了一个功能丰富的浏览器引擎，支持 HTML5、CSS3、JavaScript 等最新的 Web 技术。
  3. 易于使用：Xilium.CefGlue 提供了简单易用的 API，使得开发者可以快速上手并构建自己的应用程序。
  4. 社区支持：作为一个开源项目，Xilium.CefGlue 拥有活跃的社区，开发者可以从社区中获取支持和贡献代码。

 二、参考资料

Xilium.CefGlue 文档不多，可以参照 CEF 官网文档，

chromiumembedded / cef / wiki / GeneralUsage — Bitbucketicon-default.png?t=N7T8https://bitbucket.org/chromiumembedded/cef/wiki/GeneralUsagechromiumembedded / cef / wiki / JavaScriptIntegration — Bitbucketicon-default.png?t=N7T8https://bitbucket.org/chromiumembedded/cef/wiki/JavaScriptIntegration.md

三、项目源代码下载

后续实现的所有 Demo 都基于官方项目源码上修改调整，

# 必应搜索关键字 CefGlue wiki
# 官网 https://xilium.bitbucket.io/cefglue/
# api文档 https://xilium.bitbucket.io/cefglue/doc/index.html
# cef-builds https://cef-builds.spotifycdn.com/index.html

首先下载项目源代码，

# 指定分支 5615
# git clone -b 5615 https://gitlab.com/xiliumhq/chromiumembedded/cefglue.git

# 默认 main
git https://gitlab.com/xiliumhq/chromiumembedded/cefglue.git

查看对应 CEF 版本，

# CefGlue\Interop\version.g.cs
# CEF_VERSION

然后下载对应版本的CEF，

如果是 Debug 编译模式，则需要将 Debug 与 Resources 这两个文件夹下的所有内容拷贝到对应的 bin 文件夹，

如果是 Release 编译模式，则需要将 Release 与 Resources 这两个文件夹下的所有内容拷贝到对应的bin文件夹，

四、启动 Xilium.CefGlue.Client

Xilium.CefGlue.Client 项目设为启动项，Program.cs 注释掉以下这行，

#必须使用 Release 模式运行，Debug 模式会白屏闪退，
//BrowserSubprocessPath = browserProcessPath,

这里说明一下，CefApp 通常需要一个主进程（Browser Process）和一个子进程（Render Process）运行，主进程负责管控窗口生命周期，子进程负责管控Web生命周期，所有网页资源的加载、js脚本都会在子进程中执行，这样设计的好处就是，就算子进程崩溃，也不会影响主应用的运行。当 BrowserSubprocessPath 未指定子进程路径值时，CefApp 则以当前主进程路径作为默认值。

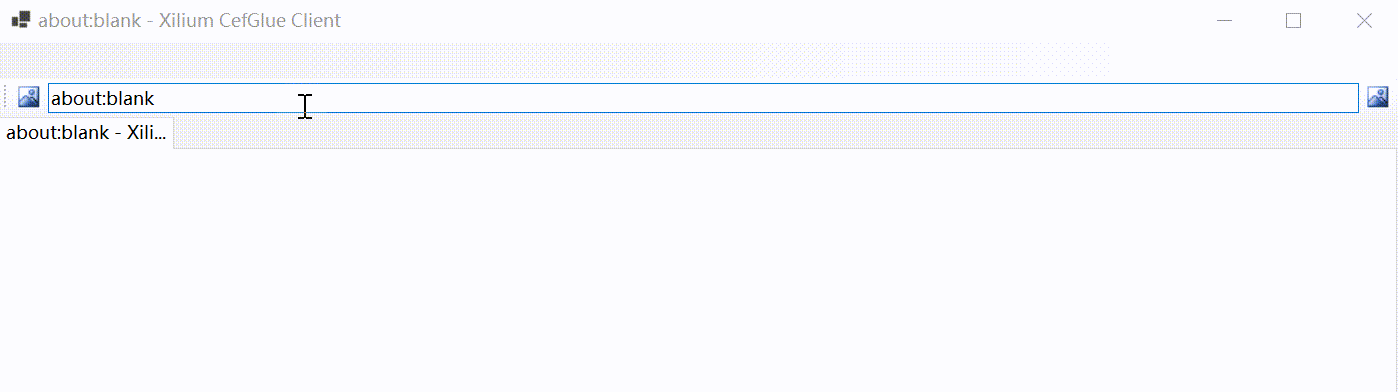

访问必应官网效果如下，

在 Debug 模式下黑屏闪退的问题，我们可以通过日志查看具体原因，

var settings = new CefSettings
{
  //BrowserSubprocessPath = browserProcessPath,
  MultiThreadedMessageLoop = true,
  LogSeverity = CefLogSeverity.Error,
  LogFile = "CefGlue.log",
};

报错日志如下，

[0130/153649.007:FATAL:scoped_com_initializer.cc(56)] Check failed: ((HRESULT)0x80010106L) != hr_ (-2147417850 vs. -2147417850)Invalid COM thread model change
[0130/153651.532:ERROR:gpu_process_host.cc(952)] GPU process exited unexpectedly: exit_code=-2147483645
[0130/153651.800:ERROR:ssl_client_socket_impl.cc(985)] handshake failed; returned -1, SSL error code 1, net_error -103
[0130/153653.256:FATAL:scoped_com_initializer.cc(56)] Check failed: ((HRESULT)0x80010106L) != hr_ (-2147417850 vs. -2147417850)Invalid COM thread model change
[0130/153655.150:ERROR:gpu_process_host.cc(952)] GPU process exited unexpectedly: exit_code=-2147483645
[0130/153656.686:FATAL:scoped_com_initializer.cc(56)] Check failed: ((HRESULT)0x80010106L) != hr_ (-2147417850 vs. -2147417850)Invalid COM thread model change
[0130/153658.534:ERROR:gpu_process_host.cc(952)] GPU process exited unexpectedly: exit_code=-2147483645
[0130/153659.936:FATAL:scoped_com_initializer.cc(56)] Check failed: ((HRESULT)0x80010106L) != hr_ (-2147417850 vs. -2147417850)Invalid COM thread model change
[0130/153701.879:ERROR:gpu_process_host.cc(952)] GPU process exited unexpectedly: exit_code=-2147483645
[0130/153703.454:FATAL:scoped_com_initializer.cc(56)] Check failed: ((HRESULT)0x80010106L) != hr_ (-2147417850 vs. -2147417850)Invalid COM thread model change
[0130/153705.239:ERROR:gpu_process_host.cc(952)] GPU process exited unexpectedly: exit_code=-2147483645
[0130/153706.763:FATAL:scoped_com_initializer.cc(56)] Check failed: ((HRESULT)0x80010106L) != hr_ (-2147417850 vs. -2147417850)Invalid COM thread model change
[0130/153708.542:ERROR:gpu_process_host.cc(952)] GPU process exited unexpectedly: exit_code=-2147483645
[0130/153710.003:FATAL:scoped_com_initializer.cc(56)] Check failed: ((HRESULT)0x80010106L) != hr_ (-2147417850 vs. -2147417850)Invalid COM thread model change
[0130/153711.792:ERROR:gpu_process_host.cc(952)] GPU process exited unexpectedly: exit_code=-2147483645
[0130/153713.272:FATAL:scoped_com_initializer.cc(56)] Check failed: ((HRESULT)0x80010106L) != hr_ (-2147417850 vs. -2147417850)Invalid COM thread model change
[0130/153715.113:ERROR:gpu_process_host.cc(952)] GPU process exited unexpectedly: exit_code=-2147483645
[0130/153716.724:FATAL:scoped_com_initializer.cc(56)] Check failed: ((HRESULT)0x80010106L) != hr_ (-2147417850 vs. -2147417850)Invalid COM thread model change
[0130/153718.525:ERROR:gpu_process_host.cc(952)] GPU process exited unexpectedly: exit_code=-2147483645
[0130/153718.525:FATAL:gpu_data_manager_impl_private.cc(440)] GPU process isn't usable. Goodbye.

日志中可以看出，GPU 进程不可用，导致了黑屏，这跟之前说到的子进程是相关的，如此看来，Debug模式下，必须要指定 BrowserSubprocessPath 子进程参数，

browserProcessPath = @"D:\AwsomeWorkSpace\cefglue-5481\CefGlue.Demo.WinForms\bin\x64\Release\net5.0-windows\Xilium.CefGlue.Demo.WinForms.exe";
var settings = new CefSettings
{
  BrowserSubprocessPath = browserProcessPath,
  MultiThreadedMessageLoop = true,
  LogSeverity = CefLogSeverity.Error,
  LogFile = "CefGlue.log",
};

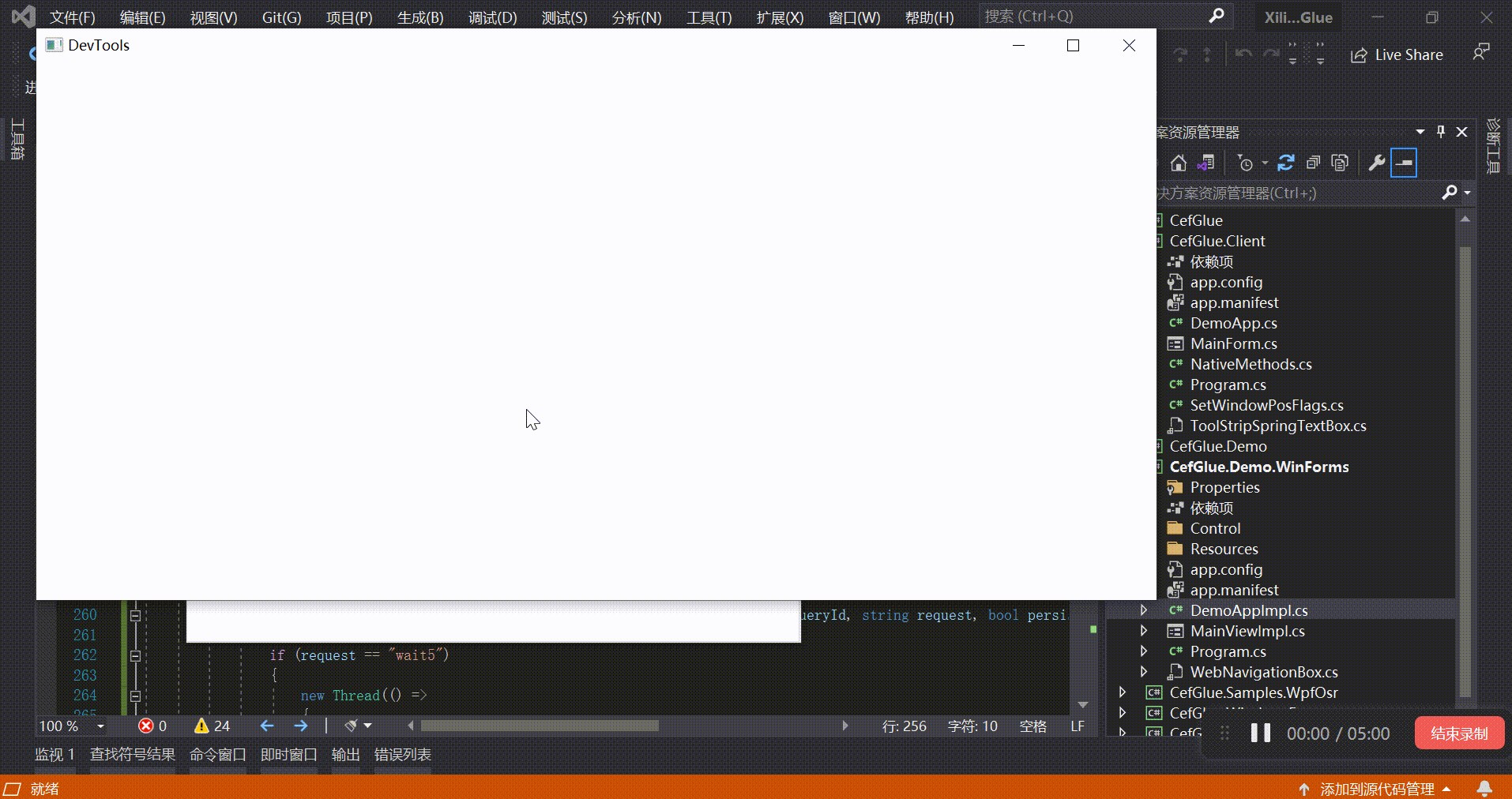

可以看到，指定了子进程之后，能够使用 Debug 模式启动项目了，

五、JS 调用 C#

1、CefRuntime.RegisterExtension

定义 DemoRenderProcessHandler ，该类继承 CefRenderProcessHandler，重写 OnWebKitInitialized，通过 CefRuntime.RegisterExtension 注册 C# 方法，

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace Xilium.CefGlue.Client.Handlers
{
    public class DemoRenderProcessHandler : CefRenderProcessHandler
    {
        /// <summary>
        /// 自定义 CefV8Handler
        /// </summary>
        private DemoCefV8Handler _demoCefV8Handler;
        protected override void OnWebKitInitialized()
        {
            _demoCefV8Handler = new DemoCefV8Handler();
            // js 注册 C# 方法 MyFunction
            const string javascriptCode = @"function demoCefV8Handler() {};
    if (!demoCefV8Handler) demoCefV8Handler = {};
    (function() {
        demoCefV8Handler.myFunction = function(arg0) {
            native function MyFunction(arg0);
            return MyFunction(arg0);
        };
    })();";
            // 注册 js 拓展
            CefRuntime.RegisterExtension("v8/myFunction", javascriptCode, _demoCefV8Handler);

            base.OnWebKitInitialized();
        }
    }
}

定义一个 DemoCefV8Handler ，该类继承CefV8Handler，重写 Execute 方法，

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace Xilium.CefGlue.Client.Handlers
{
    public class DemoCefV8Handler : CefV8Handler
    {
        /// <summary>
        /// 默认构造函数
        /// </summary>
        public DemoCefV8Handler()
        {
        }


        protected override bool Execute(string name, CefV8Value obj, CefV8Value[] arguments, out CefV8Value returnValue, out string exception)
        {
            string result = string.Empty;

            switch (name)
            {
                case "MyFunction":
                    result = string.Format("MyFunction( arg ) => {0}", arguments[0].GetStringValue());
                    break;
                default:
                    break;
            }

            returnValue = CefV8Value.CreateString(result);
            exception = null;
            return true;
        }
    }
}

定义 DemoApp ，该类继承 CefApp，重写 CefRenderProcessHandler  方法，

namespace Xilium.CefGlue.Client
{
    using System;
    using System.Collections.Generic;
    using System.Text;
    using Xilium.CefGlue;
    using Xilium.CefGlue.Client.Handlers;

    internal sealed class DemoApp : CefApp
    {
        protected override void OnBeforeCommandLineProcessing(string processType, CefCommandLine commandLine)
        {
            ;
        }

        private CefRenderProcessHandler _renderProcessHandler = new DemoRenderProcessHandler();

        protected override CefRenderProcessHandler GetRenderProcessHandler()
        {
            return _renderProcessHandler;
        }
    }
}

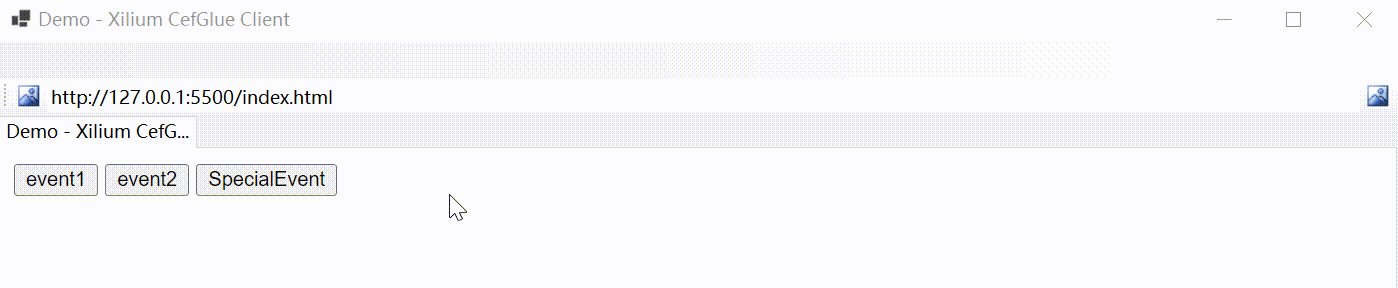

js 调用 ，

 const msg = window.demoCefV8Handler.myFunction('url');

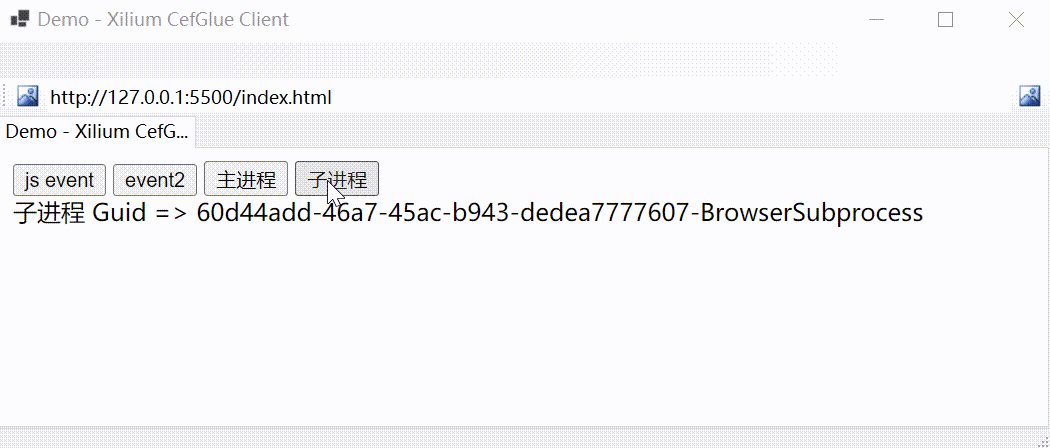

补充说明，以上 demo 是 Xilium.CefGlue.Client 以 Release 模式运行，并没有指定子进程 BrowserSubprocessPath 。而在指定子进程参数时，必须在子进程注册 C# 方法，在主进程中注册C# 方法是不生效的，因为所有网页资源的加载、js脚本都在子进程中执行。

例如，Client 作为主进程，指定 BrowserSubprocessPath 为 Demo.WinForms，在 Demo.WinForms 中注册 C# 方法，则运行效果如下，

注：这种方式将预定义的 JS 代码注册到 context 中，一旦注册，不可修改。

2、CefV8Context

/// <summary>
/// Create a new CefV8Value object of type function. This method should only
/// be called from within the scope of a CefRenderProcessHandler, CefV8Handler
/// or CefV8Accessor callback, or in combination with calling Enter() and
/// Exit() on a stored CefV8Context reference.
/// </summary>
public static CefV8Value CreateFunction(string name, CefV8Handler handler)
namespace Xilium.CefGlue.Demo
{
    using System;
    using System.Collections.Generic;
    using System.Diagnostics;
    using System.Text;
    using Xilium.CefGlue;
    using Xilium.CefGlue.Demo.Handlers;
    using Xilium.CefGlue.Wrapper;

    class DemoRenderProcessHandler : CefRenderProcessHandler
    {

        public DemoRenderProcessHandler()
        {
            _demoCefV8Handler = new DemoCefV8Handler();
        }

        private DemoCefV8Handler _demoCefV8Handler;

        protected override void OnContextCreated(CefBrowser browser, CefFrame frame, CefV8Context context)
        {

            var global = context.GetGlobal();
            var extent = CefV8Value.CreateFunction("f1", _demoCefV8Handler);
            global.SetValue("f1", extent, CefV8PropertyAttribute.None);

            // MessageRouter.OnContextCreated doesn't capture CefV8Context immediately,
            // so we able to release it immediately in this call.
            context.Dispose();
        }

    }
}

// js 调用
const msg = window.f1('f1');

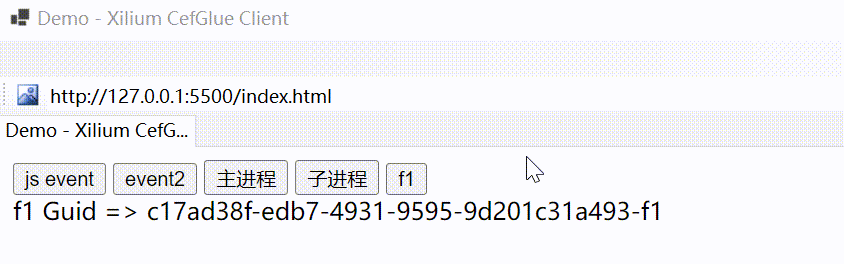

效果，

注：这种方式在当前 frame 创建 context 时将 C# 方法绑定到 window 对象，每次 frame 重新加载时，都会重新执行绑定过程，

六、C# 调用 JS

1、CefFrame.ExecuteJavaScript

/// <summary>
/// Execute a string of JavaScript code in this frame. The |script_url|
/// parameter is the URL where the script in question can be found, if any.
/// The renderer may request this URL to show the developer the source of the
/// error.  The |start_line| parameter is the base line number to use for
/// error reporting.
/// </summary>
public void ExecuteJavaScript(string code, string url, int line)
// MainForm.cs

// ...
var browser = new CefWebBrowser();

// ...

// browser 加载完成后弹窗
browser.LoadEnd += (s, e) =>
{
  var mainFrame = browser.Browser.GetMainFrame();
  mainFrame.ExecuteJavaScript("alert('hello world');", mainFrame.Url, 0);
};

// ...

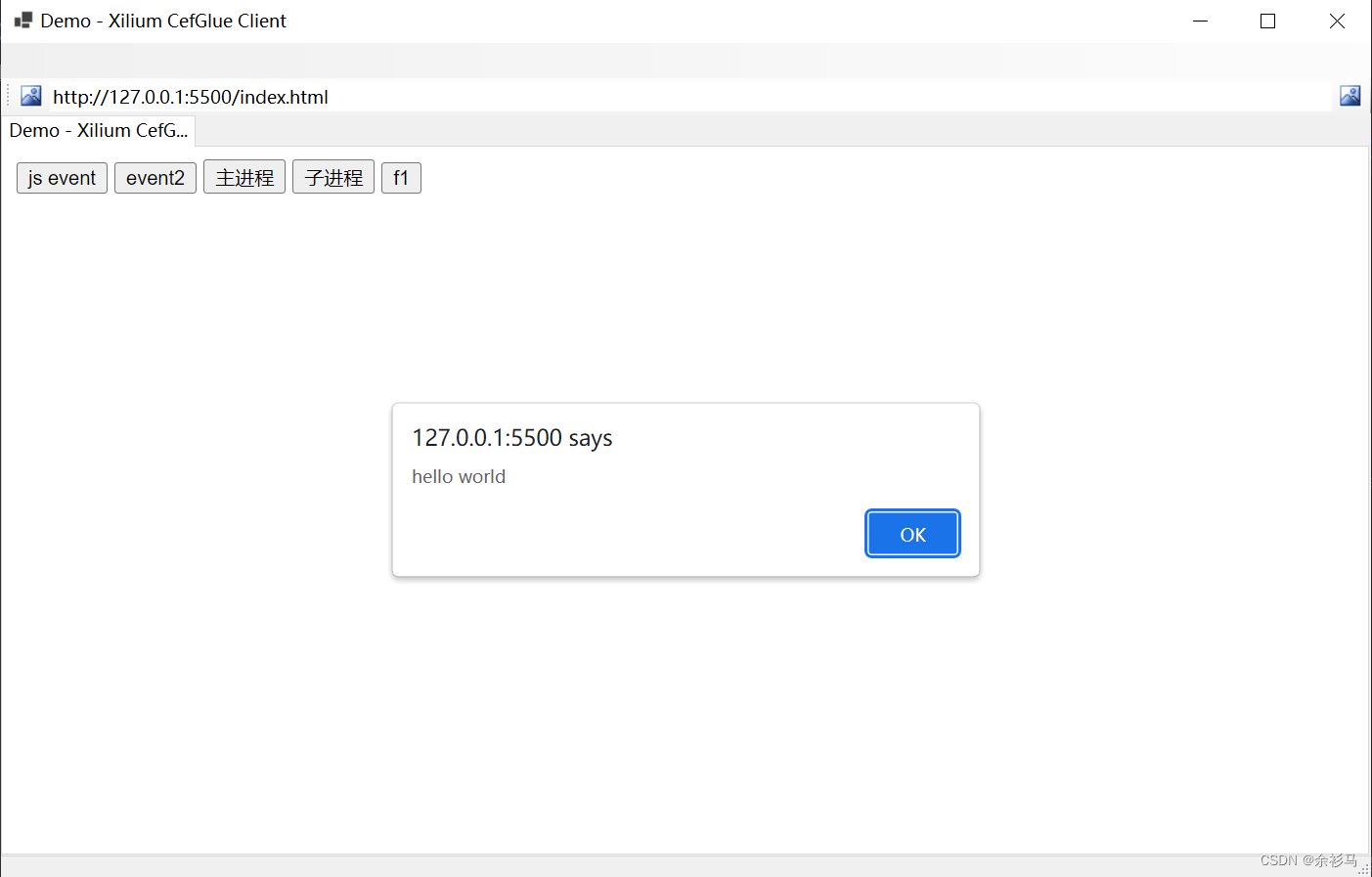

效果，

2、CefV8Value.ExecuteFunction

该方法用于注册 JS 函数回调，使用说明如下，

/// <summary>
/// Execute the function using the current V8 context. This method should only
/// be called from within the scope of a CefV8Handler or CefV8Accessor
/// callback, or in combination with calling Enter() and Exit() on a stored
/// CefV8Context reference. |object| is the receiver ('this' object) of the
/// function. If |object| is empty the current context's global object will be
/// used. |arguments| is the list of arguments that will be passed to the
/// function. Returns the function return value on success. Returns NULL if
/// this method is called incorrectly or an exception is thrown.
/// </summary>
public CefV8Value ExecuteFunction(CefV8Value obj, CefV8Value[] arguments)

 在 Render Process 绑定方法 register ，重写 RenderProcessHandler 的 OnContextCreated 方法，将 register 方法绑定到 window，我们就可以在前端绑定 js 回调（匿名 js 方法、带返回值的 js 方法）；也重写了 OnProcessMessageReceived 方法，模拟这样一个场景：经过一番 IPC 通讯后，在某个条件/节点下执行 js 回调，

// DemoRenderProcessHandler.cs

// ...

/// <summary>
/// 定义 CallbackMap
/// </summary>
public static Dictionary<Tuple<string, int>, Tuple<CefV8Context, CefV8Value>> callbackMap = new Dictionary<Tuple<string, int>, Tuple<CefV8Context, CefV8Value>>();

protected override void OnContextCreated(CefBrowser browser, CefFrame frame, CefV8Context context)
{

    var global = context.GetGlobal();
    var myExtent = CefV8Value.CreateFunction("register", new MyV8Handler());
    global.SetValue("register", myExtent, CefV8PropertyAttribute.None);

    //MessageRouter.OnContextCreated doesn't capture CefV8Context immediately,
    // so we able to release it immediately in this call.
    context.Dispose();
}

protected override bool OnProcessMessageReceived(CefBrowser browser, CefFrame frame, CefProcessId sourceProcess, CefProcessMessage message)
{
    // Execute the registered JavaScript callback if any.
    if (callbackMap.Count > 0)
    {
        string messageName = message.Name;

        Tuple<string, int> key = Tuple.Create(messageName, browser.Identifier);

        if (callbackMap.ContainsKey(key))
        {
            Tuple<CefV8Context, CefV8Value> value = callbackMap[key];
            CefV8Context context = value.Item1;
            CefV8Value callback = value.Item2;

            // Enter the context.
            context.Enter();

            List<CefV8Value> arguments = new List<CefV8Value>();

            // First argument is the message name.
            arguments.Add(CefV8Value.CreateString(messageName));

            // Second argument is the list of message arguments.
            CefV8ValueHelper.SetList(message.Arguments, arguments);

            // Execute the callback.
            CefV8Value retval = callback.ExecuteFunction(null, arguments.ToArray());

            if (!retval.IsNull)
            {
                if (retval.IsBool)
                {
                    return retval.GetBoolValue();
                }
            }

            // Exit the context.
            context.Exit();
        }
        return true;
    }

    return false;
}

// ...

using System.Collections.Generic;

namespace Xilium.CefGlue.Demo.Helper
{
    public class CefV8ValueHelper
    {
        /// <summary>
        /// SetList function to convert CefListValue to CefV8Value.
        /// </summary>
        /// <param name="list"></param>
        /// <param name="args"></param>
        public static void SetList(CefListValue? list, List<CefV8Value> args)
        {
            for (int i = 0; i < list?.Count; i++)
            {
                CefValueType cefValueType = list.GetValueType(i);
                switch (cefValueType)
                {
                    case CefValueType.Bool:
                        {
                            args.Add(CefV8Value.CreateBool(list.GetBool(i)));
                            break;
                        }
                    case CefValueType.Double:
                        {
                            args.Add(CefV8Value.CreateDouble(list.GetDouble(i)));
                            break;
                        }
                    case CefValueType.Int:
                        {
                            args.Add(CefV8Value.CreateInt(list.GetInt(i)));
                            break;
                        }
                    case CefValueType.Null:
                        {
                            args.Add(CefV8Value.CreateNull());
                            break;
                        }
                    case CefValueType.String:
                        {
                            args.Add(CefV8Value.CreateString(list.GetString(i)));
                            break;
                        }
                    default: {
                            args.Add(CefV8Value.CreateUndefined());
                            break;
                        }
                }
            }
        }
    }
}

自定义实现 CefV8Handler 的 Execute 方法，将 js 回调及其上下文保存到 callbackMap 中，

using System;

namespace Xilium.CefGlue.Demo.Handlers
{
    public class MyV8Handler : CefV8Handler
    {

        protected override bool Execute(string name, CefV8Value obj, CefV8Value[] arguments, out CefV8Value returnValue, out string exception)
        {
            if (name.Equals("register"))
            {
                if (arguments.Length == 2 && arguments[0].IsString && arguments[1].IsFunction)
                {
                    string messageName = arguments[0].GetStringValue();
                    CefV8Context context = CefV8Context.GetCurrentContext();
                    int browserId = context.GetBrowser().Identifier;

                    Tuple<string, int> key = Tuple.Create(messageName, browserId);
                    Tuple<CefV8Context, CefV8Value> value = Tuple.Create(context, arguments[1]);

                    DemoRenderProcessHandler.callbackMap.Add(key, value);

                    returnValue = CefV8Value.CreateString($"register callback function {messageName} done.");
                    exception = null;
                    return true;
                }

            }
            returnValue = null;
            exception = null;
            return false;
        }
    }
}

Browser Process 模拟触发 js 回调，在网页加载完成后 3 秒触发 js 回调，

// MainForm.cs

browser.LoadEnd += (s, e) =>
{
    BeginInvoke(new Action(()=> {

        Thread.Sleep(3000);

        var mainFrame = browser.Browser.GetMainFrame();
        var message = CefProcessMessage.Create("binding_test");

        message.Arguments?.SetString(0, "yushanma");
        message.Arguments?.SetString( 1, "余衫马");

        mainFrame.SendProcessMessage(CefProcessId.Renderer, message);
    }));
};

前端页面调用如下，通过匿名 js 回调，携带返回数据显示到页面上，

<!doctype html>
<html lang="zh" data-server-rendered="true">

<head>
    <title>Demo</title>
    <meta http-equiv="content-type" content="text/html;charset=utf-8">
    <meta name="viewport" content="initial-scale=1, maximum-scale=1, user-scalable=no, minimal-ui">
</head>

<body>
    <div>
        <div id="log"></div>
        <div id="result"></div>
    </div>

    <script>
        // In JavaScript register the callback function.
        const result = window.register('binding_test', function(arg0, arg1, arg2) {
            document.getElementById('result').innerText = `Response: arg0 => ${arg0}, arg1 => ${arg1} ,arg2 => ${arg2}`;
        });

        // 获取 div 元素，修改文本值
        document.getElementById("log").innerText = result;
    </script>

</body>

</html>

效果，

3、CefV8Value.ExecuteFunctionWithContext

该方法用于注册 JS 函数回调并在指定的上下文中执行，使用说明如下，

/// <summary>
/// Execute the function using the specified V8 context. |object| is the
/// receiver ('this' object) of the function. If |object| is empty the
/// specified context's global object will be used. |arguments| is the list of
/// arguments that will be passed to the function. Returns the function return
/// value on success. Returns NULL if this method is called incorrectly or an
/// exception is thrown.
/// </summary>
public CefV8Value ExecuteFunctionWithContext(CefV8Context context, CefV8Value obj, CefV8Value[] arguments)

 在 Render Process 绑定方法 register ，

// DemoRenderProcessHandler.cs

protected override void OnContextCreated(CefBrowser browser, CefFrame frame, CefV8Context context)
{

    var global = context.GetGlobal();
    var myExtent = CefV8Value.CreateFunction("register", new MyV8Handler());
    global.SetValue("register", myExtent, CefV8PropertyAttribute.None);

    //MessageRouter.OnContextCreated doesn't capture CefV8Context immediately,
    // so we able to release it immediately in this call.
    context.Dispose();
}

从 arguments 参数中获取 js 回调，可以立即执行或者延迟执行 ExecuteFunctionWithContext 方法来回调 js 脚本，


namespace Xilium.CefGlue.Demo.Handlers
{
    public class MyV8Handler : CefV8Handler
    {
        /// <summary>
        /// js 回调
        /// </summary>
        private CefV8Value _callback_func;

        /// <summary>
        /// 回调上下文
        /// </summary>
        private CefV8Context _callback_context;

        protected override bool Execute(string name, CefV8Value obj, CefV8Value[] arguments, out CefV8Value returnValue, out string exception)
        {
            if (name.Equals("register"))
            {
                if (arguments.Length== 1 && arguments[0].IsFunction )
                {
                    _callback_func = arguments[0];
                    _callback_context = CefV8Context.GetCurrentContext();

                    returnValue = _callback_func.ExecuteFunctionWithContext(_callback_context, null, arguments);

                    if (returnValue.IsNull)
                    {
                        exception = returnValue.GetException().Message;
                        return false;
                    }

                    returnValue = CefV8Value.CreateInt(returnValue.GetIntValue() + 2);
                    exception = null;
                    return true;
                }
            }

            returnValue = null;
            exception = null;
            return false;
        }
    }
}

在 js 中 注册回调方法，

function myCallbackFunc() {
  return 0;
}
alert(`myCallbackFunc result : ${window.register(myCallbackFunc)}`);

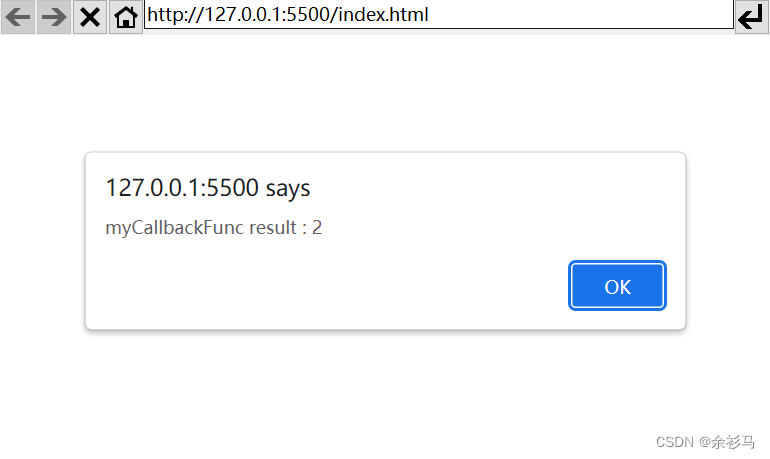

效果，

七、进程间通讯（IPC）

1、browser process -> render process

从 browser process 发送到 render process 的信息在 CefRenderProcessHandler::OnProcessMessageReceived() 方法中接收，

在 browser process 中，CefWebBrowser 加载网页结束后，将 js 脚本发送到 render process ，

// MainForm.cs

// ...

var browser = new CefWebBrowser();

// 注入自定义标题栏
browser.LoadEnd += (s, e) =>
{
    var mainFrame = browser.Browser.GetMainFrame();

    // 不可执行， This method can only be called from the render process.
    //mainFrame.V8Context.TryEval("return 1 + 1;", mainFrame.Url, 0, out CefV8Value? returnValue, out CefV8Exception? exception);

    // 解决：发送给 Renderer Process 处理
    var message = CefProcessMessage.Create("ExecuteJavaScript");
    message.Arguments?.SetString(0, "1 + 1");
    mainFrame.SendProcessMessage(CefProcessId.Renderer, message);
};

// ...

在 render process 中接收并执行 js 脚本，将执行结果返回 browser process，

// DemoRenderProcessHandler.cs

protected override bool OnProcessMessageReceived(CefBrowser browser, CefFrame frame, CefProcessId sourceProcess, CefProcessMessage message)
{
    if (message.Name == "ExecuteJavaScript")
    {
        var code = message.Arguments?.GetString(0);

        var mainFrame = browser.GetMainFrame();

        // 执行JavaScript代码
        var result = mainFrame.V8Context.TryEval(code ?? "", mainFrame.Url, 0, out var returnValue, out var exception);

        // 将结果发送回Browser进程
        var response = CefProcessMessage.Create("JavaScriptResult");
        response.Arguments?.SetBool(0, result);
        response.Arguments?.SetInt(1, returnValue?.GetIntValue() ?? 0);
        response.Arguments?.SetString(2, exception?.Message ?? string.Empty);

        mainFrame.SendProcessMessage(CefProcessId.Browser, response);
        return true;
    }
}

2、render process -> browser process

从 render process 发送到 browser process 的信息在 CefClient::OnProcessMessageReceived() 方法中接收，

// CefWebClient.cs

protected override bool OnProcessMessageReceived(CefBrowser browser, CefFrame frame, CefProcessId sourceProcess, CefProcessMessage message)
{

    if (message.Name == "JavaScriptResult")
    {
        var result = message.Arguments?.GetBool(0) ?? false;

        if (result)
        {
            frame.ExecuteJavaScript($"alert('1 + 1 = {message.Arguments?.GetInt(1)}');", frame.Url, 0);
            return true;
        }

        frame.ExecuteJavaScript($"alert('{message.Arguments?.GetString(2)}');", frame.Url, 0);
        return true;
    }

    return false;
}

通过 IPC 机制，我们可以执行 JS 脚本，并接收 JS 执行结果，效果如下，

注意：接收参数的类型、次序与发送参数的类型、次序必须保持一致，否则无法解析正确的数据，

3、Message Router

// The below classes implement support for routing aynchronous messages between
// JavaScript running in the renderer process and C++ running in the browser
// process. An application interacts with the router by passing it data from
// standard CEF C++ callbacks (OnBeforeBrowse, OnProcessMessageReceived,
// OnContextCreated, etc). The renderer-side router supports generic JavaScript
// callback registration and execution while the browser-side router supports
// application-specific logic via one or more application-provided Handler
// instances.
//
// The renderer-side router implementation exposes a query function and a cancel
// function via the JavaScript 'window' object:
//
//    // Create and send a new query.
//    var request_id = window.cefQuery({
//        request: 'my_request',
//        persistent: false,
//        onSuccess: function(response) {},
//        onFailure: function(error_code, error_message) {}
//    });
//
//    // Optionally cancel the query.
//    window.cefQueryCancel(request_id);
//
// When |window.cefQuery| is executed the request is sent asynchronously to one
// or more C++ Handler objects registered in the browser process. Each C++
// Handler can choose to either handle or ignore the query in the
// Handler::OnQuery callback. If a Handler chooses to handle the query then it
// should execute Callback::Success when a response is available or
// Callback::Failure if an error occurs. This will result in asynchronous
// execution of the associated JavaScript callback in the renderer process. Any
// queries unhandled by C++ code in the browser process will be automatically
// canceled and the associated JavaScript onFailure callback will be executed
// with an error code of -1.
//
// Queries can be either persistent or non-persistent. If the query is
// persistent then the callbacks will remain registered until one of the
// following conditions are met:
//
// A. The query is canceled in JavaScript using the |window.cefQueryCancel|
//    function.
// B. The query is canceled in C++ code using the Callback::Failure function.
// C. The context associated with the query is released due to browser
//    destruction, navigation or renderer process termination.
//
// If the query is non-persistent then the registration will be removed after
// the JavaScript callback is executed a single time. If a query is canceled for
// a reason other than Callback::Failure being executed then the associated
// Handler's OnQueryCanceled method will be called.
//
// Some possible usage patterns include:
//
// One-time Request. Use a non-persistent query to send a JavaScript request.
//    The Handler evaluates the request and returns the response. The query is
//    then discarded.
//
// Broadcast. Use a persistent query to register as a JavaScript broadcast
//    receiver. The Handler keeps track of all registered Callbacks and executes
//    them sequentially to deliver the broadcast message.
//
// Subscription. Use a persistent query to register as a JavaScript subscription
//    receiver. The Handler initiates the subscription feed on the first request
//    and delivers responses to all registered subscribers as they become
//    available. The Handler cancels the subscription feed when there are no
//    longer any registered JavaScript receivers.
//
// Message routing occurs on a per-browser and per-context basis. Consequently,
// additional application logic can be applied by restricting which browser or
// context instances are passed into the router. If you choose to use this
// approach do so cautiously. In order for the router to function correctly any
// browser or context instance passed into a single router callback must then
// be passed into all router callbacks.
//
// There is generally no need to have multiple renderer-side routers unless you
// wish to have multiple bindings with different JavaScript function names. It
// can be useful to have multiple browser-side routers with different client-
// provided Handler instances when implementing different behaviors on a per-
// browser basis.
//
// This implementation places no formatting restrictions on payload content.
// An application may choose to exchange anything from simple formatted
// strings to serialized XML or JSON data.
//
//
// EXAMPLE USAGE
//
// 1. Define the router configuration. You can optionally specify settings
//    like the JavaScript function names. The configuration must be the same in
//    both the browser and renderer processes. If using multiple routers in the
//    same application make sure to specify unique function names for each
//    router configuration.
//
//    // Example config object showing the default values.
//    CefMessageRouterConfig config;
//    config.js_query_function = "cefQuery";
//    config.js_cancel_function = "cefQueryCancel";
//
// 2. Create an instance of CefMessageRouterBrowserSide in the browser process.
//    You might choose to make it a member of your CefClient implementation,
//    for example.
//
//    browser_side_router_ = CefMessageRouterBrowserSide::Create(config);
//
// 3. Register one or more Handlers. The Handler instances must either outlive
//    the router or be removed from the router before they're deleted.
//
//    browser_side_router_->AddHandler(my_handler);
//

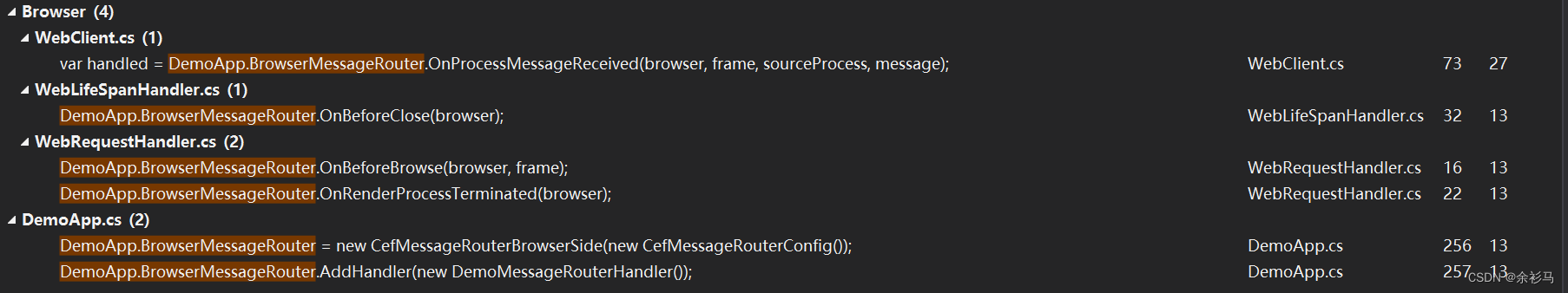

// 4. Call all required CefMessageRouterBrowserSide methods from other callbacks
//    in your CefClient implementation (OnBeforeClose, etc). See the
//    CefMessageRouterBrowserSide class documentation for the complete list of
//    methods.
//
// 5. Create an instance of CefMessageRouterRendererSide in the renderer
// process.
//    You might choose to make it a member of your CefApp implementation, for
//    example.
//
//    renderer_side_router_ = CefMessageRouterRendererSide::Create(config);
//
// 6. Call all required CefMessageRouterRendererSide methods from other
//    callbacks in your CefRenderProcessHandler implementation
//    (OnContextCreated, etc). See the CefMessageRouterRendererSide class
//    documentation for the complete list of methods.
//
// 7. Execute the query function from JavaScript code.
//
//    window.cefQuery({request: 'my_request',
//                     persistent: false,
//                     onSuccess: function(response) { print(response); },
//                     onFailure: function(error_code, error_message) {} });
//
// 8. Handle the query in your Handler::OnQuery implementation and execute the
//    appropriate callback either immediately or asynchronously.
//
//    void MyHandler::OnQuery(int64_t query_id,
//                            CefRefPtr<CefBrowser> browser,
//                            CefRefPtr<CefFrame> frame,
//                            const CefString& request,
//                            bool persistent,
//                            CefRefPtr<Callback> callback) {
//      if (request == "my_request") {
//        callback->Continue("my_response");
//        return true;
//      }
//      return false;  // Not handled.
//    }
//
// 9. Notice that the onSuccess callback is executed in JavaScript.

Xilium.CefGlue.Demo.WinForms 项目中实现了该 Demo，我们直接放开注释代码即可，全局搜索关键字，

DemoApp.BrowserMessageRouter

EXAMPLE USAGE 中的步骤 1（定义路由配置）、2（在 Browser Process 中实例化CefMessageRouterBrowserSide）、3（为CefMessageRouterBrowserSide实例添加一个Handler）、8（自定义实现 Handler）  在 DemoApp 中实现，

namespace Xilium.CefGlue.Demo
{
    using System;
    using System.Collections.Generic;
    using System.Text;
    using System.Diagnostics;
    using Xilium.CefGlue.Wrapper;
    using System.Threading;

    public abstract class DemoApp : IDisposable
    {
        public static CefMessageRouterBrowserSide BrowserMessageRouter { get; private set; }

        // ...

        private void RegisterMessageRouter()
        {
            if (!CefRuntime.CurrentlyOn(CefThreadId.UI))
            {
                PostTask(CefThreadId.UI, this.RegisterMessageRouter);
                return;
            }

            // window.cefQuery({ request: 'my_request', onSuccess: function(response) { console.log(response); }, onFailure: function(err,msg) { console.log(err, msg); } });
            DemoApp.BrowserMessageRouter = new CefMessageRouterBrowserSide(new CefMessageRouterConfig());
            DemoApp.BrowserMessageRouter.AddHandler(new DemoMessageRouterHandler());
        }

        private class DemoMessageRouterHandler : CefMessageRouterBrowserSide.Handler
        {
            public override bool OnQuery(CefBrowser browser, CefFrame frame, long queryId, string request, bool persistent, CefMessageRouterBrowserSide.Callback callback)
            {
                if (request == "wait5")
                {
                    new Thread(() =>
                    {
                        Thread.Sleep(5000);
                        callback.Success("success! responded after 5 sec timeout."); // TODO: at this place crash can occurs, if application closed
                    }).Start();
                    return true;
                }

                if (request == "wait5f")
                {
                    new Thread(() =>
                    {
                        Thread.Sleep(5000);
                        callback.Failure(12345, "success! responded after 5 sec timeout. responded as failure.");
                    }).Start();
                    return true;
                }

                if (request == "wait30")
                {
                    new Thread(() =>
                    {
                        Thread.Sleep(30000);
                        callback.Success("success! responded after 30 sec timeout.");
                    }).Start();
                    return true;
                }

                if (request == "noanswer")
                {
                    return true;
                }

                var chars = request.ToCharArray();
                Array.Reverse(chars);
                var response = new string(chars);
                callback.Success(response);
                return true;
            }

            public override void OnQueryCanceled(CefBrowser browser, CefFrame frame, long queryId)
            {
            }
        }

      // ...
}

EXAMPLE USAGE 中的步骤 4（从其他回调中调用所有必需的 CefMessageRouterBrowserSide 方法） 分別在 WebLifeSpanHandler 、WebRequestHandler 、WebClient 中实现，

namespace Xilium.CefGlue.Demo.Browser
{
    using System;
    using System.Collections.Generic;
    using System.Text;
    using Xilium.CefGlue;

    internal sealed class WebLifeSpanHandler : CefLifeSpanHandler
    {
        // ...

        protected override void OnBeforeClose(CefBrowser browser)
        {
            DemoApp.BrowserMessageRouter.OnBeforeClose(browser);
        }

        // ...
    }
}

namespace Xilium.CefGlue.Demo.Browser
{
    using System;
    using System.Collections.Generic;
    using System.Text;

    class WebRequestHandler : CefRequestHandler
    {
        // ...

        protected override bool OnBeforeBrowse(CefBrowser browser, CefFrame frame, CefRequest request, bool userGesture, bool isRedirect)
        {
            DemoApp.BrowserMessageRouter.OnBeforeBrowse(browser, frame);
            return base.OnBeforeBrowse(browser, frame, request, userGesture, isRedirect);
        }

        protected override void OnRenderProcessTerminated(CefBrowser browser, CefTerminationStatus status)
        {
            DemoApp.BrowserMessageRouter.OnRenderProcessTerminated(browser);
        }

        // ...
    }
}

namespace Xilium.CefGlue.Demo.Browser
{
    using System;
    using System.Collections.Generic;
    using System.Text;
    using Xilium.CefGlue;

    internal sealed class WebClient : CefClient
    {
        // ...

        protected override bool OnProcessMessageReceived(CefBrowser browser, CefFrame frame, CefProcessId sourceProcess, CefProcessMessage message)
        {
            // ...

            var handled = DemoApp.BrowserMessageRouter.OnProcessMessageReceived(browser, frame, sourceProcess, message);
            if (handled) return true;

            // ...
        }

        // ...

    }
}

EXAMPLE USAGE 中的步骤 5（在 Renderer Process 中实例化 CefMessageRouterRendererSide）、6（从其他回调中调用所有必需的 CefMessageRouterRendererSide 方法） 在 DemoRenderProcessHandler 中实现，

namespace Xilium.CefGlue.Demo
{
    using System;
    using System.Collections.Generic;
    using System.Diagnostics;
    using System.Text;
    using Xilium.CefGlue;
    using Xilium.CefGlue.Demo.Handlers;
    using Xilium.CefGlue.Wrapper;

    class DemoRenderProcessHandler : CefRenderProcessHandler
    {

        // ...

        public DemoRenderProcessHandler()
        {
            MessageRouter = new CefMessageRouterRendererSide(new CefMessageRouterConfig());
        }

        internal CefMessageRouterRendererSide MessageRouter { get; private set; }


        protected override void OnContextCreated(CefBrowser browser, CefFrame frame, CefV8Context context)
        {
            MessageRouter.OnContextCreated(browser, frame, context);

            //MessageRouter.OnContextCreated doesn't capture CefV8Context immediately,
            // so we able to release it immediately in this call.
            context.Dispose();
        }

        protected override void OnContextReleased(CefBrowser browser, CefFrame frame, CefV8Context context)
        {
            // MessageRouter.OnContextReleased releases captured CefV8Context (if have).
            MessageRouter.OnContextReleased(browser, frame, context);

            // Release CefV8Context.
            context.Dispose();
        }

        protected override bool OnProcessMessageReceived(CefBrowser browser, CefFrame frame, CefProcessId sourceProcess, CefProcessMessage message)
        {
            // ...

            var handled = MessageRouter.OnProcessMessageReceived(browser, sourceProcess, message);
            if (handled) return true;

            // ...

            return false;
        }

        // ...
    }
}

EXAMPLE USAGE 中的步骤 7，在前端 js 中调用 window.cefQuery ，

// js 调用
window.cefQuery({
    request: 'wait5',
    persistent: false,
    onSuccess: function (response) {
        console.log(response);
    },
    onFailure: function (err, msg) {
        console.log(err, msg);
    }
});

效果，

期间遇到一个大坑，一直报错空指针异常，

object reference not set to an instance of an object

降一下版本就能解决问题，

cefglue-5481
CEF 110.0.29+gfde72b5+chromium-110.0.5481.104

xilium.cefglue 获取html,C# 用XiliumCefGlue做浏览器，JS和C#相互调用
weixin_39738115的博客
06-07 703
目录：XiliumCefGlue初始化，最精简Demo1.解压压缩包得到下列文件。选择需要的文件复制到自己工程【pdb为调试生成文件不需要】,之后将【Xilium.CefGlue】和【Xilium.CefGlue.WindowsForms】添加到引用。 只选取了一部分需要的文件放到Debug文件夹下。 2.其中Form.cs中代码如下，添加panl控件让浏览器嵌入其中。Form1_Load的引用在...
xilium.CefGlue与cef整合（含dll可视化组件cefwebbrowser）最新
06-22
xilium.CefGlue与cef整合（含dll可视化组件cefwebbrowser）版本号均为；3.2272.2035。直接可用。
Xilium.CefGlue 手册
05-09
Google Chrome 的 Xilium.CefGlue 手册
Xilium.CefGlue 完整示例源码
最新发布
gitblog_06769的博客
04-22 543
Xilium.CefGlue 完整示例源码 【下载地址】Xilium.CefGlue完整示例源码 Xilium.CefGlue完整示例源码提供了基于CEF内核87.0.4280.141_x86的完整开发示例，支持Visual Studio 2019和.NET 2.0。项目已解决MP3、MP4播放问题，优化了Flash启用...
探索高效Web融合之道：利用Xilium.CefGlue将谷歌内核嵌入C WinForm应用
gitblog_09749的博客
10-31 447
探索高效Web融合之道：利用Xilium.CefGlue将谷歌内核嵌入C# WinForm应用 【下载地址】CWinForm嵌入谷歌内核浏览器使用Xilium.CefGlue指南 本文档旨在为.NET和C#开发者提供一个简明教程，指导如何在Windows窗体（WinForm）应用程序中嵌入谷歌浏览器内核，通过利用强大的X...
cefglue埋坑记录
weixin_30734435的博客
06-24 276
很少写博客，写的不好，请多多包含，主要是记录工作中的一些问题，和园子里朋友一起讨论学习。 写埋坑记录之前，我先介绍下为什么会使用这个webkit内核的浏览器组件，我是wpf项目使用富文本编辑器，话说wpf平台里面原生支持比较好的富文本编辑器还真没用，还有一个原因我这个编辑器还要集成数学公式的输入输出，那就必须要自定义控件显现，考虑到web端的通用，最后决定用百度编辑器UEDITORjq插...
CEF Xilium.CefGlue
12-03
VS2013运行通过；CEF Xilium.CefGlue,下载即可直接运行。
CEF Xilium.CefGlue 简单包装
10-25
CEF Xilium.CefGlue 在当前窗口中打开所有链接（防止弹窗）的实例， 在Roy_Sashulin前辈的基础上包装的，不过改了cef使用的版本 使用简介：http://bbs.qcdest.com/plus/view.php?aid=430 http://blog.csdn.net/zhang116868/article/details/46945973
使用CEF（Xilium.CefGlue）嵌入web浏览器的下载功能所有dll
08-29
使用CEF（Xilium.CefGlue）嵌入web浏览器的下载功能所有动态链接库dll文件
C# 用XiliumCefGlue做浏览器，JS和C#相互调用
weixin_34378767的博客
09-11 617
原文:C# 用XiliumCefGlue做浏览器，JS和C#相互调用 版权声明：本文为博主原创文章，未经博主允许不得转载。 https://blog.csdn.net/u013564470/article/details/78395984 目录： 目录 Xi...
C#-Xilium.CefGlue最新集成版本（可直接运行）vs2015以上
04-16
Xilium.CefGlue 最新版本 可直接运行 c#开发Chromium 利器 最新集成版本 c#开发Chromium 利器 最新集成版本
Xilium.CefGlue（内核87.0.4280.141_x86）完整示例源码，已解决各种疑难杂症
12-06
项目可直接运行，自带cef内核，以及vc2015运行库。对应CEF内核87.0.4280.141_x86版本，使用vs2019开发 .net版本为2.0，大家可自行更改。已解决大部分CefGlue出现的问题，如下： 1.MP3、MP4无法播放问题。 2.flash需要用户右键启用，以及flash弹出黑窗口问题 3.利用V8引擎实现js与C#互调，可跨进程互调（跨进程通讯），可同步，可异步 4.cef原生下载功能实现 5.F12启动开发者工具 6.解决Win10触摸屏无法获取输入框焦点问题 7.解决Win7触摸屏触控失效问题 还有很多暂时没想起来，另外还有49内核的版本，后续考虑发布
Xilium CefGlue 防谷歌浏览器 弹出新窗口 改为新标签选项卡中打开 实现多功能 winform 谷歌内核 多款皮肤 F12 JS调试
11-06
Xilium CefGlue 防谷歌浏览器操作，弹出新窗口改为新标签选项卡中打开，实现多功能，winform谷歌内核。并添加多款皮肤。添加 F12功能JS调试等。复制关闭标签页完善。方便大家学习参考。
使用Xilium.CefGlue实现浏览器js与winform程序交互
01-22
VS2013，.net 3.5下运行，可实现： 浏览器主动调用C#函数传参给C#并获取返回值 C#主动获取浏览器数据 C#向浏览器发送数据， 浏览器js获取到数据后alert出来 编译后在xp下可正常运行。
C# winform嵌入谷歌内核浏览器，Xilium.CefGlue
06-04
C#或.net winform使用谷歌内核插件Xilium.CefGlue嵌入网页
用XiliumCefGlue做浏览器，JS和C#相互调用。
03-15
XiliumCefGlue初始化，c#与JS代码互调代码。已经验证！ 文档说明 http://blog.csdn.net/u013564470/article/details/78395984
CEF Xilium.CefGlue 在当前窗体中打开全部链接（防止弹窗）
weixin_34148340的博客
04-20 355
我们在使用Xilium.CefGlue编写浏览器应用程序时。对于嵌入的网页假设有链接会在新窗体打开。这种用户体验会非常差。因此我们须要改动程序，使全部链接都在当前窗体中打开。 首先引用Xilium.CefGlue.dll文件。须要继承Xilium.CefGlue 中的CefLifeSpanHandler类 namespace Xilium.CefGlue { ...
Xilium.CefGlue
qq_40650744的博客
10-16 296
http://www.cnblogs.com/liulun/archive/2013/04/20/3031502.html 基于.net开发chrome核心浏览器 Xilium.CefGlue这个很不错，我用过这个
Xilium.CefGlue右键菜单定制复制、前进、返回、调试工具等功能
jasonbeer470的博客
07-27 1962
代码如下： using System; using System.Collections.Generic; using System.Text; using System.Windows.Forms; namespace Xilium.CefGlue.Demo.Browser { internal sealed class WebContextMenuHandler : CefCon...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

金汐脉动 | PulseTide

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
