蓝桥杯单片机ds1302

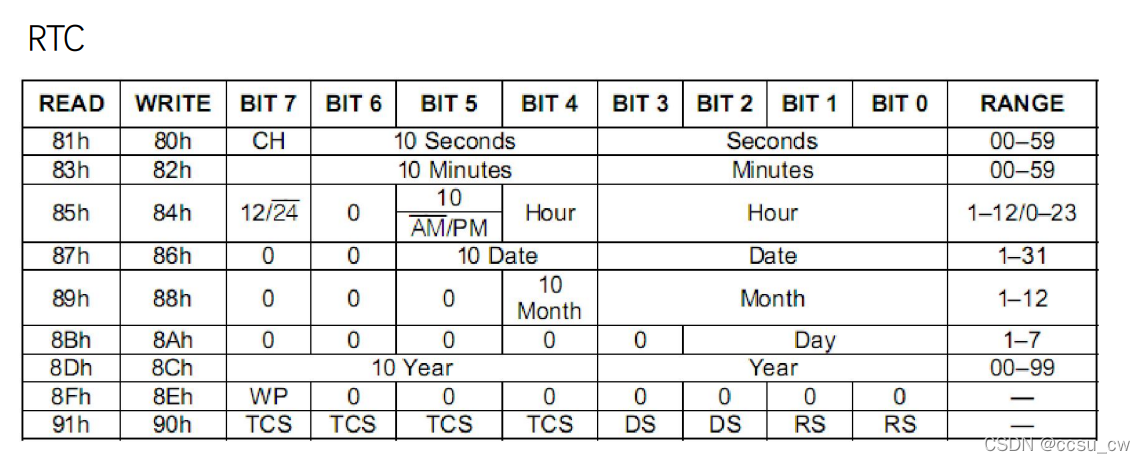

1.设置时钟
1）运行写

Write_Ds1302_Byte(0x8E, 0);

2）写时

temp = ((pucRtc[0] / 10) << 4) + pucRtc[0] % 10;
Write_Ds1302_Byte(0x84, temp);

3）写分

temp = ((pucRtc[1] / 10) << 4) + pucRtc[1] % 10;
Write_Ds1302_Byte(0x82, temp);

4）写秒

temp = ((pucRtc[2] / 10) << 4) + pucRtc[2] % 10;
Write_Ds1302_Byte(0x80, temp);

5）禁止写

Write_Ds1302_Byte(0x8E, 0x80);

函数为

void Set_RTC(unsigned char* pucRtc)
{
    unsigned char temp;
    Write_Ds1302_Byte(0x8E, 0); // WP=0：允许写操作
    temp = ((pucRtc[0] / 10) << 4) + pucRtc[0] % 10;
    Write_Ds1302_Byte(0x84, temp); // 设置时
    temp = ((pucRtc[1] / 10) << 4) + pucRtc[1] % 10;
    Write_Ds1302_Byte(0x82, temp); // 设置分
    temp = ((pucRtc[2] / 10) << 4) + pucRtc[2] % 10;
    Write_Ds1302_Byte(0x80, temp); // 设置秒
    Write_Ds1302_Byte(0x8E, 0x80); // WP=1：禁止写操作
}

2.读时钟

void Read_RTC(unsigned char* pucRtc)
{
    unsigned char temp;
    temp = Read_Ds1302_Byte(0x85); // 读取时
    pucRtc[0] = (temp >> 4) * 10 + (temp & 0xf);
    temp = Read_Ds1302_Byte(0x83); // 读取分
    pucRtc[1] = (temp >> 4) * 10 + (temp & 0xf);
    temp = Read_Ds1302_Byte(0x81); // 读取秒
    pucRtc[2] = (temp >> 4) * 10 + (temp & 0xf);
}

3.数据包中给的代码

#include <reg52.h>
#include <intrins.h>

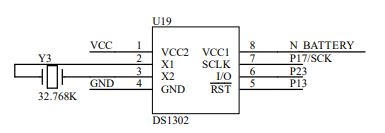

sbit SCK=P1^7;
sbit SDA=P2^3;
sbit RST = P1^3;   // DS1302复位

void Write_Ds1302(unsigned  char temp)
{
	unsigned char i;
	for (i=0;i<8;i++)
	{
		SCK=0;
		SDA=temp&0x01;
		temp>>=1;
		SCK=1;
	}
}

void Write_Ds1302_Byte( unsigned char address,unsigned char dat )
{
 	RST=0;	_nop_();
 	SCK=0;	_nop_();
 	RST=1; 	_nop_();
 	Write_Ds1302(address);
 	Write_Ds1302(dat);
 	RST=0;
}

unsigned char Read_Ds1302_Byte ( unsigned char address )
{
 	unsigned char i,temp=0x00;
 	RST=0;	_nop_();
 	SCK=0;	_nop_();
 	RST=1;	_nop_();
 	Write_Ds1302(address);
 	for (i=0;i<8;i++)
 	{
		SCK=0;
		temp>>=1;
 		if(SDA)
 		temp|=0x80;
 		SCK=1;
	}
 	RST=0;	_nop_();
 	SCK=0;	_nop_();
	SCK=1;	_nop_();
	SDA=0;	_nop_();
	SDA=1;	_nop_();
	return (temp);
}
