【Abaqus】*Solid Section定义复合材料

原文链接：https://www.cnblogs.com/aksoam/p/18366925

*SOLID SECTION

介绍

*solid section 用来定义单元的材料属性,材料方向等信息:

1. solid (continuum) elements
2. infinite elements
3. acoustic finite and infinite elements
4. particle elements
5. truss elements.

Type : Model data;Level : Part,Part instance;Abaqus/CAE : Property module

• example:

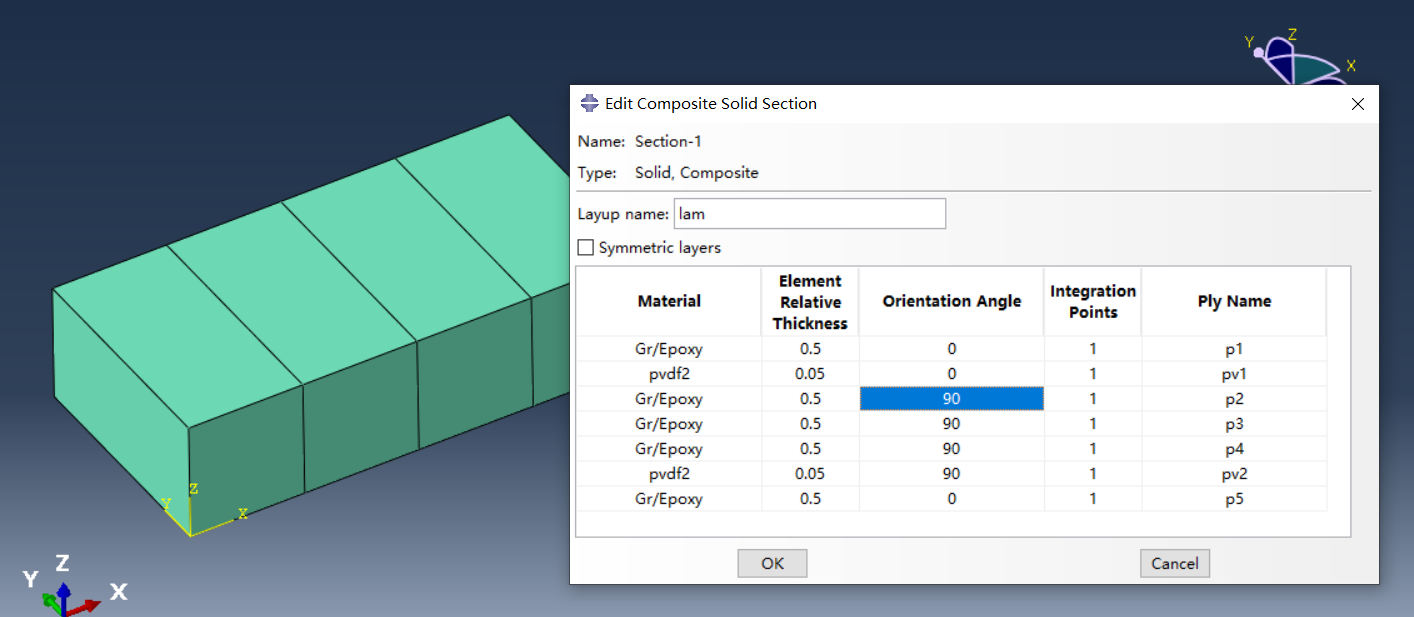

** Section: Section-1
*Solid Section, elset=Set-3, composite, orientation=Ori-1, layup=lam
0.5, 1, Gr/Epoxy, 0., p1
0.05, 1, pvdf2, 0., pv1
0.5, 1, Gr/Epoxy, 90., p2
0.5, 1, Gr/Epoxy, 90., p3
0.5, 1, Gr/Epoxy, 90., p4
0.05, 1, pvdf2, 90., pv2
0.5, 1, Gr/Epoxy, 0., p5

data lines

format 1

define homogeneous solid elements, infinite elements, acoustic elements, particle, or truss elements

First (and only) line:

1. Enter any attribute values required. The default for the first attribute is 1.0.

fo
