一、目的

1．熟悉算法设计的基本思想
2．掌握最小生成树算法的思路

二、内容与设计思想

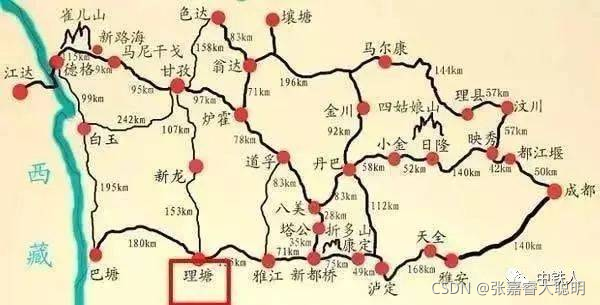

川西风光几枚，以下图片是川西路线图。张三是旅游爱好者，他从成都出发自驾到西藏江达。
请添加图片描述

1）从成都到江达的最短自驾路线是什么？可以用Dijkstra算法来求解。

#include<bits/stdc++.h>
using namespace std;
#define Infinity 65535
#define ERROR -1

int P[10000];
string A[33]={"成都","都江堰","汶川","映秀","雅安","理县",
			"日隆","马尔康","小金","泸定","康定","丹巴","金川",
			"新都桥","塔公","八美","雅江","道孚","炉霍","翁达",
			"A","B","壤塘","色达","甘孜","新龙","理塘",
			"马尼干戈","新路海","德格","白玉","巴塘","江达"};

typedef struct GNode
{
	int Nv;
	int Ne;
	int G[1000][1000];
	int Data[1000];
} MGraph;

typedef struct ENode
{
	int V1,V2;
	int Weight;
} Edge;

MGraph* CreateGraph(int VertexNum)
{
	int V,W;
	MGraph* Graph;

	Graph=new MGraph;
	Graph->Nv=VertexNum;
	Graph->Ne=0;

	for (V=0;V<Graph->Nv;V++)
	{
		for (W=0;W<Graph->Nv;W++)
		{
			Graph->G[V][W]=Infinity;
		}
	}

	return Graph;
}

void InsertEdge(MGraph* Graph,Edge* E)
{
	Graph->G[E->V1-Graph->Data[0]][E->V2-Graph->Data[0]]=E->Weight;
	Graph->G[E->V2-Graph->Data[0]][E->V1-Graph->Data[0]]=E->Weight;
}

MGraph* BuildGraph(MGraph* Graph)
{
	Edge* E;
	int V;
	int Nv,Ne,i;

	cin>>Nv>>Ne;

	Graph=CreateGraph(Nv);
	Graph->Ne=Ne;

	for (V=0;V<Nv;V++)
	{
//		cin>>Graph->Data[V];
		Graph->Data[V]=V;
	}

	if (Graph->Ne!=0)
	{
		E=new Edge;
		for (i=0;i<Graph->Ne;i++)
		{
			cin>>E->V1>>E->V2>>E->Weight;
			InsertEdge(Graph,E);
		}
	}
	cout<<endl;

	return Graph;
}

int FindMinDist(MGraph* Graph,int dist[],int collected[])
{
	int MinV,V;
	int MinDist=Infinity;

	for (V=0;V<Graph->Nv;V++)
	{
		if (collected[V]==false&&dist[V]<MinDist)
		{
			MinDist=dist[V];
			MinV=V;
		}
	}

	if (MinDist<Infinity)
	{
		return MinV;
	}
	else
	{
		return ERROR;
	}
}

bool Dijkstra(MGraph* Graph,int dist[],int path[],int S)
{
	int collected[100000];
	int V,W;

	for (V=0;V<Graph->Nv;V++)
	{
		dist[V]=Graph->G[S][V];
		if (dist[V]<Infinity)
		{
			path[V]=S;
		}
		else
		{
			path[V]=-1;
		}
		collected[V]=false;
	}

	dist[S]=0;
	collected[S]=true;

	while (1)
	{
		V=FindMinDist(Graph,dist,collected);
		if (V==ERROR)
		{
			break;
		}
		collected[V]=true;

		for (W=0;W<Graph->Nv;W++)
		{
			if (collected[W]==false&&Graph->G[V][W]<Infinity)
			{
				if (Graph->G[V][W]<0)
				{
					return false;
				}
				if (dist[V]+Graph->G[V][W]<dist[W])
				{
					dist[W]=dist[V]+Graph->G[V][W];
					path[W]=V;
				}
			}
		}
	}

	return true;
}

int FindPath(int path[],int V)
{
	int k=0;
	while (V>=0)
	{
		P[k]=V;
		V=path[V];
		k++;
	}

	return k;
}

int main()
{
	MGraph* Graph;
	bool flag;
	int S,E,Total;
	int dist[100000],path[100000];

	S=0;
	E=32;
	Graph=BuildGraph(Graph);
	flag=Dijkstra(Graph,dist,path,S);

	if (flag==true)
	{
		cout<<A[S]<<"-->"<<A[E]<<"；"<<dist[E]<<endl;
	}

	Total=FindPath(path,E);
	for (int i=Total-1;i>=0;i--)
	{
		cout<<A[P[i]]<<" ";
	}

	return 0;
}

2）张三把理塘列为必游之地。怎么规划路线，使得总行程最短？

#include<bits/stdc++.h>
using namespace std;
#define Infinity 65535
#define ERROR -1

int P[100000];
string A[33]={"成都","都江堰","汶川","映秀","雅安","理县",
			"日隆","马尔康","小金","泸定","康定","丹巴","金川",
			"新都桥","塔公","八美","雅江","道孚","炉霍","翁达",
			"A","B","壤塘","色达","甘孜","新龙","理塘",
			"马尼干戈","新路海","德格","白玉","巴塘","江达"};

typedef struct GNode
{
	int Nv;
	int Ne;
	int G[1000][1000];
	int Data[1000];
} MGraph;

typedef struct ENode
{
	int V1,V2;
	int Weight;
} Edge;

MGraph* CreateGraph(int VertexNum)
{
	int V,W;
	MGraph* Graph;

	Graph=new MGraph;
	Graph->Nv=VertexNum;
	Graph->Ne=0;

	for (V=0;V<Graph->Nv;V++)
	{
		for (W=0;W<Graph->Nv;W++)
		{
			Graph->G[V][W]=Infinity;
		}
	}

	return Graph;
}

void InsertEdge(MGraph* Graph,Edge* E)
{
	Graph->G[E->V1-Graph->Data[0]][E->V2-Graph->Data[0]]=E->Weight;
	Graph->G[E->V2-Graph->Data[0]][E->V1-Graph->Data[0]]=E->Weight;
}

MGraph* BuildGraph(MGraph* Graph)
{
	Edge* E;
	int V;
	int Nv,Ne,i;

	cin>>Nv>>Ne;

	Graph=CreateGraph(Nv);
	Graph->Ne=Ne;

	for (V=0;V<Nv;V++)
	{
//		cin>>Graph->Data[V];
		Graph->Data[V]=V;
	}

	if (Graph->Ne!=0)
	{
		E=new Edge;
		for (i=0;i<Graph->Ne;i++)
		{
			cin>>E->V1>>E->V2>>E->Weight;
			InsertEdge(Graph,E);
		}
	}
	cout<<endl;

	return Graph;
}

int FindMinDist(MGraph* Graph,int dist[],int collected[])
{
	int MinV,V;
	int MinDist=Infinity;

	for (V=0;V<Graph->Nv;V++)
	{
		if (collected[V]==false&&dist[V]<MinDist)
		{
			MinDist=dist[V];
			MinV=V;
		}
	}

	if (MinDist<Infinity)
	{
		return MinV;
	}
	else
	{
		return ERROR;
	}
}

bool Dijkstra(MGraph* Graph,int dist[],int path[],int S)
{
	int collected[100000];
	int V,W;

	for (V=0;V<Graph->Nv;V++)
	{
		dist[V]=Graph->G[S][V];
		if (dist[V]<Infinity)
		{
			path[V]=S;
		}
		else
		{
			path[V]=-1;
		}
		collected[V]=false;
	}

	dist[S]=0;
	collected[S]=true;

	while (1)
	{
		V=FindMinDist(Graph,dist,collected);
		if (V==ERROR)
		{
			break;
		}
		collected[V]=true;

		for (W=0;W<Graph->Nv;W++)
		{
			if (collected[W]==false&&Graph->G[V][W]<Infinity)
			{
				if (Graph->G[V][W]<0)
				{
					return false;
				}
				if (dist[V]+Graph->G[V][W]<dist[W])
				{
					dist[W]=dist[V]+Graph->G[V][W];
					path[W]=V;
				}
			}
		}
	}

	return true;
}

int FindPath(int path[],int V)
{
	int k=0;
	while (V>=0)
	{
		P[k]=V;
		V=path[V];
		k++;
	}

	return k;
}

int main()
{
	MGraph* Graph;
	bool flag;
	int S,M,E,Total;
	int dist[100000],path[100000];

	S=0;
	M=26;
	E=32;

	Graph=BuildGraph(Graph);
	flag=Dijkstra(Graph,dist,path,S);
	if (flag==true)
	{
		cout<<A[S]<<"-->"<<A[M]<<"；"<<dist[M]<<endl;
	}
	int Total1=FindPath(path,M);
	for (int i=Total1-1;i>=0;i--)
	{
		cout<<A[P[i]]<<" ";
	}
	cout<<endl;

	flag=Dijkstra(Graph,dist,path,M);
	if (flag==true)
	{
		cout<<A[M]<<"-->"<<A[E]<<"；"<<dist[E]<<endl;
	}
	int Total2=FindPath(path,E);
	for (int i=Total2-1;i>=0;i--)
	{
		cout<<A[P[i]]<<" ";
	}

	return 0;
}

3）张三觉得理塘风景很美，道孚也不错，两个地方如果能够去一个地方的话就心满意足了。应该怎么安排行程使得总行程最短？

4）张三在规划线路的时候，发现不同路况行驶速度不一样。地图中粗的路径表示平均时速可以达到80公里每小时，而细的路径表示平均时速仅仅有每小时60公里每小时。那么用时最短的路径是哪一条？

#include<bits/stdc++.h>
using namespace std;
#define Infinity 65535
#define ERROR -1

int P[10000];
string A[33]={"成都","都江堰","汶川","映秀","雅安","理县",
			"日隆","马尔康","小金","泸定","康定","丹巴","金川",
			"新都桥","塔公","八美","雅江","道孚","炉霍","翁达",
			"A","B","壤塘","色达","甘孜","新龙","理塘",
			"马尼干戈","新路海","德格","白玉","巴塘","江达"};

typedef struct GNode
{
	int Nv;
	int Ne;
	double G[1000][1000];
	int Data[1000];
//	int T[1000][1000];
} MGraph;

typedef struct ENode
{
	int V1,V2;
	double Weight;
	int T;
} Edge;

MGraph* CreateGraph(int VertexNum)
{
	int V,W;
	MGraph* Graph;

	Graph=new MGraph;
	Graph->Nv=VertexNum;
	Graph->Ne=0;

	for (V=0;V<Graph->Nv;V++)
	{
		for (W=0;W<Graph->Nv;W++)
		{
			Graph->G[V][W]=Infinity;
		}
	}

	return Graph;
}

void InsertEdge(MGraph* Graph,Edge* E)
{
	if (E->T==0)
	{
		Graph->G[E->V1-Graph->Data[0]][E->V2-Graph->Data[0]]=E->Weight/60.0;
		Graph->G[E->V2-Graph->Data[0]][E->V1-Graph->Data[0]]=E->Weight/60.0;
	}
	else if (E->T==1)
	{
		Graph->G[E->V1-Graph->Data[0]][E->V2-Graph->Data[0]]=E->Weight/80.0;
		Graph->G[E->V2-Graph->Data[0]][E->V1-Graph->Data[0]]=E->Weight/80.0;
	}
}

//void Time(MGraph* Graph)
//{
//	int V,W;
//	for (V=0;V<33;V++)
//	{
//		for (W=0;W<33;W++)
//		{
//			if (Graph->T[V][W]==0)
//			{
//				Graph->G[V][W]=Graph->G[V][W]/60;
//			}
//			else if (Graph->T[V][W]==1)
//			{
//				Graph->G[V][W]=Graph->G[V][W]/80;
//			}
//		}
//	}
//}

MGraph* BuildGraph(MGraph* Graph)
{
	Edge* E;
	int V;
	int Nv,Ne,i;

	cin>>Nv>>Ne;

	Graph=CreateGraph(Nv);
	Graph->Ne=Ne;

	for (V=0;V<Nv;V++)
	{
//		cin>>Graph->Data[V];
		Graph->Data[V]=V;
	}

	if (Graph->Ne!=0)
	{
		E=new Edge;
		for (i=0;i<Graph->Ne;i++)
		{
			cin>>E->V1>>E->V2>>E->Weight>>E->T;
			InsertEdge(Graph,E);
//			Time(Graph);
		}
	}
	cout<<endl;

	return Graph;
}

int FindMinDist(MGraph* Graph,double dist[],int collected[])
{
	int MinV,V;
	int MinDist=Infinity;

	for (V=0;V<Graph->Nv;V++)
	{
		if (collected[V]==false&&dist[V]<MinDist)
		{
			MinDist=dist[V];
			MinV=V;
		}
	}

	if (MinDist<Infinity)
	{
		return MinV;
	}
	else
	{
		return ERROR;
	}
}

bool Dijkstra(MGraph* Graph,double dist[],int path[],int S)
{
	int collected[100000];
	int V,W;

	for (V=0;V<Graph->Nv;V++)
	{
		dist[V]=Graph->G[S][V];
		if (dist[V]<Infinity)
		{
			path[V]=S;
		}
		else
		{
			path[V]=-1;
		}
		collected[V]=false;
	}

	dist[S]=0;
	collected[S]=true;

	while (1)
	{
		V=FindMinDist(Graph,dist,collected);
		if (V==ERROR)
		{
			break;
		}
		collected[V]=true;

		for (W=0;W<Graph->Nv;W++)
		{
			if (collected[W]==false&&Graph->G[V][W]<Infinity)
			{
				if (Graph->G[V][W]<0)
				{
					return false;
				}
				if (dist[V]+Graph->G[V][W]<dist[W])
				{
					dist[W]=dist[V]+Graph->G[V][W];
					path[W]=V;
				}
			}
		}
	}

	return true;
}

int FindPath(int path[],int V)
{
	int k=0;
	while (V>=0)
	{
		P[k]=V;
		V=path[V];
		k++;
	}

	return k;
}

int main()
{
	MGraph* Graph;
	bool flag;
	int S,E,Total;
	int path[100000];
	double dist[100000];

	S=0;
	E=32;
	Graph=BuildGraph(Graph);
	flag=Dijkstra(Graph,dist,path,S);

	if (flag==true)
	{
		cout<<A[S]<<"-->"<<A[E]<<"；"<<dist[E]<<endl;
	}

	Total=FindPath(path,E);
	for (int i=Total-1;i>=0;i--)
	{
		cout<<A[P[i]]<<" ";
	}

	return 0;
}

5）（思考题）考虑到Dijkstra算法仅仅从一段开始寻找路径，效率不高。李教授想到一个高招，就是同时从出发地和目的地进行搜索，扩展搜索节点，然后两个方向扩展的路径会在中途相遇，则拼接起来的路径就是最短路径。如何实现李教授这个想法？

三、使用环境

推荐使用C/C++集成编译环境。

四、实验过程

1、编写相关实验代码
2、写出算法的思路。
第二题分成两步，先由成都到理塘再从理塘到江达，用两次Dijkstra算法；
第三题即把1、2题的距离比较；
第四题再设置一个数组E->T，当值为0时代表细边，当值为1时代表粗边，然后把G[V][W]的值换算成时间再使用Dijkstra算法。
