嵌入式linux v4l2应用 原理及代码解析

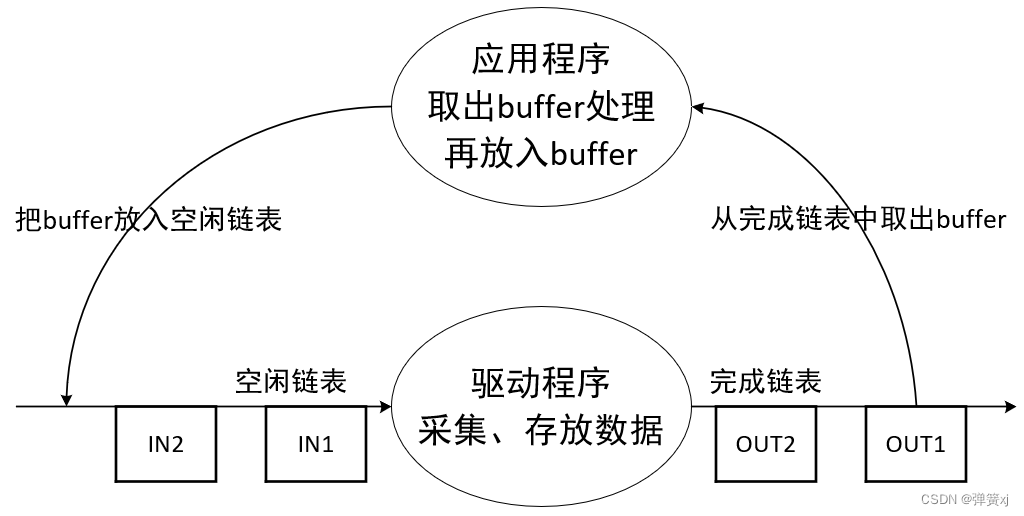

原理

1、初始化v4l2

打开设备、buf初始化、设置格式、放入空闲列表

static int V4l2InitDevice(char *strDevName, PT_VideoDevice ptVideoDevice)
{
    int i;
    int iFd;
    int iError;
    struct v4l2_capability tV4l2Cap;
	struct v4l2_fmtdesc tFmtDesc;
    struct v4l2_format  tV4l2Fmt;
    struct v4l2_requestbuffers tV4l2ReqBuffs;
    struct v4l2_buffer tV4l2Buf;

    int iLcdWidth;
    int iLcdHeigt;
    int iLcdBpp;

	//1、打开设备节点/dev/videox
    iFd = open(strDevName, O_RDWR);
    if (iFd < 0)
    {
        DBG_PRINTF("can not open %s\n", strDevName);
        return -1;
    }
    ptVideoDevice->iFd = iFd;

	//2、VIDIOC_QUERYCAP 查询能力：是否为捕获设备（能否把图像收集传输）、是否支持mmap（内存映射），还是只支持read/write（v4l2的另一种采集图像方式）；
    iError = ioctl(iFd, VIDIOC_QUERYCAP, &tV4l2Cap);
    memset(&tV4l2Cap, 0, sizeof(struct v4l2_capability));
    iError = ioctl(iFd, VIDIOC_QUERYCAP, &tV4l2Cap);
    if (iError) {
    	DBG_PRINTF("Error opening device %s: unable to query device.\n", strDevName);
    	goto err_exit;
    }

	//2.1、判断是否支持 捕获能力
    if (!(tV4l2Cap.capabilities & V4L2_CAP_VIDEO_CAPTURE))
    {
    	DBG_PRINTF("%s is not a video capture device\n", strDevName);
        goto err_exit;
    }

	//2.2 判断是否支持流媒体的输入输出（支持mmap）
	if (tV4l2Cap.capabilities & V4L2_CAP_STREAMING) {
	    DBG_PRINTF("%s supports streaming i/o\n", strDevName);
	}

	//2.3 判断是否支持mmap还是只支持read/write
	if (tV4l2Cap.capabilities & V4L2_CAP_READWRITE) {
	    DBG_PRINTF("%s supports read i/o\n", strDevName);
	}

	memset(&tFmtDesc, 0, sizeof(tFmtDesc));
	tFmtDesc.index = 0;
	tFmtDesc.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
	//3、枚举支持的格式（是否支持yuyv，mjpeg，rgb）
	while ((iError = ioctl(iFd, VIDIOC_ENUM_FMT, &tFmtDesc)) == 0) {
        if (isSupportThisFormat(tFmtDesc.pixelformat))
        {
            ptVideoDevice->iPixelFormat = tFmtDesc.pixelformat;
            break;
        }
		tFmtDesc.index++;
	}

    if (!ptVideoDevice->iPixelFormat)
    {
    	DBG_PRINTF("can not support the format of this device\n");
        goto err_exit;
    }


    /* set format in */
	//设置格式参数：像素格式、宽、高、扫描顺序（比如从上到下扫描）
    GetDispResolution(&iLcdWidth, &iLcdHeigt, &iLcdBpp);
    memset(&tV4l2Fmt, 0, sizeof(struct v4l2_format));
    tV4l2Fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    tV4l2Fmt.fmt.pix.pixelformat = ptVideoDevice->iPixelFormat;
    tV4l2Fmt.fmt.pix.width       = iLcdWidth;
    tV4l2Fmt.fmt.pix.height      = iLcdHeigt;
    tV4l2Fmt.fmt.pix.field       = V4L2_FIELD_ANY;

    /* 如果驱动程序发现无法某些参数(比如分辨率),
     * 它会调整这些参数, 并且返回给应用程序
     */
	//4、设置格式
    iError = ioctl(iFd, VIDIOC_S_FMT, &tV4l2Fmt);
    if (iError)
    {
    	DBG_PRINTF("Unable to set format\n");
        goto err_exit;
    }
    ptVideoDevice->iWidth  = tV4l2Fmt.fmt.pix.width;
    ptVideoDevice->iHeight = tV4l2Fmt.fmt.pix.height;

    /* request buffers */
	//申请buffer的参数
    memset(&tV4l2ReqBuffs, 0, sizeof(struct v4l2_requestbuffers));
    tV4l2ReqBuffs.count = NB_BUFFER;
    tV4l2ReqBuffs.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    tV4l2ReqBuffs.memory = V4L2_MEMORY_MMAP;

	//5、申请buffer，空闲列表和完成列表的buffer
    iError = ioctl(iFd, VIDIOC_REQBUFS, &tV4l2ReqBuffs);
    if (iError)
    {
    	DBG_PRINTF("Unable to allocate buffers.\n");
        goto err_exit;
    }

    ptVideoDevice->iVideoBufCnt = tV4l2ReqBuffs.count;
	//如果支持streaming
    if (tV4l2Cap.capabilities & V4L2_CAP_STREAMING)
    {
        /* map the buffers */
        for (i = 0; i < ptVideoDevice->iVideoBufCnt; i++)
        {
        	memset(&tV4l2Buf, 0, sizeof(struct v4l2_buffer));
        	tV4l2Buf.index = i;
        	tV4l2Buf.type   = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        	tV4l2Buf.memory = V4L2_MEMORY_MMAP;

			//6、查询buffer的信息（申请了多少个count的buffer，就要执行ioctl多少次）
        	iError = ioctl(iFd, VIDIOC_QUERYBUF, &tV4l2Buf);
        	if (iError)
            {
        	    DBG_PRINTF("Unable to query buffer.\n");
        	    goto err_exit;
        	}
			//查询buffer的长度
            ptVideoDevice->iVideoBufMaxLen = tV4l2Buf.length;

			//7、执行mmap，app可以直接访问这些buffer
        	ptVideoDevice->pucVideBuf[i] = mmap(0 /* start anywhere */ ,
        			  tV4l2Buf.length, PROT_READ, MAP_SHARED, iFd,
        			  tV4l2Buf.m.offset);
        	if (ptVideoDevice->pucVideBuf[i] == MAP_FAILED)
            {
        	    DBG_PRINTF("Unable to map buffer\n");
        	    goto err_exit;
        	}
        }

        /* Queue the buffers. */
        for (i = 0; i < ptVideoDevice->iVideoBufCnt; i++)
        {
        	memset(&tV4l2Buf, 0, sizeof(struct v4l2_buffer));
        	tV4l2Buf.index = i;
        	tV4l2Buf.type  = V4L2_BUF_TYPE_VIDEO_CAPTURE;
        	tV4l2Buf.memory = V4L2_MEMORY_MMAP;
			//8、把buffer放入空闲列表（申请到了count个buffer，就要执行count次）
        	iError = ioctl(iFd, VIDIOC_QBUF, &tV4l2Buf);
        	if (iError)
            {
        	    DBG_PRINTF("Unable to queue buffer.\n");
        	    goto err_exit;
        	}
        }

    }
    else if (tV4l2Cap.capabilities & V4L2_CAP_READWRITE)
    {
        g_tV4l2VideoOpr.GetFrame = V4l2GetFrameForReadWrite;
        g_tV4l2VideoOpr.PutFrame = V4l2PutFrameForReadWrite;

        /* read(fd, buf, size) */
        ptVideoDevice->iVideoBufCnt  = 1;
        /* �������������֧�ֵĸ�ʽ��, һ���������ֻ��Ҫ4�ֽ� */
        ptVideoDevice->iVideoBufMaxLen = ptVideoDevice->iWidth * ptVideoDevice->iHeight * 4;
        ptVideoDevice->pucVideBuf[0] = malloc(ptVideoDevice->iVideoBufMaxLen);
    }

    ptVideoDevice->ptOPr = &g_tV4l2VideoOpr;
    return 0;

err_exit:
    close(iFd);
    return -1;
}


2、打开摄像头

static int V4l2StartDevice(PT_VideoDevice ptVideoDevice)
{
    int iType = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    int iError;
	//9、启动摄像头（开始视频流）
    iError = ioctl(ptVideoDevice->iFd, VIDIOC_STREAMON, &iType);
    if (iError)
    {
    	DBG_PRINTF("Unable to start capture.\n");
    	return -1;
    }
    return 0;
}

3、获取一帧数据

等驱动程序采集、存放数据后，从完成列表使用数据


static int V4l2GetFrameForStreaming(PT_VideoDevice ptVideoDevice, PT_VideoBuf ptVideoBuf)
{
    struct pollfd tFds[1];
    int iRet;
    struct v4l2_buffer tV4l2Buf;

    /* poll */
    tFds[0].fd     = ptVideoDevice->iFd;
    tFds[0].events = POLLIN;

	//10 、poll来监测buffer是否有数据
    iRet = poll(tFds, 1, -1);
    if (iRet <= 0)
    {
        DBG_PRINTF("poll error!\n");
        return -1;
    }

    /* VIDIOC_DQBUF */
    memset(&tV4l2Buf, 0, sizeof(struct v4l2_buffer));
    tV4l2Buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    tV4l2Buf.memory = V4L2_MEMORY_MMAP;
	//11、从完成列表中取出buffer
    iRet = ioctl(ptVideoDevice->iFd, VIDIOC_DQBUF, &tV4l2Buf);
    if (iRet < 0)
    {
    	DBG_PRINTF("Unable to dequeue buffer.\n");
    	return -1;
    }
    ptVideoDevice->iVideoBufCurIndex = tV4l2Buf.index;

    ptVideoBuf->iPixelFormat        = ptVideoDevice->iPixelFormat;
    ptVideoBuf->tPixelDatas.iWidth  = ptVideoDevice->iWidth;
    ptVideoBuf->tPixelDatas.iHeight = ptVideoDevice->iHeight;
    ptVideoBuf->tPixelDatas.iBpp    = (ptVideoDevice->iPixelFormat == V4L2_PIX_FMT_YUYV) ? 16 : \
                                        (ptVideoDevice->iPixelFormat == V4L2_PIX_FMT_MJPEG) ? 0 :  \
                                        (ptVideoDevice->iPixelFormat == V4L2_PIX_FMT_RGB565) ? 16 :  \
                                        0;
    ptVideoBuf->tPixelDatas.iLineBytes    = ptVideoDevice->iWidth * ptVideoBuf->tPixelDatas.iBpp / 8;
    ptVideoBuf->tPixelDatas.iTotalBytes   = tV4l2Buf.bytesused;
    ptVideoBuf->tPixelDatas.aucPixelDatas = ptVideoDevice->pucVideBuf[tV4l2Buf.index];
    return 0;
}

4、放回空闲列表

完成列表的buffer使用完后，放回空闲列表

static int V4l2PutFrameForStreaming(PT_VideoDevice ptVideoDevice, PT_VideoBuf ptVideoBuf)
{
    /* VIDIOC_QBUF */
    struct v4l2_buffer tV4l2Buf;
    int iError;

	memset(&tV4l2Buf, 0, sizeof(struct v4l2_buffer));
	tV4l2Buf.index  = ptVideoDevice->iVideoBufCurIndex;
	tV4l2Buf.type   = V4L2_BUF_TYPE_VIDEO_CAPTURE;
	tV4l2Buf.memory = V4L2_MEMORY_MMAP;
	//12、把buffer放入“空闲列表”
	iError = ioctl(ptVideoDevice->iFd, VIDIOC_QBUF, &tV4l2Buf);
	if (iError)
    {
	    DBG_PRINTF("Unable to queue buffer.\n");
	    return -1;
	}
    return 0;
}

5、关闭摄像头

static int V4l2StopDevice(PT_VideoDevice ptVideoDevice)
{
    int iType = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    int iError;
	//13、停止摄像头
    iError = ioctl(ptVideoDevice->iFd, VIDIOC_STREAMOFF, &iType);
    if (iError)
    {
    	DBG_PRINTF("Unable to stop capture.\n");
    	return -1;
    }
    return 0;
}

6、关闭video设备

static int V4l2ExitDevice(PT_VideoDevice ptVideoDevice)
{
    int i;
    for (i = 0; i < ptVideoDevice->iVideoBufCnt; i++)
    {
        if (ptVideoDevice->pucVideBuf[i])
        {
            munmap(ptVideoDevice->pucVideBuf[i], ptVideoDevice->iVideoBufMaxLen);
            ptVideoDevice->pucVideBuf[i] = NULL;
        }
    }

    close(ptVideoDevice->iFd);
    return 0;
}
