使用SAHI提升YOLO模型对小目标的检测效果

SAHI（Slicing Aided Hyper Inference）是一个用于对大型图像/小物体执行切片推理的计算机视觉库。它主要用于解决目标检测任务中，特别是小目标检测的问题。以下是关于 Python 的 SAHI 软件包的详细介绍：

SAHI 的主要功能和特点：

2. SAHI的主要特点

• 支持多种目标检测模型(YOLO、MMDetection等)
• 自动切片和合并结果
• 可配置的切片大小和重叠率
• 支持批量处理
• 结果可视化

默认支持的权重格式

MODEL_TYPE_TO_MODEL_CLASS_NAME = {
    "ultralytics": "UltralyticsDetectionModel",
    "rtdetr": "RTDetrDetectionModel",
    "mmdet": "MmdetDetectionModel",
    "yolov5": "Yolov5DetectionModel",
    "detectron2": "Detectron2DetectionModel",
    "huggingface": "HuggingfaceDetectionModel",
    "torchvision": "TorchVisionDetectionModel",
    "yolov5sparse": "Yolov5SparseDetectionModel",
    "yolov8onnx": "Yolov8OnnxDetectionModel",
}

ULTRALYTICS_MODEL_NAMES = ["yolov8", "yolov11", "yolo11", "ultralytics"]

SAHI 的安装：

可以使用 pip 安装 SAHI：

pip install opencv-python matplotlib torch ultralytics sahi -i https://mirrors.cloud.tencent.com/pypi/simple

代码如下

import cv2
import matplotlib.pyplot as plt
import torch
from ultralytics import YOLO
from sahi import AutoDetectionModel
from sahi.predict import get_sliced_prediction
from sahi.utils.cv import read_image

def load_yolo_model(model_path, confidence_threshold=0.5):
    """
    加载YOLO模型
    Args:
        model_path: 模型路径
        confidence_threshold: 置信度阈值，默认0.5
    Returns:
        加载好的YOLO模型
    """
    yolo_model = YOLO(model_path)
    yolo_model.conf = confidence_threshold
    return yolo_model

def load_sahi_model(model_path, confidence_threshold=0.5, device="cpu"):
    """
    加载SAHI模型
    Args:
        model_path: 模型路径
        confidence_threshold: 置信度阈值，默认0.5
        device: 运行设备，默认CPU
    Returns:
        加载好的SAHI模型
    """
    return AutoDetectionModel.from_pretrained(
        model_type="ultralytics",
        model_path=model_path,
        confidence_threshold=confidence_threshold,
        device=device,
    )

def read_and_prepare_image(image_path):
    """
    读取并准备图像
    Args:
        image_path: 图像路径
    Returns:
        RGB格式的图像数组
    """
    try:
        image = cv2.imread(image_path)
        return cv2.cvtColor(image, cv2.COLOR_BGR2RGB)  # 转换为RGB格式
    except FileNotFoundError:
        print(f"错误：找不到图像文件 {image_path}")
        exit()

def yolo_inference(yolo_model, image, device="cuda"):
    """
    使用YOLO模型进行推理
    Args:
        yolo_model: YOLO模型
        image: 输入图像
        device: 运行设备，默认CUDA
    Returns:
        检测结果数组
    """
    yolo_results = yolo_model(image, device=device)
    return yolo_results[0].boxes.data.cpu().numpy()

def sahi_inference(detection_model, image, slice_height=512, slice_width=512,
                  overlap_height_ratio=0.2, overlap_width_ratio=0.2):
    """
    使用SAHI进行切片推理
    Args:
        detection_model: 检测模型
        image: 输入图像
        slice_height: 切片高度
        slice_width: 切片宽度
        overlap_height_ratio: 高度方向重叠比例
        overlap_width_ratio: 宽度方向重叠比例
    Returns:
        SAHI检测结果列表
    """
    sahi_result = get_sliced_prediction(
        image,
        detection_model,
        slice_height=slice_height,
        slice_width=slice_width,
        overlap_height_ratio=overlap_height_ratio,
        overlap_width_ratio=overlap_width_ratio,
    )
    return sahi_result.object_prediction_list

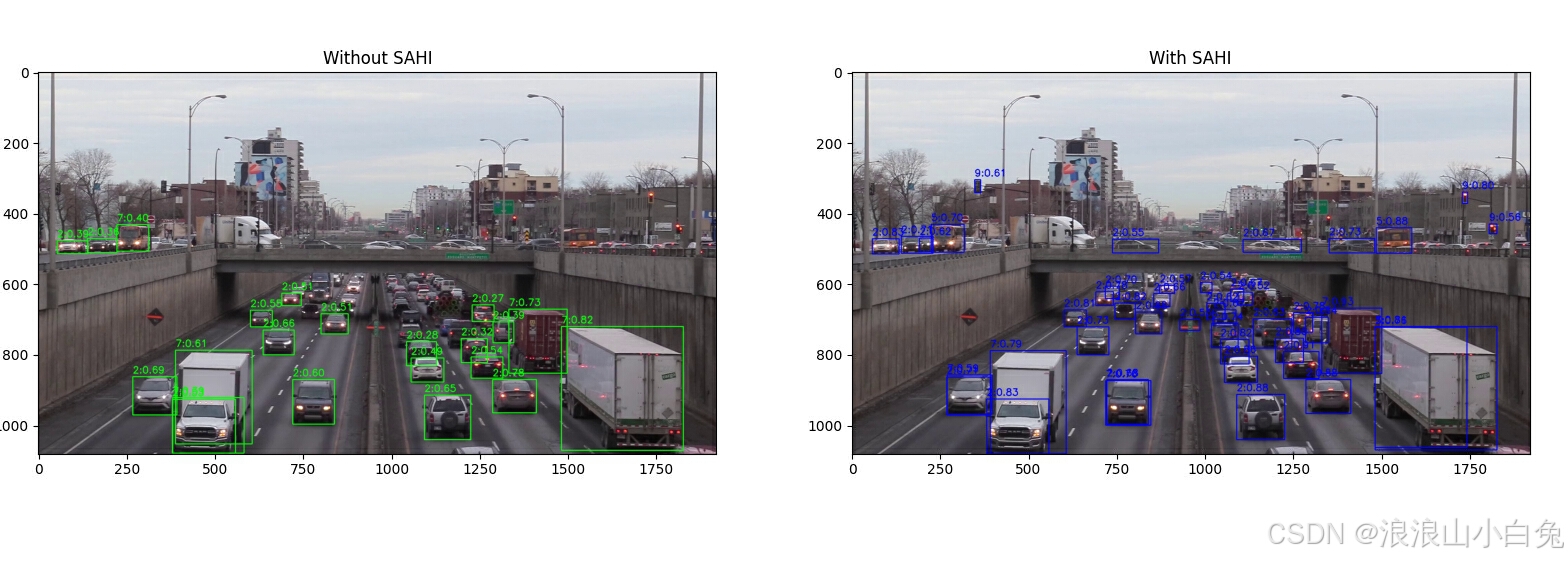

def visualize_results(image, yolo_detections, sahi_detections):
    """
    可视化检测结果
    Args:
        image: 原始图像
        yolo_detections: YOLO检测结果
        sahi_detections: SAHI检测结果
    """
    # 创建1x2的图像网格
    fig, axes = plt.subplots(1, 2, figsize=(20, 10))

    # 绘制不使用SAHI的结果
    image_no_sahi = image.copy()
    for *xyxy, conf, cls in yolo_detections:
        x1, y1, x2, y2 = map(int, xyxy)
        # 绘制边界框
        cv2.rectangle(image_no_sahi, (x1, y1), (x2, y2), (0, 255, 0), 2)
        # 添加类别和置信度文本
        cv2.putText(image_no_sahi, f"{int(cls)}:{conf:.2f}", (x1, y1 - 10),
                    cv2.FONT_HERSHEY_SIMPLEX, 0.9, (0, 255, 0), 2)

    axes[0].imshow(image_no_sahi)
    axes[0].set_title("Without SAHI")

    # 绘制使用SAHI的结果
    image_sahi = image.copy()
    for prediction in sahi_detections:
        bbox = prediction.bbox.to_xyxy()
        x1, y1, x2, y2 = map(int, bbox)
        # 确保score是浮点数
        score = float(prediction.score) if hasattr(prediction.score, '__float__') else prediction.score.value
        # 绘制边界框
        cv2.rectangle(image_sahi, (x1, y1), (x2, y2), (0, 0, 255), 2)
        # 添加类别和置信度文本
        cv2.putText(image_sahi, f"{prediction.category.id}:{score:.2f}", (x1, y1 - 10),
                    cv2.FONT_HERSHEY_SIMPLEX, 0.9, (0, 0, 255), 2)

    axes[1].imshow(image_sahi)
    axes[1].set_title("With SAHI")

    plt.show()
    fig.savefig("comparison.jpg")
    print("图像已保存为 comparison.jpg")

def main():
    """
    主函数
    """
    # 加载YOLO和SAHI模型
    yolo_model = load_yolo_model(r"D:\project\w\v11\yolo11n.engine")
    detection_model = load_sahi_model(r"D:\project\w\v11\yolo11n.engine", device="cuda")

    # 读取待检测图像
    image = read_and_prepare_image("1.jpg")

    # 分别使用YOLO和SAHI进行推理
    yolo_detections = yolo_inference(yolo_model, image, device="cuda")
    sahi_detections = sahi_inference(detection_model, image)

    # 可视化并保存结果
    visualize_results(image, yolo_detections, sahi_detections)

if __name__ == "__main__":
    main()

额外说明

默认只支持pt推理，如果想要直接使用onnx和engine推理，需要修改sahi库中代码
位置在 E:\miniconda3\envs\yolov9\Lib\site-packages\sahi\models\ultralytics.py中
修改后如下

class UltralyticsDetectionModel(DetectionModel):
    def check_dependencies(self) -> None:
        check_requirements(["ultralytics"])

    def load_model(self):
        """
        Detection model is initialized and set to self.model.
        """

        from ultralytics import YOLO

        try:
            model = YOLO(self.model_path)
            # model.to(self.device)
            self.set_model(model)
        except Exception as e:
            raise TypeError("model_path is not a valid Ultralytics model path: ", e)
