本文详细介绍了Redis的三种集群模式：主从复制、哨兵模式和Cluster集群。通过配置示例展示了如何搭建和管理这些集群，包括主从复制的故障转移、哨兵模式的监控和故障切换，以及Cluster集群的哈希槽分配和数据分布。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

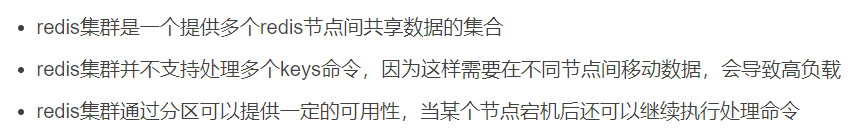

Redis集群介绍

Redis集群优势所在

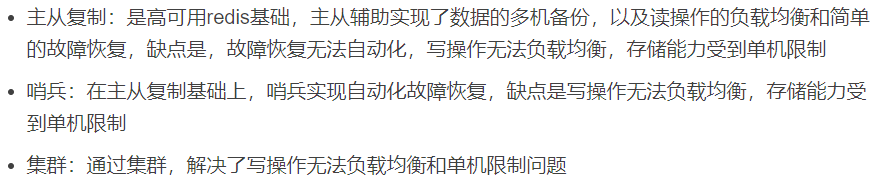

Redis集群的三种模式

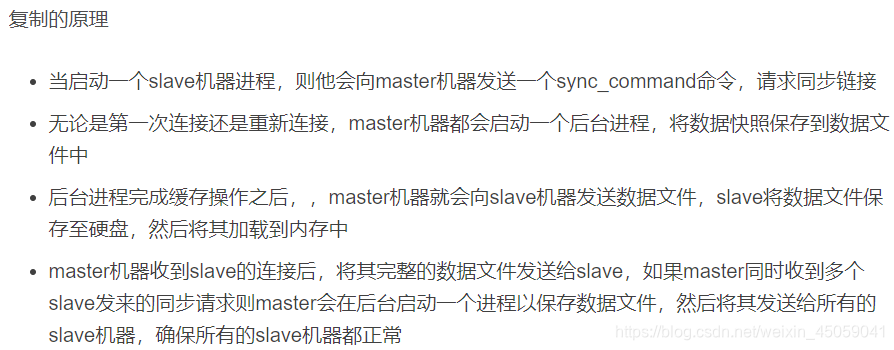

Redis的主从复制

部署主从复制

master  192.168.1.5
slave1  192.168.1.102
slave2  192.168.1.103

[root@localhost ]# yum -y install gcc gcc-c++ make
已加载插件：fastestmirror, langpacks
Loading mirror speeds from cached hostfile
 * base: mirrors.aliyun.com
 * extras: mirrors.aliyun.com
 * updates: mirrors.aliyun.com
软件包 gcc-4.8.5-44.el7.x86_64 已安装并且是最新版本
软件包 gcc-c++-4.8.5-44.el7.x86_64 已安装并且是最新版本
软件包 1:make-3.82-24.el7.x86_64 已安装并且是最新版本
无须任何处理

[root@localhost ]# tar zxf redis-5.0.7.tar.gz
[root@localhost redis-5.0.7]# cd redis-5.0.7/
[root@localhost redis-5.0.7]# make PREFIX=/usr/local/redis install		//因为Redis源码包中直接提供了Makefile文件，所以不用执行./configure配置，可以直接执行make

[root@localhost redis-5.0.7]# cd utils/
[root@localhost utils]# ./install_server.sh

在这里插入图片描述

[root@slave1 utils]# ln -s /usr/local/redis/bin/* /usr/local/bin/

[root@slave1 utils]# netstat -antp | grep redis
tcp        0      0 127.0.0.1:6379          0.0.0.0:*               LISTEN      13152/redis-server

[root@master ~]# vim /etc/redis/6379.conf
 70 bind 0.0.0.0						//修改监听地址为0.0.0.0
 137 daemonize yes						//开启守护进程
 172 logfile /var/log/redis_6379.log	//指定日志文件目录
 264 dir /var/lib/redis/6379			//指定工作目录
 700 appendonly yes						//开启AOF持久化
[root@master ~]# /etc/init.d/redis_6379 restart
Stopping ...
Waiting for Redis to shutdown ...
Redis stopped
Starting Redis server...

[root@slave1 ~]# vim /etc/redis/6379.conf
 70 bind 0.0.0.0						//修改监听地址为0.0.0.0
 137 daemonize yes						//开启守护进程
 172 logfile /var/log/redis_6379.log	//指定日志文件目录
 264 dir /var/lib/redis/6379			//指定工作目录
 287  replicaof 192.168.1.5 6379		//指定要同步master节点ip和端口
 700 appendonly yes						//开启AOF持久化

[root@master ~]# redis-cli info replication
# Replication
role:master
connected_slaves:2
slave0:ip=192.168.1.102,port=6379,state=online,offset=0,lag=1
slave1:ip=192.168.1.103,port=6379,state=online,offset=0,lag=1
master_replid:aa9db638fd539e3c6c3f9eb80ecb800760dcf384		//master启动时生成的40位16进制的随机字符串，用来标识master
master_replid2:0000000000000000000000000000000000000000
master_repl_offset:0			//复制流中的偏移量，master处理完写入命令后，会把命令的字节长度做累加记录，统计在该字段中
second_repl_offset:-1			//无论主从，都表示上次主实例repidl和复制偏移量，用于兄弟实例或级联复制
repl_backlog_active:1
repl_backlog_size:1048576
repl_backlog_first_byte_offset:1
repl_backlog_histlen:0
[root@master ~]# tail -f /var/log/redis_6379.log
60682:M 08 Aug 2021 22:37:46.478 * Background saving terminated with success
60682:M 08 Aug 2021 22:37:46.479 * Synchronization with replica 192.168.1.102:6379 succeeded
60682:M 08 Aug 2021 22:37:47.426 * Replica 192.168.1.103:6379 asks for synchronization
60682:M 08 Aug 2021 22:37:47.426 * Full resync requested by replica 192.168.1.103:6379
60682:M 08 Aug 2021 22:37:47.427 * Starting BGSAVE for SYNC with target: disk
60682:M 08 Aug 2021 22:37:47.427 * Background saving started by pid 60785
60785:C 08 Aug 2021 22:37:47.428 * DB saved on disk
60785:C 08 Aug 2021 22:37:47.428 * RDB: 0 MB of memory used by copy-on-write
60682:M 08 Aug 2021 22:37:47.485 * Background saving terminated with success
60682:M 08 Aug 2021 22:37:47.485 * Synchronization with replica 192.168.1.103:6379 succeeded

[root@master ~]# redis-cli
127.0.0.1:6379> set key1 1
OK
[root@slave1 ~]# redis-cli
127.0.0.1:6379> get key1
"1"
[root@slave2 ~]# redis-cli
127.0.0.1:6379> get key1
"1"

Redis的哨兵模式

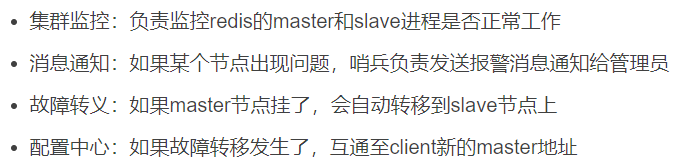

哨兵模式主要功能

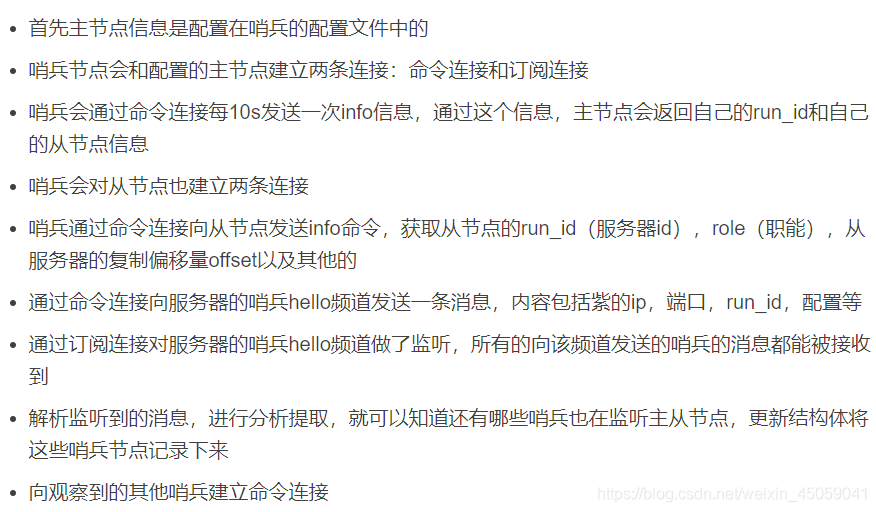

哨兵监控整个系统节点的过程

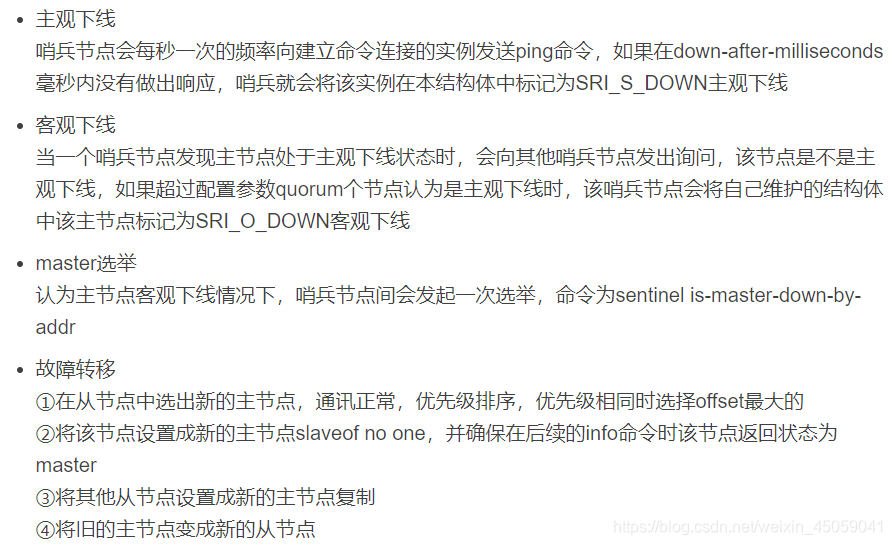

哨兵模式下的故障迁移

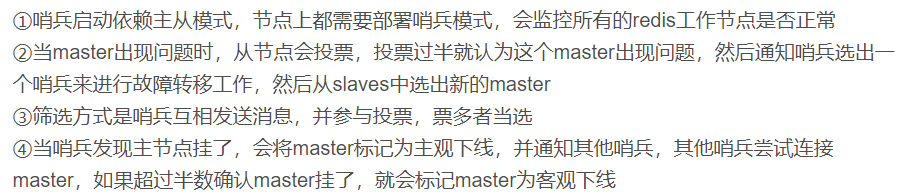

哨兵的工作过程

部署哨兵模式

master  192.168.1.5
slave1  192.168.1.102
slave2  192.168.1.103

[root@master ~]# vim redis-5.0.7/sentinel.conf
 17  protected-mode no			//关闭保护模式
 21 port 26379					//哨兵默认监听端口
 26 daemonize yes				//开启守护进程
 36 logfile "/var/log/sentinel.log"		//指定日志存放路径
 65 dir /var/lib/redis/6379				//指定数据库存放路径
 84 sentinel monitor mymaster 192.168.1.5 6379 2		//指定主的ip，指定2个哨兵节点同意才能判断主节点故障并故障转移
 113 sentinel down-after-milliseconds mymaster 30000	//判定服务器down掉的时间周期，默认30秒
 146 sentinel failover-timeout mymaster 180000			//故障节点的最大超时时间为180秒

[root@master redis-5.0.7]# redis-sentinel sentinel.conf &
[root@master redis-5.0.7]# redis-cli -p 26379 info sentinel
# Sentinel
sentinel_masters:1
sentinel_tilt:0
sentinel_running_scripts:0
sentinel_scripts_queue_length:0
sentinel_simulate_failure_flags:0
master0:name=mymaster,status=ok,address=192.168.1.5:6379,slaves=2,sentinels=1
[1]+  完成                  redis-sentinel sentinel.conf

[root@master redis-5.0.7]# kill -9 41447
[root@master redis-5.0.7]# rm -rf /var/run/redis_6379.pid

[root@master redis-5.0.7]# redis-cli -p 26379 info sentinel
# Sentinel
sentinel_masters:1
sentinel_tilt:0
sentinel_running_scripts:0
sentinel_scripts_queue_length:0
sentinel_simulate_failure_flags:0
master0:name=mymaster,status=ok,address=192.168.1.103:6379,slaves=2,sentinels=3			//发现master地址变了，说明发生了故障转移

[root@slave1 redis-5.0.7]# tail -f /var/log/sentinel.log
14402:X 08 Aug 2021 22:13:46.737 # +vote-for-leader c0113cda2755db59d9cb0bf710cf89c026f5409a 1
14402:X 08 Aug 2021 22:13:47.744 # +odown master mymaster 192.168.1.5 6379 #quorum 3/2
14402:X 08 Aug 2021 22:13:47.745 # Next failover delay: I will not start a failover before Sun Aug  8 22:19:46 2021
14402:X 08 Aug 2021 22:13:47.845 # +config-update-from sentinel c0113cda2755db59d9cb0bf710cf89c026f5409a 192.168.1.103 26379 @ mymaster 192.168.1.5 6379
14402:X 08 Aug 2021 22:13:47.845 # +switch-master mymaster 192.168.1.5 6379 192.168.1.103 6379
14402:X 08 Aug 2021 22:13:47.845 * +slave slave 192.168.1.102:6379 192.168.1.102 6379 @ mymaster 192.168.1.103 6379
14402:X 08 Aug 2021 22:13:47.845 * +slave slave 192.168.1.5:6379 192.168.1.5 6379 @ mymaster 192.168.1.103 6379
14402:X 08 Aug 2021 22:14:17.903 # +sdown slave 192.168.1.5:6379 192.168.1.5 6379 @ mymaster 192.168.1.103 6379
14402:X 08 Aug 2021 22:14:17.903 # +sdown slave 192.168.1.102:6379 192.168.1.102 6379 @ mymaster 192.168.1.103 6379
14402:X 08 Aug 2021 22:14:56.527 # -sdown slave 192.168.1.5:6379 192.168.1.5 6379 @ mymaster 192.168.1.103 6379

Redis的cluster集群

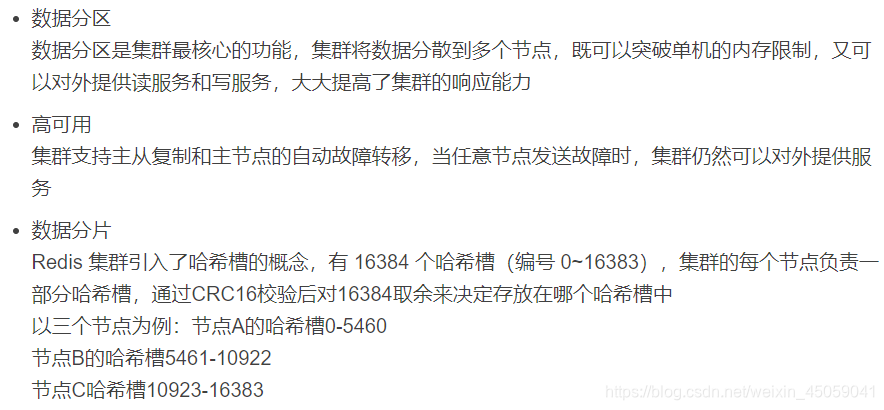

集群的作用

搭建cluster集群

[root@master redis-5.0.7]# cd /etc/redis
[root@master redis]# mkdir -p redis-cluster/redis700{1..6}

#!/bin/bash
for i in {1..6}
do
cp redis-5.0.7/redis.conf /etc/redis/redis-cluster/redis700$i
cp redis-5.0.7/src/redis-cli redis-5.0.7/src/redis-server /etc/redis/redis-cluster/redis700$i
done
[root@master redis7001]# sh -x /opt/redis.sh

[root@master redis7001]# ls
redis-cli  redis.conf  redis-server
[root@master redis7001]# cd ..
[root@master redis-cluster]# cd redis7002
[root@master redis7002]# ls
redis-cli  redis.conf  redis-server
[root@master redis7002]# cd ../redis7003
[root@master redis7003]# ls
redis-cli  redis.conf  redis-server
[root@master redis7003]# cd ../redis7004
[root@master redis7004]# ls
redis-cli  redis.conf  redis-server
[root@master redis7004]# cd ../redis7005
[root@master redis7005]# ls
redis-cli  redis.conf  redis-server
[root@master redis7005]# cd ../redis7006
[root@master redis7006]# ls
redis-cli  redis.conf  redis-server

[root@master redis7001]# vim redis.conf
 69 bind 127.0.0.1			//注释掉或者不修改
 88 protected-mode no		//关闭保护模式
 92 port 7001				//端口改成监听端口，其他五个依次修改
 136 daemonize yes			//开启守护进程
 832  cluster-enabled yes	//取消注释，开启集群模式
 840  cluster-config-file nodes-7001.conf		//取消注释并修改名字
 846  cluster-node-timeout 15000				//取消注释集群超时时间设置
 699 appendonly yes								//开启AOF持久化

[root@master redis7001]# vim /opt/redis_start.sh
#!/bin/bash
for d in {1..6}
do
cd /etc/redis/redis-cluster/redis700$d
redis-server redis.conf
done
ps -ef | grep redis

[root@master redis7001]# sh /opt/redis_start.sh
49088:C 09 Aug 2021 00:57:15.730 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
49088:C 09 Aug 2021 00:57:15.730 # Redis version=5.0.7, bits=64, commit=00000000, modified=0, pid=49088, just started
49088:C 09 Aug 2021 00:57:15.730 # Configuration loaded
49090:C 09 Aug 2021 00:57:15.735 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
49090:C 09 Aug 2021 00:57:15.735 # Redis version=5.0.7, bits=64, commit=00000000, modified=0, pid=49090, just started
49090:C 09 Aug 2021 00:57:15.735 # Configuration loaded
49092:C 09 Aug 2021 00:57:15.739 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
49092:C 09 Aug 2021 00:57:15.739 # Redis version=5.0.7, bits=64, commit=00000000, modified=0, pid=49092, just started
49092:C 09 Aug 2021 00:57:15.739 # Configuration loaded
49094:C 09 Aug 2021 00:57:15.743 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
49094:C 09 Aug 2021 00:57:15.743 # Redis version=5.0.7, bits=64, commit=00000000, modified=0, pid=49094, just started
49094:C 09 Aug 2021 00:57:15.743 # Configuration loaded
49096:C 09 Aug 2021 00:57:15.746 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
49096:C 09 Aug 2021 00:57:15.746 # Redis version=5.0.7, bits=64, commit=00000000, modified=0, pid=49096, just started
49096:C 09 Aug 2021 00:57:15.746 # Configuration loaded
49098:C 09 Aug 2021 00:57:15.749 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
49098:C 09 Aug 2021 00:57:15.749 # Redis version=5.0.7, bits=64, commit=00000000, modified=0, pid=49098, just started
49098:C 09 Aug 2021 00:57:15.749 # Configuration loaded
root      49010      1  0 00:54 ?        00:00:00 redis-server *:7001 [cluster]
root      49061      1  0 00:56 ?        00:00:00 redis-server *:7002 [cluster]
root      49064      1  0 00:56 ?        00:00:00 redis-server *:7003 [cluster]
root      49068      1  0 00:56 ?        00:00:00 redis-server *:7004 [cluster]
root      49073      1  0 00:56 ?        00:00:00 redis-server *:7005 [cluster]
root      49079      1  0 00:56 ?        00:00:00 redis-server *:7006 [cluster]
root      49087 106291  0 00:57 pts/2    00:00:00 sh /opt/redis_start.sh
root      49101  49087  0 00:57 pts/2    00:00:00 grep redis
root      83130      1  0 00:10 ?        00:00:11 redis-sentinel *:26379 [sentinel]
root      83184      1  0 00:14 ?        00:00:08 /usr/local/bin/redis-server 0.0.0.0:6379

[root@master redis7001]# redis-cli --cluster create 127.0.0.1:7001 127.0.0.1:7002 127.0.0.1:7003 127.0.0.1:7004  127.0.0.1:7005 127.0.0.1:7006 --cluster-replicas 1				//前三个作为主，后三个作为从，1表示每个主节点有一个从节点，所以分三组
>>> Performing hash slots allocation on 6 nodes...
Master[0] -> Slots 0 - 5460
Master[1] -> Slots 5461 - 10922
Master[2] -> Slots 10923 - 16383
Adding replica 127.0.0.1:7005 to 127.0.0.1:7001
Adding replica 127.0.0.1:7006 to 127.0.0.1:7002
Adding replica 127.0.0.1:7004 to 127.0.0.1:7003
>>> Trying to optimize slaves allocation for anti-affinity
[WARNING] Some slaves are in the same host as their master
M: db3b7682a85fc1094918c8aaa2f678b44f37e4c7 127.0.0.1:7001
   slots:[0-5460] (5461 slots) master
M: 3f0455cc5f4ac46449bcd04a206ad305e1f91f73 127.0.0.1:7002
   slots:[5461-10922] (5462 slots) master
M: 3a3a73300dc0d5a7ff20d75a56a9f2517d172fb4 127.0.0.1:7003
   slots:[10923-16383] (5461 slots) master
S: 32e46faba6d5f814b71900d2b8ee6230c2f0852d 127.0.0.1:7004
   replicates 3a3a73300dc0d5a7ff20d75a56a9f2517d172fb4
S: 6779211f79f7af7f20f399860c05bcccba66e4e0 127.0.0.1:7005
   replicates db3b7682a85fc1094918c8aaa2f678b44f37e4c7
S: f1c4fd994e4fc57549582a6fb8192ebbee79aa06 127.0.0.1:7006
   replicates 3f0455cc5f4ac46449bcd04a206ad305e1f91f73
Can I set the above configuration? (type 'yes' to accept): yes
>>> Nodes configuration updated
>>> Assign a different config epoch to each node
>>> Sending CLUSTER MEET messages to join the cluster
Waiting for the cluster to join
.
>>> Performing Cluster Check (using node 127.0.0.1:7001)
M: db3b7682a85fc1094918c8aaa2f678b44f37e4c7 127.0.0.1:7001
   slots:[0-5460] (5461 slots) master
   1 additional replica(s)
M: 3f0455cc5f4ac46449bcd04a206ad305e1f91f73 127.0.0.1:7002
   slots:[5461-10922] (5462 slots) master
   1 additional replica(s)
S: 32e46faba6d5f814b71900d2b8ee6230c2f0852d 127.0.0.1:7004
   slots: (0 slots) slave
   replicates 3a3a73300dc0d5a7ff20d75a56a9f2517d172fb4
S: 6779211f79f7af7f20f399860c05bcccba66e4e0 127.0.0.1:7005
   slots: (0 slots) slave
   replicates db3b7682a85fc1094918c8aaa2f678b44f37e4c7
M: 3a3a73300dc0d5a7ff20d75a56a9f2517d172fb4 127.0.0.1:7003
   slots:[10923-16383] (5461 slots) master
   1 additional replica(s)
S: f1c4fd994e4fc57549582a6fb8192ebbee79aa06 127.0.0.1:7006
   slots: (0 slots) slave
   replicates 3f0455cc5f4ac46449bcd04a206ad305e1f91f73
[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.

[root@master redis7001]# redis-cli -p 7002 -c	//-c参数可以让节点之间互相跳转
127.0.0.1:7002> cluster slots					//查看节点的哈希槽范围
1) 1) (integer) 5461
   2) (integer) 10922
   3) 1) "127.0.0.1"
      2) (integer) 7002
      3) "3f0455cc5f4ac46449bcd04a206ad305e1f91f73"
   4) 1) "127.0.0.1"
      2) (integer) 7006
      3) "f1c4fd994e4fc57549582a6fb8192ebbee79aa06"
2) 1) (integer) 10923
   2) (integer) 16383
   3) 1) "127.0.0.1"
      2) (integer) 7003
      3) "3a3a73300dc0d5a7ff20d75a56a9f2517d172fb4"
   4) 1) "127.0.0.1"
      2) (integer) 7004
      3) "32e46faba6d5f814b71900d2b8ee6230c2f0852d"
3) 1) (integer) 0
   2) (integer) 5460
   3) 1) "127.0.0.1"
      2) (integer) 7001
      3) "db3b7682a85fc1094918c8aaa2f678b44f37e4c7"
   4) 1) "127.0.0.1"
      2) (integer) 7005
      3) "6779211f79f7af7f20f399860c05bcccba66e4e0"
127.0.0.1:7002> set k1 zhangsan			//创建键值
-> Redirected to slot [12706] located at 127.0.0.1:7003		//存放到了7003中
OK
127.0.0.1:7003> cluster keyslot k1				//查看键的哈希槽编号
(integer) 12706
127.0.0.1:7003> set k2 lisi
-> Redirected to slot [449] located at 127.0.0.1:7001	//随机存放到任意一个节点中并且会互相跳转
OK
127.0.0.1:7001> cluster keyslot k2
(integer) 449
127.0.0.1:7001> get k1
-> Redirected to slot [12706] located at 127.0.0.1:7003
"zhangsan"
127.0.0.1:7003> 				//查看键值从7001跳到7003
