实验目的

  1. 学习，掌握LR语法分析的原理和知识。
  2. 理解给定的文法，与递归下降分析所提供的文法作比较。
  3. 学习，掌握通过Bison自动生成语法分析器，并使用Flex和Bison工具实现语法分析树的建立。

实验原理

  1. 关于Bison/Yacc：
    Yacc（Yet Another Compiler Compiler）是生成语法分析器的工具；Bison是GUN版本的Yacc，Bison能够自动生成一个语法分析器。

  2. 词法分析器与语法分析器的交互：
    Flex: yylex()
    Bison: yyparser()
    语法分析器yyparser需要下一个新单词时，调用词法分析子程序yylex，yylex从输入串中识别一个单词后返回。
    在这里插入图片描述
    yylex的返回的是词法记号（单词编号），而一词法记号有相应的属性：标识符、常数等。约定使用全局变量yylval，yylval的类型默认为整数类型，用户可自己定义，一般定义为union类型。

  3. LR分析举例：

%{
    #include <stdio.h>
    int yylex(void);
    void yyerror(char *);
%}
%token NUMBER
%%
program: program expr '\n'		{ printf("%d\n",  $2); }
	    |…
	    ;
expr:    NUMBER					{ $$ = $1; }
		| expr '+' expr			{ $$ = $1 + $3; }
		| expr '-' expr			{ $$ = $1 - $3; }
		;
%%
void yyerror(char *s) {
    fprintf(stderr, "%s\n", s);
}
int main(void) {
    yyparse();
    return 0;
}

对于LR分析方法：
① 符号栈：NUMBER出栈，expr入栈，即将NUMBER归约为expr；
② 状态栈：执行相应的出栈、入栈动作；
③ 数值栈（语义栈）：执行相应的出栈、入栈动作，其类型与yylval相同，具体的值由用户规定；
④ $$：指的该产生式归约后数值栈栈顶元素，此处为expr具体的数值；
⑤ $1：指产生式右侧从左到右第1个符号在数值栈所对应的值，此处为NUMBER对应的数值，即当前yylval的值。

实验内容

  1. 学习所提供的表达式文法的LR分析处理：
    （1）理解calc1.l，calc1.y，calc2.l，calc2.y的内容；
    （2）在eclipse中建立工程，对calc3.l，calc3.y调试运行。
  2. 学习lrgram.txt所提供的文法，与递归下降分析所提供的文法作比较。
  3. 学习、理解Makefile文件的格式及写法（选做）
  4. 编写lrgram所提供文法的LR语法分析程序：
    （1）编写生成语法树的相关程序，包括：Bison源程序【lrparser.y】，Flex源程序【lrlex.l】，语法树相关程序【ast.h】和【ast.c】；
    （2）其它相关函数（如main函数）等【main.c】；

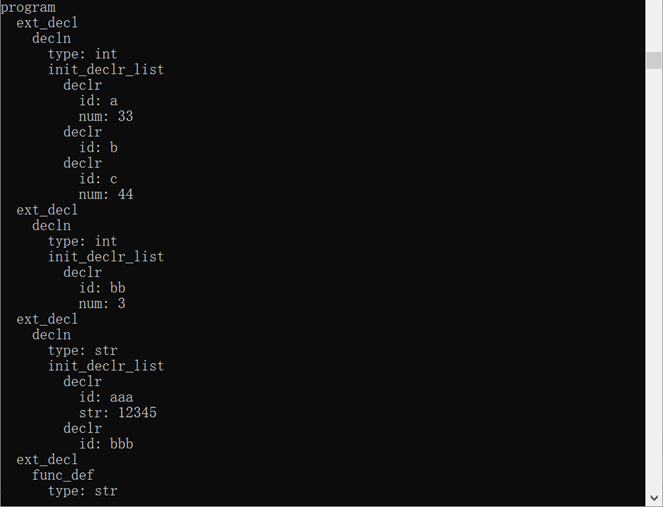

    （3）使编译得到的rdparser最终从命令行读取要分析的程序test.c，分析后调用showAst打印该程序的结构。
  5. 所有文件都以utf-8进行统一编码保存。

实验器材

visual studio 2017
Notepad++，flex 2.5.4.1，bison (GNU Bison) 2.4.1

实验步骤

一、编写Bison源程序【lrparser.y】和Flex源程序【lrlex.l】
根据LCC语言的文法，给所有产生式编写语义动作；使用%token等定义LCC语言的关键字、数据类型、常数、字符串常量、比较符号、赋值符号及标识符；在语义动作中调用相应的函数构建语法树。

%{
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "ast.h"
int yylex(void);
void yyerror (char const *s);

%}

%expect 1

%union{
	int iValue;
	char *sValue;
	past pAst;
};

%token <iValue> NUMBER CMP ASSIGN
%token <sValue> ID STRING INT STR VOID
%token IF ELSE WHILE RETURN PRINT SCAN
%type  <pAst> program external_declaration function_definition declaration
	init_declarator_list init_declarator direct_declarator
	declarator initializer parameter_list parameter intstr_list type
	compound_statement begin_scope end_scope
	statement_list statement selection_statement
	iteration_statement expression_statement jump_statement
	print_statement scan_statement expr expr_list assign_expr
	add_expr mul_expr primary_expr cmp_expr id_list

%%

program
	: external_declaration						{$$ = program(NULL, $1); root = $$;}
	| program external_declaration				{$$ = program($1, $2);}
	;
external_declaration
	: function_definition						{$$ = ext_decl($1);}
	| declaration								{$$ = ext_decl($1);}
	;
function_definition
	: type declarator compound_statement		{$$ = func_def($1, $2, $3);}
	;
declaration
	: type init_declarator_list ';'				{$$ = decln($1, $2);}
	;
init_declarator_list
	: init_declarator							{$$ = init_declr_list(NULL, $1);}
	| init_declarator_list ',' init_declarator	{$$ = init_declr_list($1, $3);}
	;
init_declarator
	: declarator								{$$ = declr($1, NULL);}
	| declarator '=' add_expr					{$$ = declr($1, $3);}
	| declarator '=' '{' intstr_list '}'		{$$ = declr($1, $4);}
	;
intstr_list
	: initializer								{$$ = intstr_list(NULL, $1);}
	| intstr_list ',' initializer				{$$ = intstr_list($1, $3);}
	;
initializer
	: NUMBER									{$$ = newNUMBER($1);}
	| STRING									{$$ = newSTRING($1);}
	;
declarator
	: direct_declarator							{$$ = $1;}
	;
direct_declarator
	: ID										{$$ = dir_declr(newID($1), NULL);}
	| direct_declarator '(' parameter_list ')'	{$$ = dir_declr($1, $3);}
	| direct_declarator '(' ')'					{$$ = dir_declr($1, NULL);}
	| ID '[' expr ']'							{$$ = dir_declr(newID($1), $3);}
	| ID '[' ']'								{$$ = dir_declr(newID($1), NULL);}
	;
parameter_list
	: parameter									{$$ = para_list(NULL, $1);}
	| parameter_list ',' parameter				{$$ = para_list($1, $3);}
	;
parameter
	: type ID									{$$ = parameter($1, newID($2));}
	;
type
	: INT										{$$ = type($1);}
	| STR										{$$ = type($1);}
	| VOID										{$$ = type($1);}
	;
statement
	: compound_statement						{$$ = $1;}
	| expression_statement						{$$ = $1;}
	| selection_statement						{$$ = $1;}
	| iteration_statement						{$$ = $1;}
	| jump_statement							{$$ = $1;}
	| print_statement							{$$ = $1;}
	| scan_statement							{$$ = $1;}
	| declaration								{$$ = $1;}
	;
compound_statement
	: begin_scope end_scope						{$$ = com_stmt($1, NULL, $2);}
	| begin_scope statement_list end_scope		{$$ = com_stmt($1, $2, $3);}
	;
begin_scope
	: '{'										{$$ = begin_scope();}
	;
end_scope
	: '}'										{$$ = end_scope();}
	;
statement_list
	: statement									{$$ = stmt_list(NULL, $1);}
	| statement_list statement					{$$ = stmt_list($1, $2);}
	;
expression_statement
	: ';'										{$$ = expr_stmt(NULL);}
	| expr ';'									{$$ = expr_stmt($1);}
	;
selection_statement
	: IF '(' expr ')' statement					{$$ = if_stmt($3, $5, NULL);}
	| IF '(' expr ')' statement ELSE statement	{$$ = if_stmt($3, $5, $7);}
	;
iteration_statement
	: WHILE '(' expr ')' statement				{$$ = while_stmt($3, $5);}
	;
jump_statement
	: RETURN ';'								{$$ = return_stmt(NULL);}
	| RETURN expr ';'							{$$ = return_stmt($2);}
	;
print_statement
	: PRINT ';'									{$$ = print_stmt(NULL);}
	| PRINT expr_list ';'						{$$ = print_stmt($2);}
	;
scan_statement
	: SCAN id_list ';'							{$$ = scan_stmt($2);}
	;
expr
	: assign_expr								{$$ = $1;}
	;
assign_expr
	: cmp_expr									{$$ = $1;}
	| ID ASSIGN assign_expr						{$$ = assign_expr($2, newID($1), $3, NULL);}
	| ID '=' assign_expr						{$$ = assign_expr(-1, newID($1), $3, NULL);}
	| ID '[' expr ']' '=' assign_expr			{$$ = assign_expr(-1, newID($1), $3, $6);}
	;
cmp_expr
	: add_expr									{$$ = $1;}
	| cmp_expr CMP add_expr						{$$ = cmp_expr($1, $2, $3);}
	;
add_expr
	: mul_expr									{$$ = $1;}
	| add_expr '+' mul_expr						{$$ = newExpr($1, '+', $3);}
	| add_expr '-' mul_expr						{$$ = newExpr($1, '-', $3);}
	;
mul_expr
	: primary_expr								{$$ = $1;}
	| mul_expr '*' primary_expr					{$$ = newExpr($1, '*', $3);}
	| mul_expr '/' primary_expr					{$$ = newExpr($1, '/', $3);}
	| mul_expr '%' primary_expr					{$$ = newExpr($1, '%', $3);}
	| '-' primary_expr							{$$ = newExpr($2, '-', NULL);}
	;
primary_expr
	: ID '(' expr_list ')'						{$$ = primary_expr(newID($1), $3);}
	| ID '(' ')'								{$$ = primary_expr(newID($1), NULL);}
	| '(' expr ')'								{$$ = primary_expr(NULL, $2);}
	| ID										{$$ = newID($1);}
	| initializer								{$$ = $1;}
	| ID '[' expr ']'							{$$ = primary_expr(newID($1), $3);}
	;
expr_list
	: expr										{$$ = expr_list(NULL, $1);}
	| expr_list ',' expr						{$$ = expr_list($1, $3);}
	;
id_list
	: ID										{$$ = id_list(NULL, newID($1));}
	| id_list ',' ID							{$$ = id_list($1, newID($3));}
	;

%%

void yyerror(char const *s){
	fprintf (stderr, "%s/n", s);
}

%{
#include <stdlib.h>
#include <string.h>
#include "ast.h"
#include "lrparser.tab.h"

enum cmp{ LES_CMP = 272, GRE_CMP, EQU_CMP, LESE_CMP, GREE_CMP, NEQU_CMP};
enum assign{ ADD_ASSIGN = 278, SUB_ASSIGN, MUL_ASSIGN, DIV_ASSIGN, REM_ASSIGN};
int lineno = 1;
%}

ID 		[a-zA-Z_][a-zA-Z_0-9]*
INTEGER [0-9]+
STRING	\"([^\"]|(\\\"))*\"
COMMENT	"//"(.*)
SYMBOL 	[,%*+-=/{}\[\]\(\){}]

%%

if		{return IF;}
else	{return ELSE;}
while	{return WHILE;}
return	{return RETURN;}
int 	{yylval.sValue = strdup(yytext); return INT;}
str		{yylval.sValue = strdup(yytext); return STR;}
void	{yylval.sValue = strdup(yytext); return VOID;}
print	{return PRINT;}
scan	{return SCAN;}

"<"		{yylval.iValue = LES_CMP; return CMP;}
">"		{yylval.iValue = GRE_CMP; return CMP;}
"=="	{yylval.iValue = EQU_CMP; return CMP;}
"<="	{yylval.iValue = LESE_CMP; return CMP;}
">="	{yylval.iValue = GREE_CMP; return CMP;}
"!="	{yylval.iValue = NEQU_CMP; return CMP;}

"+="	{yylval.iValue = ADD_ASSIGN; return ASSIGN;}
"-="	{yylval.iValue = SUB_ASSIGN; return ASSIGN;}
"*="	{yylval.iValue = MUL_ASSIGN; return ASSIGN;}
"/="	{yylval.iValue = DIV_ASSIGN; return ASSIGN;}
"%="	{yylval.iValue = REM_ASSIGN; return ASSIGN;}

{ID}		{yylval.sValue = strdup(yytext); return ID;}
{INTEGER}	{yylval.iValue = atoi(yytext); return NUMBER;}
{STRING}	{
			 char *tem = strdup(yytext + 1);
			 tem[yyleng - 2] = 0;
			 yylval.sValue = strdup(tem);
			 free(tem);
			 return STRING;
			}
{SYMBOL}	{return yytext[0];}
{COMMENT}	{ /*ignore comment*/ }

[ \t]	{ /*ignore space*/ }
"\n"	++lineno;

. { fprintf(stderr, "Illegal character \'%s\' on line #%d\n", yytext, lineno); exit(1);}

%%

int yywrap()
{
	return 1;
}

二、编写语法树相关程序【ast.h】和【ast.c】

typedef struct _ast ast;
typedef struct _ast *past;

struct _ast {
	char *nodeType;
	int line;
	int value;
	char *str;
	past l;
	past r;
	past next;
};

past root;	//语法树的根节点

past newID(char *sval);
past newNUMBER(int ival);
past newSTRING(char *sval);
past newExpr(past l, int oper, past r);
past program(past l, past r);
past ext_decl(past l);
past func_def(past type, past declr, past com_stmt);
past decln(past l, past r);
past init_declr_list(past l, past r);
past declr(past l, past r);
past intstr_list(past l, past r);
past dir_declr(past l, past r);
past para_list(past l, past r);
past parameter(past l, past r);
past type(char *t);
past com_stmt(past l, past r, past s);
past begin_scope();
past end_scope();
past stmt_list(past l, past r);
past expr_stmt(past l);
past if_stmt(past cond, past trueStmt, past falseStmt);
past while_stmt(past cond, past stmt);
past return_stmt(past expr);
past print_stmt(past expr_list);
past scan_stmt(past id_list);
past assign_expr(int ival, past l, past r, past s);
past cmp_expr(past l, int ival, past r);
past primary_expr(past l, past r);
past expr_list(past l, past r);
past id_list(past l, past r);
void showAst(past p, int nest);

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "ast.h"

extern int lineno;

past newAstNode(){
	past p = (past)malloc(sizeof(ast));
	if (p == NULL){
		printf("New astNode failed.\n");
		exit(0);
	}
	memset(p, 0, sizeof(ast));
	p->line = lineno;
	p->l = NULL;
	p->r = NULL;
	p->next = NULL;
	return p;
}

//针对左递归文法
past newList(past list, past node){
	if (list != NULL){
		list->r->next = node;	//将新结点添加到链尾
		list->r = node;			//尾指针移动到链尾
		list->value += 1;
		return list;
	}
	//创建一个list
	list = newAstNode();
	list->next = node;
	list->value = 1;
	list->l = node;
	list->r = node;
	return list;
}

past newID(char *sval){
	past p = newAstNode();
	p->nodeType = "ID";
	p->str = sval;
	return p;
}

past newNUMBER(int ival){
	past p = newAstNode();
	p->nodeType = "NUMBER";
	p->value = ival;
	return p;
}

past newSTRING(char *sval){
	past p = newAstNode();
	p->nodeType = "STRING";
	p->str = sval;
	return p;
}

past newExpr(past l, int oper, past r){
	past p = newAstNode();
	p->nodeType = "expr";
	p->value = oper;
	p->l = l;
	p->r = r;
	return p;
}

past program(past l, past r){
	past list = newList(l, r);
	list->nodeType = "program";
	return list;
}

past ext_decl(past l){
	past p = newAstNode();
	p->l = l;
	p->nodeType = "ext_decl";
	return p;
}

past func_def(past type, past declr, past com_stmt){
	past p = newAstNode();
	p->nodeType = "func_def";
	p->l = type;
	p->r = declr;
	p->str = (char *)com_stmt;
	return p;
}

past decln(past l, past r){
	past p = newAstNode();
	p->nodeType = "decln";
	p->l = l;
	p->r = r;
	return p;
}

past init_declr_list(past l, past r){
	past list = newList(l, r);
	list->nodeType = "init_declr_list";
	return list;
}

past declr(past l, past r){
	past p = newAstNode();
	p->nodeType = "declr";
	p->l = l;
	p->r = r;
	return p;
}

past intstr_list(past l, past r){
	past list = newList(l, r);
	list->nodeType = "intstr_list";
	return list;
}

past dir_declr(past l, past r){
	past p = newAstNode();
	p->nodeType = "dir_declr";
	p->l = l;
	p->r = r;
	return p;
}

past para_list(past l, past r){
	past list = newList(l, r);
	list->nodeType = "para_list";
	return list;
}

past parameter(past l, past r){
	past p = newAstNode();
	p->nodeType = "parameter";
	p->l = l;
	p->r = r;
	return p;
}

past type(char *t){
	past p = newAstNode();
	p->nodeType = "type";
	p->str = t;
	return p;
}

past com_stmt(past l, past r, past s){
	past p = newAstNode();
	p->nodeType = "com_stmt";
	p->l = l;
	p->r = r;
	p->str = (char *)s;
	return p;
}

past begin_scope(){
	past p = newAstNode();
	p->nodeType = "begin_scope";
	return p;
}

past end_scope(){
	past p = newAstNode();
	p->nodeType = "end_scope";
	return p;
}

past stmt_list(past l, past r){
	past list = newList(l, r);
	list->nodeType = "stmt_list";
	return list;
}

past expr_stmt(past l){
	past p = newAstNode();
	p->l = l;
	p->nodeType = "expr_stmt";
	return p;
}

past if_stmt(past cond, past trueStmt, past falseStmt){
	past p = newAstNode();
	p->nodeType = "if_stmt";
	p->l = trueStmt;
	p->r = falseStmt;
	p->str = (char *)cond;
	return p;
}

past while_stmt(past cond, past stmt){
	past p = newAstNode();
	p->nodeType = "while_stmt";
	p->l = cond;
	p->r = stmt;
	return p;
}

past return_stmt(past expr){
	past p = newAstNode();
	p->nodeType = "return_stmt";
	p->l = expr;
	return p;
}

past print_stmt(past expr_list){
	past p = newAstNode();
	p->nodeType = "print_stmt";
	p->l = expr_list;
	return p;
}

past scan_stmt(past id_list){
	past p = newAstNode();
	p->nodeType = "scan_stmt";
	p->l = id_list;
	return p;
}

past assign_expr(int ival, past l, past r, past s){
	past p = newAstNode();
	p->nodeType = "assign_expr";
	p->value = ival;
	p->l = l;
	p->r = r;
	p->str = (char *)s;
	return p;
}

past cmp_expr(past l, int ival, past r){
	past p = newAstNode();
	p->nodeType = "cmp_expr";
	p->value = ival;
	p->l = l;
	p->r = r;
	return p;
}

past primary_expr(past l, past r){
	past p = newAstNode();
	p->nodeType = "primary_expr";
	p->l = l;
	p->r = r;
	return p;
}

past expr_list(past l, past r){
	past list = newList(l, r);
	list->nodeType = "expr_list";
	return list;
}

past id_list(past l, past r){
	past list = newList(l, r);
	list->nodeType = "id_list";
	return list;
}

void showAst(past p, int nest)
{
	if(p == NULL)
		return;

	int i = 0;
	for(i = 0; i < nest; i++)
		printf("  ");

	if(strcmp(p->nodeType, "ID") == 0)
		printf("id: %s\n", p->str);
	else if(strcmp(p->nodeType, "NUMBER") == 0)
		printf("num: %d\n", p->value);
	else if(strcmp(p->nodeType, "STRING") == 0)
		printf("str: %s\n", p->str);
	else if(strcmp(p->nodeType, "program") == 0){
		printf("%s \n", p->nodeType);
		past t = p->l;
		int i = 1;
		for (; i <= p->value; i++){
			showAst(t, nest + 1);
			t = t->next;
		}
	}
	else if(strcmp(p->nodeType, "ext_decl") == 0){
		printf("ext_decl \n");
		showAst(p->l, nest + 1);
	}
	else if(strcmp(p->nodeType, "func_def") == 0){
		printf("func_def \n");
		showAst(p->l, nest + 1);
		showAst(p->r, nest + 1);
		showAst((past)p->str, nest + 1);
	}
	else if(strcmp(p->nodeType, "decln") == 0){
		printf("%s \n", p->nodeType);
		showAst(p->l, nest + 1);
		showAst(p->r, nest + 1);
	}
	else if(strcmp(p->nodeType, "init_declr_list") == 0){
		printf("%s \n", p->nodeType);
		past t = p->l;
		int i = 1;
		for (; i <= p->value; i++){
			showAst(t, nest + 1);
			t = t->next;
		}
	}
	else if(strcmp(p->nodeType, "declr") == 0){
		printf("%s \n", p->nodeType);
		showAst(p->l, nest + 1);
		showAst(p->r, nest + 1);
	}
	else if(strcmp(p->nodeType, "intstr_list") == 0){
		printf("%s \n", p->nodeType);
		past t = p->l;
		int i = 1;
		for (; i <= p->value; i++){
			showAst(t, nest + 1);
			t = t->next;
		}
	}
	else if(strcmp(p->nodeType, "dir_declr") == 0){
		showAst(p->l, 0);
		showAst(p->r, nest);
	}
	else if(strcmp(p->nodeType, "para_list") == 0){
		printf("%s \n", p->nodeType);
		past t = p->l;
		int i = 1;
		for (; i <= p->value; i++){
			showAst(t, nest);
			t = t->next;
		}
	}
	else if(strcmp(p->nodeType, "parameter") == 0){
		printf("%s \n", p->nodeType);
		showAst(p->l, nest + 1);
		showAst(p->r, nest + 1);
	}
	else if(strcmp(p->nodeType, "type") == 0){
		printf("%s: %s\n", p->nodeType, p->str);
	}
	else if(strcmp(p->nodeType, "com_stmt") == 0){
		printf("compound_statement \n");
		showAst(p->l, nest + 1);
		showAst(p->r, nest + 1);
		showAst((past)p->str, nest + 1);
	}
	else if(strcmp(p->nodeType, "begin_scope") == 0){
		printf("\n");
	}
	else if(strcmp(p->nodeType, "end_scope") == 0){
		printf("\n");
	}
	else if(strcmp(p->nodeType, "stmt_list") == 0){
		printf("%s \n", p->nodeType);
		past t = p->l;
		int i = 1;
		for (; i <= p->value; i++){
			showAst(t, nest);
			t = t->next;
		}
	}
	else if(strcmp(p->nodeType, "expr_stmt") == 0){
		printf("%s \n", p->nodeType);
		showAst(p->l, nest + 1);
	}
	else if(strcmp(p->nodeType, "if_stmt") == 0){
		printf("%s \n", p->nodeType);
		showAst((past)p->str, nest + 1);
		showAst(p->l, nest + 1);
		showAst(p->r, nest + 1);
	}
	else if(strcmp(p->nodeType, "while_stmt") == 0){
		printf("%s \n", p->nodeType);
		showAst(p->l, nest + 1);
		showAst(p->r, nest + 1);
	}
	else if(strcmp(p->nodeType, "return_stmt") == 0){
		printf("%s \n", p->nodeType);
		showAst(p->l, nest + 1);
	}
	else if(strcmp(p->nodeType, "print_stmt") == 0){
		printf("%s \n", p->nodeType);
		showAst(p->l, nest + 1);
	}
	else if(strcmp(p->nodeType, "scan_stmt") == 0){
		printf("%s \n", p->nodeType);
		showAst(p->l, nest + 1);
	}
	else if(strcmp(p->nodeType, "assign_expr") == 0){
		if (p->value > 258){
			switch (p->value) {
				case 278: printf("%s +=\n", p->nodeType); break;
				case 279: printf("%s -=\n", p->nodeType); break;
				case 280: printf("%s *=\n", p->nodeType); break;
				case 281: printf("%s /=\n", p->nodeType); break;
				case 282: printf("%s %%=\n", p->nodeType); break;
			}
		}
		else
			printf("%s \n", p->nodeType);

		showAst(p->l, nest + 1);
		showAst(p->r, nest + 1);
		showAst((past)p->str, nest + 1);
	}
	else if(strcmp(p->nodeType, "cmp_expr") == 0){
		switch (p->value) {
			case 272: printf("%s <\n", p->nodeType); break;
			case 273: printf("%s >\n", p->nodeType); break;
			case 274: printf("%s ==\n", p->nodeType); break;
			case 275: printf("%s <=\n", p->nodeType); break;
			case 276: printf("%s >=\n", p->nodeType); break;
			case 277: printf("%s !=\n", p->nodeType); break;
		}

		showAst(p->l, nest + 1);
		showAst(p->r, nest + 1);
		showAst((past)p->str, nest + 1);
	}
	else if(strcmp(p->nodeType, "expr") == 0){
		printf("%s %c\n", p->nodeType, (char)p->value);
		showAst(p->l, nest + 1);
		showAst(p->r, nest + 1);
	}
	else if(strcmp(p->nodeType, "primary_expr") == 0){
		printf("%s \n", p->nodeType);
		showAst(p->l, nest + 1);
		showAst(p->r, nest + 1);
	}
	else if(strcmp(p->nodeType, "expr_list") == 0){
		printf("%s \n", p->nodeType);
		past t = p->l;
		int i = 1;
		for (; i <= p->value; i++){
			showAst(t, nest);
			t = t->next;
		}
	}
	else if(strcmp(p->nodeType, "id_list") == 0){
		printf("%s \n", p->nodeType);
		past t = p->l;
		int i = 1;
		for (; i <= p->value; i++){
			showAst(t, nest);
			t = t->next;
		}
	}

}

三、编写其它相关函数【main.c】

#include <stdio.h>
#include <stdlib.h>
#include "ast.h"

extern FILE *yyin;
extern int yyparse(void);

int main(int argc, char **argv)
{
	yyin = fopen(argv[1], "r");
	yyparse();
	showAst(root, 0);
	return 0;
}

实验结果

一、学习所提供的表达式文法的LR分析处理
在这里插入图片描述

二、编写lrgram所提供文法的LR语法分析程序

flex lrlex.l
bison -d lrparser.y
gcc lex.yy.c lrparser.tab.c ast.c ast.h main.c -o rdparser
rdparser test.c

在这里插入图片描述

编译技术实验：

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
