Spark源码——Task执行原理

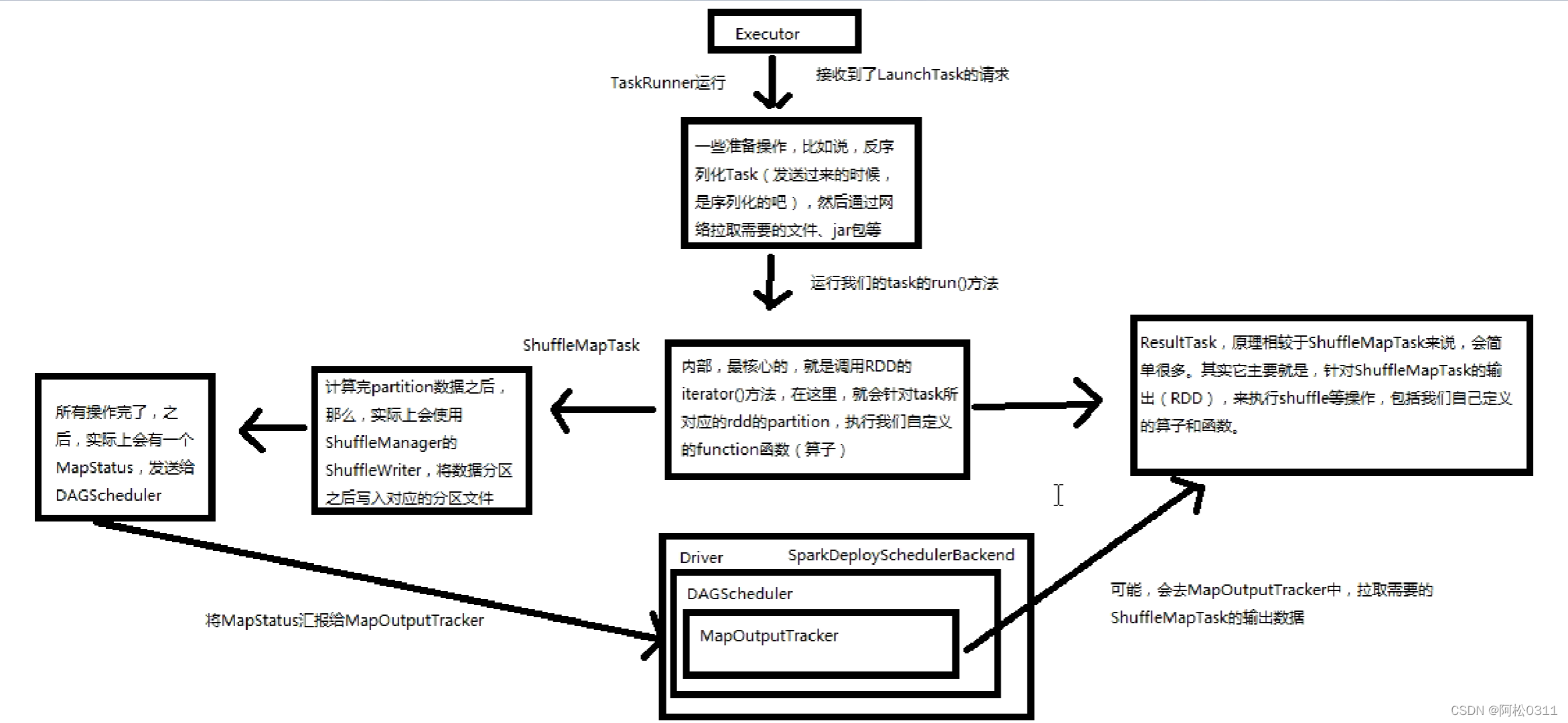

（图片来源：北风网）

从TaskRunner入手
进入它的run方法

override def run(): Unit = {
      threadId = Thread.currentThread.getId
      Thread.currentThread.setName(threadName)
      val threadMXBean = ManagementFactory.getThreadMXBean
      val taskMemoryManager = new TaskMemoryManager(env.memoryManager, taskId)
      val deserializeStartTime = System.currentTimeMillis()
      val deserializeStartCpuTime = if (threadMXBean.isCurrentThreadCpuTimeSupported) {
        threadMXBean.getCurrentThreadCpuTime
      } else 0L
      Thread.currentThread.setContextClassLoader(replClassLoader)
      val ser = env.closureSerializer.newInstance()
      logInfo(s"Running $taskName (TID $taskId)")
      execBackend.statusUpdate(taskId, TaskState.RUNNING, EMPTY_BYTE_BUFFER)
      var taskStart: Long = 0
      var taskStartCpu: Long = 0
      startGCTime = computeTotalGcTime()


//从这开始看
      try {
      //反序列化
        val (taskFiles, taskJars, taskProps, taskBytes) =
        Task.deserializeWithDependencies(serializedTask)

        // Must be set before updateDependencies() is called, in case fetching dependencies
        // requires access to properties contained within (e.g. for access control).
        //交给Executor执行
        Executor.taskDeserializationProps.set(taskProps)
		//通过网络通信，将需要的文件、资源、jar包拷贝过来
        updateDependencies(taskFiles, taskJars)
        //将整个task的数据集反序列化回来
        //使用了java的classLoader
        task = ser.deserialize[Task[Any]](taskBytes, Thread.currentThread.getContextClassLoader)
        task.localProperties = taskProps
        task.setTaskMemoryManager(taskMemoryManager)

        // If this task has been killed before we deserialized it, let's quit now. Otherwise,
        // continue executing the task.
        if (killed) {
          // Throw an exception rather than returning, because returning within a try{} block
          // causes a NonLocalReturnControl exception to be thrown. The NonLocalReturnControl
          // exception will be caught by the catch block, leading to an incorrect ExceptionFailure
          // for the task.
          throw new TaskKilledException
        }

        logDebug("Task " + taskId + "'s epoch is " + task.epoch)
        env.mapOutputTracker.updateEpoch(task.epoch)

        // Run the actual task and measure its runtime.
        //开始事件
        taskStart = System.currentTimeMillis()
        taskStartCpu = if (threadMXBean.isCurrentThreadCpuTimeSupported) {
          threadMXBean.getCurrentThreadCpuTime
        } else 0L
        var threwException = true
        val value = try {
        //使用task的run方法
          val res = task.run(
            taskAttemptId = taskId,
            attemptNumber = attemptNumber,
            metricsSystem = env.metricsSystem)
          threwException = false
          res
        } finally {
          val releasedLocks = env.blockManager.releaseAllLocksForTask(taskId)
          val freedMemory = taskMemoryManager.cleanUpAllAllocatedMemory()

          if (freedMemory > 0 && !threwException) {
            val errMsg = s"Managed memory leak detected; size = $freedMemory bytes, TID = $taskId"
            if (conf.getBoolean("spark.unsafe.exceptionOnMemoryLeak", false)) {
              throw new SparkException(errMsg)
            } else {
              logWarning(errMsg)
            }
          }

          if (releasedLocks.nonEmpty && !threwException) {
            val errMsg =
              s"${releasedLocks.size} block locks were not released by TID = $taskId:\n" +
                releasedLocks.mkString("[", ", ", "]")
            if (conf.getBoolean("spark.storage.exceptionOnPinLeak", false)) {
              throw new SparkException(errMsg)
            } else {
              logWarning(errMsg)
            }
          }
        }
        //结束时间
        val taskFinish = System.currentTimeMillis()
        val taskFinishCpu = if (threadMXBean.isCurrentThreadCpuTimeSupported) {
          threadMXBean.getCurrentThreadCpuTime
        } else 0L

        // If the task has been killed, let's fail it.
        if (task.killed) {
          throw new TaskKilledException
        }

        val resultSer = env.serializer.newInstance()
        val beforeSerialization = System.currentTimeMillis()
        val valueBytes = resultSer.serialize(value)
        val afterSerialization = System.currentTimeMillis()

        // Deserialization happens in two parts: first, we deserialize a Task object, which
        // includes the Partition. Second, Task.run() deserializes the RDD and function to be run.
        task.metrics.setExecutorDeserializeTime(
          (taskStart - deserializeStartTime) + task.executorDeserializeTime)
        task.metrics.setExecutorDeserializeCpuTime(
          (taskStartCpu - deserializeStartCpuTime) + task.executorDeserializeCpuTime)
        // We need to subtract Task.run()'s deserialization time to avoid double-counting
        task.metrics.setExecutorRunTime((taskFinish - taskStart) - task.executorDeserializeTime)
        task.metrics.setExecutorCpuTime(
          (taskFinishCpu - taskStartCpu) - task.executorDeserializeCpuTime)
        task.metrics.setJvmGCTime(computeTotalGcTime() - startGCTime)
        task.metrics.setResultSerializationTime(afterSerialization - beforeSerialization)

        // Note: accumulator updates must be collected after TaskMetrics is updated
        val accumUpdates = task.collectAccumulatorUpdates()
        // TODO: do not serialize value twice
        val directResult = new DirectTaskResult(valueBytes, accumUpdates)
        val serializedDirectResult = ser.serialize(directResult)
        val resultSize = serializedDirectResult.limit

        // directSend = sending directly back to the driver
        val serializedResult: ByteBuffer = {
          if (maxResultSize > 0 && resultSize > maxResultSize) {
            logWarning(s"Finished $taskName (TID $taskId). Result is larger than maxResultSize " +
              s"(${Utils.bytesToString(resultSize)} > ${Utils.bytesToString(maxResultSize)}), " +
              s"dropping it.")
            ser.serialize(new IndirectTaskResult[Any](TaskResultBlockId(taskId), resultSize))
          } else if (resultSize > maxDirectResultSize) {
            val blockId = TaskResultBlockId(taskId)
            env.blockManager.putBytes(
              blockId,
              new ChunkedByteBuffer(serializedDirectResult.duplicate()),
              StorageLevel.MEMORY_AND_DISK_SER)
            logInfo(
              s"Finished $taskName (TID $taskId). $resultSize bytes result sent via BlockManager)")
            ser.serialize(new IndirectTaskResult[Any](blockId, resultSize))
          } else {
            logInfo(s"Finished $taskName (TID $taskId). $resultSize bytes result sent to driver")
            serializedDirectResult
          }
        }
		//这个很重要，调用了Executor所在的CoraseGrainedExecutorBackend的statusUpdate方法
        execBackend.statusUpdate(taskId, TaskState.FINISHED, serializedResult)

      } catch {
        case ffe: FetchFailedException =>
          val reason = ffe.toTaskFailedReason
          setTaskFinishedAndClearInterruptStatus()
          execBackend.statusUpdate(taskId, TaskState.FAILED, ser.serialize(reason))

        case _: TaskKilledException =>
          logInfo(s"Executor killed $taskName (TID $taskId)")
          setTaskFinishedAndClearInterruptStatus()
          execBackend.statusUpdate(taskId, TaskState.KILLED, ser.serialize(TaskKilled))

        case _: InterruptedException if task.killed =>
          logInfo(s"Executor interrupted and killed $taskName (TID $taskId)")
          setTaskFinishedAndClearInterruptStatus()
          execBackend.statusUpdate(taskId, TaskState.KILLED, ser.serialize(TaskKilled))

        case CausedBy(cDE: CommitDeniedException) =>
          val reason = cDE.toTaskFailedReason
          setTaskFinishedAndClearInterruptStatus()
          execBackend.statusUpdate(taskId, TaskState.FAILED, ser.serialize(reason))

        case t: Throwable =>
          // Attempt to exit cleanly by informing the driver of our failure.
          // If anything goes wrong (or this was a fatal exception), we will delegate to
          // the default uncaught exception handler, which will terminate the Executor.
          logError(s"Exception in $taskName (TID $taskId)", t)

          // Collect latest accumulator values to report back to the driver
          val accums: Seq[AccumulatorV2[_, _]] =
            if (task != null) {
              task.metrics.setExecutorRunTime(System.currentTimeMillis() - taskStart)
              task.metrics.setJvmGCTime(computeTotalGcTime() - startGCTime)
              task.collectAccumulatorUpdates(taskFailed = true)
            } else {
              Seq.empty
            }

          val accUpdates = accums.map(acc => acc.toInfo(Some(acc.value), None))

          val serializedTaskEndReason = {
            try {
              ser.serialize(new ExceptionFailure(t, accUpdates).withAccums(accums))
            } catch {
              case _: NotSerializableException =>
                // t is not serializable so just send the stacktrace
                ser.serialize(new ExceptionFailure(t, accUpdates, false).withAccums(accums))
            }
          }
          setTaskFinishedAndClearInterruptStatus()
          execBackend.statusUpdate(taskId, TaskState.FAILED, serializedTaskEndReason)

          // Don't forcibly exit unless the exception was inherently fatal, to avoid
          // stopping other tasks unnecessarily.
          if (Utils.isFatalError(t)) {
            SparkUncaughtExceptionHandler.uncaughtException(t)
          }

      } finally {
        runningTasks.remove(taskId)
      }
    }
  }

其他细节先不看，进task的run方法看看

 /**
   * Called by [[org.apache.spark.executor.Executor]] to run this task.
   *
   * @param taskAttemptId an identifier for this task attempt that is unique within a SparkContext.
   * @param attemptNumber how many times this task has been attempted (0 for the first attempt)
   * @return the result of the task along with updates of Accumulators.
   */
  final def run(
      taskAttemptId: Long,
      attemptNumber: Int,
      metricsSystem: MetricsSystem): T = {
    SparkEnv.get.blockManager.registerTask(taskAttemptId)
    //创建TaskContext，task的执行上下文
    context = new TaskContextImpl(
      stageId,
      partitionId,
      taskAttemptId,
      attemptNumber,
      taskMemoryManager,
      localProperties,
      metricsSystem,
      metrics)
    TaskContext.setTaskContext(context)
    taskThread = Thread.currentThread()

    if (_killed) {
      kill(interruptThread = false)
    }

    new CallerContext("TASK", appId, appAttemptId, jobId, Option(stageId), Option(stageAttemptId),
      Option(taskAttemptId), Option(attemptNumber)).setCurrentContext()

    try {
    //重要：根据上下文，runtask
      runTask(context)
    } catch {
      case e: Throwable =>
        // Catch all errors; run task failure callbacks, and rethrow the exception.
        try {
          context.markTaskFailed(e)
        } catch {
          case t: Throwable =>
            e.addSuppressed(t)
        }
        throw e
    } finally {
      // Call the task completion callbacks.
      context.markTaskCompleted()
      try {
        Utils.tryLogNonFatalError {
          // Release memory used by this thread for unrolling blocks
          SparkEnv.get.blockManager.memoryStore.releaseUnrollMemoryForThisTask(MemoryMode.ON_HEAP)
          SparkEnv.get.blockManager.memoryStore.releaseUnrollMemoryForThisTask(MemoryMode.OFF_HEAP)
          // Notify any tasks waiting for execution memory to be freed to wake up and try to
          // acquire memory again. This makes impossible the scenario where a task sleeps forever
          // because there are no other tasks left to notify it. Since this is safe to do but may
          // not be strictly necessary, we should revisit whether we can remove this in the future.
          val memoryManager = SparkEnv.get.memoryManager
          memoryManager.synchronized { memoryManager.notifyAll() }
        }
      } finally {
        TaskContext.unset()
      }
    }
  }

进到runTask看看，是个抽象方法，意味着这个类只是一个抽象类，仅仅封装了一些子类通用的数据和操作，关键操作依赖子类实现，那task的实现就有shuffleMapTask和ResultTask
所以应该去找到这些task子类

先看到shuffleMapTask

/*

 */

package org.apache.spark.scheduler

import java.lang.management.ManagementFactory
import java.nio.ByteBuffer
import java.util.Properties

import scala.language.existentials

import org.apache.spark._
import org.apache.spark.broadcast.Broadcast
import org.apache.spark.executor.TaskMetrics
import org.apache.spark.internal.Logging
import org.apache.spark.rdd.RDD
import org.apache.spark.shuffle.ShuffleWriter

/**
 * A ShuffleMapTask divides the elements of an RDD into multiple buckets (based on a partitioner
 * //ShuffleMapTask 将 RDD 的元素划分为多个桶（基于 ShuffleDependency 中指定的分区器）。
 * specified in the ShuffleDependency).
 *
 * See [[org.apache.spark.scheduler.Task]] for more information.
 *
 * @param stageId id of the stage this task belongs to
 * @param stageAttemptId attempt id of the stage this task belongs to
 * @param taskBinary broadcast version of the RDD and the ShuffleDependency. Once deserialized,
 *                   the type should be (RDD[_], ShuffleDependency[_, _, _]).
 * @param partition partition of the RDD this task is associated with
 * @param locs preferred task execution locations for locality scheduling
 * @param metrics a `TaskMetrics` that is created at driver side and sent to executor side.
 * @param localProperties copy of thread-local properties set by the user on the driver side.
 *
 * The parameters below are optional:
 * @param jobId id of the job this task belongs to
 * @param appId id of the app this task belongs to
 * @param appAttemptId attempt id of the app this task belongs to
 */
private[spark] class ShuffleMapTask(
    stageId: Int,
    stageAttemptId: Int,
    taskBinary: Broadcast[Array[Byte]],
    partition: Partition,
    @transient private var locs: Seq[TaskLocation],
    metrics: TaskMetrics,
    localProperties: Properties,
    jobId: Option[Int] = None,
    appId: Option[String] = None,
    appAttemptId: Option[String] = None)
  extends Task[MapStatus](stageId, stageAttemptId, partition.index, metrics, localProperties, jobId,
    appId, appAttemptId)
  with Logging {

  /** A constructor used only in test suites. This does not require passing in an RDD. */
  def this(partitionId: Int) {
    this(0, 0, null, new Partition { override def index: Int = 0 }, null, null, new Properties)
  }

  @transient private val preferredLocs: Seq[TaskLocation] = {
    if (locs == null) Nil else locs.toSet.toSeq
  }


//返回MapStatus
  override def runTask(context: TaskContext): MapStatus = {
    // Deserialize the RDD using the broadcast variable.
    //反序列化数据
    val threadMXBean = ManagementFactory.getThreadMXBean
    val deserializeStartTime = System.currentTimeMillis()
    val deserializeStartCpuTime = if (threadMXBean.isCurrentThreadCpuTimeSupported) {
      threadMXBean.getCurrentThreadCpuTime
    } else 0L
    val ser = SparkEnv.get.closureSerializer.newInstance()
    //获取rdd
    val (rdd, dep) = ser.deserialize[(RDD[_], ShuffleDependency[_, _, _])](
      ByteBuffer.wrap(taskBinary.value), Thread.currentThread.getContextClassLoader)
    _executorDeserializeTime = System.currentTimeMillis() - deserializeStartTime
    _executorDeserializeCpuTime = if (threadMXBean.isCurrentThreadCpuTimeSupported) {
      threadMXBean.getCurrentThreadCpuTime - deserializeStartCpuTime
    } else 0L



    var writer: ShuffleWriter[Any, Any] = null
    try {
    //获取shufflemanager
      val manager = SparkEnv.get.shuffleManager
    //从shufflemanager中获取shufflewrite
      writer = manager.getWriter[Any, Any](dep.shuffleHandle, partitionId, context)
      //最重要：调用了rdd的iterator方法，传入了，当前task需要处理的partition
      //核心就在，这个iterator方法如何实现的，针对rdd的某个partition，执行算子或者函数
      //执行完了会返回数据，通过shufflewriter，经过hashpartitioner分区后，写入自己的bucket
      writer.write(rdd.iterator(partition, context).asInstanceOf[Iterator[_ <: Product2[Any, Any]]])
      //返回结果mapstatus
      //mapstatus封装了shufflemaptask计算后的数据，存储在哪里，	就是blockmanager相关的数据
      writer.stop(success = true).get
    } catch {
      case e: Exception =>
        try {
          if (writer != null) {
            writer.stop(success = false)
          }
        } catch {
          case e: Exception =>
            log.debug("Could not stop writer", e)
        }
        throw e
    }
  }

  override def preferredLocations: Seq[TaskLocation] = preferredLocs

  override def toString: String = "ShuffleMapTask(%d, %d)".format(stageId, partitionId)
}

跟进rdd.iterator方法

  /**
   * Internal method to this RDD; will read from cache if applicable, or otherwise compute it.
   * This should ''not'' be called by users directly, but is available for implementors of custom
   * subclasses of RDD.
   */
  final def iterator(split: Partition, context: TaskContext): Iterator[T] = {
    if (storageLevel != StorageLevel.NONE) {
      getOrCompute(split, context)
    } else {
    //rdd partition的计算
      computeOrReadCheckpoint(split, context)
    }
  }

进入computeOrReadCheckpoint

 /**
   * Compute an RDD partition or read it from a checkpoint if the RDD is checkpointing.
   */
  private[spark] def computeOrReadCheckpoint(split: Partition, context: TaskContext): Iterator[T] =
  {
    if (isCheckpointedAndMaterialized) {
      firstParent[T].iterator(split, context)
    } else {
      compute(split, context)
    }
  }

进入compute方法，发现是个抽象方法

找个RDD，去里面找它的compute方法

比如找mappartitionRDD

/**
 * An RDD that applies the provided function to every partition of the parent RDD.
 */
private[spark] class MapPartitionsRDD[U: ClassTag, T: ClassTag](
    var prev: RDD[T],
    f: (TaskContext, Int, Iterator[T]) => Iterator[U],  // (TaskContext, partition index, iterator)
    preservesPartitioning: Boolean = false)
  extends RDD[U](prev) {

  override val partitioner = if (preservesPartitioning) firstParent[T].partitioner else None

  override def getPartitions: Array[Partition] = firstParent[T].partitions

  override def compute(split: Partition, context: TaskContext): Iterator[U] =
    f(context, split.index, firstParent[T].iterator(split, context))

  override def clearDependencies() {
    super.clearDependencies()
    prev = null
  }
}

可以看到有compute方法
下面是个f
这个f，其实就是我们自定义的在rdd上运行的算子和函数

回到shuffleMapTask，看到write方法

/**
 * Obtained inside a map task to write out records to the shuffle system.
 */
private[spark] abstract class ShuffleWriter[K, V] {
  /** Write a sequence of records to this task's output */
  @throws[IOException]
  def write(records: Iterator[Product2[K, V]]): Unit

  /** Close this writer, passing along whether the map completed */
  def stop(success: Boolean): Option[MapStatus]
}

具体写入过程后面再看。

回到TaskRunner的run方法，task.run方法返回的value，对于shuffleMapTask，其实就是MapStatus，封装了shuffleMapTask计算的数据、输出的位置
如果后面还是一个shuffleMapTask，那么就会通过MapOutputTracker，获取上一个shuffleMapTask的输出位置，通过网络拉取数据。ResultTask也是一样。。

对于ResultTask

  override def runTask(context: TaskContext): U = {
    // Deserialize the RDD and the func using the broadcast variables.
    val threadMXBean = ManagementFactory.getThreadMXBean
    val deserializeStartTime = System.currentTimeMillis()
    val deserializeStartCpuTime = if (threadMXBean.isCurrentThreadCpuTimeSupported) {
      threadMXBean.getCurrentThreadCpuTime
    } else 0L
    val ser = SparkEnv.get.closureSerializer.newInstance()
    val (rdd, func) = ser.deserialize[(RDD[T], (TaskContext, Iterator[T]) => U)](
      ByteBuffer.wrap(taskBinary.value), Thread.currentThread.getContextClassLoader)
    _executorDeserializeTime = System.currentTimeMillis() - deserializeStartTime
    _executorDeserializeCpuTime = if (threadMXBean.isCurrentThreadCpuTimeSupported) {
      threadMXBean.getCurrentThreadCpuTime - deserializeStartCpuTime
    } else 0L

	//简单的序列化之后，直接调用rdd的iterator方法，不需要进行其他写入，因为ResultTask后面也没有其他task 了，不需要再被使用
    func(context, rdd.iterator(partition, context))
  }
