文章详细介绍了ApacheFlink中用于窗口处理的Trigger和Evictor机制。Trigger定义了窗口触发的条件，如onElement、onProcessingTime等方法，而Evictor则在窗口触发后用于清除不必要的元素。示例代码展示了如何自定义Trigger和Evictor实现特定的窗口计算逻辑。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

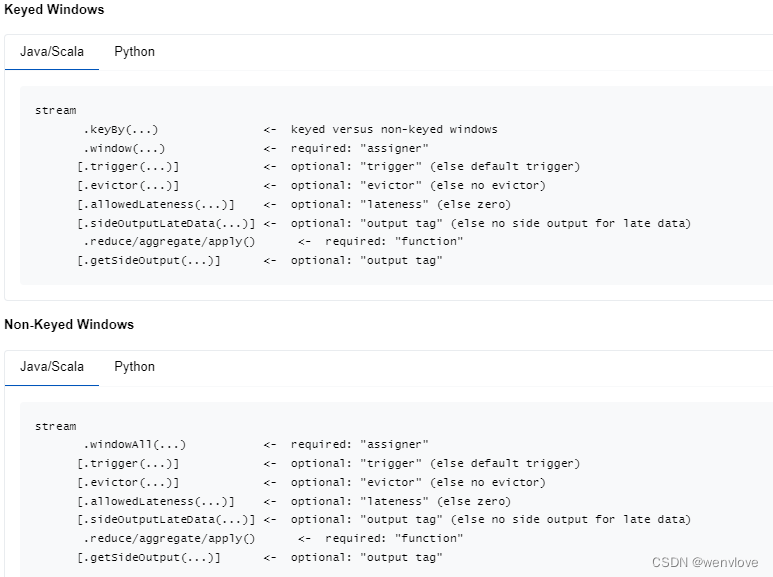

Flink 中 Trigger 用来定义窗口的触发策略，Evictor 用来定义窗口中元素的清除策略。
在这里插入图片描述

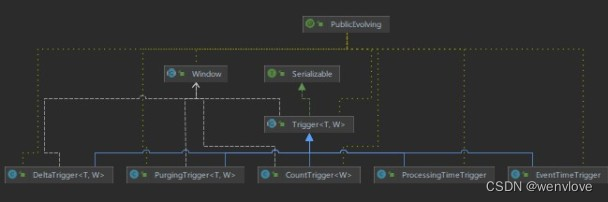

Trigger

注册的定时器会会保存在一个优先队列中
* onElement() 每次往 window 增加一个元素的时候都会触发
* onEventTime() 当 event-time timer 被触发的时候会调用
* onProcessingTime() 当 processing-time timer 被触发的时候会调用
* onMerge() 对两个 trigger 的 state 进行 merge 操作用来处理 session window
* clear() window 销毁的时候被调用


public abstract class Trigger<T, W extends Window> implements Serializable {

    private static final long serialVersionUID = -4104633972991191369L;

    // 每来一条元素都会调用
    public abstract TriggerResult onElement(T element, long timestamp, W window, TriggerContext ctx)
            throws Exception;
	// 事件时间触发
    public abstract TriggerResult onProcessingTime(long time, W window, TriggerContext ctx)
            throws Exception;
	// 处理时间触发
    public abstract TriggerResult onEventTime(long time, W window, TriggerContext ctx)
            throws Exception;
	// 是否合并触发器，在 session 窗口时会调用
    public boolean canMerge() {
        return false;
    }
	// 触发器合并策略
    public void onMerge(W window, OnMergeContext ctx) throws Exception {
        throw new UnsupportedOperationException("This trigger does not support merging.");
    }
	// 触发器清理策略
    public abstract void clear(W window, TriggerContext ctx) throws Exception;

    // ------------------------------------------------------------------------

	// 触发器上下文内容
    public interface TriggerContext {

        // 返回当前处理时间
        long getCurrentProcessingTime();

        // 监控器
        MetricGroup getMetricGroup();

        // 返回当前 watermark
        long getCurrentWatermark();

        // 注册处理时间定时器
        void registerProcessingTimeTimer(long time);

        // 注册事件时间触发器
        void registerEventTimeTimer(long time);

        void deleteProcessingTimeTimer(long time);

        void deleteEventTimeTimer(long time);

        // 容错机制，可以通过其获取 state，不能再 KeyStream 中使用（function is not part os a KeyedStream）
        <S extends State> S getPartitionedState(StateDescriptor<S, ?> stateDescriptor);

        /**
         * Retrieves a {@link ValueState} object that can be used to interact with fault-tolerant
         * state that is scoped to the window and key of the current trigger invocation.
         *
         * @param name The name of the key/value state.
         * @param stateType The class of the type that is stored in the state. Used to generate
         *     serializers for managed memory and checkpointing.
         * @param defaultState The default state value, returned when the state is accessed and no
         *     value has yet been set for the key. May be null.
         * @param <S> The type of the state.
         * @return The partitioned state object.
         * @throws UnsupportedOperationException Thrown, if no partitioned state is available for
         *     the function (function is not part os a KeyedStream).
         * @deprecated Use {@link #getPartitionedState(StateDescriptor)}.
         */
        @Deprecated
        <S extends Serializable> ValueState<S> getKeyValueState(
                String name, Class<S> stateType, S defaultState);

        /**
         * Retrieves a {@link ValueState} object that can be used to interact with fault-tolerant
         * state that is scoped to the window and key of the current trigger invocation.
         *
         * @param name The name of the key/value state.
         * @param stateType The type information for the type that is stored in the state. Used to
         *     create serializers for managed memory and checkpoints.
         * @param defaultState The default state value, returned when the state is accessed and no
         *     value has yet been set for the key. May be null.
         * @param <S> The type of the state.
         * @return The partitioned state object.
         * @throws UnsupportedOperationException Thrown, if no partitioned state is available for
         *     the function (function is not part os a KeyedStream).
         * @deprecated Use {@link #getPartitionedState(StateDescriptor)}.
         */
        @Deprecated
        <S extends Serializable> ValueState<S> getKeyValueState(
                String name, TypeInformation<S> stateType, S defaultState);
    }

    /**
     * Extension of {@link TriggerContext} that is given to {@link Trigger#onMerge(Window,
     * OnMergeContext)}.
     */
    public interface OnMergeContext extends TriggerContext {
        <S extends MergingState<?, ?>> void mergePartitionedState(
                StateDescriptor<S, ?> stateDescriptor);
    }
}

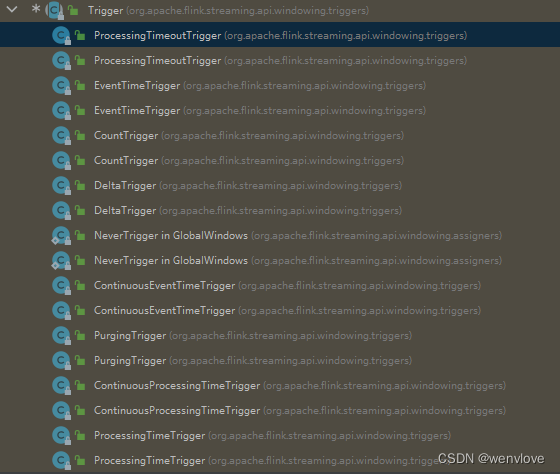

在这里插入图片描述

触发器返回值
org.apache.flink.streaming.api.windowing.triggers.TriggerResult
* CONTINUE 不做任何事情
* FIRE 触发 window
* PURGE 清空整个 window 的元素并销毁窗口
* FIRE_AND_PURGE 触发窗口，然后销毁窗口


public class TriggerDemo {

    public static void main(String[] args) throws Exception{

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);


        env
                .addSource(new ClickSource())
                .assignTimestampsAndWatermarks(
                       WatermarkStrategy
                        .<Event>forBoundedOutOfOrderness(Duration.ofSeconds(0L))
                        .withTimestampAssigner(
                                new SerializableTimestampAssigner<Event>() {
                                    @Override
                                    public long extractTimestamp(Event element, long recordTimestamp) {
                                        return element.timestamp;
                                    }
                                }
                        )
                )
                .keyBy(event -> true)
                .countWindow(50)
                .trigger(
                        // 每 20 条数据触发一次窗口计算
                        // 窗口结束 触发窗口计算并清空窗口
                        new Trigger<Event, GlobalWindow>() {
                            @Override
                            public TriggerResult onElement(Event element, long timestamp, GlobalWindow window, TriggerContext ctx) throws Exception {

                                ValueState<Long> countState = ctx.getPartitionedState(new ValueStateDescriptor<Long>("countState",Types.LONG));


                                if (countState.value() == null){
                                    // 第一条元素
                                    countState.update(1L);
                                }else {
                                    countState.update(countState.value() + 1L);
                                }

                                // 每 20 条数据触发一次窗口
                                if (countState.value() % 20 == 0){
                                    ctx.registerProcessingTimeTimer(ctx.getCurrentProcessingTime() + 1L);
                                }

                                // 窗口结束触发触发并情清空窗口中的元素
                                if (countState.value().longValue() == 50L){
                                    ctx.registerProcessingTimeTimer(ctx.getCurrentProcessingTime()+ 1L);
                                }


                                return TriggerResult.CONTINUE;
                            }

                            @Override
                            public TriggerResult onProcessingTime(long time, GlobalWindow window, TriggerContext ctx) throws Exception {

                                ValueState<Long> countState = ctx.getPartitionedState(new ValueStateDescriptor<Long>("countState",Types.LONG));

                                if(countState.value() % 20 ==0){
                                    return TriggerResult.FIRE;
                                }else {
                                    countState.clear();
                                    return TriggerResult.FIRE_AND_PURGE;
                                }
                            }

                            @Override
                            public TriggerResult onEventTime(long time, GlobalWindow window, TriggerContext ctx) throws Exception {
                                return TriggerResult.CONTINUE;
                            }

                            @Override
                            public void clear(GlobalWindow window, TriggerContext ctx) throws Exception {
                                System.out.println("=============================");
                            }
                        }
                )
                .process(
                        new ProcessWindowFunction<Event, String, Boolean, GlobalWindow>() {
                            @Override
                            public void process(Boolean s, Context context, Iterable<Event> elements, Collector<String> out) throws Exception {
                                out.collect("窗口中有 " + elements.spliterator().getExactSizeIfKnown() + " 条元素");
                            }
                        }
                )
                .print();


        env.execute();


    }

}

Evictor

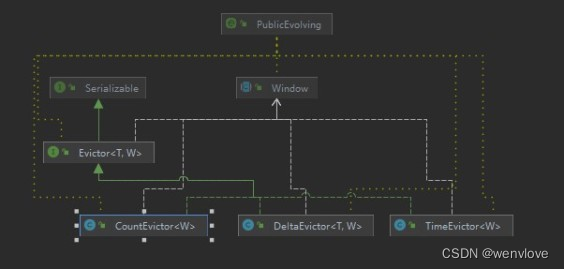

在 Trigge r触发之后，在窗口被处理之前，Evictor（如果有 Evictor 的话）会用来剔除窗口中不需要的元素，相当于一个 filter

在这里插入图片描述
org.apache.flink.streaming.api.windowing.triggers.Trigger

public abstract class Trigger<T, W extends Window> implements Serializable {

    private static final long serialVersionUID = -4104633972991191369L;

    /**
     * Called for every element that gets added to a pane. The result of this will determine whether
     * the pane is evaluated to emit results.
     *
     * @param element The element that arrived.
     * @param timestamp The timestamp of the element that arrived.
     * @param window The window to which the element is being added.
     * @param ctx A context object that can be used to register timer callbacks.
     */
    public abstract TriggerResult onElement(T element, long timestamp, W window, TriggerContext ctx)
            throws Exception;

    /**
     * Called when a processing-time timer that was set using the trigger context fires.
     *
     * @param time The timestamp at which the timer fired.
     * @param window The window for which the timer fired.
     * @param ctx A context object that can be used to register timer callbacks.
     */
    public abstract TriggerResult onProcessingTime(long time, W window, TriggerContext ctx)
            throws Exception;

    /**
     * Called when an event-time timer that was set using the trigger context fires.
     *
     * @param time The timestamp at which the timer fired.
     * @param window The window for which the timer fired.
     * @param ctx A context object that can be used to register timer callbacks.
     */
    public abstract TriggerResult onEventTime(long time, W window, TriggerContext ctx)
            throws Exception;

    /**
     * Returns true if this trigger supports merging of trigger state and can therefore be used with
     * a {@link org.apache.flink.streaming.api.windowing.assigners.MergingWindowAssigner}.
     *
     * <p>If this returns {@code true} you must properly implement {@link #onMerge(Window,
     * OnMergeContext)}
     */
    public boolean canMerge() {
        return false;
    }

    /**
     * Called when several windows have been merged into one window by the {@link
     * org.apache.flink.streaming.api.windowing.assigners.WindowAssigner}.
     *
     * @param window The new window that results from the merge.
     * @param ctx A context object that can be used to register timer callbacks and access state.
     */
    public void onMerge(W window, OnMergeContext ctx) throws Exception {
        throw new UnsupportedOperationException("This trigger does not support merging.");
    }

    /**
     * Clears any state that the trigger might still hold for the given window. This is called when
     * a window is purged. Timers set using {@link TriggerContext#registerEventTimeTimer(long)} and
     * {@link TriggerContext#registerProcessingTimeTimer(long)} should be deleted here as well as
     * state acquired using {@link TriggerContext#getPartitionedState(StateDescriptor)}.
     */
    public abstract void clear(W window, TriggerContext ctx) throws Exception;

    // ------------------------------------------------------------------------

    /**
     * A context object that is given to {@link Trigger} methods to allow them to register timer
     * callbacks and deal with state.
     */
    public interface TriggerContext {

        /** Returns the current processing time. */
        long getCurrentProcessingTime();

        /**
         * Returns the metric group for this {@link Trigger}. This is the same metric group that
         * would be returned from {@link RuntimeContext#getMetricGroup()} in a user function.
         *
         * <p>You must not call methods that create metric objects (such as {@link
         * MetricGroup#counter(int)} multiple times but instead call once and store the metric
         * object in a field.
         */
        MetricGroup getMetricGroup();

        /** Returns the current watermark time. */
        long getCurrentWatermark();

        /**
         * Register a system time callback. When the current system time passes the specified time
         * {@link Trigger#onProcessingTime(long, Window, TriggerContext)} is called with the time
         * specified here.
         *
         * @param time The time at which to invoke {@link Trigger#onProcessingTime(long, Window,
         *     TriggerContext)}
         */
        void registerProcessingTimeTimer(long time);

        /**
         * Register an event-time callback. When the current watermark passes the specified time
         * {@link Trigger#onEventTime(long, Window, TriggerContext)} is called with the time
         * specified here.
         *
         * @param time The watermark at which to invoke {@link Trigger#onEventTime(long, Window,
         *     TriggerContext)}
         * @see org.apache.flink.streaming.api.watermark.Watermark
         */
        void registerEventTimeTimer(long time);

        /** Delete the processing time trigger for the given time. */
        void deleteProcessingTimeTimer(long time);

        /** Delete the event-time trigger for the given time. */
        void deleteEventTimeTimer(long time);

        /**
         * Retrieves a {@link State} object that can be used to interact with fault-tolerant state
         * that is scoped to the window and key of the current trigger invocation.
         *
         * @param stateDescriptor The StateDescriptor that contains the name and type of the state
         *     that is being accessed.
         * @param <S> The type of the state.
         * @return The partitioned state object.
         * @throws UnsupportedOperationException Thrown, if no partitioned state is available for
         *     the function (function is not part os a KeyedStream).
         */
        <S extends State> S getPartitionedState(StateDescriptor<S, ?> stateDescriptor);

        /**
         * Retrieves a {@link ValueState} object that can be used to interact with fault-tolerant
         * state that is scoped to the window and key of the current trigger invocation.
         *
         * @param name The name of the key/value state.
         * @param stateType The class of the type that is stored in the state. Used to generate
         *     serializers for managed memory and checkpointing.
         * @param defaultState The default state value, returned when the state is accessed and no
         *     value has yet been set for the key. May be null.
         * @param <S> The type of the state.
         * @return The partitioned state object.
         * @throws UnsupportedOperationException Thrown, if no partitioned state is available for
         *     the function (function is not part os a KeyedStream).
         * @deprecated Use {@link #getPartitionedState(StateDescriptor)}.
         */
        @Deprecated
        <S extends Serializable> ValueState<S> getKeyValueState(
                String name, Class<S> stateType, S defaultState);

        /**
         * Retrieves a {@link ValueState} object that can be used to interact with fault-tolerant
         * state that is scoped to the window and key of the current trigger invocation.
         *
         * @param name The name of the key/value state.
         * @param stateType The type information for the type that is stored in the state. Used to
         *     create serializers for managed memory and checkpoints.
         * @param defaultState The default state value, returned when the state is accessed and no
         *     value has yet been set for the key. May be null.
         * @param <S> The type of the state.
         * @return The partitioned state object.
         * @throws UnsupportedOperationException Thrown, if no partitioned state is available for
         *     the function (function is not part os a KeyedStream).
         * @deprecated Use {@link #getPartitionedState(StateDescriptor)}.
         */
        @Deprecated
        <S extends Serializable> ValueState<S> getKeyValueState(
                String name, TypeInformation<S> stateType, S defaultState);
    }

    /**
     * Extension of {@link TriggerContext} that is given to {@link Trigger#onMerge(Window,
     * OnMergeContext)}.
     */
    public interface OnMergeContext extends TriggerContext {
        <S extends MergingState<?, ?>> void mergePartitionedState(
                StateDescriptor<S, ?> stateDescriptor);
    }
}

*evictBefore() 窗口函数调用前调用
*evictAfter() 窗口函数执行完后调用
驱逐器的内容
interface EvictorContext {
    *getCurrentProcessingTime()
    *getMetricGroup()
    *getCurrentWatermark()
}


public class WindowEvictor {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);

        env
                .addSource(new ClickSource())
                .keyBy(event -> 1)
                .windowAll(GlobalWindows.create())

                // 窗口 只 保存 20 条最近数据

                .trigger(

                        // 1min 触发一次
                        new Trigger<Event, GlobalWindow>() {
                            @Override
                            public TriggerResult onElement(Event element, long timestamp, GlobalWindow window, TriggerContext ctx) throws Exception {

                                ValueState<Boolean> firstSeen = ctx.getPartitionedState(new ValueStateDescriptor<Boolean>("first-seen", Types.BOOLEAN));

                                if (!Optional.ofNullable(firstSeen.value()).orElseGet(() -> false)) {

                                    // 窗口的第一个元素

                                    //注册一个 1min 的定时器
//                                    System.out.println("timestamp = " + timestamp); // -9223372036854775808

                                    long ts = ctx.getCurrentProcessingTime() + 5 * 1000L;

                                    System.out.println("register timer = " + ts);

                                    ctx.registerProcessingTimeTimer(ts);

                                    firstSeen.update(true);

                                }

                                return TriggerResult.CONTINUE;
                            }

                            @Override
                            public TriggerResult onProcessingTime(long time, GlobalWindow window, TriggerContext ctx) throws Exception {

                                System.out.println("timer trigger = " + time);

                                ctx.registerProcessingTimeTimer(time + 1L + 5 * 1000L);

                                return TriggerResult.FIRE;
                            }

                            @Override
                            public TriggerResult onEventTime(long time, GlobalWindow window, TriggerContext ctx) throws Exception {
                                return TriggerResult.CONTINUE;
                            }

                            @Override
                            public void clear(GlobalWindow window, TriggerContext ctx) throws Exception {
                                ValueState<Boolean> firstSeen = ctx.getPartitionedState(new ValueStateDescriptor<Boolean>("first-seen", Types.BOOLEAN));
                                firstSeen.clear();
                            }
                        }
                )

                // org.apache.flink.streaming.api.windowing.evictors.CountEvictor
                .evictor(

                        // 保留最近 20 条数据

                        new Evictor<Event, GlobalWindow>() {

                            private int maxCount = 20;

                            @Override
                            public void evictBefore(Iterable<TimestampedValue<Event>> elements, int size, GlobalWindow window, EvictorContext evictorContext) {

                                // System.out.println("class = "+elements.getClass()); // class org.apache.flink.shaded.guava30.com.google.common.collect.Iterables$5

                                long total = elements.spliterator().getExactSizeIfKnown();

                                if (total < maxCount) {
                                    return;
                                } else {

                                    // 需要移除窗口元素的数量 evictedCount = total - maxCount
                                    int evictedCount = 0;

                                    for (Iterator<TimestampedValue<Event>> iterator = elements.iterator(); iterator.hasNext();) {

                                        iterator.next();

                                        evictedCount++;

                                        if (evictedCount > total - maxCount) {
                                            break;
                                        } else {
                                            iterator.remove();
                                        }

                                    }

                                }


                            }

                            @Override
                            public void evictAfter(Iterable<TimestampedValue<Event>> elements, int size, GlobalWindow window, EvictorContext evictorContext) {

                            }
                        }
                )
                .process(
                        new ProcessAllWindowFunction<Event, String, GlobalWindow>() {
                            @Override
                            public void process(Context context, Iterable<Event> elements, Collector<String> out) throws Exception {
                                out.collect("窗口中有 " + elements.spliterator().getExactSizeIfKnown() + " 条元素");
                            }
                        }
                )
                .print();

        env.execute();


    }

}
