haproxy+ keepalived高可用环境部署

1、环境准备

172.18.62.38      haproxy+keeplived   master
172.18.62.39      haproxy+keeplived   backup
172.18.62.40      apache
172.18.62.41      apache
172.18.62.42      vip

2、启动容器

[root@iZuf612i9bshiuw3zzlfe9Z ~]# docker ps
CONTAINER ID        IMAGE                       COMMAND                  CREATED             STATUS              PORTS                    NAMES
289ccced5587        kad                         "/usr/sbin/init"         38 minutes ago      Up 38 minutes                                keepalived_apache2_1
44e30a4a733c        kad                         "/usr/sbin/init"         38 minutes ago      Up 38 minutes       0.0.0.0:80->80/tcp       keepalived_haproxy-master_1
d85f5ec88462        kad                         "/usr/sbin/init"         38 minutes ago      Up 38 minutes                                keepalived_apache1_1
72f8eef52e47        kad                         "/usr/sbin/init"         38 minutes ago      Up 38 minutes       0.0.0.0:90->80/tcp       keepalived_haproxy-slave_1
6f27741df3e2        kad                         "/usr/sbin/init"         38 minutes ago      Up 38 minutes       0.0.0.0:100->80/tcp      keepalived_vip_1

3、安装服务apache

#更新软件包
apt update
apt upgrade -y
#安装apache
apt install apache2 -y
#方便测试，修改首页
vim /var/www/html/index.html
#启动apache服务
/etc/init.d/apache2 start

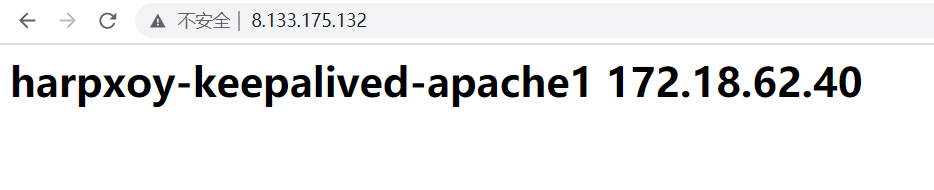

访问如下：
root@apache1:~# curl http://172.18.62.40
<h1>harpxoy-keepalived-apache1  172.18.62.40</h1>
root@apache2:~# curl http://172.18.62.41
<h1>haproxy-keepalived-apache2 172.18.62.41</h1>

4、安装haproxy

#更新安装包
apt update
apt upgrade -y
#安装服务
apt install haproxy -y

5、安装keepalived

#更新安装包
apt update
apt upgrade -y
#安装服务
apt install keepalived -y

6、配置haproxy负载均衡

vim /etc/haproxy/haproxy.cfg
#master
#----------global---------------------
global
       maxconn 2000
       nbproc 1
       user haproxy
       group haproxy
       log 127.0.0.1 local0 info
       daemon
       pidfile /var/run/haproxy.pid
#-------------default---------------------
defaults
    mode                    http
    log                     global
    option                  httplog
    option                  dontlognull
    option http-server-close
    option forwardfor       except 127.0.0.0/8
    option                  redispatch
    retries                 3
    timeout http-request    10s
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout http-keep-alive 10s
    timeout check           10s
    maxconn                 3000
#-------------frontend------------------
frontend test
       bind *:80
       default_backend test_server
#------------backend-------------------
backend test_server
    server apache1 172.18.62.40:80 check
    server apache2 172.18.62.41:80 check

#slave
#----------global---------------------
global
       maxconn 2000
       nbproc 1
       user haproxy
       group haproxy
       log 127.0.0.1 local0 info
       daemon
       pidfile /var/run/haproxy.pid
#-------------default---------------------
defaults
    mode                    http
    log                     global
    option                  httplog
    option                  dontlognull
    option http-server-close
    option forwardfor       except 127.0.0.0/8
    option                  redispatch
    retries                 3
    timeout http-request    10s
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout http-keep-alive 10s
    timeout check           10s
    maxconn                 3000
#-------------frontend------------------
frontend test
       bind *:80
       default_backend test_server
#------------backend-------------------
backend test_server
    server apache1 172.18.62.40:80 check
    server apache2 172.18.62.41:80 check

7、配置keepalived

vim /etc/keepalived/keepalived.conf
#master
global_defs {
  router_id 172.18.62.38
}

vrrp_script check_haproxy {
    script "/etc/keepalived/check_haproxy.sh"
    interval 2
    weight 2
}

vrrp_instance vrrptest {
       state master
       interface eth0
       virtual_router_id 51
       priority 150
       advert_int 1
       authentication {
           auth_type PASS
           auth_pass ufsoft
       }
       track_script {
           check_haproxy
       }
       virtual_ipaddress {
           172.18.62.43
       }
}
#backup
global_defs {
  router_id 172.18.62.39
}

vrrp_script check_haproxy {
    script "/etc/keepalived/check_haproxy.sh"
    interval 2
    weight 2
}

vrrp_instance vrrptest {
       state master
       interface eth0
       virtual_router_id 51
       priority 150
       advert_int 1
       authentication {
           auth_type PASS
           auth_pass ufsoft
       }
       track_script {
           check_haproxy
       }
       virtual_ipaddress {
           172.18.62.43
       }
}
#启动
/etc/init.d/keepalived start

8、检查haproxy脚本

if [ "$(ps -ef | grep "haproxy:master process"| grep -v grep )" == "" ];then
   /etc/init.d/keepalived stop
else
   echo "haproxy is running"
fi

9、访问测试

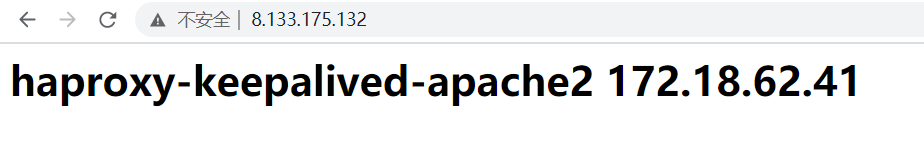

#master
http://Ip:80

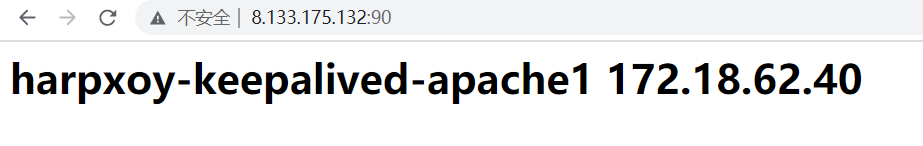

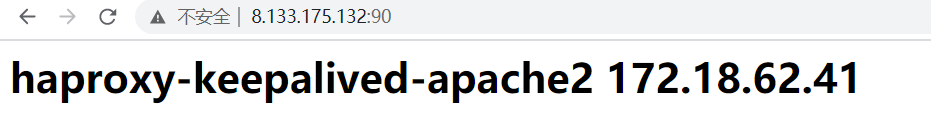

#backup
http://IP:90

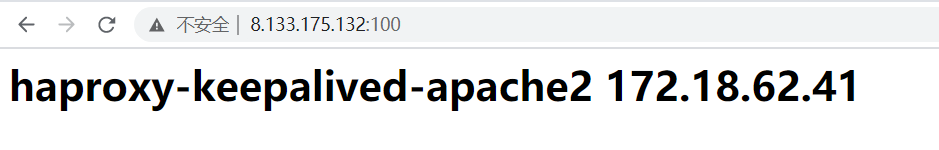

#VIP
http://IP:100

10、故障测试

#停掉master
root@haproxy-master:~# /etc/init.d/keepalived stop
Stopping keepalived (via systemctl): keepalived.service.
root@haproxy-master:~# /etc/init.d/keepalived status
● keepalived.service - Keepalive Daemon (LVS and VRRP)
     Loaded: loaded (/lib/systemd/system/keepalived.service; enabled; vendor preset: enabled)
     Active: inactive (dead) since Fri 2021-05-21 03:15:53 CEST; 5s ago
    Process: 1555 ExecStart=/usr/sbin/keepalived --dont-fork $DAEMON_ARGS (code=exited, status=0/SUCCESS)
   Main PID: 1555 (code=exited, status=0/SUCCESS)

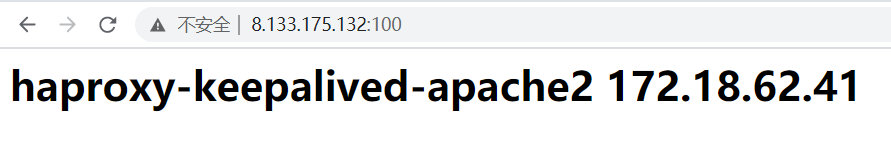

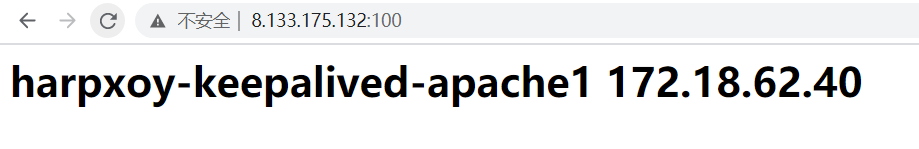

http://IP:100依旧正常访问

#停掉主haproxy
root@haproxy-master:~# /etc/init.d/haproxy stop
Stopping haproxy (via systemctl): haproxy.service.
root@haproxy-master:~# /etc/init.d/haproxy status
● haproxy.service - HAProxy Load Balancer
     Loaded: loaded (/lib/systemd/system/haproxy.service; enabled; vendor preset: enabled)
     Active: inactive (dead) since Fri 2021-05-21 03:58:10 CEST; 1min 5s ago
       Docs: man:haproxy(1)
             file:/usr/share/doc/haproxy/configuration.txt.gz
    Process: 1478 ExecStartPre=/usr/sbin/haproxy -f $CONFIG -c -q $EXTRAOPTS (code=exited, status=0/SUCCESS)
    Process: 1479 ExecStart=/usr/sbin/haproxy -Ws -f $CONFIG -p $PIDFILE $EXTRAOPTS (code=exited, status=0/SUCCESS)
   Main PID: 1479 (code=exited, status=0/SUCCESS)

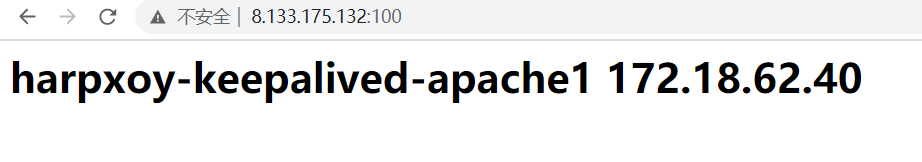

http://IP:100依旧正常访问
