vue 管理系统顶部tags浏览历史实现 tab版

废话

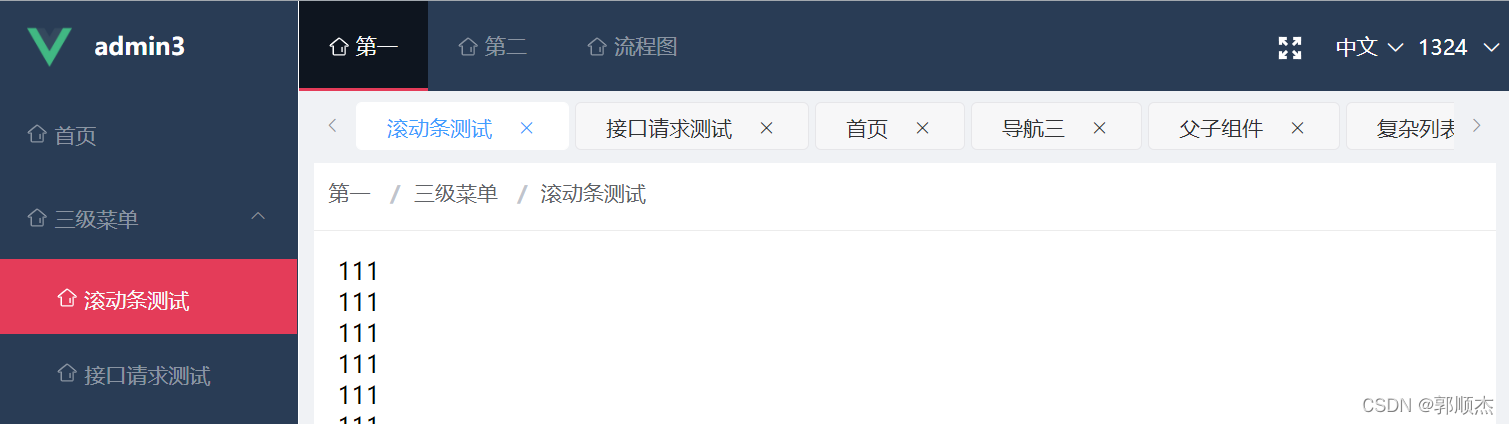

demo预览
在这里插入图片描述

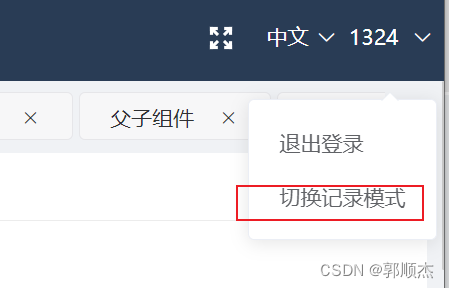

以前自己手写了一个类似的功能,用的事tags组件写的,要自己手动监听,可视宽度, tag宽度, 去显示左右操作按钮, 功能是实现了, 但是 点击的时候不能自动定位到当前页,所以用tab组件, 又写了一个, 推荐使用,原来的那个也保留了 可在个人信息下拉框里 进行切换
在这里插入图片描述
完成了哪些

  1. 最后一个不能关闭
  2. 点击路由菜单,判断有无存在,没有就添加,有就定位到上面
  3. 点击跳转,点击X可关闭
  4. 关闭当前页,自动跳到下一个tag页面
  5. 如果当前页在最后一个,默认跳到上一个tag页面
  6. 右键菜单,刷新,关闭右侧,关闭所有, 关闭左侧
  7. 自动相应有无左右两侧按钮

正文

不用任何vuex,乱七八糟的方法,全在一个文件,粘贴即用

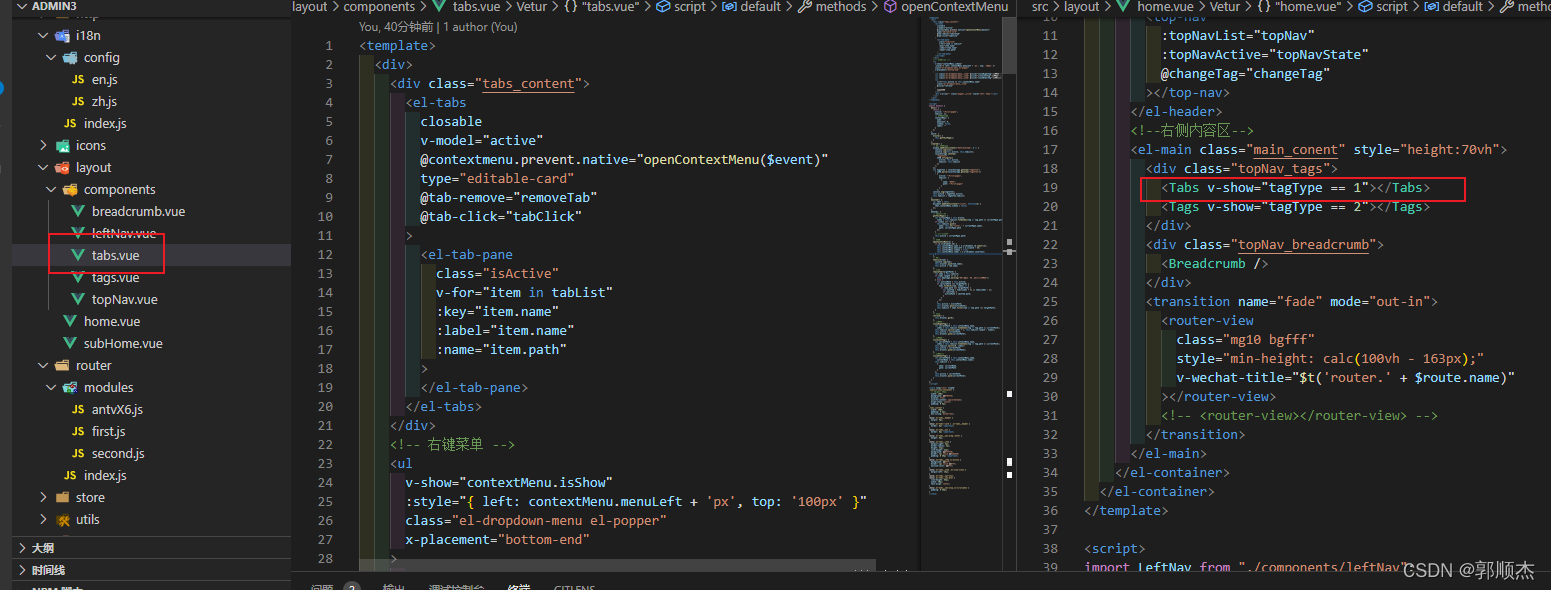

在这里插入图片描述
tabs代码如下

<template>
  <div>
    <div class="tabs_content">
      <el-tabs
        closable
        v-model="active"
        @contextmenu.prevent.native="openContextMenu($event)"
        type="editable-card"
        @tab-remove="removeTab"
        @tab-click="tabClick"
      >
        <el-tab-pane
          class="isActive"
          v-for="item in tabList"
          :key="item.name"
          :label="item.name"
          :name="item.path"
        >
        </el-tab-pane>
      </el-tabs>
    </div>
    <!-- 右键菜单 -->
    <ul
      v-show="contextMenu.isShow"
      :style="{ left: contextMenu.menuLeft + 'px', top: '100px' }"
      class="el-dropdown-menu el-popper"
      x-placement="bottom-end"
    >
      <li class="el-dropdown-menu__item" @click="closeRightTag">关闭右侧</li>
      <li class="el-dropdown-menu__item" @click="closeLeftTag">关闭左侧</li>
      <li class="el-dropdown-menu__item" @click="closeOtherTag">关闭其它</li>
      <li
        v-if="this.active == this.contextMenu.name"
        class="el-dropdown-menu__item"
        @click="refresh"
      >
        刷新页面
      </li>
      <div x-arrow="" class="popper__arrow" style="left: 44px"></div>
    </ul>
  </div>
</template>

<script>
export default {
  data() {
    return {
      active: "/First/page1",
      tabList: [],
      // 右键的元素
      contextMenu: {
        name: "",
        menuLeft: 0,
        isShow: false,
        label: ""
      }
    };
  },
  watch: {
    $route() {
      this.getThisPage();
    }
  },
  created() {
    // 监听页面刷新
    window.addEventListener("beforeunload", e => {
      console.log(1111);
      console.log(this.active, this.tabList);
      localStorage.setItem(
        "tagInfo2",
        JSON.stringify({
          active: this.active,
          tabList: this.tabList
        })
      );
    });
    let tagInfo2 = localStorage.getItem("tagInfo2")
      ? JSON.parse(localStorage.getItem("tagInfo2"))
      : {
          active: "/First/page1",
          tabList: [
            {
              name: "首页",
              path: "/First/page1"
            }
          ]
        };
    console.log(tagInfo2);
    this.active = tagInfo2.active;
    this.tabList = tagInfo2.tabList;
  },
  mounted() {
    var that = this;
    document.addEventListener("click", function(e) {
      that.contextMenu.isShow = false;
    });
  },
  methods: {
    // 判断当前页
    getThisPage() {
      let currentPgae = this.$route,
        index = this.tabList.findIndex(tag => tag.path == currentPgae.path);
      if (index === -1) {
        this.tabList.push({
          name: this.$t("router." + currentPgae.name),
          path: currentPgae.path
        });
      }
      // 当前选择页
      this.active = currentPgae.path;
    },
    // 右键
    openContextMenu(e) {
      if (e.srcElement.id) {
        this.contextMenu.name = e.srcElement.id.substr(4);
        this.contextMenu.menuLeft = e.clientX - 45;
        this.contextMenu.isShow = true;
        this.contextMenu.label = e.srcElement.innerText;
      }
    },
    // 点击
    tabClick(tab) {
      console.log(tab);
      this.$router.push(tab.name);
      this.active = tab.name;
    },
    // 移除
    removeTab(targetPath) {
      let tabs = this.tabList;
      if (tabs.length <= 1) {
        this.$message.warning("这是最后一页, 不能在关闭了");
      } else {
        let activePath = this.active;
        if (activePath === targetPath) {
          tabs.forEach((tab, index) => {
            if (tab.path === targetPath) {
              let nextTab = tabs[index + 1] || tabs[index - 1];
              if (nextTab) {
                activePath = nextTab.path;
              }
            }
          });
        }
        this.active = activePath;
        this.$router.push(activePath);
        this.tabList = tabs.filter(tab => tab.path !== targetPath);
      }
    },
    // 刷新
    refresh() {
      this.$router.go(0);
    },
    // 关闭右侧
    closeRightTag() {
      let currentPath = this.contextMenu.name,
        index = this.tabList.findIndex(tag => tag.path == currentPath);
      this.tabList.splice(index + 1, this.tabList.length - index);
      this.active = currentPath;
      this.$router.push(currentPath);
    },
    // 关闭左侧
    closeLeftTag() {
      let currentPath = this.contextMenu.name,
        index = this.tabList.findIndex(tag => tag.path == currentPath);
      this.tabList.splice(0, index);
      this.active = currentPath;
      this.$router.push(currentPath);
    },
    // 关闭其它
    closeOtherTag() {
      let currentPath = this.contextMenu.name,
        currentName = this.contextMenu.label;
      this.tabList = [
        {
          name: currentName,
          path: currentPath
        }
      ];
      this.active = currentPath;
      this.$router.push(currentPath);
    }
  }
};
</script>

<style lang="less" scoped>
.tabList-view-container {
  // height: 40px;
  width: 100%;
  background: #f0f2f5;
  display: flex;
  justify-content: space-between;
  align-items: center;
  padding: 0 8px;
}
.tabs_content {
  width: 100%;
  padding: 0 8px;
  box-sizing: border-box;
}
/deep/.el-tabs__header {
  margin: 0px;
}
/deep/.el-tabs--card > .el-tabs__header {
  border: 0px !important;
}
/deep/.el-tabs__nav {
  border: 0px !important;
}
/deep/.el-tabs__nav-wrap::after {
  height: 0px;
}
/deep/.el-tabs__item {
  margin-right: 4px;
  border-radius: 4px;
  height: 32px;
  line-height: 33px;
  background: #f7f7f8;
  border: 1px solid #e6e6e9;
  padding: 0 20px !important;
}
/deep/.el-tabs__item.is-active {
  background: #fff;
  border: 1px solid #fff;
  outline-color: #fff;
}
/deep/.el-tabs__item .el-icon-close {
  margin-left: 16px;
}
/deep/.el-tabs__nav-next,
/deep/.el-tabs__nav-prev {
  line-height: 46px;
  width: 30px;
  text-align: center;
}
/deep/.el-tabs__nav-wrap.is-scrollable {
  padding: 0 30px;
}
</style>

笔记

elementui tab
原来tags写的

注意自己的路由表 name 和 path , 其他ui 可根据自己需求改动
