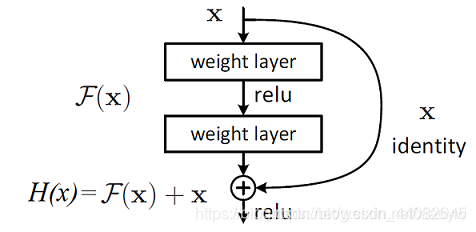

resnet网络解决了在普通网络中，深度加深导致的梯度消失和梯度爆炸的问题。在resnet中，使用了残差学习的方法，使网络层数极大加深；与普通全连接网络的对比中，出现了跨层连接即short-cut。
在这里插入图片描述
改变了网络要学习的目标，由普通全连接网络的H(x)改变为了F(x)=H(x)-x,即残差。

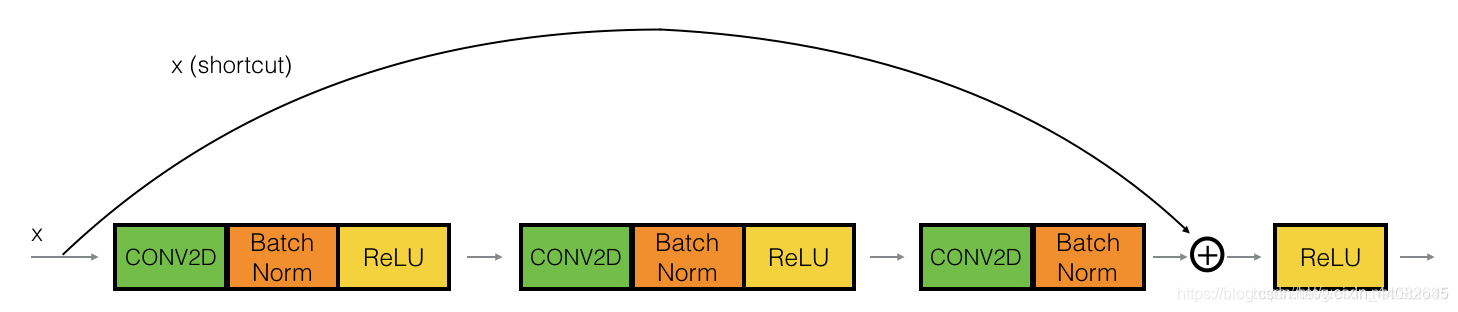

① identity 块
在这里插入图片描述

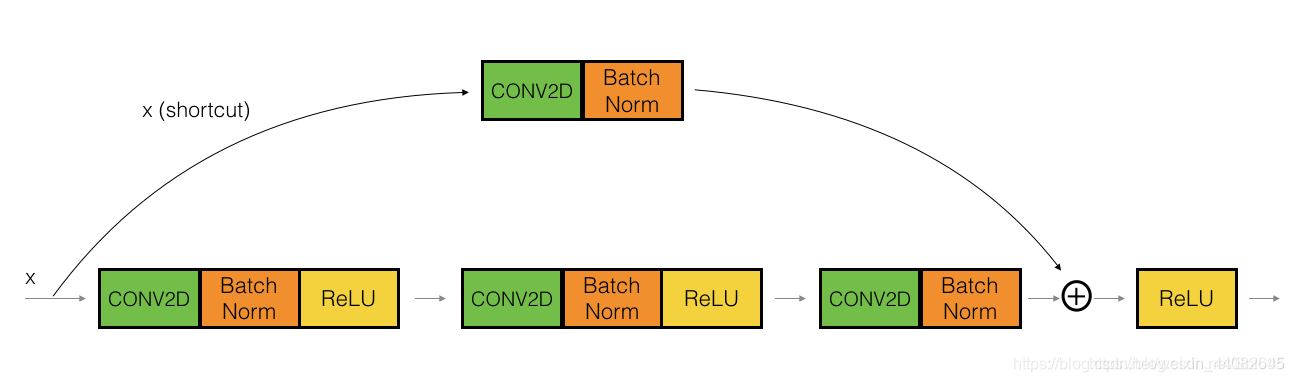

② The convolutional 块
在这里插入图片描述

两者区别在于是否在shortcut上添加卷积操作

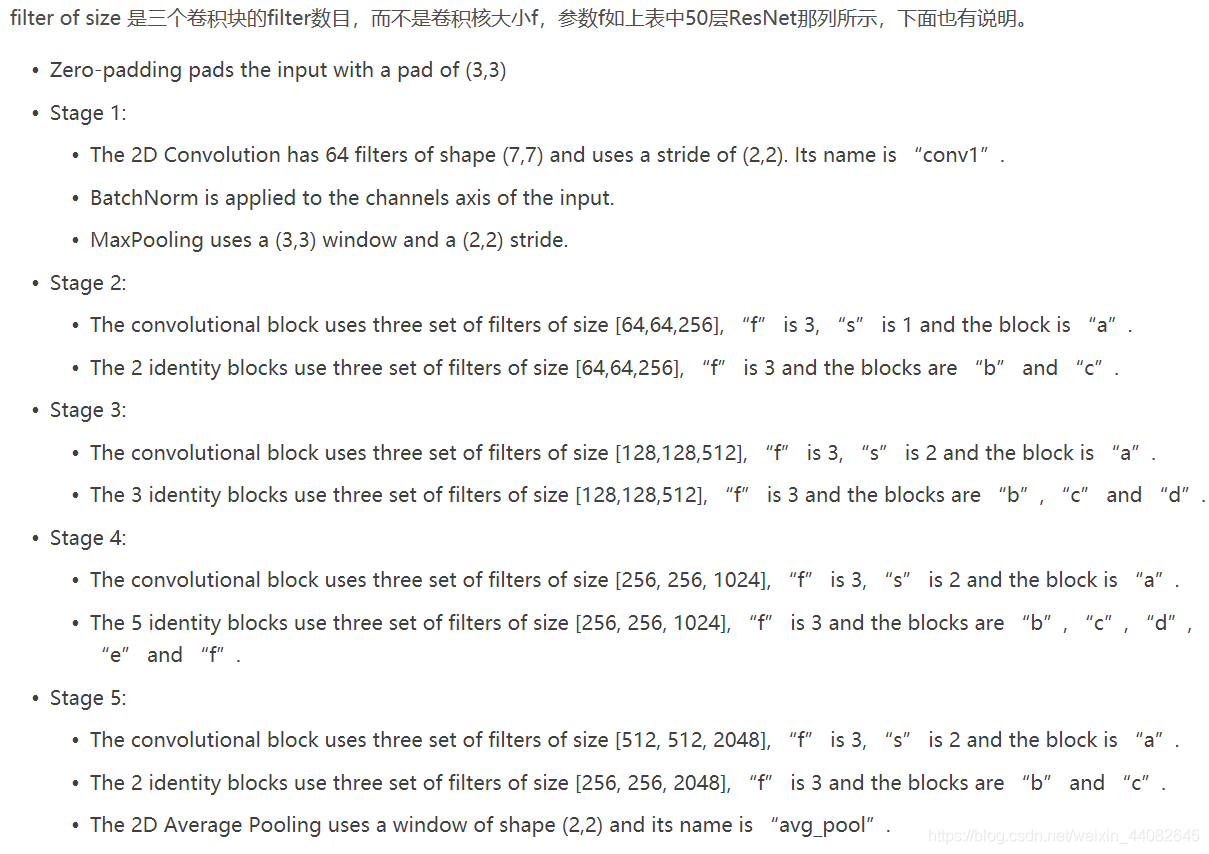

resnet结构图如下
在这里插入图片描述
在这里插入图片描述

参考上述操作描述及过程图可以很简单的编写代码：
** identity 块**

def identity_block(X,f,filters,stage,block):
    conv_name_base = 'res' + str(stage) + block + '_branch'
    bn_name_base = 'bn' + str(stage) + block + '_branch'
# 我认为相当于tensorflow里的一个占位符，之后主体model里输入filters
    F1,F2,F3 = filters
    X_shortcut = X

# First
    X = Conv2D(filters=F1,kernel_size=(1,1),strides=(1,1),padding='valid',
               name=conv_name_base+'2a',kernel_initializer=glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis=3,name=bn_name_base+'2a')(X)
    X = Activation('relu')(X)

# 这里的f也相当于一个占位符，之后输入值
# Second
    X = Conv2D(filters=F2,kernel_size=(f,f),strides=(1,1),padding='same',
               name=conv_name_base+'2b',kernel_initializer=glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis=3,name=bn_name_base+'2b')(X)
    X = Activation('relu')(X)

# Final
    X = Conv2D(filters=F3,kernel_size=(1,1),strides=(1,1),padding='valid',
               name=conv_name_base+'2c',kernel_initializer=glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis=3,name=bn_name_base+'2c')(X)

    X = Add()([X,X_shortcut])
    X = Activation('relu')(X)

    return X

The convolutional 块

def convolutional_block(X,f,filters,stage,block,s=2):
    conv_name_base = 'res' + str(stage) + block +'_branch'
    bn_name_base = 'bn' + str(stage) + block +'_branch'

    F1,F2,F3 = filters
    X_shortcut = X

# First
    X = Conv2D(F1,(1,1),strides=(s,s),name=conv_name_base+'2a',padding='valid',
               kernel_initializer=glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis=3,name=bn_name_base+'2a')(X)
    X = Activation('relu')(X)


#  Second
    X = Conv2D(F2,(f,f),strides=(1,1),name=conv_name_base+'2b',padding='same',
               kernel_initializer=glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis=3,name=bn_name_base+'2b')(X)
    X = Activation('relu')(X)

#  Third
    X = Conv2D(F3,(1,1),strides=(1,1),name=conv_name_base+'2c',padding='valid',
               kernel_initializer=glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis=3,name=bn_name_base+'2c')(X)

#   X_shortcut path
    X_shortcut = Conv2D(F3,(1,1),strides=(s,s),name=conv_name_base+'1',padding='valid',
                        kernel_initializer=glorot_uniform(seed=0))(X_shortcut)
    X_shortcut = BatchNormalization(axis=3,name=bn_name_base+'1')(X_shortcut)

#   ADD
    X = Add()([X,X_shortcut])
    X = Activation('relu')(X)

    return X

resnet

def ResNet50(input_shape=(64,64,3),classes=6):
#   定义输入层的输入形状
    X_input = Input(input_shape)

#  padding-zero
    X = ZeroPadding2D((3,3))(X_input)

#  stage 1
    X = Conv2D(filters=64,kernel_size=(7,7),strides=(2,2),name='conv',
               kernel_initializer=glorot_uniform(seed=0))(X)
    X = BatchNormalization(axis=3,name='bn_conv1')(X)
    X = Activation('relu')(X)
    X = MaxPool2D(pool_size=(3,3),strides=(2,2))(X)

#  stage 2
    X = convolutional_block(X,f=3,filters=[64,64,256],stage=2,block='a',s=1)
    X = identity_block(X,f=3,filters=[64,64,256],stage=2,block='b')
    X = identity_block(X,f=3,filters=[64,64,256],stage=2,block='c')

#  stage 3
    X = convolutional_block(X,f=3,filters=[128,128,512],stage=3,block='a',s=1)
    X = identity_block(X,f=3,filters=[128,128,512],stage=3,block='b')
    X = identity_block(X,f=3,filters=[128,128,512],stage=3,block='c')
    X = identity_block(X,f=3,filters=[128,128,512],stage=3,block='d')

#  stage 4
    X = convolutional_block(X,f=3,filters=[256,256,1024],stage=4,block='a',s=2)
    X = identity_block(X,f=3,filters=[256,256,1024],stage=4,block='b')
    X = identity_block(X,f=3,filters=[256,256,1024],stage=4,block='c')
    X = identity_block(X,f=3,filters=[256,256,1024],stage=4,block='d')
    X = identity_block(X,f=3,filters=[256,256,1024],stage=4,block='e')
    X = identity_block(X,f=3,filters=[256,256,1024],stage=4,block='f')

#  stage 5
    X = convolutional_block(X,f=3,filters=[512,512,2048],stage=5,block='a',s=2)
    X = identity_block(X,f=3,filters=[512,512,2048],stage=5,block='b')
    X = identity_block(X,f=3,filters=[512,512,2048],stage=5,block='c')

    X = AveragePooling2D(pool_size=(2,2),padding='same')(X)

    X = Flatten()(X)
    X = Dense(classes,activation='softmax',name='fc'+str(classes),
              kernel_initializer=glorot_uniform(seed=0))(X)

    model = Model(inputs=X_input,outputs=X,name='ResNet50')

    return model

# 打印模型结构
model.summary()
__________________________________________________________________________________________________
Layer (type)                    Output Shape         Param #     Connected to
==================================================================================================
input_3 (InputLayer)            (None, 64, 64, 3)    0
__________________________________________________________________________________________________
zero_padding2d_3 (ZeroPadding2D (None, 70, 70, 3)    0           input_3[0][0]
__________________________________________________________________________________________________
conv (Conv2D)                   (None, 32, 32, 64)   9472        zero_padding2d_3[0][0]
__________________________________________________________________________________________________
bn_conv1 (BatchNormalization)   (None, 32, 32, 64)   256         conv[0][0]
__________________________________________________________________________________________________
activation_96 (Activation)      (None, 32, 32, 64)   0           bn_conv1[0][0]
__________________________________________________________________________________________________
max_pooling2d_3 (MaxPooling2D)  (None, 15, 15, 64)   0           activation_96[0][0]
__________________________________________________________________________________________________
res2a_branch2a (Conv2D)         (None, 15, 15, 64)   4160        max_pooling2d_3[0][0]
__________________________________________________________________________________________________
bn2a_branch2a (BatchNormalizati (None, 15, 15, 64)   256         res2a_branch2a[0][0]
__________________________________________________________________________________________________
activation_97 (Activation)      (None, 15, 15, 64)   0           bn2a_branch2a[0][0]
__________________________________________________________________________________________________
res2a_branch2b (Conv2D)         (None, 15, 15, 64)   36928       activation_97[0][0]
__________________________________________________________________________________________________
bn2a_branch2b (BatchNormalizati (None, 15, 15, 64)   256         res2a_branch2b[0][0]
__________________________________________________________________________________________________
activation_98 (Activation)      (None, 15, 15, 64)   0           bn2a_branch2b[0][0]
__________________________________________________________________________________________________
res2a_branch2c (Conv2D)         (None, 15, 15, 256)  16640       activation_98[0][0]
__________________________________________________________________________________________________
res2a_branch1 (Conv2D)          (None, 15, 15, 256)  16640       max_pooling2d_3[0][0]
__________________________________________________________________________________________________
bn2a_branch2c (BatchNormalizati (None, 15, 15, 256)  1024        res2a_branch2c[0][0]
__________________________________________________________________________________________________
bn2a_branch1 (BatchNormalizatio (None, 15, 15, 256)  1024        res2a_branch1[0][0]
__________________________________________________________________________________________________
add_32 (Add)                    (None, 15, 15, 256)  0           bn2a_branch2c[0][0]
                                                                 bn2a_branch1[0][0]
__________________________________________________________________________________________________
activation_99 (Activation)      (None, 15, 15, 256)  0           add_32[0][0]
__________________________________________________________________________________________________
res2b_branch2a (Conv2D)         (None, 15, 15, 64)   16448       activation_99[0][0]
__________________________________________________________________________________________________
bn2b_branch2a (BatchNormalizati (None, 15, 15, 64)   256         res2b_branch2a[0][0]
__________________________________________________________________________________________________
activation_100 (Activation)     (None, 15, 15, 64)   0           bn2b_branch2a[0][0]
__________________________________________________________________________________________________
res2b_branch2b (Conv2D)         (None, 15, 15, 64)   36928       activation_100[0][0]
__________________________________________________________________________________________________
bn2b_branch2b (BatchNormalizati (None, 15, 15, 64)   256         res2b_branch2b[0][0]
__________________________________________________________________________________________________
activation_101 (Activation)     (None, 15, 15, 64)   0           bn2b_branch2b[0][0]
__________________________________________________________________________________________________
res2b_branch2c (Conv2D)         (None, 15, 15, 256)  16640       activation_101[0][0]
__________________________________________________________________________________________________
bn2b_branch2c (BatchNormalizati (None, 15, 15, 256)  1024        res2b_branch2c[0][0]
__________________________________________________________________________________________________
add_33 (Add)                    (None, 15, 15, 256)  0           bn2b_branch2c[0][0]
                                                                 activation_99[0][0]
__________________________________________________________________________________________________
activation_102 (Activation)     (None, 15, 15, 256)  0           add_33[0][0]
__________________________________________________________________________________________________
res2c_branch2a (Conv2D)         (None, 15, 15, 64)   16448       activation_102[0][0]
__________________________________________________________________________________________________
bn2c_branch2a (BatchNormalizati (None, 15, 15, 64)   256         res2c_branch2a[0][0]
__________________________________________________________________________________________________
activation_103 (Activation)     (None, 15, 15, 64)   0           bn2c_branch2a[0][0]
__________________________________________________________________________________________________
res2c_branch2b (Conv2D)         (None, 15, 15, 64)   36928       activation_103[0][0]
__________________________________________________________________________________________________
bn2c_branch2b (BatchNormalizati (None, 15, 15, 64)   256         res2c_branch2b[0][0]
__________________________________________________________________________________________________
activation_104 (Activation)     (None, 15, 15, 64)   0           bn2c_branch2b[0][0]
__________________________________________________________________________________________________
res2c_branch2c (Conv2D)         (None, 15, 15, 256)  16640       activation_104[0][0]
__________________________________________________________________________________________________
bn2c_branch2c (BatchNormalizati (None, 15, 15, 256)  1024        res2c_branch2c[0][0]
__________________________________________________________________________________________________
add_34 (Add)                    (None, 15, 15, 256)  0           bn2c_branch2c[0][0]
                                                                 activation_102[0][0]
__________________________________________________________________________________________________
activation_105 (Activation)     (None, 15, 15, 256)  0           add_34[0][0]
__________________________________________________________________________________________________
res3a_branch2a (Conv2D)         (None, 15, 15, 128)  32896       activation_105[0][0]
__________________________________________________________________________________________________
bn3a_branch2a (BatchNormalizati (None, 15, 15, 128)  512         res3a_branch2a[0][0]
__________________________________________________________________________________________________
activation_106 (Activation)     (None, 15, 15, 128)  0           bn3a_branch2a[0][0]
__________________________________________________________________________________________________
res3a_branch2b (Conv2D)         (None, 15, 15, 128)  147584      activation_106[0][0]
__________________________________________________________________________________________________
bn3a_branch2b (BatchNormalizati (None, 15, 15, 128)  512         res3a_branch2b[0][0]
__________________________________________________________________________________________________
activation_107 (Activation)     (None, 15, 15, 128)  0           bn3a_branch2b[0][0]
__________________________________________________________________________________________________
res3a_branch2c (Conv2D)         (None, 15, 15, 512)  66048       activation_107[0][0]
__________________________________________________________________________________________________
res3a_branch1 (Conv2D)          (None, 15, 15, 512)  131584      activation_105[0][0]
__________________________________________________________________________________________________
bn3a_branch2c (BatchNormalizati (None, 15, 15, 512)  2048        res3a_branch2c[0][0]
__________________________________________________________________________________________________
bn3a_branch1 (BatchNormalizatio (None, 15, 15, 512)  2048        res3a_branch1[0][0]
__________________________________________________________________________________________________
add_35 (Add)                    (None, 15, 15, 512)  0           bn3a_branch2c[0][0]
                                                                 bn3a_branch1[0][0]
__________________________________________________________________________________________________
activation_108 (Activation)     (None, 15, 15, 512)  0           add_35[0][0]
__________________________________________________________________________________________________
res3b_branch2a (Conv2D)         (None, 15, 15, 128)  65664       activation_108[0][0]
__________________________________________________________________________________________________
bn3b_branch2a (BatchNormalizati (None, 15, 15, 128)  512         res3b_branch2a[0][0]
__________________________________________________________________________________________________
activation_109 (Activation)     (None, 15, 15, 128)  0           bn3b_branch2a[0][0]
__________________________________________________________________________________________________
res3b_branch2b (Conv2D)         (None, 15, 15, 128)  147584      activation_109[0][0]
__________________________________________________________________________________________________
bn3b_branch2b (BatchNormalizati (None, 15, 15, 128)  512         res3b_branch2b[0][0]
__________________________________________________________________________________________________
activation_110 (Activation)     (None, 15, 15, 128)  0           bn3b_branch2b[0][0]
__________________________________________________________________________________________________
res3b_branch2c (Conv2D)         (None, 15, 15, 512)  66048       activation_110[0][0]
__________________________________________________________________________________________________
bn3b_branch2c (BatchNormalizati (None, 15, 15, 512)  2048        res3b_branch2c[0][0]
__________________________________________________________________________________________________
add_36 (Add)                    (None, 15, 15, 512)  0           bn3b_branch2c[0][0]
                                                                 activation_108[0][0]
__________________________________________________________________________________________________
activation_111 (Activation)     (None, 15, 15, 512)  0           add_36[0][0]
__________________________________________________________________________________________________
res3c_branch2a (Conv2D)         (None, 15, 15, 128)  65664       activation_111[0][0]
__________________________________________________________________________________________________
bn3c_branch2a (BatchNormalizati (None, 15, 15, 128)  512         res3c_branch2a[0][0]
__________________________________________________________________________________________________
activation_112 (Activation)     (None, 15, 15, 128)  0           bn3c_branch2a[0][0]
__________________________________________________________________________________________________
res3c_branch2b (Conv2D)         (None, 15, 15, 128)  147584      activation_112[0][0]
__________________________________________________________________________________________________
bn3c_branch2b (BatchNormalizati (None, 15, 15, 128)  512         res3c_branch2b[0][0]
__________________________________________________________________________________________________
activation_113 (Activation)     (None, 15, 15, 128)  0           bn3c_branch2b[0][0]
__________________________________________________________________________________________________
res3c_branch2c (Conv2D)         (None, 15, 15, 512)  66048       activation_113[0][0]
__________________________________________________________________________________________________
bn3c_branch2c (BatchNormalizati (None, 15, 15, 512)  2048        res3c_branch2c[0][0]
__________________________________________________________________________________________________
add_37 (Add)                    (None, 15, 15, 512)  0           bn3c_branch2c[0][0]
                                                                 activation_111[0][0]
__________________________________________________________________________________________________
activation_114 (Activation)     (None, 15, 15, 512)  0           add_37[0][0]
__________________________________________________________________________________________________
res3d_branch2a (Conv2D)         (None, 15, 15, 128)  65664       activation_114[0][0]
__________________________________________________________________________________________________
bn3d_branch2a (BatchNormalizati (None, 15, 15, 128)  512         res3d_branch2a[0][0]
__________________________________________________________________________________________________
activation_115 (Activation)     (None, 15, 15, 128)  0           bn3d_branch2a[0][0]
__________________________________________________________________________________________________
res3d_branch2b (Conv2D)         (None, 15, 15, 128)  147584      activation_115[0][0]
__________________________________________________________________________________________________
bn3d_branch2b (BatchNormalizati (None, 15, 15, 128)  512         res3d_branch2b[0][0]
__________________________________________________________________________________________________
activation_116 (Activation)     (None, 15, 15, 128)  0           bn3d_branch2b[0][0]
__________________________________________________________________________________________________
res3d_branch2c (Conv2D)         (None, 15, 15, 512)  66048       activation_116[0][0]
__________________________________________________________________________________________________
bn3d_branch2c (BatchNormalizati (None, 15, 15, 512)  2048        res3d_branch2c[0][0]
__________________________________________________________________________________________________
add_38 (Add)                    (None, 15, 15, 512)  0           bn3d_branch2c[0][0]
                                                                 activation_114[0][0]
__________________________________________________________________________________________________
activation_117 (Activation)     (None, 15, 15, 512)  0           add_38[0][0]
__________________________________________________________________________________________________
res4a_branch2a (Conv2D)         (None, 8, 8, 256)    131328      activation_117[0][0]
__________________________________________________________________________________________________
bn4a_branch2a (BatchNormalizati (None, 8, 8, 256)    1024        res4a_branch2a[0][0]
__________________________________________________________________________________________________
activation_118 (Activation)     (None, 8, 8, 256)    0           bn4a_branch2a[0][0]
__________________________________________________________________________________________________
res4a_branch2b (Conv2D)         (None, 8, 8, 256)    590080      activation_118[0][0]
__________________________________________________________________________________________________
bn4a_branch2b (BatchNormalizati (None, 8, 8, 256)    1024        res4a_branch2b[0][0]
__________________________________________________________________________________________________
activation_119 (Activation)     (None, 8, 8, 256)    0           bn4a_branch2b[0][0]
__________________________________________________________________________________________________
res4a_branch2c (Conv2D)         (None, 8, 8, 1024)   263168      activation_119[0][0]
__________________________________________________________________________________________________
res4a_branch1 (Conv2D)          (None, 8, 8, 1024)   525312      activation_117[0][0]
__________________________________________________________________________________________________
bn4a_branch2c (BatchNormalizati (None, 8, 8, 1024)   4096        res4a_branch2c[0][0]
__________________________________________________________________________________________________
bn4a_branch1 (BatchNormalizatio (None, 8, 8, 1024)   4096        res4a_branch1[0][0]
__________________________________________________________________________________________________
add_39 (Add)                    (None, 8, 8, 1024)   0           bn4a_branch2c[0][0]
                                                                 bn4a_branch1[0][0]
__________________________________________________________________________________________________
activation_120 (Activation)     (None, 8, 8, 1024)   0           add_39[0][0]
__________________________________________________________________________________________________
res4b_branch2a (Conv2D)         (None, 8, 8, 256)    262400      activation_120[0][0]
__________________________________________________________________________________________________
bn4b_branch2a (BatchNormalizati (None, 8, 8, 256)    1024        res4b_branch2a[0][0]
__________________________________________________________________________________________________
activation_121 (Activation)     (None, 8, 8, 256)    0           bn4b_branch2a[0][0]
__________________________________________________________________________________________________
res4b_branch2b (Conv2D)         (None, 8, 8, 256)    590080      activation_121[0][0]
__________________________________________________________________________________________________
bn4b_branch2b (BatchNormalizati (None, 8, 8, 256)    1024        res4b_branch2b[0][0]
__________________________________________________________________________________________________
activation_122 (Activation)     (None, 8, 8, 256)    0           bn4b_branch2b[0][0]
__________________________________________________________________________________________________
res4b_branch2c (Conv2D)         (None, 8, 8, 1024)   263168      activation_122[0][0]
__________________________________________________________________________________________________
bn4b_branch2c (BatchNormalizati (None, 8, 8, 1024)   4096        res4b_branch2c[0][0]
__________________________________________________________________________________________________
add_40 (Add)                    (None, 8, 8, 1024)   0           bn4b_branch2c[0][0]
                                                                 activation_120[0][0]
__________________________________________________________________________________________________
activation_123 (Activation)     (None, 8, 8, 1024)   0           add_40[0][0]
__________________________________________________________________________________________________
res4c_branch2a (Conv2D)         (None, 8, 8, 256)    262400      activation_123[0][0]
__________________________________________________________________________________________________
bn4c_branch2a (BatchNormalizati (None, 8, 8, 256)    1024        res4c_branch2a[0][0]
__________________________________________________________________________________________________
activation_124 (Activation)     (None, 8, 8, 256)    0           bn4c_branch2a[0][0]
__________________________________________________________________________________________________
res4c_branch2b (Conv2D)         (None, 8, 8, 256)    590080      activation_124[0][0]
__________________________________________________________________________________________________
bn4c_branch2b (BatchNormalizati (None, 8, 8, 256)    1024        res4c_branch2b[0][0]
__________________________________________________________________________________________________
activation_125 (Activation)     (None, 8, 8, 256)    0           bn4c_branch2b[0][0]
__________________________________________________________________________________________________
res4c_branch2c (Conv2D)         (None, 8, 8, 1024)   263168      activation_125[0][0]
__________________________________________________________________________________________________
bn4c_branch2c (BatchNormalizati (None, 8, 8, 1024)   4096        res4c_branch2c[0][0]
__________________________________________________________________________________________________
add_41 (Add)                    (None, 8, 8, 1024)   0           bn4c_branch2c[0][0]
                                                                 activation_123[0][0]
__________________________________________________________________________________________________
activation_126 (Activation)     (None, 8, 8, 1024)   0           add_41[0][0]
__________________________________________________________________________________________________
res4d_branch2a (Conv2D)         (None, 8, 8, 256)    262400      activation_126[0][0]
__________________________________________________________________________________________________
bn4d_branch2a (BatchNormalizati (None, 8, 8, 256)    1024        res4d_branch2a[0][0]
__________________________________________________________________________________________________
activation_127 (Activation)     (None, 8, 8, 256)    0           bn4d_branch2a[0][0]
__________________________________________________________________________________________________
res4d_branch2b (Conv2D)         (None, 8, 8, 256)    590080      activation_127[0][0]
__________________________________________________________________________________________________
bn4d_branch2b (BatchNormalizati (None, 8, 8, 256)    1024        res4d_branch2b[0][0]
__________________________________________________________________________________________________
activation_128 (Activation)     (None, 8, 8, 256)    0           bn4d_branch2b[0][0]
__________________________________________________________________________________________________
res4d_branch2c (Conv2D)         (None, 8, 8, 1024)   263168      activation_128[0][0]
__________________________________________________________________________________________________
bn4d_branch2c (BatchNormalizati (None, 8, 8, 1024)   4096        res4d_branch2c[0][0]
__________________________________________________________________________________________________
add_42 (Add)                    (None, 8, 8, 1024)   0           bn4d_branch2c[0][0]
                                                                 activation_126[0][0]
__________________________________________________________________________________________________
activation_129 (Activation)     (None, 8, 8, 1024)   0           add_42[0][0]
__________________________________________________________________________________________________
res4e_branch2a (Conv2D)         (None, 8, 8, 256)    262400      activation_129[0][0]
__________________________________________________________________________________________________
bn4e_branch2a (BatchNormalizati (None, 8, 8, 256)    1024        res4e_branch2a[0][0]
__________________________________________________________________________________________________
activation_130 (Activation)     (None, 8, 8, 256)    0           bn4e_branch2a[0][0]
__________________________________________________________________________________________________
res4e_branch2b (Conv2D)         (None, 8, 8, 256)    590080      activation_130[0][0]
__________________________________________________________________________________________________
bn4e_branch2b (BatchNormalizati (None, 8, 8, 256)    1024        res4e_branch2b[0][0]
__________________________________________________________________________________________________
activation_131 (Activation)     (None, 8, 8, 256)    0           bn4e_branch2b[0][0]
__________________________________________________________________________________________________
res4e_branch2c (Conv2D)         (None, 8, 8, 1024)   263168      activation_131[0][0]
__________________________________________________________________________________________________
bn4e_branch2c (BatchNormalizati (None, 8, 8, 1024)   4096        res4e_branch2c[0][0]
__________________________________________________________________________________________________
add_43 (Add)                    (None, 8, 8, 1024)   0           bn4e_branch2c[0][0]
                                                                 activation_129[0][0]
__________________________________________________________________________________________________
activation_132 (Activation)     (None, 8, 8, 1024)   0           add_43[0][0]
__________________________________________________________________________________________________
res5a_branch2a (Conv2D)         (None, 4, 4, 512)    524800      activation_132[0][0]
__________________________________________________________________________________________________
bn5a_branch2a (BatchNormalizati (None, 4, 4, 512)    2048        res5a_branch2a[0][0]
__________________________________________________________________________________________________
activation_133 (Activation)     (None, 4, 4, 512)    0           bn5a_branch2a[0][0]
__________________________________________________________________________________________________
res5a_branch2b (Conv2D)         (None, 4, 4, 512)    2359808     activation_133[0][0]
__________________________________________________________________________________________________
bn5a_branch2b (BatchNormalizati (None, 4, 4, 512)    2048        res5a_branch2b[0][0]
__________________________________________________________________________________________________
activation_134 (Activation)     (None, 4, 4, 512)    0           bn5a_branch2b[0][0]
__________________________________________________________________________________________________
res5a_branch2c (Conv2D)         (None, 4, 4, 2048)   1050624     activation_134[0][0]
__________________________________________________________________________________________________
res5a_branch1 (Conv2D)          (None, 4, 4, 2048)   2099200     activation_132[0][0]
__________________________________________________________________________________________________
bn5a_branch2c (BatchNormalizati (None, 4, 4, 2048)   8192        res5a_branch2c[0][0]
__________________________________________________________________________________________________
bn5a_branch1 (BatchNormalizatio (None, 4, 4, 2048)   8192        res5a_branch1[0][0]
__________________________________________________________________________________________________
add_44 (Add)                    (None, 4, 4, 2048)   0           bn5a_branch2c[0][0]
                                                                 bn5a_branch1[0][0]
__________________________________________________________________________________________________
activation_135 (Activation)     (None, 4, 4, 2048)   0           add_44[0][0]
__________________________________________________________________________________________________
res5b_branch2a (Conv2D)         (None, 4, 4, 512)    1049088     activation_135[0][0]
__________________________________________________________________________________________________
bn5b_branch2a (BatchNormalizati (None, 4, 4, 512)    2048        res5b_branch2a[0][0]
__________________________________________________________________________________________________
activation_136 (Activation)     (None, 4, 4, 512)    0           bn5b_branch2a[0][0]
__________________________________________________________________________________________________
res5b_branch2b (Conv2D)         (None, 4, 4, 512)    2359808     activation_136[0][0]
__________________________________________________________________________________________________
bn5b_branch2b (BatchNormalizati (None, 4, 4, 512)    2048        res5b_branch2b[0][0]
__________________________________________________________________________________________________
activation_137 (Activation)     (None, 4, 4, 512)    0           bn5b_branch2b[0][0]
__________________________________________________________________________________________________
res5b_branch2c (Conv2D)         (None, 4, 4, 2048)   1050624     activation_137[0][0]
__________________________________________________________________________________________________
bn5b_branch2c (BatchNormalizati (None, 4, 4, 2048)   8192        res5b_branch2c[0][0]
__________________________________________________________________________________________________
add_45 (Add)                    (None, 4, 4, 2048)   0           bn5b_branch2c[0][0]
                                                                 activation_135[0][0]
__________________________________________________________________________________________________
activation_138 (Activation)     (None, 4, 4, 2048)   0           add_45[0][0]
__________________________________________________________________________________________________
res5c_branch2a (Conv2D)         (None, 4, 4, 512)    1049088     activation_138[0][0]
__________________________________________________________________________________________________
bn5c_branch2a (BatchNormalizati (None, 4, 4, 512)    2048        res5c_branch2a[0][0]
__________________________________________________________________________________________________
activation_139 (Activation)     (None, 4, 4, 512)    0           bn5c_branch2a[0][0]
__________________________________________________________________________________________________
res5c_branch2b (Conv2D)         (None, 4, 4, 512)    2359808     activation_139[0][0]
__________________________________________________________________________________________________
bn5c_branch2b (BatchNormalizati (None, 4, 4, 512)    2048        res5c_branch2b[0][0]
__________________________________________________________________________________________________
activation_140 (Activation)     (None, 4, 4, 512)    0           bn5c_branch2b[0][0]
__________________________________________________________________________________________________
res5c_branch2c (Conv2D)         (None, 4, 4, 2048)   1050624     activation_140[0][0]
__________________________________________________________________________________________________
bn5c_branch2c (BatchNormalizati (None, 4, 4, 2048)   8192        res5c_branch2c[0][0]
__________________________________________________________________________________________________
add_46 (Add)                    (None, 4, 4, 2048)   0           bn5c_branch2c[0][0]
                                                                 activation_138[0][0]
__________________________________________________________________________________________________
activation_141 (Activation)     (None, 4, 4, 2048)   0           add_46[0][0]
__________________________________________________________________________________________________
average_pooling2d_3 (AveragePoo (None, 2, 2, 2048)   0           activation_141[0][0]
__________________________________________________________________________________________________
flatten_3 (Flatten)             (None, 8192)         0           average_pooling2d_3[0][0]
__________________________________________________________________________________________________
fc6 (Dense)                     (None, 6)            49158       flatten_3[0][0]
==================================================================================================
Total params: 22,515,078
Trainable params: 22,465,030
Non-trainable params: 50,048
__________________________________________________________________________________________________

之前相应模块库导入就不放了，无非就是keras.layers,keras.models这些，参照之前的网络结构图及上面的描述，导入相应的即可。
keras的模型可视化环境配置还有点问题，现在还没搞好，之后贴。。

菊子12138
关注
基于Keras的ResNet实现
u013093426的博客
07-24 2万+
本文是吴恩达《深度学习》第四课《卷积神经网络》第二周课后题第二部分的实现。 0.ResNet简介 目前神经网络变得越来越复杂，从几层到几十层甚至一百多层的网络都有。深层网络的主要的优势是可以表达非常复杂的函数，它可以从不同抽象程度的层里学到特征，比如在比较低层次里学习到边缘特征而在较高层里可以学到复杂的特征。然而使用深层网络并非总是奏效，因为存在一个非常大的障碍——梯度消失：在非常深层的网络中...
基于keras与tensorflow手工实现ResNet50网络
12-03 2520
在文章 基于tensorflow的ResNet50V2网络识别动物，我们使用了keras已经提供的神经网络，完成了图像分类的。这个时候，小明同学就问了，那么我怎么自己去写一个神经网络来进行训练呢？ 本文就基于tensorflow，自己定一个神经网络。 从结构上看，与我们之前的的区别在于，输入的格式变成(3,224,224) ResNet50有两个基本的块，分别名为Conv Block和Identity Block 模型训练(resnet50_model_train.py) 将 基于tensorflow的Re
resnet keras 结构_YOLO V4 — 网络结构解析（特详细！）
weixin_39981093的博客
11-22 884
1.前言最近用YOLO V4做车辆检测，配合某一目标追踪算法实现车辆追踪+轨迹提取等功能，正好就此结合论文和代码来对YOLO V4做个解析。先放上个效果图（半成品），如下：话不多说，现在就开始对YOLO V4进行总结。YOLO V4的论文链接在这里,名为《YOLOv4: Optimal Speed and Accuracy of Object Detection》，相信大家也是经常看到这几个词眼：...
3D卷积神经网络实战：ResNets-PyTorch项目解析
最新发布
weixin_30021053的博客
05-10 1251
时间维度是视频区别于静态图像的最关键特性。视频由一系列连续的帧组成，每帧都是在不同时间点拍摄的图像。时间维度的引入，使得视频能够捕捉和表达时间的变化，从而提供了丰富的动态信息。3D残差神经网络（3D ResNets）是一种深度学习架构，它是残差神经网络（ResNets）在处理三维数据时的扩展。3D ResNets专门针对视频理解任务进行了优化，能够直接从连续的视频帧中捕捉时间维度信息。
Keras---使用Keras实现Resnet网络
weixin_42206075的博客
12-14 3820
Keras—使用Keras实现Resnet网络 网络结构 图片引用：https://blog.youkuaiyun.com/yao1249736473/article/details/89330791 说明： 1.所谓的“残差网络”，在我个人理解结合参考网上大佬的blog，我大概总结了下：其实说白了，当我们在做简单的维度叠加，使其网络深度足够深的时候，其实越往后作用就越小，反而还会使模型难训练。因为这是属于一种叫做“恒等映射”，但是当我们做残差的时候，就相当于打破了这个“恒等”，使模型可以更好的训练。 2.残差的
基于keras的resnet的实现
mdjxy63的博客
07-18 1万+
何凯明大神在2015年提出了Resnet结构，于2016年对于该结构进行了优化，提出了Resnet-bottlenet结构，本文代码基于Resnet-bottlenet结构进行实现,本文主要实现pre-activation residual module   # -*- coding:utf-8 -*- __author__ = 'xuy' from keras.layers.no...
使用keras实现ResNet
陈依依的博客
12-13 3059
1.首先导入需要用到的包 import numpy as np import tensorflow as tf import h5py from keras import layers from keras.layers import Input, Add, Dense, Activation, ZeroPadding2D, BatchNormalization, Flatten, Conv2D...
ResNet的Keras实现
01-22
VGGNet和GoogLeNet等网络都表明有足够的深度是模型表现良好的前提，但是在网络深度增加到一定程度时，更深的网络意味着更高的训练误差。误差升高的原因是网络越深，梯度弥散[还有梯度爆炸的可能性]的现象就越明显，所以在后向传播的时候，无法有效的把梯度更新到前面的网络层，靠前的网络层参数无法更新，导致训练和测试效果变差。所以ResNet面临的问题是怎样在增加网络深度的情况下有可以有效解决梯度消失的问题。ResNet中解决深层网络梯度消失的问题的核心结构是残差网络。
基于keras resnet34的车牌识别项目.zip
04-03
在本项目中，我们探索的是基于Keras框架的ResNet34模型在车牌识别中的应用。ResNet（残差网络）是深度学习领域一个非常重要的里程碑，尤其在图像分类任务中表现出色。它通过引入“残差块”解决了深度神经网络训练时...
基于Keras+Resnet_v1对cifar-10进行图像分类
05-17
在本项目中，我们探讨了如何使用Keras库和ResNet_v1架构对CIFAR-10数据集进行图像分类。CIFAR-10是一个广泛用于图像识别任务的多类数据集，包含了10个类别共60,000张32x32像素的小型彩色图像。目标是训练一个模型，...
基于Keras实现vgg和resnet网络的mnist图像识别分类源码(带图像数据，可训练).zip
11-23
基于Keras实现vgg和resnet网络的mnist图像识别分类源码(带图像数据，可训练).zip基于Keras实现vgg和resnet网络的mnist图像识别分类源码(带图像数据，可训练).zip基于Keras实现vgg和resnet网络的mnist图像识别分类...
keras resnet 训练自己的数据
04-30
keras resnet 迁移训练数据 和 读取数据
ResNet Keras实现
WeisongZhao
10-05 3282
伪代码： graph TD A(导入相应库) --> Z[模型参数设置以及其它配置] Z --> B[生成训练集,测试集,验证集的三个迭代器] B --> C[identity_block函数的编写] C --> D[bottleneck_block函数的编写] D --> F[根据resnet网络构建表来构建网络] F --> G[模型训练与验证] G ...
Keras实现ResNet残差网络
qq_35565669的博客
07-26 4732
# from keras.models import from keras.layers import * from keras.models import Input from keras import Model import tensorflow as tf import numpy as np def conv2d_bn(input, kernel_num, kernel_size=3, strides=(1, 1), layer_name='', padding_mode='same'...
学习基于Keras框架的ResNet网络及实践笔记
肖永威的专栏
06-07 3971
首次使用ResNet和Keras，基于网络上的ResNet50代码实践图片分类，过程中初步了解深度残差网络原理、ResNet50网络模型、Keras框架及相关Tensorflow内容安装，并初步总结训练中学习率和Batch等参数等设置，以及记录部分问题及其处理方法。欢迎读者反馈指点。
ResNet网络详解与keras实现
热门推荐
海贼王
11-15 3万+
ResNet网络详解与keras实现 ResNet网络详解与keras实现 Resnet网络的概览 Pascal_VOC数据集 第一层目录 第二层目录 第三层目录 梯度退化 Residual Learning Identity vs Projection Shortcuts Bottleneck architecture Resnet网络构建表 ResNet论文结果 为了搭建Resne
keras复现ResNet
qq_36346625的博客
04-06 500
一、ResNet介绍： ResNet网络模型是何凯明团队在2016年搭建的一个模型。论文连接：Deep Residual Learning for Image Recognition。（这个模型有什么特点？比在它前面的模型（如AlexNet模型、VGG模型）有哪些改进（进步）、提出了什么新思想？这些问题先留白。 二、首先通过keras的API迁移调出ResNet网络模型： width = 224 ...
resnet keras 实现
luoganttcc的博客
07-15 666
resnet
keras实现resnet50
gm_Ergou的博客
07-05 2511
数据集结构如第一篇文章（keras实现LeNet5）。 1.model.py 构造网络 # coding=utf-8 from keras.models import Model from keras.layers import Input, Dense, BatchNormalization, Conv2D, MaxPooling2D, AveragePooling2D, ZeroPadding2D from keras.layers import add, Flatten, Activ..
基于Keras的ResNet神经网络在ASVspoof2019上的实现
总结来说，ASVspoof2019_keras.zip资源提供了一个基于Keras的ResNet神经网络的baseline模型，这对于参与ASVspoof2019竞赛的研究者来说是一个宝贵的起点。通过利用这一模型和资源，研究者不仅能够接触到先进的深度...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
