PowerDesigner遍历导出所有表结构到Excel

PowerDesigner遍历导出所有表到Excel

1.打开需要导出表结构到Excel的pdm文件

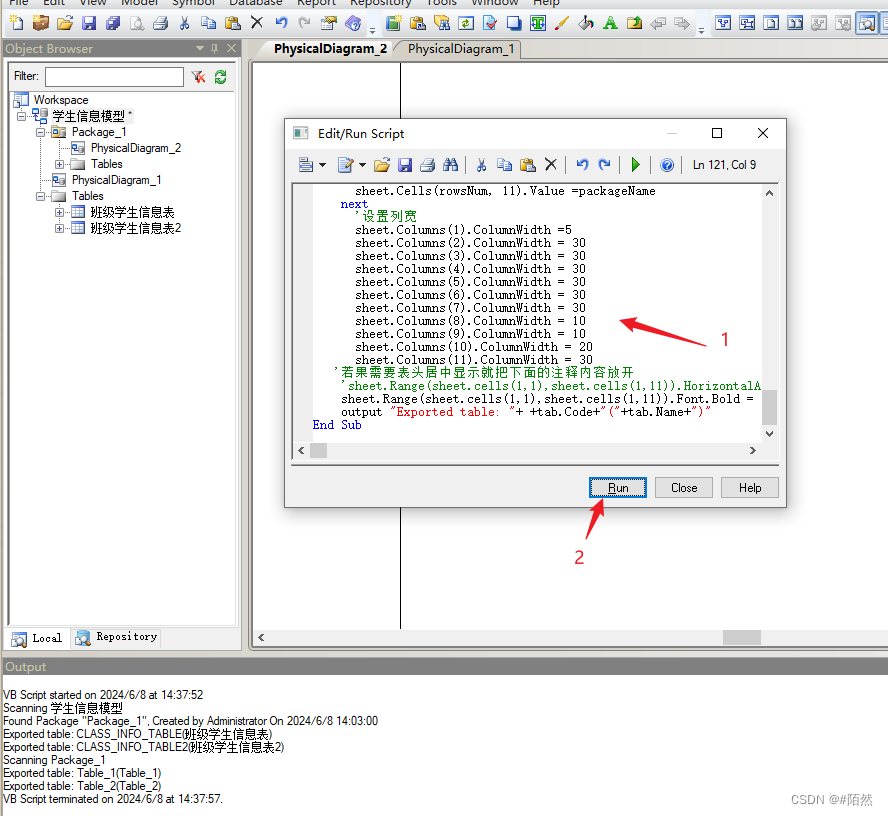

2.点击Tools|Execute Commands|Edit/Run Script菜单或按下快捷键Ctrl + Shift + X打开脚本窗口，输入示例VBScript脚本，修改其中的Excel模板路径及工作薄页签，点Run按钮执行即可

3.VBScript脚本

'******************************************************************************
'* File:     pdm2excel.vbs
'* Purpose:  分目录递归，查找当前PDM下所有表，并导出Excel
'* Title:
'* Category:
'* Version:  1.0
'******************************************************************************
Option Explicit
ValidationMode = True
InteractiveMode = im_Batch
' get the current active model
Dim mdl ' the current model
Set mdl = ActiveModel
Dim EXCEL,sheet,rowsNum
rowsNum = 1

If (mdl Is Nothing) Then
    MsgBox "There is no Active Model"
Else
    SetExcel
    ListObjects(mdl)
End If
'-----------------------------------------------------------------------------
' Sub procedure to scan current package and print information on objects from current package
' and call again the same sub procedure on all children pacakge
' of the current package
'-----------------------------------------------------------------------------
Private Sub ListObjects(fldr)
    output "Scanning " & fldr.code
    Dim obj ' running object
    For Each obj In fldr.children
        ' Calling sub procedure to print out information on the object
        DescribeObject obj,fldr.name
    Next
    ' go into the sub-packages
    Dim f ' running folder
    For Each f In fldr.Packages
        'calling sub procedure to scan children package
        ListObjects f
    Next
End Sub
'-----------------------------------------------------------------------------
' Sub procedure to print information on current object in output
'-----------------------------------------------------------------------------
Private Sub DescribeObject(CurrentObject,packageName)
    if not CurrentObject.Iskindof(cls_NamedObject) then exit sub
    if CurrentObject.Iskindof(cls_Table) then
        ExportTable CurrentObject, sheet,packageName
    else
        output "Found "+CurrentObject.ClassName+" """+CurrentObject.Name+""", Created by "+CurrentObject.Creator+" On "+Cstr(CurrentObject.CreationDate)
    End if
End Sub


Sub SetExcel()
    Set EXCEL= CreateObject("Excel.Application")

    ' Make Excel visible through the Application object.
    EXCEL.Visible = True
    EXCEL.workbooks.add(-4167)'添加工作表
    EXCEL.workbooks(1).sheets(1).name ="PDM导出到Excel"
    set sheet = EXCEL.workbooks(1).sheets("PDM导出到Excel")

    ' Place some text in the first Row of the sheet.
	sheet.Cells(rowsNum, 1).Value = "序号"
    sheet.Cells(rowsNum, 2).Value = "表名"
    sheet.Cells(rowsNum, 3).Value = "表中文名"
    sheet.Cells(rowsNum, 4).Value = "表注释"
    sheet.Cells(rowsNum, 5).Value = "字段名"
    sheet.Cells(rowsNum, 6).Value = "字段中文名"
    sheet.Cells(rowsNum, 7).Value = "字段注释"
	sheet.Cells(rowsNum, 8).Value = "是否主键"
	sheet.Cells(rowsNum, 9).Value = "是否非空"
	sheet.Cells(rowsNum, 10).Value = "字段类型"
	sheet.Cells(rowsNum, 11).Value = "表所在package名称"
End Sub

Sub ExportTable(tab, sheet,packageName)
    Dim col ' running column
    Dim colsNum
    colsNum = 0
    for each col in tab.columns
        colsNum = colsNum + 1
        rowsNum = rowsNum + 1
		sheet.Cells(rowsNum, 1).Value = colsNum
        sheet.Cells(rowsNum, 2).Value = tab.code
        sheet.Cells(rowsNum, 3).Value = tab.name
        sheet.Cells(rowsNum, 4).Value = tab.comment
        sheet.Cells(rowsNum, 5).Value = col.code
        sheet.Cells(rowsNum, 6).Value = col.name
        sheet.Cells(rowsNum, 7).Value = col.comment
		If col.Primary = true Then
			sheet.cells(rowsNum, 8) = "是"
        Else
			sheet.cells(rowsNum, 8) = "否"
        End If
		If col.Mandatory = true Then
			sheet.cells(rowsNum, 9) = "是"
        Else
			sheet.cells(rowsNum, 9) = "否"
        End If
		sheet.Cells(rowsNum, 10).Value = col.datatype
		sheet.Cells(rowsNum, 11).Value =packageName
    next
		'设置列宽
		sheet.Columns(1).ColumnWidth =5
		sheet.Columns(2).ColumnWidth = 30
		sheet.Columns(3).ColumnWidth = 30
		sheet.Columns(4).ColumnWidth = 30
		sheet.Columns(5).ColumnWidth = 30
		sheet.Columns(6).ColumnWidth = 30
		sheet.Columns(7).ColumnWidth = 30
		sheet.Columns(8).ColumnWidth = 10
		sheet.Columns(9).ColumnWidth = 10
		sheet.Columns(10).ColumnWidth = 20
		sheet.Columns(11).ColumnWidth = 30
	'若果需要表头居中显示就把下面的注释内容放开
    'sheet.Range(sheet.cells(1,1),sheet.cells(1,11)).HorizontalAlignment = 3
    sheet.Range(sheet.cells(1,1),sheet.cells(1,11)).Font.Bold = True
    output "Exported table: "+ +tab.Code+"("+tab.Name+")"
End Sub
