Linux下 DHCP、DNS、HTTPS混合实验

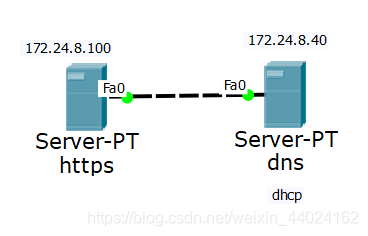

拓扑图

拓扑介绍

https服务器由dhcp服务发地址送指定地址
dns负责解析https

HTTPS服务配置

/etc/httpd/conf.d/host.conf
<VirtualHost 172.24.8.100:443>
        DocumentRoot "/www/openlab"
SSLEngine on
SSLProtocol all -SSLv2
SSLCertificateFile /etc/pki/tls/certs/jiami.crt
SSLCertificateKeyFile /etc/pki/tls/certs/jiami.key
        servername www.openlab.com
        alias /mimi /usr/local/mysecret
</ VirtualHost>
<directory /www/openlab>
        authtype basic
        authname "openlab"
        authuserfile /etc/httpd/mymima
        require user jack tom
</ directory>
<directory /usr/local/mysecret>
        authtype basic
        authname "openlab"
		authuserfile /etc/httpd/mymima
        require user rose
</ directory>
[root@www ~]# cat /www/openlab/index.html
welcome to openlab
[root@www ~]# cat /usr/local/mysecret/index.html
this isopenlabde mimi

DNS服务配置

options {
        listen-on port 53 { 172.24.8.40; };
        directory       "/var/named";
        dump-file       "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        memstatistics-file "/var/named/data/named_mem_stats.txt";
};

logging {
        channel default_debug {
                file "data/named.run";
                severity dynamic;
        };
};

zone "." IN {
        type hint;
        file "named.ca";
};
zone "openlab.com" IN {
        type master;
        file "x.com";
};
include "/etc/named.rfc1912.zones";
include "/etc/named.root.key";

/var/named/x.com内容
$TTL 1D
@       IN      SOA     @       admin.openlab.com. ( 0 1D 1H 1W 3H )
        IN      NS      ns.opelab.com.
        IN      MX      715 mail.openlab.com.
ns      IN      A       172.24.8.100
www     IN      A       172.24.8.100

DHCP服务配置

/etc/dhpc/dhcpd.conf
ddns-update-style none;
ignore client-updates;
default-lease-time 2000;
max-lease-time 5000;
option routers 172.24.8.1;
option domain-name-servers 172.24.8.40;
subnet 172.24.8.0 netmask 255.255.255.0{
        range 172.24.8.20 172.24.8.30;
}
host dns{
        hardware ethernet 00:0c:29:27:00:4c;
        fixed-address 172.24.8.100;
}

需要的安装包

https: httpd , mod_ssl
dhcp: dhcp
dns: named
本实验关闭防火墙和selinux简单易作

systemctl stop firewalld
setenforce 0

---

实验使用系统为redhat 7.0版本

测试结果

HTTPS端

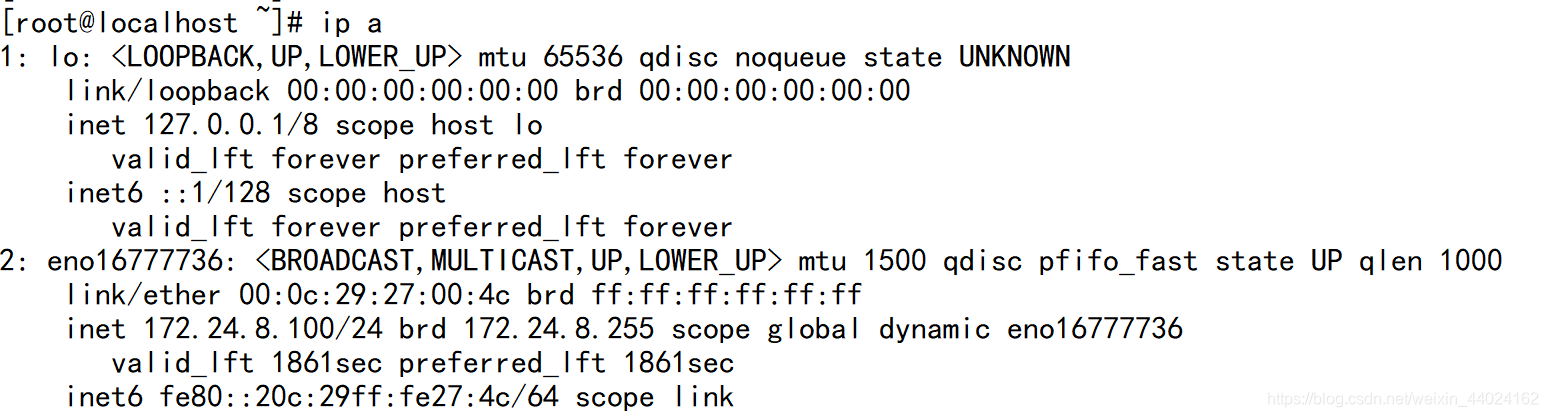

DHCP配置验证

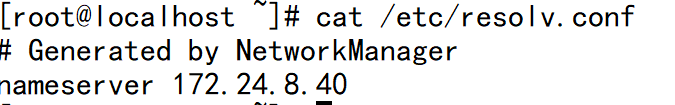

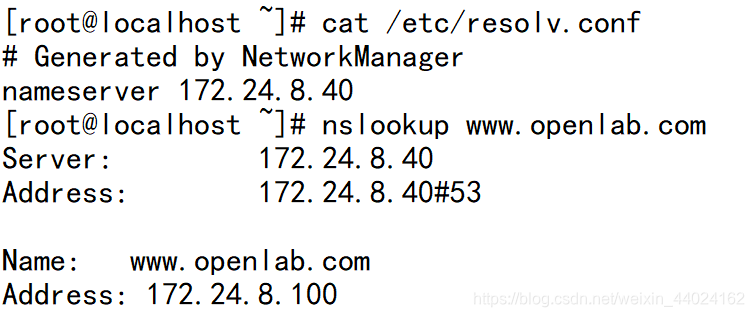

DNS配置验证

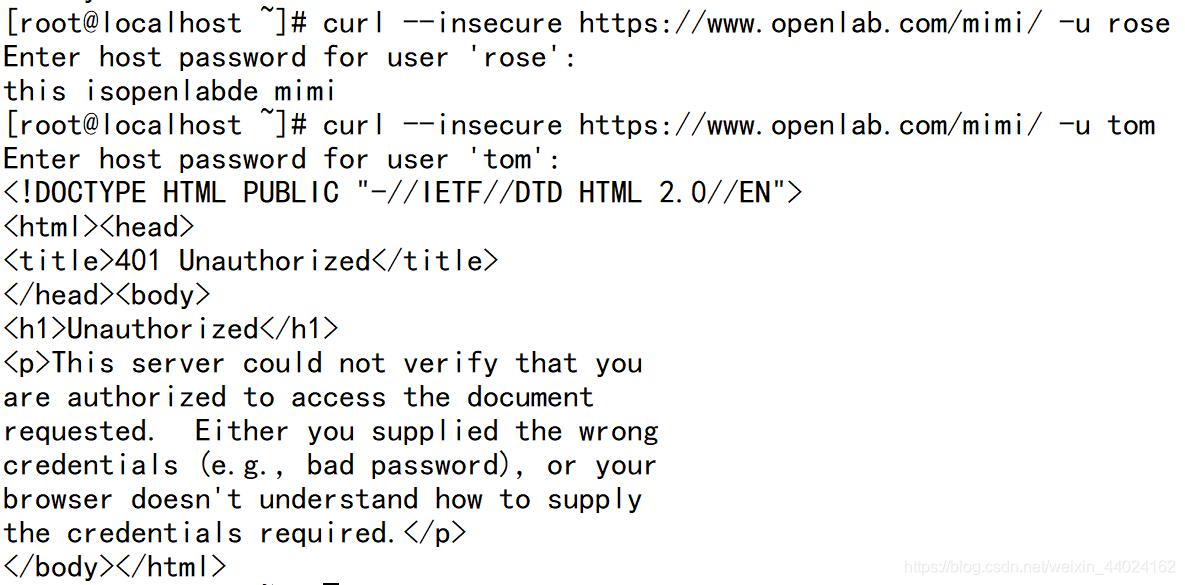

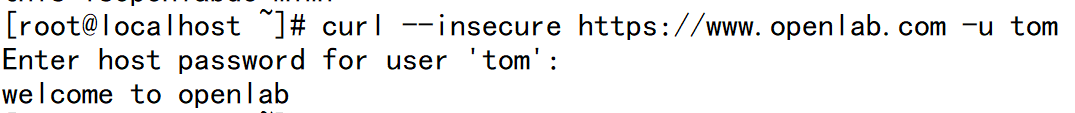

HTTPS服务验证

DHCP、DNS端

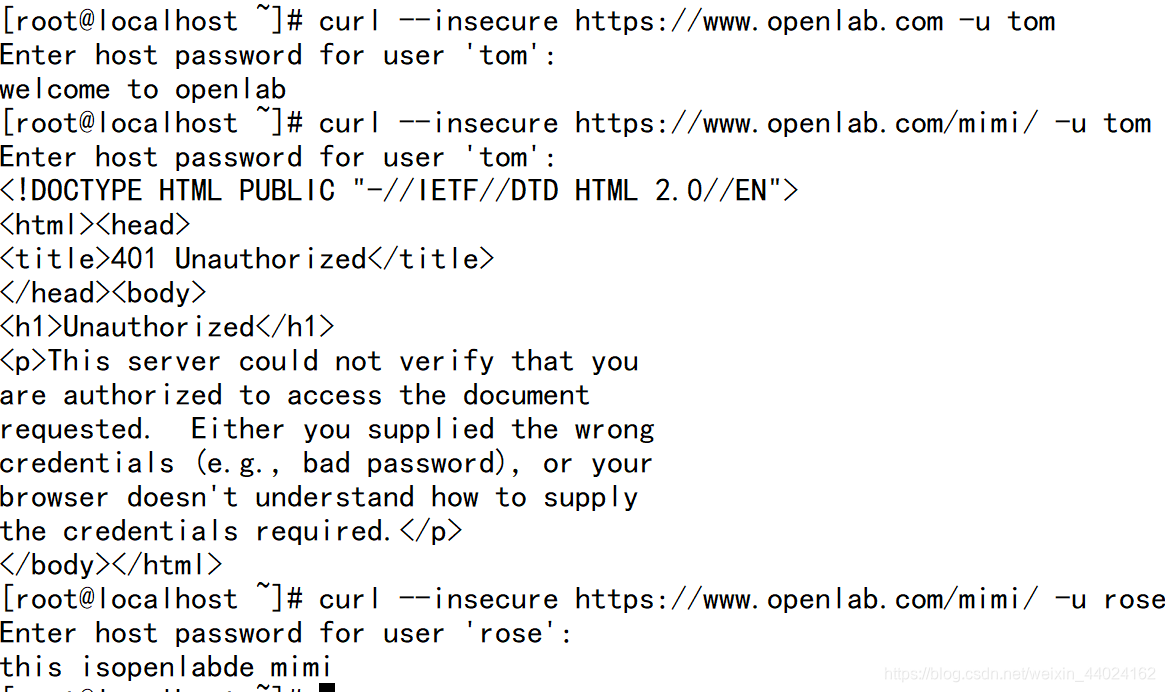

HTTPS服务验证
