Linux多人聊天室之后篇

---

前言

本文承接上一篇《Linux多人聊天室之前篇》的内容，记录的是多人聊天室室如何实现的。

---

一、前期工作

前期工作包含有：①学会用内核链表。②知道多线程的原理。

内核链表：
学习存储客户端的已连接套接字的数据结构 – 内核链表。
1、为什么项目中不使用数组，而是使用链表？
因为数组必须要在定义时，确定出数组的空间大小，那么这样就会限制了客户端连接的人数。
例如：int connfd[10]; --> 最多只能有10个客户端连接

2、链表是什么东西来的？
链表是linux下的一种存储结构。

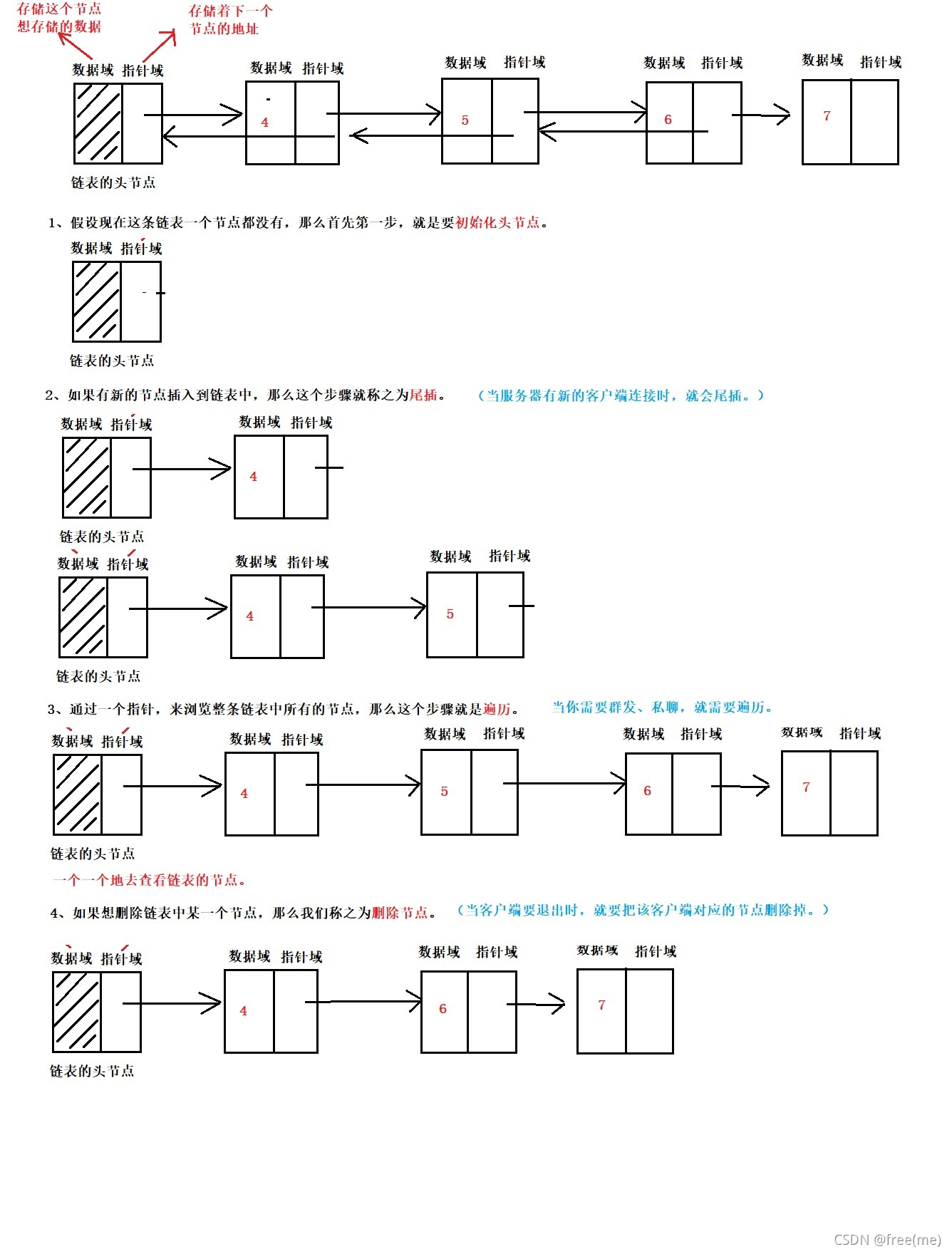

3、如何实现内核链表的初始化头节点、尾插、遍历、删除节点？
1）内核链表所有的操作函数都已经帮你实现好了，你只需要调用即可。
这些操作函数都是放在kernel_list.h，所以待会编译代码，这个头文件必须存放才会编译通过。

2）如何表示一个节点？
经过分析，一个节点既有数据域，又有指针域，最好使用一个结构体来表示？
struct list_node{
//数据域
int connfd; --> 代表每一个节点都是存放一个已连接套接字

//指针域
struct list_head list;

};

指针域在内核链表已经写好了，指针域是一个结构体的：
struct list_head {
struct list_head *next, *prev; //分别是指向下一个节点与上一个节点
};

3）如何申请空间？
使用malloc()函数

头文件：#include <stdlib.h>
malloc() 参数： 你想申请的空间大小的字节数
malloc() 返回值： 这片新申请的空间的地址

4）如何初始化头节点？
INIT_LIST_HEAD(节点结构体指针域的地址)

5）如何尾插？
list_add_tail(新节点结构体指针域的地址,头节点结构体指针域的地址)

6）如何遍历？
list_for_each_entry(指向节点结构体的指针p变量,头节点结构体指针域的地址,在节点结构体中，指针域变量叫什么名字)

7）如何删除？
list_for_each_entry_safe(指向节点结构体的指针p变量,指向节点结构体的指针q变量,头节点结构体指针域的地址,在节点结构体中，指针域变量叫什么名字)

8)如何把这个节点从链表中脱离？
list_del(那个需要脱离的节点的指针域的地址)

9）如何释放节点空间？
使用free()函数

详细的代码： list_test.c

list_test.c代码：

#include <stdio.h>
#include "kernel_list.h"    //包含当前目录下的kernel_list.h
#include <stdlib.h>

//设计节点
struct list_node{
	int connfd;
	struct list_head list;   //这个结构体不需要我们自己写，
							 //因为这个结构体已经在kernel_list.h中已经定义好了。
};

struct list_node *init_list_head()
{
	//1. 为头节点申请空间
	struct list_node *head = malloc(sizeof(struct list_node));

	//2. 为头节点赋值
	INIT_LIST_HEAD(&(head->list));

	//3. 将头节点返回给main函数，以便后续的尾插、遍历，删除使用。
	return head;
}

void insert_list_node(struct list_node *head,int num)
{
	//1. 为新节点申请空间
	struct list_node *New_Node = malloc(sizeof(struct list_node));

	//2. 为数据域赋值
	New_Node->connfd = num;

	//3. 为指针域赋值
	list_add_tail(&(New_Node->list),&(head->list));

	return;
}

void show_list_node(struct list_node *head)
{
	struct list_node *p = NULL;
	list_for_each_entry(p, &(head->list), list)
	{
		printf("p->connfd:%d\n",p->connfd);
	}
	return;
}

void delete_list_node(struct list_node *head,int num)
{
	struct list_node *p = NULL;
	struct list_node *q = NULL;
	list_for_each_entry_safe(p,q,&(head->list),list)
	{
		//每遍历到一个节点，我都判断一下是不是我想删除的节点
		if(p->connfd == num) //找到了我想删除的节点
		{
			list_del(&(p->list));  //让该节点从链表中脱离
			free(p);               //释放p节点指向的空间
			return;
		}
	}
}

int main(int argc,char *argv[])
{
	//1. 初始化头节点
	struct list_node *head = NULL;
	head = init_list_head();

	//2. 尾插(当有客户端连接到服务器，就要使用到尾插的函数)
	insert_list_node(head,4);
	insert_list_node(head,5);
	insert_list_node(head,6);
	insert_list_node(head,7);
	insert_list_node(head,8);

	//3. 遍历(如果需要群发或者私聊，就要使用到遍历)
	show_list_node(head); //45678

	//4. 删除节点
	delete_list_node(head,6);  //(当客户端发送额quit要退出时，就要删除该客户端节点)

	//5. 再次遍历链表
	printf("------------------------\n");
	show_list_node(head); //4578

	return 0;
}

多线程：由于本人博客已经有记录过多线程的内容，本文不再重复

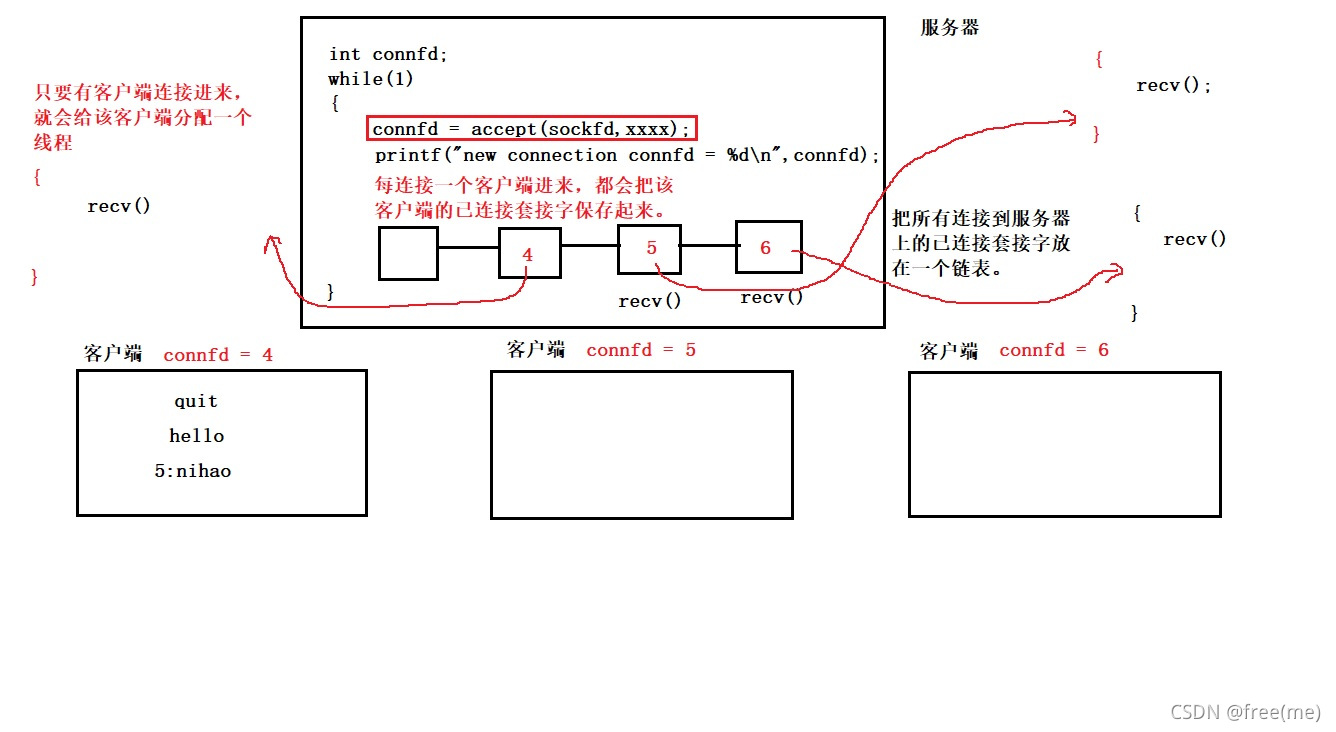

二、项目框架

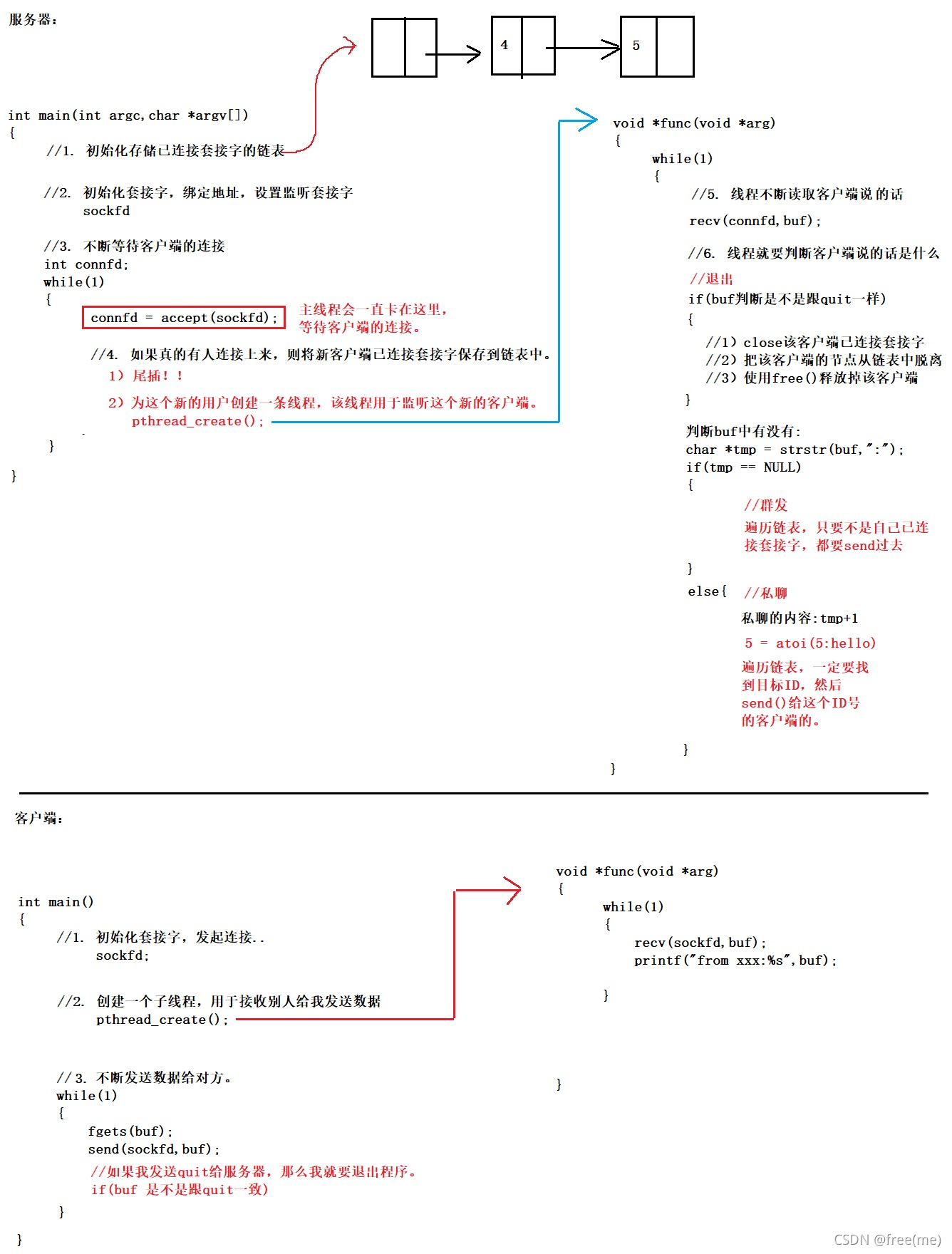

三、伪代码流程

四、源代码

服务端代码如下（示例）：

/************************************************************************
*
* 文件名：server.c
*
* 功能：服务端(一般用于接收数据)
*
* 创建人：LZH
*
* 时间：2021年11月14日20:13:47
*
* 版本号：1.0
*
* 修改记录：无
*
************************************************************************/
#include <sys/types.h>
#include <sys/socket.h>
#include <arpa/inet.h>
#include <stdio.h>
#include <stdlib.h>
#include <strings.h>
#include <unistd.h>
#include <string.h>
#include <pthread.h>

#include "kernel_list.h"    //包含当前目录下的kernel_list.h



//设计节点
typedef struct list_node{
	int connfd;
	struct list_head list;   //这个结构体不需要我们自己写，
							 //因为这个结构体已经在kernel_list.h中已经定义好了。
}NODE, *PNODE;

struct list_node *init_list_head();		//链表初始化
void insert_list_node(struct list_node *head,int num);
void show_list_node(struct list_node *head);
void delete_list_node(struct list_node *head,int num);
void* func(void* arg);

//初始化存储已连接套接字的链表 	add by LZH
PNODE head = NULL;


int main(int argc, char const *argv[]) {
	//1、准备一个未连接的套接字
	int sockfd = socket(AF_INET, SOCK_STREAM, 0);

	head = init_list_head();

	//2、绑定一个IP地址到套接字上
	struct sockaddr_in seraddr;
	socklen_t len = sizeof(seraddr);
	bzero(&seraddr, len);            //赋值前先清空seraddr内存上数据
	seraddr.sin_family = AF_INET;	//设置服务器协议

	seraddr.sin_port = htons(atoi(argv[1]));		//设置服务器的端口号(把字符串转成短整型)
	seraddr.sin_addr.s_addr = htonl(INADDR_ANY);	//设置服务器的IP地址

	bind(sockfd, (struct sockaddr *)(&seraddr), len);

	//3、将未连接套接字转换成监听套接字
	listen(sockfd, 5);

	//4、不断等待监听套接字上的数据
	struct sockaddr_in cliaddr;
	bzero(&cliaddr, len);

	int connfd;
	while(1) {
		connfd = accept(sockfd, (struct sockaddr *)&cliaddr, &len);  //谁连接到服务器上，谁的信息就会保存到这个变量中。
		//insert_list_node(head,4);
		if(connfd > 0) {
			insert_list_node(head, connfd);	//尾插，把connfd添加链表当中
			printf("new connection:%d\n", connfd);	//OK
			//show_list_node(head);			//遍历链表，查看是否添加成功

			pthread_t pid;
			pthread_create(&pid, NULL, func, (void*)&connfd);
		} else {
			printf("accept function error!\n");
		}
	}

	//6. 挂断
	//close(connfd);
	close(sockfd);

	return 0;
}

//线程回调函数
void* func(void* arg) {
	//5. 畅聊  不断接受客户端发送过来的数据
	char buf[100];
	int connfd = *(int*)arg;

	while(1) {
		//5.1 清空缓冲区
		bzero(buf, sizeof(buf));

		//5.2 把已连接套接字上的数据读取到缓冲区
		recv(connfd, buf, sizeof(buf), 0);

		//5.3 将缓冲区的数据打印出来
		//printf("from connfd:%d client: %s", connfd, buf);

		//5.4 如果客户端给我发了quit，那么我就退出
		if( strncmp(buf, "quit", 4) == 0 )
		{
			close(connfd);
			delete_list_node(head, connfd);  //(当客户端发送额quit要退出时，就要删除该客户端节点)
			//free(&connfd);

		}

		//判断buf中有没有 冒号:
		char* tmp = strstr(buf, ":");
		if(tmp == NULL) {
			//群发
			struct list_node *p = NULL;
			list_for_each_entry(p, &(head->list), list)
			{
				if(p->connfd != connfd) {
					send(p->connfd, buf, strlen(buf), 0);  //群发信息给每个客户端
				}
				//printf("p->connfd:%d\n", p->connfd);
			}
		} else {
			//如果buf的第二个信息不是“冒号：”，那么将它认为是群发信息
			if(buf[1] != ':') {
				//群发
				struct list_node *p = NULL;
				list_for_each_entry(p, &(head->list), list)
				{
					if(p->connfd != connfd) {
					send(p->connfd, buf, strlen(buf), 0);  //群发信息给每个客户端
					}
				//printf("p->connfd:%d\n", p->connfd);
				}
			} else {
				//私聊
				char* str = tmp + 1;	//私聊内容
				int num = atoi(buf);	//找到对方的ID号 （5：hello），找到这个5
				send(num, str, strlen(str), 0);  //群发信息给每个客户端
			}

		}
	}
}

//链表初始化
struct list_node *init_list_head() {
	//1. 为头节点申请空间
	struct list_node *head = malloc(sizeof(struct list_node));

	//2. 为头节点赋值
	INIT_LIST_HEAD(&(head->list));

	//3. 将头节点返回给main函数，以便后续的尾插、遍历，删除使用。
	return head;
}

//尾插法
void insert_list_node(struct list_node *head,int num)
{
	//1. 为新节点申请空间
	struct list_node *New_Node = malloc(sizeof(struct list_node));

	//2. 为数据域赋值
	New_Node->connfd = num;

	//3. 为指针域赋值
	list_add_tail(&(New_Node->list),&(head->list));

	return;
}


//遍历链表
void show_list_node(struct list_node *head)
{
	struct list_node *p = NULL;
	list_for_each_entry(p,&(head->list),list)
	{
		printf("p->connfd:%d\n",p->connfd);
	}
	return;
}

//删除结点
void delete_list_node(struct list_node *head,int num)
{
	struct list_node *p = NULL;
	struct list_node *q = NULL;
	list_for_each_entry_safe(p,q,&(head->list),list)
	{
		//每遍历到一个节点，我都判断一下是不是我想删除的节点
		if(p->connfd == num) //找到了我想删除的节点
		{
			list_del(&(p->list));  //让该节点从链表中脱离
			free(p);               //释放p节点指向的空间
			return;
		}
	}
}

客户端代码如下（示例）：

/************************************************************************
*
* 文件名：client.c
*
* 功能：客户端
*
* 创建人：LZH
*
* 时间：2021年11月14日00:29:46
*
* 版本号：1.0
*
* 修改记录：无
*
************************************************************************/

#include <sys/types.h>
#include <sys/socket.h>
#include <arpa/inet.h>
#include <stdio.h>
#include <stdlib.h>
#include <strings.h>
#include <unistd.h>
#include <string.h>
#include <pthread.h>

void* func(void* arg);

int main(int argc, char const *argv[])
{
	//1、准备一个未连接的套接字
	int sockfd = socket(AF_INET, SOCK_STREAM, 0);

	//2. 准备服务器的地址
	struct sockaddr_in seraddr;
	socklen_t len = sizeof(seraddr);
	bzero(&seraddr, len);            //赋值前先清空seraddr内存上数据
	seraddr.sin_family = AF_INET;	//设置服务器协议

	seraddr.sin_port = htons(atoi(argv[2]));		//设置服务器的端口号(把字符串转成短整型)
	inet_pton(AF_INET, argv[1], &seraddr.sin_addr); //设置服务器IP地址

	//3. 直接发起连接

	int ret = connect(sockfd, (struct sockaddr *)(&seraddr), len);
	if(ret == 0) {
		printf("connect success!\n");
	} else {
		printf("connect fail!\n");
	}

	pthread_t pid;
	pthread_create(&pid, NULL, func, (void*)&sockfd );

	//4. 不断发送数据给服务器。
	char buf[100];
	while(1)
	{
		//4.1 先清空缓冲区
		bzero(buf, sizeof(buf));

		//4.2 从键盘中获取字符串，然后把字符串存储到这个数组中。
		fgets(buf, sizeof(buf), stdin);  //stdin就是键盘设备对应的文件指针

		//4.3 发送该字符串给服务器
		send(sockfd, buf, strlen(buf), 0);  //strlen(buf)可以计算出字符串实际的字符个数

		//4.4 判断发送的字符串是不是quit
		if( strncmp(buf, "quit", 4) == 0 )
		{
			break;  //如果收到了quit，则跳出循环，程序结束
		}
	}

	//5. 挂断电话
	close(sockfd);

	return 0;
}

void* func(void* arg) {
	int sockfd = *(int*)arg;

	char buf[100];


	while(1) {
		bzero(buf, sizeof(buf));
		recv(sockfd, buf, sizeof(buf), 0);
		printf("receive from other：%s\n", buf);
	}
}

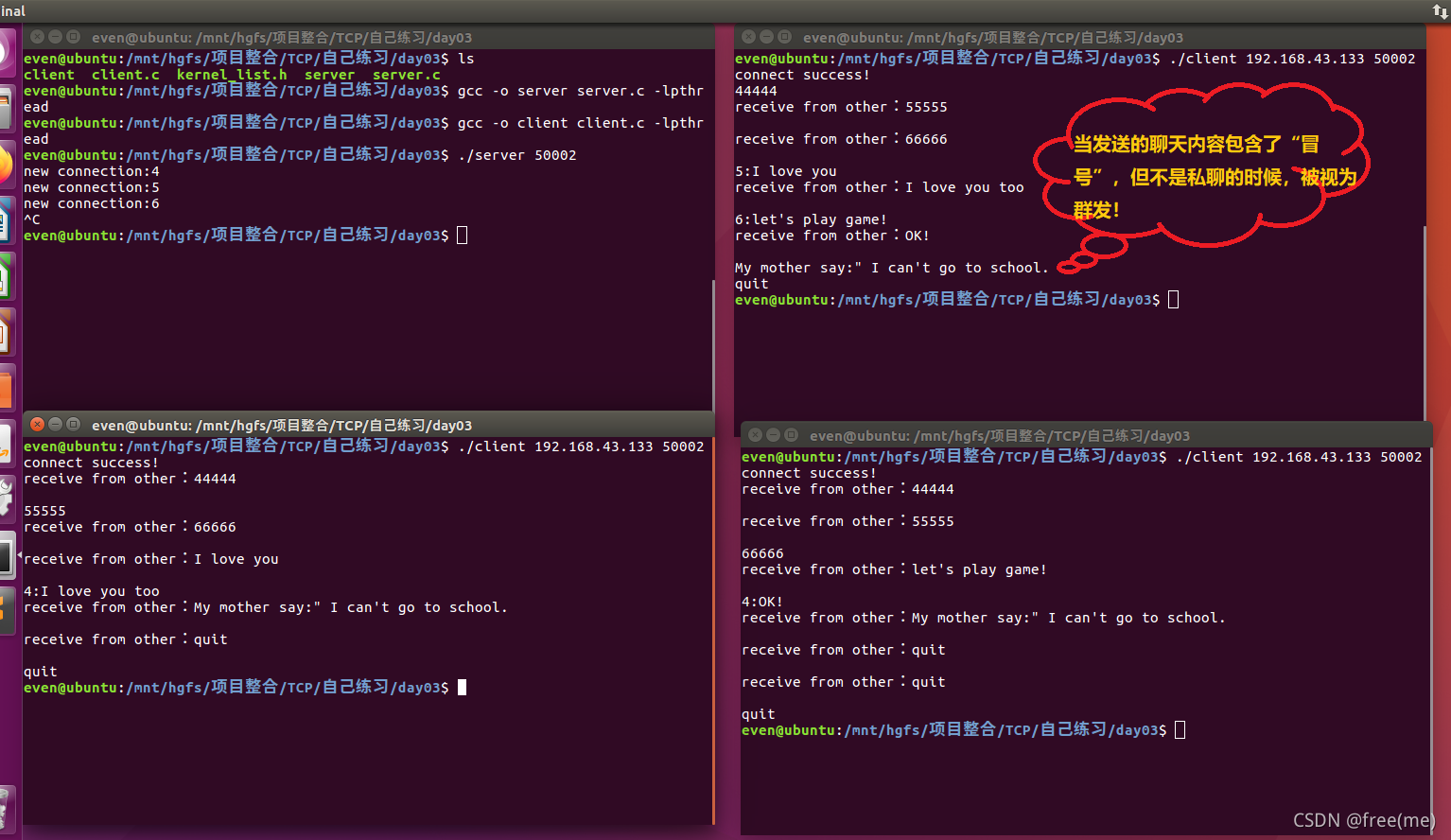

五、结果显示

---

附录

此项目还需要一个内核链表的头文件
kernel_list.h
代码如下：

#ifndef __DLIST_H
#define __DLIST_H

/* This file is from Linux Kernel (include/linux/list.h)
* and modified by simply removing hardware prefetching of list items.
* Here by copyright, credits attributed to wherever they belong.
* Kulesh Shanmugasundaram (kulesh [squiggly] isis.poly.edu)
*/

/*
* Simple doubly linked list implementation.
*
* Some of the internal functions (“__xxx”) are useful when
* manipulating whole lists rather than single entries, as
* sometimes we already know the next/prev entries and we can
* generate better code by using them directly rather than
* using the generic single-entry routines.
*/
/**
 * container_of - cast a member of a structure out to the containing structure
 *
 * @ptr:	the pointer to the member.
 * @type:	the type of the container struct this is embedded in.
 * @member:	the name of the member within the struct.
 *
 */
#define offsetof(TYPE, MEMBER) ((size_t) &((TYPE *)0)->MEMBER)

#define container_of(ptr, type, member) ({			\
        const typeof( ((type *)0)->member ) *__mptr = (ptr);	\
        (type *)( (char *)__mptr - offsetof(type,member) );})
/*
 * These are non-NULL pointers that will result in page faults
 * under normal circumstances, used to verify that nobody uses
 * non-initialized list entries.
 */
#define LIST_POISON1  ((void *) 0x00100100)
#define LIST_POISON2  ((void *) 0x00200)

struct list_head {
	struct list_head *next, *prev;
};

#define LIST_HEAD_INIT(name) { &(name), &(name) }

#define LIST_HEAD(name) \
struct list_head name = LIST_HEAD_INIT(name)

#define INIT_LIST_HEAD(ptr) do { \
	(ptr)->next = (ptr); (ptr)->prev = (ptr); \
} while (0)

/*
* Insert a new entry between two known consecutive entries.
*
* This is only for internal list manipulation where we know
* the prev/next entries already!
*/
static inline void __list_add(struct list_head *new,
				struct list_head *prev,
				struct list_head *next)
{
	next->prev = new;
	new->next = next;
	new->prev = prev;
	prev->next = new;
}

/**
* list_add – add a new entry
* @new: new entry to be added
* @head: list head to add it after
*
* Insert a new entry after the specified head.
* This is good for implementing stacks.
*/
static inline void list_add(struct list_head *new, struct list_head *head)
{
	__list_add(new, head, head->next);
}

/**
* list_add_tail – add a new entry
* @new: new entry to be added
* @head: list head to add it before
*
* Insert a new entry before the specified head.
* This is useful for implementing queues.
*/
static inline void list_add_tail(struct list_head *new, struct list_head *head)
{
	__list_add(new, head->prev, head);
}

/*
* Delete a list entry by making the prev/next entries
* point to each other.
*
* This is only for internal list manipulation where we know
* the prev/next entries already!
*/
static inline void __list_del(struct list_head *prev, struct list_head *next)
{
	next->prev = prev;
	prev->next = next;
}

/**
* list_del – deletes entry from list.
* @entry: the element to delete from the list.
* Note: list_empty on entry does not return true after this, the entry is in an undefined state.
*/
static inline void list_del(struct list_head *entry)
{
	__list_del(entry->prev, entry->next);
	entry->next = (void *) 0;
	entry->prev = (void *) 0;
}

/**
* list_del_init – deletes entry from list and reinitialize it.
* @entry: the element to delete from the list.
*/
static inline void list_del_init(struct list_head *entry)
{
	__list_del(entry->prev, entry->next);
	INIT_LIST_HEAD(entry);
}

/**
* list_move – delete from one list and add as another’s head
* @list: the entry to move
* @head: the head that will precede our entry
*/
static inline void list_move(struct list_head *list,
				struct list_head *head)
{
	__list_del(list->prev, list->next);
	list_add(list, head);
}

/**
* list_move_tail – delete from one list and add as another’s tail
* @list: the entry to move
* @head: the head that will follow our entry
*/
static inline void list_move_tail(struct list_head *list,
					struct list_head *head)
{
	__list_del(list->prev, list->next);
	list_add_tail(list, head);
}

/**
* list_empty – tests whether a list is empty
* @head: the list to test.
*/
static inline int list_empty(struct list_head *head)
{
	return head->next == head;
}

static inline void __list_splice(struct list_head *list,
					struct list_head *head)
{
	struct list_head *first = list->next;
	struct list_head *last = list->prev;
	struct list_head *at = head->next;

	first->prev = head;
	head->next = first;

	last->next = at;
	at->prev = last;
}

/**
* list_splice – join two lists
* @list: the new list to add.
* @head: the place to add it in the first list.
*/
static inline void list_splice(struct list_head *list, struct list_head *head)
{
if (!list_empty(list))
__list_splice(list, head);
}

/**
* list_splice_init – join two lists and reinitialise the emptied list.
* @list: the new list to add.
* @head: the place to add it in the first list.
*
* The list at @list is reinitialised
*/
static inline void list_splice_init(struct list_head *list,
struct list_head *head)
{
if (!list_empty(list)) {
__list_splice(list, head);
INIT_LIST_HEAD(list);
}
}

/**
* list_entry – get the struct for this entry
* @ptr:    the &struct list_head pointer.
* @type:    the type of the struct this is embedded in.
* @member:    the name of the list_struct within the struct.
*/
#define list_entry(ptr, type, member) \
((type *)((char *)(ptr)-(unsigned long)(&((type *)0)->member)))

/**
* list_for_each    -    iterate over a list
* @pos:    the &struct list_head to use as a loop counter.
* @head:    the head for your list.
*/
#define list_for_each(pos, head) \
for (pos = (head)->next; pos != (head); \
pos = pos->next)
/**
* list_for_each_prev    -    iterate over a list backwards
* @pos:    the &struct list_head to use as a loop counter.
* @head:    the head for your list.
*/
#define list_for_each_prev(pos, head) \
for (pos = (head)->prev; pos != (head); \
pos = pos->prev)

/**
* list_for_each_safe    -    iterate over a list safe against removal of list entry
* @pos:    the &struct list_head to use as a loop counter.
* @n:        another &struct list_head to use as temporary storage
* @head:    the head for your list.
*/
#define list_for_each_safe(pos, n, head) \
for (pos = (head)->next, n = pos->next; pos != (head); \
pos = n, n = pos->next)

/**
* list_for_each_entry    -    iterate over list of given type
* @pos:    the type * to use as a loop counter.
* @head:    the head for your list.
* @member:    the name of the list_struct within the struct.
*/
#define list_for_each_entry(pos, head, member)                \
for (pos = list_entry((head)->next, typeof(*pos), member);    \
&pos->member != (head);                     \
pos = list_entry(pos->member.next, typeof(*pos), member))

/**
* list_for_each_entry_safe – iterate over list of given type safe against removal of list entry
* @pos:    the type * to use as a loop counter.
* @n:        another type * to use as temporary storage
* @head:    the head for your list.
* @member:    the name of the list_struct within the struct.
*/
#define list_for_each_entry_safe(pos, n, head, member)            \
for (pos = list_entry((head)->next, typeof(*pos), member),    \
n = list_entry(pos->member.next, typeof(*pos), member);    \
&pos->member != (head);                     \
pos = n, n = list_entry(n->member.next, typeof(*n), member))

#endif
