spring+springmvc+maven+mybaties（SSM整合）

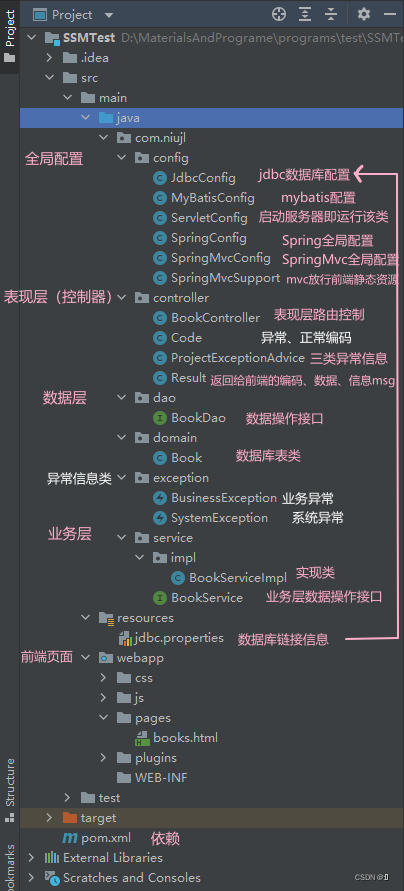

项目框架：

提示：

---

pom文件

提示：这里描述项目中遇到的问题：

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>org.example</groupId>
  <artifactId>SSMTest</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>SSMTest Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
  </properties>

  <dependencies>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.2.10.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.2.10.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>5.2.10.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.5.6</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.0</version>
    </dependency>

    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.47</version>
    </dependency>

    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>1.1.16</version>
    </dependency>

    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
      <scope>test</scope>
    </dependency>

    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.1.0</version>
      <scope>provided</scope>
    </dependency>

    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.9.0</version>
    </dependency>

  </dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.apache.tomcat.maven</groupId>
        <artifactId>tomcat7-maven-plugin</artifactId>
        <version>2.1</version>
        <configuration>
          <port>80</port>
          <path>/</path>
        </configuration>
      </plugin>
    </plugins>
  </build>

</project>

---

全局配置：

com/niujl/config/JdbcConfig.java（JDBC配置）

package com.niujl.config;

import com.alibaba.druid.pool.DruidDataSource;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import org.springframework.transaction.PlatformTransactionManager;

import javax.sql.DataSource;

public class JdbcConfig {

    @Value("${jdbc.driver}")
    private String driver;
    @Value("${jdbc.url}")
    private String url;
    @Value("${jdbc.username}")
    private String username;
    @Value("${jdbc.password}")
    private String password;

    @Bean
    public DataSource dataSource(){
        DruidDataSource dataSource = new DruidDataSource();
        dataSource.setDriverClassName(driver);
        dataSource.setUrl(url);
        dataSource.setUsername(username);
        dataSource.setPassword(password);
        return dataSource;
    }

    //事物配置
    @Bean
    public PlatformTransactionManager transactionManager(DataSource dataSource){
        DataSourceTransactionManager ds = new DataSourceTransactionManager();
        ds.setDataSource(dataSource);
        return ds;
    }
}

<!--src/main/resources/jdbc.properties-->
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssm_db?useSSL=false
jdbc.username=root
jdbc.password=admin

com/niujl/config/MyBatisConfig.java

package com.niujl.config;

import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.mapper.MapperScannerConfigurer;
import org.springframework.context.annotation.Bean;

import javax.sql.DataSource;

public class MyBatisConfig {
    //定义bean，SqlSessionFactoryBean，该类内部用于产生SqlSessionFactory对象
    //该方法主要用于保存数据库配置信息，最重要的是这一句：factoryBean.setDataSource(dataSource);
    @Bean
    public SqlSessionFactoryBean sqlSessionFactory(DataSource dataSource){
        SqlSessionFactoryBean factoryBean = new SqlSessionFactoryBean();
        factoryBean.setDataSource(dataSource);
        factoryBean.setTypeAliasesPackage("com.niujl.domain");
        return factoryBean;
    }

    //定义bean，返回MapperScannerConfigurer对象
    //初始化映射配置文件（原先是xml配置文件写sql，现在是注解写sql）
    @Bean
    public MapperScannerConfigurer mapperScannerConfigurer(){
        MapperScannerConfigurer msc = new MapperScannerConfigurer();
        msc.setBasePackage("com.niujl.dao");
        return msc;
    }
}

com/niujl/config/ServletConfig.java（开启servlet服务器时启动）

package com.niujl.config;

import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;

public class ServletConfig extends AbstractAnnotationConfigDispatcherServletInitializer {
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class[]{SpringConfig.class};
    }

    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[]{SpringMvcConfig.class};
    }

    @Override
    protected String[] getServletMappings() {
        return new String[]{"/"};
    }
}

com/niujl/config/SpringConfig.java（Spring入口：配置、扫描、引入）

package com.niujl.config;

import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.context.annotation.PropertySource;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@Configuration
@ComponentScan("com.niujl.service")
@PropertySource("classpath:jdbc.properties")
@Import({JdbcConfig.class, MyBatisConfig.class})
@EnableTransactionManagement
public class SpringConfig {
}

com/niujl/config/SpringMvcConfig.java（SpringMvc入口：配置、扫描、引入）

package com.niujl.config;

import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;

@Configuration
@ComponentScan({"com.niujl.controller","com.niujl.config"})
@EnableWebMvc
public class SpringMvcConfig {
}

com/niujl/config/SpringMvcSupport.java（配置静态资源，不去拦截）

package com.niujl.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;

@Configuration
public class SpringMvcSupport extends WebMvcConfigurationSupport {
    //添加为静态资源，不让springMvc去拦截加载bean
    @Override
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/pages/**").addResourceLocations("/pages/");
        registry.addResourceHandler("/css/**").addResourceLocations("/css/");
        registry.addResourceHandler("/js/**").addResourceLocations("/js/");
        registry.addResourceHandler("/plugins/**").addResourceLocations("/plugins/");
    }
}

---

表现层（控制器）

com/niujl/controller/BookController.java

package com.niujl.controller;

import com.niujl.domain.Book;
import com.niujl.exception.BusinessException;
import com.niujl.exception.SystemException;
import com.niujl.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@RequestMapping("/books")
public class BookController {

    @Autowired
    private BookService bookService;

    @PostMapping
    public Result save(@RequestBody Book book) {
        boolean flag = bookService.save(book);
        return new Result(flag?Code.SAVE_OK:Code.SAVE_ERR, flag);
//        return true;
    }

    @PutMapping
    public Result update(@RequestBody Book book) {
        boolean flag = bookService.update(book);
        return new Result(flag?Code.UPDATE_OK:Code.UPDATE_ERR, flag);
//        return true;
    }

    @DeleteMapping("/{id}")
    public Result delete(@PathVariable Integer id) {
        boolean flag = bookService.delete(id);
        return new Result(flag?Code.DELETE_OK:Code.DELETE_ERR, flag);
//        return true;
    }

    @GetMapping("/{id}")
    public Result getById(@PathVariable Integer id) {

        //表现层模拟抛异常
        /*
        if(id<0){
            throw new BusinessException(Code.BUSINESS_ERR,"业务异常：你输入的id值还能是小数？？");
        }
        try{
            int i = 1/0;
        }catch (ArithmeticException e){
            throw new SystemException(Code.SYSTEM_ERR,"系统异常：1不能除0", e);
        }

         */

        Book book = bookService.getById(id);
        Integer code = book != null ? Code.GET_OK:Code.GET_ERR;
        String msg = book != null ? "": "数据查询失败，请重试";
        return new Result(code, book, msg);
    }

    @GetMapping
    public Result getAll() {
        List<Book> bookList = bookService.getAll();
        Integer code = bookList != null?Code.GET_OK:Code.GET_ERR;
        String msg = bookList != null ?"":"查询不到全部图书";
        return new Result(code, bookList, msg);
    }
}

com/niujl/controller/Code.java（正确、错误编码）

package com.niujl.controller;

public class Code {
    public static final Integer SAVE_OK = 20011;
    public static final Integer DELETE_OK = 20021;
    public static final Integer UPDATE_OK = 20031;
    public static final Integer GET_OK = 20041;

    public static final Integer SAVE_ERR = 20010;
    public static final Integer DELETE_ERR = 20020;
    public static final Integer UPDATE_ERR = 20030;
    public static final Integer GET_ERR = 20040;

    public static final Integer SYSTEM_ERR = 50001;
    public static final Integer SYSTEM_TIMEOUT_ERR = 50002;
    public static final Integer SYSTEM_UNKNOW_ERR = 59999;
    public static final Integer BUSINESS_ERR = 60002;

}

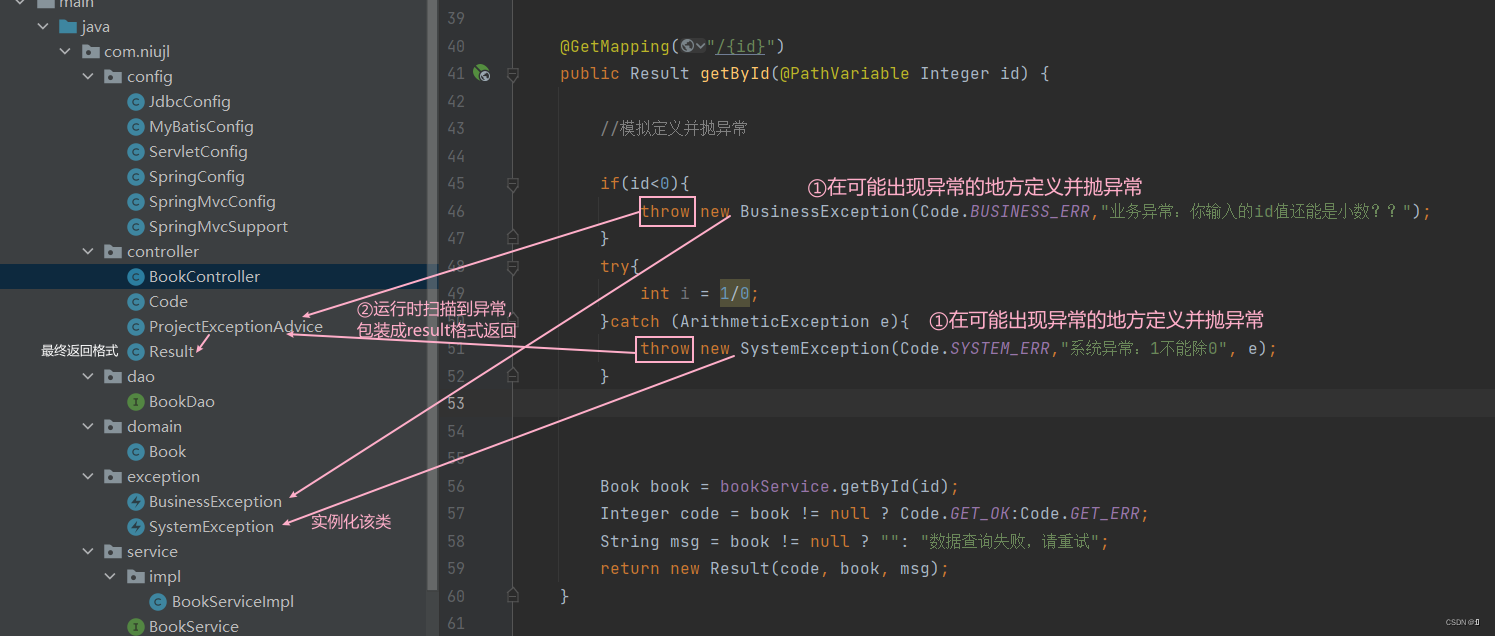

异常处理过程

com/niujl/exception/BusinessException.java（异常定义的类）

package com.niujl.exception;

public class BusinessException extends RuntimeException{
    private Integer code;

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    //message可自定义，是在表现层控制器（路由）里传参的
    public BusinessException(Integer code, String message) {
        super(message);
        this.code = code;
    }

    public BusinessException(Integer code, String message, Throwable cause) {
        super(message, cause);
        this.code = code;
    }
}

com/niujl/exception/SystemException.java（同上）

package com.niujl.exception;

public class SystemException extends RuntimeException{
    private Integer code;

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public SystemException(Integer code, String message) {
        super(message);
        this.code = code;
    }

    public SystemException(Integer code, String message, Throwable cause) {
        super(message, cause);
        this.code = code;
    }

}

com/niujl/controller/ProjectExceptionAdvice.java（扫描异常，返回结果）

package com.niujl.controller;

import com.niujl.exception.BusinessException;
import com.niujl.exception.SystemException;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

@RestControllerAdvice
public class ProjectExceptionAdvice {

//    系统异常
    @ExceptionHandler(SystemException.class)
    public Result doSystemException(SystemException ex){
        System.out.println("doSystemException异常出现！");
        //记录日志
        //发送消息给运维
        //发送邮件给开发人员

        return new Result(ex.getCode(), null, ex.getMessage());
    }

//    业务异常
    @ExceptionHandler(BusinessException.class)
    public Result doBusinessException(BusinessException ex){
        System.out.println("doBusinessException异常出现！");
        //记录日志
        //发送消息给运维
        //发送邮件给开发人员
        return new Result(ex.getCode(), null, ex.getMessage());
    }

    @ExceptionHandler(Exception.class)
    public Result doException(Exception ex){
        System.out.println("doException第三类异常出现！");
        //记录日志
        //发送消息给运维
        //发送邮件给开发人员
        return new Result(Code.SYSTEM_UNKNOW_ERR,null,"系统繁忙，请稍后再试！");
    }
}

com/niujl/controller/Result.java（返回结果格式）

package com.niujl.controller;

public class Result {
    private Object data;
    private Integer code;
    private String msg;

    public Result() {
    }

    public Result(Integer code,Object data) {
        this.data = data;
        this.code = code;
    }

    public Result(Integer code, Object data, String msg) {
        this.data = data;
        this.code = code;
        this.msg = msg;
    }



    public Object getData() {
        return data;
    }

    public void setData(Object data) {
        this.data = data;
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }
}

---

数据层及实现

com/niujl/domain/Book.java（数据格式）

package com.niujl.domain;

public class Book {
    private Integer id;
    private String type;
    private String name;
    private String description;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getType() {
        return type;
    }

    public void setType(String type) {
        this.type = type;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getDescription() {
        return description;
    }

    public void setDescription(String description) {
        this.description = description;
    }

    @Override
    public String toString() {
        return "Book{" +
                "id=" + id +
                ", type='" + type + '\'' +
                ", name='" + name + '\'' +
                ", description='" + description + '\'' +
                '}';
    }
}

com/niujl/dao/BookDao.java（接口加实现，使用注解实现）

package com.niujl.dao;

import com.niujl.domain.Book;
import org.apache.ibatis.annotations.Delete;
import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Select;
import org.apache.ibatis.annotations.Update;
import org.springframework.context.annotation.Bean;

import java.util.List;
public interface BookDao {

//    @Insert("insert into tbl_book values(null,#{type}, #{name}, #{description})")
    @Insert("insert into tbl_book (type,name,description) values (#{type}, #{name}, #{description})")
    public int save(Book book);

    @Update("update tbl_book set type= #{type}, name = #{name}, description = #{description} where id = #{id}")
    public int update(Book book);

    @Delete("delete from tbl_book where id = #{id}")
    public int delete(Integer id);

    @Select("select * from tbl_book where id = #{id}")
    public Book getById(Integer id);

    @Select("select * from tbl_book")
    public List<Book> getAll();

}

---

业务层实现

com/niujl/service/BookService.java（业务层接口）

package com.niujl.service;

import com.niujl.domain.Book;
import org.springframework.transaction.annotation.Transactional;

import java.util.List;

//类里全部方法开启事务
@Transactional
public interface BookService {

    /**
     * 保存
     * @param book
     * @return
     */
    public boolean save(Book book);

    /**
     * 修改
     * @param book
     * @return
     */
    public boolean update(Book book);

    /**
     * 按id删除
     * @param id
     * @return
     */
    public boolean delete(Integer id);

    /**
     * 按id查询
     * @param id
     * @return
     */
    public Book getById(Integer id);

    /**
     * 查询全部
     * @return
     */
    public List<Book> getAll();
}

com/niujl/service/impl/BookServiceImpl.java（实现接口）

package com.niujl.service.impl;

import com.niujl.dao.BookDao;
import com.niujl.domain.Book;
import com.niujl.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;
@Service
public class BookServiceImpl implements BookService {
    @Autowired
    private BookDao bookDao;

    @Override
    public boolean save(Book book) {
        return bookDao.save(book) > 0;
//        return true;
    }

    @Override
    public boolean update(Book book) {
        return bookDao.update(book) > 0;
//        return true;
    }

    @Override
    public boolean delete(Integer id) {
        return bookDao.delete(id) > 0;
//        return true;
    }

    @Override
    public Book getById(Integer id) {

		//业务层模拟异常
        int i = 1/0;

        return bookDao.getById(id);
    }

    @Override
    public List<Book> getAll() {
        return bookDao.getAll();
    }
}

---

测试

src/test/java/com/niujl/service/BookServiceTest.java

package com.niujl.service;

import com.niujl.config.SpringConfig;
import com.niujl.domain.Book;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

import java.util.List;

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(classes = SpringConfig.class)
public class BookServiceTest {

    @Autowired
    private BookService bookService;

    @Test
    public void testGetById(){
        Book book = bookService.getById(1);
        System.out.println(book);
    }
    @Test
    public void testGetByAll(){
        List<Book> all = bookService.getAll();
        System.out.println(all);
    }
}
