图的深搜和广搜

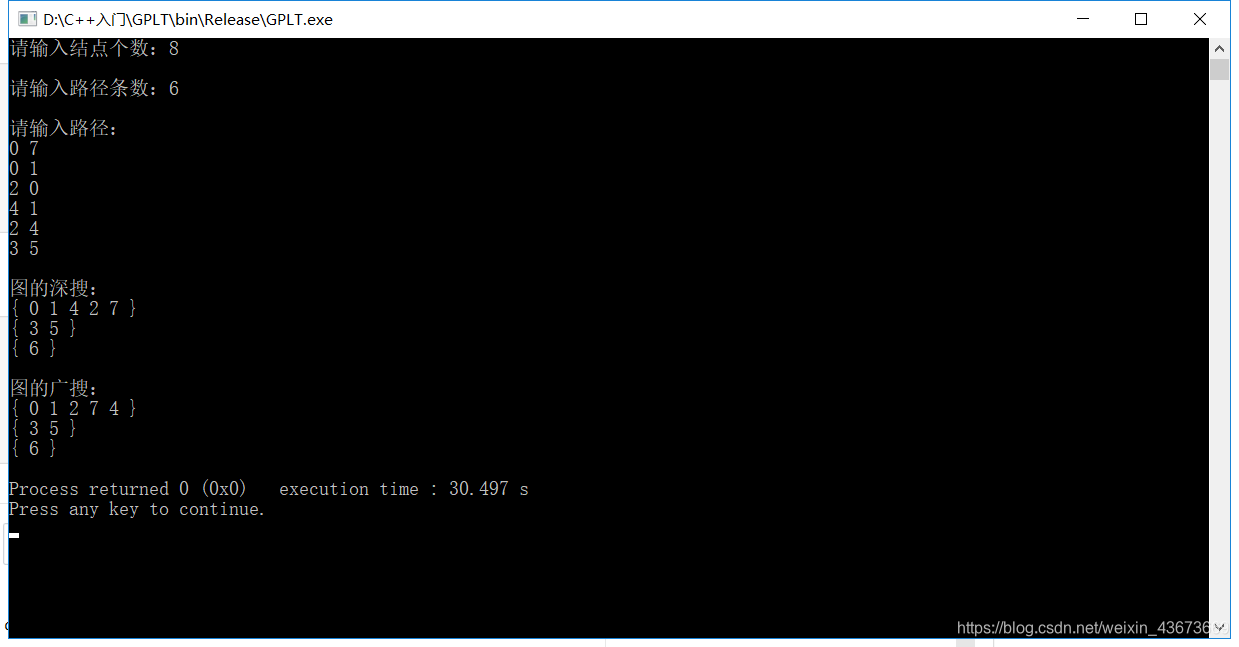

演示

代码

#include <iostream>
#include <stdio.h>
#include <vector>
#include <queue>
#include <algorithm>
using namespace std;
int e[50][50];
bool visit[50];
int nodeNum, roadNum;
void dfs(int n){
    printf("%d ",n);
    visit[n] = true;
    for(int i = 0; i < nodeNum; i++){
        if(visit[i] == false && e[n][i] == 1){
            dfs(i);
        }
    }
}
void bfs(int n){
    visit[n] = true;
    queue<int> q;
    q.push(n);

    while(q.empty() == false){
        int node = q.front();
        q.pop();
        printf("%d ", node);
        for(int i = 0; i < nodeNum; i++){
            if(visit[i] == false && e[node][i] == 1){
                visit[i] = true; //注意此出设置visit[i]为true，否则会出现死循环
                q.push(i);
            }
        }
    }
}
int main(){
    printf("请输入结点个数：");
    cin >> nodeNum;
    printf("\n请输入路径条数：");
    cin >> roadNum;
    printf("\n请输入路径：\n");
    for(int i = 0; i < roadNum; i++){
        int n1, n2;
        cin >> n1 >> n2;
        e[n1][n2] = 1;
        e[n2][n1] = 1;
    }
    printf("\n图的深搜：\n");
    for(int i = 0; i < nodeNum; i++){
        if(visit[i] == false){
            printf("{ ");
            dfs(i);
            printf("}\n");
        }

    }
    printf("\n图的广搜：\n");
    for(int i = 0; i < nodeNum; i++)
        visit[i] = false;
    for(int i = 0; i < nodeNum; i++){
        if(visit[i] == false){
            printf("{ ");
            bfs(i);
            printf("}\n");
        }

    }

  	return 0;
}
