在UE中有专门的类用来完成定时器的功能，它就是FTimerHandle类。

我们来完成一个例子，每隔一段时间之后，让一个ACTOR自我复制，在一定范围内随机生成。

这是ACTOR的头文件：

 1 // Fill out your copyright notice in the Description page of Project Settings.
 2
 3 #pragma once
 4
 5 #include "CoreMinimal.h"
 6 #include "GameFramework/Actor.h"
 7 #include "CollisionActor.generated.h"
 8
 9 UCLASS()
10 class MYPROJECT6_API ACollisionActor : public AActor
11 {
12     GENERATED_BODY()
13
14 public:
15     // Sets default values for this actor's properties
16     ACollisionActor();
17
18 public:
19     UPROPERTY(VisibleAnywhere, BlueprintReadWrite, Category = "Properties")
20     class UStaticMeshComponent* myStaticMesh;
21
22     FORCEINLINE UStaticMeshComponent* GetmyStaticMesh() {
23         return myStaticMesh;
24     }
25
26
27     UPROPERTY(VisibleAnywhere, BlueprintReadWrite, Category = "Properties")
28     class USphereComponent* myCollision;
29
30 private:
31     FScriptDelegate startsOverlap;
32     FScriptDelegate endsOverlap;
33 public:
34     UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "Properties")
35     bool status;
36 public:
37     UFUNCTION(BlueprintCallable,Category = "FUNCTIONS")
38     void onOverlap();
39     UFUNCTION(BlueprintCallable, Category = "FUNCTIONS")
40     void endOverlap();
41
42 protected:
43     // Called when the game starts or when spawned
44     virtual void BeginPlay() override;
45
46 public:
47     // Called every frame
48     virtual void Tick(float DeltaTime) override;
49
50
51 public:
52     UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "Properties")
53     FTimerHandle StarTimer;
54
55     UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "Properties")
56     FTimerHandle EndTimer;
57
58     UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "Properties")
59     float timeInterval;
60
61
62     UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "Properties")
63     UClass* parentClass;
64
65     UFUNCTION(BlueprintCallable, Category = "FUNCTIONS")
66     virtual void EndPlay(EEndPlayReason::Type EndReason) override;
67
68     UFUNCTION(BlueprintCallable, Category = "FUNCTIONS")
69     void spawnSelf();
70
71     UFUNCTION(BlueprintCallable, Category = "FUNCTIONS")
72     void deletes();
73 };

这些代码是新增在头文件中的：

 1 public:
 2     UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "Properties")
 3     FTimerHandle StarTimer;
 4
 5     UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "Properties")
 6     FTimerHandle EndTimer;
 7
 8     UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "Properties")
 9     float timeInterval;
10
11
12     UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "Properties")
13     UClass* parentClass;
14
15     UFUNCTION(BlueprintCallable, Category = "FUNCTIONS")
16     virtual void EndPlay(EEndPlayReason::Type EndReason) override;
17
18     UFUNCTION(BlueprintCallable, Category = "FUNCTIONS")
19     void spawnSelf();
20
21     UFUNCTION(BlueprintCallable, Category = "FUNCTIONS")
22     void deletes();
23 };

拥有两个处理TImer的对象，一个为start一个为end，他们分别会在BeginPlay和EndPlay两个继承自父类并重写后的函数中实现。spawnSelf函数用来创建自身，deletes函数用来销毁自身，以免内存过载。

以下是ACTOR的源文件：

  1 // Fill out your copyright notice in the Description page of Project Settings.
  2
  3
  4 #include "CollisionActor.h"
  5 #include "Components\BoxComponent.h"
  6 #include "UObject\ConstructorHelpers.h"
  7 #include "Components\StaticMeshComponent.h"
  8 #include "Components\SphereComponent.h"
  9 #include "Engine.h"
 10
 11 // Sets default values
 12 ACollisionActor::ACollisionActor()
 13 {
 14     // Set this actor to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
 15     PrimaryActorTick.bCanEverTick = true;
 16     myStaticMesh = CreateDefaultSubobject<UStaticMeshComponent>(TEXT("myStaticMesh"));
 17     myCollision = CreateDefaultSubobject<USphereComponent>(TEXT("myCollision"));
 18
 19     auto myMeshAsset = ConstructorHelpers::FObjectFinder<UStaticMesh>(TEXT("StaticMesh'/Engine/EditorMeshes/ColorCalibrator/SM_ColorCalibrator.SM_ColorCalibrator'"));
 20     auto myMatAsset = ConstructorHelpers::FObjectFinder<UMaterialInterface>(TEXT("Material'/Engine/VREditor/UI/ArrowMaterial.ArrowMaterial'"));
 21
 22     if (myMeshAsset.Succeeded() && myMatAsset.Succeeded()) {
 23         myStaticMesh->SetStaticMesh(myMeshAsset.Object);
 24         myStaticMesh->SetMaterial(0, myMatAsset.Object);
 25     }
 26     if (!myStaticMesh->IsSimulatingPhysics()) {
 27         myStaticMesh->SetSimulatePhysics(true);
 28         myStaticMesh->SetEnableGravity(false);
 29     }
 30
 31     RootComponent = myCollision;
 32     myStaticMesh->SetupAttachment(GetRootComponent());
 33     myCollision->InitSphereRadius(120.f);
 34
 35     startsOverlap.BindUFunction(this, "onOverlap");
 36     myCollision->OnComponentBeginOverlap.Add(startsOverlap);
 37
 38
 39     endsOverlap.BindUFunction(this, "endOverlap");
 40     myCollision->OnComponentEndOverlap.Add(endsOverlap);
 41
 42     status = false;
 43
 44     parentClass = ACollisionActor::StaticClass();
 45
 46
 47     timeInterval = 5.0f;
 48
 49 }
 50
 51 void ACollisionActor::onOverlap()
 52 {
 53     GEngine->AddOnScreenDebugMessage(-1, 5, FColor::Red, TEXT("Touch"));
 54     status = true;
 55
 56 }
 57
 58 void ACollisionActor::endOverlap()
 59 {
 60     GEngine->AddOnScreenDebugMessage(-1, 5, FColor::Red, TEXT("OutTouch"));
 61     status = false;
 62 }
 63
 64
 65 // Called when the game starts or when spawned
 66 void ACollisionActor::BeginPlay()
 67 {
 68     Super::BeginPlay();
 69
 70     GetWorld()->GetTimerManager().SetTimer(StarTimer,this,&ACollisionActor::spawnSelf, timeInterval,true);
 71     GetWorld()->GetTimerManager().SetTimer(EndTimer,this,&ACollisionActor::spawnSelf, timeInterval*8,true);
 72
 73 }
 74
 75
 76
 77 void ACollisionActor::spawnSelf() {
 78     FVector location = FVector(FMath::RandRange(-1000.0f,1000.0f), FMath::RandRange(-1000.0f, 1000.0f), FMath::RandRange(-1000.0f, 1000.0f));
 79     GetWorld()->SpawnActor(parentClass,&location);
 80 }
 81
 82 void ACollisionActor::EndPlay(EEndPlayReason::Type EndReason)
 83 {
 84     Super::EndPlay(EndReason);
 85     GetWorld()->GetTimerManager().ClearTimer(StarTimer);
 86     GetWorld()->GetTimerManager().ClearTimer(EndTimer);
 87
 88 }
 89
 90
 91 void ACollisionActor::deletes()
 92 {
 93     Destroy();
 94 }
 95
 96 // Called every frame
 97 void ACollisionActor::Tick(float DeltaTime)
 98 {
 99     Super::Tick(DeltaTime);
100
101     if (status == true) {
102         myStaticMesh->AddLocalRotation(FRotator(10.0f));
103     }
104     else {
105         myStaticMesh->AddLocalRotation(FRotator(0.0f));
106         myStaticMesh->SetRelativeRotation(FRotator(0.0f));
107     }
108 }

想要得到计时器的对象，就得先从世界中获得时间管理对象：

1 GetWorld()->GetTimerManager().SetTimer(StarTimer,this,&ACollisionActor::spawnSelf, timeInterval,true);

通过GetWolrd()获得世界的指针，再调用GetTimerManager()对象，调用SetTimer函数来设置计时器。

SetTimer常用有四个参数，分别是FTimerHandle类的修，该计时器指向哪个类，该计时器绑定哪个方法，计时器的时间间隔，以及是否循环。

StartTimer这个计时器对象绑定了SpawnSelf方法，通过SpawnActor方法进行自我复制，这里需要传入两个参数，第一个是复制哪个类对象，第二个是在世界里的位置。

这里的parentClass指针实际上是指向UClass *parentClass = ACollisionActor::StaticClass();,也就是指向了自己，也就不断自我复制。

1 void ACollisionActor::spawnSelf() {
2     FVector location = FVector(FMath::RandRange(-1000.0f,1000.0f), FMath::RandRange(-1000.0f, 1000.0f), FMath::RandRange(-1000.0f, 1000.0f));
3     GetWorld()->SpawnActor(parentClass,&location);
4 }

结束Play后调用以下方法，实现计时器清零。

EndPlay方法是继承而来的，还需要写入参数，意思是给一个结束游戏的理由，在枚举型结构体中的EEndplayReason::Type中，EndReason是各种结束理由的形式参数。

找到GetTimerManager之后，通过ClearTimer方法将我们的FTimerHandle类的对象放进去，对其清零。

1 void ACollisionActor::EndPlay(EEndPlayReason::Type EndReason)
2 {
3     Super::EndPlay(EndReason);
4     GetWorld()->GetTimerManager().ClearTimer(StarTimer);
5     GetWorld()->GetTimerManager().ClearTimer(EndTimer);

以下方法用于销毁自身。

1 void ACollisionActor::deletes()
2 {
3     Destroy();
4 }

以下方法用于触发碰撞体之后，进行旋转。

 1 void ACollisionActor::Tick(float DeltaTime)
 2 {
 3     Super::Tick(DeltaTime);
 4
 5     if (status == true) {
 6         myStaticMesh->AddLocalRotation(FRotator(10.0f));
 7     }
 8     else {
 9         myStaticMesh->AddLocalRotation(FRotator(0.0f));
10         myStaticMesh->SetRelativeRotation(FRotator(0.0f));
11     }
12 }

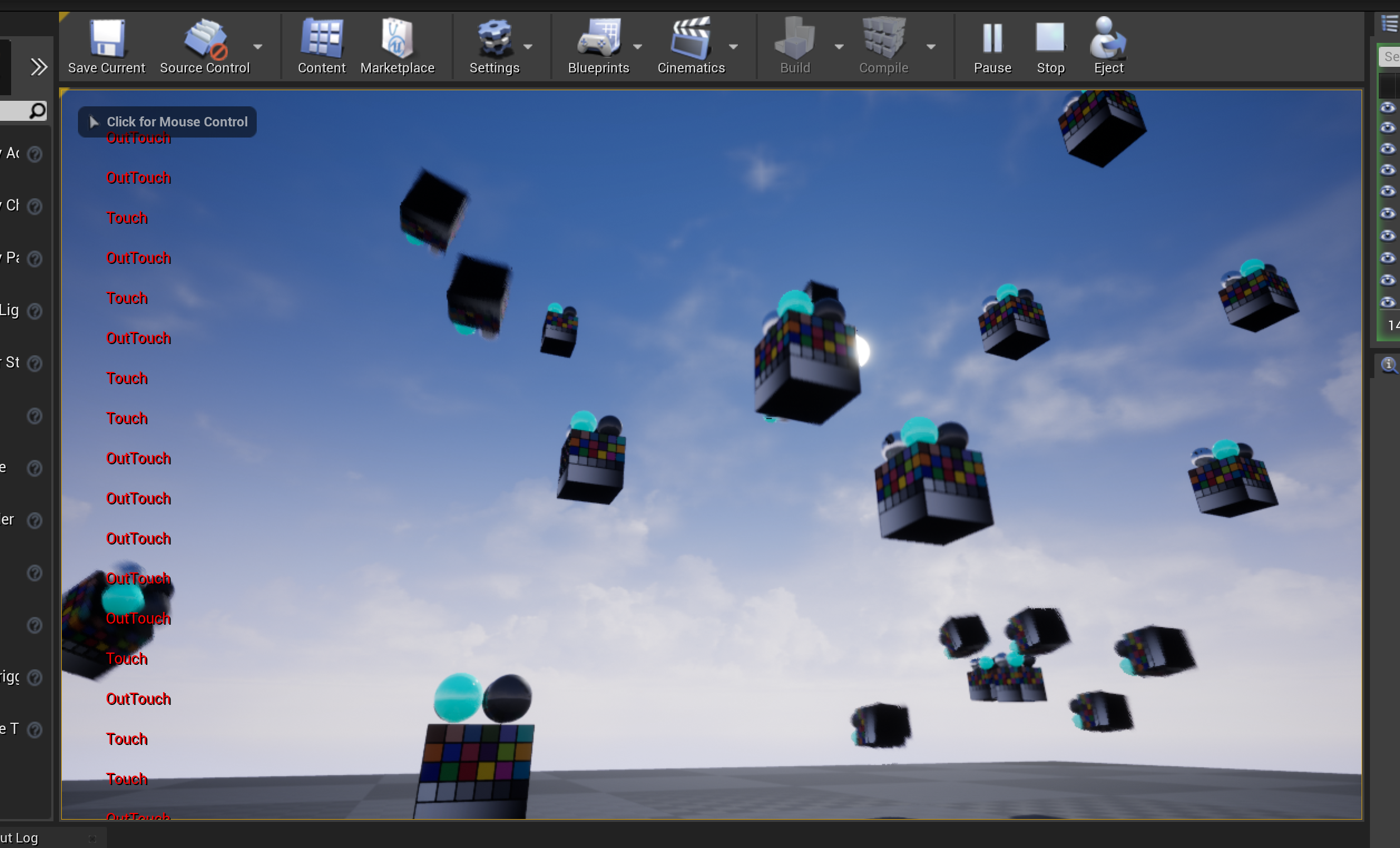

最终效果实现如下：
