fastdfs分布式

docker 安装分布式fastdfs

安装之前可以先进官网 dockerhub.com

docker pull season/fastdfs（安装）

（打包镜像）
docker run -ti -d --name trakcer -v ~/tracker_data:/fastdfs/tracker/data --net=host season/fastdfs tracker

• 注意：需要关闭防火墙

systemctl stop firewalld

find / -name selinux

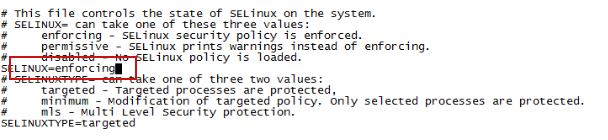

进去之后找到第一个vi 编辑 /etc/sysconfig/selinux

进去后将selinux的值改成disabled

改了之后需要重启， reboot

之后 运行生成storage镜像 注意**：IP地址写自己的地址**
docker run -ti -d --name storage -v ~/storage_data:/fastdfs/storage/data -v ~/store_path:/fastdfs/store_path --net=host -e TRACKER_SERVER:192.168.241.130:22122 season/fastdfs storage

进入tracker docker exec -it tracker bash

测试是否成功

fdfs_monitor storage.conf

这样说明没有注册上，需要手工去配storage

退出tracker 进入storage

[root@localhost ~]# docker exec -it storage bash
root@localhost:/# ls
FastDFS_v4.08  boot  entrypoint.sh  fastdfs    home  lib32  libevent-2.0.14  mnt  proc  run   selinux  sys  usr
bin            dev   etc            fdfs_conf  lib   lib64  media            opt  root  sbin  srv      tmp  var
root@localhost:/# cd  fdfs_conf
root@localhost:/fdfs_conf# ls
anti-steal.jpg  client.conf  http.conf  mime.types  storage.conf  storage_ids.conf  tracker.conf
root@localhost:/fdfs_conf# more storage.conf

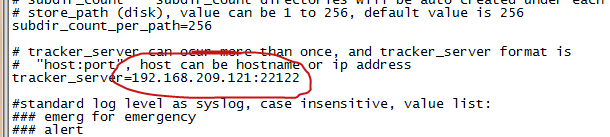

会发现这里的IP地址还是没有更换
需要将这个拷贝出去修改了之后再拷贝回来

完成之后进去storage输入命令

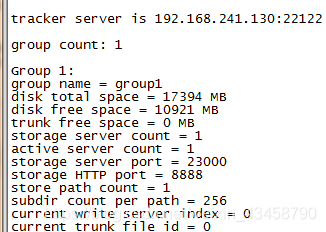

fdfs_monitor storage.conf

成功

上传文件

root@localhost:/fdfs_conf# fdfs_upload_file storage.conf /a.txt

group1/M00/00/00/wKjxglwGdkWAf5xfAAAABncc3SA266.txt

直接进linux 的stora path cd /date/00/00
more 打印文件

用java 上传

资源文件application.yml

server:
  port: 8899
fdfs:
  #连接超时时间
  connect-timeout: 10000
  #表示响应时间的超时时间
  so-timeout: 3000
  #数组
  tracker-list:
    - 192.168.241.130:22122

spring:
  datasource:
    url: jdbc:mysql://localhost/unit02
    username: root
    password: ps123456
    driver-class-name: com.mysql.jdbc.Driver
  http:
    multipart:
      max-file-size: 10485760

引用依赖

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>com.luhuiguo</groupId>
            <artifactId>fastdfs-spring-boot-starter</artifactId>
            <version>0.2.0</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
    </dependencies>

• 仓库地址，sonatype，

 <repositories>
        <repository>
            <id>sn</id>
            <name>sn</name>
            <url>https://oss.sonatype.org/content/repositories/releases/</url>
        </repository>
    </repositories>

@RestController
public class UploadController {

    @Autowired
    private FastFileStorageClient storageClient;
    @Autowired
    JdbcTemplate jt;

    /**
     *
     * @param mf  是从浏览器提交过来的
     * @return
     */
    @PostMapping("/fupload")
    public String upload(@RequestParam("myfile") MultipartFile mf) throws IOException {

        String extension = FilenameUtils.getExtension(mf.getOriginalFilename());
        StorePath group1 = storageClient.uploadFile("group1", mf.getInputStream(), mf.getSize(), extension);

        String sql="insert into myfile(filename,groupname,filepath) value(?,?,?)";
        jt.update(sql,mf.getOriginalFilename(),group1.getGroup(),group1.getPath());
        System.out.println(mf.getOriginalFilename()+"--"+group1.getGroup()+" --"+group1.getPath());
        return group1.getFullPath();

    }

    @GetMapping("/fdownload/{fileid}")
    public void download(@PathVariable("fileid") String id, HttpServletResponse response) throws IOException {
        List<Map<String, Object>> query = jt.query("select * from myfile where fileid=" + id, new ColumnMapRowMapper());
        Map map = query.get(0);
        //中文格式
        String filename= URLEncoder.encode(map.get("filename").toString(),"UTF-8");
        String groupname=map.get("groupname").toString();
        String filepath=map.get("filepath").toString();
        //告诉浏览器，下载的文件名
        response.setHeader("Content-Disposition","attachment; filename="+filename   );
        //将文件内容输出到浏览器 fastdfs
        byte[] bytes = storageClient.downloadFile(groupname, filepath);
        response.getOutputStream().write(bytes);
    }

}

main方法

@SpringBootApplication
public class BootMain {

    public static void main(String[] args) {
        SpringApplication.run(BootMain.class);
    }

}

创建两个html ，一个上传，一个下载

常用命令

[root@bogon fdfs]# ls /usr/bin | grep fdfs
fdfs_appender_test
fdfs_appender_test1
fdfs_append_file
fdfs_crc32
fdfs_delete_file
fdfs_download_file
fdfs_file_info
fdfs_monitor
fdfs_storaged
fdfs_test
fdfs_test1
fdfs_trackerd
fdfs_upload_appender
fdfs_upload_file
