mycat垂直拆分

实例

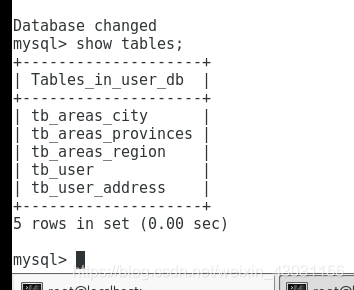

节点一：192.168.88.3

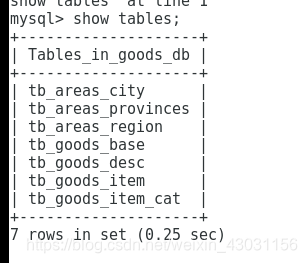

节点二：

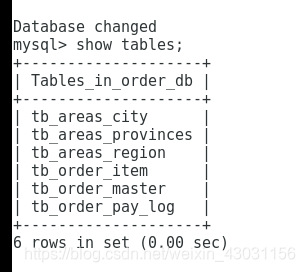

节点三：

schema.xml

<?xml version="1.0"?>
<!DOCTYPE mycat:schema SYSTEM "schema.dtd">
<mycat:schema xmlns:mycat="http://io.mycat/">

	<schema name="QUAN_DB" checkSQLschema="false" sqlMaxLimit="100">
		<table name="tb_areas_city" dataNode="dn1,dn2,dn3" primaryKey="id" type="global"/>
		<table name="tb_areas_provinces" dataNode="dn1,dn2,dn3" primaryKey="id" type="global"/>
		<table name="tb_areas_region" dataNode="dn1,dn2,dn3" primaryKey="id" type="global"/>
		<table name="tb_user" dataNode="dn1" primaryKey="id" />
		<table name="tb_user_address" dataNode="dn1" primaryKey="id" />

		<table name="tb_goods_base" dataNode="dn2" primaryKey="id" />
		<table name="tb_goods_desc" dataNode="dn2" primaryKey="goods_id" />
		<table name="tb_goods_item_cat" dataNode="dn2" primaryKey="id" />

		<table name="tb_order_item" dataNode="dn3" primaryKey="id" />
		<table name="tb_order_master" dataNode="dn3" primaryKey="order_id" />
		<table name="tb_order_pay_log" dataNode="dn3" primaryKey="out_trade_no" />
	</schema>


	<dataNode name="dn1" dataHost="host1" database="user_db" />
	<dataNode name="dn2" dataHost="host2" database="goods_db" />
	<dataNode name="dn3" dataHost="host3" database="order_db" />


	<dataHost name="host1" maxCon="1000" minCon="10" balance="0"
		writeType="0" dbType="mysql" dbDriver="native" switchType="1"  slaveThreshold="100">
		<heartbeat>select user()</heartbeat>
		<writeHost host="hostM1" url="192.168.88.3:3306" user="root" password="123456"></writeHost>
	</dataHost>

    <dataHost name="host2" maxCon="1000" minCon="10" balance="0"
		writeType="0" dbType="mysql" dbDriver="native" switchType="1"  slaveThreshold="100">
		<heartbeat>select user()</heartbeat>
		<writeHost host="hostM2" url="192.168.88.4:3306" user="root" password="123456"></writeHost>
	</dataHost>

    <dataHost name="host3" maxCon="1000" minCon="10" balance="0"
		writeType="0" dbType="mysql" dbDriver="native" switchType="1"  slaveThreshold="100">
		<heartbeat>select user()</heartbeat>
		<writeHost host="hostM3" url="192.168.88.5:3306" user="root" password="123456"></writeHost>
	</dataHost>

</mycat:schema>

server.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mycat:server SYSTEM "server.dtd">
<mycat:server xmlns:mycat="http://io.mycat/">
	<system>
	<property name="charset">utf8</property>
	<property name="nonePasswordLogin">0</property> <!-- 0为需要密码登陆、1为不需要密码登陆 ,默认为0，设置为1则需要指定默认账户-->
	<property name="useHandshakeV10">1</property>
	<property name="useSqlStat">0</property>  <!-- 1为开启实时统计、0为关闭 -->
	<property name="useGlobleTableCheck">0</property>  <!-- 1为开启全加班一致性检测、0为关闭 -->
		<property name="sqlExecuteTimeout">300</property>  <!-- SQL 执行超时 单位:秒-->
		<property name="sequnceHandlerType">2</property>
		<!--<property name="sequnceHandlerPattern">(?:(\s*next\s+value\s+for\s*MYCATSEQ_(\w+))(,|\)|\s)*)+</property>-->
		<!--必须带有MYCATSEQ_或者 mycatseq_进入序列匹配流程 注意MYCATSEQ_有空格的情况-->
		<property name="sequnceHandlerPattern">(?:(\s*next\s+value\s+for\s*MYCATSEQ_(\w+))(,|\)|\s)*)+</property>
	<property name="subqueryRelationshipCheck">false</property> <!-- 子查询中存在关联查询的情况下,检查关联字段中是否有分片字段 .默认 false -->
      <!--  <property name="useCompression">1</property>--> <!--1为开启mysql压缩协议-->
        <!--  <property name="fakeMySQLVersion">5.6.20</property>--> <!--设置模拟的MySQL版本号-->
	<!-- <property name="processorBufferChunk">40960</property> -->
	<!--
	<property name="processors">1</property>
	<property name="processorExecutor">32</property>
	 -->
        <!--默认为type 0: DirectByteBufferPool | type 1 ByteBufferArena | type 2 NettyBufferPool -->
		<property name="processorBufferPoolType">0</property>
		<!--默认是65535 64K 用于sql解析时最大文本长度 -->
		<!--<property name="maxStringLiteralLength">65535</property>-->
		<!--<property name="sequnceHandlerType">0</property>-->
		<!--<property name="backSocketNoDelay">1</property>-->
		<!--<property name="frontSocketNoDelay">1</property>-->
		<!--<property name="processorExecutor">16</property>-->
		<!--
			<property name="serverPort">8066</property> <property name="managerPort">9066</property>
			<property name="idleTimeout">300000</property> <property name="bindIp">0.0.0.0</property>
			<property name="dataNodeIdleCheckPeriod">300000</property> 5 * 60 * 1000L; //连接空闲检查
			<property name="frontWriteQueueSize">4096</property> <property name="processors">32</property> -->
		<!--分布式事务开关，0为不过滤分布式事务，1为过滤分布式事务（如果分布式事务内只涉及全局表，则不过滤），2为不过滤分布式事务,但是记录分布式事务日志-->
		<property name="handleDistributedTransactions">0</property>

			<!--
			off heap for merge/order/group/limit      1开启   0关闭
		-->
		<property name="useOffHeapForMerge">0</property>

		<!--
			单位为m
		-->
        <property name="memoryPageSize">64k</property>

		<!--
			单位为k
		-->
		<property name="spillsFileBufferSize">1k</property>

		<property name="useStreamOutput">0</property>

		<!--
			单位为m
		-->
		<property name="systemReserveMemorySize">384m</property>


		<!--是否采用zookeeper协调切换  -->
		<property name="useZKSwitch">false</property>

		<!-- XA Recovery Log日志路径 -->
		<!--<property name="XARecoveryLogBaseDir">./</property>-->

		<!-- XA Recovery Log日志名称 -->
		<!--<property name="XARecoveryLogBaseName">tmlog</property>-->
		<!--如果为 true的话 严格遵守隔离级别,不会在仅仅只有select语句的时候在事务中切换连接-->
		<property name="strictTxIsolation">false</property>

		<property name="useZKSwitch">true</property>

	</system>

	<!-- 全局SQL防火墙设置 -->
	<!--白名单可以使用通配符%或着*-->
	<!--例如<host host="127.0.0.*" user="root"/>-->
	<!--例如<host host="127.0.*" user="root"/>-->
	<!--例如<host host="127.*" user="root"/>-->
	<!--例如<host host="1*7.*" user="root"/>-->
	<!--这些配置情况下对于127.0.0.1都能以root账户登录-->
	<!--
	<firewall>
	   <whitehost>
	      <host host="1*7.0.0.*" user="root"/>
	   </whitehost>
       <blacklist check="false">
       </blacklist>
	</firewall>
	-->

	<user name="root" defaultAccount="true">
		<property name="password">123456</property>
		<property name="schemas">QUAN_DB</property>

		<!-- 表级 DML 权限设置 -->
		<!--
		<privileges check="false">
			<schema name="TESTDB" dml="0110" >
				<table name="tb01" dml="0000"></table>
				<table name="tb02" dml="1111"></table>
			</schema>
		</privileges>
		 -->
	</user>

	<user name="user">
		<property name="password">123456</property>
		<property name="schemas">QUAN_DB</property>
		<property name="readOnly">true</property>
	</user>

</mycat:server>
