博客围绕 AHB APB 简单架构展开，提及 APB 桥，它如同桥梁嫁接在主和从之间，在该架构中起到关键连接作用，属于信息技术领域的硬件架构相关内容。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

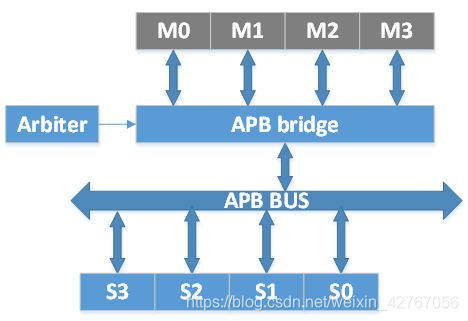

在这里插入图片描述

桥，嫁接在主和从指间

`define IDLE   2'b00
`define SETUP  2'b01
`define ENABLE 2'b10


module APB_Bridge(
input wire PRESETn,
input wire PCLK,

// AHB
input wire HEN,
input wire HRWN,
input wire [1:0] HBYTEN,
input wire [31:0] HADDR,
input wire [31:0] HWDATA,
output reg [31:0] HRDATA,
output reg HREADY,
output reg HACK,
output reg HKGrant,
output reg HdERROR,

// APB_Slave
output reg PSEL0,
output reg PSEL1,
output reg PSEL2,
output reg PSEL3,
output reg PENABLE,
output reg PWRITE,
output reg [31:0] PADDR,
output reg [31:0] PWDATA,
input wire [31:0] PRDATA,
output reg [3:0]  PMASTER
);


// Read DATA
always @(*) HRDATA = PRDATA;

// Slave select
assign PSEL0i = (HADDR[31:8] == 24'h0000_00);
assign PSEL1i = (HADDR[31:8] == 24'h0000_01);
assign PSEL2i = (HADDR[31:8] == 24'h0000_02);
assign PSEL3i = (HADDR[31:8] == 24'h0000_03);
always @(*) PMASTER = HADDR[11:8];

// Bridge Main FSM
reg [1:0] APB_FSM;
always @(posedge PCLK or negedge PRESETn)
begin
  if(!PRESETn)
  begin
    // master
    HREADY  <= 1'b1;
    HACK    <= 1'b0;
    HdERROR <= 1'b0;
    HKGrant <= 1'b0;

    // slave
    APB_FSM <= `IDLE;
    PSEL0   <= 1'b0;
    PSEL1   <= 1'b0;
    PSEL2   <= 1'b0;
    PSEL3   <= 1'b0;
    PENABLE <= 1'b0;
    PWRITE  <= 1'b0;
    PADDR   <= 32'h0000;
    PWDATA  <= 32'h0000;
  end
  else
  begin
    case(APB_FSM)
      `IDLE:
      begin
        if(HEN)
        begin
          APB_FSM <= `SETUP;
          // master
          HREADY  <= 1'b0;
          HACK    <= 1'b0;

          // slave
          PSEL0   <= PSEL0i;
          PSEL1   <= PSEL1i;
          PSEL2   <= PSEL2i;
          PSEL3   <= PSEL3i;
          PWRITE  <= ~HRWN;   //////////////////////
          PADDR   <= HADDR;
          PWDATA  <= HWDATA;
        end
      end

      `SETUP:
      begin
         APB_FSM <= `ENABLE;
         // master
         HREADY  <= 1'b0;
         HACK    <= 1'b1;
         HKGrant <= 1'b1;

         // slave
         PENABLE <= 1'b1;
      end

      `ENABLE:
      begin
         APB_FSM <= `IDLE;
         // master
         HREADY  <= 1'b1;
         HACK    <= 1'b0;
         HKGrant <= 1'b0;
         HdERROR <= 1'b0;

         // slave
         PSEL0   <= 1'b0;
         PSEL1   <= 1'b0;
         PSEL2   <= 1'b0;
         PSEL3   <= 1'b0;
         PENABLE <= 1'b0;
      end
      default:  APB_FSM <= `IDLE;
    endcase

  end


end



endmodule
