Coursera Machine Learning —— Week 2

Foreword

原来想做完Week2的作业之后再来写的，但是发现我不会做……所以边写边复习了。好久没有这种被作业支配的烦躁感了，啊啊啊啊啊。
\quad
Coursera Machine Learning —— Week1

MATLAB Online

Andrew推荐了两款软件，Octave和MATLAB，Octave开源免费，MATLAB要钱，不过可以使用MATLAB Online Licenses免费完成这门课的作业，于是我选择了MATLAB Online来做作业。

怎么在MATLAB Online上做作业并且提交可以看「Rose Island」Coursera Machine Learning如何提交MATLAB Online作业。

Multiple Features

The multivariable form of the hypothesis function is as follows:
$$h_{\theta }(x)={\theta }_0+{\theta }_1{x}_1+{\theta }_2{x}_2+\dots +{\theta }_n{x}_n$$
For convenience of notation, define $x_0=1$ to make the two vectors $\theta$ and $X$ match each other element-size.
$$h_{\theta }(x)={\theta }_0{x}_0+{\theta }_1{x}_1+{\theta }_2{x}_2+\dots +{\theta }_n{x}_n$$
Notation:

• $x^{(i)}=$ input(features) of $i^{th}$ training example.

  It is a vector describing the feature of one training example.

• $x_j^{(i)}=$ value of feature $j$ in $i^{th}$ training example.

  It is a real number.

• $x^{(i)}=\left[\begin{array}{c}{x}_0^{(i)}\\ x_1^{(i)}\\ x_2^{(i)}\\ \dots \\ x_n^{(i)}\end{array}\right]\in {\mathbb{R}}^{n+1}$，$x_0^{(i)}=1$

• $\theta =\left[\begin{array}{c}{\theta }_0\\ {\theta }_1\\ {\theta }_2\\ \dots \\ {\theta }_n\end{array}\right]\in {\mathbb{R}}^{n+1}$

So $h_{\theta }(x)$ could be decribed by vector as follows:
$$h_{\theta }(x)={\theta }^{T}x$$

Gradient descent for multiply variables

• Hypothesis:
  $$h_{\theta }(x)={\theta }^{T}x={\theta }_0{x}_0+{\theta }_1{x}_1+{\theta }_2{x}_2+\dots +{\theta }_n{x}_n$$

• Parameters:
  $$\theta =\left[\begin{array}{c}{\theta }_0\\ {\theta }_1\\ {\theta }_2\\ \dots \\ {\theta }_n\end{array}\right]\in {\mathbb{R}}^{n+1}$$

• Cost Function:
  $$J(\theta )=\frac{1}{2m}\sum _{i=1}^m(h_{\theta }(x^{(i)})-y^{(i)}{)}^2$$

• Gradient Descent:
  r e p e a t { θ j : = θ j − α ∂ ∂ θ j J ( θ ) } repeat\{\quad\quad \theta_j:=\theta_j - \alpha{\frac{\partial}{\partial\theta_j}J(\theta)} \quad\quad\} repeat{θj​:=θj​−α∂θj​∂​J(θ)}
  It is the same as:
  r e p e a t { θ j : = θ j − α 1 m ∑ i = 1 m ( ( θ T x ( i ) − y ( i ) ) x j ( i ) ) } x 0 ( i ) = 1 repeat\{\quad\quad \theta_j:=\theta_j - \alpha\frac{1}{m}\sum_{i=1}^{m}((\theta^Tx^{(i)}-y^{(i)})x^{(i)}_j) \quad\quad\}\quad x^{(i)}_0 = 1 repeat{θj​:=θj​−αm1​i=1∑m​((θTx(i)−y(i))xj(i)​)}x0(i)​=1
  Simulaneously update ${\theta }_j$ for every $j=0,1,\dots ，n$.

Feature Scaling & Mean Normalization

Key Point: Make sure features are on a similar scale.

We can speed up gradient descent by having each of our input values in roughly the same range. This is because θ will descend quickly on small ranges and slowly on large ranges, and so will oscillate inefficiently down to the optimum when the variables are very uneven.

当数据集中$x_1$的值比$x_2$大几十几百倍时，在梯度下降的过程中，当${\theta }_1$和${\theta }_2$改变同样大小时，$J$在${\theta }_1$的方向上变化更加剧烈，contour plot更陡。

There are two methods to realize the quick descent of $\theta$: Feature Scaling and Mean Normalization.

Feature scaling involves dividing the input values by the range (i.e. the maximum value minus the minimum value) of the input variable, resulting in a new range of just 1.

Mean normalization involves subtracting the average value for an input variable from the values for that input variable resulting in a new average value for the input variable of just zero.

• Feature Scaling
  $$x_i:=\frac{x_i}{\max (x_i)}$$
  This method gets every feature into approximately a $-1\le x_j\le 1$ range.

  e.g. As the picture shown above.

• Mean Normalization
  $$x_i:=\frac{x_i-{\mu }_i}{s_i}$$
  Where ${\mu }_i$ is the average of all the values for feature (i) and $s_i$ is the range of values (max - min), or $s_i$ is the standard deviation.

  This method make features have approximately zero mean(Do not apply to $x_0=1$)

  e.g. if $x_i$ represents housing prices with a range of 100 to 2000 and a mean value of 1000, then, then, $x_i:=\frac{price-1000}{1900}$.

Learning Rate

Debugging gradient descent. Make a plot with number of iterations on the x-axis. Now plot the cost function, $J(\theta )$ over the number of iterations of gradient descent. If $J(\theta )$ ever increases, then you probably need to decrease $\alpha$.

Automatic convergence test. Declare convergence if $J(\theta )$ decreases by less than E in one iteration, where E is some small value such as $10^{-3}$. However in practice it’s difficult to choose this threshold value.

Summarization:

• If $\alpha$ is too small: slow convergence.
• If $\alpha$ is too large: may not decrease on every iteration and thus may not convergence.

To choose $\alpha$, try: $\dots ,0.001,0.003,0.01,0.03,0.1,0.3,1,\dots$

Polynomial Regression

We can make our hypothesis function a quadratic, cubic or square root function.

One important thing to keep in mind is, if you choose your features this way then feature scaling becomes very important.

eg. if $x_1$ has range 1 - 1000 then range of $x_1^2$ becomes 1 - 1000000 and that of $x_1^3$ becomes 1 - 1000000000.

Normal Equation

It is a method to solve for $\theta$ analytically and feature scaling doesn’t matter here.
$$\theta =(X^{T}X{)}^{-1}{X}^{T}y$$
The derivation could be referred to 「zoe9698」正规方程（标准方程）法—笔记.
The code in Matlab:

theta = inv(X'*X)*X'*y

Notations:

• $m$ examples: $(x^{(1)},y^{(1)}),(x^{(2)},y^{(2)}),\dots ,(x^{(m)},y^{(m)})$

• $n$ features

• $x^{(i)}=\left[\begin{array}{c}{x}_0^{(i)}\\ x_1^{(i)}\\ x_2^{(i)}\\ \dots \\ x_n^{(i)}\end{array}\right]\in {\mathbb{R}}^{n+1}$

• $X=\left[\begin{array}{c}——(x^{(1)}{)}^T——\\ ——(x^{(2)}{)}^T——\\ \dots \\ ——(x^{(m)}{)}^T——\end{array}\right]$

• $y=\left[\begin{array}{c}{y}^{(1)}\\ y^{(2)}\\ \dots \\ y^{(m)}\end{array}\right]$

e.g. If $x^{(i)}=\left[\begin{array}{c}1\\ x_1^{(i)}\end{array}\right]$, then, $X=\left[\begin{array}{c}1x_1^{(1)}\\ 1x_1^{(2)}\\ \dots \dots \\ 1x_1^{(m)}\end{array}\right]$

Comparsion of gradient descent and normal equation:

Gradient Descent	Normal Equation
Need to choose $\alpha$	No need to choose $\alpha$
Need many iterations	No need to iterate
Works well when n is large	Slow if n is large beacuse of $(X^{T}X{)}^{(-1)}$
Complexity $O(k{n}^2)$	Complexity $O(n^3)$

Normal equation could be useful only when $X^{T}X$ is invertible, otherwise, the common causes might be having:

• Redundant features, where two features are very closely related (i.e. they are linearly dependent).
• Too many features (e.g. m ≤ n). In this case, delete some features or use “regularization”.

Basic Codes in Matlab

v = 1:0.1:3;
a = ones(2,3);
b = zero(2,3);
c = eye(4);			% Identity matrix
d = rand(1,3);		% 3 random numbers between 0 and 1
e = size(a,2);		% return the 2-dim (column) number of a
f = length(a);		% return the column number of a
g = a(2,:);			% get every element along that row or column
h = a + ones(length(a),1);
[val,ind] = max(a);
[r,c] = find(a < 3);
i = magic(3);		% all of their rows, columns and diagonals sum up to the same
j = sum(a);
k = prod(a);		% multiplication
l = floor(a);		% rounds down
m = ceil(a);		% rounds up
n = round(a);		% rounds off
o = flipud(eye(9));	% permutation

Conclusion

全部写完了之后发现还是不太会做……罢了……

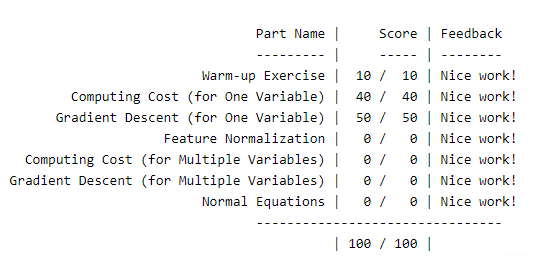

终于是坎坎坷坷地做完了作业！
