应用的启动：Launcher应用点击桌面应用，应用启动。
frameworks\base\core\java\android\app\Activity.java：

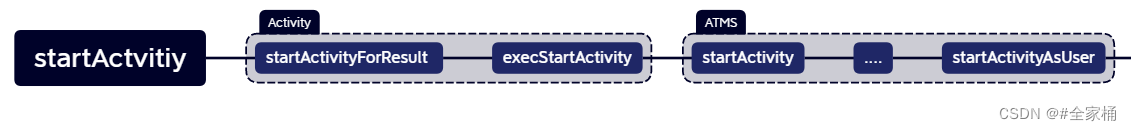

启动一个Activity我们很熟悉，就是startActivity：
public void startActivity(Intent intent, @Nullable Bundle options) {
if (options != null) {
startActivityForResult(intent, -1, options);
} else {
// Note we want to go through this call for compatibility with
// applications that may have overridden the method.
startActivityForResult(intent, -1);
}
}
public void startActivityForResult(@RequiresPermission Intent intent, int requestCode) {
startActivityForResult(intent, requestCode, null);
}
public void startActivityForResult(@RequiresPermission Intent intent, int requestCode, @Nullable Bundle options) {
....
Instrumentation.ActivityResult ar =
mInstrumentation.execStartActivity(
this, mMainThread.getApplicationThread(), mToken, this,
intent, requestCode, options);
....
}看execStartActivity方法的参数，mToken是一个IBinder，与mInstrumentation和mMainThread都在调用activity的attach方法时赋的值。
接下来继续跟进execStartActivity
public ActivityResult execStartActivity(
Context who, IBinder contextThread, IBinder token, Activity target,
Intent intent, int requestCode, Bundle options) {
....
try {
intent.migrateExtraStreamToClipData();
intent.prepareToLeaveProcess(who);
int result = ActivityTaskManager.getService()
.startActivity(whoThread, who.getBasePackageName(), intent,
intent.resolveTypeIfNeeded(who.getContentResolver()),
token, target != null ? target.mEmbeddedID : null,
requestCode, 0, null, options);
checkStartActivityResult(result, intent);
} catch (RemoteException e) {
throw new RuntimeException("Failure from system", e);
}
return null;
}这里调用了ActivityTaskManager.getService().startActivity()这个方法进行了跳转。
我们先看ActivityTaskManager.getService()
public static IActivityTaskManager getService() {
return IActivityTaskManagerSingleton.get();
}
public final T get() {
synchronized (this) {
if (mInstance == null) {
mInstance = create();
}
return mInstance;
}
}
@UnsupportedAppUsage(trackingBug = 129726065)
private static final Singleton<IActivityTaskManager> IActivityTaskManagerSingleton =
new Singleton<IActivityTaskManager>() {
@Override
protected IActivityTaskManager create() {
final IBinder b = ServiceManager.getService(Context.ACTIVITY_TASK_SERVICE);
return IActivityTaskManager.Stub.asInterface(b);
}
};
ActivityTaskManager.getService()中先用ServiceManager.getService(Context.ACTIVITY_TASK_SERVICE)获取了IBinder对象，按照之前分析Binder，我们知道这里可能是一个BPBinder。
然后我们将这个BPBinder再转化为IActivityTaskManager接口对象。
我们可以继续看下ServiceManager.getService(Context.ACTIVITY_TASK_SERVICE);
public static IBinder getService(String name) {
try {
IBinder service = sCache.get(name);
if (service != null) {
return service;
} else {
return Binder.allowBlocking(rawGetService(name));
}
} catch (RemoteException e) {
Log.e(TAG, "error in getService", e);
}
return null;
}
private static IBinder rawGetService(String name) throws RemoteException {
final IBinder binder = getIServiceManager().getService(name);
....
return binder;
}
private static IServiceManager getIServiceManager() {
if (sServiceManager != null) {
return sServiceManager;
}
// Find the service manager
sServiceManager = ServiceManagerNative
.asInterface(Binder.allowBlocking(BinderInternal.getContextObject()));
return sServiceManager;
}
getIServiceManager()我们之前分析过了，就是获取ServiceManagerProxy，ServiceManagerProxy是用BinderProxy封装成的，BinderProxy里面有Native的BPBinder的弱引用对象，所以ServiceManager.getService(Context.ACTIVITY_TASK_SERVICE);最后就是向BnServiceManager获取到该服务对象。
回到ActivityTaskManager.getService(Context.ACTIVITY_TASK_SERVICE).startActivity()
现在我们知道了ActivityTaskManager.getService(Context.ACTIVITY_TASK_SERVICE)是获取IActivityTaskManager对应的服务，那么我们应该怎么找到对应的服务实体？
我们全局找一下ACTIVITY_TASK_SERVICE或者IActivityTaskManager.Stub
frameworks\base\services\core\java\com\android\server\wm\ActivityTaskManagerService.java：
public class ActivityTaskManagerService extends IActivityTaskManager.Stub
public static final class Lifecycle extends SystemService {
private final ActivityTaskManagerService mService;
public Lifecycle(Context context) {
super(context);
mService = new ActivityTaskManagerService(context);
}
@Override
public void onStart() {
publishBinderService(Context.ACTIVITY_TASK_SERVICE, mService);
mService.start();
}
....
}找到了一块熟悉的代码，Lifecycle是ATMS的内部类，这里我们之前分析过，publishBinderService就是向ServiceManager添加该服务，因为ATMS使用了AIDL，所以onTransact方法在ATMS的Stub类里面，我们这里直接看ATMS的startActivity方法
public final int startActivity(IApplicationThread caller, String callingPackage,
Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle bOptions) {
return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,
resultWho, requestCode, startFlags, profilerInfo, bOptions,
UserHandle.getCallingUserId());
}
@Override
public int startActivityAsUser(IApplicationThread caller, String callingPackage,
Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle bOptions, int userId) {
return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,
resultWho, requestCode, startFlags, profilerInfo, bOptions, userId,
true /*validateIncomingUser*/);
}
int startActivityAsUser(IApplicationThread caller, String callingPackage,
Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,
int startFlags, ProfilerInfo profilerInfo, Bundle bOptions, int userId,
boolean validateIncomingUser) {
enforceNotIsolatedCaller("startActivityAsUser");
userId = getActivityStartController().checkTargetUser(userId, validateIncomingUser,
Binder.getCallingPid(), Binder.getCallingUid(), "startActivityAsUser");
// TODO: Switch to user app stacks here.
return getActivityStartController().obtainStarter(intent, "startActivityAsUser")
.setCaller(caller)
.setCallingPackage(callingPackage)
.setResolvedType(resolvedType)
.setResultTo(resultTo)
.setResultWho(resultWho)
.setRequestCode(requestCode)
.setStartFlags(startFlags)
.setProfilerInfo(profilerInfo)
.setActivityOptions(bOptions)
.setMayWait(userId)
.execute();

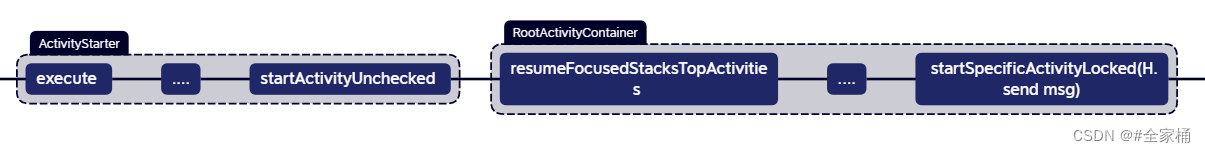

}obtainStarter返回的是ActivityStarter对象，这里set了很多参数最后执行execute方法，这里注意调用setMayWait。
ActivityStarter setMayWait(int userId) {
mRequest.mayWait = true;
mRequest.userId = userId;
return this;
}
int execute() {
try {
// TODO(b/64750076): Look into passing request directly to these methods to allow
// for transactional diffs and preprocessing.
if (mRequest.mayWait) {
return startActivityMayWait(mRequest.caller, mRequest.callingUid,
mRequest.callingPackage, mRequest.realCallingPid, mRequest.realCallingUid,
mRequest.intent, mRequest.resolvedType,
mRequest.voiceSession, mRequest.voiceInteractor, mRequest.resultTo,
mRequest.resultWho, mRequest.requestCode, mRequest.startFlags,
mRequest.profilerInfo, mRequest.waitResult, mRequest.globalConfig,
mRequest.activityOptions, mRequest.ignoreTargetSecurity, mRequest.userId,
mRequest.inTask, mRequest.reason,
mRequest.allowPendingRemoteAnimationRegistryLookup,
mRequest.originatingPendingIntent, mRequest.allowBackgroundActivityStart);
} else {
return startActivity(mRequest.caller, mRequest.intent, mRequest.ephemeralIntent,
mRequest.resolvedType, mRequest.activityInfo, mRequest.resolveInfo,
mRequest.voiceSession, mRequest.voiceInteractor, mRequest.resultTo,
mRequest.resultWho, mRequest.requestCode, mRequest.callingPid,
mRequest.callingUid, mRequest.callingPackage, mRequest.realCallingPid,
mRequest.realCallingUid, mRequest.startFlags, mRequest.activityOptions,
mRequest.ignoreTargetSecurity, mRequest.componentSpecified,
mRequest.outActivity, mRequest.inTask, mRequest.reason,
mRequest.allowPendingRemoteAnimationRegistryLookup,
mRequest.originatingPendingIntent, mRequest.allowBackgroundActivityStart);
}
} finally {
onExecutionComplete();
}
}mRequest.mayWait为true，走startActivityMayWait
private int startActivityMayWait(IApplicationThread caller,....) {
....
ResolveInfo rInfo = mSupervisor.resolveIntent(intent, resolvedType, userId,
....
// Collect information about the target of the Intent.
ActivityInfo aInfo = mSupervisor.resolveActivity(intent, rInfo, startFlags, profilerInfo);
synchronized (mService.mGlobalLock) {
.....
final ActivityRecord[] outRecord = new ActivityRecord[1];
int res = startActivity(caller, intent, ephemeralIntent, resolvedType, aInfo, rInfo,
voiceSession, voiceInteractor, resultTo, resultWho, requestCode, callingPid,
callingUid, callingPackage, realCallingPid, realCallingUid, startFlags, options,
ignoreTargetSecurity, componentSpecified, outRecord, inTask, reason,
allowPendingRemoteAnimationRegistryLookup, originatingPendingIntent,
allowBackgroundActivityStart);
....
if (outResult != null) {
outResult.result = res;
final ActivityRecord r = outRecord[0];
switch(res) {
case START_SUCCESS: {
mSupervisor.mWaitingActivityLaunched.add(outResult);
do {
try {
mService.mGlobalLock.wait();
} catch (InterruptedException e) {
}
} while (outResult.result != START_TASK_TO_FRONT
&& !outResult.timeout && outResult.who == null);
if (outResult.result == START_TASK_TO_FRONT) {
res = START_TASK_TO_FRONT;
}
break;
}
case START_DELIVERED_TO_TOP: {
outResult.timeout = false;
outResult.who = r.mActivityComponent;
outResult.totalTime = 0;
break;
}
case START_TASK_TO_FRONT: {
.....
break;
}
}
}
return res;
}
}
private int startActivity(IApplicationThread caller, Intent intent, ....) {
if (TextUtils.isEmpty(reason)) {
throw new IllegalArgumentException("Need to specify a reason.");
}
mLastStartReason = reason;
mLastStartActivityTimeMs = System.currentTimeMillis();
mLastStartActivityRecord[0] = null;
mLastStartActivityResult = startActivity(caller, intent, ephemeralIntent, resolvedType,
aInfo, rInfo, voiceSession, voiceInteractor, resultTo, resultWho, requestCode,
callingPid, callingUid, callingPackage, realCallingPid, realCallingUid, startFlags,
options, ignoreTargetSecurity, componentSpecified, mLastStartActivityRecord,
inTask, allowPendingRemoteAnimationRegistryLookup, originatingPendingIntent,
allowBackgroundActivityStart);
if (outActivity != null) {
// mLastStartActivityRecord[0] is set in the call to startActivity above.
outActivity[0] = mLastStartActivityRecord[0];
}
return getExternalResult(mLastStartActivityResult);
}
private int startActivity(IApplicationThread caller, Intent intent, ....) {
.....
final int res = startActivity(r, sourceRecord, voiceSession, voiceInteractor, startFlags,
true /* doResume */, checkedOptions, inTask, outActivity, restrictedBgActivity);
mSupervisor.getActivityMetricsLogger().notifyActivityLaunched(res, outActivity[0]);
return res;
}
private int startActivity(final ActivityRecord r, .....) {
int result = START_CANCELED;
final ActivityStack startedActivityStack;
try {
mService.mWindowManager.deferSurfaceLayout();
result = startActivityUnchecked(r, sourceRecord, voiceSession, voiceInteractor,
startFlags, doResume, options, inTask, outActivity, restrictedBgActivity);
}
......
return result;
}
private int startActivityUnchecked(final ActivityRecord r, ....) {
.....
mTargetStack.startActivityLocked(mStartActivity, topFocused, newTask, mKeepCurTransition,
mOptions);
if (mDoResume) {
final ActivityRecord topTaskActivity =
mStartActivity.getTaskRecord().topRunningActivityLocked();
if (!mTargetStack.isFocusable()
|| (topTaskActivity != null && topTaskActivity.mTaskOverlay
&& mStartActivity != topTaskActivity)) {
// If the activity is not focusable, we can't resume it, but still would like to
// make sure it becomes visible as it starts (this will also trigger entry
// animation). An example of this are PIP activities.
// Also, we don't want to resume activities in a task that currently has an overlay
// as the starting activity just needs to be in the visible paused state until the
// over is removed.
mTargetStack.ensureActivitiesVisibleLocked(mStartActivity, 0, !PRESERVE_WINDOWS);
// Go ahead and tell window manager to execute app transition for this activity
// since the app transition will not be triggered through the resume channel.
mTargetStack.getDisplay().mDisplayContent.executeAppTransition();
} else {
// If the target stack was not previously focusable (previous top running activity
// on that stack was not visible) then any prior calls to move the stack to the
// will not update the focused stack. If starting the new activity now allows the
// task stack to be focusable, then ensure that we now update the focused stack
// accordingly.
if (mTargetStack.isFocusable()
&& !mRootActivityContainer.isTopDisplayFocusedStack(mTargetStack)) {
mTargetStack.moveToFront("startActivityUnchecked");
}
mRootActivityContainer.resumeFocusedStacksTopActivities(
mTargetStack, mStartActivity, mOptions);
}
} else if (mStartActivity != null) {
mSupervisor.mRecentTasks.add(mStartActivity.getTaskRecord());
}
mRootActivityContainer.updateUserStack(mStartActivity.mUserId, mTargetStack);
mSupervisor.handleNonResizableTaskIfNeeded(mStartActivity.getTaskRecord(),
preferredWindowingMode, mPreferredDisplayId, mTargetStack);
return START_SUCCESS;
}
startActivityUnchecked()调用了mTargetStack.startActivityLocked()，这个方法比较重要。
void startActivityLocked(ActivityRecord r, ActivityRecord focusedTopActivity,
boolean newTask, boolean keepCurTransition, ActivityOptions options) {
TaskRecord rTask = r.getTaskRecord();
final int taskId = rTask.taskId;
final boolean allowMoveToFront = options == null || !options.getAvoidMoveToFront();
// mLaunchTaskBehind tasks get placed at the back of the task stack.
if (!r.mLaunchTaskBehind && allowMoveToFront
&& (taskForIdLocked(taskId) == null || newTask)) {
// Last activity in task had been removed or ActivityManagerService is reusing task.
// Insert or replace.
// Might not even be in.
insertTaskAtTop(rTask, r);
}
TaskRecord task = null;
if (!newTask) {
// If starting in an existing task, find where that is...
boolean startIt = true;
for (int taskNdx = mTaskHistory.size() - 1; taskNdx >= 0; --taskNdx) {
task = mTaskHistory.get(taskNdx);
if (task.getTopActivity() == null) {
// All activities in task are finishing.
continue;
}
if (task == rTask) {
// Here it is! Now, if this is not yet visible to the
// user, then just add it without starting; it will
// get started when the user navigates back to it.
if (!startIt) {
if (DEBUG_ADD_REMOVE) Slog.i(TAG, "Adding activity " + r + " to task "
+ task, new RuntimeException("here").fillInStackTrace());
r.createAppWindowToken();
ActivityOptions.abort(options);
return;
}
break;
} else if (task.numFullscreen > 0) {
startIt = false;
}
}
}startActivityLocked方法就是找到要启动的Activity的TaskRecord，并将activity插入到合适位置。 这样activity对应ActivityRecord就加入到对应ActivityStack中的对应的TaskRecord中了。
mRootActivityContainer.resumeFocusedStacksTopActivities(mTargetStack, mStartActivity, mOptions);
frameworks\base\services\core\java\com\android\server\wm\RootActivityContainer.java：
boolean resumeFocusedStacksTopActivities(
ActivityStack targetStack, ActivityRecord target, ActivityOptions targetOptions) {
....
if (targetStack != null && (targetStack.isTopStackOnDisplay()
|| getTopDisplayFocusedStack() == targetStack)) {
result = targetStack.resumeTopActivityUncheckedLocked(target, targetOptions);
}
....
return result;
}
boolean resumeTopActivityUncheckedLocked(ActivityRecord prev, ActivityOptions options) {
....
result = resumeTopActivityInnerLocked(prev, options);
....
return result;
}
private boolean resumeTopActivityInnerLocked(ActivityRecord prev, ActivityOptions options) {
ActivityRecord next = topRunningActivityLocked(true /* focusableOnly */);
....
if (next.attachedToProcess()) {
.....
} else {
.....
mStackSupervisor.startSpecificActivityLocked(next, true, true);
}
return true;
}
void startSpecificActivityLocked(ActivityRecord r, boolean andResume, boolean checkConfig) {
// Is this activity's application already running?
final WindowProcessController wpc =
mService.getProcessController(r.processName, r.info.applicationInfo.uid);
boolean knownToBeDead = false;
if (wpc != null && wpc.hasThread()) {
....
realStartActivityLocked(r, wpc, andResume, checkConfig);
return;
....
}
// Post message to start process to avoid possible deadlock of calling into AMS with the ATMS lock held.
final Message msg = PooledLambda.obtainMessage(
ActivityManagerInternal::startProcess, mService.mAmInternal, r.processName,
r.info.applicationInfo, knownToBeDead, "activity", r.intent.getComponent());
mService.mH.sendMessage(msg);
....
}显然应用还没启动，所以会走到下面的sendMessage，我们可以看到参数里ActivityManagerInternal::startProcess方法，ActivityManagerInternal是个抽象类。
mService.mH是什么呢
final ActivityTaskManagerService mService；
H mH;
所以mService.mH.sendMessage(msg);发送到了ATMS的Handler。

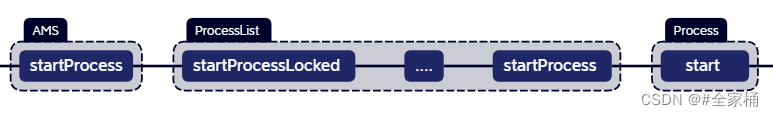

AMS中有的内部类LocalService继承了ActivityManagerInternal，
public final class LocalService extends ActivityManagerInternal
frameworks\base\services\core\java\com\android\server\am\ActivityManagerService.java:
public void startProcess(String processName, ApplicationInfo info,
boolean knownToBeDead, String hostingType, ComponentName hostingName) {
synchronized (ActivityManagerService.this) {
startProcessLocked(processName, info, knownToBeDead, 0 /* intentFlags */,
new HostingRecord(hostingType, hostingName),
false /* allowWhileBooting */, false /* isolated */,
true /* keepIfLarge */);
}
}
final ProcessRecord startProcessLocked(String processName,
ApplicationInfo info, boolean knownToBeDead, int intentFlags,
HostingRecord hostingRecord, boolean allowWhileBooting,
boolean isolated, boolean keepIfLarge) {
return mProcessList.startProcessLocked(processName, info, knownToBeDead, intentFlags,
hostingRecord, allowWhileBooting, isolated, 0 /* isolatedUid */, keepIfLarge,
null /* ABI override */, null /* entryPoint */, null /* entryPointArgs */,
null /* crashHandler */);
}frameworks\base\services\core\java\com\android\server\am\ProcessList.java:
final ProcessRecord startProcessLocked(String processName, ApplicationInfo info,...) {
ProcessRecord app;
if (app == null) {
app = newProcessRecordLocked(info, processName, isolated, isolatedUid, hostingRecord);
.....
} else {
// If this is a new package in the process, add the package to the list
app.addPackage(info.packageName, info.longVersionCode, mService.mProcessStats);
}
final boolean success = startProcessLocked(app, hostingRecord, abiOverride);
return success ? app : null;
}
final boolean startProcessLocked(ProcessRecord app, HostingRecord hostingRecord,
String abiOverride) {
return startProcessLocked(app, hostingRecord,
false /* disableHiddenApiChecks */, false /* mountExtStorageFull */, abiOverride);
}
boolean startProcessLocked(ProcessRecord app, HostingRecord hostingRecord,
boolean disableHiddenApiChecks, boolean mountExtStorageFull,
String abiOverride) {
AppGlobals.getPackageManager().checkPackageStartable(app.info.packageName, userId);
....
// Start the process. It will either succeed and return a result containing
// the PID of the new process, or else throw a RuntimeException.
final String entryPoint = "android.app.ActivityThread";
return startProcessLocked(hostingRecord, entryPoint, app, uid, gids,
runtimeFlags, mountExternal, seInfo, requiredAbi, instructionSet, invokeWith,
startTime);
} catch (RuntimeException e) {
mService.forceStopPackageLocked(app.info.packageName, UserHandle.getAppId(app.uid),
false, false, true, false, false, app.userId, "start failure");
return false;
}
}
boolean startProcessLocked(HostingRecord hostingRecord, ....) {
....
final Process.ProcessStartResult startResult = startProcess(hostingRecord,
entryPoint, app,
uid, gids, runtimeFlags, mountExternal, seInfo, requiredAbi, instructionSet,
invokeWith, startTime);
handleProcessStartedLocked(app, startResult.pid, startResult.usingWrapper,
startSeq, false);
return app.pid > 0;
}
private Process.ProcessStartResult startProcess(HostingRecord hostingRecord, ....) {
try {
final Process.ProcessStartResult startResult;
if (hostingRecord.usesWebviewZygote()) {
startResult = startWebView(entryPoint,
app.processName, uid, uid, gids, runtimeFlags, mountExternal,
app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
app.info.dataDir, null, app.info.packageName,
new String[] {PROC_START_SEQ_IDENT + app.startSeq});
} else if (hostingRecord.usesAppZygote()) {
final AppZygote appZygote = createAppZygoteForProcessIfNeeded(app);
startResult = appZygote.getProcess().start(entryPoint,
app.processName, uid, uid, gids, runtimeFlags, mountExternal,
app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
app.info.dataDir, null, app.info.packageName,
/*useUsapPool=*/ false,
new String[] {PROC_START_SEQ_IDENT + app.startSeq});
} else {
startResult = Process.start(entryPoint,
app.processName, uid, uid, gids, runtimeFlags, mountExternal,
app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
app.info.dataDir, invokeWith, app.info.packageName,
new String[] {PROC_START_SEQ_IDENT + app.startSeq});
}
return startResult;
} finally {
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
}
}
frameworks\base\core\java\android\os\Process.java:
public static ProcessStartResult start(@NonNull final String processClass,
@Nullable final String niceName,
int uid, int gid, @Nullable int[] gids,
int runtimeFlags,
int mountExternal,
int targetSdkVersion,
@Nullable String seInfo,
@NonNull String abi,
@Nullable String instructionSet,
@Nullable String appDataDir,
@Nullable String invokeWith,
@Nullable String packageName,
@Nullable String[] zygoteArgs) {
return ZYGOTE_PROCESS.start(processClass, niceName, uid, gid, gids,
runtimeFlags, mountExternal, targetSdkVersion, seInfo,
abi, instructionSet, appDataDir, invokeWith, packageName,
/*useUsapPool=*/ true, zygoteArgs);

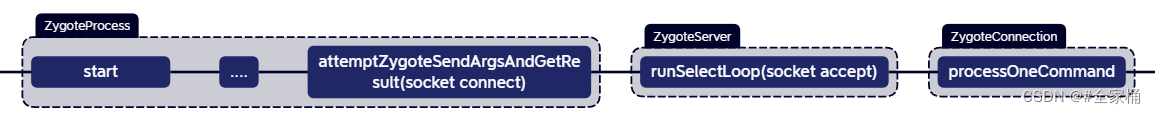

}frameworks\base\core\java\android\os\ZygoteProcess.java:
public final Process.ProcessStartResult start(@NonNull final String processClass,
final String niceName,
int uid, int gid, @Nullable int[] gids,
int runtimeFlags, int mountExternal,
int targetSdkVersion,
@Nullable String seInfo,
@NonNull String abi,
@Nullable String instructionSet,
@Nullable String appDataDir,
@Nullable String invokeWith,
@Nullable String packageName,
boolean useUsapPool,
@Nullable String[] zygoteArgs) {
// TODO (chriswailes): Is there a better place to check this value?
if (fetchUsapPoolEnabledPropWithMinInterval()) {
informZygotesOfUsapPoolStatus();
}
try {
return startViaZygote(processClass, niceName, uid, gid, gids,
runtimeFlags, mountExternal, targetSdkVersion, seInfo,
abi, instructionSet, appDataDir, invokeWith, /*startChildZygote=*/ false,
packageName, useUsapPool, zygoteArgs);
} catch (ZygoteStartFailedEx ex) {
Log.e(LOG_TAG,
"Starting VM process through Zygote failed");
}
}
private Process.ProcessStartResult startViaZygote(@NonNull final String processClass,
@Nullable final String niceName,
final int uid, final int gid,
@Nullable final int[] gids,
int runtimeFlags, int mountExternal,
int targetSdkVersion,
@Nullable String seInfo,
@NonNull String abi,
@Nullable String instructionSet,
@Nullable String appDataDir,
@Nullable String invokeWith,
boolean startChildZygote,
@Nullable String packageName,
boolean useUsapPool,
@Nullable String[] extraArgs)
throws ZygoteStartFailedEx {
ArrayList<String> argsForZygote = new ArrayList<>();
// --runtime-args, --setuid=, --setgid=,
// and --setgroups= must go first
argsForZygote.add("--runtime-args");
argsForZygote.add("--setuid=" + uid);
argsForZygote.add("--setgid=" + gid);
argsForZygote.add("--runtime-flags=" + runtimeFlags);
if (mountExternal == Zygote.MOUNT_EXTERNAL_DEFAULT) {
argsForZygote.add("--mount-external-default");
} else if (mountExternal == Zygote.MOUNT_EXTERNAL_READ) {
argsForZygote.add("--mount-external-read");
} else if (mountExternal == Zygote.MOUNT_EXTERNAL_WRITE) {
argsForZygote.add("--mount-external-write");
} else if (mountExternal == Zygote.MOUNT_EXTERNAL_FULL) {
argsForZygote.add("--mount-external-full");
} else if (mountExternal == Zygote.MOUNT_EXTERNAL_INSTALLER) {
argsForZygote.add("--mount-external-installer");
} else if (mountExternal == Zygote.MOUNT_EXTERNAL_LEGACY) {
argsForZygote.add("--mount-external-legacy");
}
argsForZygote.add("--target-sdk-version=" + targetSdkVersion);
// --setgroups is a comma-separated list
if (gids != null && gids.length > 0) {
StringBuilder sb = new StringBuilder();
sb.append("--setgroups=");
int sz = gids.length;
for (int i = 0; i < sz; i++) {
if (i != 0) {
sb.append(',');
}
sb.append(gids[i]);
}
argsForZygote.add(sb.toString());
}
if (niceName != null) {
argsForZygote.add("--nice-name=" + niceName);
}
if (seInfo != null) {
argsForZygote.add("--seinfo=" + seInfo);
}
if (instructionSet != null) {
argsForZygote.add("--instruction-set=" + instructionSet);
}
if (appDataDir != null) {
argsForZygote.add("--app-data-dir=" + appDataDir);
}
if (invokeWith != null) {
argsForZygote.add("--invoke-with");
argsForZygote.add(invokeWith);
}
if (startChildZygote) {
argsForZygote.add("--start-child-zygote");
}
if (packageName != null) {
argsForZygote.add("--package-name=" + packageName);
}
argsForZygote.add(processClass);
if (extraArgs != null) {
Collections.addAll(argsForZygote, extraArgs);
}
synchronized(mLock) {
// The USAP pool can not be used if the application will not use the systems graphics
// driver. If that driver is requested use the Zygote application start path.
return zygoteSendArgsAndGetResult(openZygoteSocketIfNeeded(abi),
useUsapPool,
argsForZygote);
}
}
private Process.ProcessStartResult zygoteSendArgsAndGetResult(
ZygoteState zygoteState, boolean useUsapPool, @NonNull ArrayList<String> args)
throws ZygoteStartFailedEx {
....
return attemptZygoteSendArgsAndGetResult(zygoteState, msgStr);
}
private Process.ProcessStartResult attemptZygoteSendArgsAndGetResult(
ZygoteState zygoteState, String msgStr) throws ZygoteStartFailedEx {
try {
final BufferedWriter zygoteWriter = zygoteState.mZygoteOutputWriter;
final DataInputStream zygoteInputStream = zygoteState.mZygoteInputStream;
zygoteWriter.write(msgStr);
zygoteWriter.flush();
// Always read the entire result from the input stream to avoid leaving
// bytes in the stream for future process starts to accidentally stumble
// upon.
Process.ProcessStartResult result = new Process.ProcessStartResult();
result.pid = zygoteInputStream.readInt();
result.usingWrapper = zygoteInputStream.readBoolean();
if (result.pid < 0) {
throw new ZygoteStartFailedEx("fork() failed");
}
return result;
} catch (IOException ex) {
zygoteState.close();
Log.e(LOG_TAG, "IO Exception while communicating with Zygote - "
+ ex.toString());
throw new ZygoteStartFailedEx(ex);
}
}
终于来到与Zygote相关的了，在这前面就是各种判断和配置参数，我们先看openZygoteSocketIfNeeded(abi)
private ZygoteState openZygoteSocketIfNeeded(String abi) throws ZygoteStartFailedEx {
try {
attemptConnectionToPrimaryZygote();
if (primaryZygoteState.matches(abi)) {
return primaryZygoteState;
}
if (mZygoteSecondarySocketAddress != null) {
// The primary zygote didn't match. Try the secondary.
attemptConnectionToSecondaryZygote();
if (secondaryZygoteState.matches(abi)) {
return secondaryZygoteState;
}
}
} catch (IOException ioe) {
throw new ZygoteStartFailedEx("Error connecting to zygote", ioe);
}
throw new ZygoteStartFailedEx("Unsupported zygote ABI: " + abi);
}
private void attemptConnectionToPrimaryZygote() throws IOException {
if (primaryZygoteState == null || primaryZygoteState.isClosed()) {
primaryZygoteState =
ZygoteState.connect(mZygoteSocketAddress, mUsapPoolSocketAddress);
maybeSetApiBlacklistExemptions(primaryZygoteState, false);
maybeSetHiddenApiAccessLogSampleRate(primaryZygoteState);
maybeSetHiddenApiAccessStatslogSampleRate(primaryZygoteState);
}
}
static ZygoteState connect(@NonNull LocalSocketAddress zygoteSocketAddress,
@Nullable LocalSocketAddress usapSocketAddress)
throws IOException {
DataInputStream zygoteInputStream;
BufferedWriter zygoteOutputWriter;
final LocalSocket zygoteSessionSocket = new LocalSocket();
if (zygoteSocketAddress == null) {
throw new IllegalArgumentException("zygoteSocketAddress can't be null");
}
try {
zygoteSessionSocket.connect(zygoteSocketAddress);
zygoteInputStream = new DataInputStream(zygoteSessionSocket.getInputStream());
zygoteOutputWriter =
new BufferedWriter(
new OutputStreamWriter(zygoteSessionSocket.getOutputStream()),
Zygote.SOCKET_BUFFER_SIZE);
} catch (IOException ex) {
try {
zygoteSessionSocket.close();
} catch (IOException ignore) { }
throw ex;
}
return new ZygoteState(zygoteSocketAddress, usapSocketAddress,
zygoteSessionSocket, zygoteInputStream, zygoteOutputWriter,
getAbiList(zygoteOutputWriter, zygoteInputStream));
}
openZygoteSocketIfNeeded方法中连接了Zygote线程的socket，并获取输入输出流对象。
zygoteSessionSocket.connect(zygoteSocketAddress);
zygoteSocketAddress是方法参数，是attemptConnectionToPrimaryZygote方法传进来的，参数是mZygoteSocketAddress，mZygoteSocketAddress是ZygoteProcess类的成员变量。
/**
* The name of the socket used to communicate with the primary zygote.
*/
private final LocalSocketAddress mZygoteSocketAddress;
找一下那里赋值的，
public ZygoteProcess() {
mZygoteSocketAddress =
new LocalSocketAddress(Zygote.PRIMARY_SOCKET_NAME,
LocalSocketAddress.Namespace.RESERVED);
mZygoteSecondarySocketAddress =
new LocalSocketAddress(Zygote.SECONDARY_SOCKET_NAME,
LocalSocketAddress.Namespace.RESERVED);
mUsapPoolSocketAddress =
new LocalSocketAddress(Zygote.USAP_POOL_PRIMARY_SOCKET_NAME,
LocalSocketAddress.Namespace.RESERVED);
mUsapPoolSecondarySocketAddress =
new LocalSocketAddress(Zygote.USAP_POOL_SECONDARY_SOCKET_NAME,
LocalSocketAddress.Namespace.RESERVED);
}
public static final String PRIMARY_SOCKET_NAME = "zygote";
public static final String SECONDARY_SOCKET_NAME = "zygote_secondary";所以zygoteSessionSocket.connect(zygoteSocketAddress)相当于
zygoteSessionSocket.connect("zygote");这个值有点熟悉，我们回到ZygoteInit的main函数看下。
frameworks\base\core\java\com\android\internal\os\ZygoteInit.java：
public static void main(String argv[]) {
ZygoteServer zygoteServer = null
Runnable caller;
try {
....
String zygoteSocketName = "zygote";
final boolean isPrimaryZygote = zygoteSocketName.equals(Zygote.PRIMARY_SOCKET_NAME);
....
zygoteServer = new ZygoteServer(isPrimaryZygote);
Log.i(TAG, "Accepting command socket connections");
// The select loop returns early in the child process after a fork and
// loops forever in the zygote.
caller = zygoteServer.runSelectLoop(abiList);
} catch (Throwable ex) {
Log.e(TAG, "System zygote died with exception", ex);
throw ex;
} finally {
if (zygoteServer != null) {
zygoteServer.closeServerSocket();
}
}
if (caller != null) {
caller.run();
}
}
ZygoteServer(boolean isPrimaryZygote) {
mUsapPoolEventFD = Zygote.getUsapPoolEventFD();
if (isPrimaryZygote) {
mZygoteSocket = Zygote.createManagedSocketFromInitSocket(Zygote.PRIMARY_SOCKET_NAME);
mUsapPoolSocket =
Zygote.createManagedSocketFromInitSocket(
Zygote.USAP_POOL_PRIMARY_SOCKET_NAME);
} else {
mZygoteSocket = Zygote.createManagedSocketFromInitSocket(Zygote.SECONDARY_SOCKET_NAME);
mUsapPoolSocket =
Zygote.createManagedSocketFromInitSocket(
Zygote.USAP_POOL_SECONDARY_SOCKET_NAME);
}
fetchUsapPoolPolicyProps();
mUsapPoolSupported = true;
}main里面创建了ZygoteServer，这里的isPrimaryZygote为true，我们看到了熟悉的常量Zygote.PRIMARY_SOCKET_NAME，所以这里用“zyogte”创建了Socket服务器，如果isPrimaryZygote为false的话就是第二个socket地址。我们在连接的时候连不上第一个socket服务器也会去尝试连接第二个。
main最后
caller = zygoteServer.runSelectLoop(abiList);
caller.run();
是开启了Socket轮询，对于请求的处理在之前的文章已经分析过了。
就是接收到socket连接的时候会去调用native层的fork方法创建一个新的进程。
我们在ProcessList.java的startProcessLocked方法中将
final String entryPoint = "android.app.ActivityThread";
作为参数最后传到socket，socket收到请求数据后，在ZygoteConnection的processOneCommand方法中会用反射执行ActivityThread的main函数。
protected static Runnable findStaticMain(String className, String[] argv,
ClassLoader classLoader) {
Class<?> cl;
try {
cl = Class.forName(className, true, classLoader);
} catch (ClassNotFoundException ex) {
throw new RuntimeException(
"Missing class when invoking static main " + className,
ex);
}
Method m;
try {
m = cl.getMethod("main", new Class[] { String[].class });
} catch (NoSuchMethodException ex) {
throw new RuntimeException(
"Missing static main on " + className, ex);
} catch (SecurityException ex) {
throw new RuntimeException(
"Problem getting static main on " + className, ex);
}
int modifiers = m.getModifiers();
if (! (Modifier.isStatic(modifiers) && Modifier.isPublic(modifiers))) {
throw new RuntimeException(
"Main method is not public and static on " + className);
}
/*
* This throw gets caught in ZygoteInit.main(), which responds
* by invoking the exception's run() method. This arrangement
* clears up all the stack frames that were required in setting
* up the process.
*/
return new MethodAndArgsCaller(m, argv);
}我们看ActivityThread的main方法
frameworks\base\core\java\android\app\ActivityThread.java：
public static void main(String[] args) {
...
Looper.prepareMainLooper();
...
ActivityThread thread = new ActivityThread();
thread.attach(false, startSeq);
...
Looper.loop();
}main中先去创建主线程的Looper然后去生成ActivityThread对象然后调用attach方法，最后去开启轮询。
@UnsupportedAppUsage
private void attach(boolean system, long startSeq) {
sCurrentActivityThread = this;
mSystemThread = system;
if (!system) {
....
final IActivityManager mgr = ActivityManager.getService();
try {
mgr.attachApplication(mAppThread, startSeq);
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
// Watch for getting close to heap limit.
BinderInternal.addGcWatcher(new Runnable() {
@Override public void run() {
....
});
} else {
...
}
ViewRootImpl.ConfigChangedCallback configChangedCallback
= (Configuration globalConfig) -> {
synchronized (mResourcesManager) {
....
};
ViewRootImpl.addConfigCallback(configChangedCallback);
}attach里面如果是systemServer的进程就走else，IActivityManager对应的是AMS，我们直接看AMS的attachApplication方法
@Override
public final void attachApplication(IApplicationThread thread, long startSeq) {
synchronized (this) {
...
attachApplicationLocked(thread, callingPid, callingUid, startSeq);
Binder.restoreCallingIdentity(origId);
}
}
private final boolean attachApplicationLocked(IApplicationThread thread,
int pid, int callingUid, long startSeq) {
ProcessRecord app;
long startTime = SystemClock.uptimeMillis();
long bindApplicationTimeMillis;
....
app = mPidsSelfLocked.get(pid);
// If this application record is still attached to a previous
// process, clean it up now.
if (app.thread != null) {
handleAppDiedLocked(app, true, true);
}
app.makeActive(thread, mProcessStats);
//mProcessesReady这个变量在AMS的 systemReady 中被赋值为true，
//所以这里的normalMode也为true
boolean normalMode = mProcessesReady || isAllowedWhileBooting(app.info);
if (normalMode) {
try {
didSomething = mAtmInternal.attachApplication(app.getWindowProcessController());
} catch (Exception e) {
Slog.wtf(TAG, "Exception thrown launching activities in " + app, e);
badApp = true;
}
}
return true;

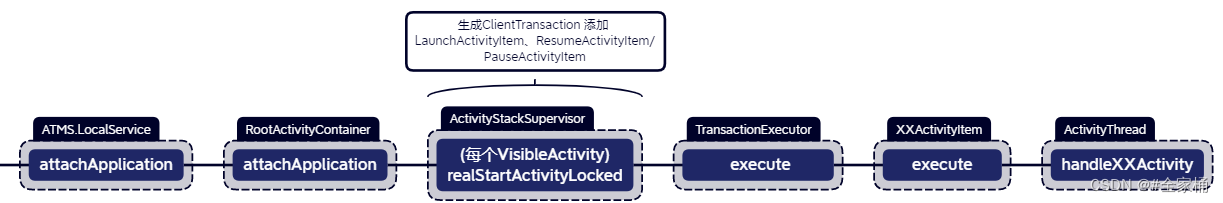

}这里的mAtmInternal是ActivityTaskManagerInternal对象。我们知道ATMS有个内部类LocalService继承了该类。
frameworks\base\services\core\java\com\android\server\wm\ActivityTaskManagerService.java：
public boolean attachApplication(WindowProcessController wpc) throws RemoteException {
synchronized (mGlobalLockWithoutBoost) {
return mRootActivityContainer.attachApplication(wpc);
}
}frameworks\base\services\core\java\com\android\server\wm\RootActivityContainer.java：
boolean attachApplication(WindowProcessController app) throws RemoteException {
final String processName = app.mName;
boolean didSomething = false;
for (int displayNdx = mActivityDisplays.size() - 1; displayNdx >= 0; --displayNdx) {
final ActivityDisplay display = mActivityDisplays.get(displayNdx);
final ActivityStack stack = display.getFocusedStack();
if (stack != null) {
stack.getAllRunningVisibleActivitiesLocked(mTmpActivityList);
final ActivityRecord top = stack.topRunningActivityLocked();
final int size = mTmpActivityList.size();
for (int i = 0; i < size; i++) {
final ActivityRecord activity = mTmpActivityList.get(i);
if (activity.app == null && app.mUid == activity.info.applicationInfo.uid
&& processName.equals(activity.processName)) {
try {
if (mStackSupervisor.realStartActivityLocked(activity, app,
top == activity /* andResume */, true /* checkConfig */)) {
didSomething = true;
}
} catch (RemoteException e) {
Slog.w(TAG, "Exception in new application when starting activity "
+ top.intent.getComponent().flattenToShortString(), e);
throw e;
}
}
}
}
}
if (!didSomething) {
ensureActivitiesVisible(null, 0, false /* preserve_windows */);
}
return didSomething;
}这里取了所有可见的activity，循环作为realStartActivityLocked方法参数
frameworks\base\services\core\java\com\android\server\wm\ActivityStackSupervisor.java：
boolean realStartActivityLocked(ActivityRecord r, WindowProcessController proc,
boolean andResume, boolean checkConfig) throws RemoteException {
// 直到所有的 onPause() 执行结束才会去启动新的 activity
if (!mRootActivityContainer.allPausedActivitiesComplete()) {
return false;
}
try {
// Create activity launch transaction.
final ClientTransaction clientTransaction = ClientTransaction.obtain(
proc.getThread(), r.appToken);
clientTransaction.addCallback(LaunchActivityItem.obtain(new Intent(r.intent),
System.identityHashCode(r), r.info,
// TODO: Have this take the merged configuration instead of separate global
// and override configs.
mergedConfiguration.getGlobalConfiguration(),
mergedConfiguration.getOverrideConfiguration(), r.compat,
r.launchedFromPackage, task.voiceInteractor, proc.getReportedProcState(),
r.icicle, r.persistentState, results, newIntents,
dc.isNextTransitionForward(), proc.createProfilerInfoIfNeeded(),
r.assistToken));
// Set desired final state.
final ActivityLifecycleItem lifecycleItem;
if (andResume) {
lifecycleItem = ResumeActivityItem.obtain(dc.isNextTransitionForward());
} else {
lifecycleItem = PauseActivityItem.obtain();
}
clientTransaction.setLifecycleStateRequest(lifecycleItem);
// Schedule transaction.
mService.getLifecycleManager().scheduleTransaction(clientTransaction);
.....
} catch (RemoteException e) {
...
}
} finally {
endDeferResume();
}
.....
return true;
}
final ClientTransaction clientTransaction = ClientTransaction.obtain( proc.getThread(), r.appToken);
clientTransaction.addCallback(LaunchActivityItem.obtain(...));
重点：这里获取了一个ClientTransaction对象，然后调用addCallback添加了LaunchActivityItem对象。
mService.getLifecycleManager().scheduleTransaction(clientTransaction);
scheduleTransaction使用到了该对象，我们先看scheduleTransaction方法
frameworks\base\services\core\java\com\android\server\wm\ClientLifecycleManager.java：
void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
final IApplicationThread client = transaction.getClient();
transaction.schedule();
....
}frameworks\base\core\java\android\app\servertransaction\ClientTransaction.java：
public void schedule() throws RemoteException {
mClient.scheduleTransaction(this);
}
public static ClientTransaction obtain(IApplicationThread client, IBinder activityToken) {
ClientTransaction instance = ObjectPool.obtain(ClientTransaction.class);
if (instance == null) {
instance = new ClientTransaction();
}
instance.mClient = client;
instance.mActivityToken = activityToken;
return instance;
}结合final ClientTransaction clientTransaction = ClientTransaction.obtain(proc.getThread(), r.appToken);
所以mService.getLifecycleManager().scheduleTransaction(clientTransaction);就是调用了proc.getThread()的scheduleTransaction方法。
但是proc.getThread()是什么呢？
我们回头到AMS的attachApplicationLocked方法，
private final boolean attachApplicationLocked(IApplicationThread thread,
int pid, int callingUid, long startSeq) {
ProcessRecord app;
long startTime = SystemClock.uptimeMillis();
long bindApplicationTimeMillis;
....
app = mPidsSelfLocked.get(pid);
// If this application record is still attached to a previous
// process, clean it up now.
if (app.thread != null) {
handleAppDiedLocked(app, true, true);
}
app.makeActive(thread, mProcessStats);
//mProcessesReady这个变量在AMS的 systemReady 中被赋值为true，
//所以这里的normalMode也为true
boolean normalMode = mProcessesReady || isAllowedWhileBooting(app.info);
if (normalMode) {
try {
didSomething = mAtmInternal.attachApplication(app.getWindowProcessController());
} catch (Exception e) {
Slog.wtf(TAG, "Exception thrown launching activities in " + app, e);
badApp = true;
}
}
return true;
}发现proc.getThread()是app.getWindowProcessController()，意思就是app.getWindowProcessController().getTread()
frameworks\base\services\core\java\com\android\server\am\ProcessRecord.java：
WindowProcessController getWindowProcessController() {
return mWindowProcessController;
}
public void makeActive(IApplicationThread _thread, ProcessStatsService tracker) {
....
thread = _thread;
mWindowProcessController.setThread(thread);
}
我们发现它是在makeActive方法中赋值的，回到AMS的attachApplicationLocked方法，我们可以找到该方法，我们看下传进去的thread是谁。
最后发现是一开始ActivityThread的attach方法传进来的
private void attach(boolean system, long startSeq) {
....
mgr.attachApplication(mAppThread, startSeq);
....
}
final ApplicationThread mAppThread = new ApplicationThread();所以最终mService.getLifecycleManager().scheduleTransaction(clientTransaction);就是调用了ApplicationThread的scheduleTransaction方法，ApplicationThread是ActivityThread的内部类，所以饶了一大圈最终又回到了ActivityThread。
public void scheduleTransaction(ClientTransaction transaction) throws RemoteException {
ActivityThread.this.scheduleTransaction(transaction);
}这里调用了ActivityThread的scheduleTransaction，ActivityThread继承了ClientTransactionHandler，scheduleTransaction在ClientTransactionHandler类中。
frameworks\base\core\java\android\app\ClientTransactionHandler.java：
void scheduleTransaction(ClientTransaction transaction) {
transaction.preExecute(this);
sendMessage(ActivityThread.H.EXECUTE_TRANSACTION, transaction);
}
这里把信息发送到ActivityThread的内部类H里面
case EXECUTE_TRANSACTION:
final ClientTransaction transaction = (ClientTransaction) msg.obj;
mTransactionExecutor.execute(transaction);
break;frameworks\base\core\java\android\app\servertransaction\TransactionExecutor.java：
public void execute(ClientTransaction transaction) {
...
executeCallbacks(transaction);
executeLifecycleState(transaction);
...
}
public void executeCallbacks(ClientTransaction transaction) {
final List<ClientTransactionItem> callbacks = transaction.getCallbacks();
final int size = callbacks.size();
for (int i = 0; i < size; ++i) {
final ClientTransactionItem item = callbacks.get(i);
item.execute(mTransactionHandler, token, mPendingActions);
....
}
}1.executeCallbacks
这里拿出了ClientTransaction的callbacks，然后调用callback的execute。
记得在ActivityStackSupervisor类的realStartActivityLocked方法中
clientTransaction.addCallback(LaunchActivityItem.obtain(new Intent(r.intent),.....);
我们回去看一下LaunchActivityItem的obtain
frameworks\base\core\java\android\app\servertransaction\LaunchActivityItem.java：
public static LaunchActivityItem obtain(Intent intent, int ident, ActivityInfo info,
Configuration curConfig, Configuration overrideConfig, CompatibilityInfo compatInfo,
String referrer, IVoiceInteractor voiceInteractor, int procState, Bundle state,
PersistableBundle persistentState, List<ResultInfo> pendingResults,
List<ReferrerIntent> pendingNewIntents, boolean isForward, ProfilerInfo profilerInfo,
IBinder assistToken) {
LaunchActivityItem instance = ObjectPool.obtain(LaunchActivityItem.class);
if (instance == null) {
instance = new LaunchActivityItem();
}
setValues(instance, intent, ident, info, curConfig, overrideConfig, compatInfo, referrer,
voiceInteractor, procState, state, persistentState, pendingResults,
pendingNewIntents, isForward, profilerInfo, assistToken);
return instance;
}接下来看LaunchActivityItem的execute
public void execute(ClientTransactionHandler client, IBinder token,
PendingTransactionActions pendingActions) {
Trace.traceBegin(TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
ActivityClientRecord r = new ActivityClientRecord(token, mIntent, mIdent, mInfo,
mOverrideConfig, mCompatInfo, mReferrer, mVoiceInteractor, mState, mPersistentState,
mPendingResults, mPendingNewIntents, mIsForward,
mProfilerInfo, client, mAssistToken);
client.handleLaunchActivity(r, pendingActions, null /* customIntent */);
Trace.traceEnd(TRACE_TAG_ACTIVITY_MANAGER);
}这里的client是ActivityThread
public Activity handleLaunchActivity(ActivityClientRecord r,
PendingTransactionActions pendingActions, Intent customIntent) {
....
final Activity a = performLaunchActivity(r, customIntent);
if (a != null) {
....
} else {
// If there was an error, for any reason, tell the activity manager to stop us.
try {
ActivityTaskManager.getService()
.finishActivity(r.token, Activity.RESULT_CANCELED, null,
Activity.DONT_FINISH_TASK_WITH_ACTIVITY);
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
}
return a;
}2.executeLifecycleState
private void executeLifecycleState(ClientTransaction transaction) {
final ActivityLifecycleItem lifecycleItem = transaction.getLifecycleStateRequest();
....
lifecycleItem.execute(mTransactionHandler, token, mPendingActions);
}想知道这里的lifecycleItem是啥，同样需要回到realStartActivityLocked方法中
final ActivityLifecycleItem lifecycleItem;
if (andResume) {
lifecycleItem = ResumeActivityItem.obtain(dc.isNextTransitionForward());
} else {
lifecycleItem = PauseActivityItem.obtain();
}
如果start的activity在栈顶，andResume为true。
frameworks\base\core\java\android\app\servertransaction\ResumeActivityItem.java：
public void execute(ClientTransactionHandler client, IBinder token,
PendingTransactionActions pendingActions) {
client.handleResumeActivity(token, true /* finalStateRequest */, mIsForward,
"RESUME_ACTIVITY");
}
frameworks\base\core\java\android\app\servertransaction\PauseActivityItem.java：
public void execute(ClientTransactionHandler client, IBinder token,
PendingTransactionActions pendingActions) {
Trace.traceBegin(TRACE_TAG_ACTIVITY_MANAGER, "activityPause");
client.handlePauseActivity(token, mFinished, mUserLeaving, mConfigChanges, pendingActions,
"PAUSE_ACTIVITY_ITEM");
Trace.traceEnd(TRACE_TAG_ACTIVITY_MANAGER);
}跟LaunchActivityItem类的execute调用ActivityThread的handleLaunchActivity方法一样，XXActivityItem就是去调用ActivityThread对应的handleXXActivity方法。
总结下来就是ActivityStackSupervisor处理启动activity请求会把该请求封装成一个ClientTransaction，然后执行Activity对应操作时就向ClientTransaction添加对应的XXActivityItem。而ActivityThread是ClientTransaction的处理者，继承了ClientTransactionHandler，根据XXActivityItem调用handleXXActivity，去执行activity的启动、onResume等生命周期活动。
流程：
扫一扫
524
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
